BLDC Brushless Vibration Motor Used For B8 Smart Social Distance Bracelets1

Small Brushless Vibration Motor Coin Style Mini Vibrating Motor TSL-WS0825 Using In Bracelets

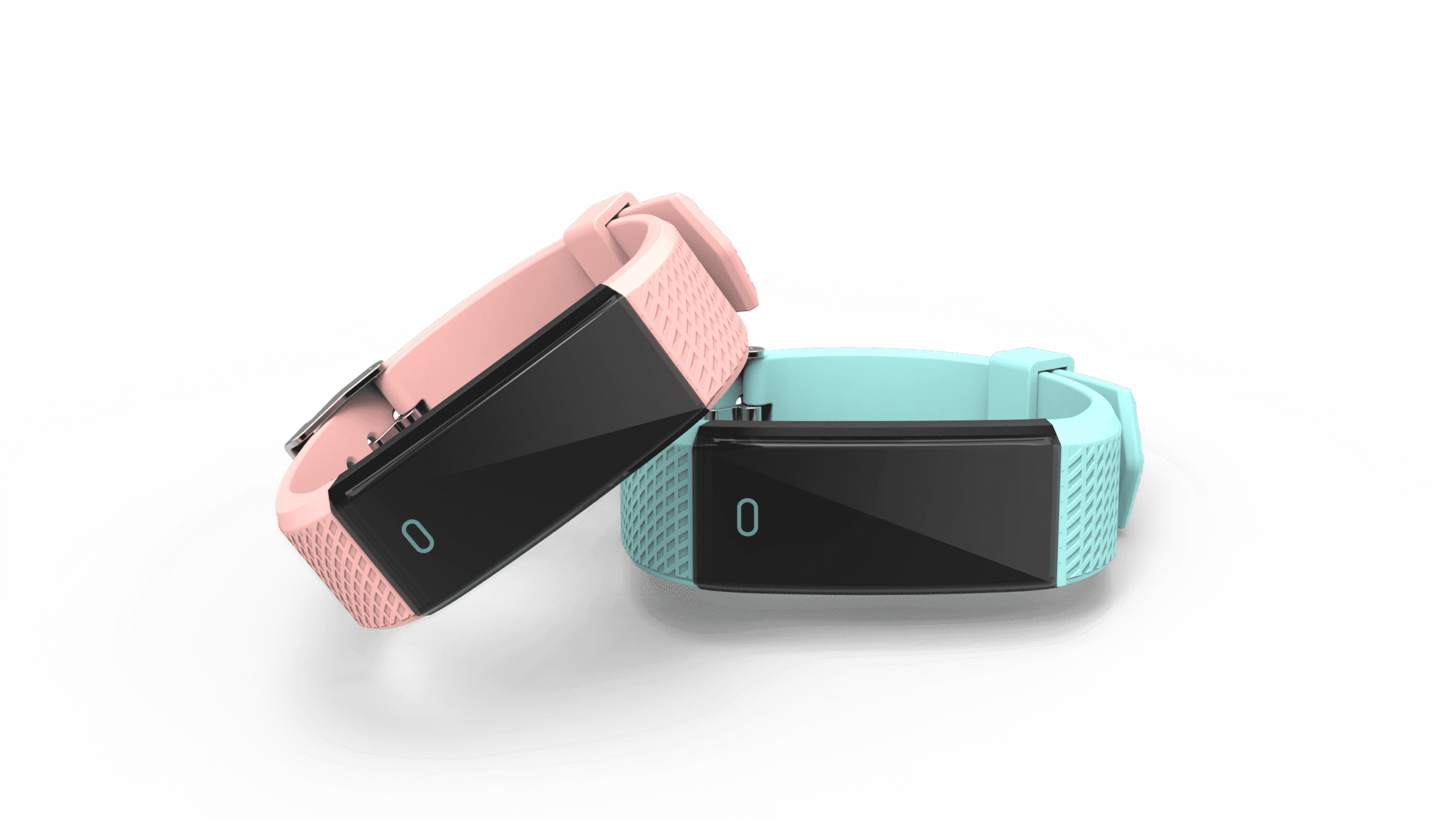

BLDC Brushless Vibration Motor Used For B8 Smart Social Distance Bracelets

Stay away and make this world safer
B8 is a wristband for social distance that comes that comes with BLE5.0 as well as a vibration motor and 3 axis accelerometer. By using the vibration feedback of the brushless vibration motor model TSL-WS0825 the 0825 series micro vibration motors have a strong vibration, large size and long-lasting life. A warning message is sent in order to remind employees to keep a an appropriate distance from the workplace during an outbreak. It is also utilized to track hospital patients and monitor school students.

Brushless Vibration Motor BLDC Has Following Features:

1.Vibration/LED Alert(Use Bluetooth signal strength to detect and notify of the distance between people and their temperature, allowing you to warn users when they are close to one another. Temperature and contacts can be seen in the app.)

2.Contact tracking (Tracking the more than 20.000 of your close contacts that have been near to you over the past two weeks. It also allows you to save long-term contacts with tags. )

3.COVID-19 Monitoring Wristband.

4.IP67 water and dust-resistant.

5.BlE5.0 Technology.

6.SDK service assistance.

Brushless Vibration Motor 3V BLDC Specification

Motor Model TSL-WS0825
Rated Voltage 3V DC
Motor Diameter 8mm ± 0.05mm
Motor Thickness 2.5mm ± 0.1mm
Rated Current 80mA max
Rated Speed 15,000 ± 3,000rpm
Start Voltage 2.5V max
Noise ≤ 50dB
Amplitude 1.0G+
About More Click
