Brushless Vibration Motor

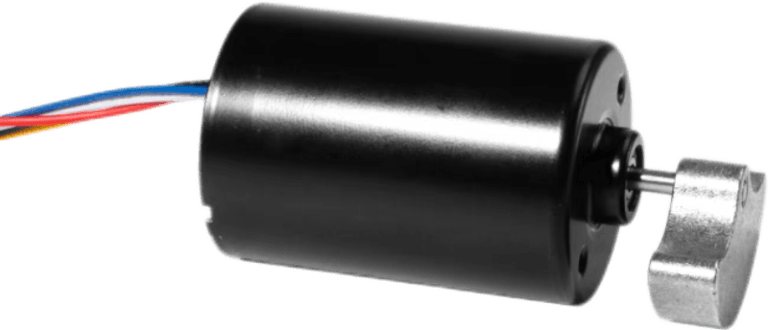

Brushless motors provide a long-lasting vibration technology solution, utilizing eccentric rotating mass (ERM) in brushless DC vibration motors. BLDC motors are typically categorized into brushless coin motors and larger brushless cylinder motors based on their shape.

As a leading DC brushless vibration motor supplier in China, TSL Motors offers brushless coin motors and larger brushless cylinder motors The smallest BLDC motor we manufacture measures just 5mm x 2.5mm, with customizable wire lengths and optional JST or Molex terminals.

We are committed to continually improving and refining our brushless motor designs to stay ahead of industry trends and meet the evolving needs of our customers.

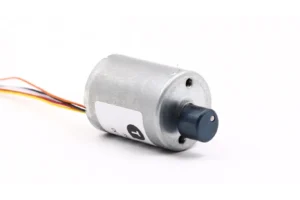

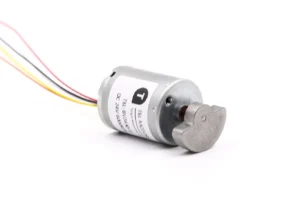

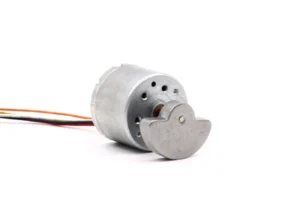

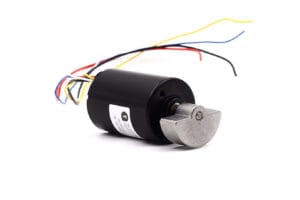

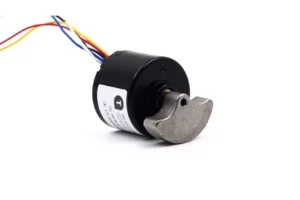

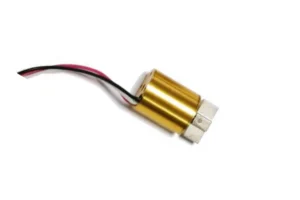

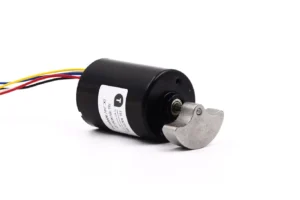

Explore Our Brushless Vibration Motor

The Technologies Of Brushless Vibration Motors

Brushless Coin Motor

The key feature of a mini brushless motor is the absence of brushes, which eliminates brush wear. This contributes to the motor’s higher efficiency, longer lifespan, and quieter operation.

The coin brushless motor includes a stator assembly, rotor assembly, and upper and lower shells. The smallest coin brushless motor we currently offer has a diameter of just 5 mm, making it ideal for lightweight wearables like smart rings and thin watches. A brushless DC motor lasts 5 to 10 times longer than a typical coin vibrator. They are more expensive due to the embedded IC used to drive the motor.

Brushless coin motors operate on DC voltage. It is important to avoid driving them in reverse, as this can damage the driver IC. To connect the motor, the positive voltage should be attached to the red (+) lead, and the negative voltage to the black (-) lead.

How Can You Operate A Brushless Coin Vibration Motor?

Power Supply

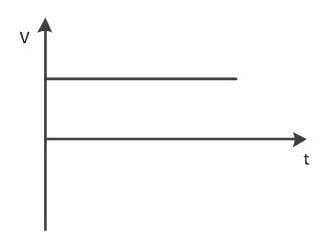

To drive a brushless coin vibration motor (BLDC coin motor), it operates directly under a DC power supply. Similar to regular brushed motors, these BLDC motors are powered by DC voltage.

Control Signal

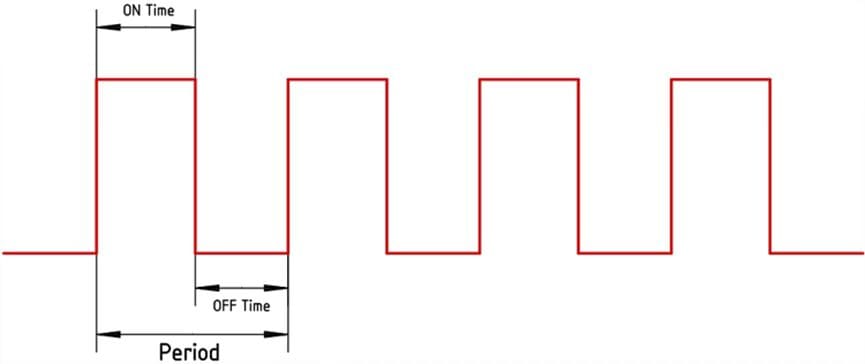

The motor’s speed and vibration intensity can be controlled using PWM signals (Pulse Width Modulation). The user can adjust the vibration force and speed by varying the PWM duty cycle to achieve the desired vibration effect.

Polarity Check

It is crucial to ensure proper polarity when applying the power supply, as reversing the polarity can damage the motor’s internal drive IC. Unlike traditional motors, these brushless motors cannot be driven in reverse.

Vibration Motor Customization

We specialize in redesigning and tailoring vibration motors to meet the unique needs of our customers. The interactive graphic below highlights some common customizations we offer for brushed DC vibration motors. We also apply similar modifications to other technologies, including brushless, LRA, solenoid, and piezo motors.

Eccentric Mass

Modification

Modify the size, material, shape, and quantity of the eccentric mass(es) to optimize the vibration frequency and amplitude for the desired performance range.

Brushed Or

Brushless

While long-life brushes come at a higher cost, they remain more affordable compared to adopting brushless technology.a

Lead And Connector

Customization

We offer customized wire sets with a variety of connectors from brands like JST, Hirose, AMP, Molex, AVX, and Kyocera, which can be integrated into any motor we manufacture. Additionally, we can attach PCB “backpacks” to certain motors to reduce local EMI or provide extra circuit functionalities.

Brushes And

Commutator

The brushes and commutator play a crucial role in the performance of any DC motor. The choice of plating type and the method used for the components significantly impact the motor’s lifespan, just as the type of commutator polishing and lubricant applied can also influence its durability.

Bearings And

Lubricants

Our motor designs incorporate a variety of bearings and lubricants, chosen based on the specific application environment. In larger vibration motors, the bearing typically experiences the most wear, primarily due to the centrifugal force generated by the rotation of the eccentric mass. We will provide recommendations to help avoid any issues with the application specifications.

Encapsulation

In certain applications, covering the rotating mass can be beneficial. Additionally, the motor can undergo an extra sealing process to offer enhanced protection against the penetration of fluids.

Why Choose TSL?

We are here to assist you throughout the entire process, from prototype development to large-scale, cost-efficient mass production.

Founded in 2009, TSL Motors has been at the forefront of micro vibration motor design and manufacturing. With ISO 9001, ISO 14001, and ISO 45001 certifications, TSL is committed to delivering high-quality products that meet international standards.

We offer a wide range of motor solutions, including coin vibration motors, coreless DC motors, LRA vibration motors, and mini BLDC motors. Our motors are engineered to be cost-effective, reliable, and customizable, catering to various applications across diverse industries.

At TSL, we strive to provide our valued customers with innovative solutions tailored to their specific needs.

Designing motors and mechanisms for a diverse array of industrial, medical, and consumer applications.

Our skilled sales engineers are adept at quickly grasping your unique requirements and offering tailored services. These custom services encompass motor performance parameters such as rated voltage, speed, and current, along with additional features like connectors, wire lengths, rubber boots, plastic/metal capsules, brackets, and spring contacts.

We provide comprehensive support, including detailed drawings and specifications, throughout the entire process from prototype development to mass production.

Our motor manufacturing process is designed to be flexible, enabling us to accommodate both large-scale production and specialized, high-value custom builds to meet diverse customer needs.

We use in-house designed dynamometers to thoroughly test and validate every sample and production batch, ensuring the highest standards of quality and performance.

TSL Motor is an ISO 9001:2015 certified company, committed to ensuring that each motor meets your precise specifications and performance standards. We have developed a comprehensive after-sales support system, offering prompt responses to customer inquiries and addressing any issues or needs that may arise. Our commitment doesn’t end with delivery—we are here to support you every step of the way.

The Advantages Of Brushless Vibration Motors

Improve Efficiency

Unlike traditional ERM vibration motors, brushless DC motors eliminate the friction caused by brushes, as they don’t rely on mechanical commutation. This reduction in friction leads to lower energy loss and higher efficiency.

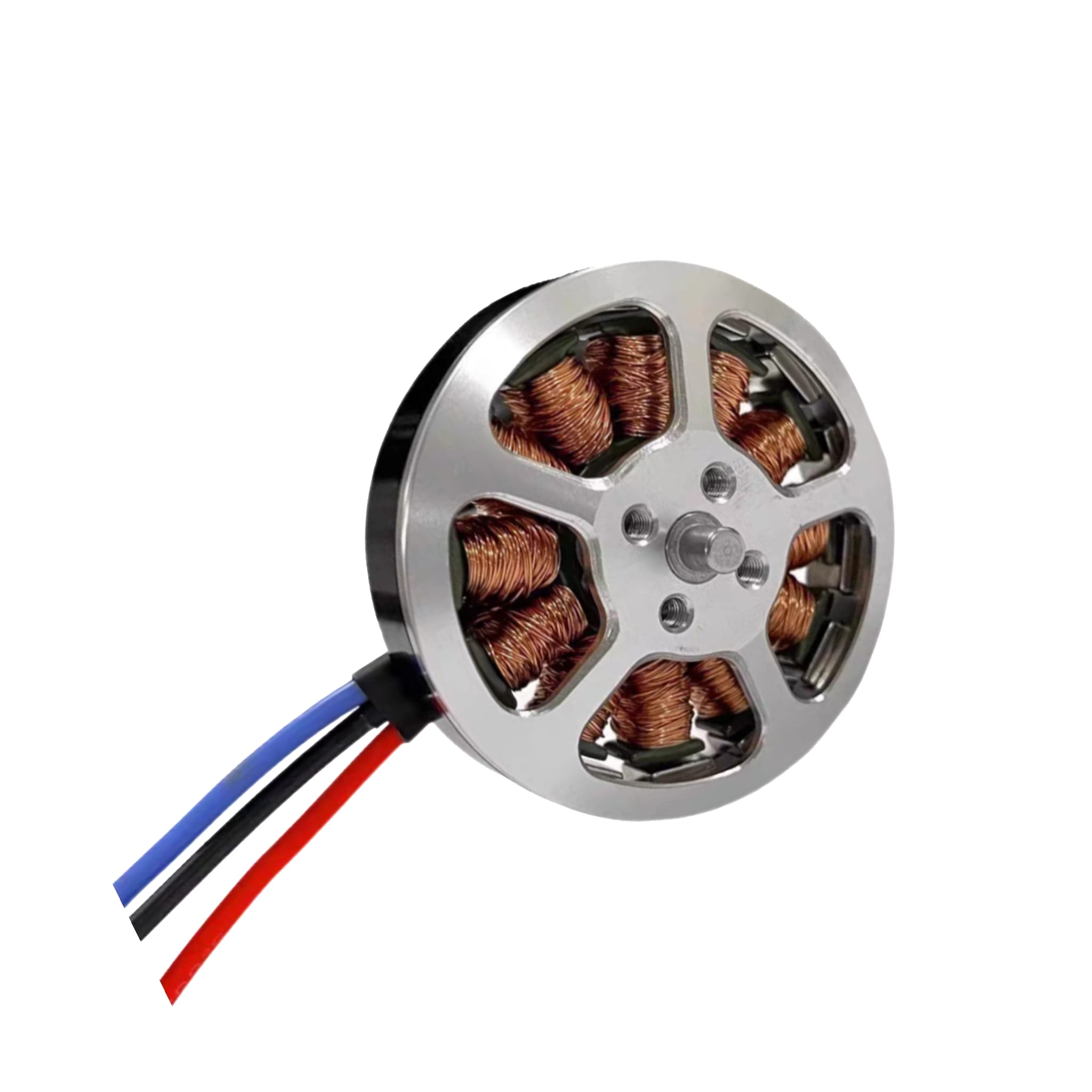

Extended Lifespan

DC brushless vibration motors offer a lifespan that is 5 to 10 times longer than traditional pancake vibration motors.

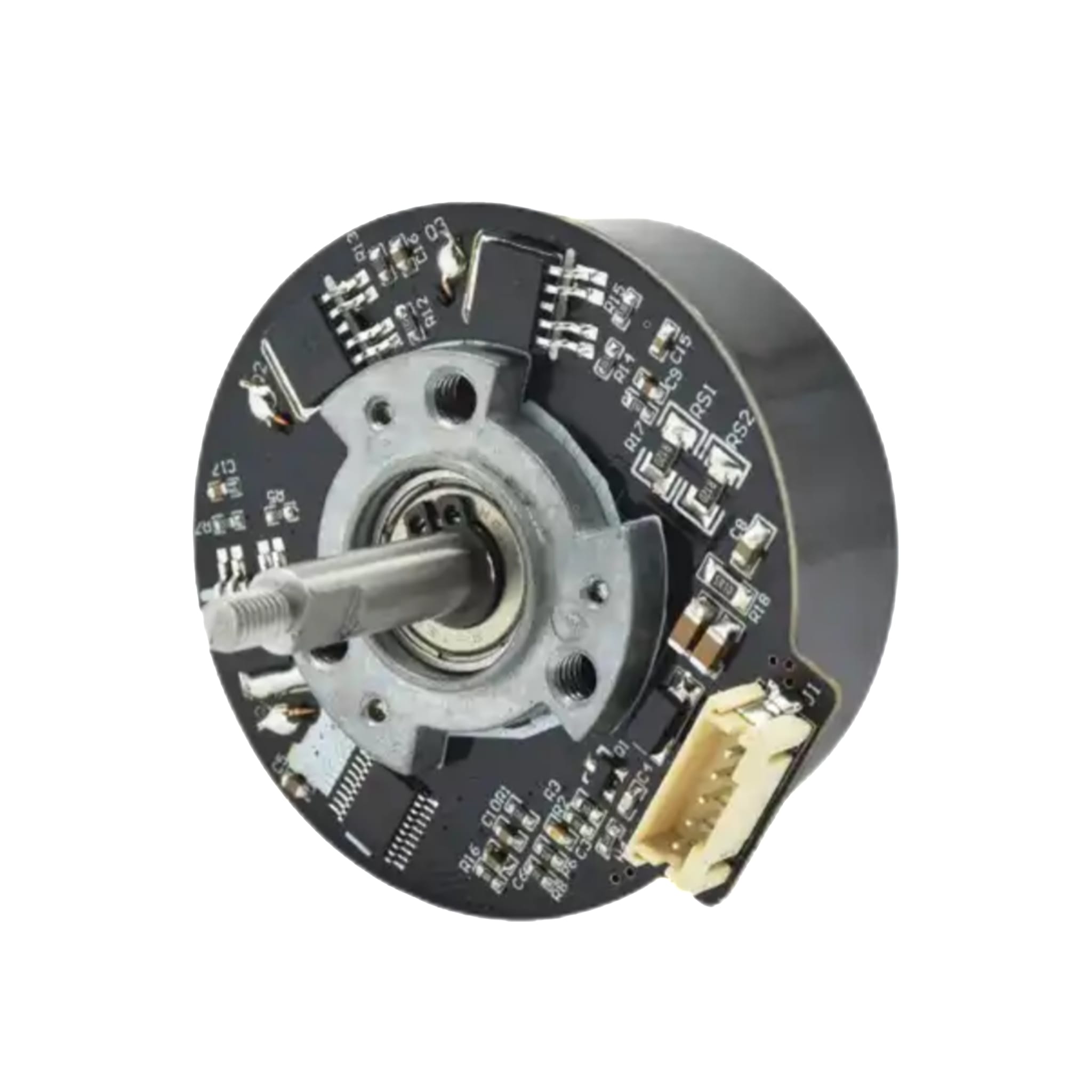

Consistent Performance

With an integrated IC for motor control, these motors deliver more stable performance, which contributes to their higher cost compared to brushed motors.

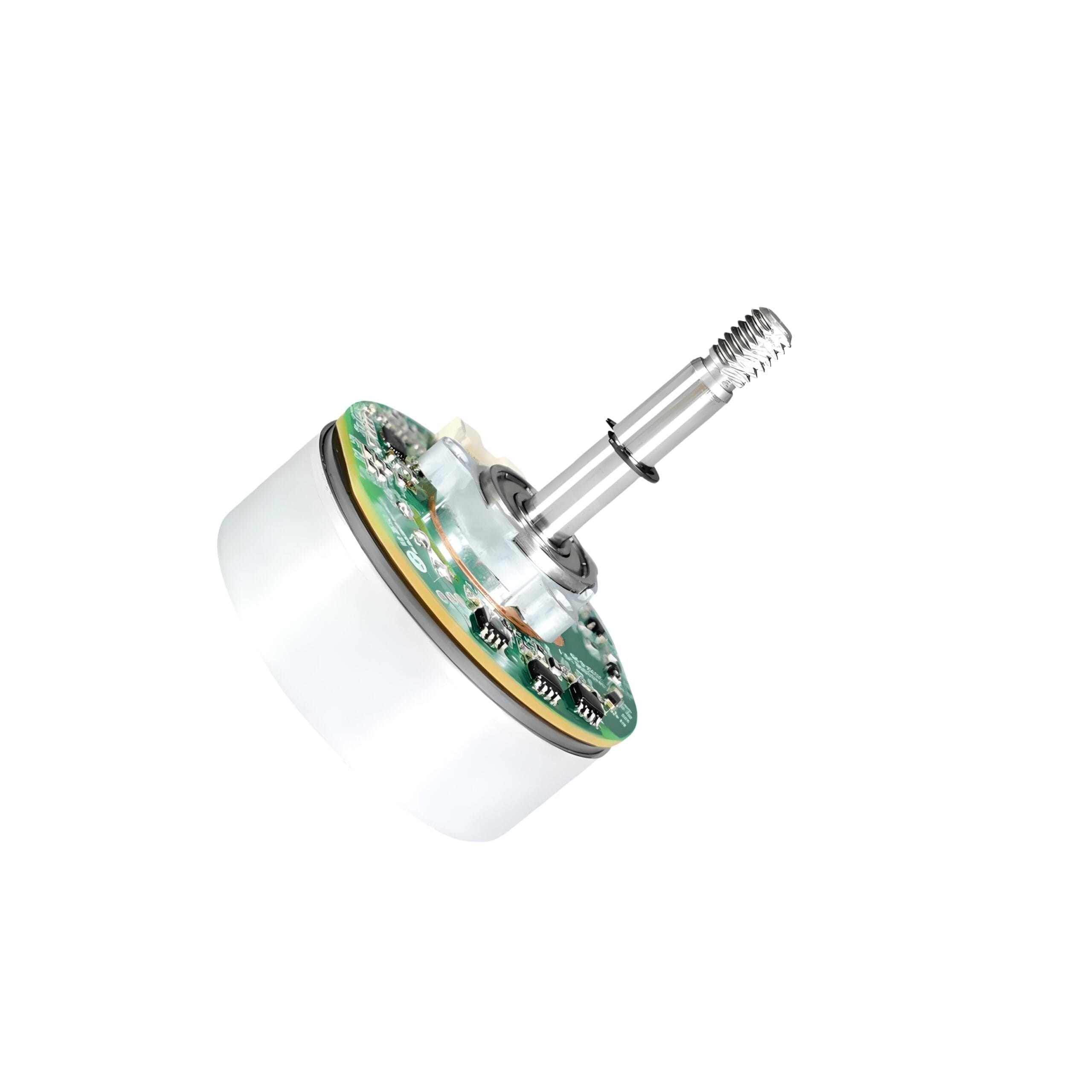

Reduced Maintenance

The absence of brushes eliminates the need for regular maintenance tasks such as cleaning and replacing worn brushes, which can be costly and time-consuming.

FAQ for Brushless Vibration motors

How to operate a BLDC brushless vibration motor?

To operate the BLDC coin motor, simply provide a DC voltage to the motor, and it will start vibrating. It’s important to remember that the integrated drive of the brushless motor cannot be driven in reverse, as this could damage the drive IC. Connect the motor leads with the red (+) lead to the positive voltage and the black (-) lead to the negative voltage.

What distinguishes a brushless coin vibration motor from a regular coin vibration motor?

Extended Lifespan: Brushless DC motors last at least 10 times longer than standard coin vibration motors, offering greater durability.
Higher Cost: BLDC coin motors are more expensive due to the embedded IC required to drive the motor.
Compact Size: The smallest BLDC motor available measures just 5mm x 2.5mm, making it ideal for lightweight wearable devices like smart rings, slim watches, and other portable electronics.
Brushless coin vibration motors are especially suitable for high-reliability applications, including medical devices.
