Yes, our 6mm metal gear motors are energy-efficient and consume very little power, making them perfect for battery-operated devices.

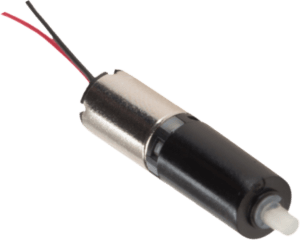

6mm Planetary Gear Motor

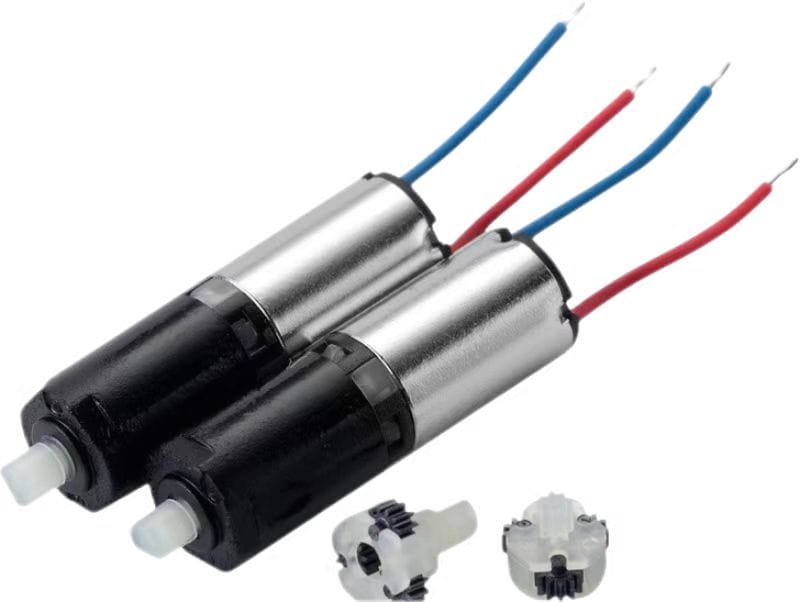

TSL Motors is a pioneering manufacturer of gear motors, specializing in the development of ultra-compact planetary gear motors—commonly referred to as Nano planetary DC gear motors. Our 6mm series stands out for delivering powerful torque in a miniature form, making them ideal for space-constrained applications.
The 6mm planetary gear motor, built with plastic gears, offers a load capacity up to 600–700 times greater than that of comparable 6mm coreless brushed motors. Whether you’re creating high-precision electronics, smart home solutions, or industrial actuators that demand high torque and low speed in a compact design, we offer fully customizable planetary DC motors to meet your unique requirements. Get in touch with us to tailor a solution for your project.

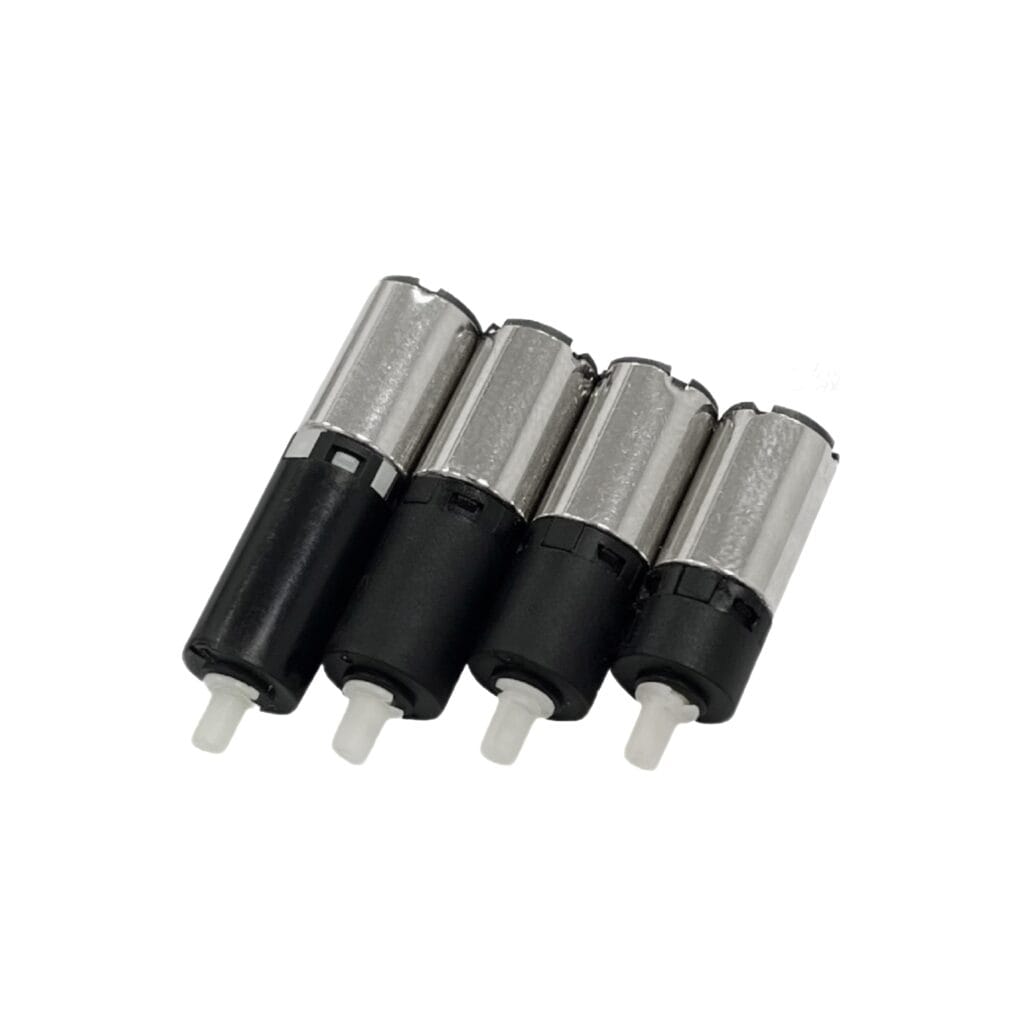

Explore Our All of 6mm Planetary Gear Motor

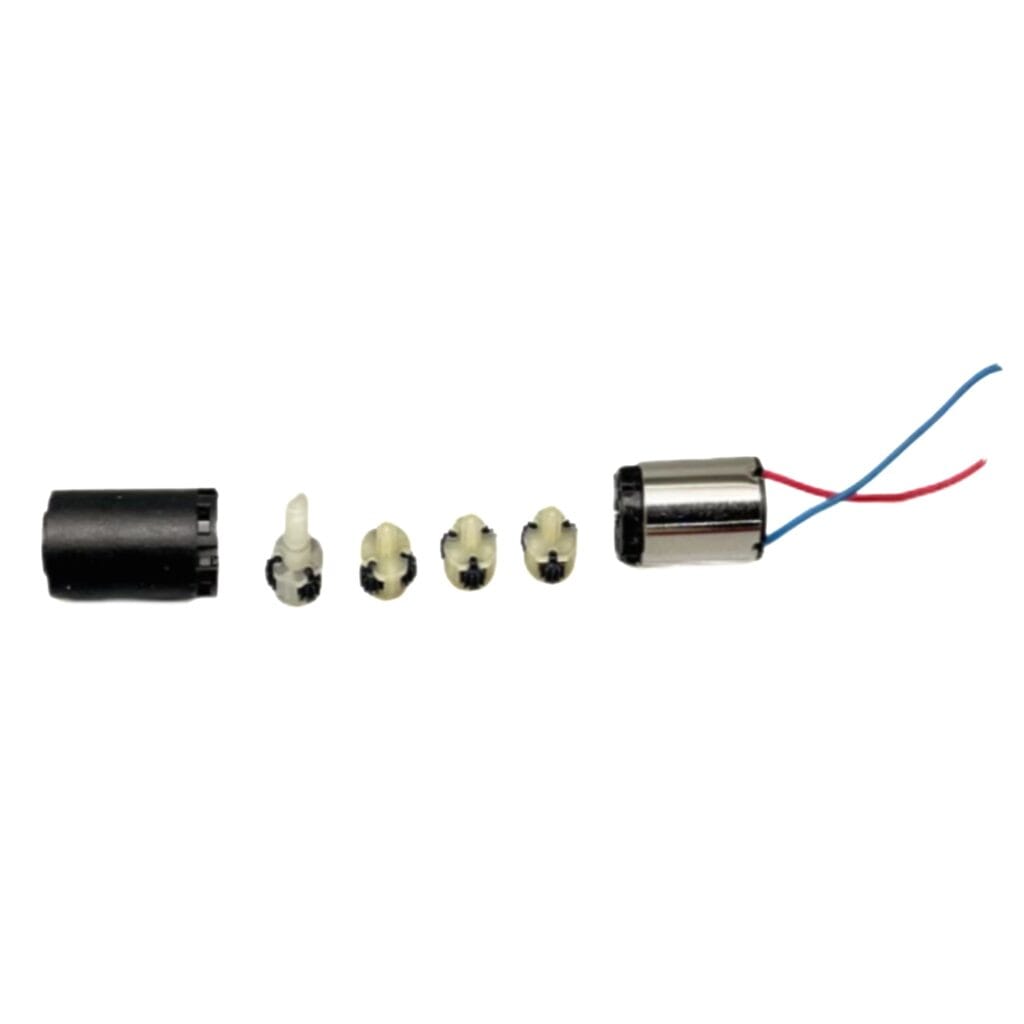

The Technology Of 6mm Planetary Gear Motor
Key components of a planetary gear motor include the sun gear, planet gears, ring gear, planet carrier, and the driving motor. This design is akin to the orbital movement of planets around the sun in our solar system. In the gear train, three or more “planet” gears rotate around the sun gear, with the sun gear acting as the central drive element. When a gear motor is built using this arrangement, it is referred to as a DC planetary gear motor.
These miniature DC reduction motors are composed of two main components: a 6mm diameter coreless motor and a 6mm plastic gearhead. The gears, and entire reduction mechanism are made from liquid crystal polymers (LCPs), commonly referred to as plastic gear motors. However, the output shaft can be made of either plastic or metal. By pairing four different reduction boxes with four types of 6mm coreless motors, we can create a total of four distinct reduction motor series.

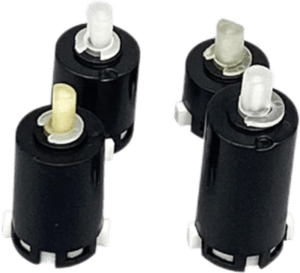

6mm Plastic Planetary Gear Head Options
Our standard planetary gear head features a D-shaped plastic output shaft with a diameter of 2 mm, which is flattened by 0.5 mm along a section. The “D” portion of the shaft measures 2.5 mm in length. The length of the miniature planetary gearbox varies depending on the gear ratio.
Additionally, we offer wire length customization and can provide various terminal types based on customer requirements, including options like JST, Molex, and others.
6mm Planetary Gear Motor Operating Environment
Operating Voltage：
2.1V - 3.6V
These motors are typically rated for 3.0V DC and function within a voltage range of 2.1V DC to 3.6V DC. If your application requires a lower starting voltage, we can adjust the motor’s starting voltage range to 0.8-1.2V DC.
Using voltages lower than the recommended range may result in improper operation, while higher voltages could shorten the lifespan of the 6mm gear motor. The output speed of this gear motor series ranges from 6420 rpm to 40 rpm, with an output current of 60mA and torque varying from 5g·cm to 200g·cm. If the motor experiences stalling or overload, the motor’s windings and brushes may be damaged within seconds.
Instantaneous Torque：
≤ 250g·cm
For these nylon gear transmissions, the peak instantaneous torque should not exceed 250g·cm. We highly recommend ensuring that application loads stay within this limit.
The motor’s optimal operating conditions, including free-running speed, stall torque, and stall current, are achieved when operating at a 3.0V DC voltage.
Why Choose TSL?
We are here to assist you throughout the entire process, from prototype development to large-scale, cost-efficient mass production.
Founded in 2009, TSL Motors has been at the forefront of micro DC motor design and manufacturing. With ISO 9001, ISO 14001, and ISO 45001 certifications, TSL is committed to delivering high-quality products that meet international standards.
We offer a wide range of motor solutions, including coin vibration motors,ERM vibration motor, coreless DC motors, Stepper DC Motors,LRA vibration motors, BLDC motors,Brushed DC Motors,Planetary Gear Motors,Spur Gear Motors ,Worm Gear Motor,etc. Our motors are engineered to be cost-effective, reliable, and customizable, catering to various applications across diverse industries.
At TSL, we strive to provide our valued customers with innovative solutions tailored to their specific needs.
Designing motors and mechanisms for a diverse array of industrial, medical, and consumer applications.
Our skilled sales engineers are adept at quickly grasping your unique requirements and offering tailored services. These custom services encompass motor performance parameters such as rated voltage, speed, and current, along with additional features like connectors, wire lengths, rubber boots, plastic/metal capsules, brackets, and spring contacts.
We provide comprehensive support, including detailed drawings and specifications, throughout the entire process from prototype development to mass production.
Our motor manufacturing process is designed to be flexible, enabling us to accommodate both large-scale production and specialized, high-value custom builds to meet diverse customer needs.
We use in-house designed dynamometers to thoroughly test and validate every sample and production batch, ensuring the highest standards of quality and performance.
TSL Motor is an ISO 9001:2015 certified company, committed to ensuring that each motor meets your precise specifications and performance standards. We have developed a comprehensive after-sales support system, offering prompt responses to customer inquiries and addressing any issues or needs that may arise. Our commitment doesn’t end with delivery—we are here to support you every step of the way.
Advantages of 6mm Planetary Gear Motors
Compact and Lightweight
The 6mm planetary gear motor features a 6mm coreless motor with a neodymium rare-earth magnet and a planetary gearbox. Weighing just 1.25 grams, it is compact and lightweight. This motor is highly versatile, perfect for tight spaces in applications like electronic locks, drones, and medical devices.
Enhanced Load Capacity
Our Nano Planetary Gearboxes are designed with multiple gears that distribute loads evenly. This ensures consistent performance, even under changing conditions.
Superior Precision
Our 6mm motors are produced in high volumes, ensuring top-tier precision. Made from injection-molded plastic, the Nano planetary gear motors meet stringent quality standards, providing reliable and accurate operation.
Versatile Applications
Thanks to their compact size, high torque, and precision, these low-speed, high-torque electric motors are used in various fields. From medical devices and tiny robots to consumer electronics and small appliances, their ability to make precise adjustments improves functionality in many areas.
FAQ for 6mm Planetary Gear Motor
What is the operating voltage and starting voltage of these reduction motors?
These reduction motors operate at 3V DC, with a maximum starting voltage of 1.8V DC.
Can these motors be customized to my specifications?
Yes, we offer customization for these motors. Services include adjusting the output shaft design, gear reduction ratio, output speed, stall torque, and adding connectors or encoders. Share your design ideas and basic parameters with us, and we can sign a confidentiality agreement before creating samples if needed.
Are 6mm planetary gear motors suitable for battery-powered devices?
