The N10 motor is smaller and lighter compared to the N20 motor. Both are DC gear motors. Additionally, torque and stall current are closely related in these motors, meaning that increasing torque demands will also increase current proportionally.

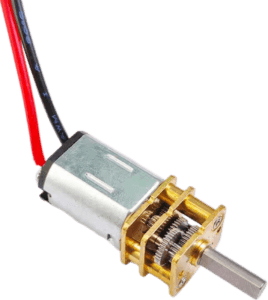

N20 Gear Motor
“N20” refers to the physical dimensions of the N20 motor, typically measuring 15mm x 12mm x 10mm (length x width x height). These compact motors are well-suited for applications that demand high performance in confined spaces.

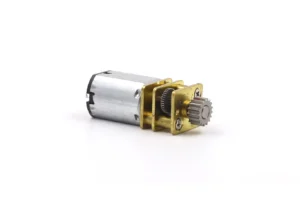

The N20 gear motor is a compact direct current (DC) motor, and the term “N20” indicates its physical size. It usually consists of an N20 motor combined with a spur gear reducer. The gear reducer converts the high speed, low torque output of the N20 motor into low-speed, high-torque output, thus providing greater torque for a wide range of applications.

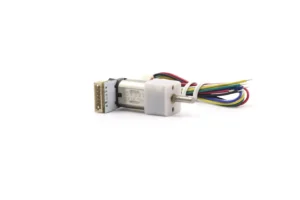

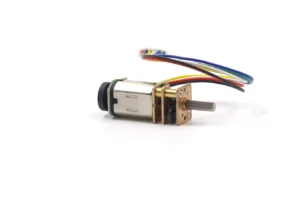

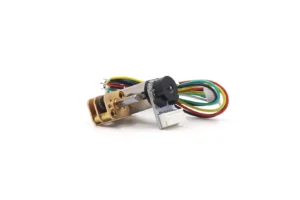

We paired the N20 DC motor with common Spur, Planetary, and Worm gearboxes, creating three types of N20 DC gear motors. Additionally, we can match them with the appropriate N20 motor encoder.
Explore All of Our N20 Gear Motor
Common Gear Motor Designs
Regardless of the chosen gearmotor technology, several standard form factors and design considerations are widely used across different industries. Here are a few examples that can help define your ideal solution.
Exposed Frame
Approximately one-third of our designs feature an exposed structure, mainly when the gearbox frame is square or rectangular in shape.
Sealed Frame
Some gearbox designs are round, which allows for easier coverage of the gears. The primary advantage of this design is that it helps keep debris out.
Fold-Back
If space is limited in length, consider using a fold-back gearbox. Alternatively, a non-concentric offset gearbox shaft could be an option.
Shaft Customizations

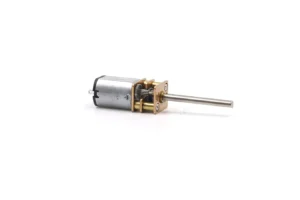

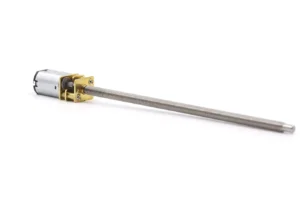

Certain applications require specialized shafts. Options such as extended or shortened shafts, d-cuts, keyway cuts, location holes, and threaded shafts can all be accommodated.
Clutches and Braking Mechanisms
Clutches allow the gearbox to be separated from the application, while mechanical brakes can secure the gearbox shaft in a stationary “park” position.
Advanced Motion Control Systems
While precise movement is often required, motion controllers can also play a crucial role in prolonging the lifespan of gear motors by optimizing their operation.
Why Choose TSL?
We are here to assist you throughout the entire process, from prototype development to large-scale, cost-efficient mass production.
Founded in 2009, TSL Motors has been at the forefront of micro DC motor design and manufacturing. With ISO 9001, ISO 14001, and ISO 45001 certifications, TSL is committed to delivering high-quality products that meet international standards.
We offer a wide range of motor solutions, including coin vibration motors,ERM vibration motor, coreless DC motors, Stepper DC Motors,LRA vibration motors, BLDC motors,Brushed DC Motors,Planetary Gear Motors,Spur Gear Motors ,Worm Gear Motor,etc. Our motors are engineered to be cost-effective, reliable, and customizable, catering to various applications across diverse industries.
At TSL, we strive to provide our valued customers with innovative solutions tailored to their specific needs.
Designing motors and mechanisms for a diverse array of industrial, medical, and consumer applications.
Our skilled sales engineers are adept at quickly grasping your unique requirements and offering tailored services. These custom services encompass motor performance parameters such as rated voltage, speed, and current, along with additional features like connectors, wire lengths, rubber boots, plastic/metal capsules, brackets, and spring contacts.
We provide comprehensive support, including detailed drawings and specifications, throughout the entire process from prototype development to mass production.
Our motor manufacturing process is designed to be flexible, enabling us to accommodate both large-scale production and specialized, high-value custom builds to meet diverse customer needs.
We use in-house designed dynamometers to thoroughly test and validate every sample and production batch, ensuring the highest standards of quality and performance.
TSL Motor is an ISO 9001:2015 certified company, committed to ensuring that each motor meets your precise specifications and performance standards. We have developed a comprehensive after-sales support system, offering prompt responses to customer inquiries and addressing any issues or needs that may arise. Our commitment doesn’t end with delivery—we are here to support you every step of the way.
Applications Of N20 Gear Motors
The N20 gear motor is popular for its compact size, high efficiency, and strong torque output. It is commonly used in a variety of products, including:
Robotics
N20 motors are used in small robotic arms for joint actuation, motion control, and movements of components such as robot eyes and heads.

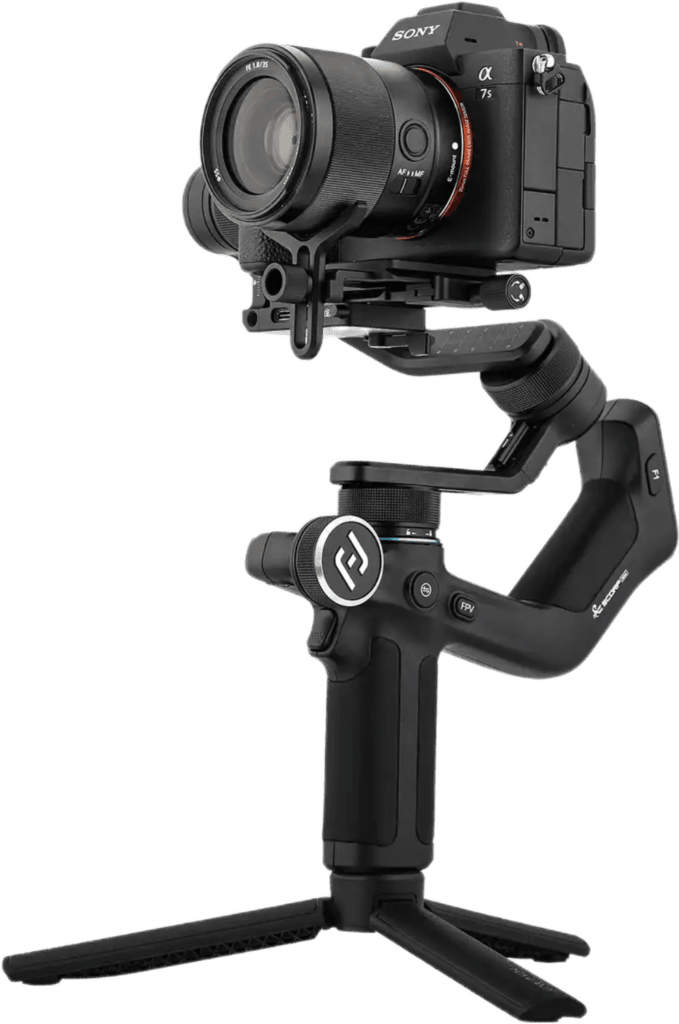

Camera Gimbal
In photography and filming, N20 motors control the rotation and tilt of camera gimbals, providing smooth and stable camera movements.

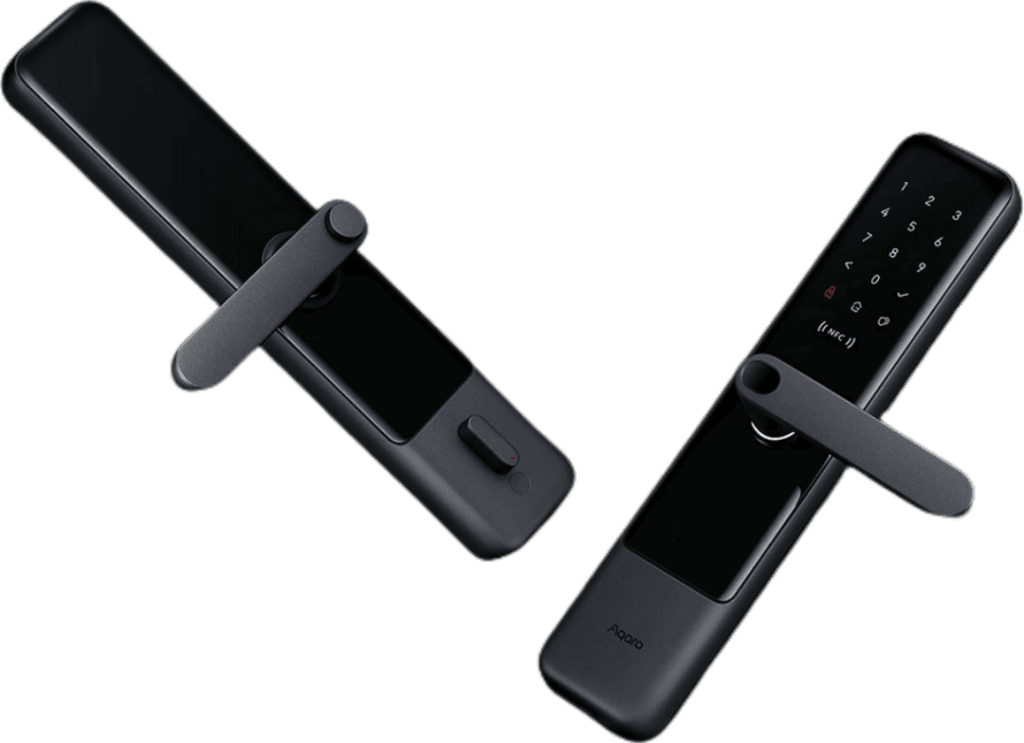

Smart Home Devices
N20 motors are used in smart home products to control the movement and positioning of items like smart curtains, door locks, and automatic doors.

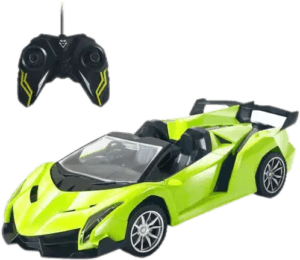

Model Making
N20 motors are commonly used in model airplanes, cars, boats, and other projects, offering power and motion control.
FAQ for Planetary Gear Motor
What is the Use of N20 Gear Motor?
The N20 motor is ideal for compact IIOT (Industrial Internet of Things) applications, including electric locks, webcam panning mechanisms, and other actuator products that need high torque in a small, lightweight design.
What Size is the N20 Gearmotor?
The N20 DC motor measures 15 x 12 x 10 mm. Depending on the speed ratio, the gearbox length can be either 9mm or 11mm. The N20 gearmotor is available in different sizes, with customizable shaft lengths and shapes to meet specific requirements.
What Is the Difference Between N20 and N10 Gear Motors?
