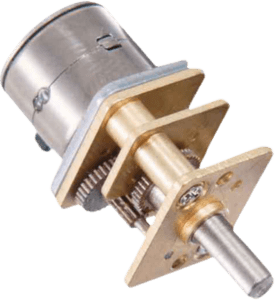

Stepper Gear Motor
Stepper motors, also called step or stepping motors, are valued for their accurate positioning and high torque at low speeds. However, it’s crucial to match their size to the load and application to prevent issues like stepping errors or motor stalling. Adding a gearbox to the system enhances motor performance. It reduces the load-to-motor inertia ratio, boosts load torque, and minimizes motor oscillations.

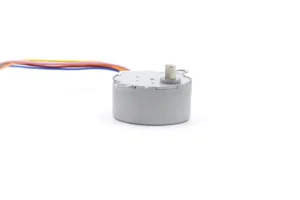

When classifying stepper gear motors by their gearboxes, planetary gearbox stepper motors are the most common. You can find examples of 1.5-12V geared stepper motors in various applications.
TSL MOTOR designs stepper gear motors with flexibility, allowing customization to suit any equipment need. They offer a range of standard models, including versions with gearboxes and encoders.

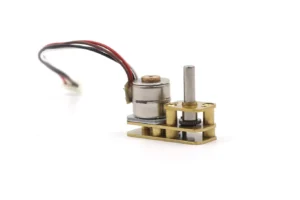

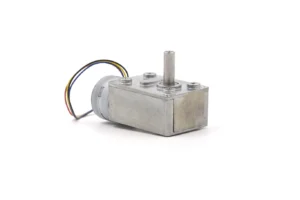

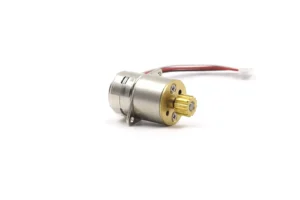

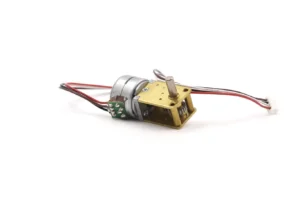

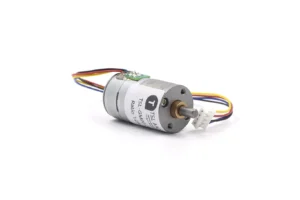

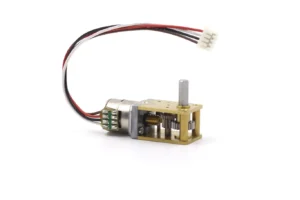

Explore All of Our Stepper Gear Motor

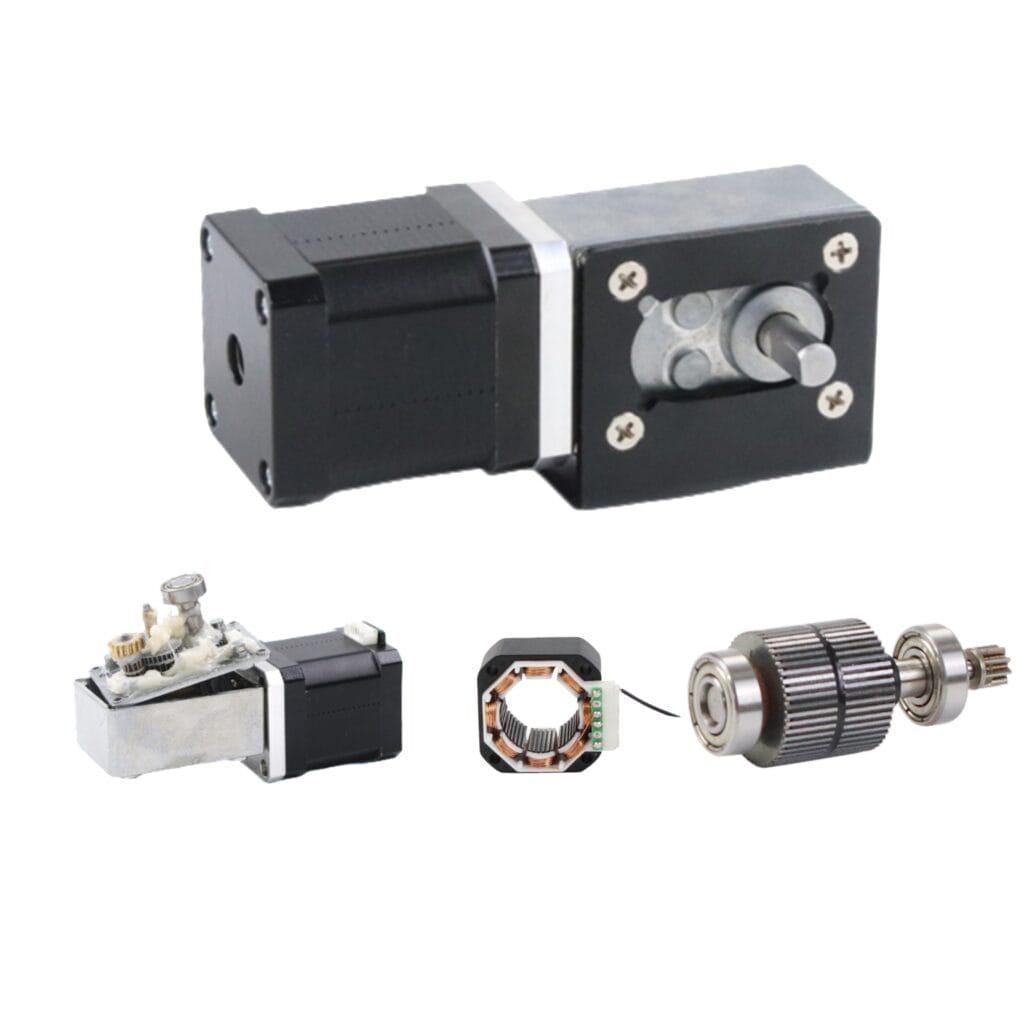

The Technology Of Stepper Gear Motor

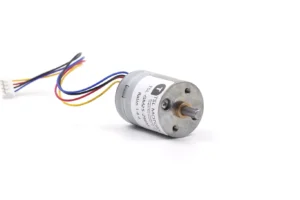

A stepper motor with a gearbox turns electrical pulses into controlled rotation. It’s ideal for tasks that need high precision and repeatability, such as robotic arms, CNC machines, 3D printers, and automated systems.
The motor has two main parts: the rotor, which spins with each pulse, and the stator, which holds the coils that generate a magnetic field. A gearbox connects to the motor to reduce speed and boost torque.
There are two common gearbox types: planetary and spur. Planetary gearboxes use several gears arranged around a central gear. Spur gearboxes usually have two gears—one large and one small. Planetary designs increase torque and reduce speed. Spur types mainly slow down the output speed.
Gearboxes also help cut down motor noise. This makes them a better fit for quieter environments.
Common Gear Motor Designs
Regardless of the chosen gearmotor technology, several standard form factors and design considerations are widely used across different industries. Here are a few examples that can help define your ideal solution.
Exposed Frame
Approximately one-third of our designs feature an exposed structure, mainly when the gearbox frame is square or rectangular in shape.
Sealed Frame
Some gearbox designs are round, which allows for easier coverage of the gears. The primary advantage of this design is that it helps keep debris out.
Fold-Back
If space is limited in length, consider using a fold-back gearbox. Alternatively, a non-concentric offset gearbox shaft could be an option.
Shaft Customizations
Certain applications require specialized shafts. Options such as extended or shortened shafts, d-cuts, keyway cuts, location holes, and threaded shafts can all be accommodated.
Clutches and Braking Mechanisms
Clutches allow the gearbox to be separated from the application, while mechanical brakes can secure the gearbox shaft in a stationary “park” position.
Advanced Motion Control Systems
While precise movement is often required, motion controllers can also play a crucial role in prolonging the lifespan of gear motors by optimizing their operation.
Why Choose TSL?
We are here to assist you throughout the entire process, from prototype development to large-scale, cost-efficient mass production.
Founded in 2009, TSL Motors has been at the forefront of micro DC motor design and manufacturing. With ISO 9001, ISO 14001, and ISO 45001 certifications, TSL is committed to delivering high-quality products that meet international standards.
We offer a wide range of motor solutions, including coin vibration motors,ERM vibration motor, coreless DC motors, Stepper DC Motors,LRA vibration motors, BLDC motors,Brushed DC Motors,Planetary Gear Motors,Spur Gear Motors ,Worm Gear Motor,etc. Our motors are engineered to be cost-effective, reliable, and customizable, catering to various applications across diverse industries.
At TSL, we strive to provide our valued customers with innovative solutions tailored to their specific needs.
Designing motors and mechanisms for a diverse array of industrial, medical, and consumer applications.
Our skilled sales engineers are adept at quickly grasping your unique requirements and offering tailored services. These custom services encompass motor performance parameters such as rated voltage, speed, and current, along with additional features like connectors, wire lengths, rubber boots, plastic/metal capsules, brackets, and spring contacts.
We provide comprehensive support, including detailed drawings and specifications, throughout the entire process from prototype development to mass production.
Our motor manufacturing process is designed to be flexible, enabling us to accommodate both large-scale production and specialized, high-value custom builds to meet diverse customer needs.
We use in-house designed dynamometers to thoroughly test and validate every sample and production batch, ensuring the highest standards of quality and performance.
TSL Motor is an ISO 9001:2015 certified company, committed to ensuring that each motor meets your precise specifications and performance standards. We have developed a comprehensive after-sales support system, offering prompt responses to customer inquiries and addressing any issues or needs that may arise. Our commitment doesn’t end with delivery—we are here to support you every step of the way.
