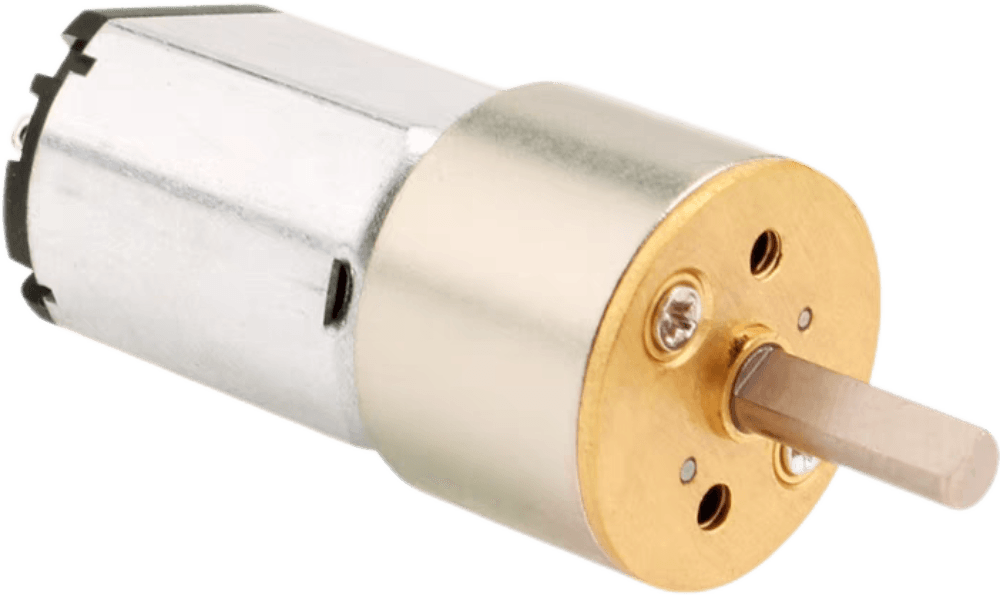

Spur Gear Motor
TSL Motors provides compact and reliable spur gear motors designed for cost-efficient performance. Our motors meet a wide range of application needs with various reduction ratios, voltages, sizes, and precision gear options, including steel or brass gears.
Our spur gear motors come in different designs, such as open-frame, closed-frame, offset, and foldback. They range from 10mm to 42mm in diameter and support voltages from 1V to 24V DC. The load torque ranges from 0.1g cm to 200kg cm, with output speeds between 0.5rpm and 5000rpm. A popular choice is our N20 micro gear motor, known for its efficiency in low torque applications.
We offer options for straight-cut or helical-cut gears, with or without encoders, and the choice between carbon or metal brushes. We also provide custom motor services tailored to your specific needs.
Explore Our All of Spur Gear Motor

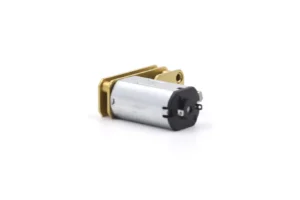

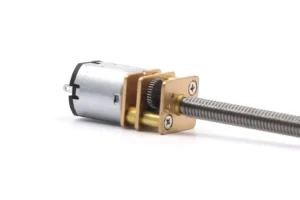

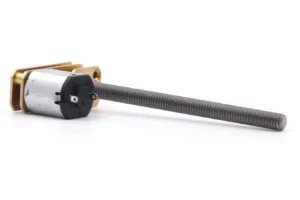

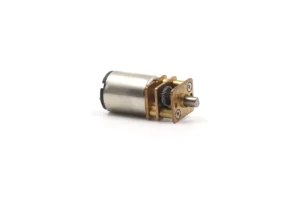

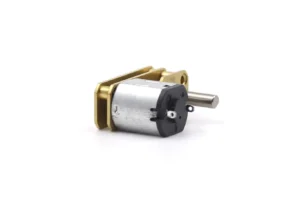

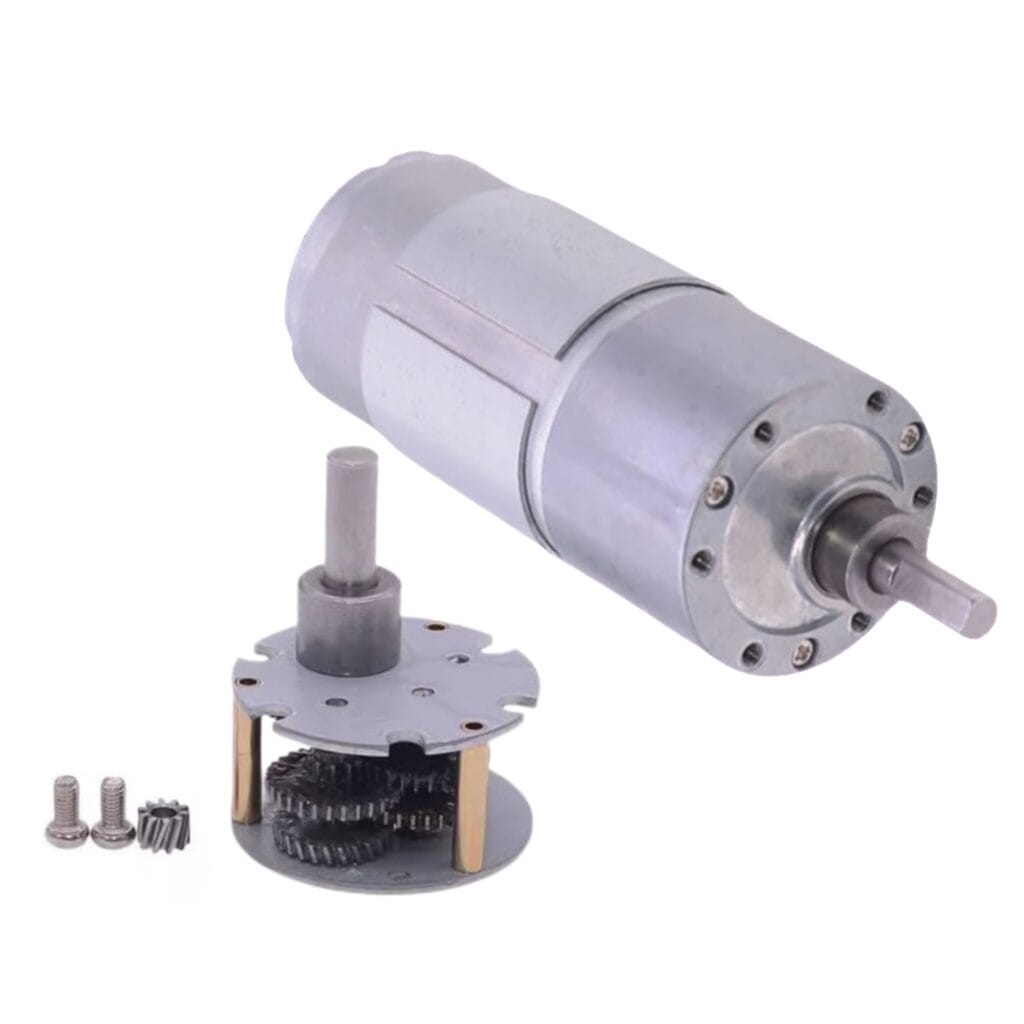

The Technology Of Spur Gear Motor
Straight or spur gears are cylindrical gears with teeth aligned parallel to the axis of rotation. The teeth extend outward, providing efficient power transmission.
These gears do not create axial thrust under tooth loads, making them ideal for moderate speeds. They offer reliable and efficient power transfer. However, at high speeds, spur gears can generate more noise compared to other gear types.

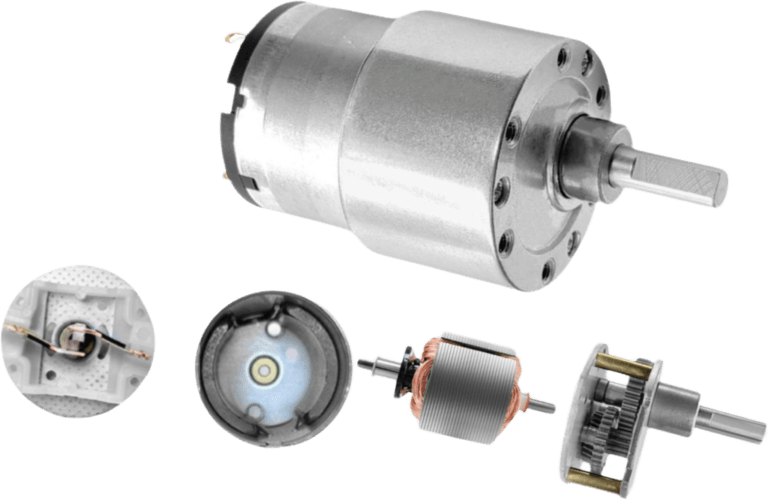

Spur Gear Motors: Structure
Spur gear motors differ from planetary gear motors in that their output shaft is typically eccentric. However, depending on installation needs, manufacturers can modify the shaft to be centered through internal machining.
Spur gear motors have a simple structure, making them more cost-effective than planetary gear motors. The gearhead reduces output speed and increases torque. We use high-quality steel or brass gears for strength and durability. These motors can work with iron core, coreless, and brushless motors.
A spur gear motor is a cylindrical gear motor with several spur gears aligned along parallel axes. The teeth of the gears are parallel to the installation axis, preventing axial thrust. The gears’ profile follows an involute curve, with only one pair of teeth engaging at a time, creating radial forces on the shaft. As a result, all loads are transferred through the single contact point between the gears. Spur gears tend to generate more noise compared to planetary gears due to the higher forces on the teeth. They do not experience sliding losses, making them more efficient in power transmission. Adding extra gear stages can increase the reduction ratio, reducing output speed and increasing torque.
Common Gear Motor Designs
Regardless of the chosen gearmotor technology, several standard form factors and design considerations are widely used across different industries. Here are a few examples that can help define your ideal solution.
Exposed Frame
Approximately one-third of our designs feature an exposed structure, mainly when the gearbox frame is square or rectangular in shape.
Sealed Frame
Some gearbox designs are round, which allows for easier coverage of the gears. The primary advantage of this design is that it helps keep debris out.
Fold-Back
If space is limited in length, consider using a fold-back gearbox. Alternatively, a non-concentric offset gearbox shaft could be an option.
Shaft Customizations
Certain applications require specialized shafts. Options such as extended or shortened shafts, d-cuts, keyway cuts, location holes, and threaded shafts can all be accommodated.
Clutches and Braking Mechanisms
Clutches allow the gearbox to be separated from the application, while mechanical brakes can secure the gearbox shaft in a stationary “park” position.
Advanced Motion Control Systems
While precise movement is often required, motion controllers can also play a crucial role in prolonging the lifespan of gear motors by optimizing their operation.
Why Choose TSL?
We are here to assist you throughout the entire process, from prototype development to large-scale, cost-efficient mass production.
Founded in 2009, TSL Motors has been at the forefront of micro DC motor design and manufacturing. With ISO 9001, ISO 14001, and ISO 45001 certifications, TSL is committed to delivering high-quality products that meet international standards.
We offer a wide range of motor solutions, including coin vibration motors,ERM vibration motor, coreless DC motors, Stepper DC Motors,LRA vibration motors, BLDC motors,Brushed DC Motors,Planetary Gear Motors,Spur Gear Motors ,Worm Gear Motor,etc. Our motors are engineered to be cost-effective, reliable, and customizable, catering to various applications across diverse industries.
At TSL, we strive to provide our valued customers with innovative solutions tailored to their specific needs.
Designing motors and mechanisms for a diverse array of industrial, medical, and consumer applications.
Our skilled sales engineers are adept at quickly grasping your unique requirements and offering tailored services. These custom services encompass motor performance parameters such as rated voltage, speed, and current, along with additional features like connectors, wire lengths, rubber boots, plastic/metal capsules, brackets, and spring contacts.
We provide comprehensive support, including detailed drawings and specifications, throughout the entire process from prototype development to mass production.
Our motor manufacturing process is designed to be flexible, enabling us to accommodate both large-scale production and specialized, high-value custom builds to meet diverse customer needs.
We use in-house designed dynamometers to thoroughly test and validate every sample and production batch, ensuring the highest standards of quality and performance.
TSL Motor is an ISO 9001:2015 certified company, committed to ensuring that each motor meets your precise specifications and performance standards. We have developed a comprehensive after-sales support system, offering prompt responses to customer inquiries and addressing any issues or needs that may arise. Our commitment doesn’t end with delivery—we are here to support you every step of the way.
The Advantages of TSL Spur Gear Motor
Easy Installation
Simple and compact, they are easy to design and install, even in tight spaces.
Constant Speed Drive
These gears adjust the shaft speed while maintaining a steady rate and high accuracy.
Efficient Power Transmission
Spur gear systems transmit power with efficiencies ranging from 95% to 99%, ensuring minimal power loss across multiple gears.
Affordable and Efficient
The simple design enhances manufacturability, reducing both production and purchasing costs.
Proven Reliability
Spur gears are resistant to slipping during operation, and their durability minimizes the chance of early failure.
FAQ About Spur Gear Motors
What is a Spur Gear Motor?
A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.
What is the Spur Gear Speed Ratio?
The spur gear speed ratio can be calculated in two ways:
Using the output speed and rated motor speed (input speed):
Spur gear ratio = Output speed / Input speed.Using the number of teeth on the driving gear and the driven gear:
Spur gear ratio = Number of teeth on driving gear / Number of teeth on driven gear.
What Maintenance is Needed for Electric Gear Motors?
Electric gear motors, or spur gear motors, are low-maintenance. Regular checks for lubrication, wear, and alignment are suggested to maintain peak performance and extend lifespan.
