Inrunner Rotor BLDC Motor
Inrunner Rotor BLDC Motors are widely used in compact, high‑speed, and precision applications. They provide stable performance for tools, robotics, medical devices, and small electric systems. The inrunner structure offers high rotational speed, smooth operation, and excellent balance. It performs efficiently in environments that demand accuracy and quick response.
TSL’s inrunner BLDC motor range covers diameters from 8mm to 42mm. These standard models deliver high efficiency, reliable speed control, and long service life. They support applications from miniature mechanisms to mid‑power industrial systems. For projects requiring unique specifications, we also offer fully customized inrunner motor development.
TSL continues to lead in inrunner BLDC motor innovation and customization. We support new power‑system development and project‑specific motor designs. Our engineering team provides flexible and professional technical support. If you need high‑performance inrunner motors or a custom power solution, TSL is ready to collaborate.
Explore Our Inrunner Rotor BLDC Motors
24mm Brushless DC Motor – 18mm Type Model TSL-BLDC-2418

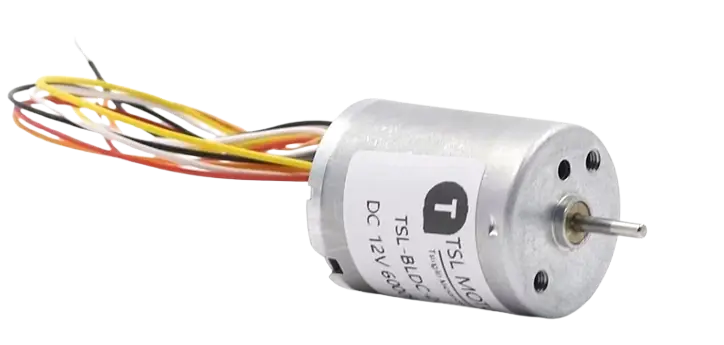

24mm Brushless DC Motor – 30mm Type Model TSL-BLDC-2430
28mm Brushless DC Motor – 38mm Type Model TSL-BLDC-2838
36mm Brushless DC Motor – 25mm Type Model TSL-BLDC-3625
36mm Brushless DC Motor – 50mm Type Model TSL-BLDC-3650
42mm Brushless DC Motor Model TSL-BLDC-4260
The Technology Of Intrunner Rotor BLDC Motors
An inrunner rotor BLDC motor follows the traditional motor layout. The rotor with magnets is positioned at the center and rotates inside the surrounding stator windings. This conventional structure defines its high‑speed characteristics and sets it apart from outrunner motors, which rely on a rotating outer shell.
The smaller magnetic radius enables higher rotational speed and faster dynamic response. The enclosed rotor reduces aerodynamic drag, allowing the motor to reach significantly higher RPM. The fixed outer stator provides structural rigidity and supports precise control, though torque density is generally lower compared to an outrunner design.
Inrunner rotor BLDC motors excel in high‑speed, compact, and precision‑control applications. They are widely used in power tools, medical devices, robotics actuators, micro‑mechanisms, and small electric systems. Their characteristics align well with applications that require fast response, stable speed control, and efficient operation within limited space.
Common DC Motor Designs
No matter which DC motor technology is used, certain form factors and design features are common across many industries. These shared elements help guide the selection of the best motor solution. Below are some examples to help describe your ideal choice.
Terminals and connector pins
Connecting the motor to the application is essential. We usually use soldered pins, spring pad connectors, and integrated connectors for this purpose.
Leads and connectors
Wires and leads are commonly used to connect motors in applications. We provide various lengths, gauges, and pre-installed connectors.
Frame modifications
Securing motor frames to your application can be achieved in several ways. Custom fastening points and brackets are often utilized.
EMI filters and backpack PCBs
Operating motors generate EMI electrical noise. This can be reduced by installing filters, which can be either PCB-based or wire-based.
Shaft modifications
The motor must connect mechanically to your product. We can create custom shafts and pre-install gears, bushes, and bosses.
Motion controllers
A small PCB attached to the back of a DC motor can convert it into a precision servo at a fraction of the cost of a similar off-the-shelf unit.
Why Choose TSL?
We are here to assist you throughout the entire process, from prototype development to large-scale, cost-efficient mass production.
Founded in 2009, TSL Motors has been at the forefront of micro DC motor design and manufacturing. With ISO 9001, ISO 14001, and ISO 45001 certifications, TSL is committed to delivering high-quality products that meet international standards.
We offer a wide range of motor solutions, including coin vibration motors,ERM vibration motor, coreless DC motors, Stepper DC Motors,LRA vibration motors, BLDC motors,Brushed DC Motors,Planetary Gear Motors,Spur Gear Motors ,Worm Gear Motor,etc. Our motors are engineered to be cost-effective, reliable, and customizable, catering to various applications across diverse industries.
At TSL, we strive to provide our valued customers with innovative solutions tailored to their specific needs.
Designing motors and mechanisms for a diverse array of industrial, medical, and consumer applications.
Our skilled sales engineers are adept at quickly grasping your unique requirements and offering tailored services. These custom services encompass motor performance parameters such as rated voltage, speed, and current, along with additional features like connectors, wire lengths, rubber boots, plastic/metal capsules, brackets, and spring contacts.
We provide comprehensive support, including detailed drawings and specifications, throughout the entire process from prototype development to mass production.
Our motor manufacturing process is designed to be flexible, enabling us to accommodate both large-scale production and specialized, high-value custom builds to meet diverse customer needs.
We use in-house designed dynamometers to thoroughly test and validate every sample and production batch, ensuring the highest standards of quality and performance.
TSL Motor is an ISO 9001:2015 certified company, committed to ensuring that each motor meets your precise specifications and performance standards. We have developed a comprehensive after-sales support system, offering prompt responses to customer inquiries and addressing any issues or needs that may arise. Our commitment doesn’t end with delivery—we are here to support you every step of the way.
