Stepper Motor Linear Actuator

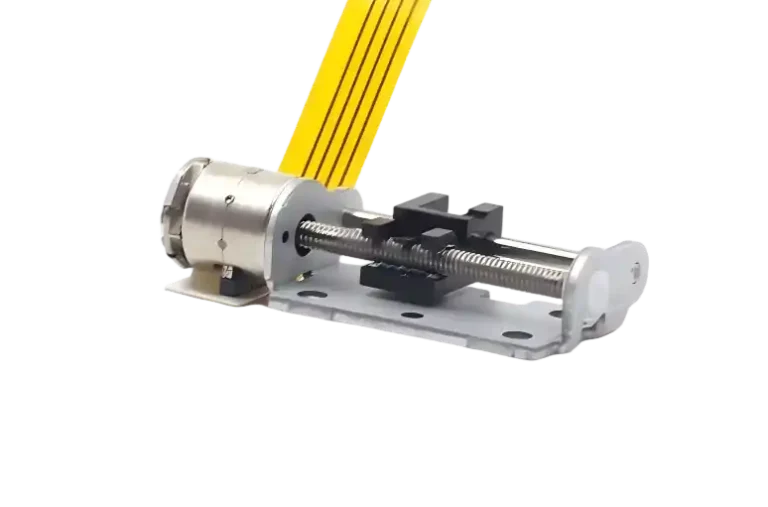

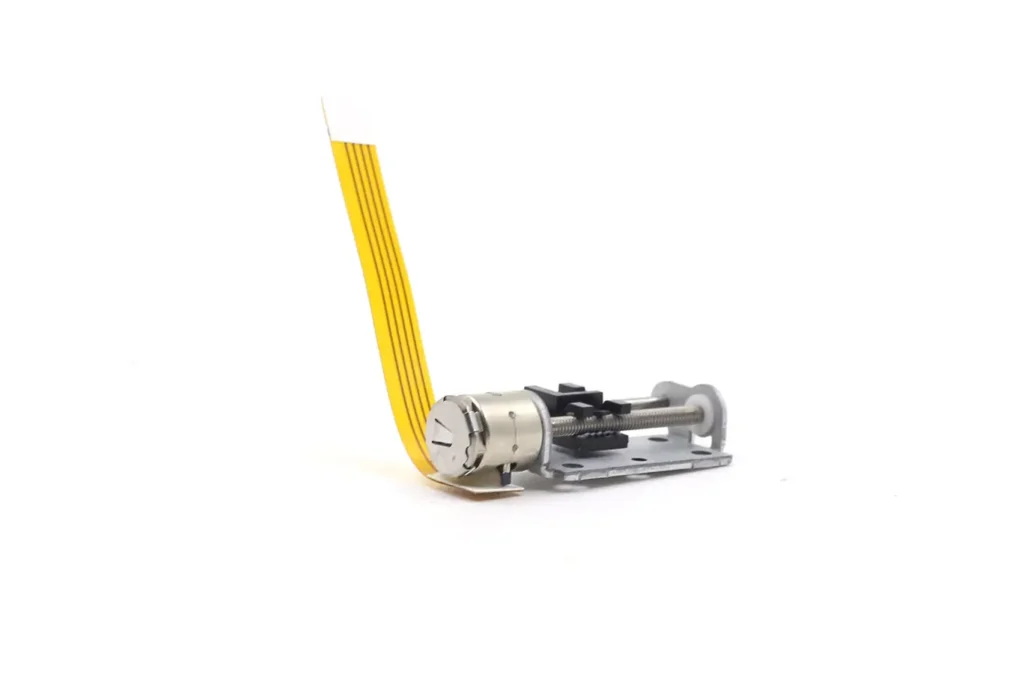

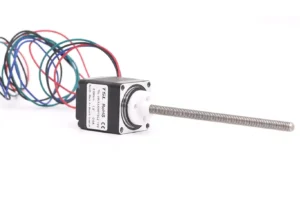

TSL Motor’s Stepper Motor Linear Actuators convert rotary motion into precise linear movementby using lead screws or slider mechanisms.From micro stepper linear actuators for camera iris control,to NEMA stepper motor linear actuators for 3D printers and automation systems.Different sizes and thrust levels support different applications.
At TSL, linear actuators go beyond mechanical structures.
Standard wires or FPC flexible cables are available.Each solution can be optimized for system-level requirements.
Here, you don’t need to worry about technical challenges.
Our engineering experts work closely with you.We solve problems together and develop solutions together.
Explore All of Our Stepper Motor Linear Actuator
TSL Stepper Motor Linear Actuator Series
TSL linear stepper motors can be divided into: external‑drive linear stepper motors (including lead‑screw and ball‑screw types), through‑shaft linear stepper motors, linear‑slide stepper motors, and permanent‑magnet linear stepper motors.

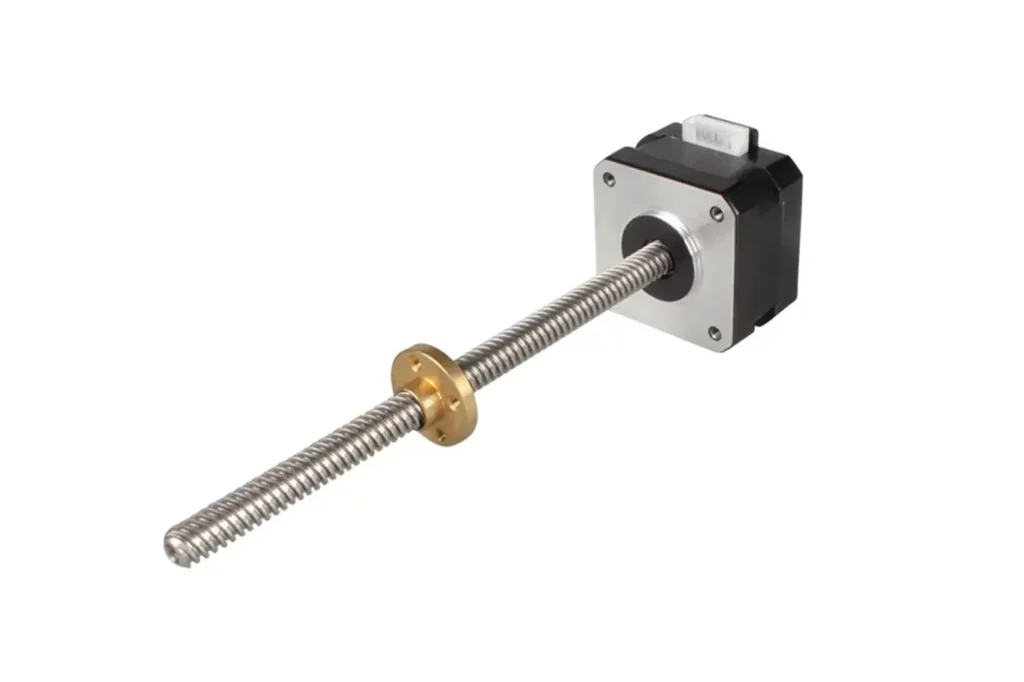

External‑drive Linear Stepper Motors
In an external‑drive linear stepper motor, the lead screw is integrated with the motor rotor. When the screw rotates and the nut is prevented from rotating by an external mechanism, the nut moves linearly along the screw.

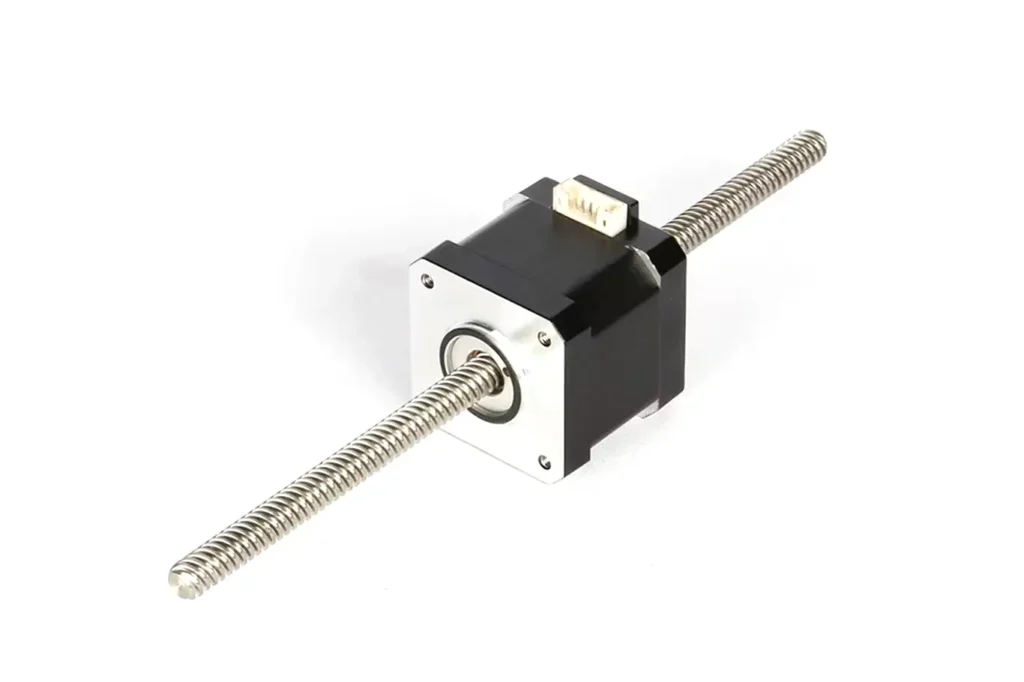

Through‑shaft Linear Stepper Motors
In a through‑shaft linear stepper motor, the nut is integrated with the motor rotor, and the lead screw passes through the center of the rotor. When the screw is prevented from rotating and the rotor turns, the screw moves linearly.

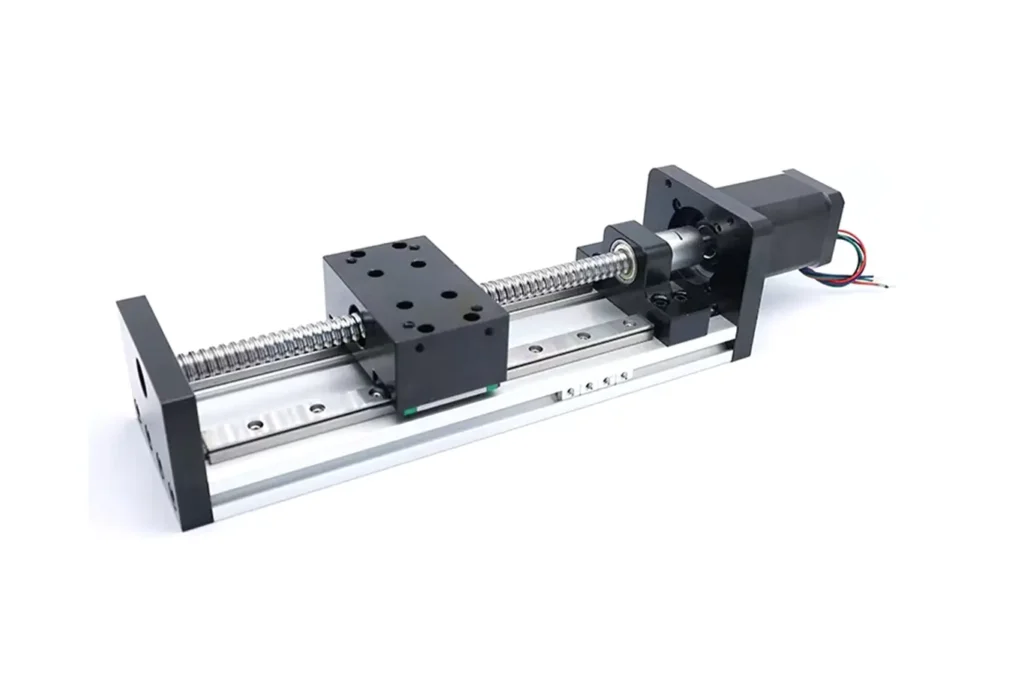

Lead‑screw Linear Slide Stepper Motors
In a lead‑screw linear slide stepper motor, the motor drives a lead screw, while the screw and the guide rail are integrated into a compact slide module. When the screw rotates and the slider is constrained by the guide mechanism to prevent rotation, the slider moves linearly along the rail.
PM Linear Stepper Motors
Permanent‑magnet linear stepper motors use a permanent‑magnet rotor to produce linear motion. Depending on the design, they can also be built with threaded lead‑screw mechanisms, linear‑slide modules, or through‑shaft structures.
Why Choose TSL?
We are here to assist you throughout the entire process, from prototype development to large-scale, cost-efficient mass production.
Founded in 2009, TSL Motors has been at the forefront of micro DC motor design and manufacturing. With ISO 9001, ISO 14001, and ISO 45001 certifications, TSL is committed to delivering high-quality products that meet international standards.
We offer a wide range of motor solutions, including coin vibration motors,ERM vibration motor, coreless DC motors, Stepper DC Motors,LRA vibration motors, BLDC motors,Brushed DC Motors,Planetary Gear Motors,Spur Gear Motors ,Worm Gear Motor,etc. Our motors are engineered to be cost-effective, reliable, and customizable, catering to various applications across diverse industries.
At TSL, we strive to provide our valued customers with innovative solutions tailored to their specific needs.
Designing motors and mechanisms for a diverse array of industrial, medical, and consumer applications.
Our skilled sales engineers are adept at quickly grasping your unique requirements and offering tailored services. These custom services encompass motor performance parameters such as rated voltage, speed, and current, along with additional features like connectors, wire lengths, rubber boots, plastic/metal capsules, brackets, and spring contacts.
We provide comprehensive support, including detailed drawings and specifications, throughout the entire process from prototype development to mass production.
Our motor manufacturing process is designed to be flexible, enabling us to accommodate both large-scale production and specialized, high-value custom builds to meet diverse customer needs.
We use in-house designed dynamometers to thoroughly test and validate every sample and production batch, ensuring the highest standards of quality and performance.
TSL Motor is an ISO 9001:2015 certified company, committed to ensuring that each motor meets your precise specifications and performance standards. We have developed a comprehensive after-sales support system, offering prompt responses to customer inquiries and addressing any issues or needs that may arise. Our commitment doesn’t end with delivery—we are here to support you every step of the way.
✅Collaborate with Specialists
Our engineering team brings decades of motor technology expertise to every project.
✅Seamless Global Partnership
Communicating with us is a breeze.
We’ll adapt to your time zone, making sure that information and ideas are exchanged promptly.
Right from the start, you can rest assured that your thoughts are fully grasped.
Get In Touch
Start a discussion with our team today!
