Micro Stepper Motor

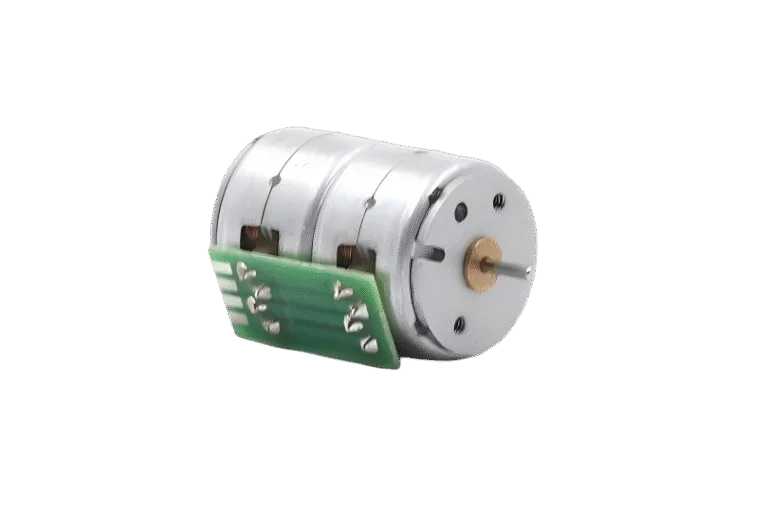

TSL Motor’s Micro Stepper Motors are based on PM stepper motor technology.In this category, “micro stepper motor” refers specifically to PM stepper motors.Diameters range from 6 mm to 42 mm.Compact size.Stable performance.
TSL has focused on micro stepper motors for many years.We offer strong customization capabilities.Output shaft customization is available.Mounting structures can also be customized.Including double shaft and through-shaft designs.If you cannot find a suitable model, please contact us.
Our mature platform supports efficient custom development.Ideal for camera iris actuators, optical modules, and precision positioning applications.
Explore All of Our Micro Stepper Motor
Basic Structure of a Permanent Magnet Stepper Motor
The basic structure of a permanent magnet stepper motor consists of a rotor with permanent magnets and a stator with multiple electromagnetic coils arranged in phases. When the coils are energized in sequence, the magnetic field interacts with the rotor magnets, causing the rotor to rotate step by step.
Operating Principle of a PM Stepper Motor
A pm stepper motor driver receives external pulse and direction signals, then uses internal logic to energize the motor windings in a specific sequence, enabling forward rotation, reverse rotation, or holding torque.
For a 7.5° two‑phase stepper motor: when both phases are energized, the rotor locks in place (the maximum torque at rated current is the holding torque). Reversing the current of one phase moves the rotor one step (7.5°), and reversing the other phase steps it in the opposite direction. By alternating the excitation sequence, the motor performs continuous high‑precision stepping, requiring 48 steps per full revolution.
Two winding types exist for two‑phase stepper motors:
- Bipolar: one winding per phase; current must reverse within the winding; requires 8 switches; delivers about 40% higher torque.
- Unipolar: two opposite windings per phase; only one is energized at a time; requires only 4 switches.
Frequency–Torque Curve
The frequency–torque curve is an important representation of the output characteristics of a permanent‑magnet stepper motor.
- Pull‑in Torque:The maximum torque at which an energized stepper motor can start and run synchronously at a given fixed pulse frequency without losing steps.
- Pull‑out Torque:The maximum torque that can be applied to the shaft of a running motor at a specified pulse frequency without causing it to lose steps under the given drive conditions.
- Working Frequency Point:The operating speed corresponding to a specific point on the motor’s frequency–torque curve, calculated by n=q⋅Hz/360⋅D,where—Hz = pulse frequency,D = driver subdivision (microstepping),q = step angle
