10mm Coin Vibration Motor – 2mm Type Model TSL-C1020
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-C1020
Certification: ISO9001,ISO14001,IS045001
Green product: ROHS/REACH compliant
Motor Diameter:10.0mm
Motor Thickness:2.0mm
10mm Diameter Small Vibrating Device Data Sheet
Small vibrating devices are also known as small coin vibration motors Compact and simple to use, with no external moving component. They are used in handheld instruments with that use haptic. Small vibrating device C1020 Series Coin Vibration Motors 10 mm x 2mm 3V DC, coin vibration motors for lighter weight wearable devices. Just 10 mm in diameter, C1020 series is currently the most popular tiny coin vibration motor on the market.
Small vibrating device was created to be used in devices that require vibration warnings or tactile feedback. Such a Path Finder.Since a small coin-sized motor has a minimal force of 1.1G it is best used in devices that weigh less than a pound and are put directly against the skin of the user. It can be controlled via or DC voltage or an PWM signal.
| Motor Model | TSL--C1020 |
| Motor Diameter | 10.0mm ± 0.1mm |
| Motor Thickness | 2.0mm ± 0.1mm |
| Rated Voltage | 3.0V DC |
| Rated Speed | 11,000 ± 2,500rpm |
| Rated Current | 80mA max |
| Nominal Amplitude Vibe Force | 1.10G |
| Weight | 0.8g |

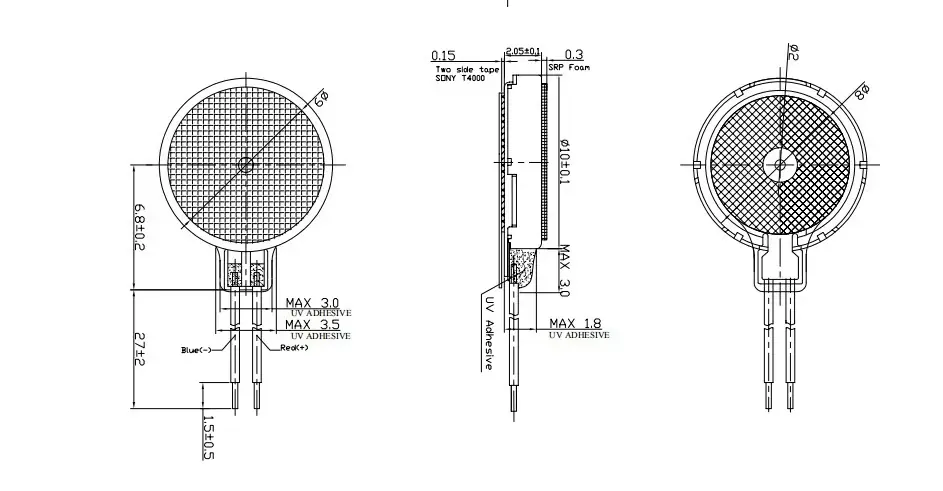

Low Noise 10mm Flat Small Vibrating Device Outline Drawing
The driver IC is not necessary, but could be used to generate different kinds of haptic effects. Custom foam pads or PSA are readily available for orders of mass production. If a stronger vibrational force is required, you should think about making use of any of the MDM’s bigger coins with motors for vibration. Small vibrating devices vary between 6 and 14 millimeters in diameter. They can produce vibrational forces as high as 4G.
Keywords:
small coin vibration motor, mini vibration motor, micro vibration motor, tiny vibration motor, motor vibration, vibration device, arduino vibration motor, 1020 vibrator motor,flat vibrator,Small vibrating device
Development Samples:
The quantities of sampling for models that are stocked can be ordered directly online from us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production as well as a consultation regarding customizing and integration services.
Payment Method:
Payment methods : PayPal or T/T
Shipping Method:
1.Delivery: DHL door to door 7-10 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you’ve not received the item within the delivery Time please send us an email with any queries. We usually give you a response within 24 hours in the event that we don’t, examine the spam in your email account. We will try the best we can to help resolve the issue.
4.Please ensure that your address matches the final shipping address prior to you make payment.
5.In order to make sure you get your order tax-free after importation, we’ll declare it at a lower amount, so please be aware of this, thanks!
FAQ For Coin Vibration Motor
Q:What are the different types of coin vibration motors you can provide?
A: We offer three types of coin vibration motors: the ERM (Eccentric Rotating Mass) type, coin brushless types, and the LRA (Linear Resonant Actuator) type. All of these motors feature a flat, coin button-shaped casing.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
