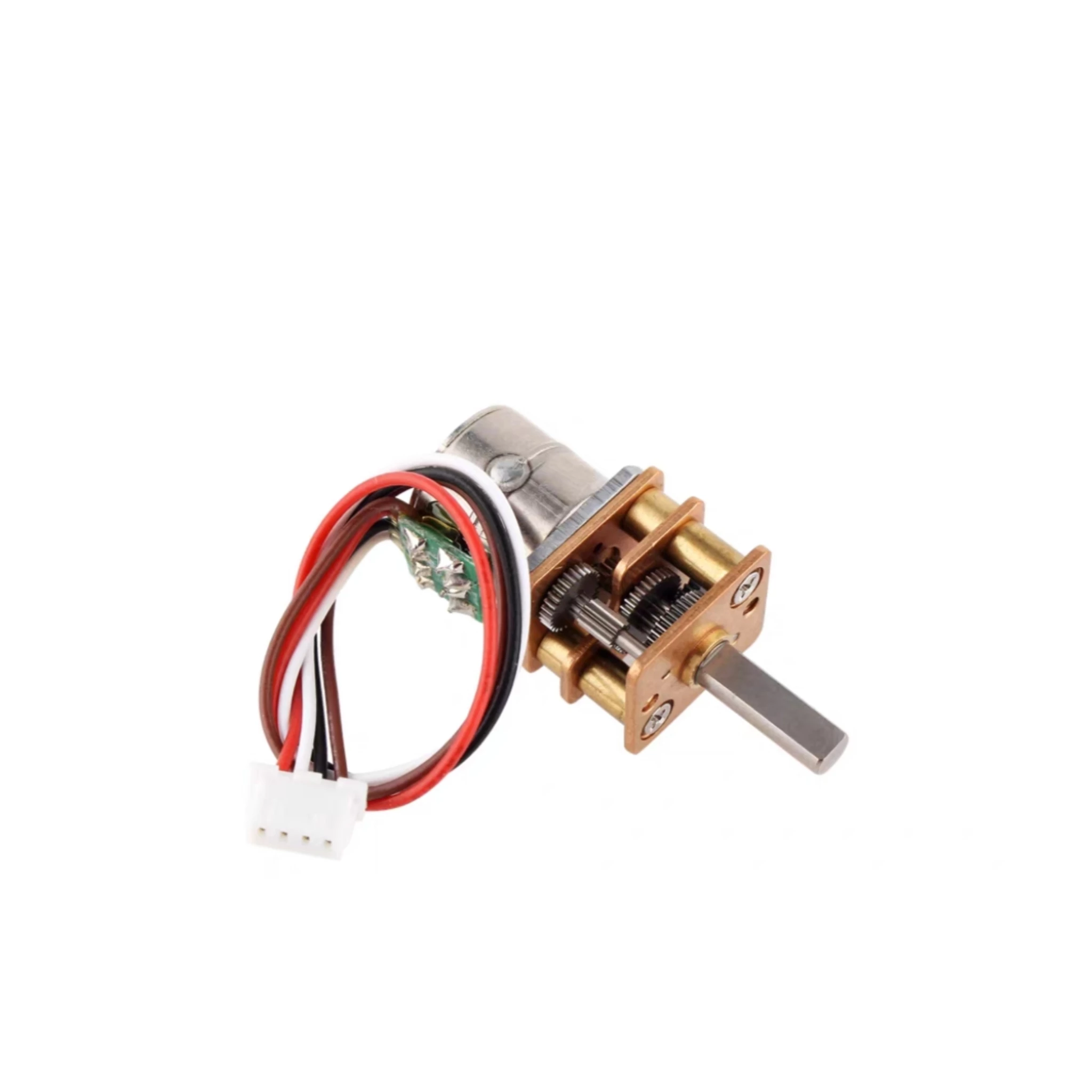

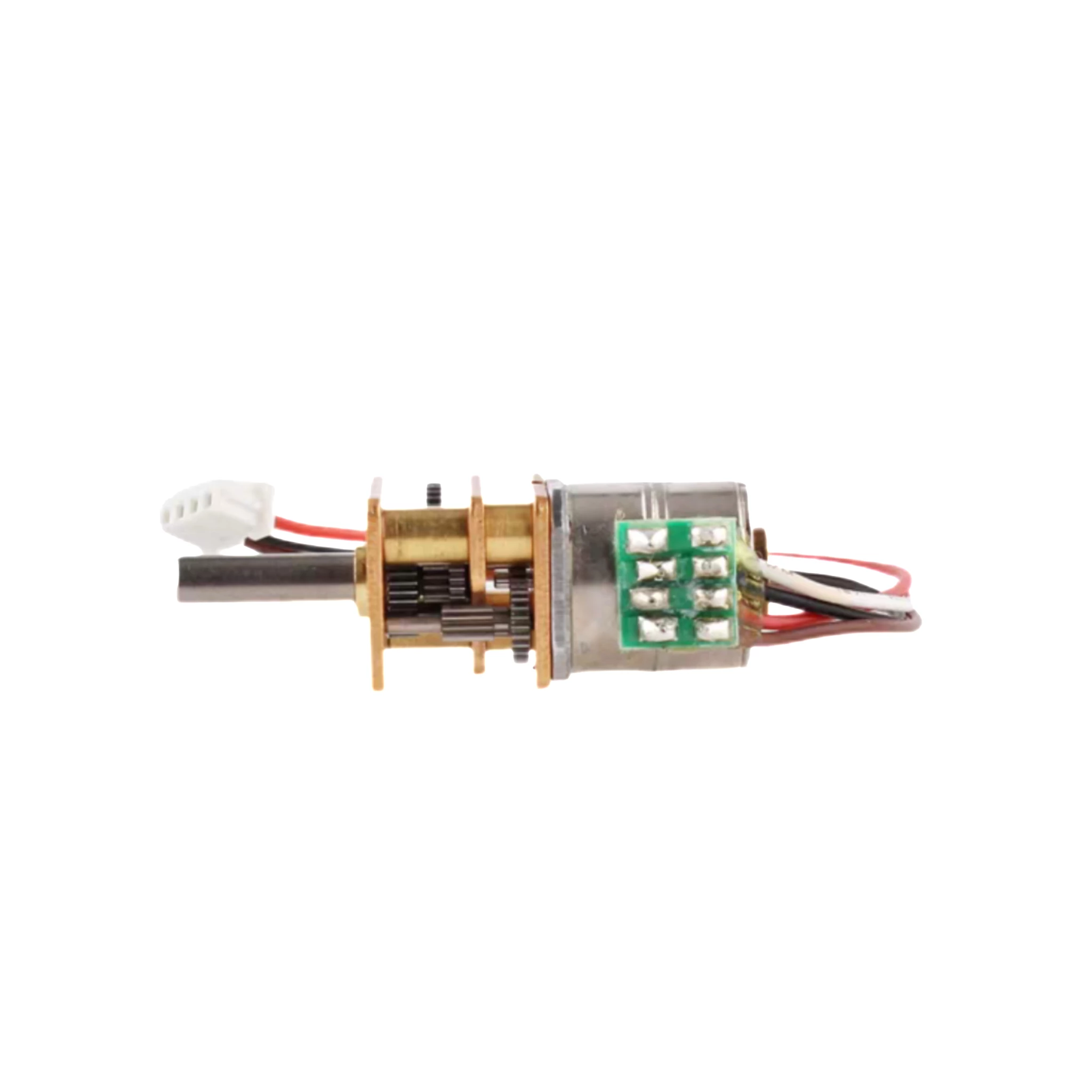

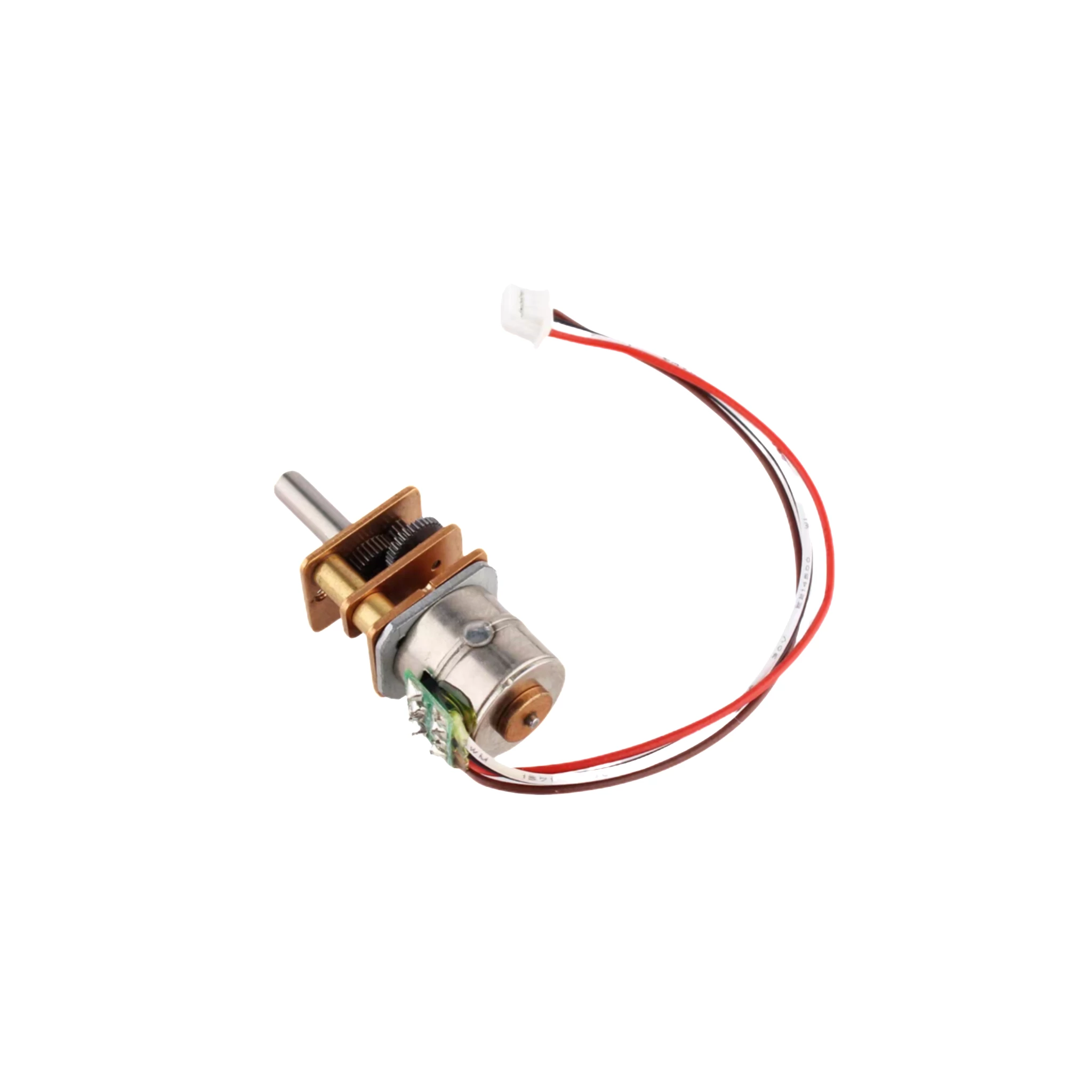

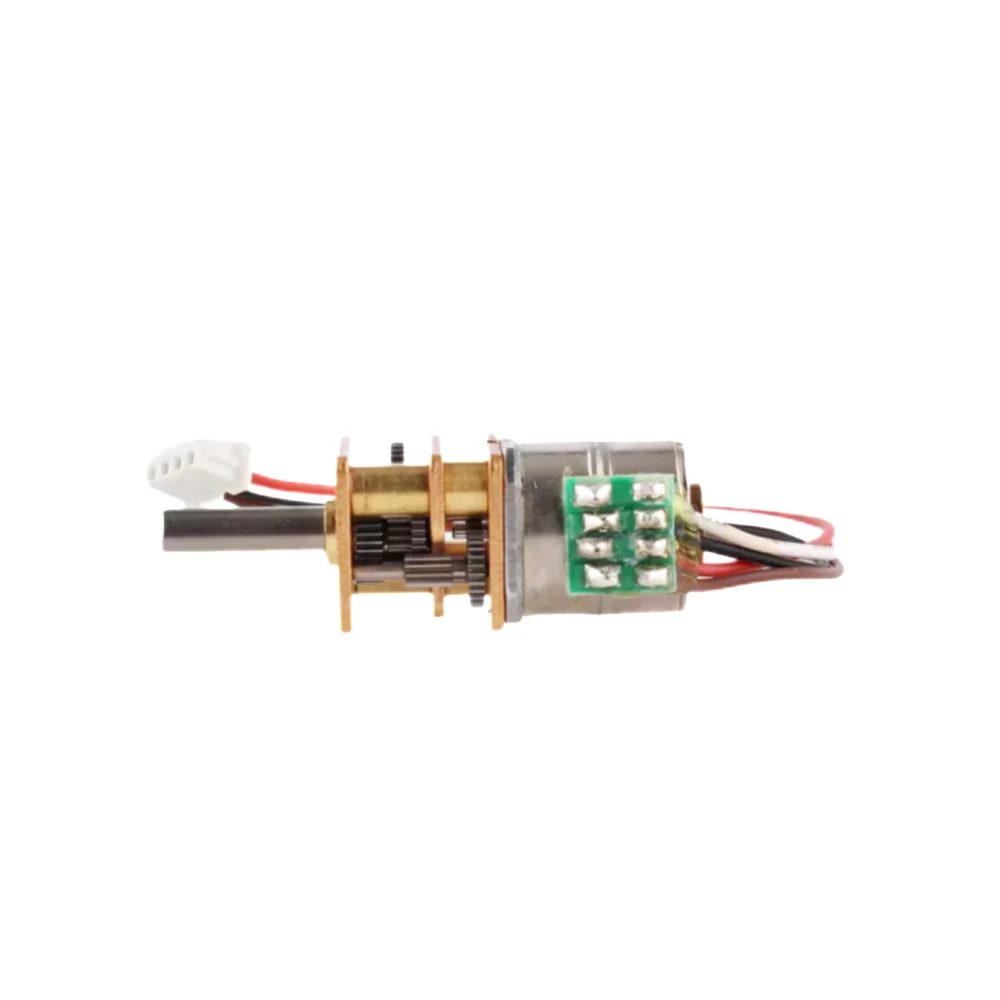

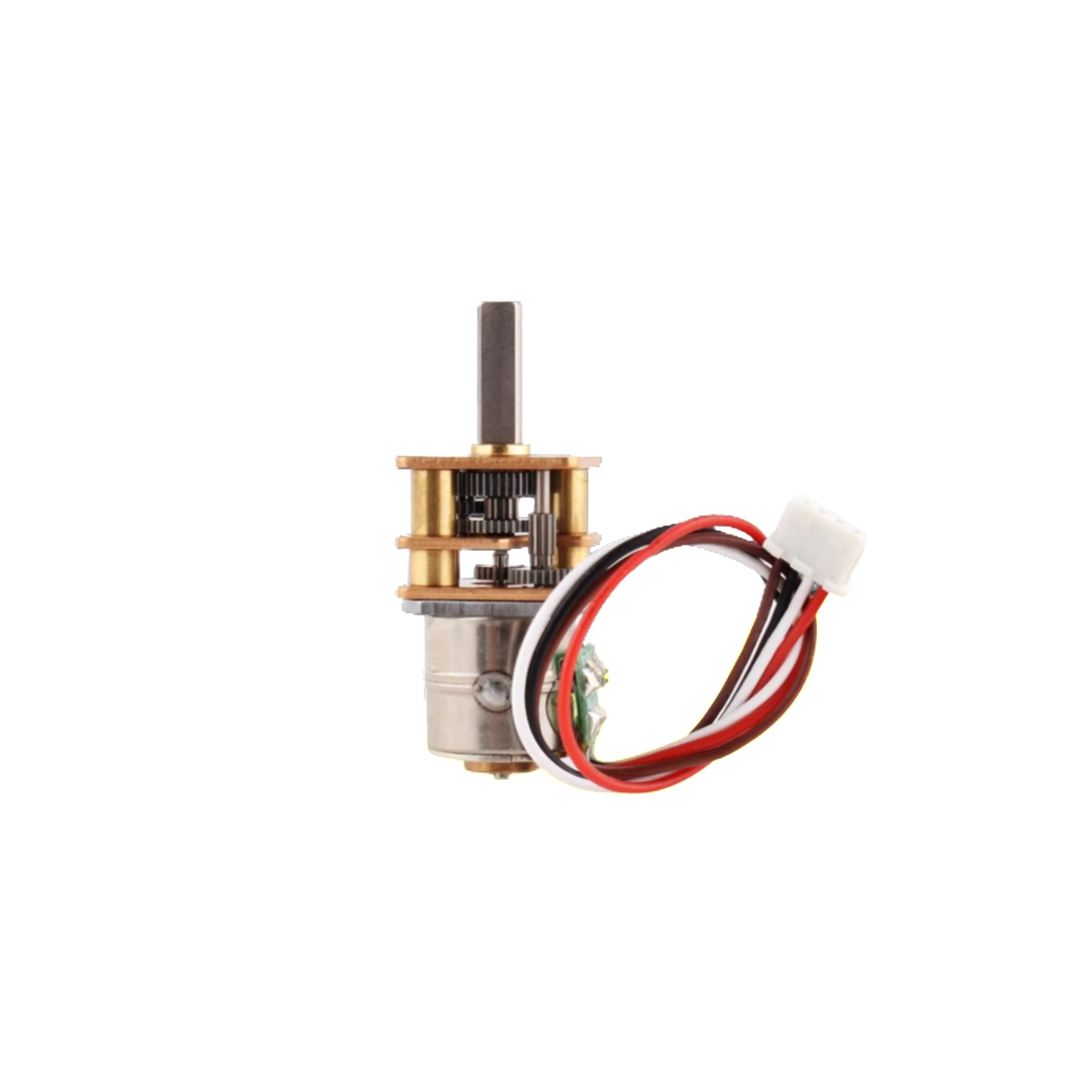

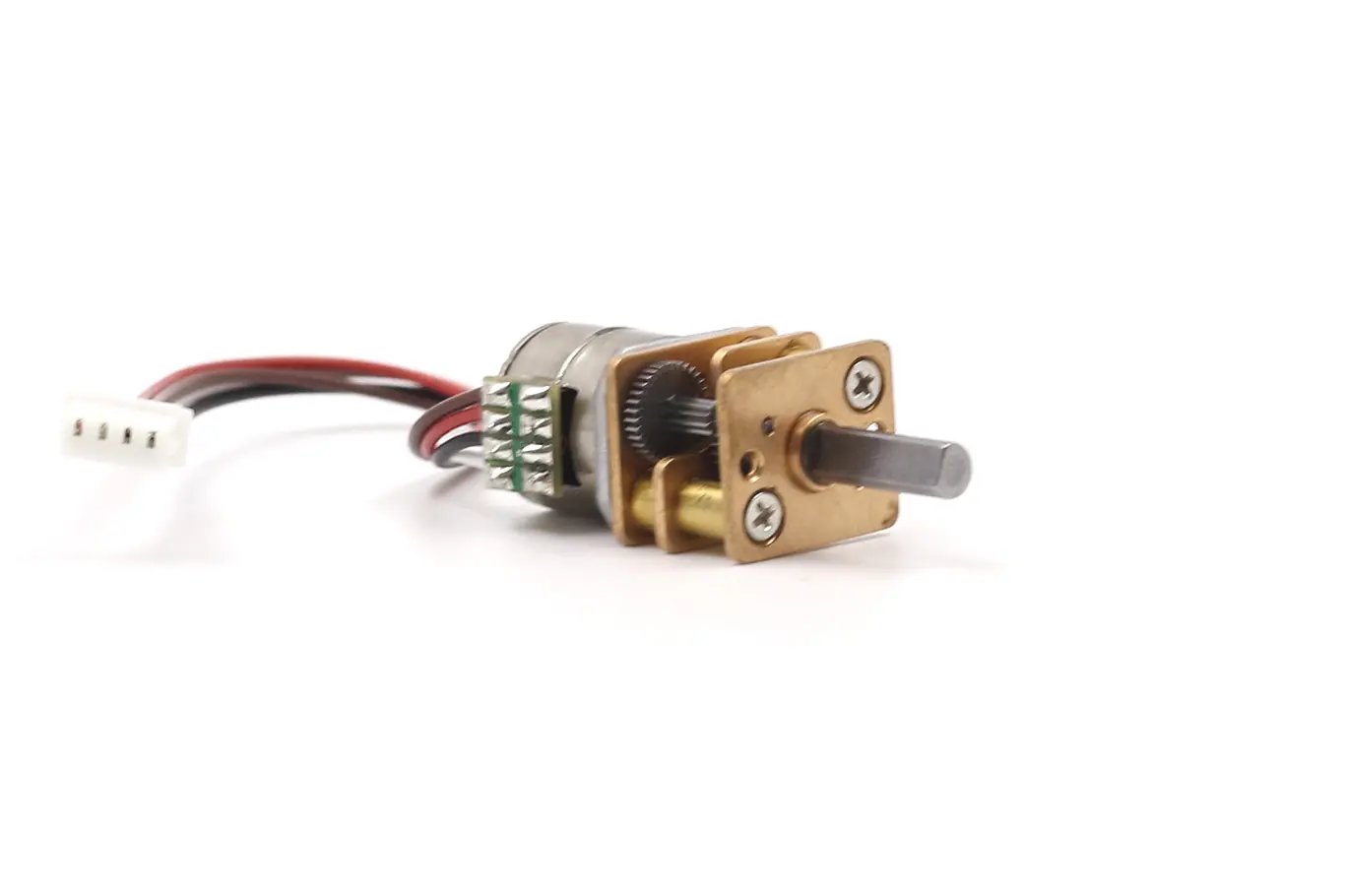

10mm Stepper Gear Motor Model TSL-GM12-10BY
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-GM12-10BY
If you request a quotation for mass production quantities, contact us for customizations and integration.

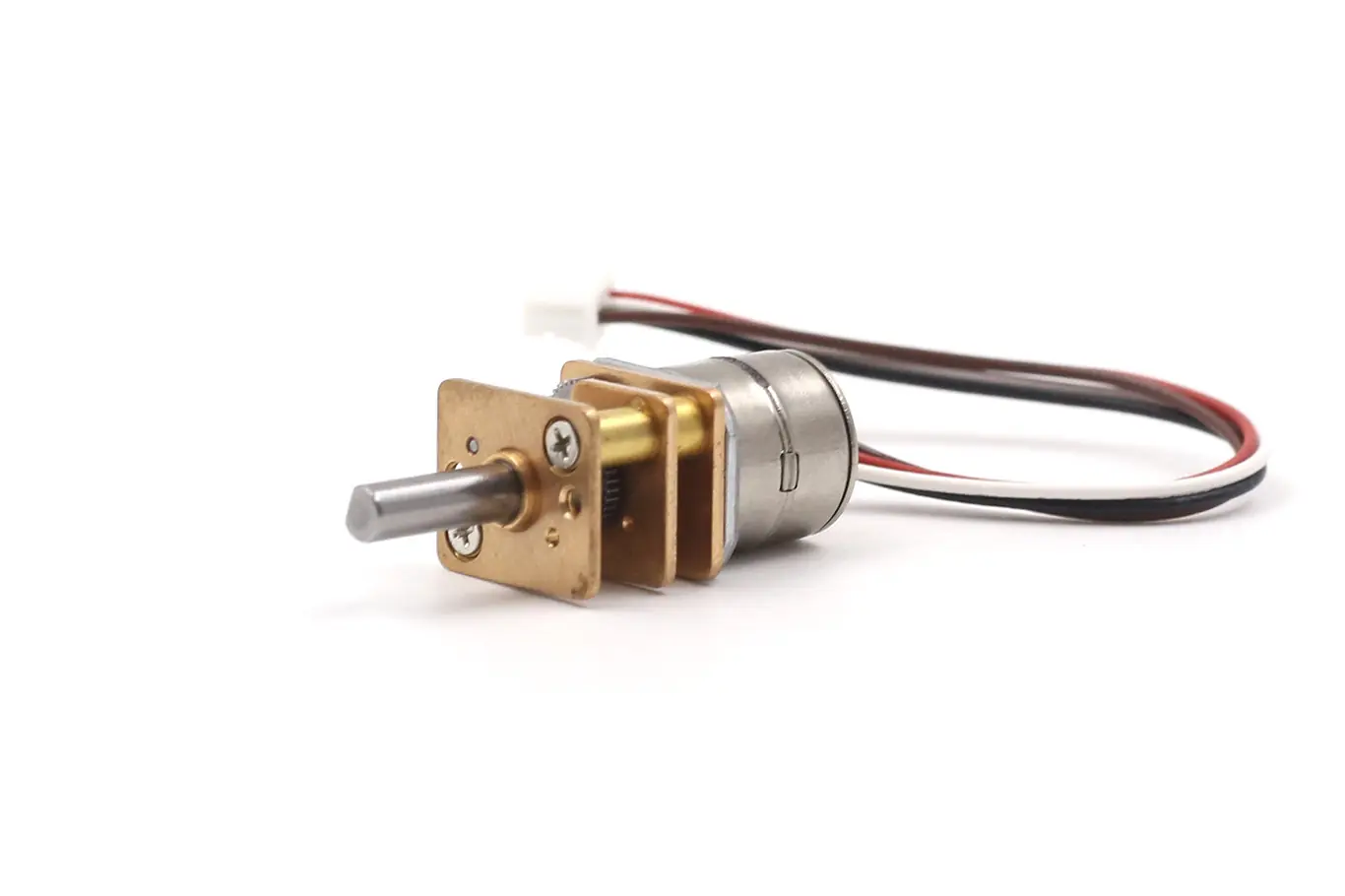

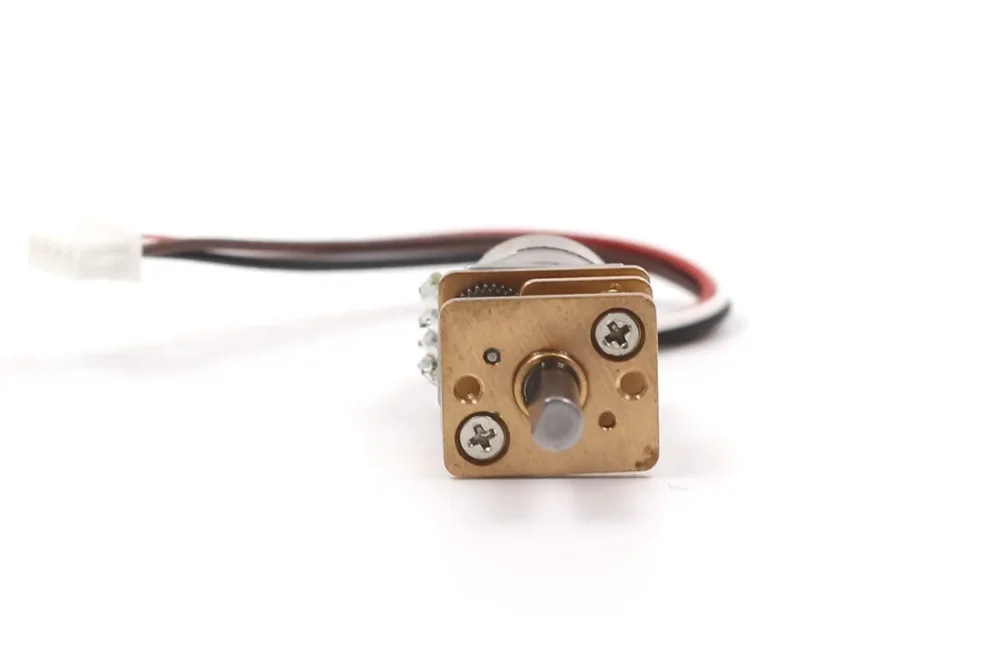

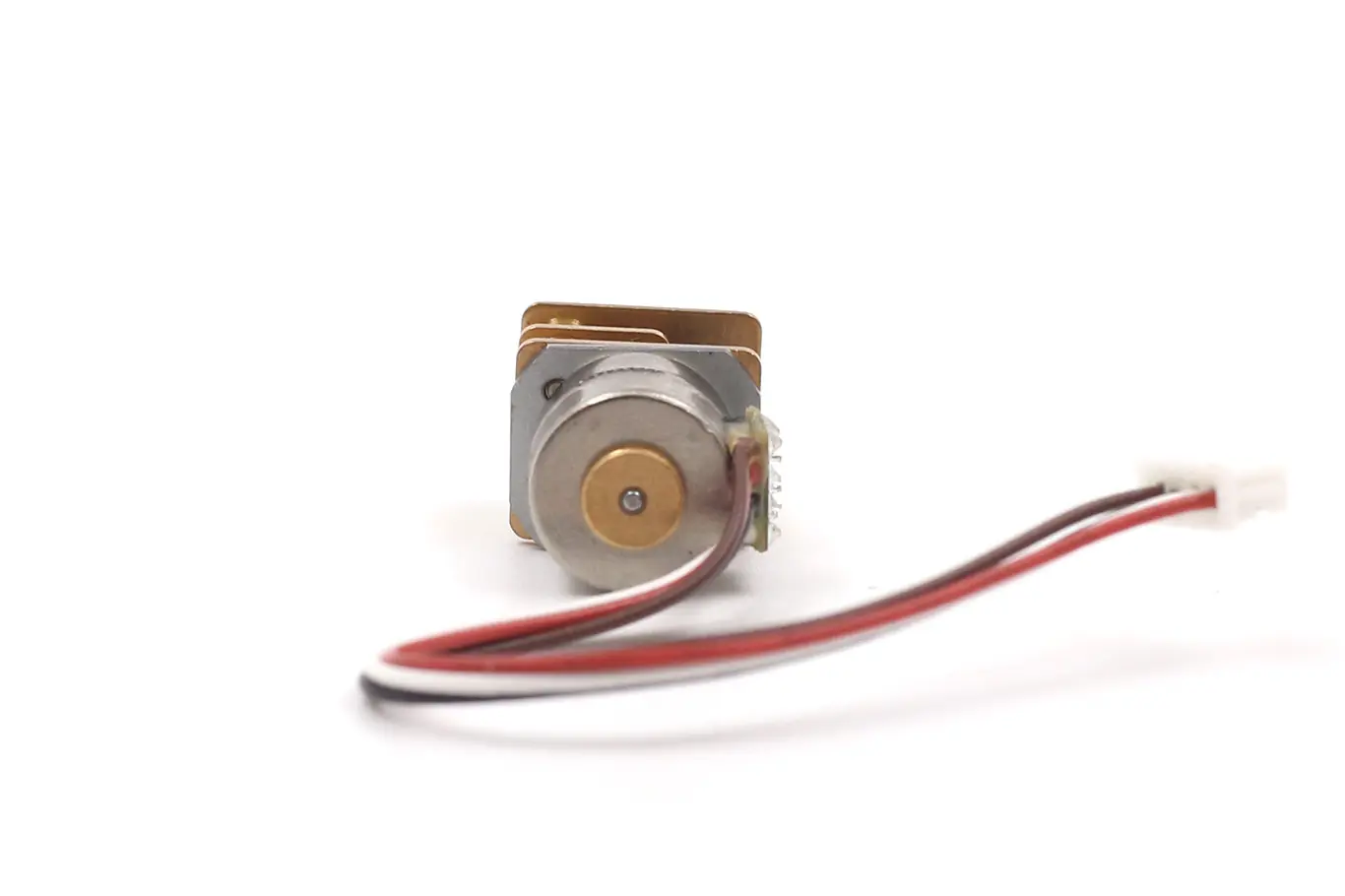

5V Small Geared Stepper Motor Model TSL-GM12-10BY Datasheet
Explore our selection of small geared stepper motors that are small powerful, reliable, and ideal for a variety of applications. They provide high-quality control and reliable performance. Explore our options today!
| Item | Specification |
| Coil Resistance | 39Ω ± 7% |
| Number of Phases | 2 PHASES |
| Step Angle | 18° / Step |
| Max Starting Frequency | 900 PPS min |
| Max Slewing Frequency | 1200 PPS min |
| Pull-in Torque | 6 gf-cm min |
| Lead-out Torque | 10 gf-cm min |
| Voltage | 5V DC |

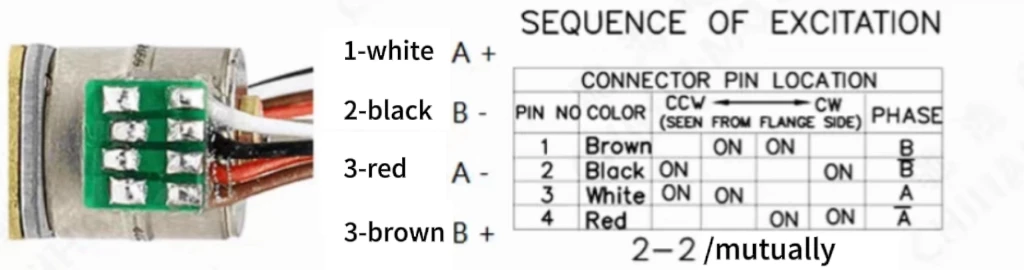

| Wiring | Red A+, White A-, Black B-, Brown B+ |
| Size | 10mm x 12mm x 20mm |
| Shaft Dimension | Diameter – 3mm, D-cut 2.5mm, Length-10mm |
| Weight | 11g |
| Rotation | CW/CCW |

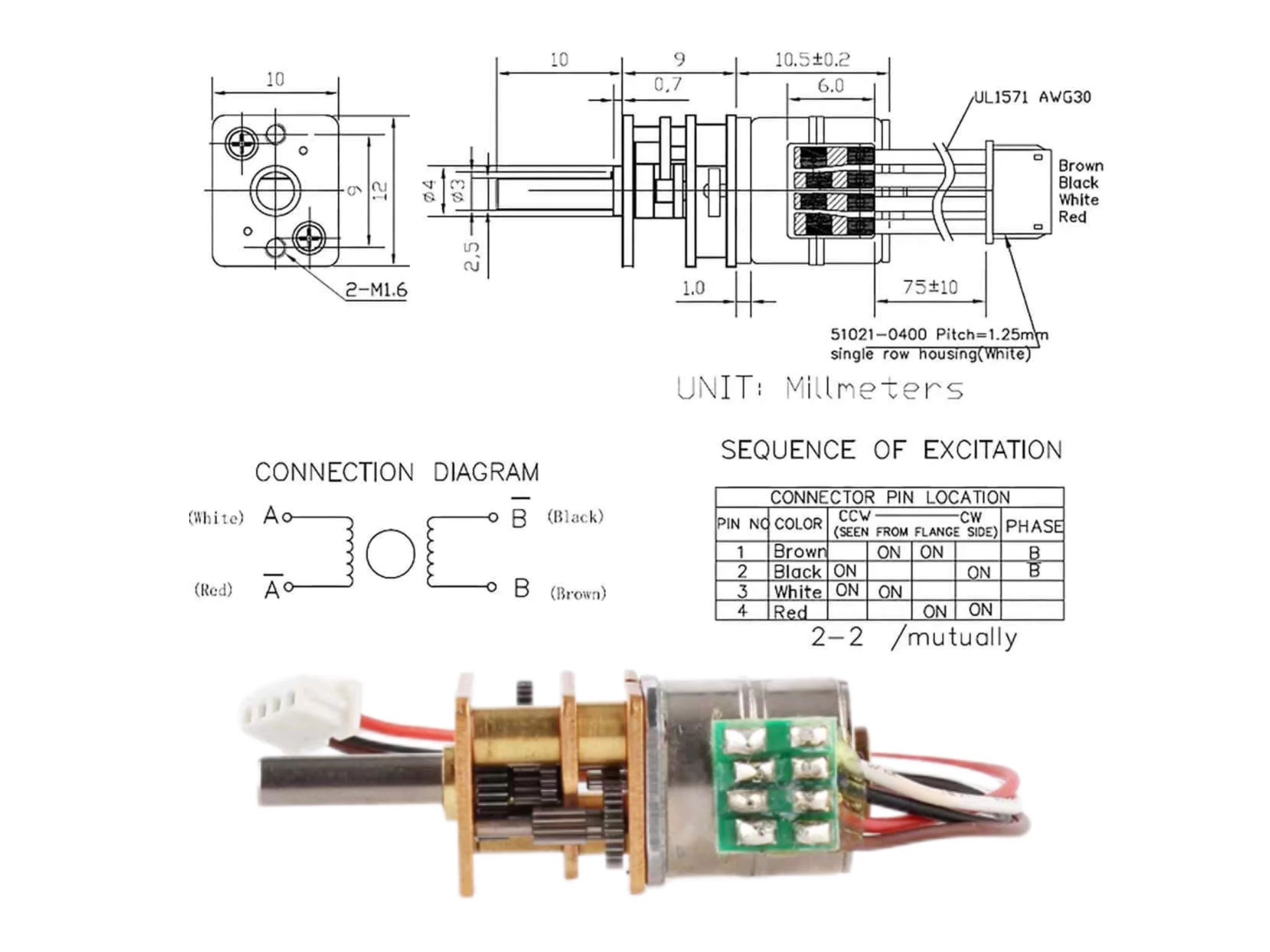

TSL-GM12-10BY 5V Geared Stepper Motor Outline Drawing
Terminal wiring sequence description (1.25P – 4Y terminal block, wire GB157130/ULAWM105deg).
| Parameter | Values | ||||||||
| Phase | 2-phase 4-wire | ||||||||
| Gear Ratio | 1:10 | 1:20 | 1:30 | 1:50 | 1:100 | 1:150 | 1:210 | 1:298 | 1:380 |
| Gear Ratio Precision | 9.68 | 19.36 | 29.47 | 51.1 | 99.3 | 150.96 | 209.76 | 297.9 | 379.16 |
| Step Angle | 1.86° | 0.93° | 1.86° | 0.35° | 0.18° | 0.12° | 0.086° | 0.06° | 0.047° |
| Phase Current | 128mA / PHASE | ||||||||
| Phase Resistance | 39± 7% / PHASE | ||||||||
| Phase Inductance | 14.3 mH / PHASE | ||||||||
| Holding Torque (kgf.cm) | 0.12 | 0.24 | 0.36 | 0.60 | 1.20 | 1.80 | 2.50 | Max allowable 3.0kgf.cm | |
| Pull-out Torque (kgf.cm) | 0.03 | 0.06 | 0.09 | 0.15 | 0.30 | 0.45 | 0.63 | 0.90 | 1.10 |
| Max Start Pulse Rate | MORE THAN 1200 PPS | ||||||||
| Max Response Pulse Rate | MORE THAN 900 PPS | ||||||||
