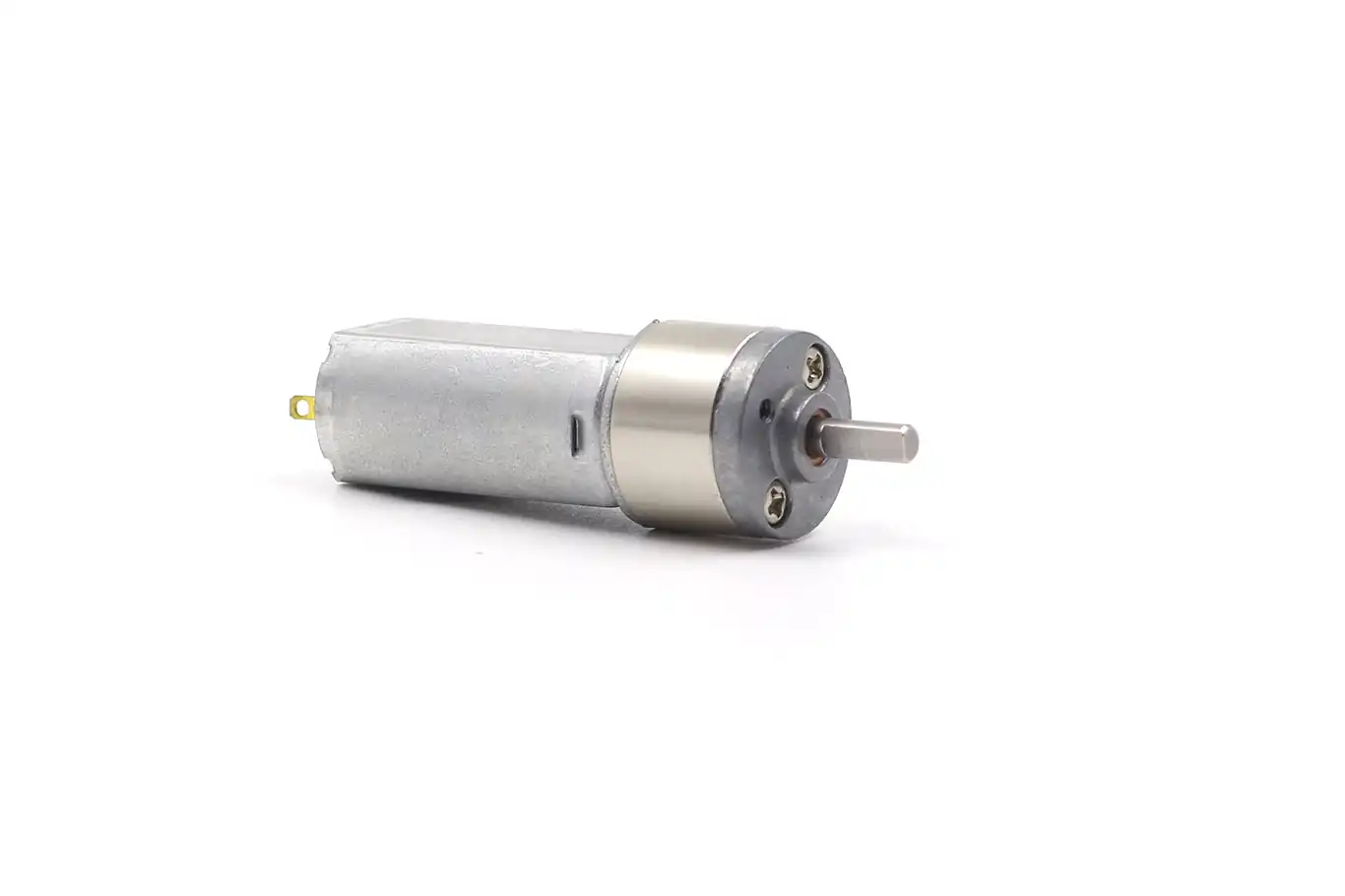

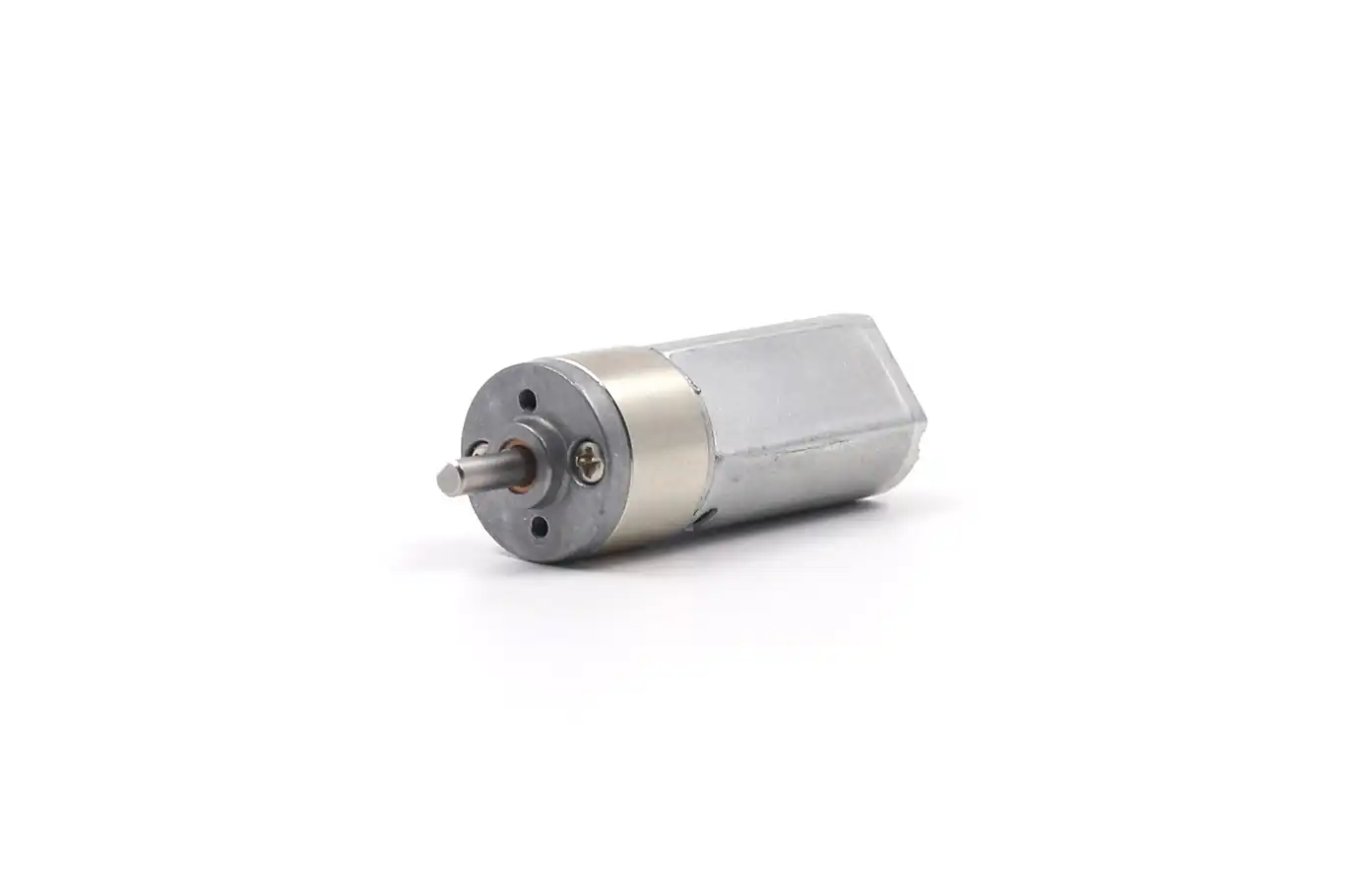

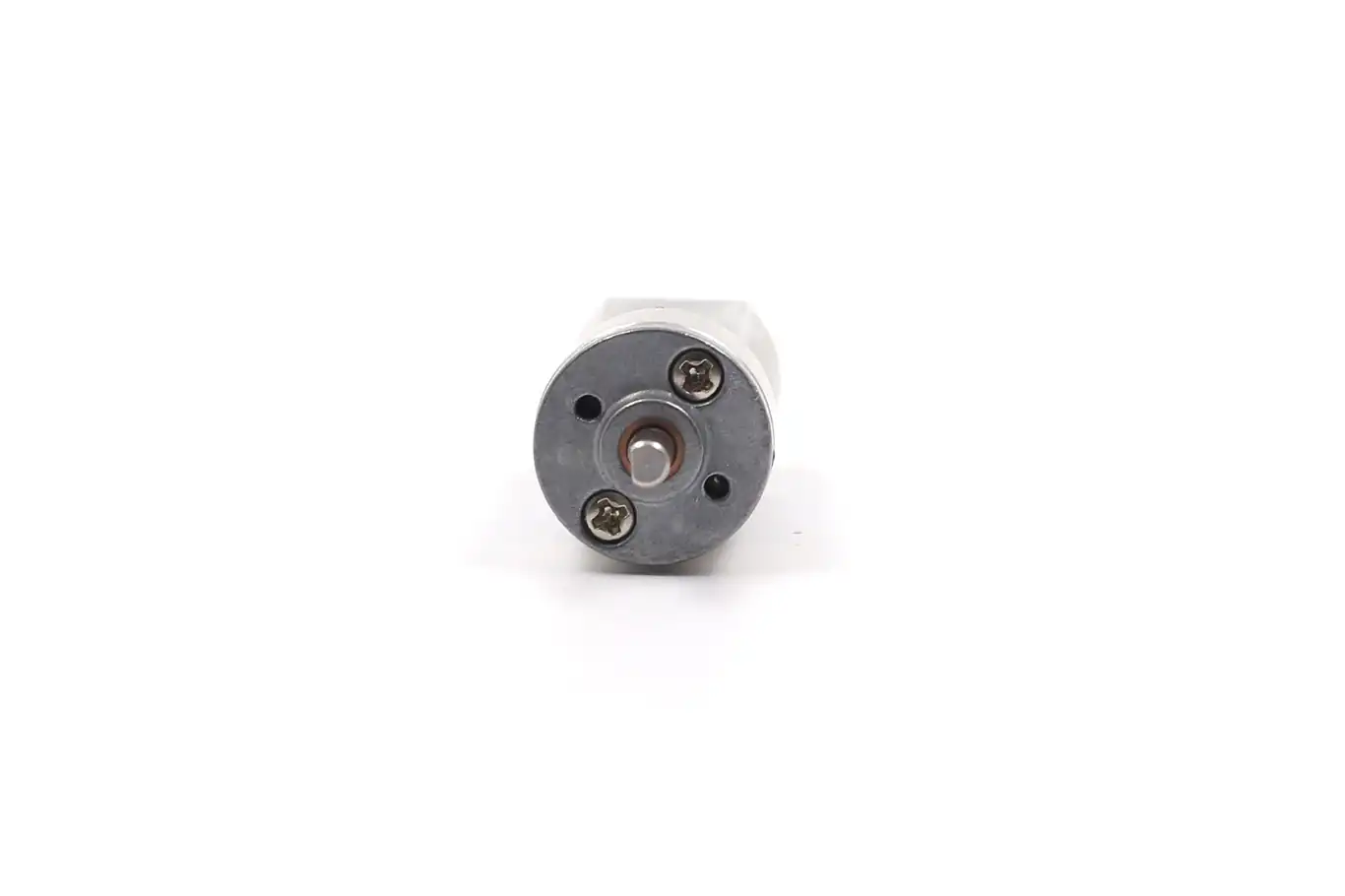

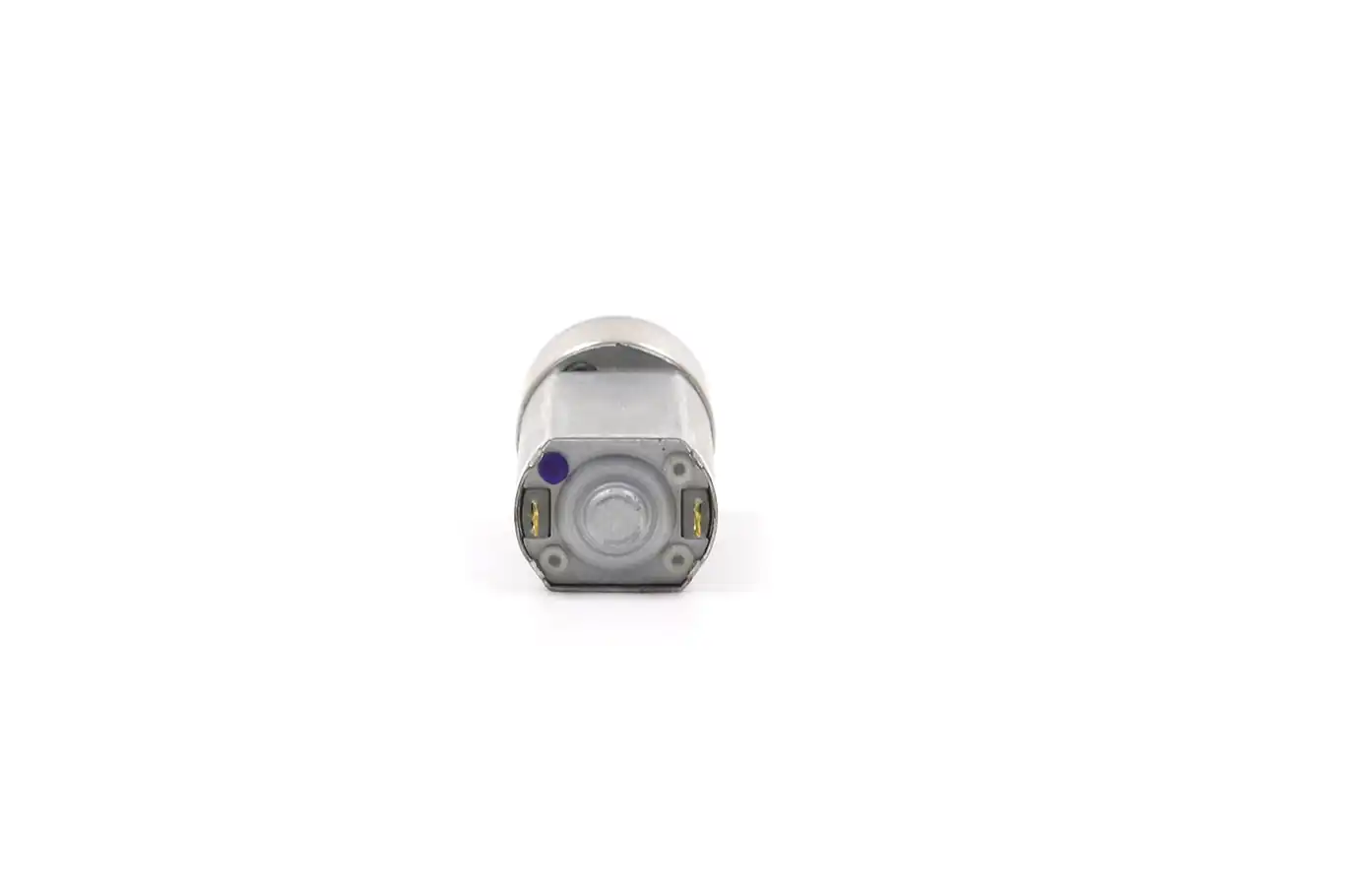

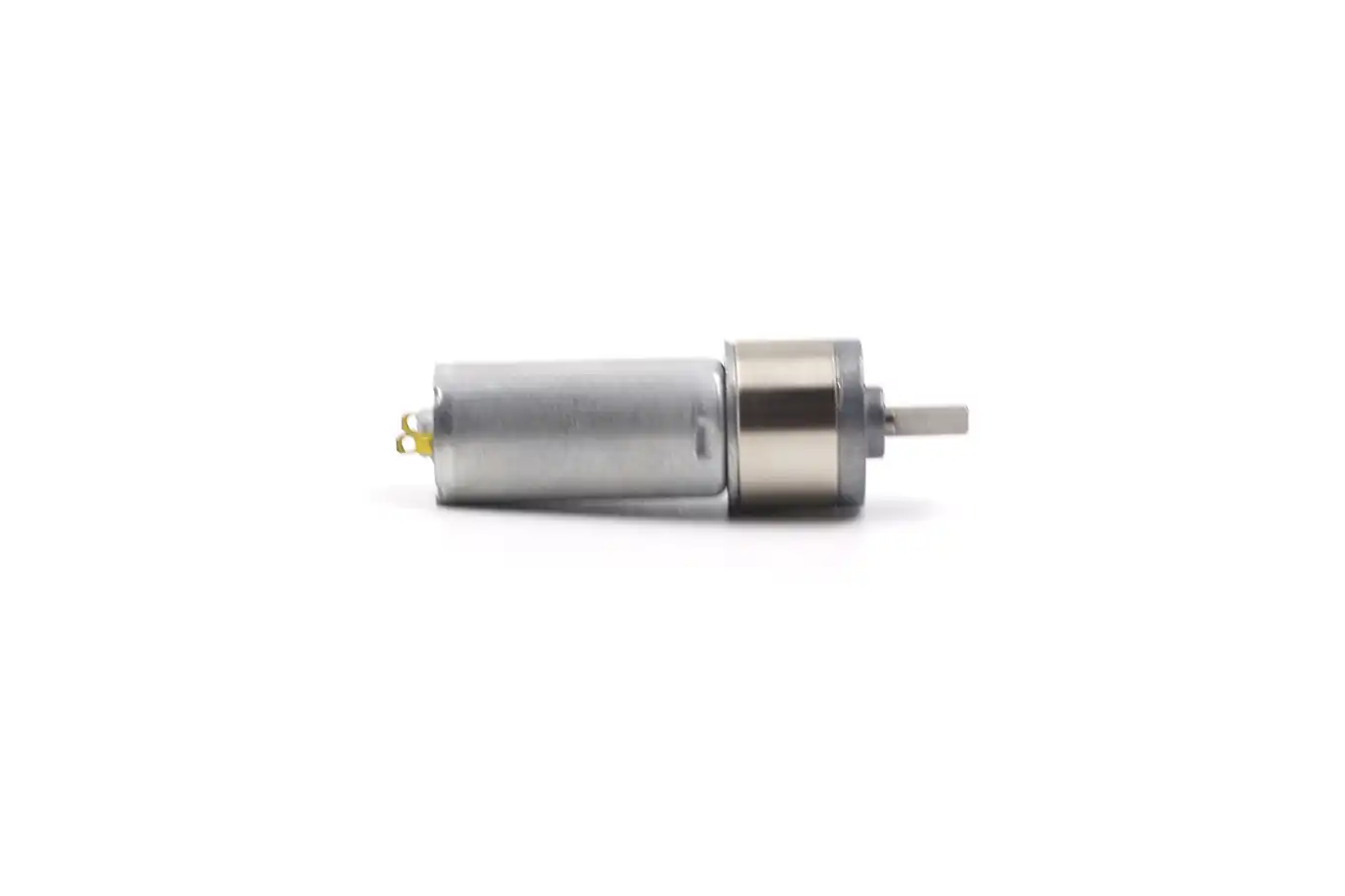

12V DC Gear Motor TSL-GA16-050

This 12V DC gear motor delivers exceptional performance in a tiny package. The 12V DC gear motor is engineered for precision, ensuring smooth, consistent operation in sensitive tasks.

Key Advantages

• Precise Control: Easily adjust torque and speed. Tailor settings for any project.
• Energy Smart: Optimized for low power use, it’s perfect for battery-powered devices.
• Compact & Light: Its small size integrates effortlessly. No added bulk to your design.
• Built to Last: High-quality metal gears ensure extended durability and a long operational life.

Ideal Applications

The 12V DC gear motor TSL-GA16-050 is a top choice for smart devices, automation systems, and even hobbyist projects. This 12V DC gear motor offers a robust blend of advanced engineering and reliable materials, guaranteeing consistent, high-quality output.

TSL-GA16-050-12120, 12V DC, 12,000RPM

TSL-GA16-050-06120, 6V DC, 12,000RPM

💕The 12V DC gear motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

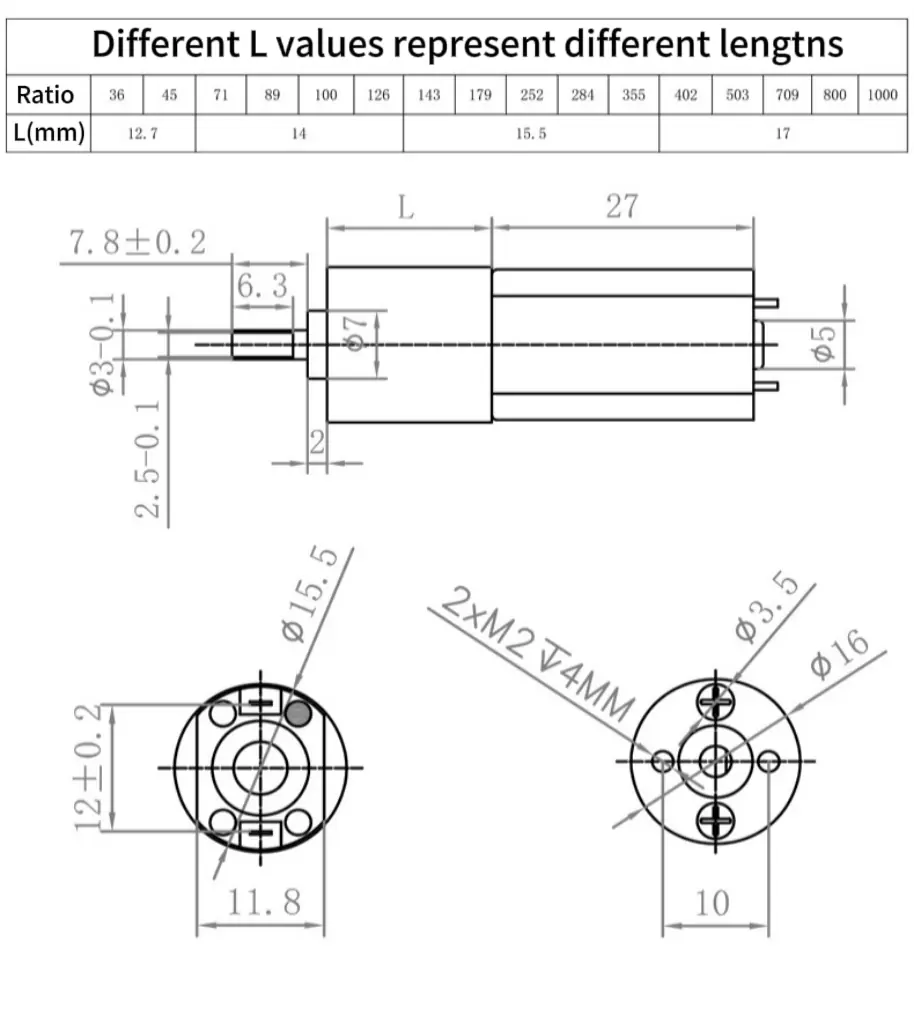

12V DC Gear Motor Dimensions

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

Where Our 12V DC Gear Motor Excels

This 12V DC gear motor offers versatility across numerous applications. Its precision and compact design make it a top choice for demanding projects.

Key Applications

• Smart Home Integration: Power your automated locks, smart curtains, and other IoT devices.
• Medical Precision: Ideal for infusion pumps and diagnostic tools. Expect reliable, accurate movement.
• Educational Robotics: Perfect for student projects. Build robots needing precise control and a small footprint.
• Drones & RC Vehicles: Ensures responsive control and stable performance in small drones and remote-controlled vehicles.
• Automation & Prototyping: Critical for manufacturing systems and prototyping. Count on precision and reliability.

Keywords:

spur gear motor,12v dc gear motor,dc gear motor,12 Volt dc gear motor,dc gear motor 12v

Development Samples:

If you need samples, please contact us.

Engineering & Manufacturing:

Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.

2.Item will be shipped within 1-3 business days after the payment.

3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.

4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ for spur gear motor

Q：What is a Spur Gear Motor?

A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.

If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks

Q:Can Spur Gear Motor Be Customized?

A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.

Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
