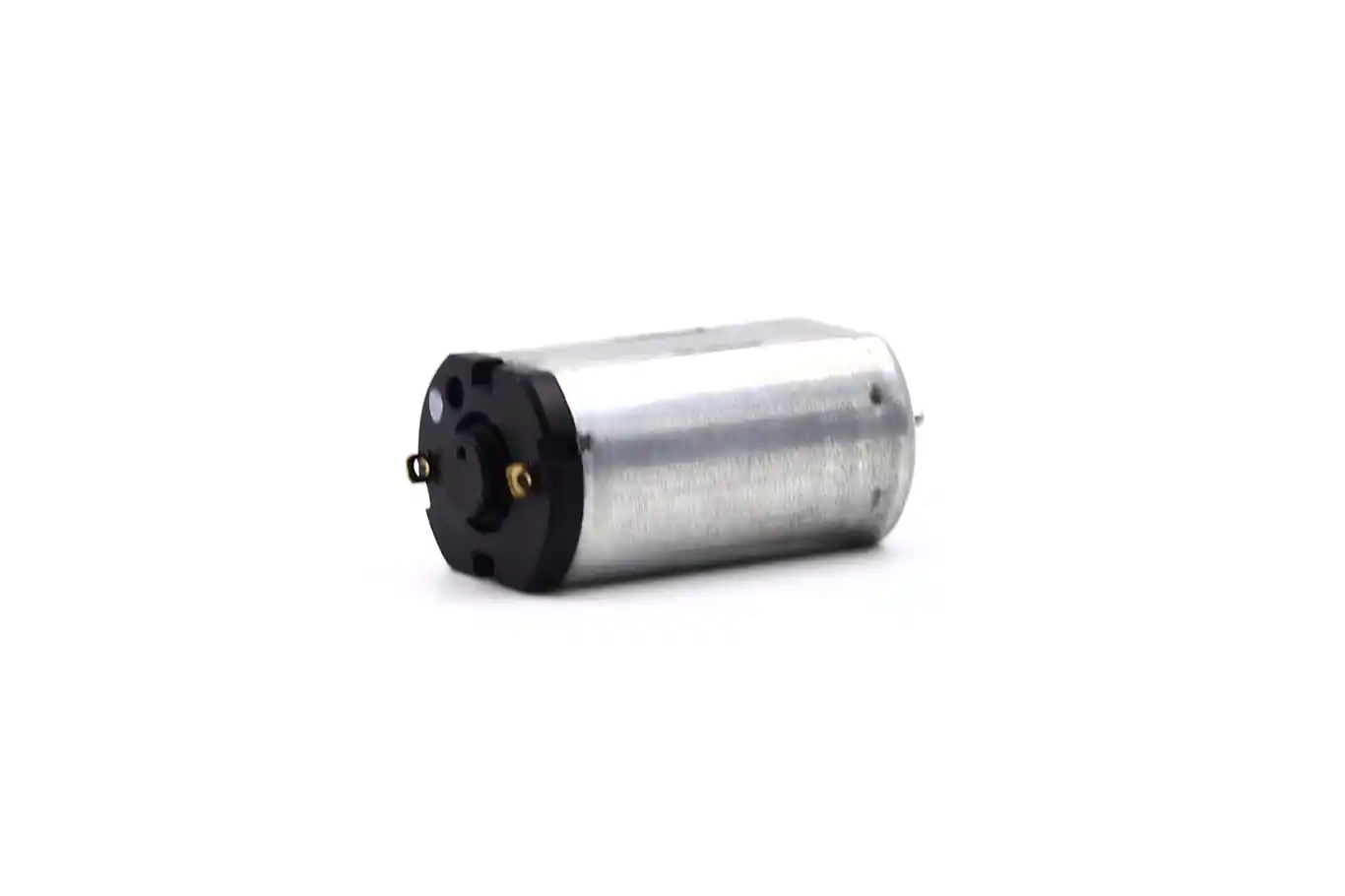

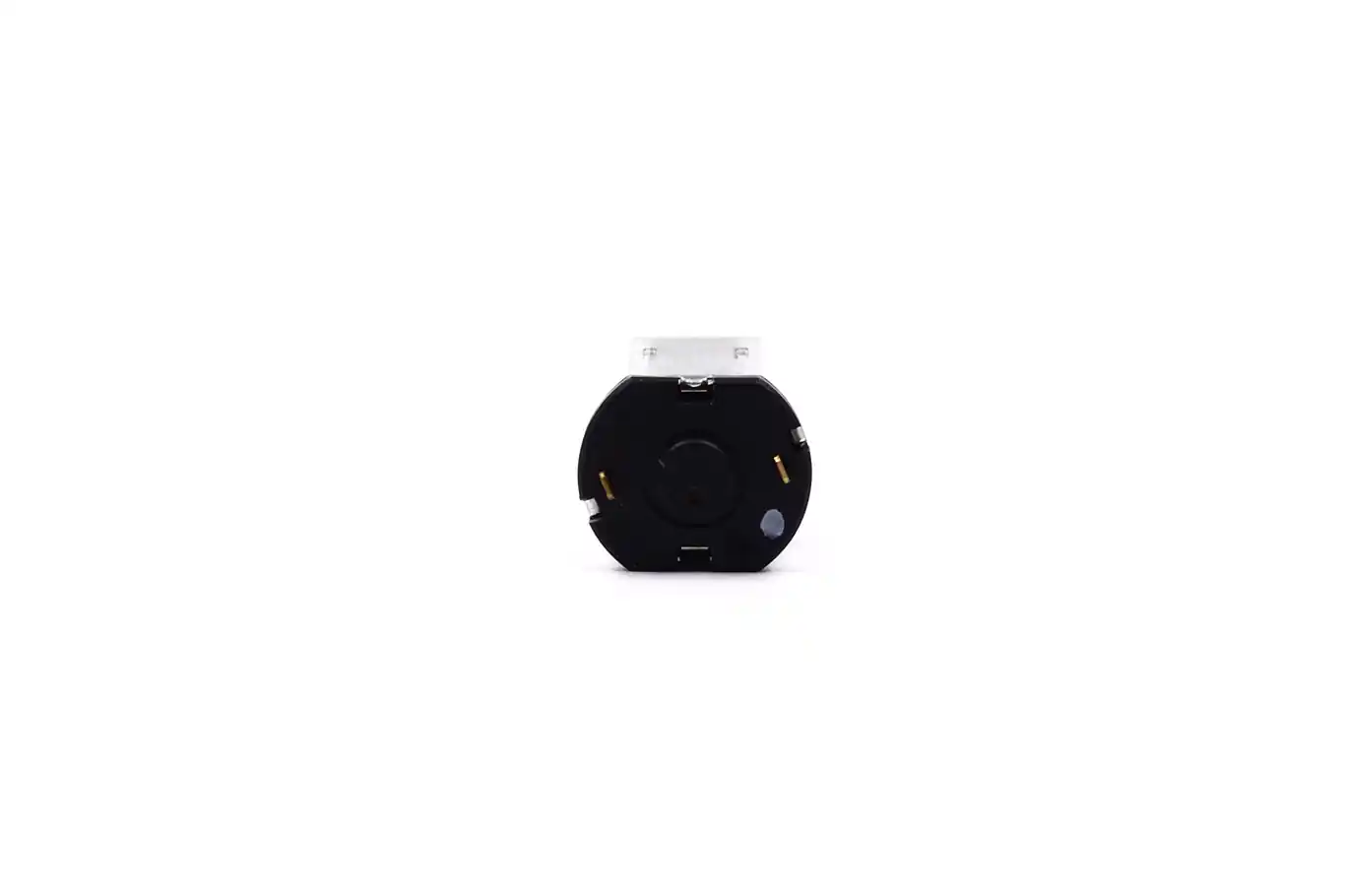

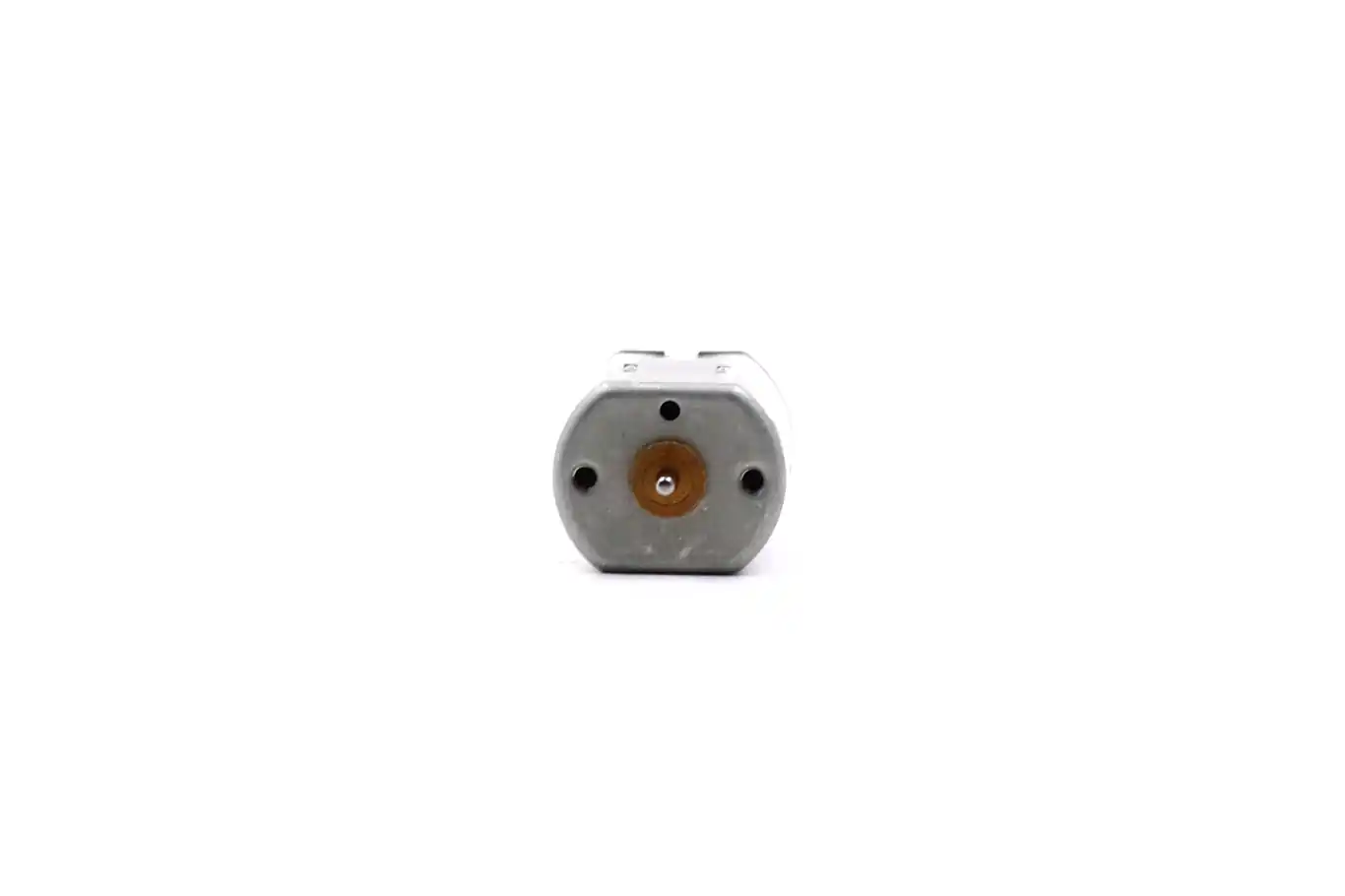

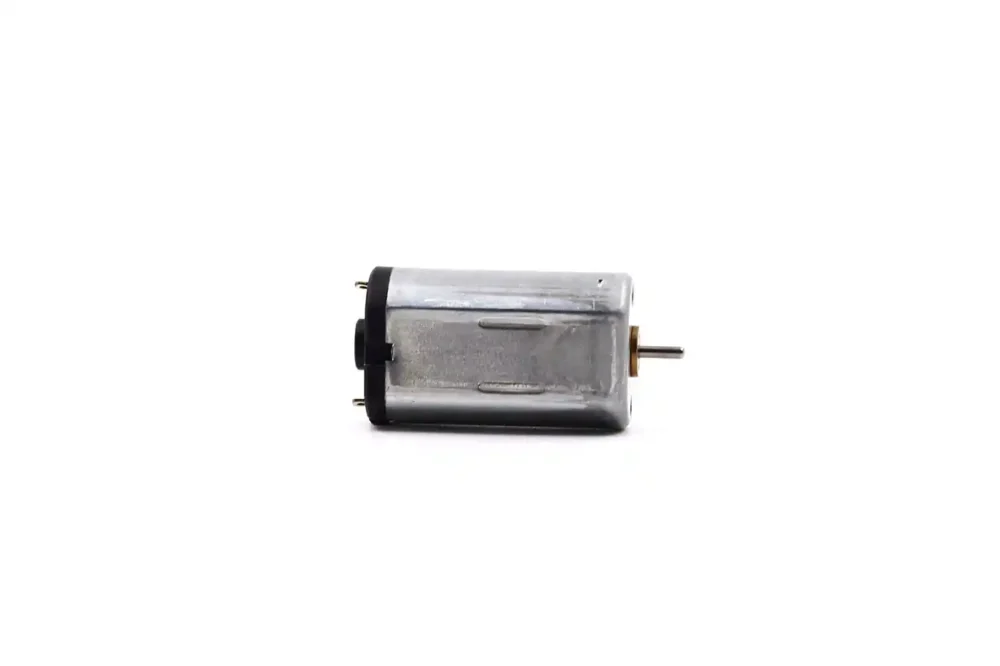

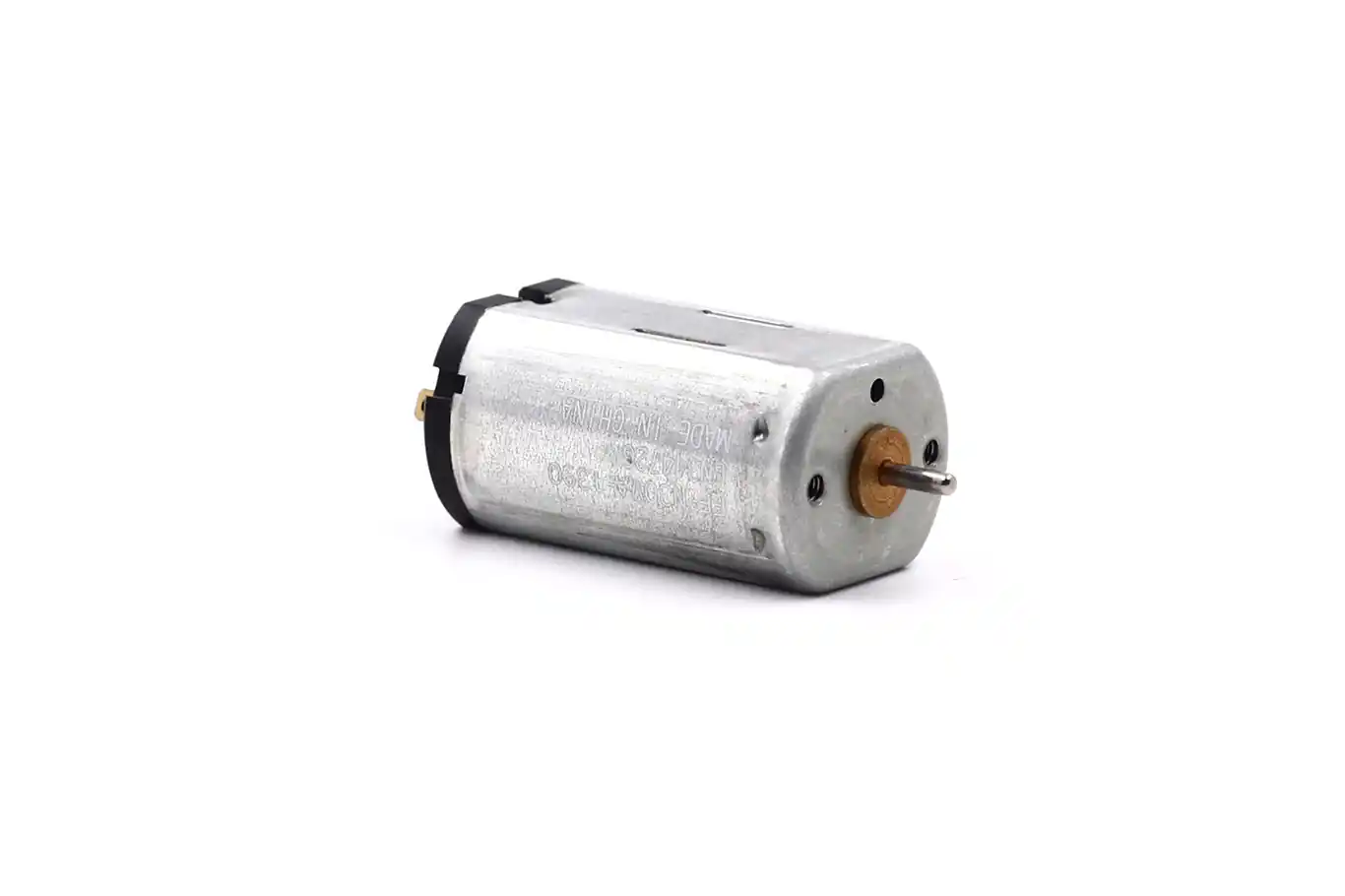

12mm Micro DC Motor – 20mm Type Model TSL-FF-N30VAV
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-FF-N30VAV
- Motor Type: Micro DC Motor(Brushed DC Motor)
- Motor Diameter:12.0 mm
- Motor Length: 20 mm
- Shaft Diameter: φ 1.0 mm
- Rated Voltage:1.5V/2.4V/3V/ 3.7V/5V/12 V
- #More Specifications
♦ Typical Applications:
- Beauty equipment / personal care products / health products / toys / model aircraft
- Security Products: Locks / Power Grid Products: Relays / Meters
- Actuator / Showcase / Medical Equipment
FF-N30VA Small DC Electric Motor Datasheets
The TSL-FF-N30VAV is a compact brushed small dc electric motor.It is designed for a wide range of applications requiring precise, small-scale power. Measuring just 12.0 mm in diameter and 20 mm in length, with a 1.0 mm shaft diameter, this small dc electric motor is an ideal choice when space is limited.
This small dc electric motor is commonly found in beauty and personal care products, health devices, and toys, where its small size and efficient operation are highly valued. Beyond consumer goods, the small dc electric motor TSL-FF-N30VAV also plays a crucial role in security products like locks, power grid components such as relays, and various types of meters.
Its reliable performance makes it suitable for use as an actuator in different systems, for showcase displays, and within medical equipment, highlighting its broad utility across both commercial and industrial sectors.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |
| V | RPM | A | RPM | A | g·cm | W | g·cm | A | |
| TSL-FF-N30VAV-1858 | 1.5 | 9600 | 0.06 | 7860 | 0.285 | 4.0 | 0.32 | 22.0 | 1.3 |
| TSL-FF-N30VAV-09195 | 2.4 | 4700 | 0.017 | 3670 | 0.06 | 2.4 | 0.09 | 11.0 | 0.21 |
| TSL-FF-N30VAV-2522 | 3 | 38240 | 2.54 | 30806 | 2.54 | 13.16 | 4.17 | 67.68 | 10.53 |
| TSL-FF-N30VAV-2429 | 3.7 | 38954 | 0.421 | 32580 | 2.15 | 12.85 | 4.29 | 78.54 | 10.99 |
| TSL-FF-N30VAV-12106 | 5 | 16800 | 0.035 | 14450 | 0.22 | 4.5 | 0.665 | 32.2 | 1.36 |
| TSL-FF-N30VAV-6340 | 12 | 13144 | 0.012 | 10834 | 0.06 | 3.37 | 0.38 | 19.15 | 0.29 |

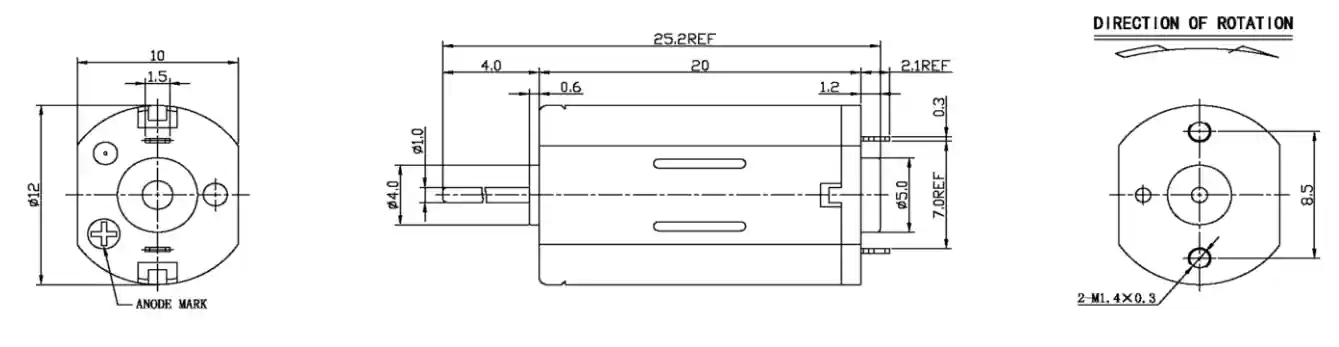

Small Boat Motors Electric Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

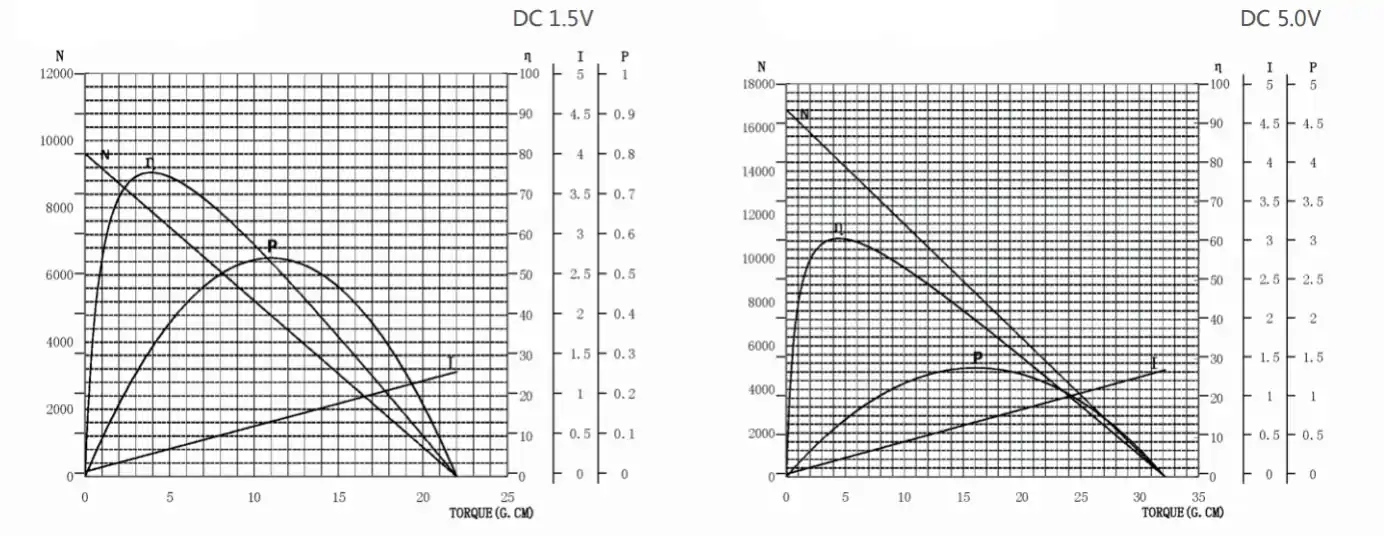

Small DC Electric Motor 5V Performance Curve
Features:
NdFeB magnet, precious metal brush, stainless steel shaft, oil-impregnated bearing,small dc electric motor,small,electric motor,small electric motor repair near me,small electrical motor for small appliance
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
