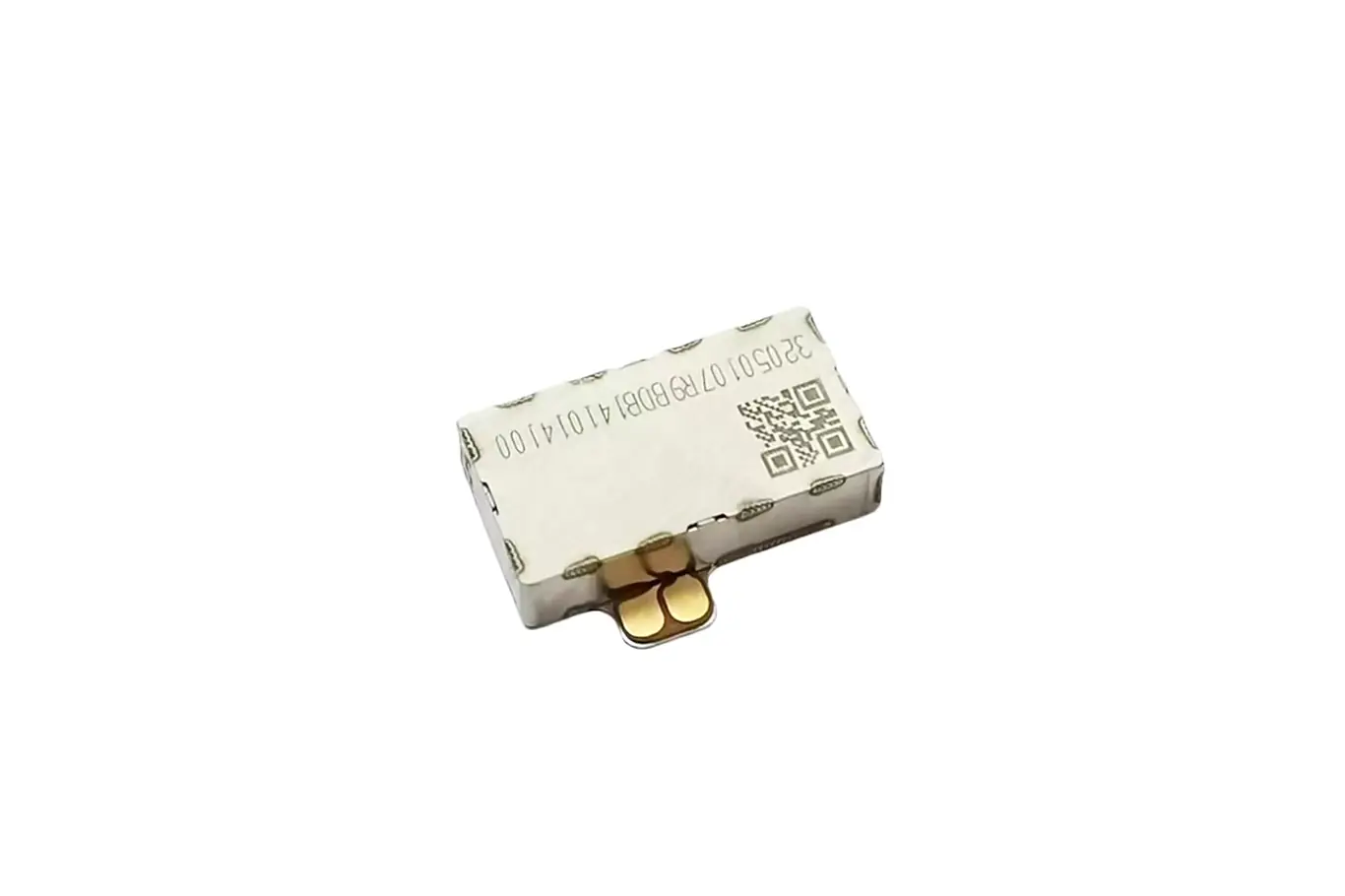

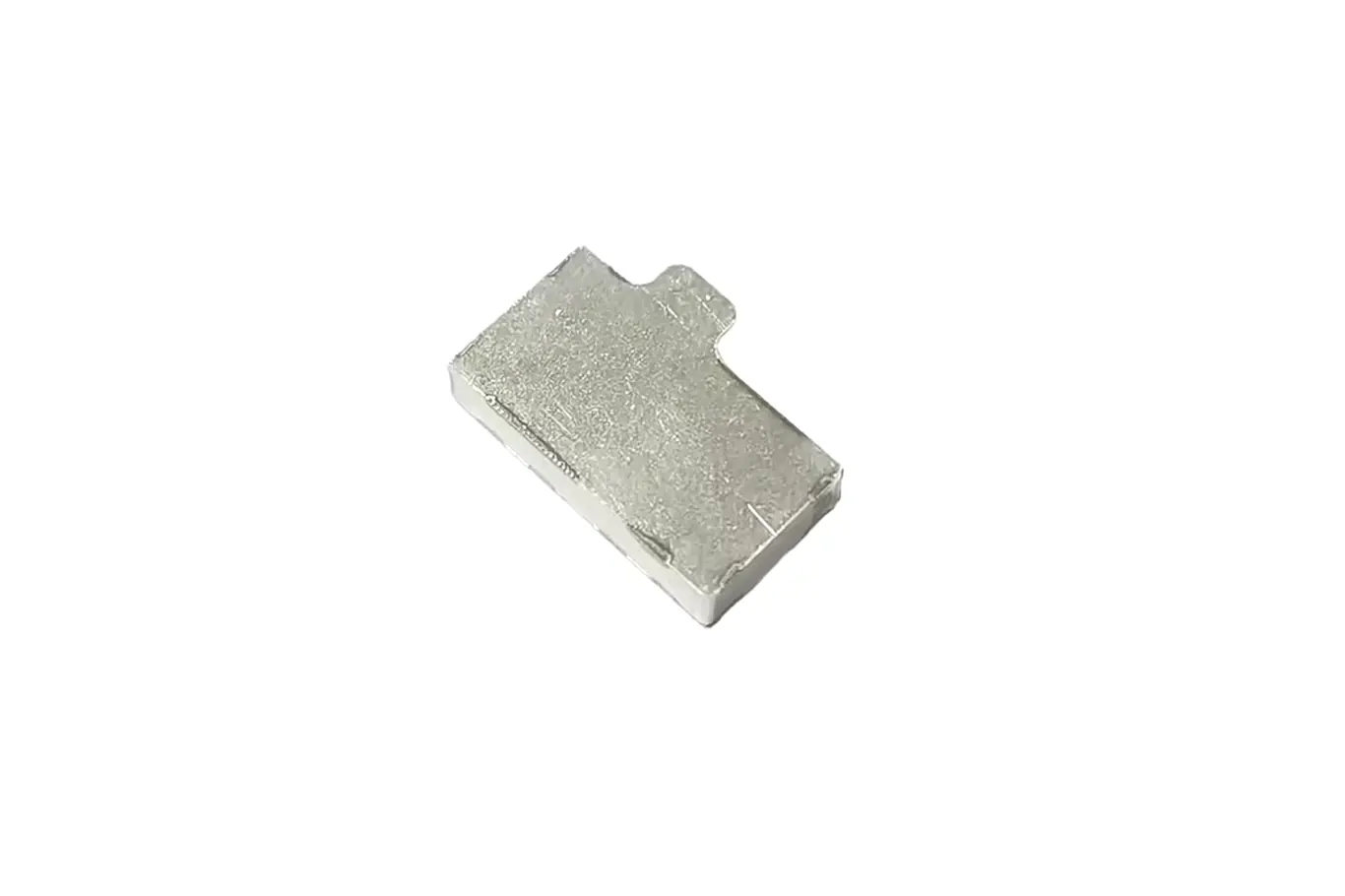

15mm Length LRA Linear Vibration Motor – 8mm Width Type Model TSL-ELV081530-B
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-ELV081530-B
Certification: ISO9001,ISO14001,IS045001
Green product: ROHS/REACH compliant
Motor Length:15.0 ± 0.1 mm
Motor Width:8.0 ± 0.1 mm
Motor Height:3.0 ± 0.05 mm
X-Axis 9.5mm X 9.5mm 170Hz Haptic Linear Resonant Vibration Motor Parameters
Our linear resonant vibration motors provide the highest reliability and a long-lasting life-time and linear vibration actuators can be used in feedback using haptics.
| Motor Model | TSL-ELV081530-B |
| Motor Length | 15.0 ± 0.1 mm |
| Motor Width | 8.0 ± 0.1 mm |
| Motor Height | 3.0 ± 0.05 mm |
| Rated Voltage | 0.9 Vrms AC |
| Work Voltage | 0.1Vrms – 0.95Vrms AC |
| Transient Vibration Acceleration | 1.0+0.20/-0.15Gp, 7Vp+1cycle sine wave@F0 |
| Resonance Frequency | 170 ± 8 Hz |
| Rising Time | Max 100ms The time from 0 up to 90% maximum acceleration. |
| Falling Time | Max 130ms The time free fall acceleration from 100% to 10%. |
Long Lifetime Haptic Linear Resonant Vibration Motor Outline Drawing
For linear resonant vibration motors that operate such as the DRV26XX series of Texas Instruments is a recommended option. For more information and to make a purchase, visit the following link: https://www.digikey.com/en/product-highlight/t/texas-instruments/drv2605-haptic-driver
Keywords:
lra linear resonant actuator, linear resonant actuator wiki, linear resonant actuator, rectangular lra linear resonant actuator haptic vibration, linear resonant actuators, linear actuator vibration motor, linear motor vibration, linear actuator taptic engine, lra vibration motors.
Keywords:
phone vibration motor, coin motor, mobile vibration motor, small vibrating motor, vibrating device, dc vibration motor,dc flat motor
Development Samples:
Quantities for sampling of models in stock can be purchased directly online from us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment Method:
Payment methods : PayPal or T/T
Shipping Method:
1.Delivery: DHL door to door 7-10 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you’ve not received the item within the Delivery Time Please send us an email with any queries. We usually give you a response within 24 hours in the event that we don’t, examine the spam in your email inbox. We will try the best we can to help resolve the issue.
4.Please ensure that your address matches the address of your final shipment before you make payment.
5.In order to ensure that you receive your purchase tax-free after importation, we’ll declare it as lower values, so please be aware of this, thanks!
FAQ For DC Flat Motor
Q:What is the minimum order quantity (MOQ)?
A: There are no minimum order quantity (MOQ) requirements from our side. However, please note that customized components must comply with our material supplier’s established MOQ specifications. For detailed requirements and pricing specifics, kindly refer to the attached quotation document.
Q:What are the different types of coin vibration motors you can provide?
A: We offer three types of coin vibration motors: the ERM (Eccentric Rotating Mass) type, coin brushless types, and the LRA (Linear Resonant Actuator) type. All of these motors feature a flat, coin button-shaped casing.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
