17mm Micro DC Motor – 22mm Type Model TSL-RK-130
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-RK-130
- Motor Type: Micro DC Motor(Brushed DC Motor)
- Motor Diameter:17.1 mm
- Motor Length: 22.8 mm
- Shaft Diameter: φ 1.5 mm
- Rated Voltage: 3.7V/5V/12V
- #More Specifications
♦ Typical Applications:
- Beauty equipment / personal care products / health products / toys / model aircraft
- Security Products: Locks / Power Grid Products: Relays / Meters
- Actuator / Showcase / Medical Equipment
Electric Motor Small Datasheets
The electric motor small TSL-RK-130 offers stable performance in a compact design. This brushed DC electric motor small (RF-130H) uses strong materials and a precise metal brush structure, minimizing wear and temperature changes. It runs reliably, even with constant use or frequent stops.
Measuring 17.1 mm in diameter, 22.8 mm long, with a 1.5 mm shaft, it’s small and light. This e electric motor small reduces fatigue and improves handling, making it perfect for portable, precise devices.
Electric motor small is great for: beauty products, personal care items, health products, toys, model aircraft, security locks, power grid relays/meters, actuators, showcases, and medical gear.
We can optimize and customize the tiny electric motor. This ensures strong, reliable power for different products. It meets many customer needs.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g.cm | W | A | g.cm | |
| TSL-RK-130-13255 | 12 | 0.028 | 12000 | 0.19 | 10508 | 14.89 | 1.60 | 1.33 | 119.77 |
| TSL-RK-130-14215 | 5 | 0.025 | 5500 | 0.15 | 4767 | 10.10 | 0.50 | 0.96 | 75.77 |
| TSL-RK-130-21104D | 3.7 | 0.061 | 8440 | 0.42 | 7379 | 13.51 | 1.02 | 2.92 | 107.47 |
| TSL-RK-130-19130D | 5 | 0.052 | 8440 | 0.42 | 7379 | 13.51 | 1.23 | 2.92 | 122.97 |

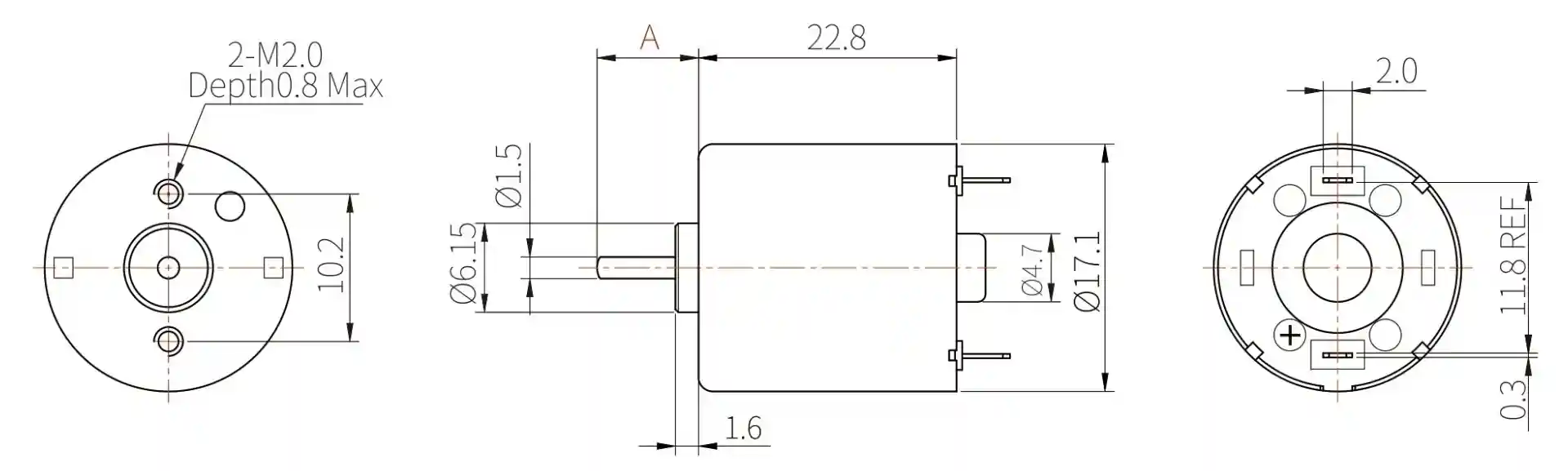

Electric Motor Small DC Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Keywords
Tiny motor,micro motor,mini motor,small motor,small electric dc motors,mini dc motor,electric motor smalll
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q:Could you send me a quote/price list?
A:All of our motors are customized according to the specific needs of the customer, including life, noise level, voltage, shaft specifications, etc., and the price will vary according to the number of years, so it is difficult for us to provide a price list.
If you can tell us your detailed requirements and annual quantity, we will offer you a reasonable price for both parties.
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
