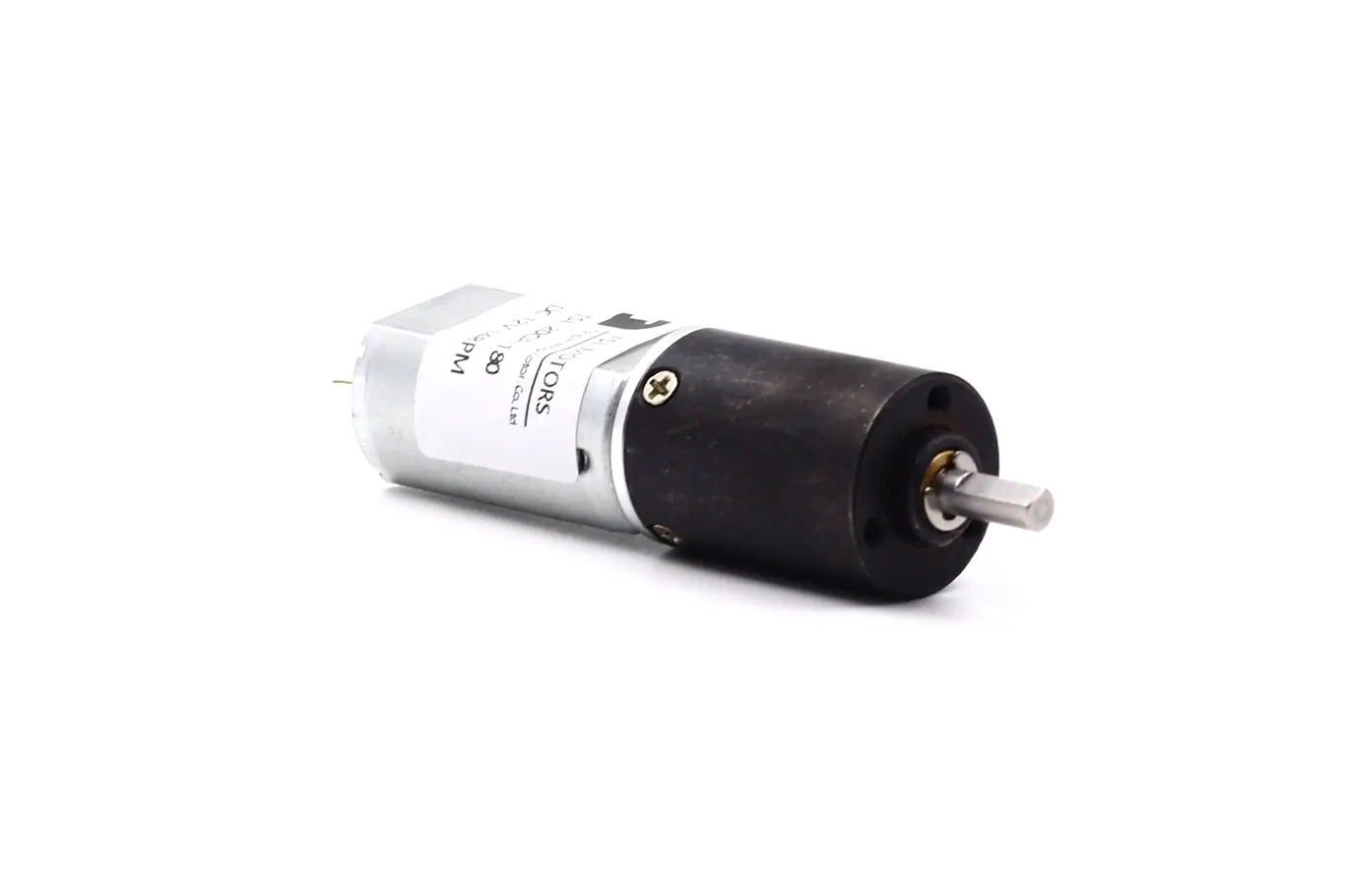

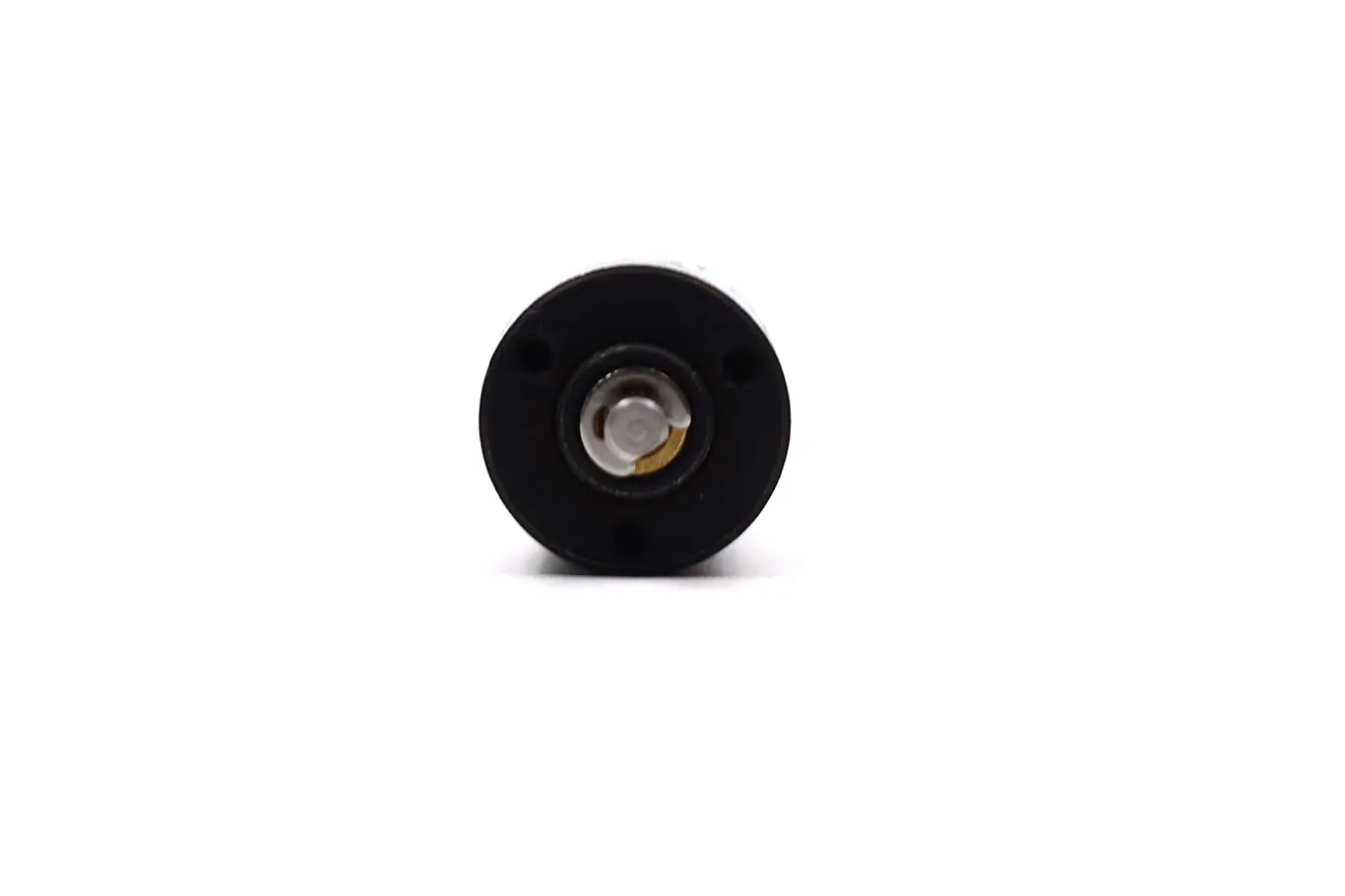

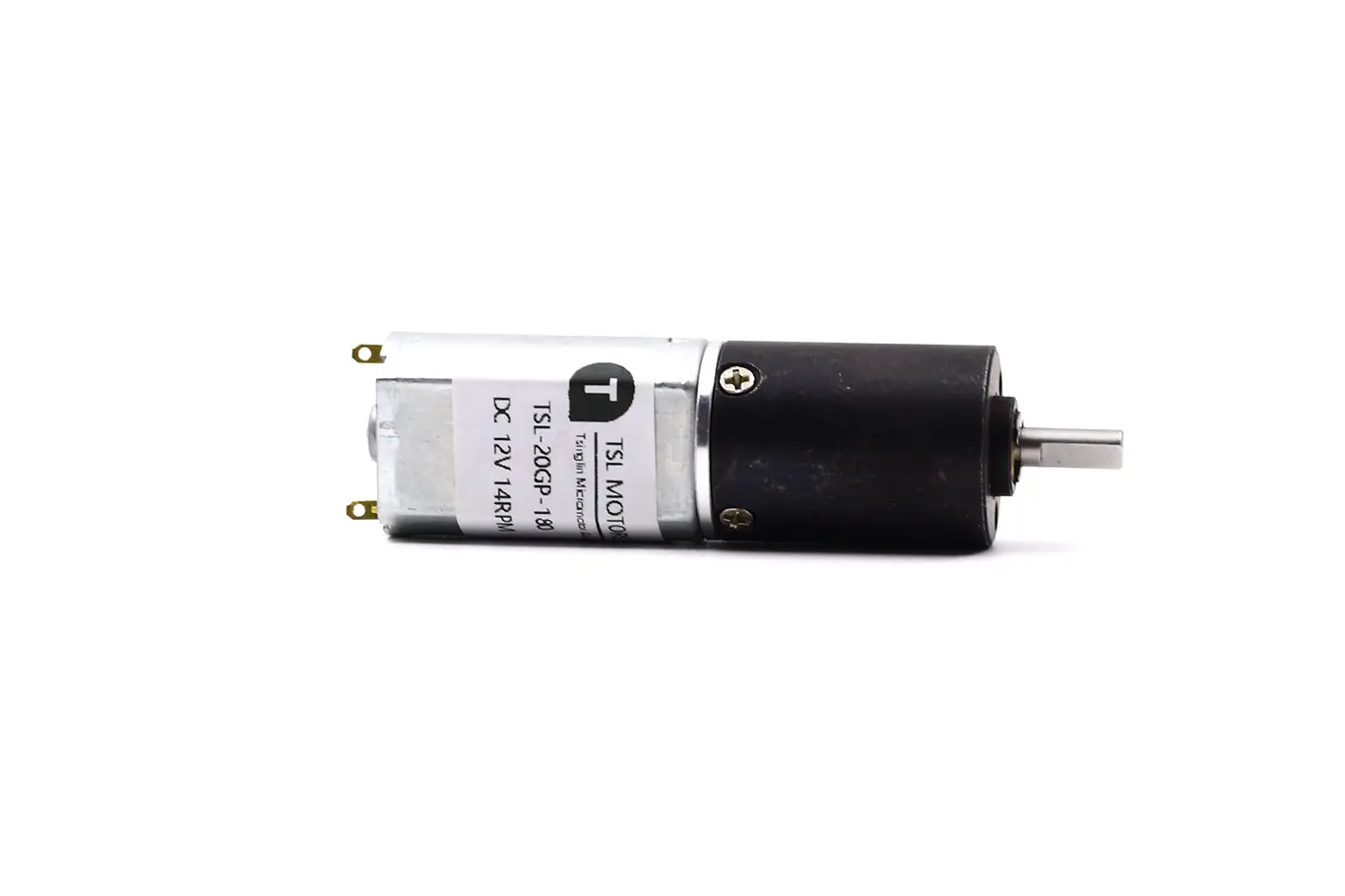

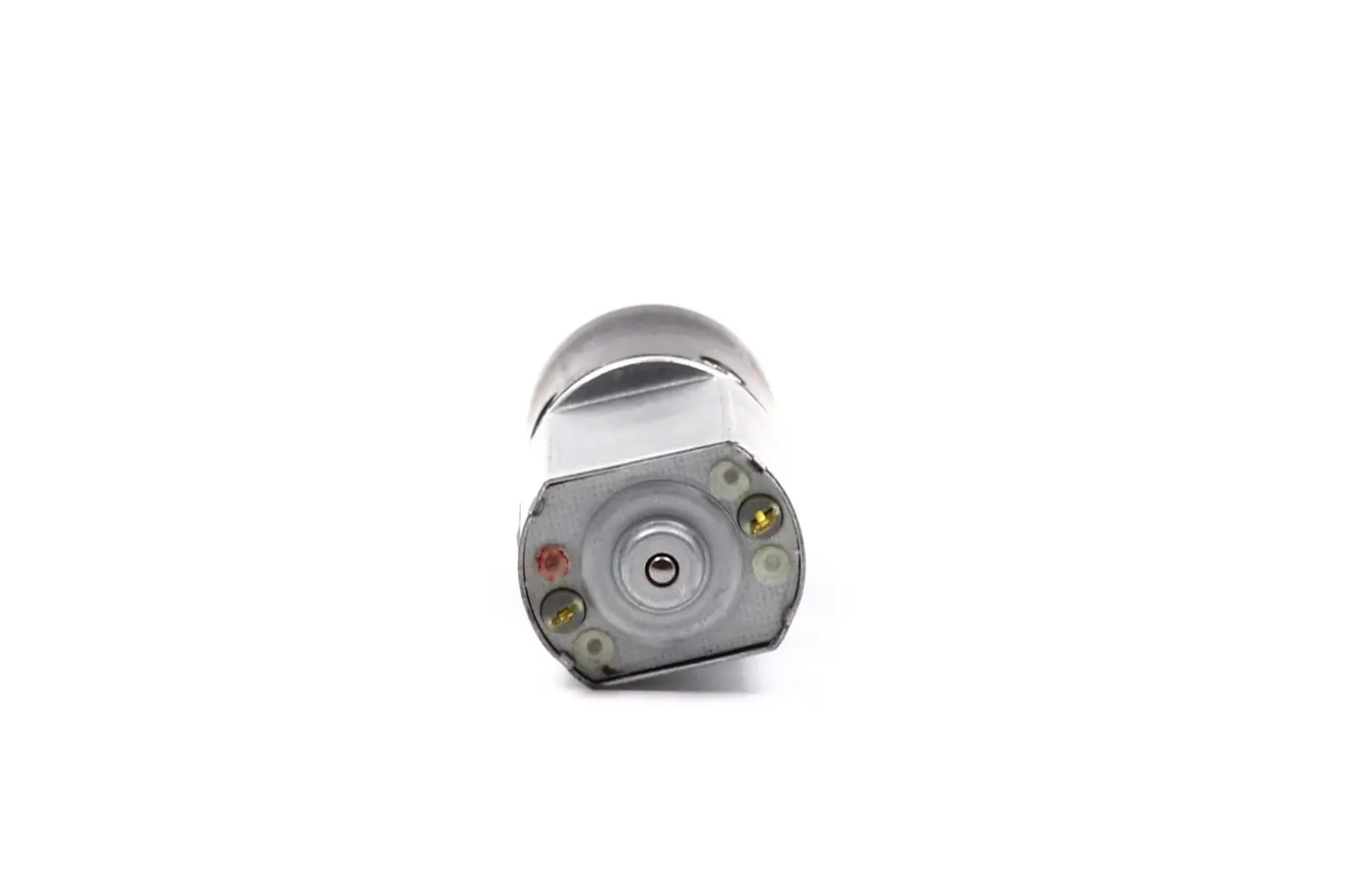

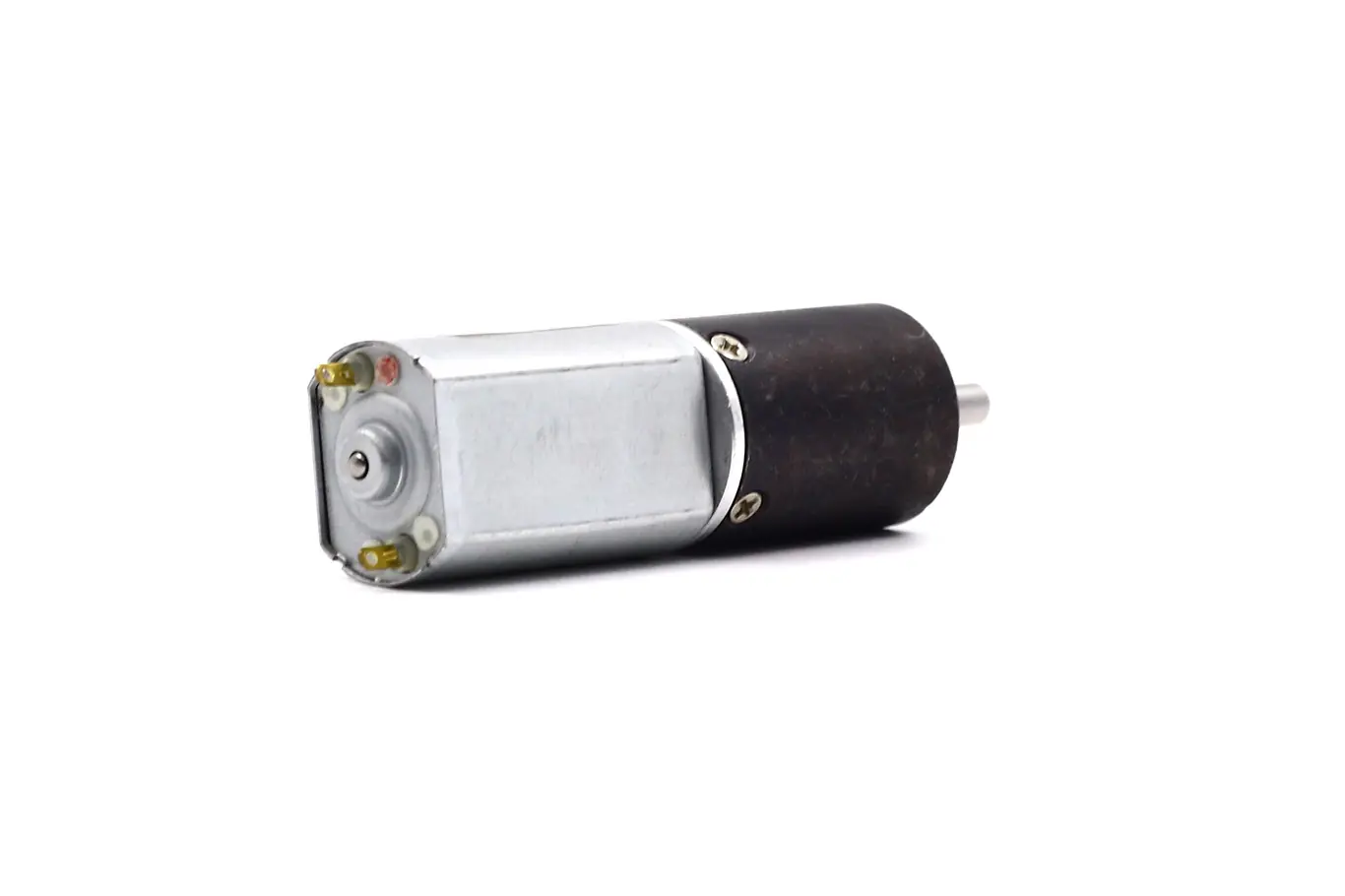

20mm Planetary Gear Motor Model TSL-20GP-180
♦ Basic Info:
- Motor Type: Planetary Gear Motor
- Motor Diameter: 20 mm
- Motor Length: 32 mm
- Gearbox Diameter:20mm
- Shaft Diameter: φ 4mm
- Shaft Diameter:10mm
- Rated Voltage: 6V / 12V DC
- No Load Current：≤0.23A / ≤0.28A
- No Load Speed: 9rpm – 2,750rpm
- Max Torque:10kg.cm
- Rotation:CW / CCW
- #More Specifications
Typical application:
- Smart Robot，Electric Curtains，Smart Balance Car，Smart Robotic Arm
12v DC Gearmotor Data Sheet
The 12v dc gearmotor TSL-20GP-180 is a compact yet powerful planetary gear motor, designed for applications requiring precise control and high torque. This versatile motor supports both 6V and 12V DC operation, allowing for flexible integration into various systems.
The 12v dc gearmotor offers an impressive range of no-load speeds, from a low 9 rpm up to a swift 2,750 rpm, depending on the voltage, making it suitable for both slow, high-torque tasks and faster operations. Despite its robust performance, the 12v dc gearmotor TSL-20GP-180 maintains a low no-load current draw, typically under 0.28A, ensuring energy efficiency.
One of its standout features is its maximum torque of 10 kg·cm, providing substantial power for demanding loads. The 12v dc gearmotor’s 4mm shaft diameter and 10mm shaft length offer standard compatibility for easy integration. Weighing approximately 80g, this 12v dc gearmotor combines high performance with a lightweight design. Plus, its ability for both clockwise (CW) and counter-clockwise (CCW) rotation adds to its adaptability.
TSL-20GP-180, 6V DC
| Ratio | Gearbox | No Load | Rated Load | Stall | Reduction | ||||
| i : 1 | Length | Current | Speed | Current | Speed | Torque | Current | Torque | Stages |
| 5.4:1 | 17.3mm | ≤0.23A | 1,350rpm | ≤0.45A | 1,140rpm | 0.09kg.cm | ≤1.5A | ≥0.4kg.cm | 1 stage |
| 19:1 | 21.5mm | ≤0.23A | 390rpm | ≤0.45A | 325rpm | 0.3kg.cm | ≤1.5A | ≥1.3kg.cm | 2 stages |
| 29:1 | 21.5mm | ≤0.23A | 250rpm | ≤0.45A | 210rpm | 0.5kg.cm | ≤1.5A | ≥1.7kg.cm | 2 stages |
| 84:1 | 24.7mm | ≤0.23A | 90rpm | ≤0.45A | 73rpm | 1.5kg.cm | ≤1.5A | ≥6.0kg.cm | 3 stages |
| 128:1 | 24.7mm | ≤0.23A | 58rpm | ≤0.45A | 48rpm | 2.3kg.cm | ≤1.5A | ≥9.0kg.cm | 3 stages |
| 157:1 | 24.7mm | ≤0.23A | 47rpm | ≤0.45A | 39rpm | 2.8kg.cm | ≤1.5A | ≥11.0kg.cm | 3 stages |
| 370:1 | 29.9mm | ≤0.23A | 20rpm | ≤0.45A | 16rpm | 6.5kg.cm | ≤1.5A | ≥15.0kg.cm | 4 stages |
| 560:1 | 29.9mm | ≤0.23A | 13rpm | ≤0.45A | 11rpm | 10.-kg.cm | ≤1.5A | ≥15.0kg.cm | 4 stages |
| 850:1 | 29.9mm | ≤0.23A | 9rpm | ≤0.45A | 7rpm | 10.0kg.cm | ≤1.5A | ≥15.0kg.cm | 4 stages |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
TSL-20GP-180, 12V DC
| Ratio | Gearbox | No Load | Rated Load | Stall | Reduction | ||||
| i : 1 | Length | Current | Speed | Current | Speed | Torque | Current | Torque | Stages |
| 5.4:1 | 17.3mm | ≤0.28A | 2,750rpm | ≤0.55A | 2,400rpm | 0.1kg.cm | ≤2.7A | ≥0.7kg.cm | 1 stage |
| 19:1 | 21.5mm | ≤0.28A | 780rpm | ≤0.55A | 680rpm | 0.4kg.cm | ≤2.7A | ≥2.0kg.cm | 2 stages |
| 29:1 | 21.5mm | ≤0.28A | 515rpm | ≤0.55A | 445rpm | 0.65kg.cm | ≤2.7A | ≥3.0kg.cm | 2 stages |
| 84:1 | 24.7mm | ≤0.28A | 175rpm | ≤0.55A | 154rpm | 1.8kg.cm | ≤2.7A | ≥8.0kg.cm | 3 stages |
| 128:1 | 24.7mm | ≤0.28A | 115rpm | ≤0.55A | 101rpm | 2.8kg.cm | ≤2.7A | ≥12.0kg.cm | 3 stages |
| 157:1 | 24.7mm | ≤0.28A | 95rpm | ≤0.55A | 82rpm | 3.5kg.cm | ≤2.7A | ≥15.0kg.cm | 3 stages |
| 370:1 | 29.9mm | ≤0.28A | 40rpm | ≤0.55A | 35rpm | 8.0kg.cm | ≤2.7A | ≥15.0kg.cm | 4 stages |
| 560:1 | 29.9mm | ≤0.28A | 26rpm | ≤0.55A | 23rpm | 10.0kg.cm | ≤2.7A | ≥15.0kg.cm | 4 stages |
| 850:1 | 29.9mm | ≤0.28A | 17rpm | ≤0.55A | 15rpm | 10.0kg.cm | ≤2.7A | ≥15.0kg.cm | 4 stages |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
20GP-180 Small 12v DC Gearmotor High Torque Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
