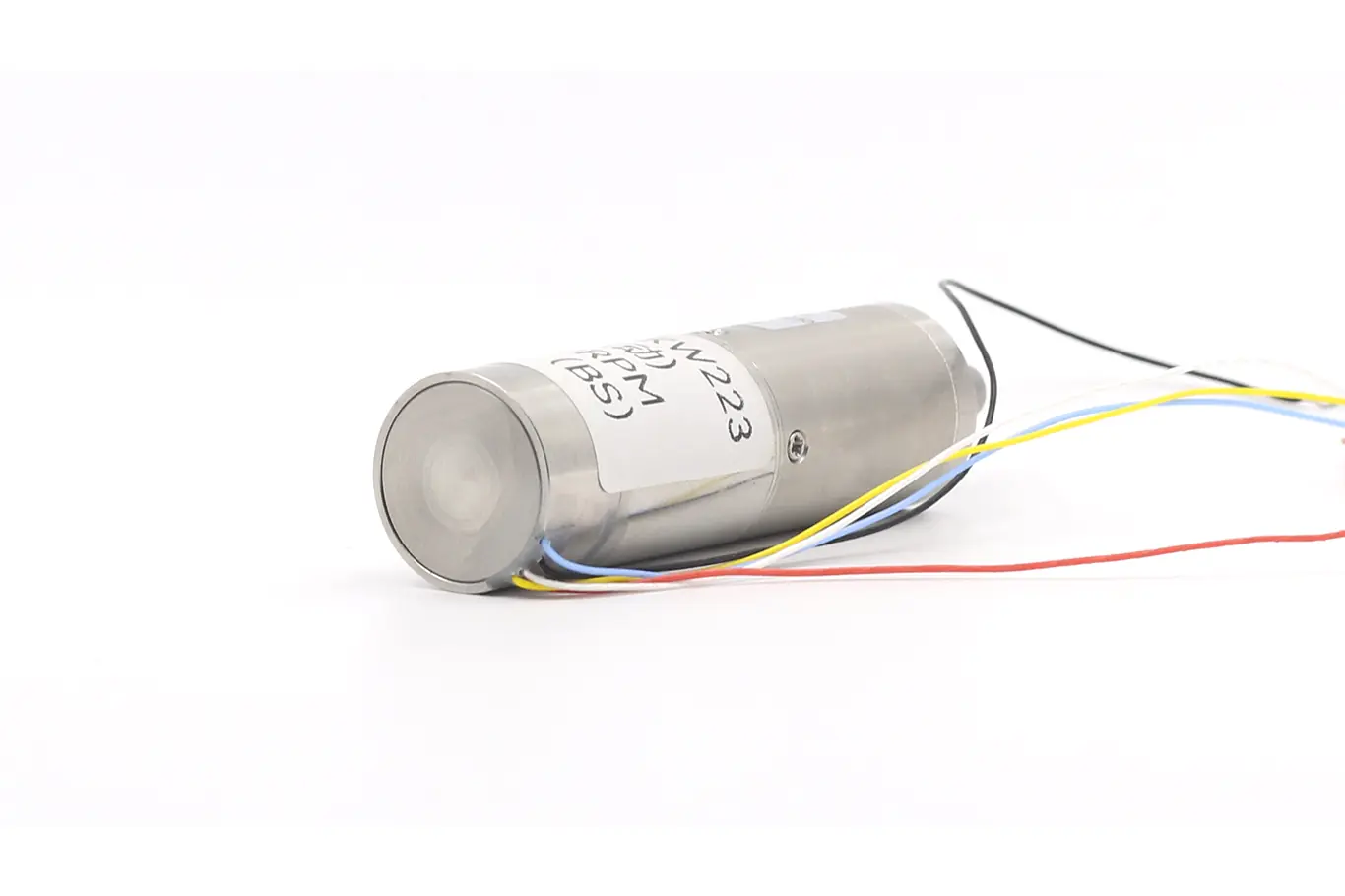

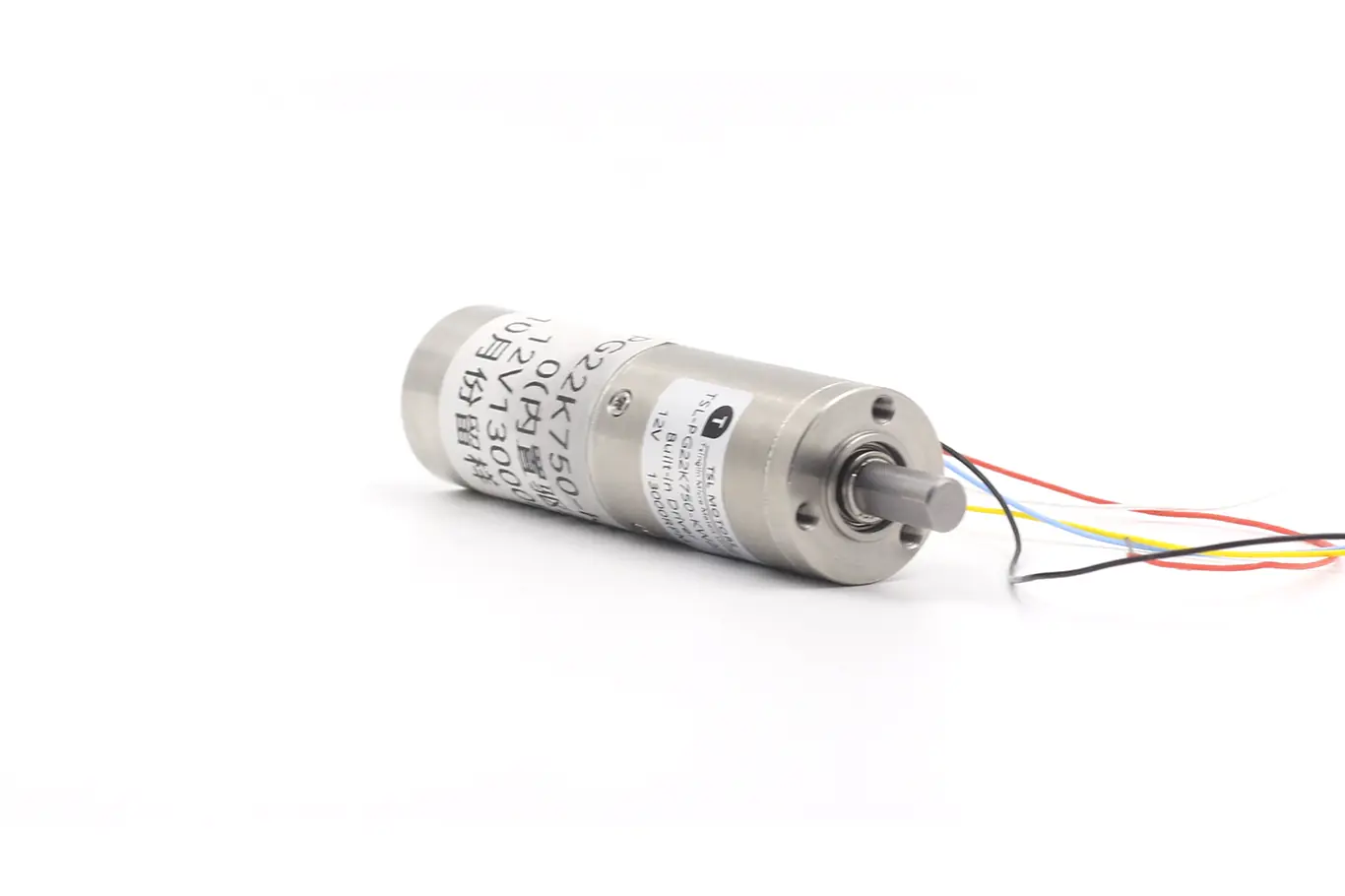

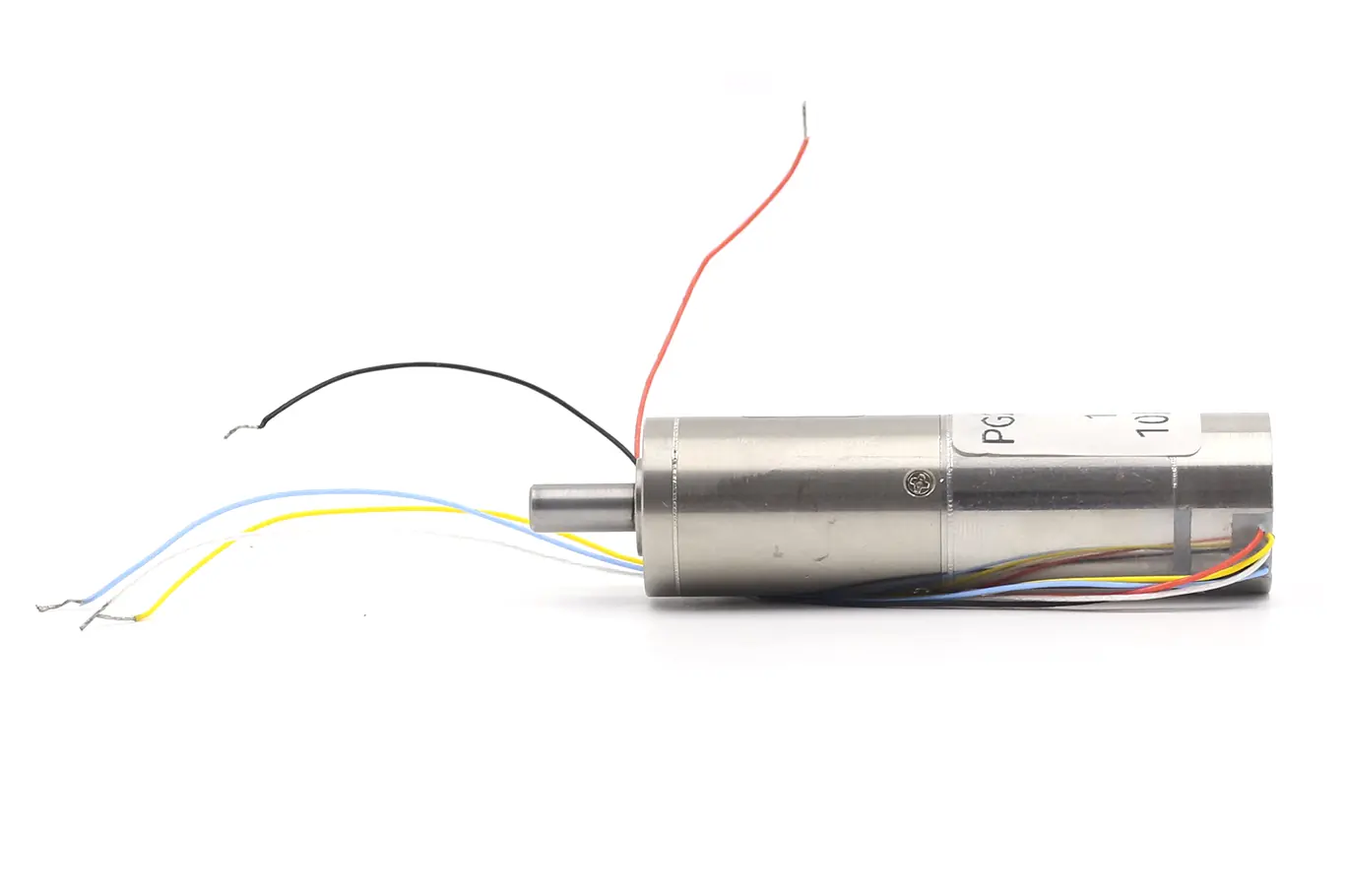

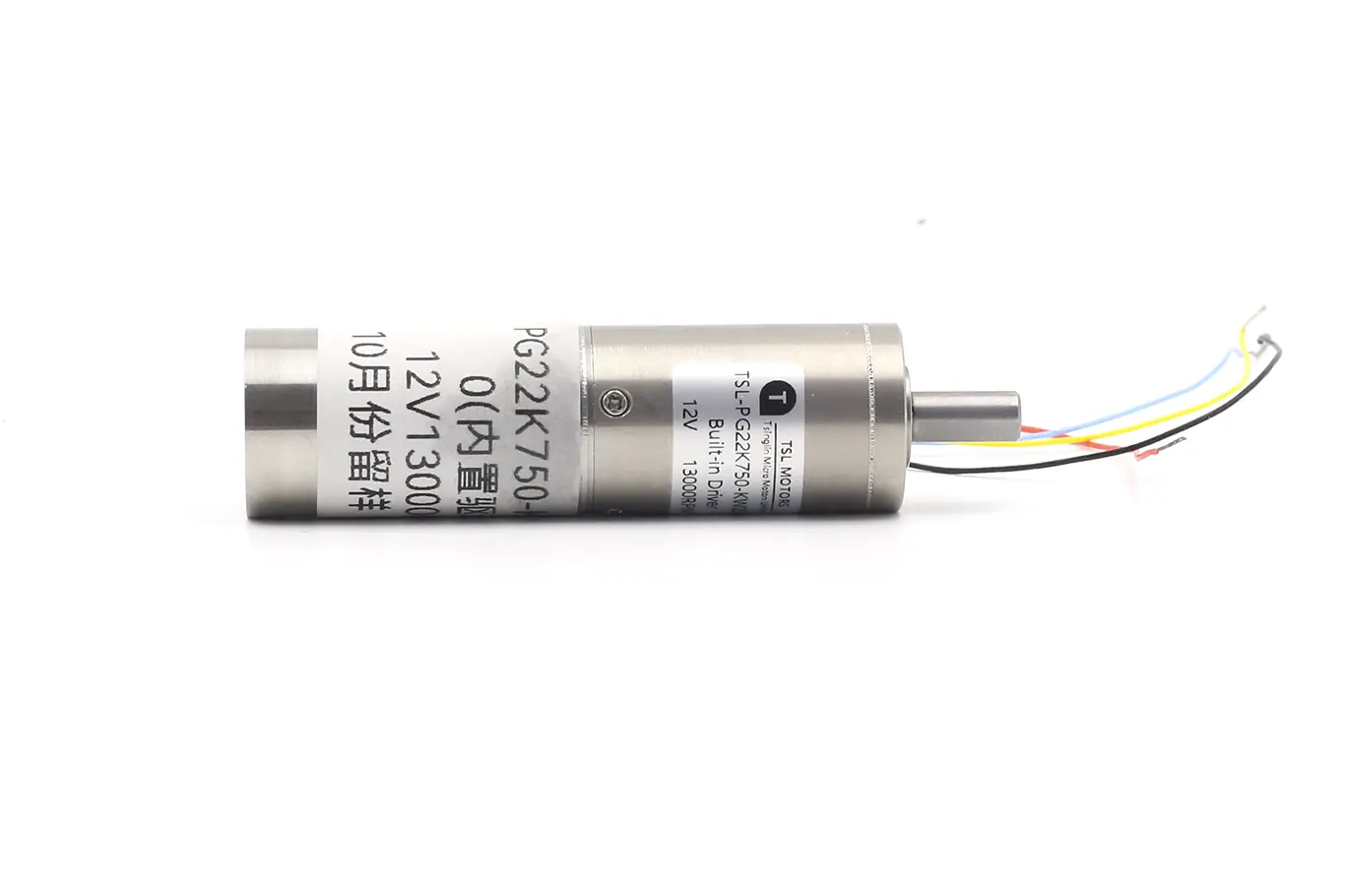

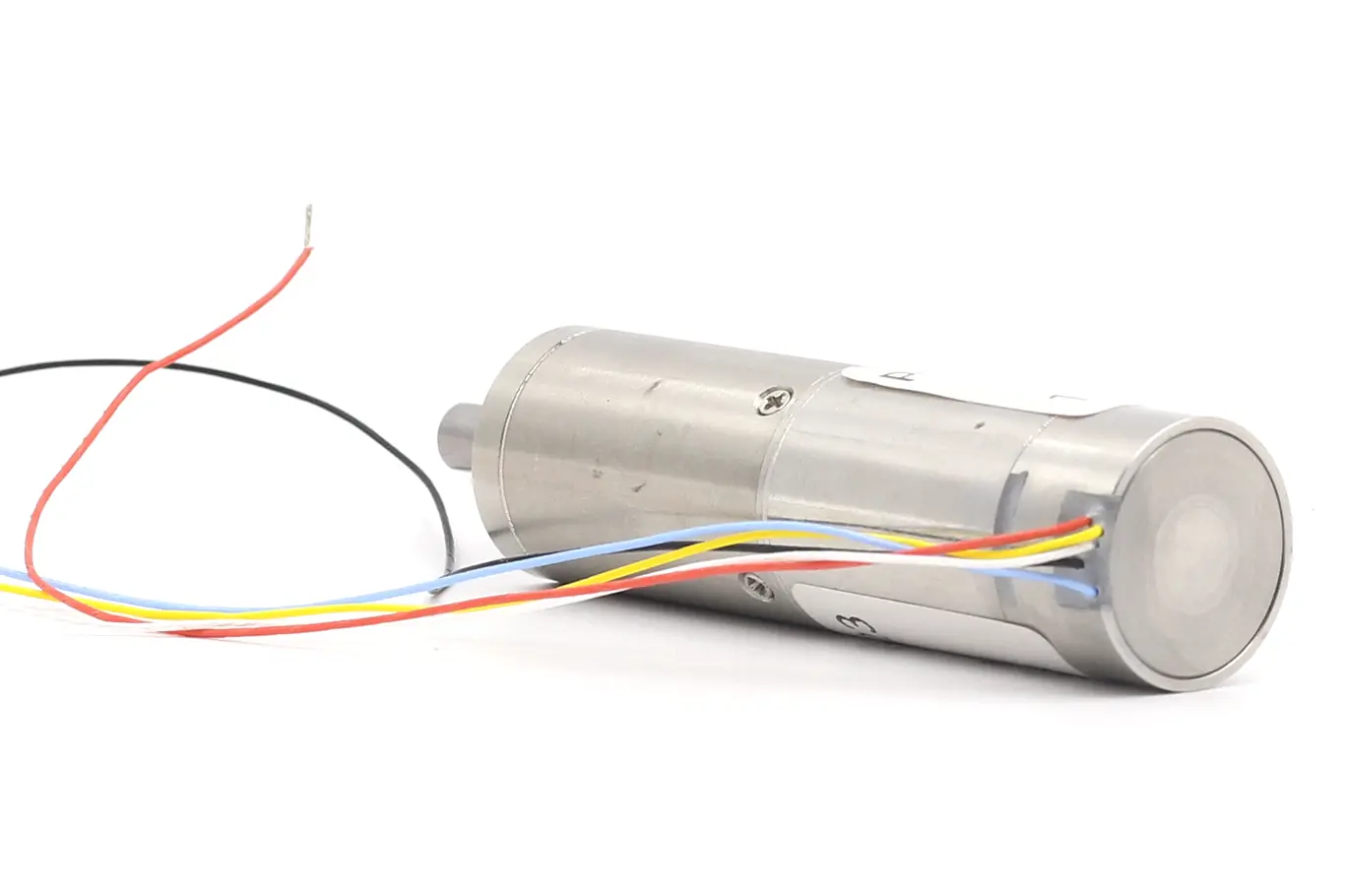

22mm Coreless BLDC Motor With Planetary Gearbox TSL-PG22K750-KW2230
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-PG22K750-KW2230
- Rated Voltage:DC 12V
- No-load Speed:17 ± 10% RPM
- Rated Torque:≥ 6 N·m
- #More Specifications
- #Outline Drawing
- Download Datasheet
♦ Typical Applications:Robot Hand Actuator
22mm Planetary Gear Motor Datasheet
Upgrade your automation systems with our premium 22mm planetary gear motor, meticulously engineered for applications requiring ultra-high torque in a compact cylindrical form factor. Integrating a high-efficiency 22mm coreless brushless DC motor with an advanced all-steel machined planetary gearbox, this integrated drive system eliminates complex external setups and provides exceptional power density and reliability.
What sets this micro 22mm planetary gear motor apart is its intelligent all-in-one design, featuring a built-in speed driver that supports precise PWM speed control and FG signal feedback. Boasting an impressive 1:750 reduction ratio that delivers a massive load torque of >= 6 N.m, this robust industrial-grade actuator operates flawlessly across extreme temperatures (-40°C to 125°C), making it the perfect choice for robotics, medical devices, and automated precision machinery.
Motor Performance Parameters
| Item | Specification |
| 1. Motor Type | Coreless Brushless Motor |
| 2. Working Voltage | 12V |
| 3. No-load Speed | 13000 ± 10% RPM |
| 4. No-load Current | ≤ 0.3A |
| 5. Load Speed | 9000 ± 10% RPM |
| 6. Load Torque | ≥ 100 g·cm |
| 7. Load Current | ≤ 2A |
| 8. Stall Torque | ≥ 1000 g·cm |
| 9. Stall Current | ≤ 8A |
| 10. Number of Pole Pairs | 1 Pair |
| 11. Operating Temperature | -40 ~ 120℃ |
| 12. Noise | ≤ 40dB |
| 13. Maximum Motor Efficiency | 80% |
💕The 22mm planetary gear motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
Gear Motor Performance Parameters
| Item | Specifications |
| 1. Working Voltage | 12V |
| 2. No-load Speed | 17 ± 10% RPM |
| 3. No-load Current | ≤ 0.5A |
| 4. Load Speed | 12 ± 10% RPM |
| 5. Load Torque | ≥ 6 Nm |
| 6. Load Current | ≤ 3A |
| 7. Operating Temperature | -40 ~ 125℃ |
| 8. Gear Ratio | 1:750 |
| 9. Noise | ≤ 45dB |
| 10. Gearbox Material | Pure Copper (Machined) |
💕The 22mm planetary gear motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

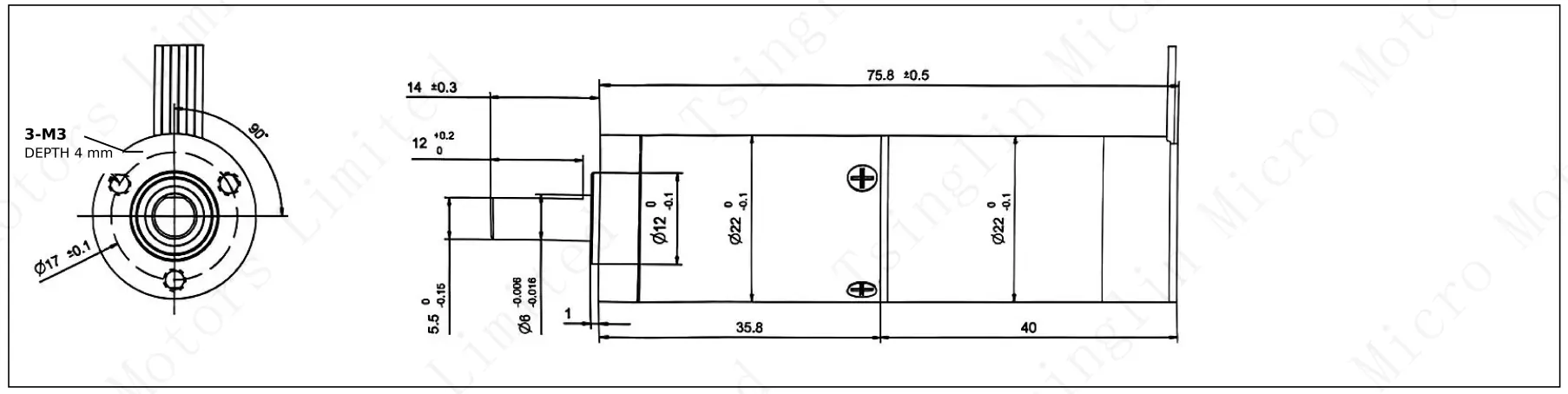

Brushless 22mm Planetary Gear Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

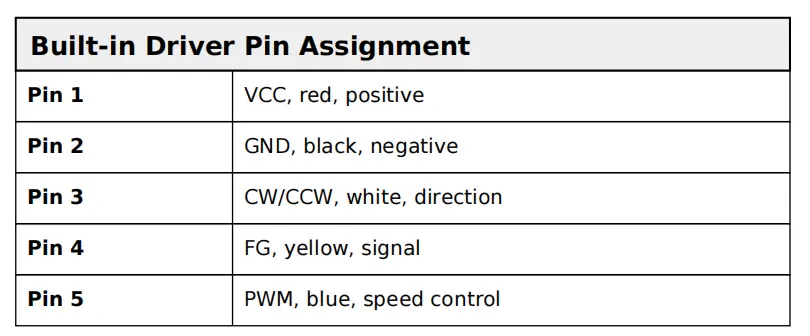

22mm Planetary Gear Motor Built-in Driver Pin Assignment
Reverse rotation: connect red to positive; connect black and blue together to negative.
Forward rotation: connect red to positive; connect black, blue and white together to negative.
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for planetary dc geared motor
Q:What is a planetary gear motor?
A:A planetary gear motor is a type of motor that mimics the movement of a planetary system. The input shaft turns a central gear known as the sun gear, which then drives multiple surrounding planet gears. This setup allows the motor to efficiently increase or reduce speed and is commonly used across various industries due to its compact design and high performance.
If you want a video to explain the principle of planetary gear motor, you can click on this link：https://www.youtube.com/watch?v=Ho4AniHtgxM
Q:Can Planetary Gear Motor Be Customized?
A: Yes,Planetary gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery.
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
