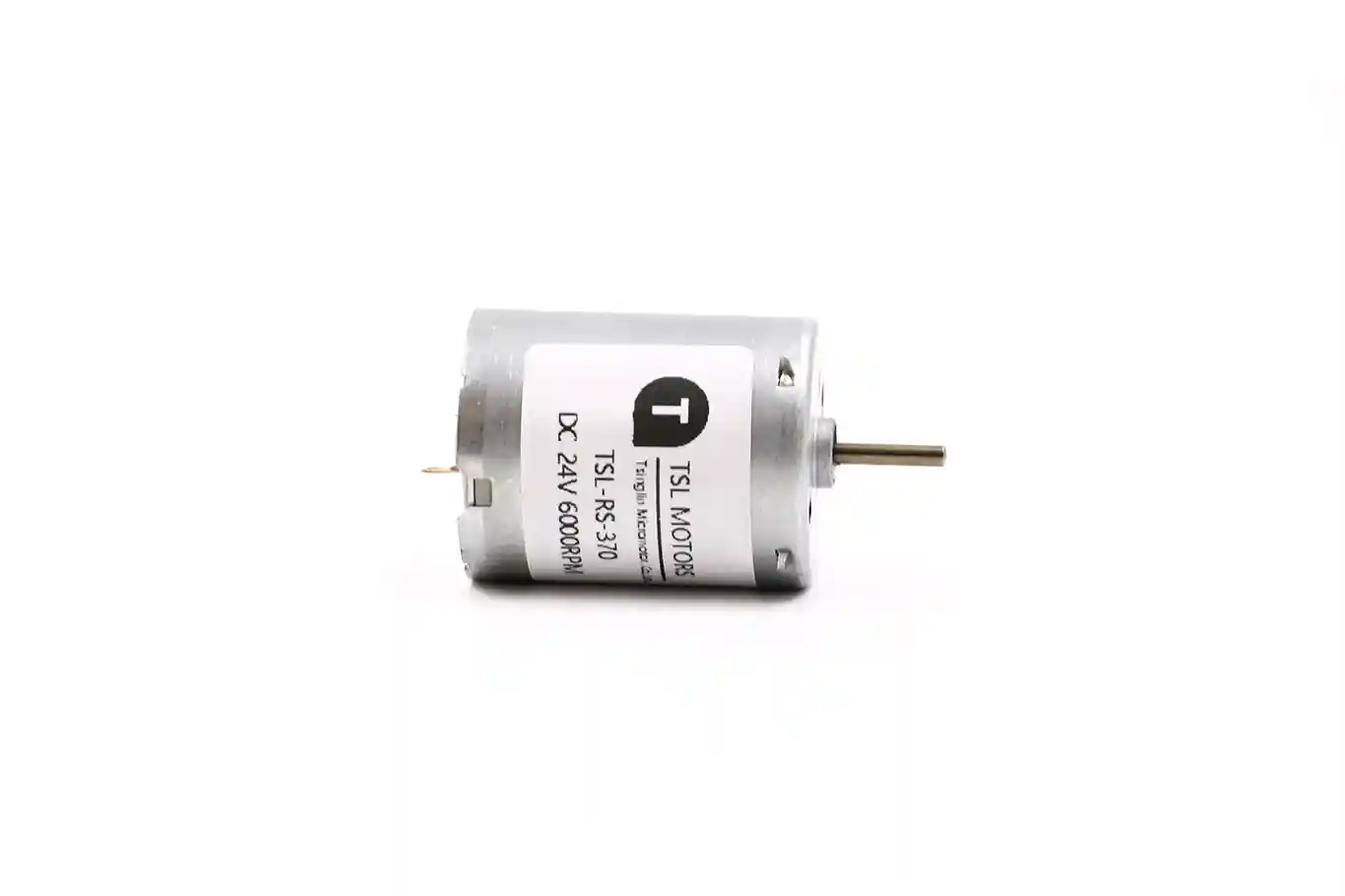

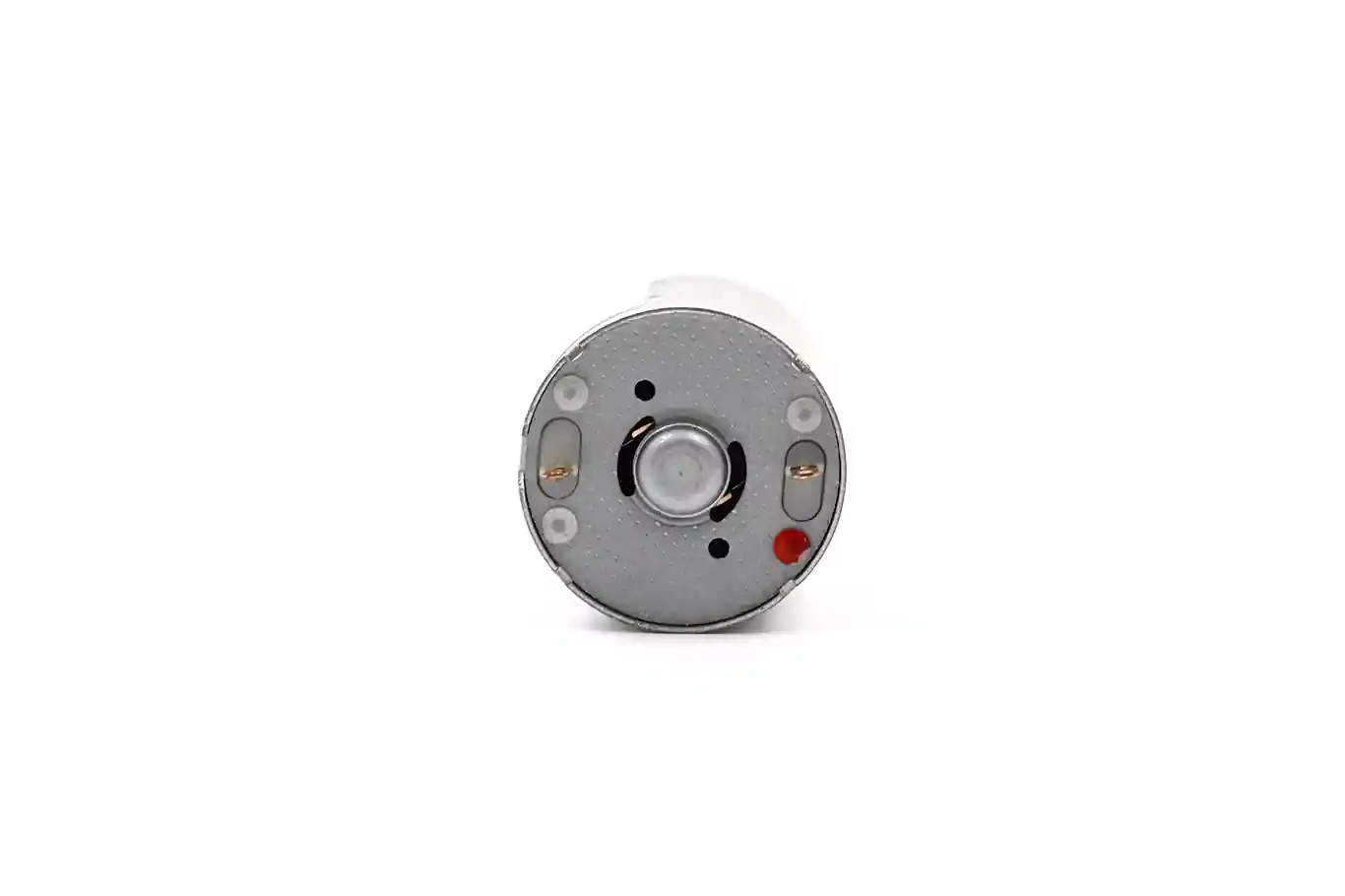

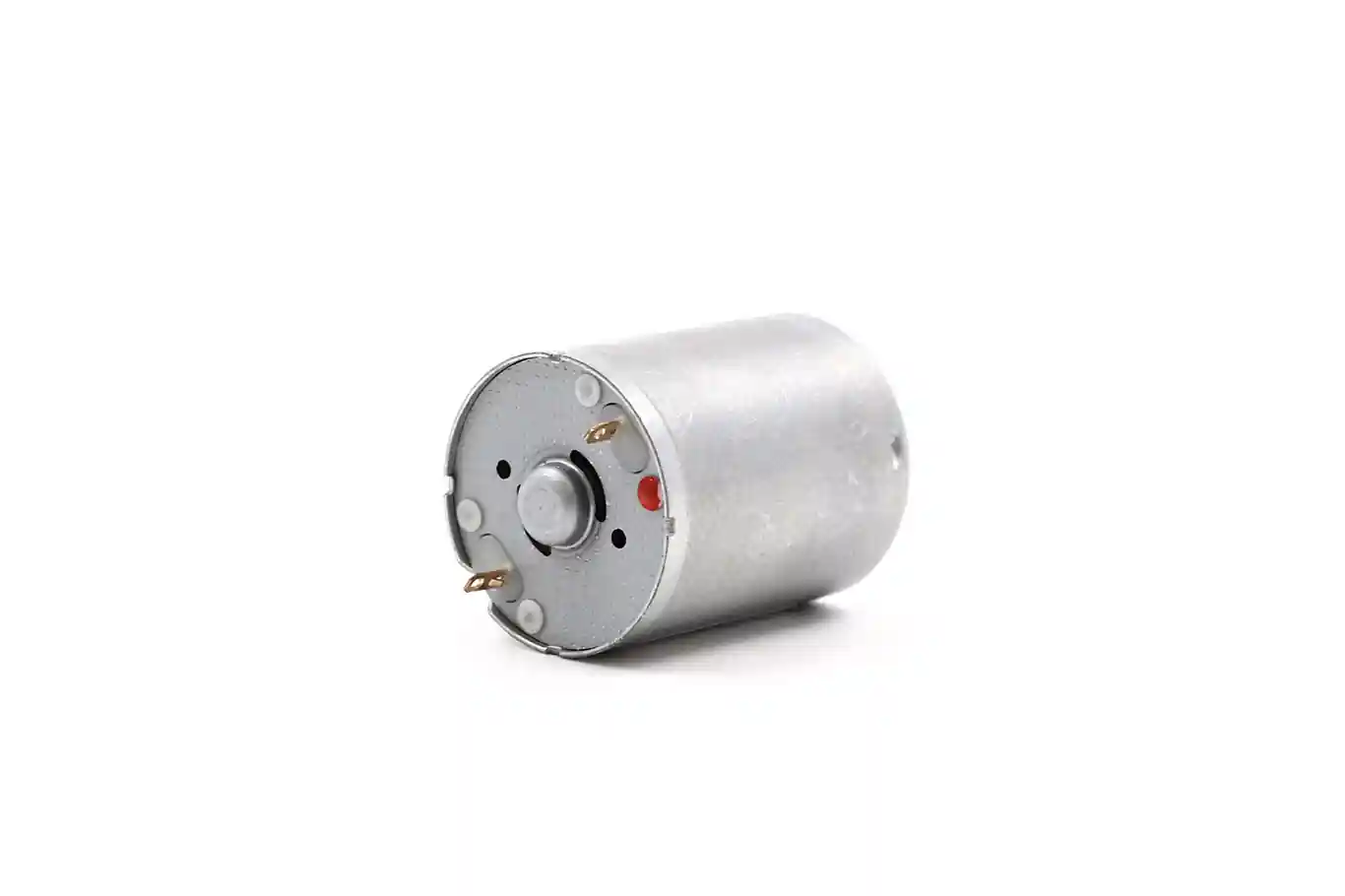

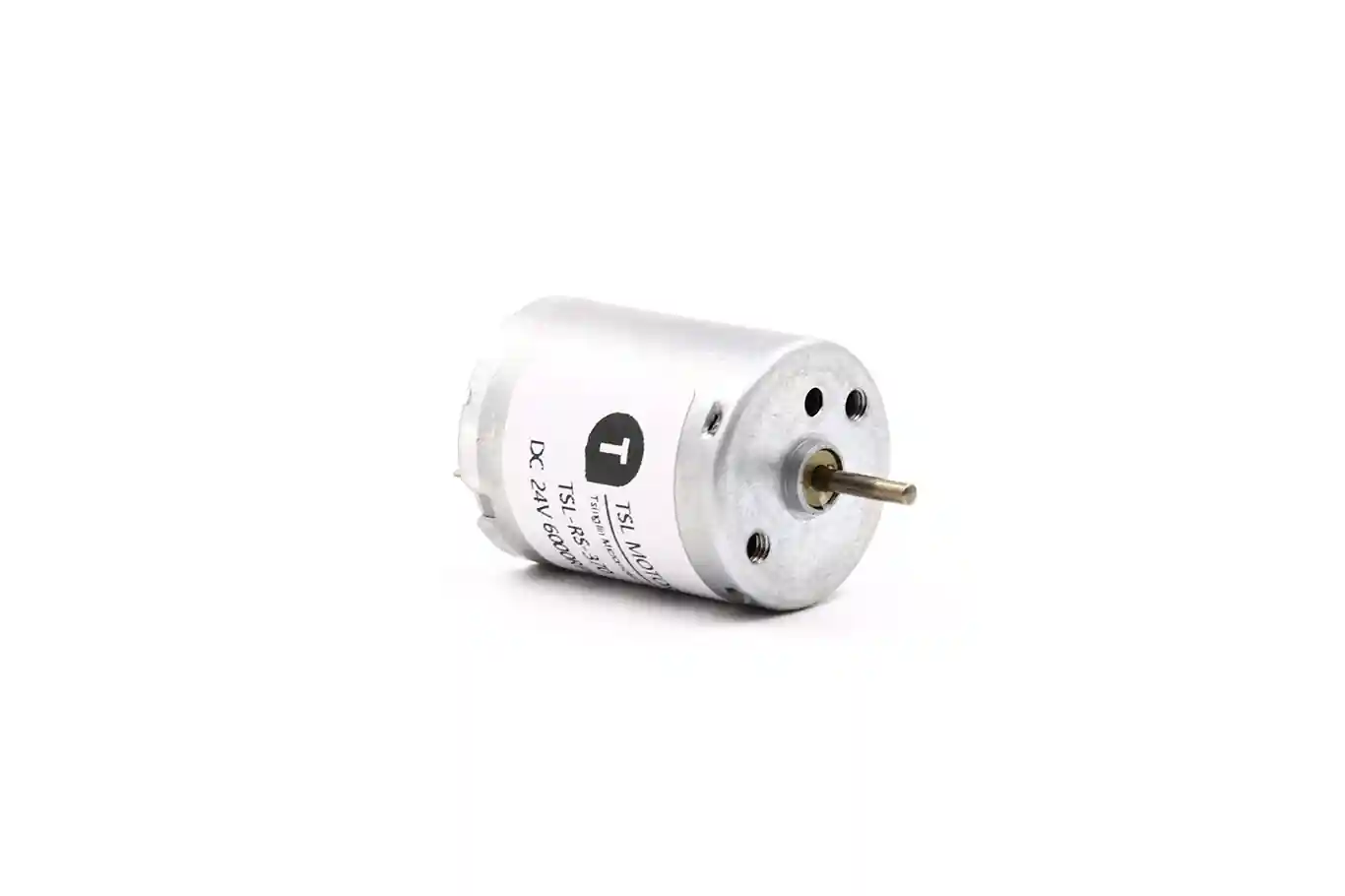

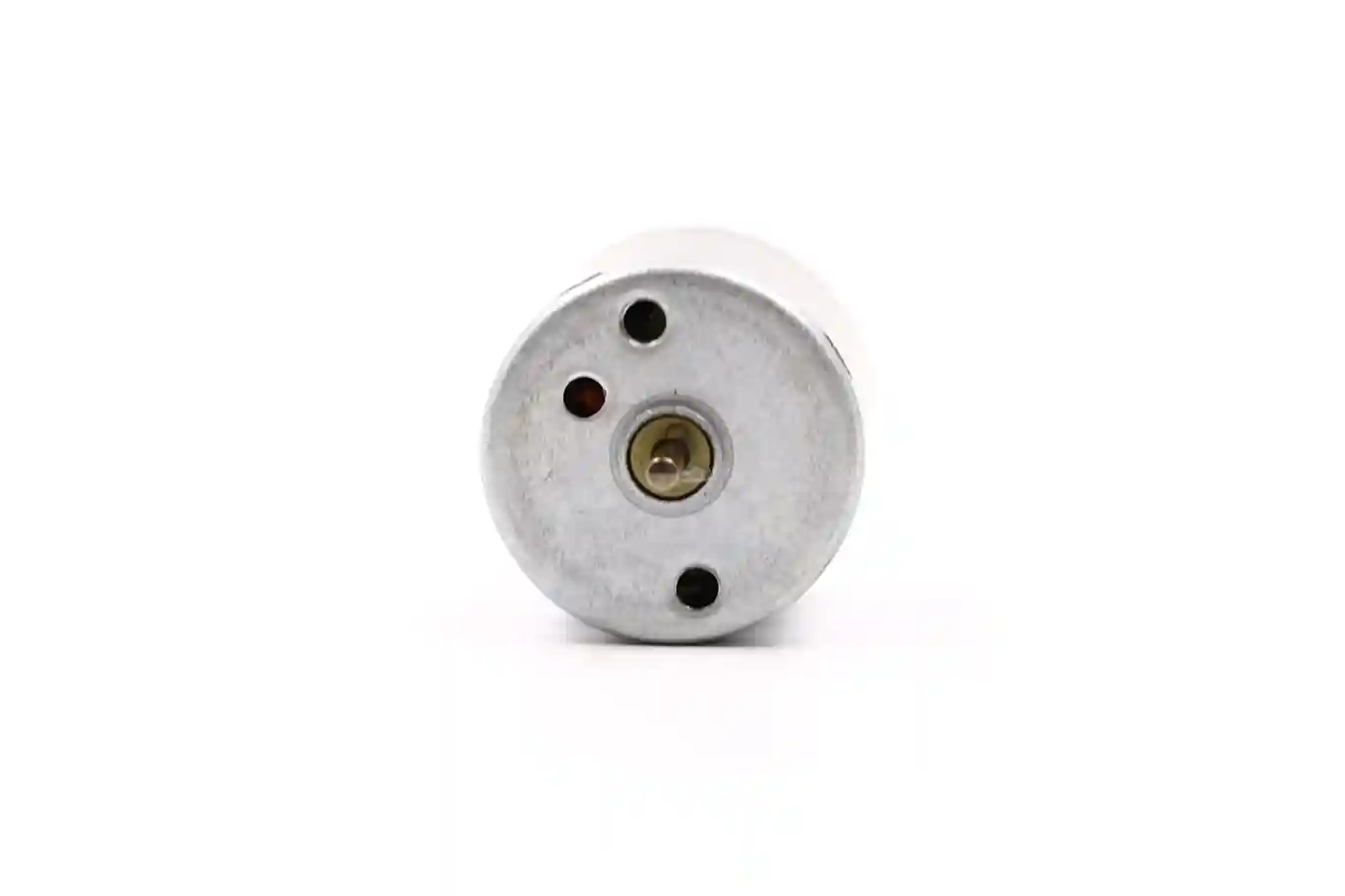

24mm Micro DC Motor – 30mm Type Model TSL-RS-370
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-RS-370
- Motor Type: Brushed DC Motor
- Motor Diameter:24.3 mm
- Motor Length: 30.8mm
- Shaft Diameter: φ2mm
- Rated Voltage:5V/6V/7.2V/9V/12V/24V
- #More Specifications
♦ Typical Applications:
- Audiovisual equipment: CD Player / VCR
- Home Appliances:Kitchen Appliance / Blood Pressure Meter
- Automotive products: air conditioning fan regulator
24V DC Brushed Electric Motor Datasheets
The Rs-370 dc brushed electric motor is remarkably compact. It measures 24.3 mm in diameter and 30.8 mm in length. Its shaft is 2 mm thick. This dc brushed electric motor boasts a robust design, featuring a metal end cap and a stainless steel shaft. These elements ensure outstanding durability and stability. As a result, it’s perfect for a variety of precision equipment and automation systems.
This dc brushed electric motor operates within a broad voltage range, from 5V to 24V. It consistently delivers 5015 RPM and generates 1.43 W of output power. The maximum torque it can produce is 32.18 g·cm. The dc brushed electric motor Rs-370 offers high power output while also being energy efficient. Its stable and reliable performance makes it an excellent choice for applications needing continuous operation and accurate control.
The versatile Rs-370 dc brushed electric motor finds applications across many sectors. These include personal care devices, medical instruments, home appliances, and automotive components.
For specialized needs, TSL Motors offers flexible customization. This allows for performance tuning, structural enhancements, and custom accessories or connections. The goal is to ensure the dc brushed electric motor integrates seamlessly with your specific equipment
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g.cm | W | A | g.cm | |
| TSL-RS-370CHV-25145 | 5 | 0.059 | 5495 | 0.38 | 4763 | 26.63 | 1.3 | 2.47 | 199.91 |
| TSL-RS-370CHV-18202 | 6 | 0.056 | 4424 | 0.28 | 3687 | 25.00 | 0.95 | 1.4 | 150.07 |
| TSL-RS-370CHV-20140 | 6 | 0.055 | 7300 | 0.36 | 6280 | 21.6 | 1.388 | 2.24 | 154 |
| TSL-RS-370CHV-11630 | 12 | 0.01 | 3183 | 0.05 | 2674 | 15.34 | 0.42 | 0.30 | 95.89 |
| TSL-RS-370CHV-10680 | 24 | 0.018 | 5000 | 0.11 | 4313 | 32.18 | 1.43 | 0.69 | 234.21 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m

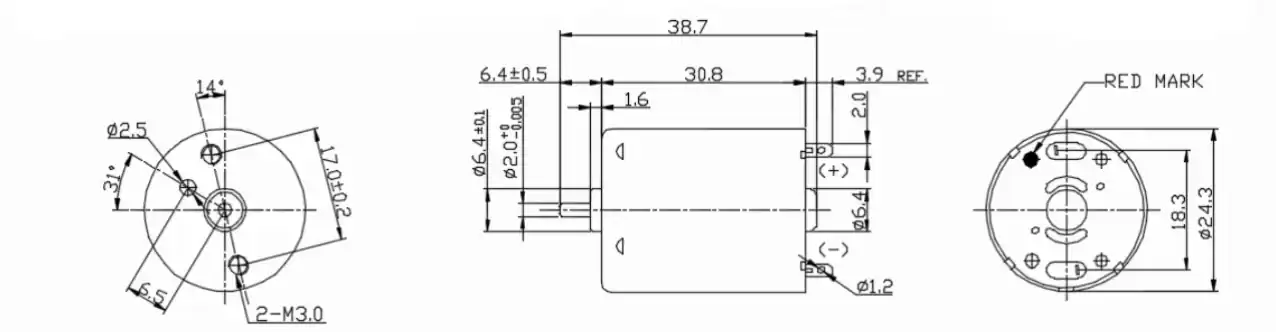

24V DC Brushed Electric Motor 370 Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

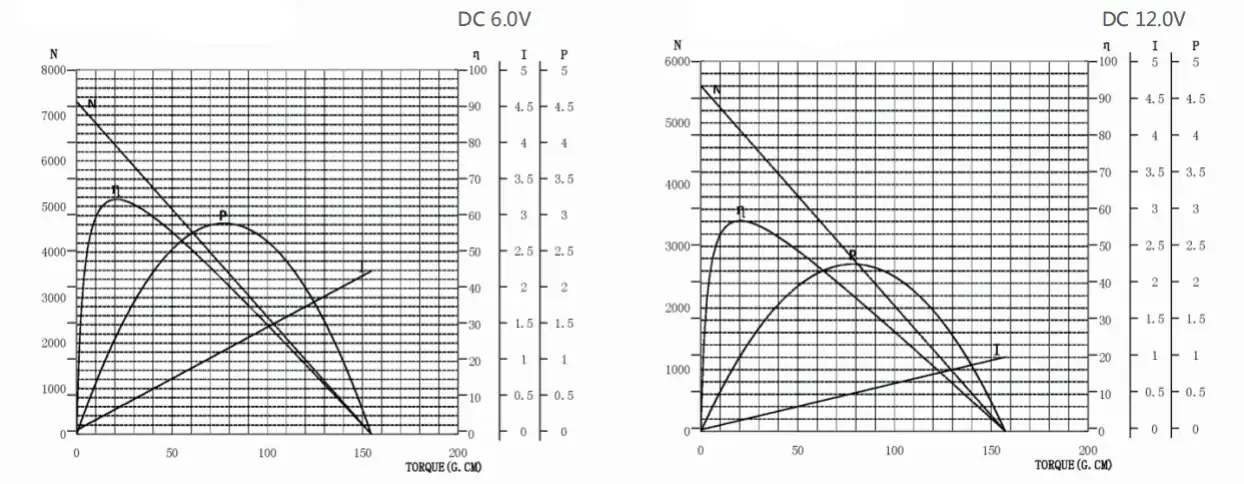

Small DC Brushed Electric Motor 6V and 12V Performance Curve
Keywords
brushed dc motor,brushed motor,electric motor brushes,24v dc motor,brush motor,24v motor,brush motor dc,370 motor,370 dc motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
