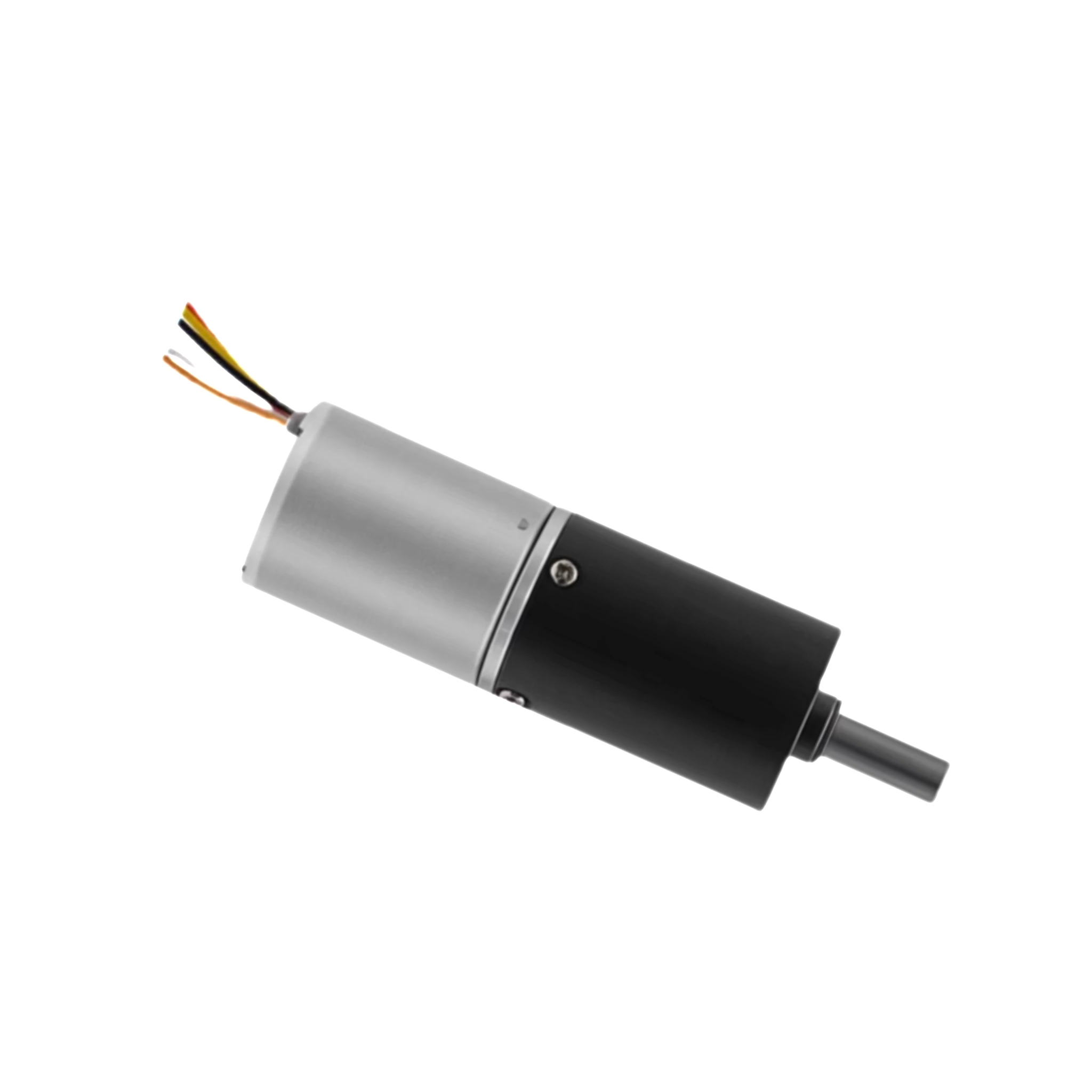

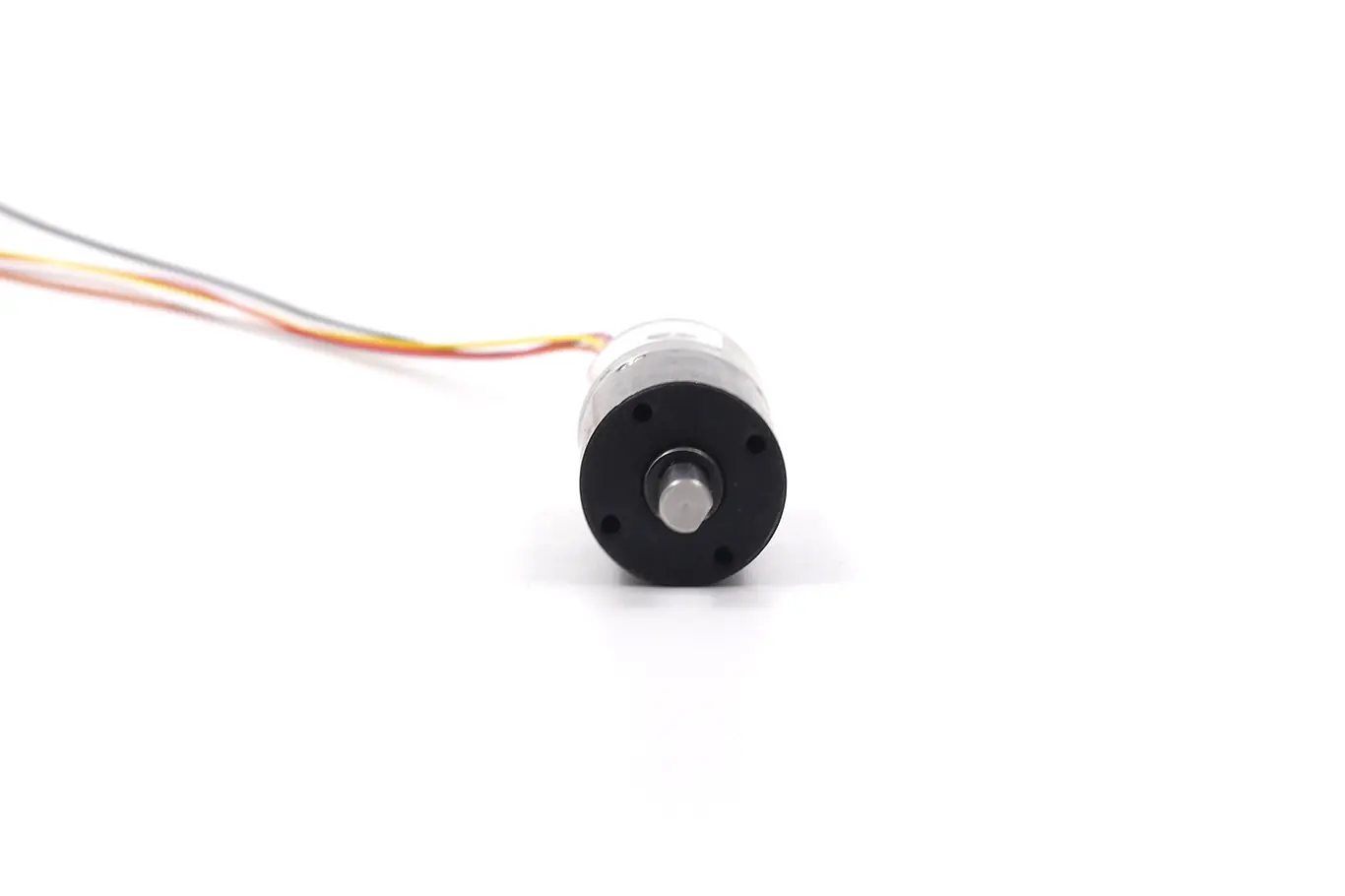

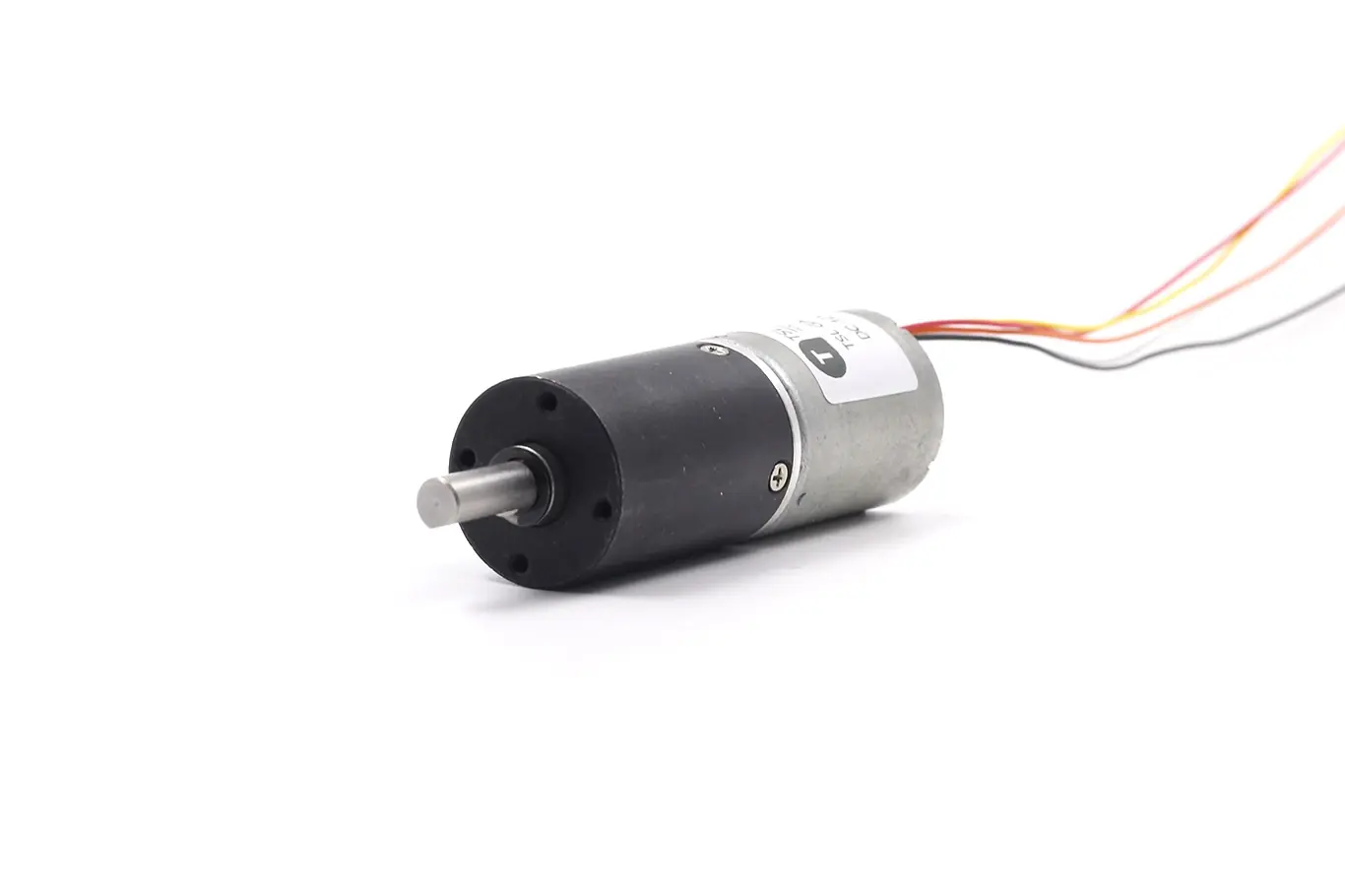

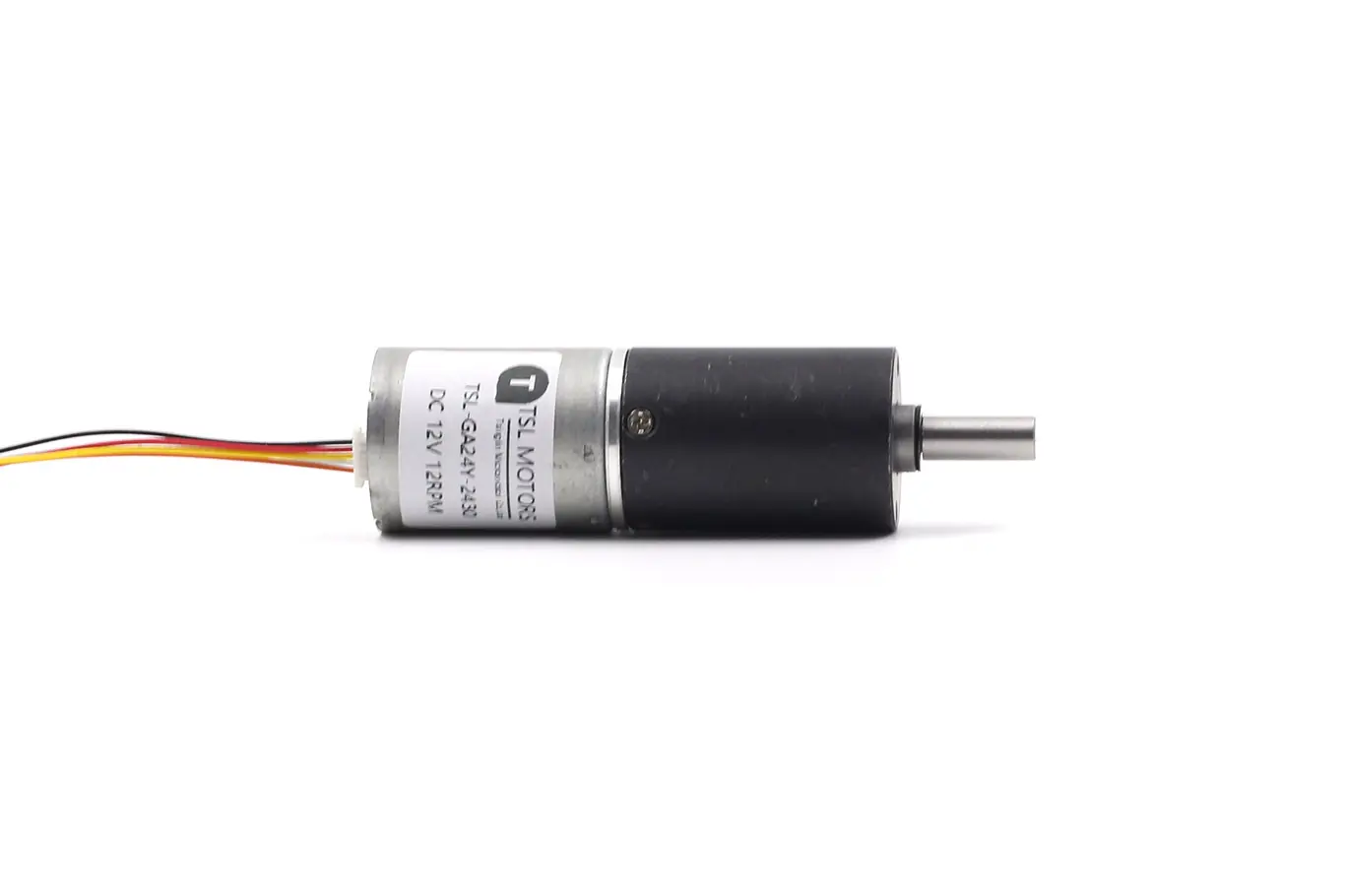

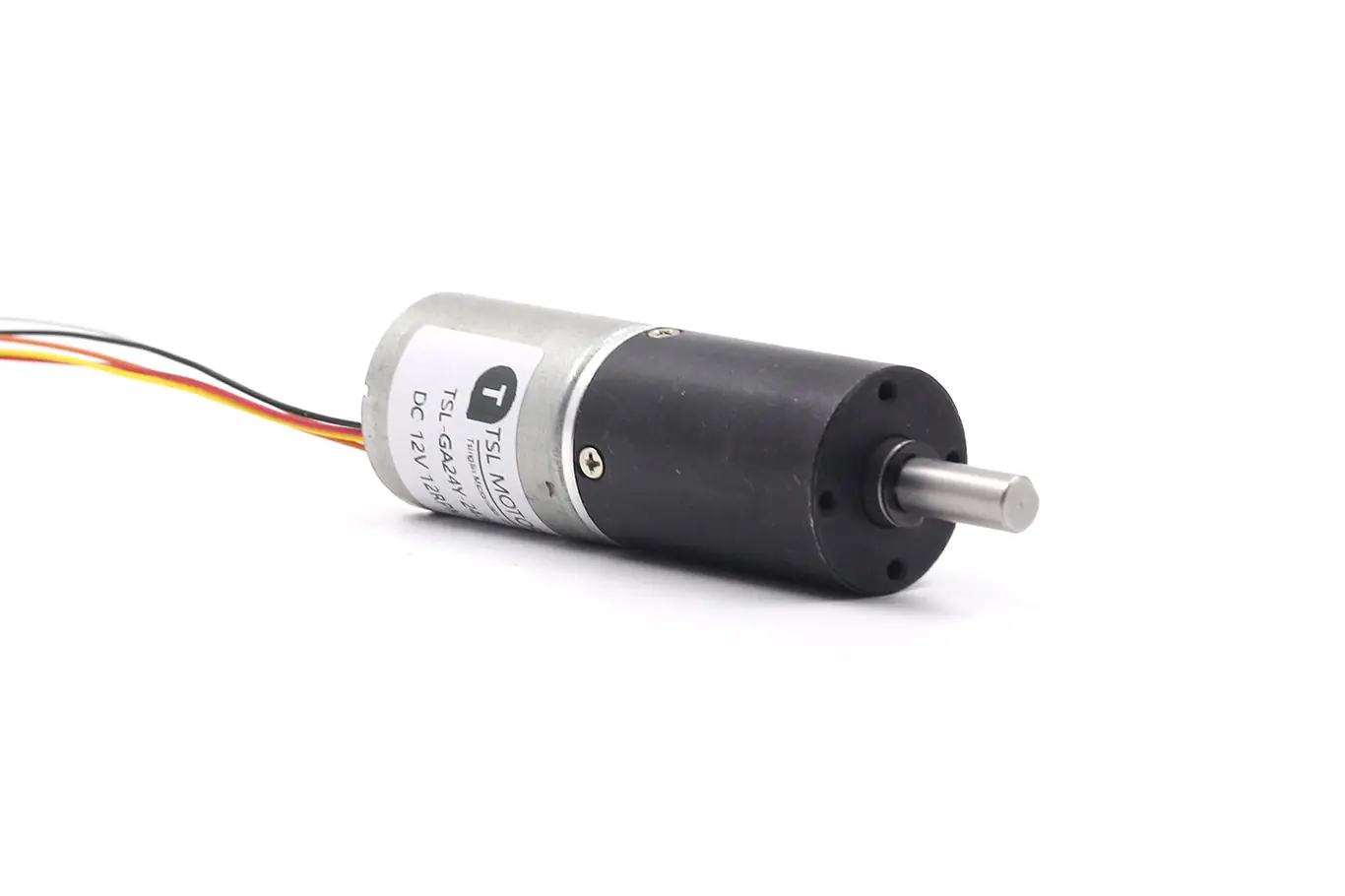

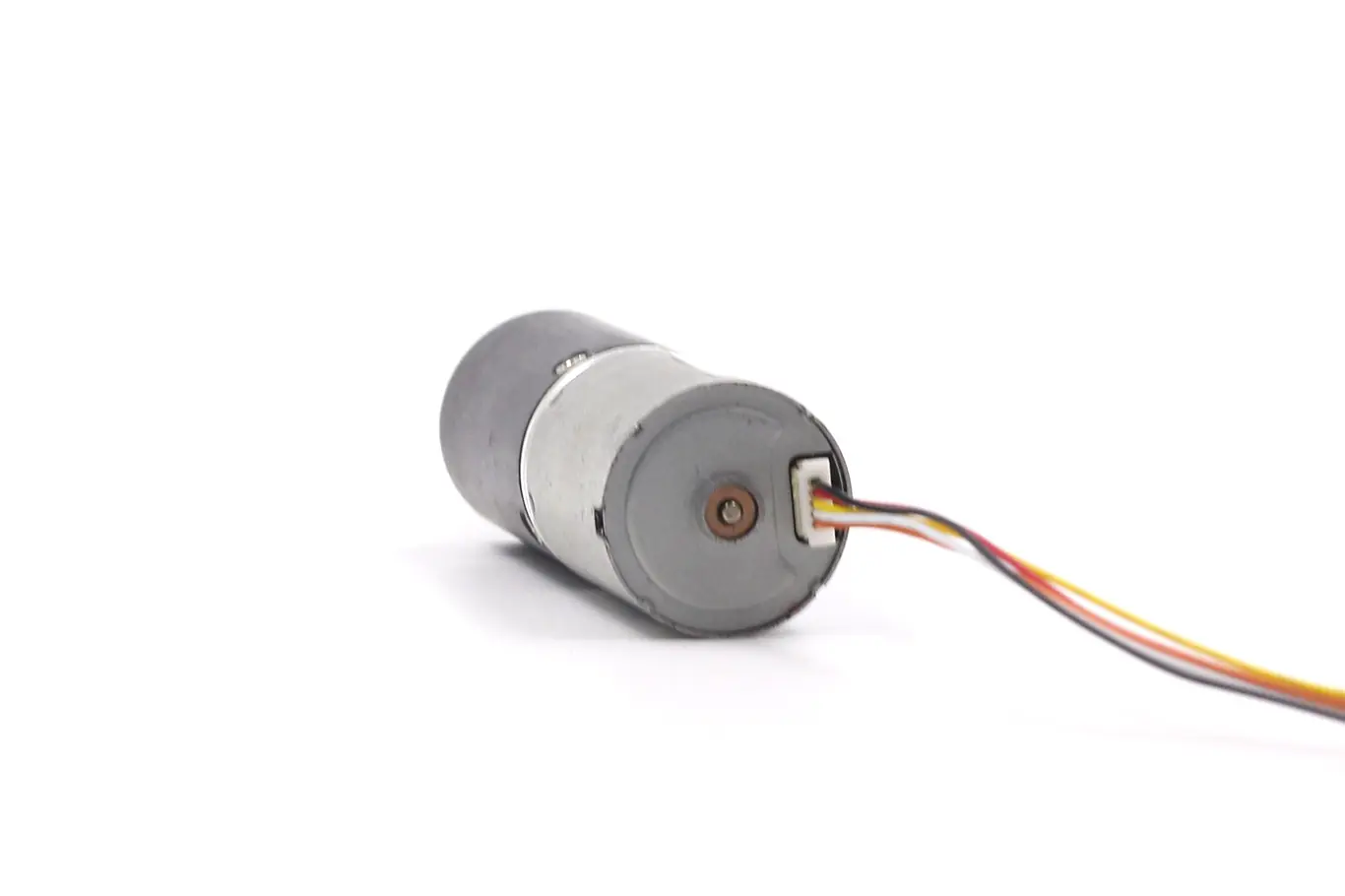

24mm Planetary Gear Motor Model TSL-GA24Y-2430
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-GA24Y-2430
Rated Voltage:12V/24V DC
Output Shaft Diameter:4mm / 6mm
24mm Brushless Planetary Gear Motor Datasheet
| Motor Model | TSL-GA24Y-2430 |
| Rotation | CW & CCW |
| Rated Voltage | 12V DC / 24V DC |
| No-load Speed | 12rpm – 1,500rpm |
| No-load Current | 0.09A – 0.18A |
| Max Torque | 21Kg.cm |
| Out Power | 5.7W – 6W |
| Output Shaft Diameter | 4mm / 6mm |
| Weight | 135g – 150g |
TSL-GA24Y-2430 1260
| Reduction ratio | Gearbox | |||||||||
| Length | Rated Voltage | Speed | Current | Speed | Current | Torque | Power | Torque | Current | |
| i:1 | mm | V | PRM±10% | A | PRM±10% | A | kg.cm | W | kg.cm | A |
| 4 | 19.5 | 12 | 1500 | 0.18 | 1200 | 0.5 | 0.15 | 6.0 | 0.5 | 1.9 |
| 16 | 25.3 | 12 | 375 | 0.18 | 300 | 0.5 | 0.6 | 6.0 | 2 | 1.9 |
| 25 | 25.3 | 12 | 240 | 0.18 | 192 | 0.5 | 1 | 6.0 | 3 | 1.9 |
| 64 | 31 | 12 | 94 | 0.18 | 75 | 0.5 | 2.5 | 6.0 | 7.5 | 1.9 |
| 88 | 31 | 12 | 68 | 0.18 | 54 | 0.5 | 3.5 | 6.0 | 10 | 1.9 |
| 110 | 31 | 12 | 54.5 | 0.18 | 43 | 0.5 | 4 | 6.0 | 13 | 1.9 |
| 138 | 31 | 12 | 43 | 0.18 | 34.5 | 0.5 | 5 | 6.0 | 16 | 1.9 |
| 256 | 36.8 | 12 | 23 | 0.18 | 18.5 | 0.5 | 10 | 6.0 | 30 | 1.9 |
| 320 | 36.8 | 12 | 18.5 | 0.18 | 15 | 0.5 | 12 | 6.0 | 38 | 1.9 |
| 400 | 36.8 | 12 | 15 | 0.18 | 12 | 0.5 | 16 | 6.0 | 48 | 1.9 |
| 500 | 36.8 | 12 | 12 | 0.18 | 9.5 | 0.5 | 20 | 6.0 | 60 | 1.9 |
TSL-GA24Y-2430 2460
| Reduction ratio | Gearbox | No Load | Rated Load | Stall | ||||||
| Length | Rated Voltage | Speed | Current | Speed | Current | Torque | Power | Torque | Current | |
| i:1 | mm | V | RPM±10% | A | RPM±10% | A | kg.cm | W | kg.cm | A |
| 4 | 19.5 | 24 | 1500 | 0.09 | 1200 | 0.24 | 0.15 | 5.7 | 0.5 | 0.9 |
| 16 | 25.3 | 24 | 375 | 0.09 | 300 | 0.24 | 0.7 | 5.7 | 2 | 0.9 |
| 24 | 25.3 | 24 | 240 | 0.09 | 192 | 0.24 | 1 | 5.7 | 3 | 0.9 |
| 64 | 31 | 24 | 94 | 0.09 | 75 | 0.24 | 2.5 | 5.7 | 8 | 0.9 |
| 88 | 31 | 24 | 68 | 0.09 | 54 | 0.24 | 3.5 | 5.7 | 11 | 0.9 |
| 110 | 31 | 24 | 54.5 | 0.09 | 43 | 0.24 | 4.5 | 5.7 | 14 | 0.9 |
| 138 | 313= | 24 | 43 | 0.09 | 34.5 | 0.24 | 5.5 | 5.7 | 17 | 0.9 |
| 256 | 36.8 | 24 | 23 | 0.09 | 18.5 | 0.24 | 10 | 5.7 | 32 | 0.9 |
| 320 | 36.8 | 24 | 18.5 | 0.09 | 15 | 0.24 | 13 | 5.7 | 40 | 0.9 |
| 400 | 36.8 | 24 | 12 | 0.09 | 12 | 0.24 | 17 | 5.7 | 51 | 0.9 |
| 500 | 36.8 | 24 | 12 | 0.09 | 9.5 | 0.24 | 21 | 5.7 | 64 | 0.9 |
Long Wears Life Brushless Planetary Gear Motor Outline Drawing
Micro Brushless Planetary Gear Motor Connection Method
Friendly reminder: Do not connect the positive and negative poles of the brushless planetary gear motor wrongly.
Keywords:
miniature planet gearbox, 24v DC planet gear motor ,Brushless gear motor,brusless planetary gear motor
brushless planetary gear motor Payment:
Payment options : Paypal T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you don’t have the item by the delivery Time Please send us an email with questions. In most cases, we will send you a response within 24 hours. If not, examine the spam in your email inbox. We will try the best we can to assist you with the issues.
4.Please ensure that your address is in line with the final shipping address prior to you make payment.
FAQ for brushless planetary gear motor
Q：What is a BLDC Gear Motor?
A:A BLDC gear motor combines a brushless DC motor with a gear system. This gear system can either be a spur or planetary gearbox. The gears work together to lower the motor’s speed while boosting its output torque.
Q:Can Brushless Gear Motors Be Customized?
A: Yes, brushless gear motors can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Q: What’s one of your main motor?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the principal use of the microdc motor?
A Mini DC motors are used extensively in home Applications, Office Equipment, Health-Care Application, Sanitation Industry The High-Class Toy Banking System Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
