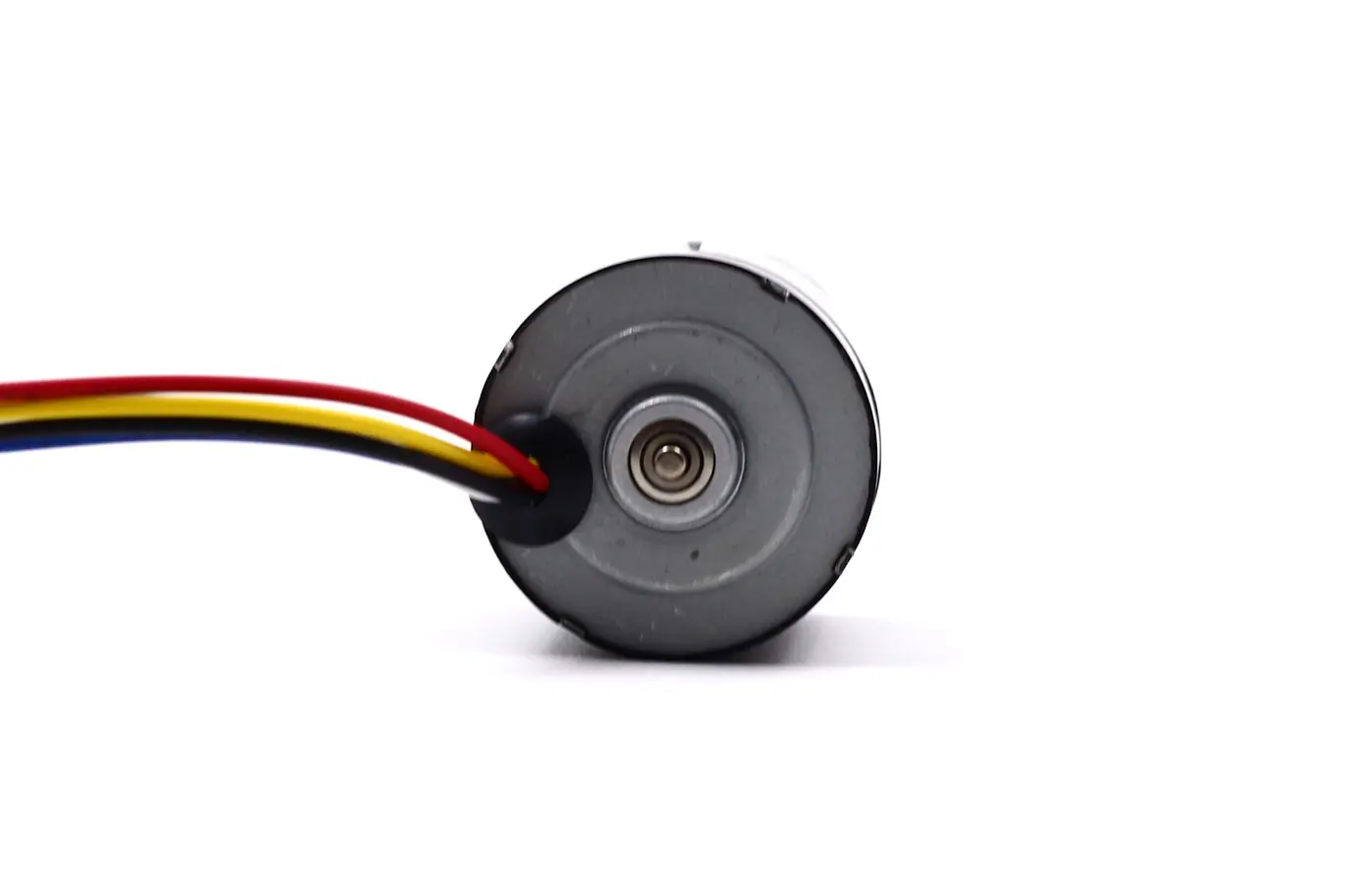

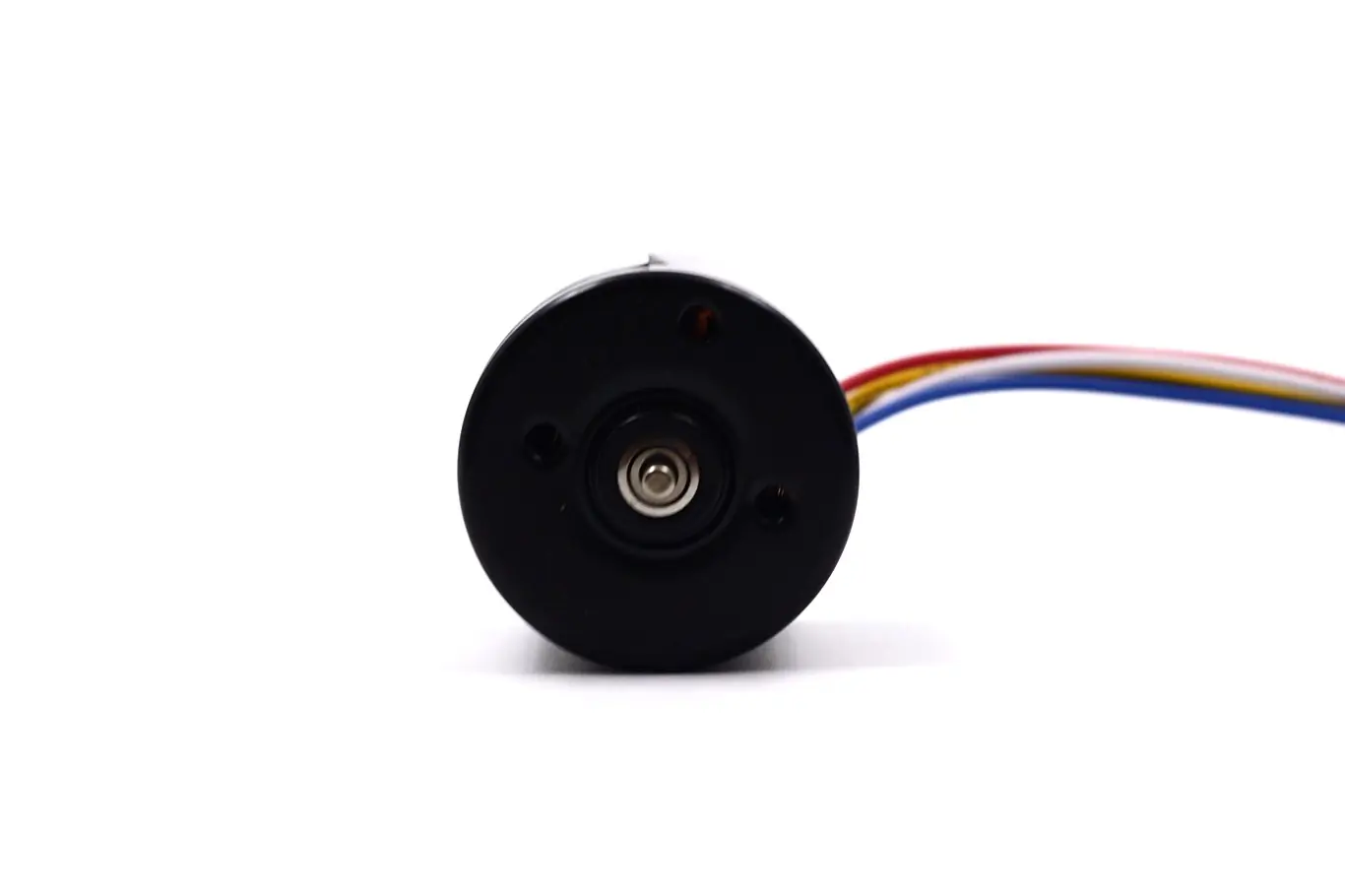

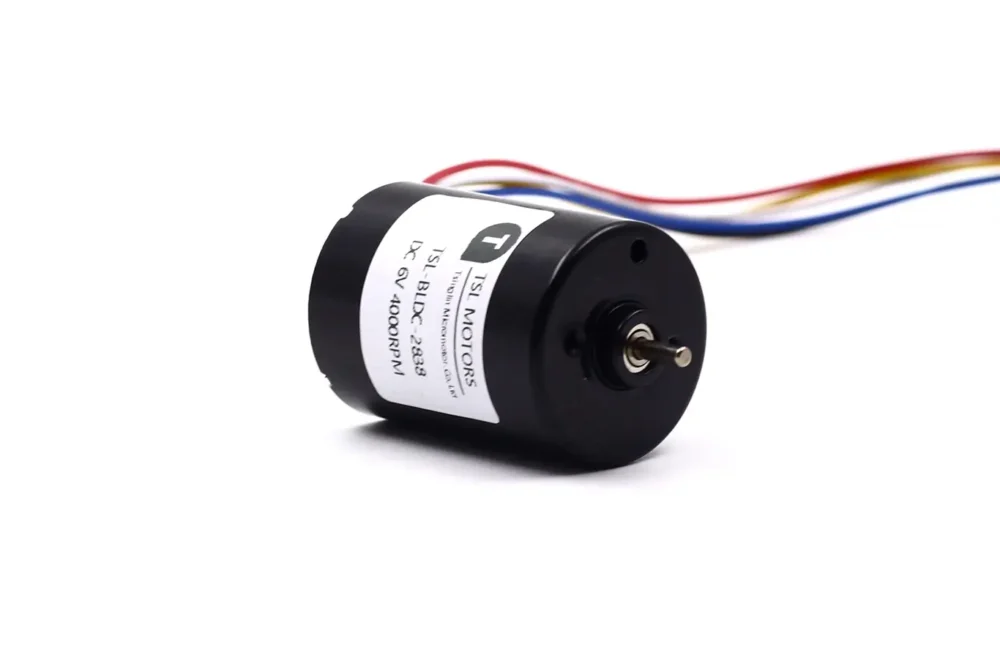

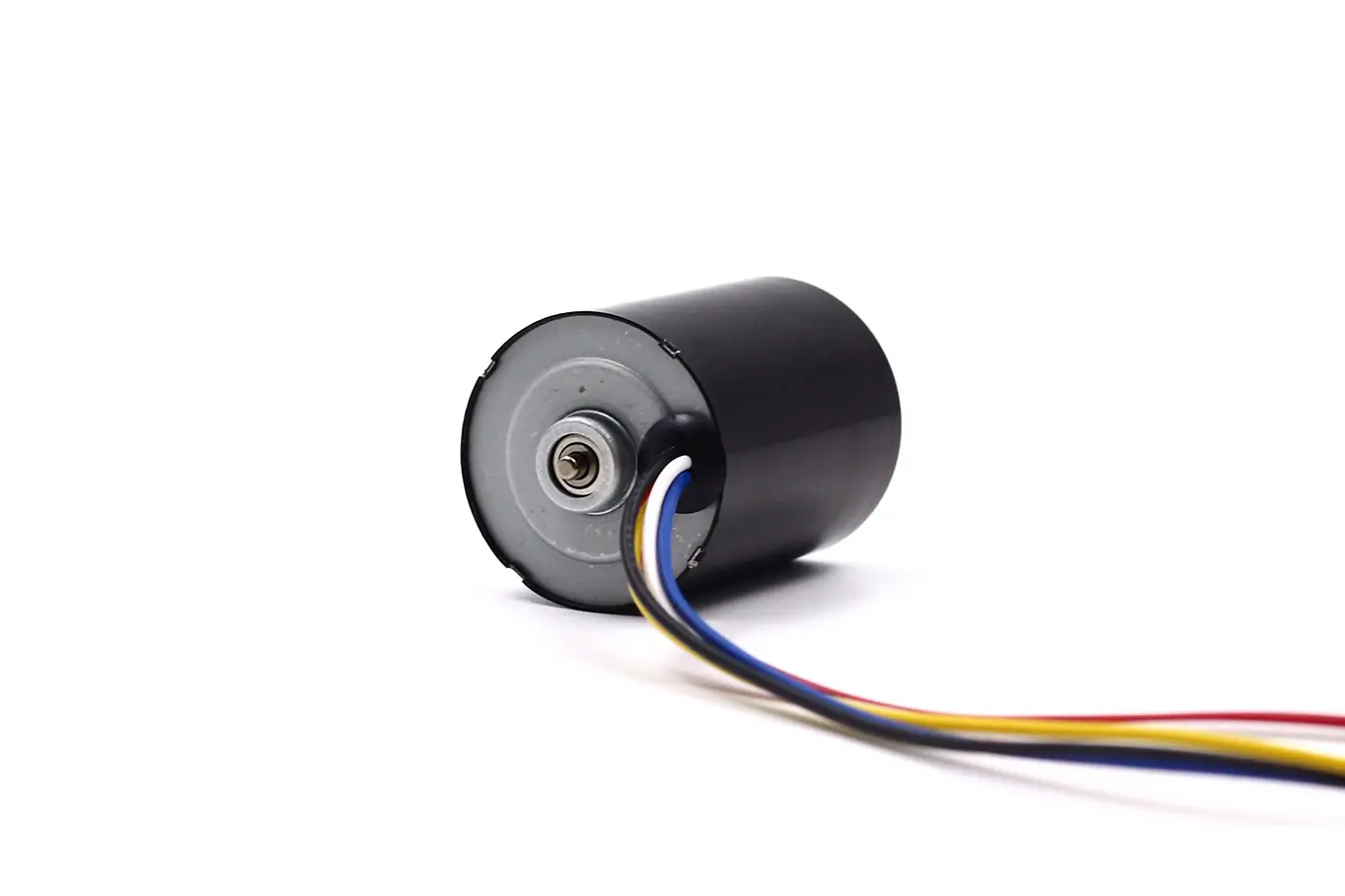

28mm Brushless DC Motor – 38mm Type Model TSL-BLDC-2838
♦ Basic Info:
- Motor Type: Brushless DC Motor
- Motor Diameter: 27.8 mm
- Motor Length: 37.6 mm
- Shaft Diameter: φ 2.3 mm
- Rated Voltage: 24 V
- Rated Speed: 12700 RPM
- Output Power: 19.05 W
- Output Torque: 171 g·cm
- Rotation:CW / CCW
- #More Specifications
Typical application:
- robot，Gimbal ，Electronic lock，Automatic rotating device
High Speed 24v BLDC Motor Data Sheet
The 24V BLDC motor TSL-BLDC-2838 is an efficient, compact three-phase brushless DC motor. It’s designed for precision drive systems. This 24V BLDC motor integrates advanced electronic commutation and a high-efficiency magnetic circuit.
Stable Performance with Low Power Consumption
With a rated voltage of 24V, the TSL-BLDC-2838 boasts a no-load speed of up to 12700 RPM. It achieves stable output. This 24V BLDC motor also features low power consumption and high efficiency.
Enhanced Control and Smooth Operation
The 24V BLDC motor integrates Hall sensors. This provides excellent starting characteristics and precise control. It can handle various dynamic load changes. The TSL-BLDC-2838 always maintains smooth operation.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g·cm | W | A | g·cm | |
| TSL-BLDC-2838-01A | 11 | 0.4 | 11252 | 2.34 | 10695 | 175 | 19.22 | 13.74 | 1200 |
| TSL-BLDC-2838-02A | 24 | 0.19 | 12700 | 1.08 | 10801 | 171 | 19.05 | 6.15 | 1148 |
| TSL-BLDC-2838-03A | 28 | 0.14 | 5995 | 0.48 | 4639 | 170 | 8.11 | 1.64 | 752.3 |

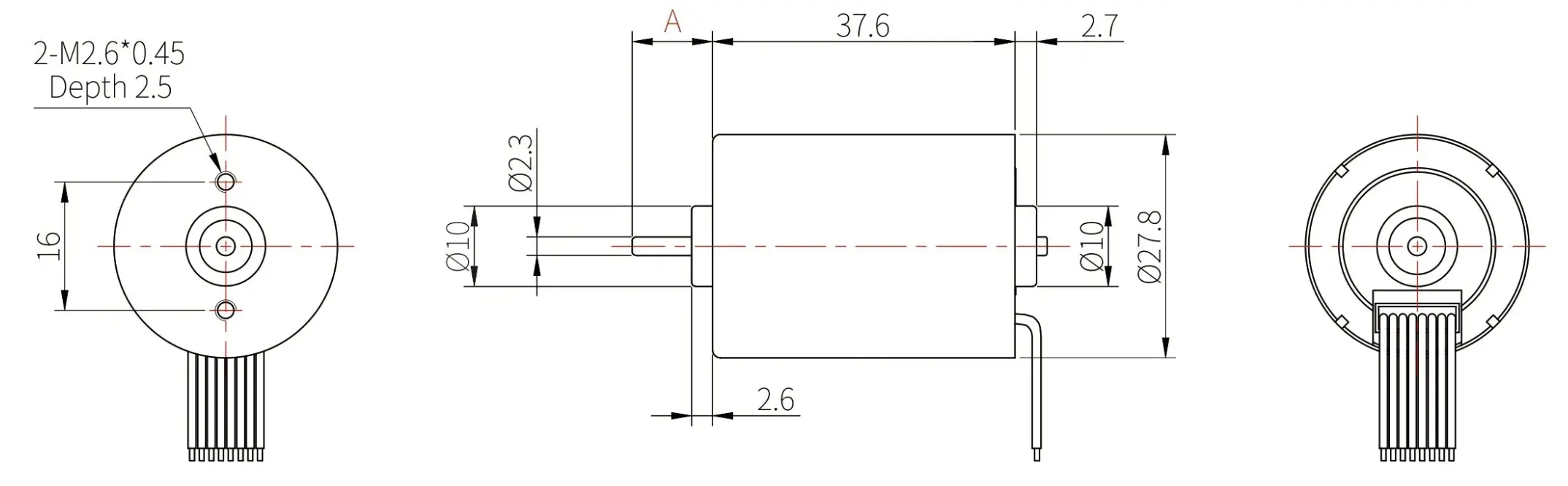

2838 Small 24V BLDC Motor High Torque Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

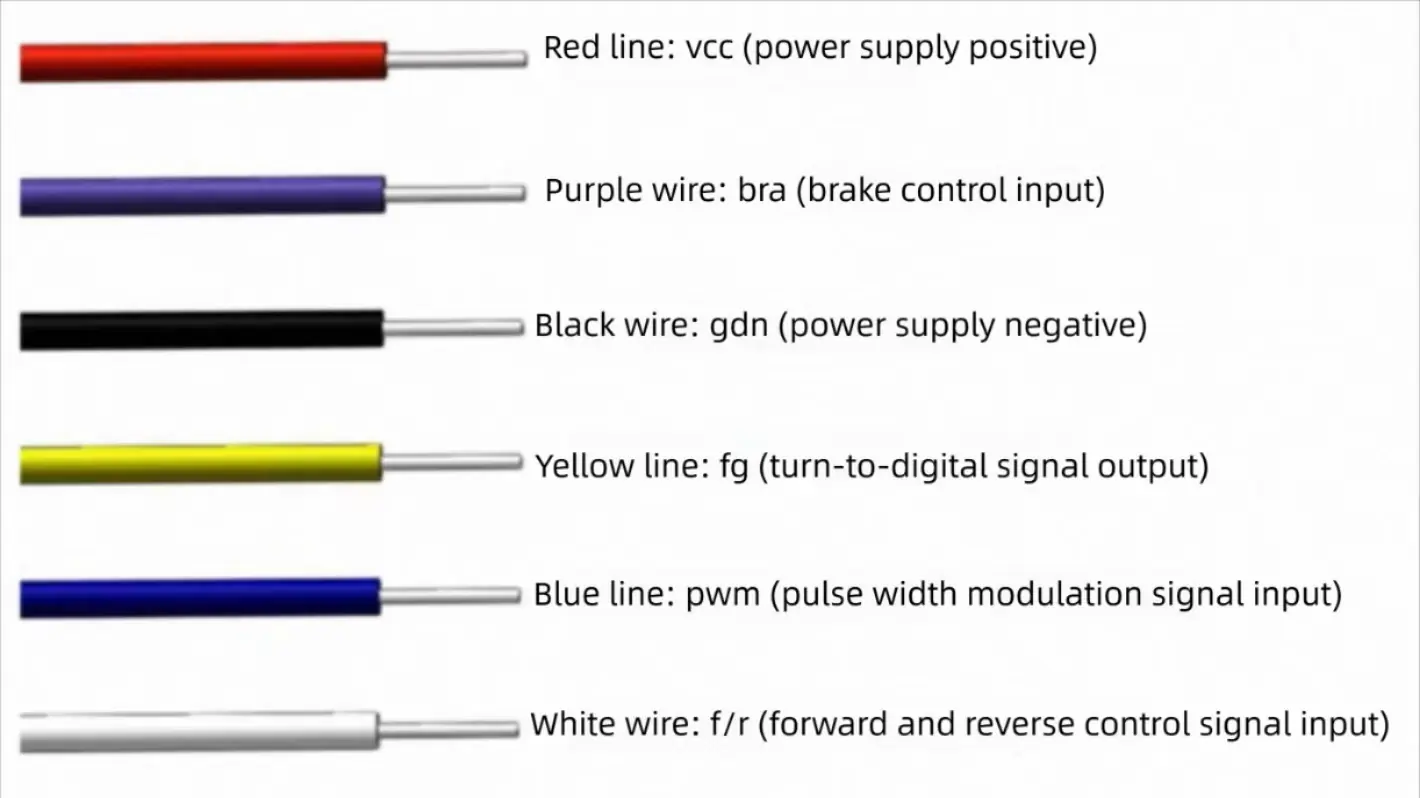

Wiring Method Of 2838 Small 24v BLDC Motor
PWM Wiring Diagram
Keywords:
24V BLDC motor,miniature brushless motor,small brushless motor,high efficiency bldc motor,small bldc,high rpm brushless dc motor,48V BLDC motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for 24V Brushless Motor
Q：What is Brushless DC motor?
A:A brushless DC motor eliminates the need for a commutator and brushes by placing permanent magnets on the rotor. The rotor’s rotation is controlled by detecting its magnetic poles and adjusting the current flow through the coils accordingly.
If you want a video to explain the principle of Brushless DC motor, you can click on this link：https://www.youtube.com/watch?v=1AaUK6pT_cE
Q:Can Brushless DC Electric motor Be Customized?
A: Yes,Brushless DC Electric motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
