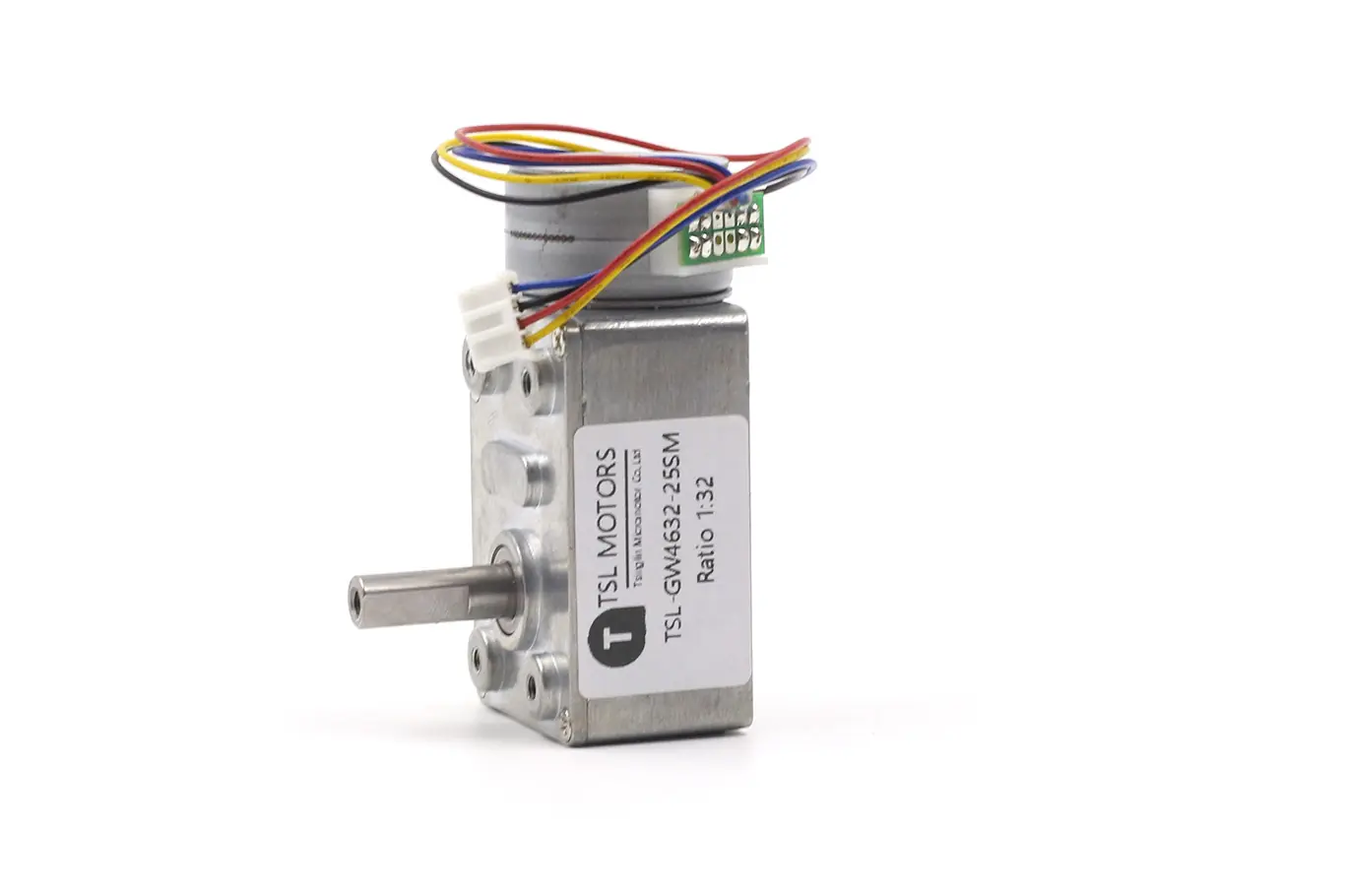

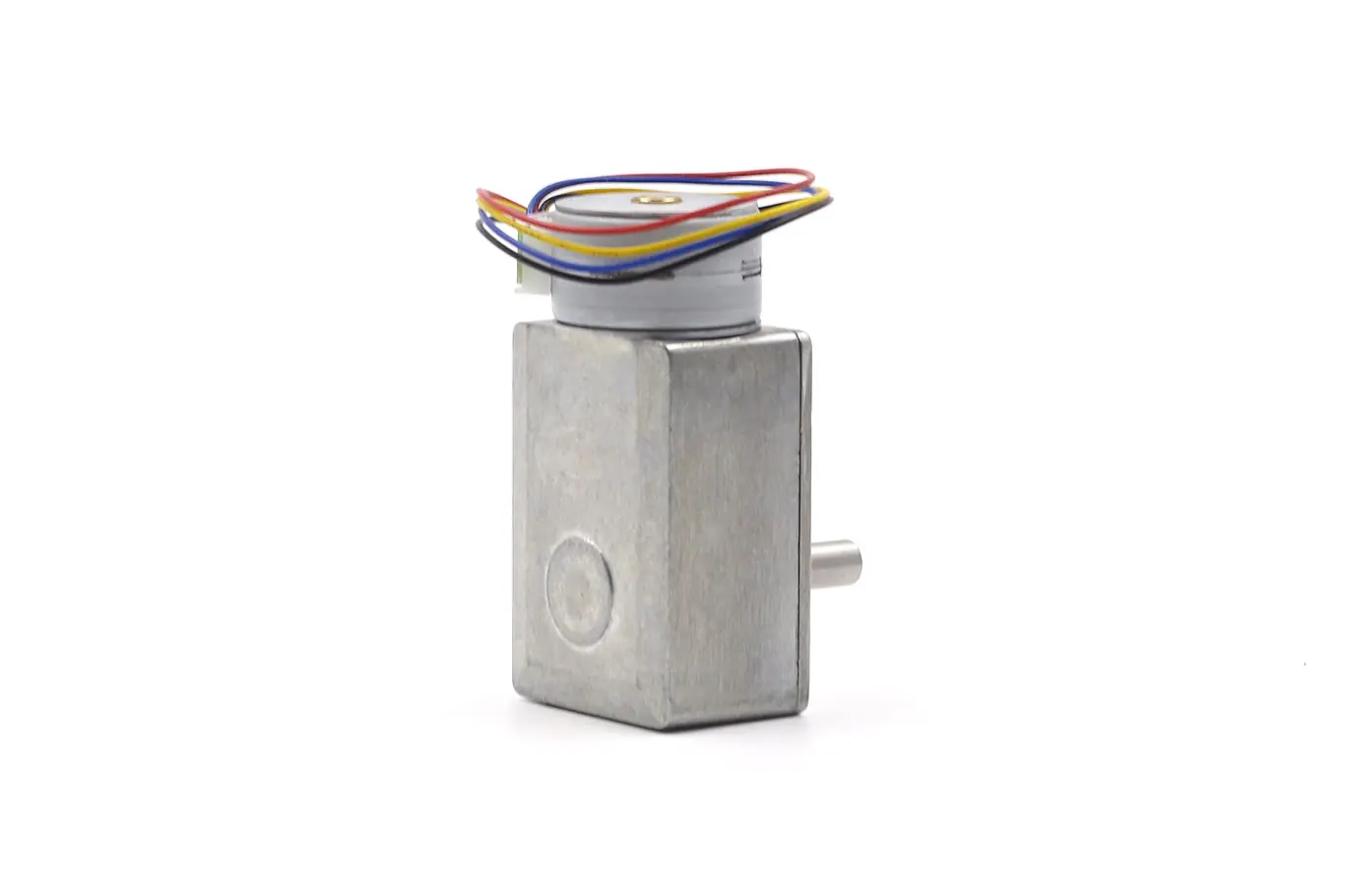

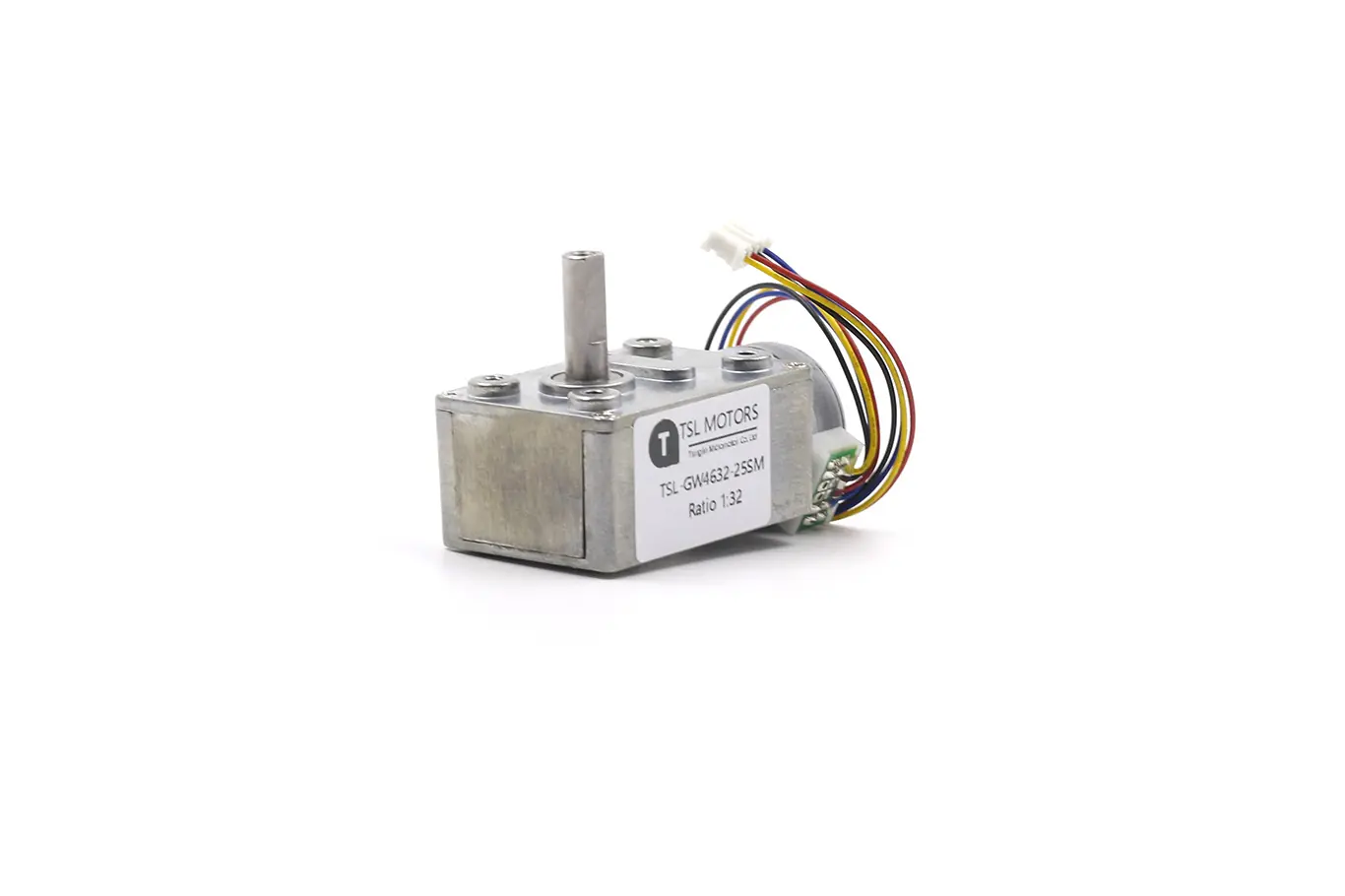

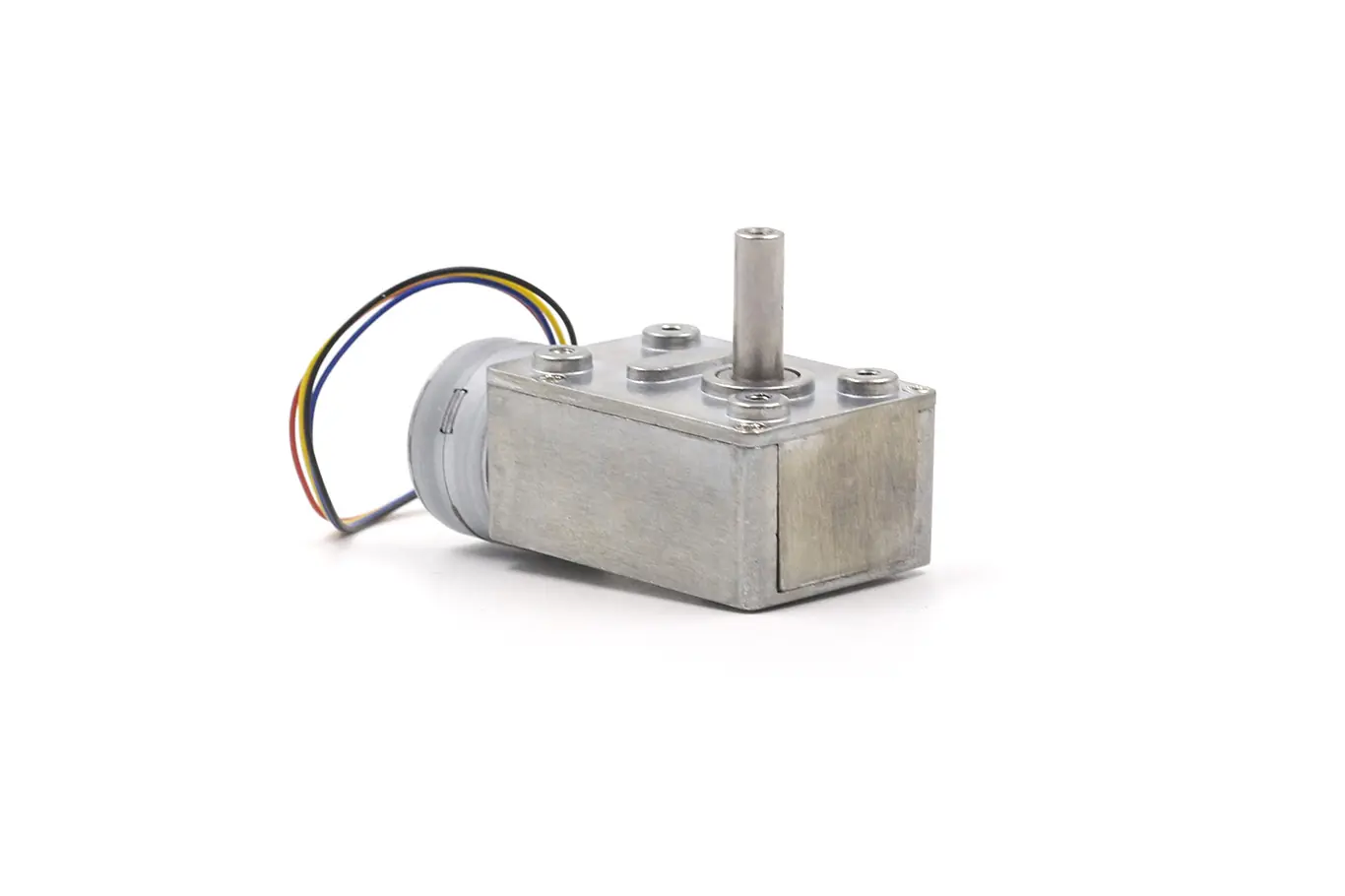

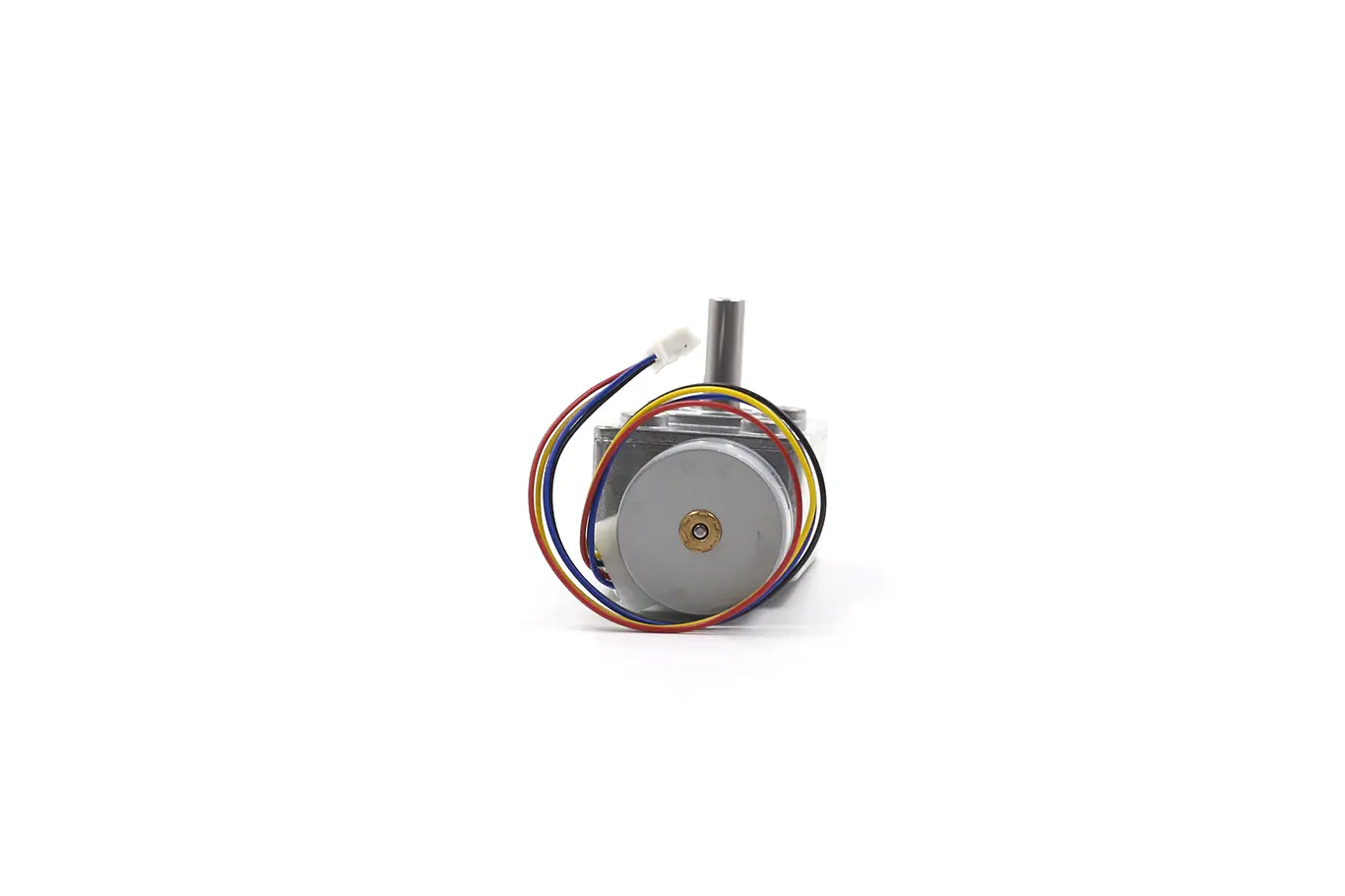

25mm Stepper Motor With Worm Gearbox TSL-GM4632-25SM
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM4632-25SM
- Shaft length:18.5 mm
- Shaft Diameter:6mm , D length 5.4mm
- Rated Voltage:12V DC
- Umber of phase:2 Phase
- Step Angel:15° Step Angle
- Phase Resistance:10±7 Ω/Phase
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Robot, nesting machine, DIY
- electronic lock, range hood
- entertainment equipment
- intelligent equipment, barbecue machine
Worm Gear Stepper Motor Input Stepper Motor Parameters
Our product is a DC stepping gear motor, also known as a DC stepping drive motor. This highly efficient stepper motor is perfect for DIY projects. It features a unique coreless shaft with an M3 middle bore and a threaded shaft for precise control.
The motor operates in a 2-phase, 4-wire configuration. Our worm gear stepper motor has a self-locking power function, which holds its position even when the power is off, providing an extra layer of security.
| Motor Model:TSL-GM4632-25SM | |||
| Rated Voltage | 12V DC | Phase Current | 300mA /Phase |
| Coil Resistance | 10±7%Ω /Phase | Motor Phase Number | 2 Phases |
| Step Angle | 15° /Step | Excitation Method | 2 Phases Excitation |
| Drive Method | Bipolar Drive | Phase Inductance | 7.5mH /Phase |
| Pull-out Torque | More Than 60 gf-cm At 100 pps | Holding Torque | More Than 75 gf-cm At 0 pps |
| Maximum Response Frequency | More Than 1300 pps | Maximum Starting Frequency | More Than 800 pps |
| Insulation Class | Class E for Coils | Insulation Strength | 100 V AC for One Second |
| Insulation Resistance | 100MΩ DC 500V | Operating Temperature Range | -10 ~ +55°C |
Worm Gear Stepper Motor Output Parameters
| Motor Model:TSL-GM4632-25SM | ||||
| Voltage:12V DC | ||||
| Ratio | Step Angle | No-load Speed | Holding | Pull-out |
| i : 1 | Step | 700PPS | Torque | Torque |
| 32: 1 | 0.469 | 54rpm | ≥2 kg.cm | ≥1.5 kg.cm |
| 65: 1 | 0.231 | 27rpm | ≥4 kg.cm | ≥3.5 kg.cm |
| 158: 1 | 0.095 | 11rpm | ≥10 kg.cm | ≥8.5 kg.cm |
| 200: 1 | 0.075 | 8.7rpm | ≥13 kg.cm | ≥11 kg.cm |
| 337: 1 | 0.045 | 5.2rpm | ≥20 kg.cm | ≥18 kg.cm |
| 564: 1 | 0.027 | 3.1rpm | ≥25 kg.cm | ≥25 kg.cm |
| 1019: 1 | 0.015 | 1.72rpm | ≤25 kg.cm | ≤25 kg.cm |
| Ratio | Step Angle | No-load Speed | Holding | Pull-out |
💕The speed is calculated using the following formula: Speed (rpm) = Step Angle × Frequency × 60 ÷ 360.
💕The worm gear stepper motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1
Worm Gear Stepper Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Worm Gear Stepper Motor Mounting Bracket Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Worm Gear Stepper Motor Two Phase Connection Diagram
