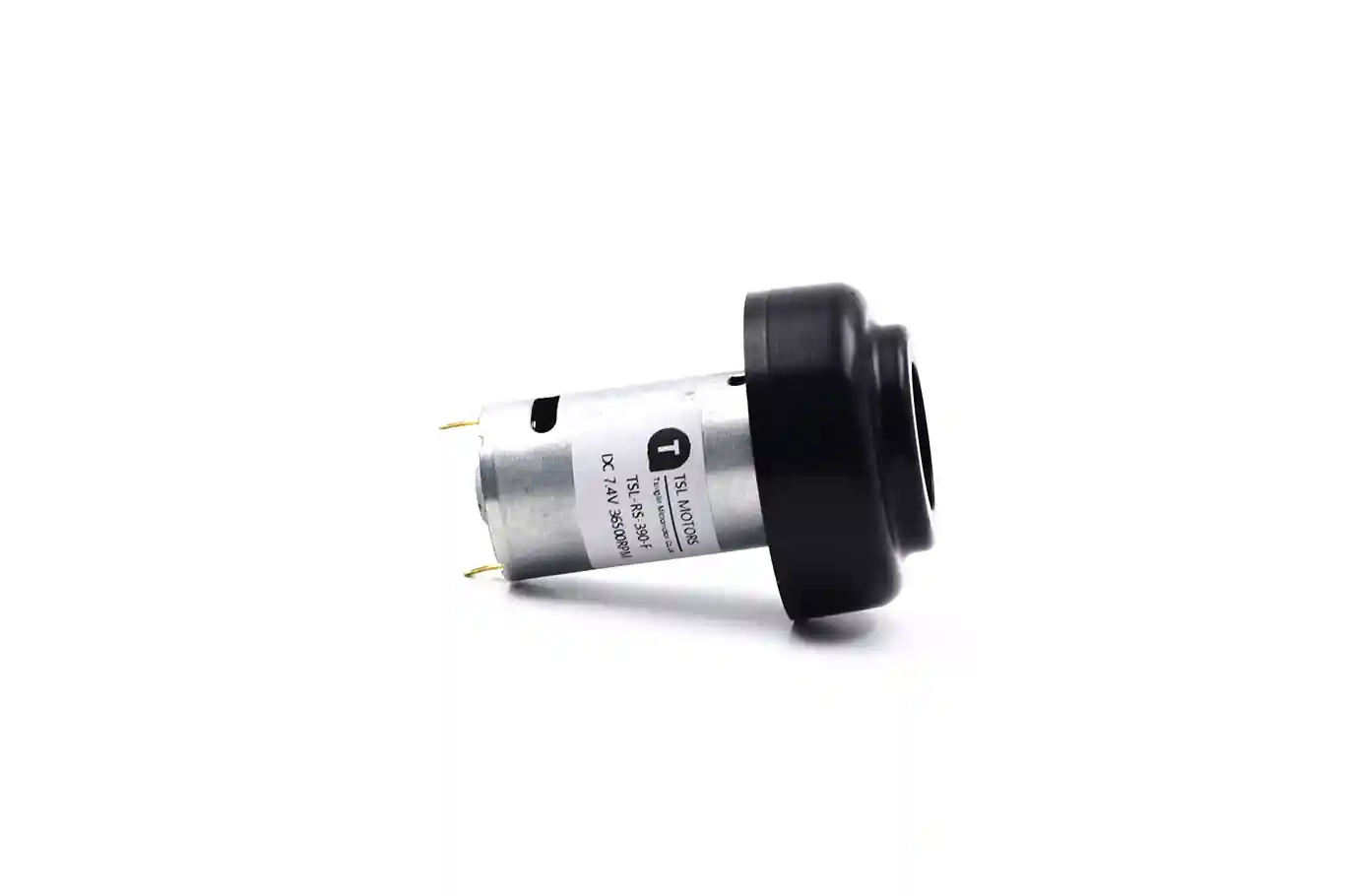

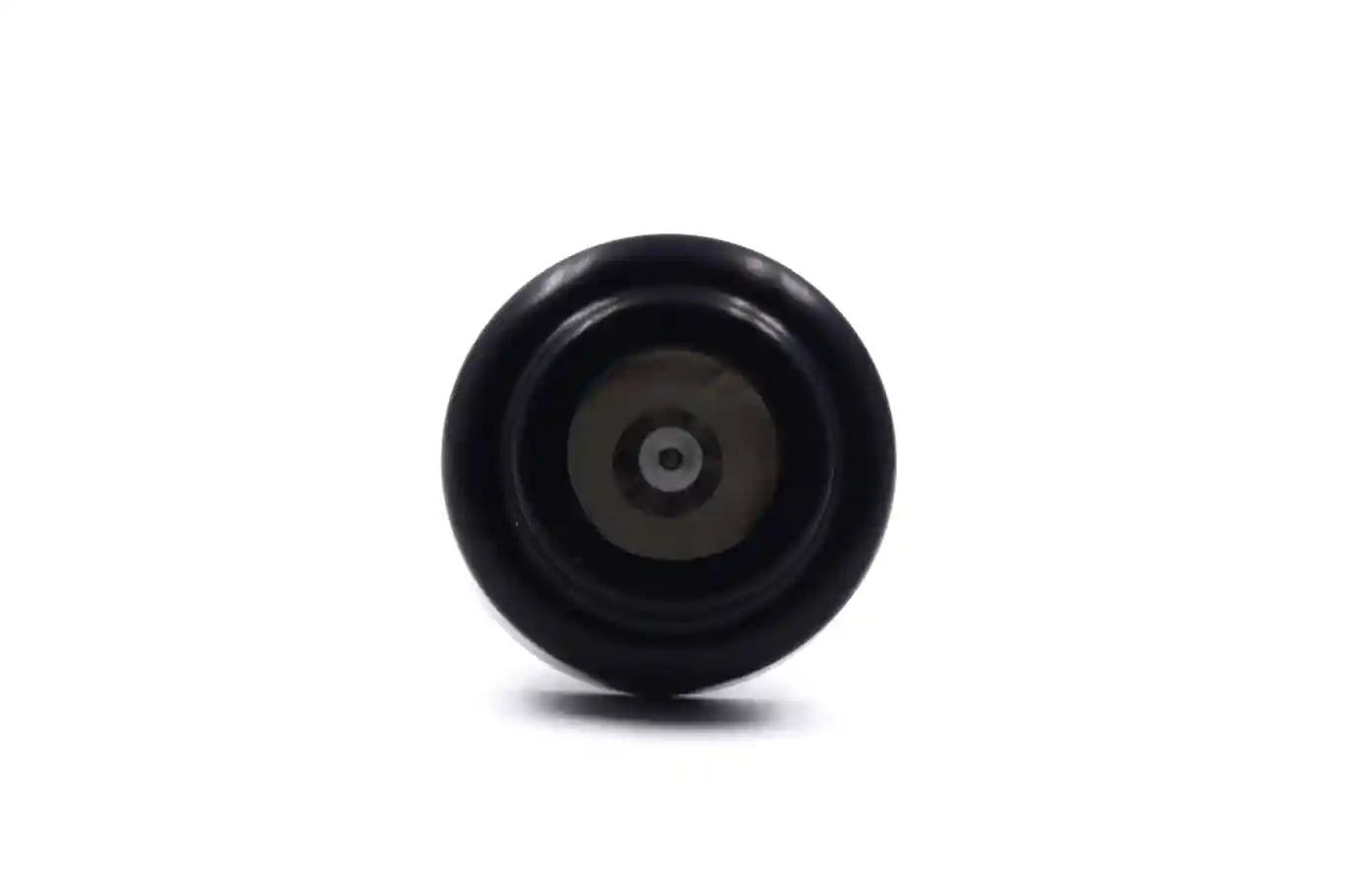

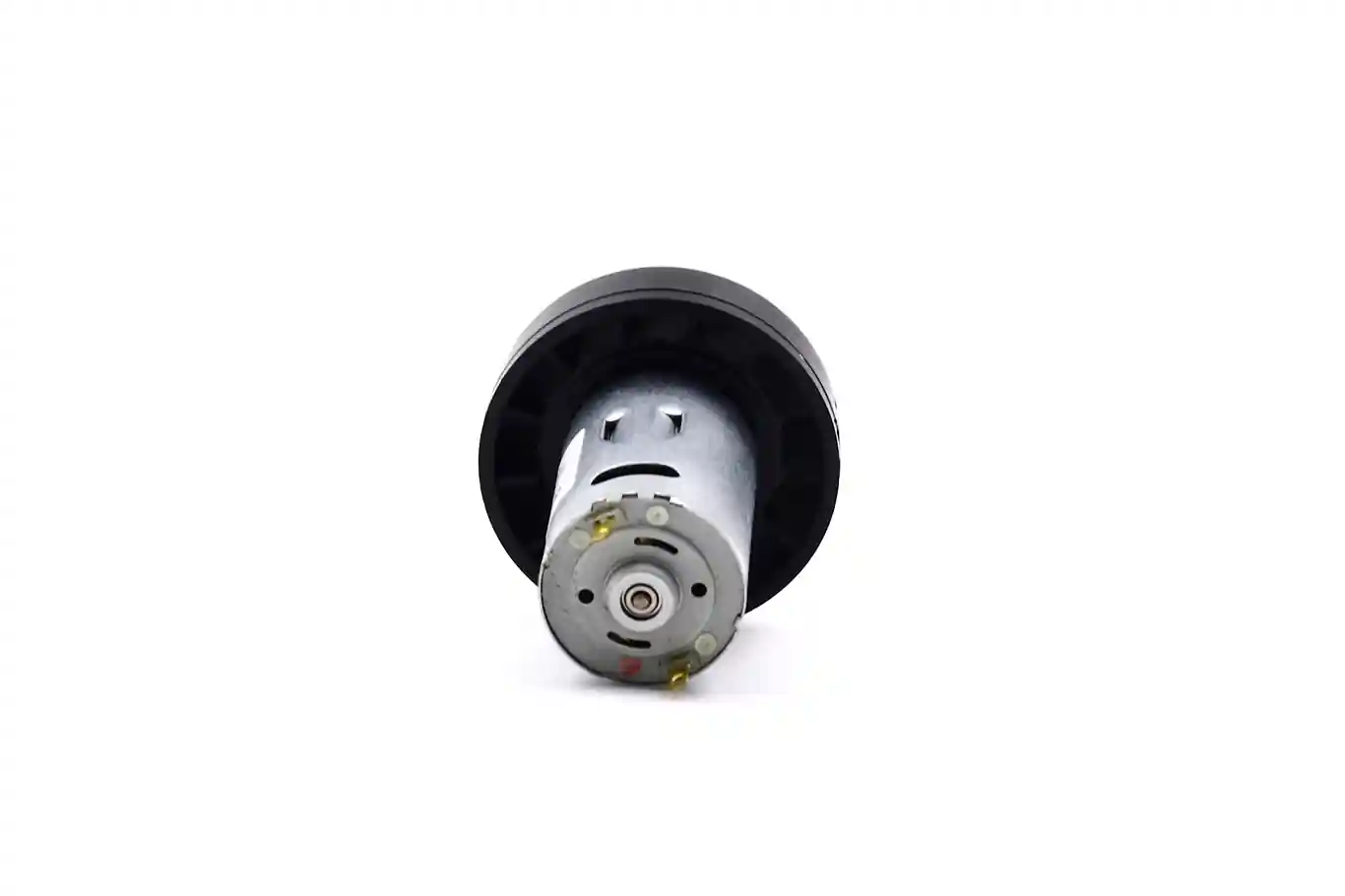

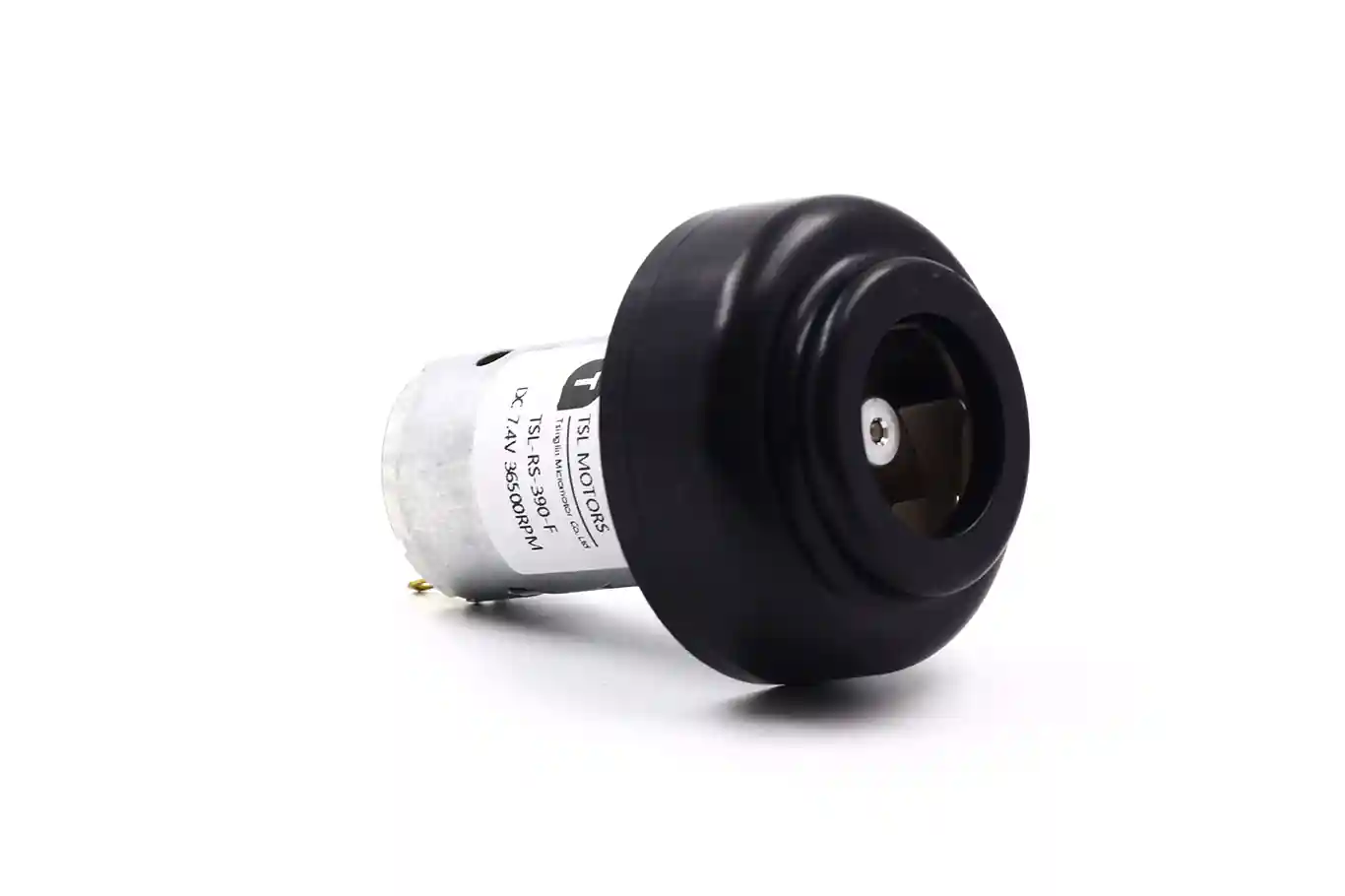

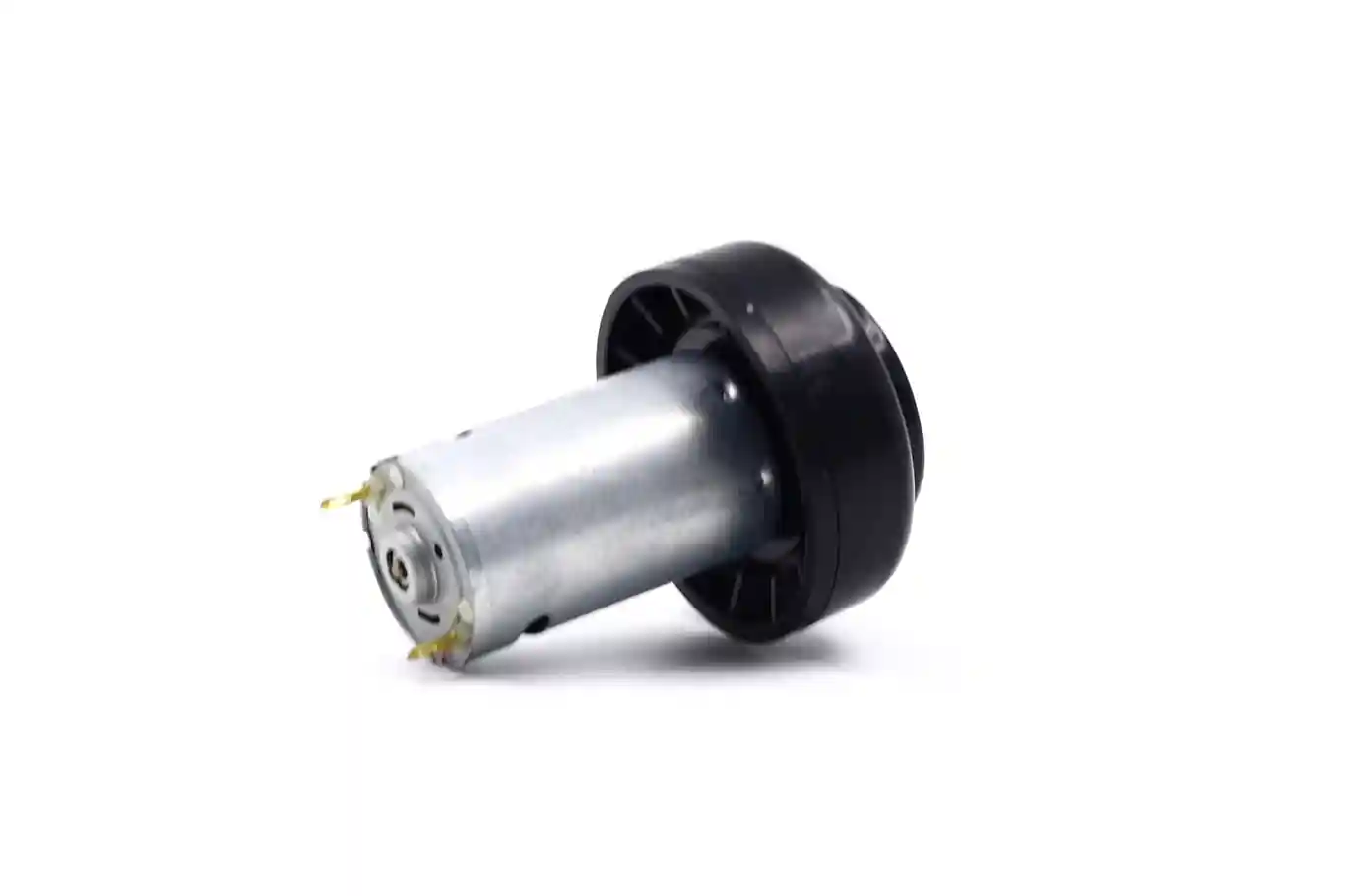

27mm Micro DC Motor – 46mm Type Model TSL-RS-390-F
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-RS-390-F
- Motor Type: Brushed DC Motor
- Motor Diameter:27.7 mm
- Motor Length:42.7 mm
- Shaft Diameter: φ 2.3 mm
- Rated Voltage:12V
- #More Specifications
♦ Typical Applications:
- handheld, cordless and upright vacuum cleaners
Vacuum Cleaner Motor 390 Brushed DC Motor Datasheets
The RS-390F vacuum cleaner motor is engineered specifically for handheld, cordless, and upright vacuum cleaners. Its compact 27.7 mm diameter allows for effortless integration into slender designs, all without sacrificing power. This vacuum cleaner motor boasts high efficiency, which translates to reduced energy use and longer battery life. Users will also appreciate its lightweight build and low operating noise, enhancing overall comfort. Thanks to a reinforced housing and extended service life, the RS-390F delivers consistent, dependable performance, even in demanding cleaning situations.
We can optimize and customize the dc brushed vacuum cleaner motor. This ensures strong, reliable power for different products. It meets many customer needs.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g.cm | W | A | g.cm | |
| TSL-RS-390F-3274 | 12 | 0.223 | 10842 | 1.67 | 9565 | 139.04 | 13.66 | 12.50 | 1180.00 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m
12V DC Brushed Vacuum Cleaner Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
