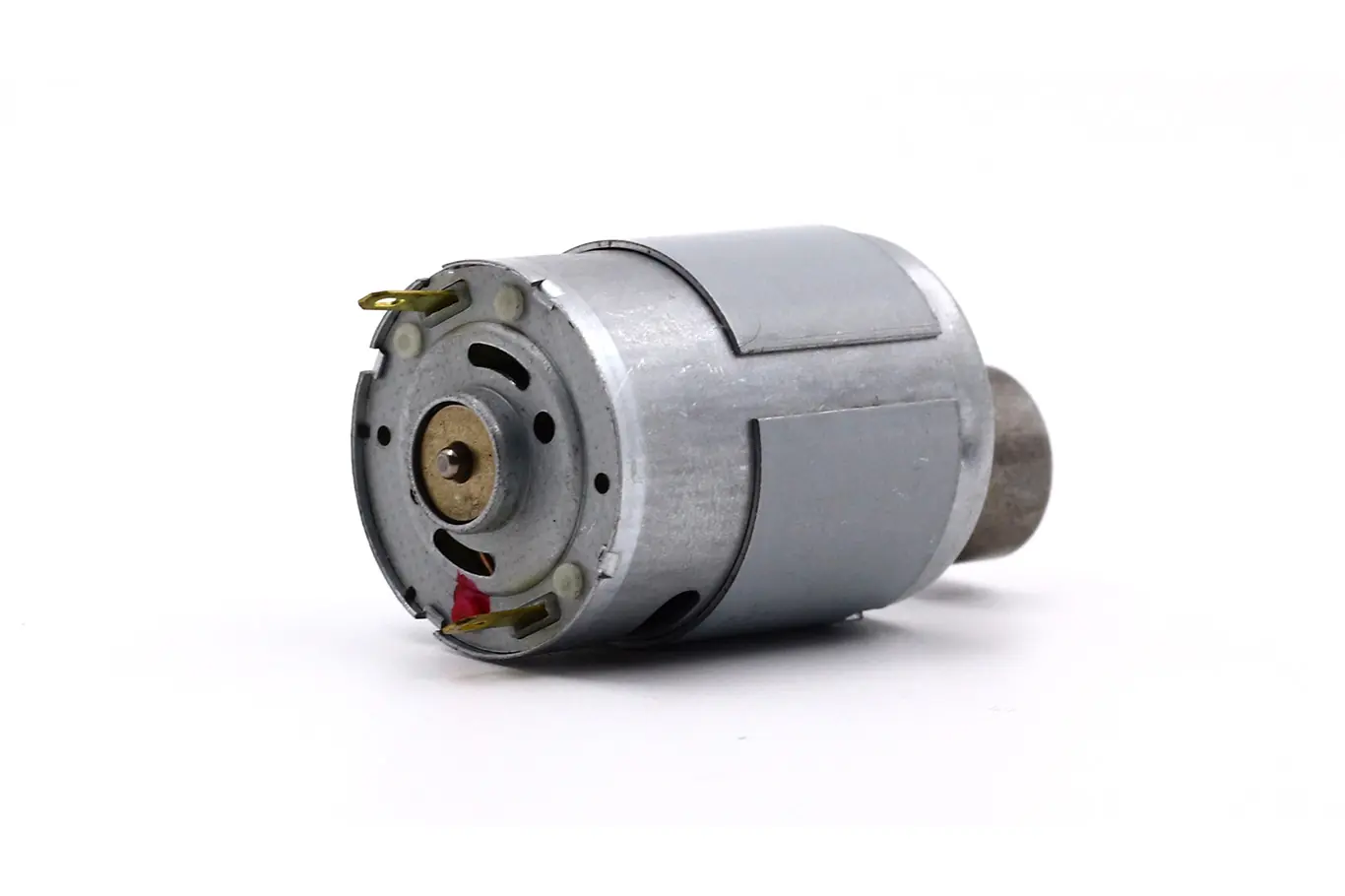

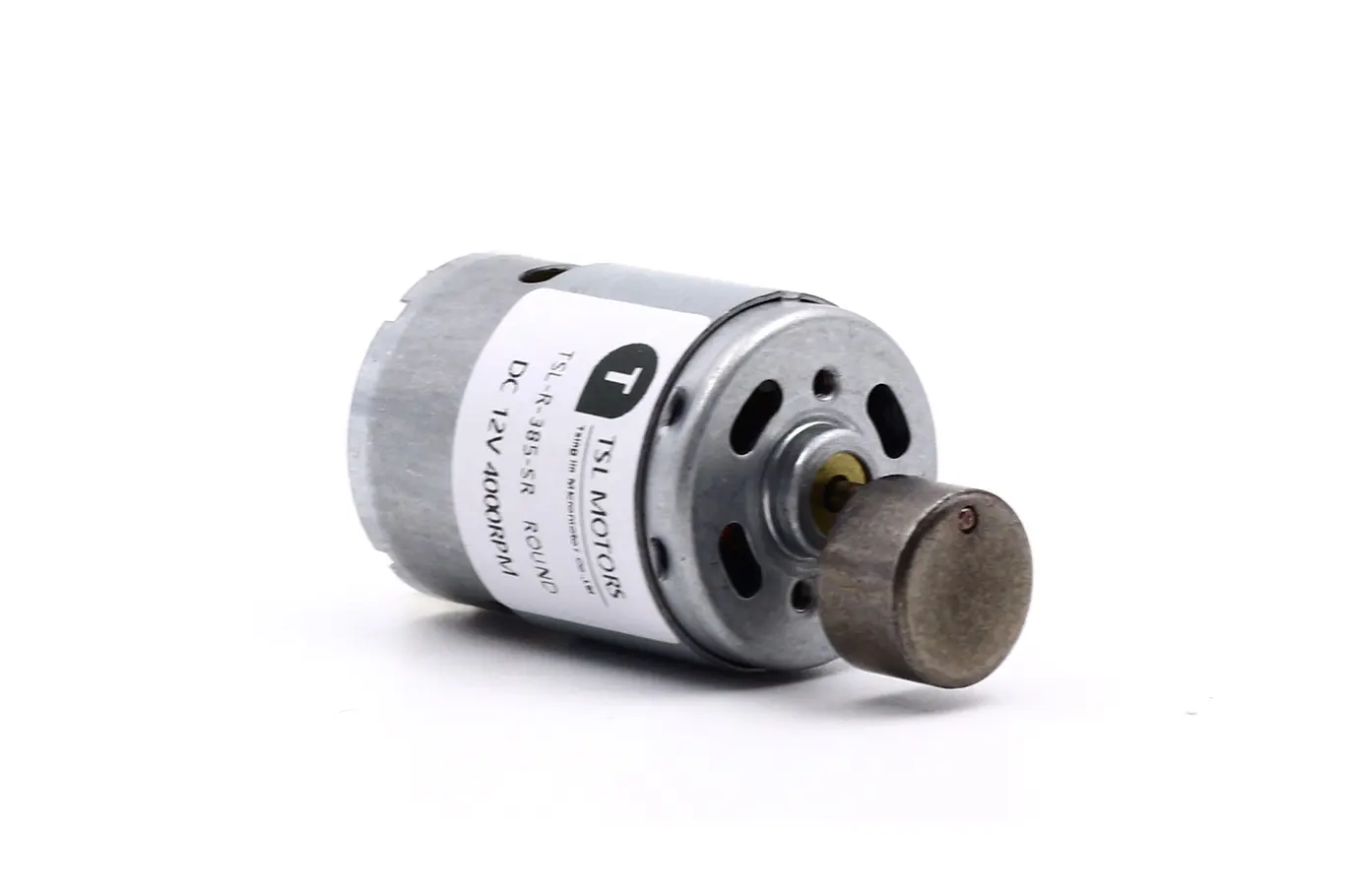

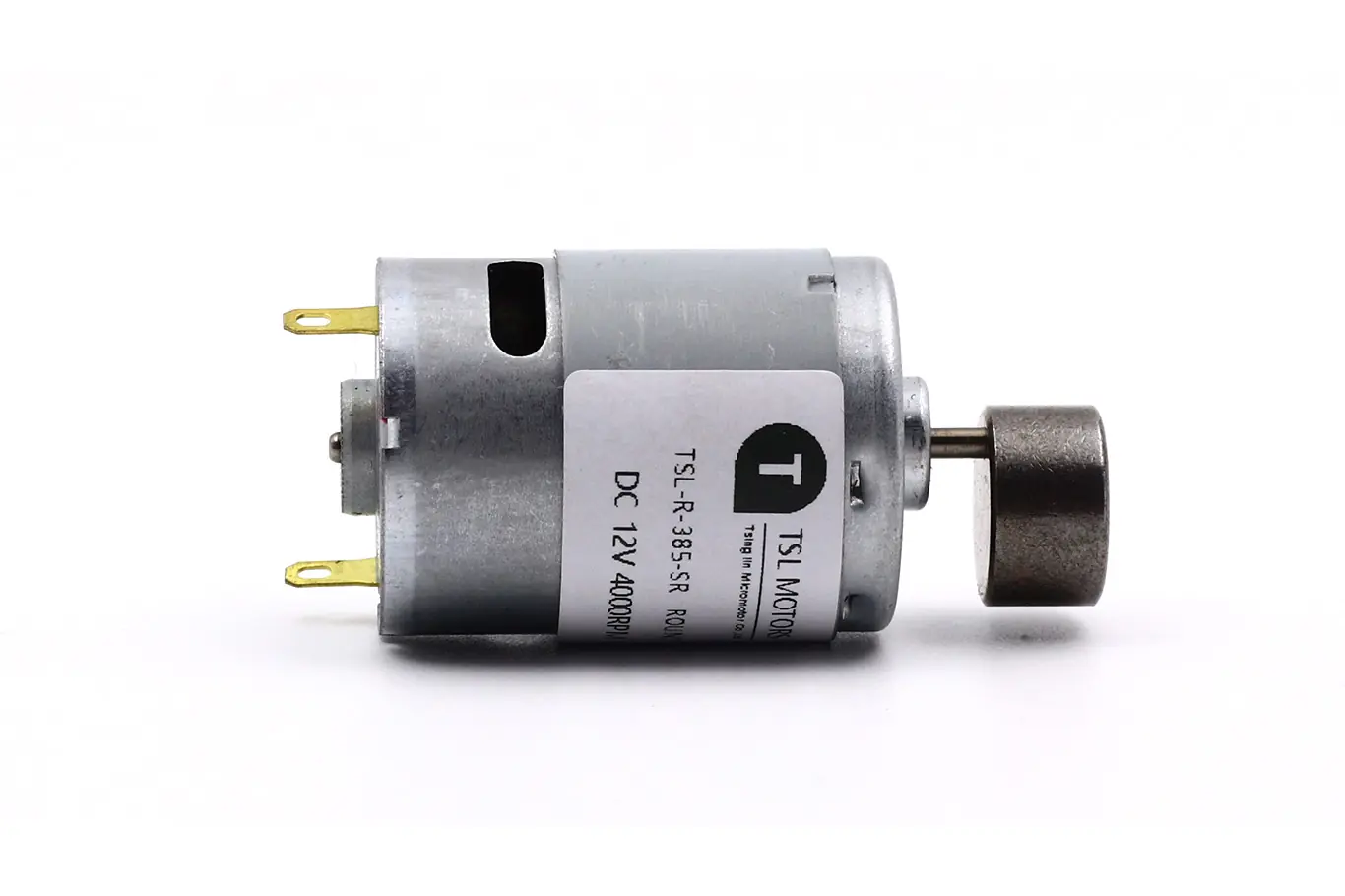

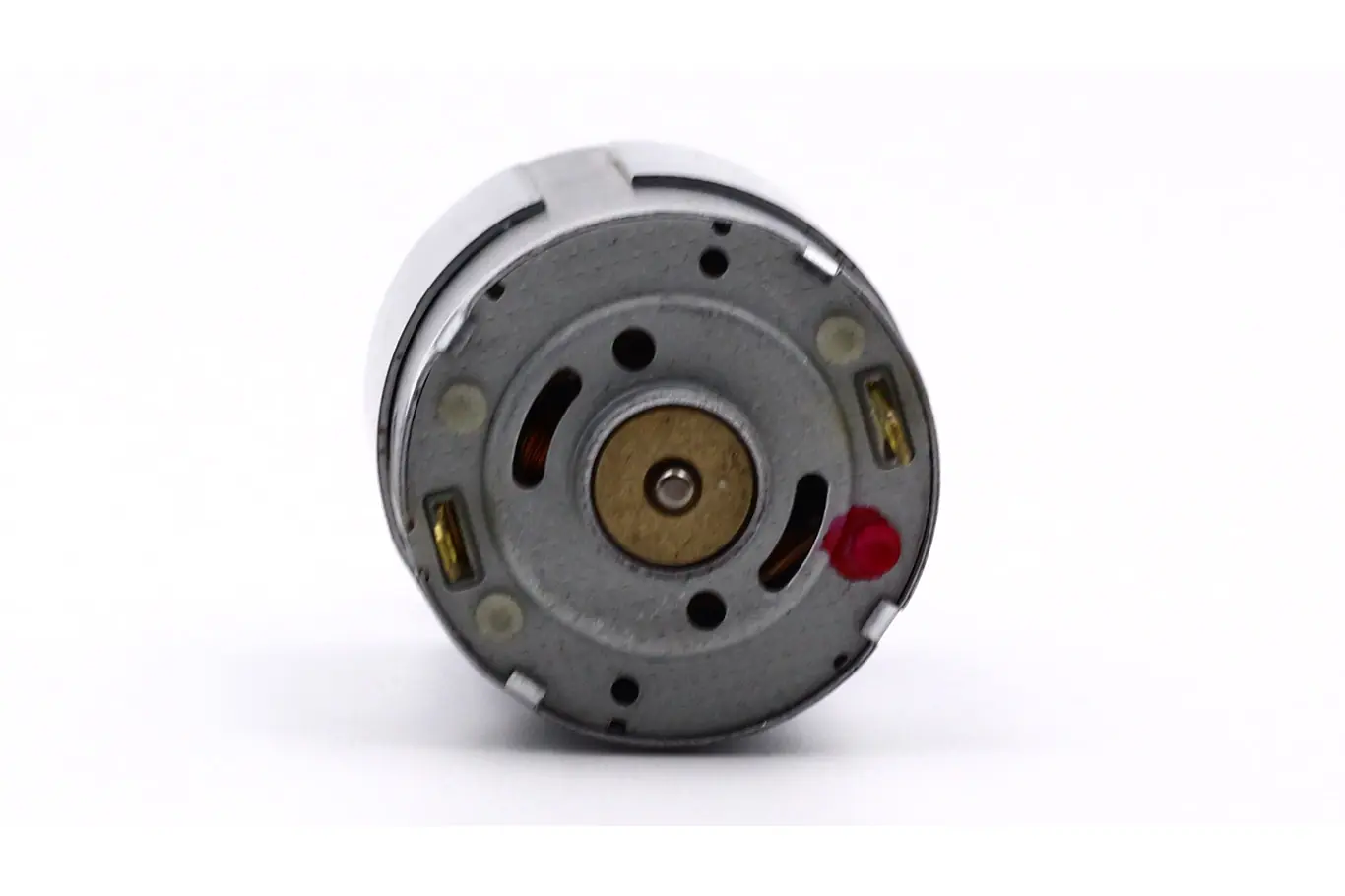

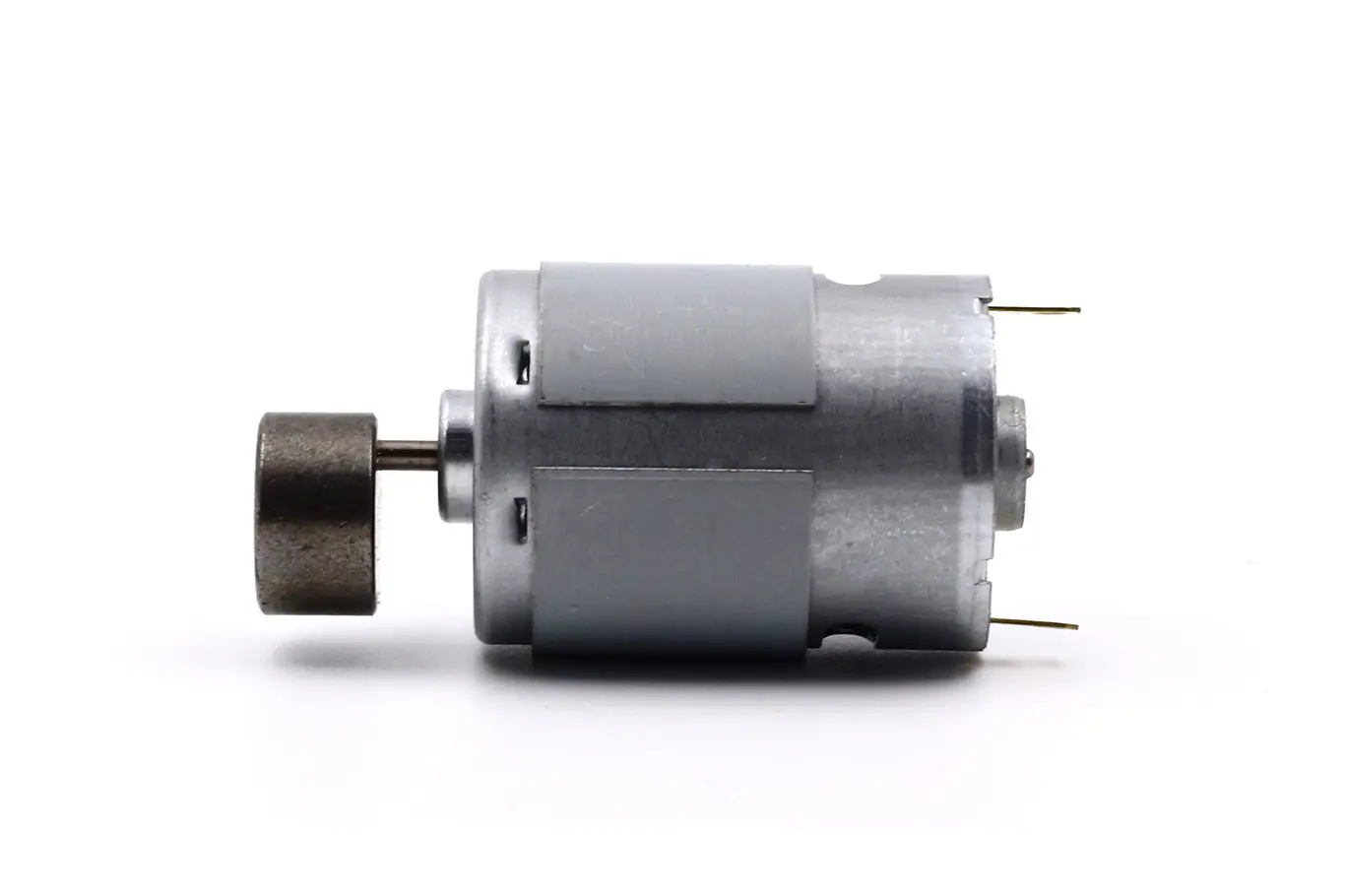

28mm ERM Vibration Motor – 38mm Type Model TSL-SH385-SR
If you request a quotation for mass production quantities, contact us for customizations and integration.
Strong Micro DC Motor Characteristics
The strong micro dc motor TSL-SH385-SR is a 28mm ERM vibration motor with a 38mm type design, engineered as a strong micro DC motor for high-performance vibration applications. With a motor diameter of 28mm and a body length of 37.7mm, it features a vibrator head diameter of 15mm and a thickness of 9mm, ensuring a compact yet powerful design.
Operating at 12V/24V DC, it delivers 4,000 RPM (12V) or 8,000 RPM (24V), providing adaptable speed options for diverse needs. Its low no-load current (0.064A–0.142A) and power efficiency (4.48W–4.83W) make it ideal for applications requiring reliable and strong haptic feedback, such as industrial equipment, medical devices, or gaming controllers.
Supporting both clockwise (CW) and counterclockwise (CCW) rotation, it offers flexibility in integration. Weighing just 87g, it combines durability and compactness, making it perfect for applications where space, strength, and efficiency are essential.
| Motor Model | TSL-SH385-SR |
| Motor Diameter | 28mm |
| Motor Body Length | 37.8mm |
| Vibrator Head Diameter | 15mm |
| Vibrator Head Thickness | 9mm |
| Rated Voltage | 12V / 24V DC |
| Rated Speed | 4,000rpm / 8,000rpm |
| No Load Current | 0.064A – 0.142A |
| Power | 4.48W – 4.83W |
| Rotation | CW / CCW |
| Weight | 87g |
Strong Micro DC Motor Outline Drawing
Customized Solutions
Keywords:
TSL vibration motor, 24v vibration motor, strong micro dc motor,vibration motor price, vibration motor small, vibration motor for sale, vibration motor 12v
Development Samples:
The quantities of sampling for our models in stock can be ordered directly online from us.
Engineering & Manufacturing:
Contact us or one of our Sales Engineers for a quotation for production as well as a consultation regarding customizing and integration services.
Payment Method:
Payment methods : PayPal or T/T
Shipping Method:
1.Delivery: DHL door to door, 5-7 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you’ve not received the item within the Delivery Time please send us an email with questions. In most cases, we will send you a reply within 24 hours If not, please look through your email account. We will try the best we can to help to solve your issues.
4.Please check that your address matches the address of your final shipment before you make payment.
5.In order to make sure you receive your purchase tax-free at the time of import, we’ll declare it at an amount lower than the value you paid for it, please note this in your order, thank you!
FAQ – Frequently Asked Questions
Q: In the event of being it is a customized version what details should you include?
A: You should provide the essential specifications of the motor. This includes Dimensions and Sizes Applications as well as Voltage, Speed and Torque. It is better to provide sketches of the application when you can.
Q: What are your primary motor?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What is the principal purpose of the micro DC motor?
A: The miniature DC motors are extensively used in home Applications, Office Equipment, Health-Care Application, Sanitation Industry and High-Quality Toys, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.We also offer DC motors and Gear motors.
