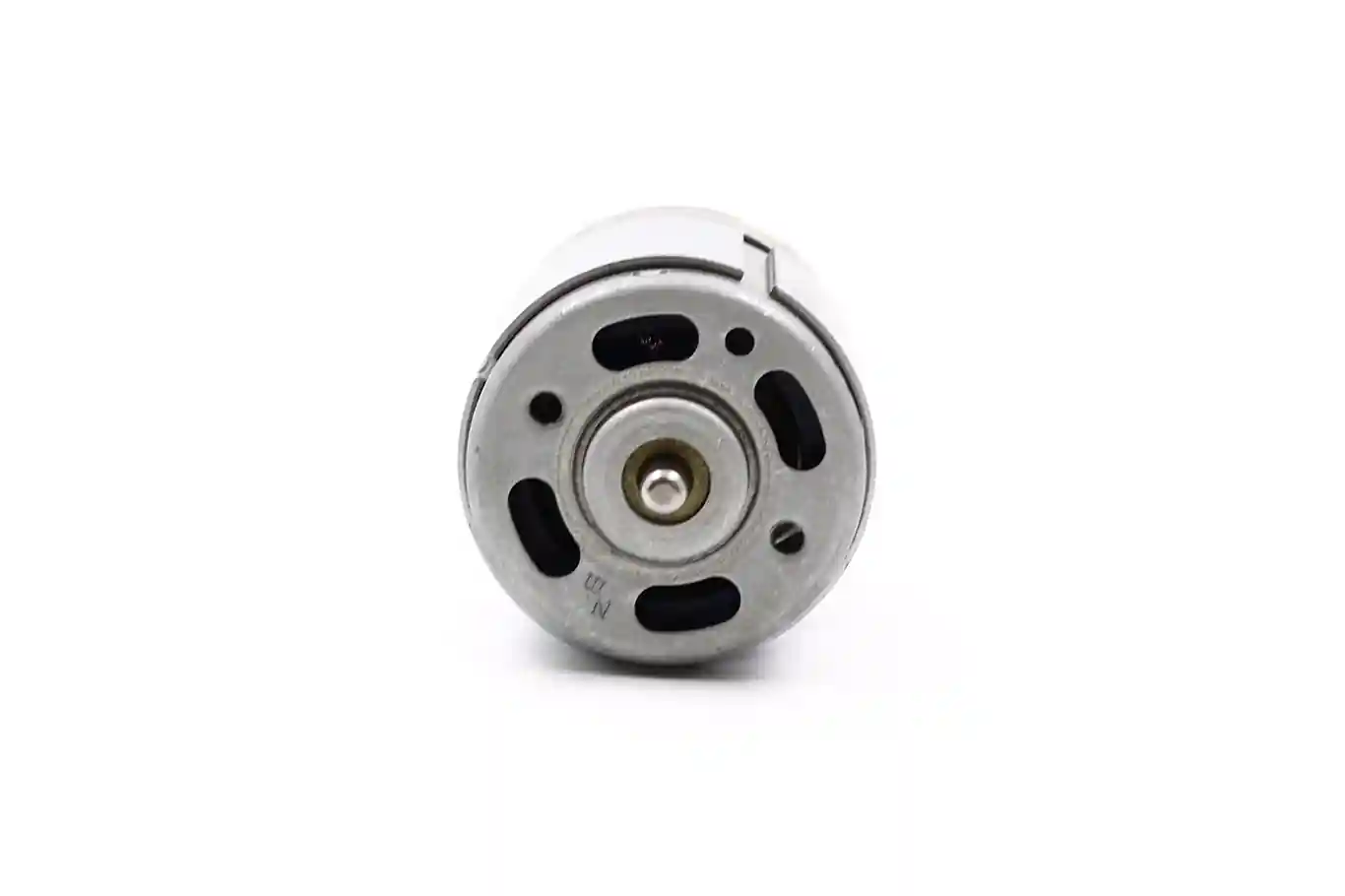

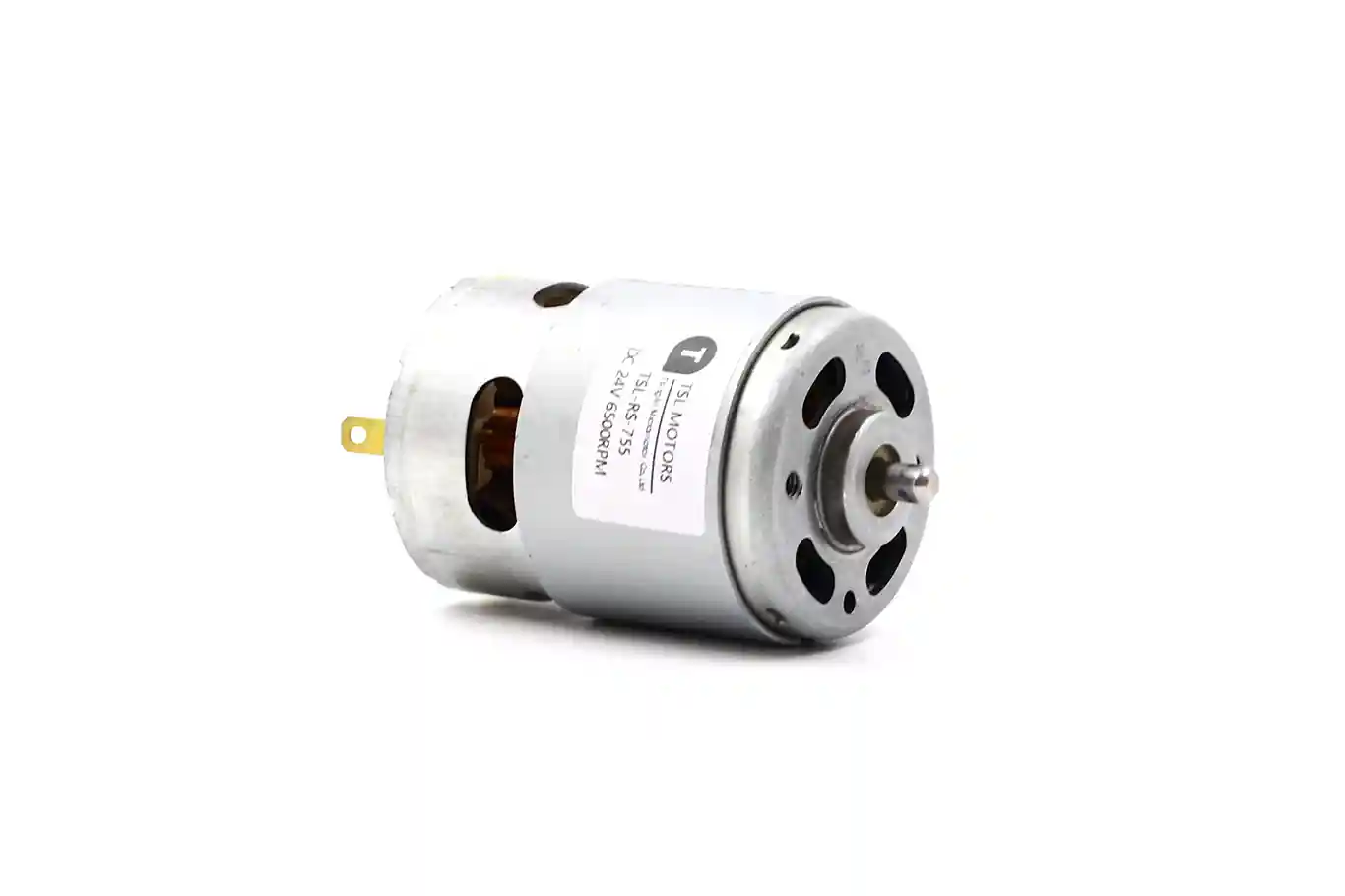

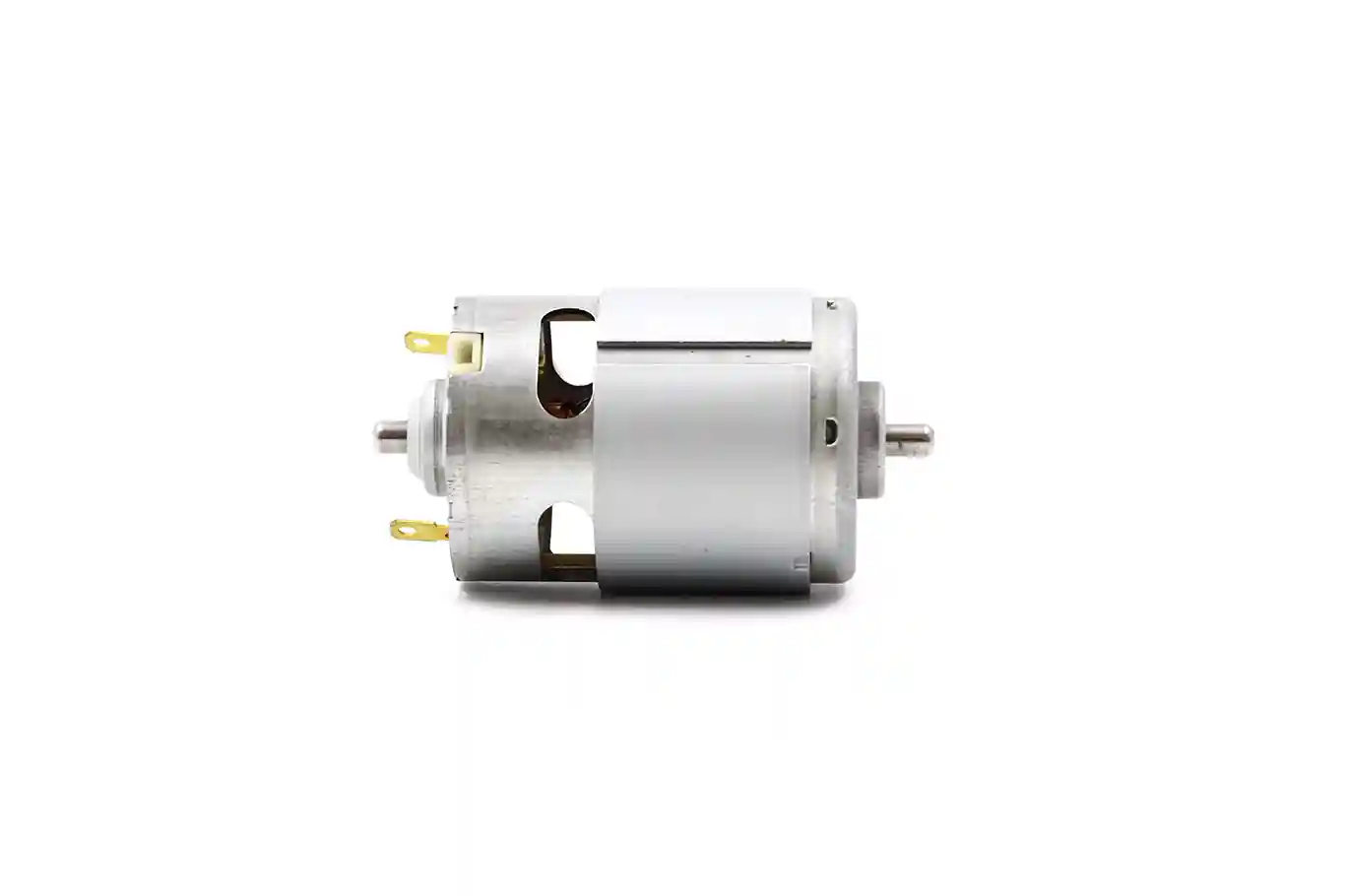

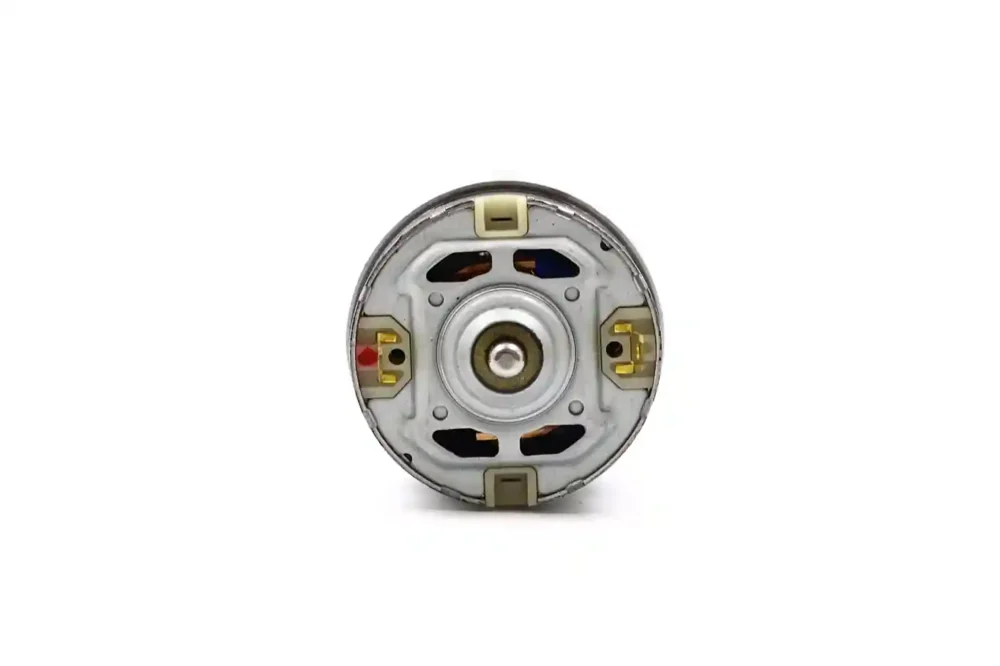

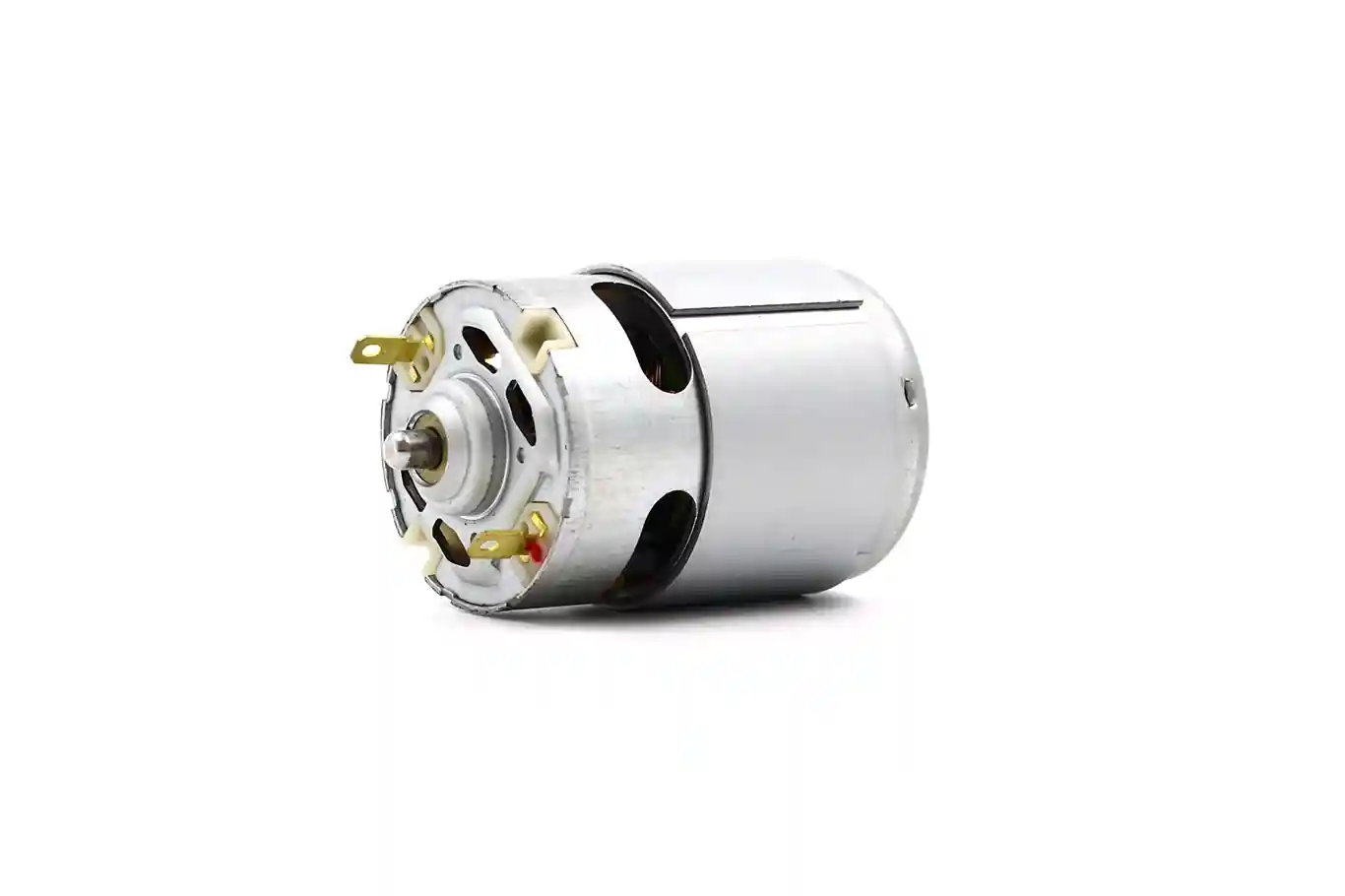

42mm Brushed DC Motor – 60mm Type Model TSL-RS-755
♦ Basic Info:
- Motor Type: Brushed DC Motor
- Motor Diameter: 42 mm
- Motor Length: 60 mm
- Shaft Diameter: φ 5.0 mm
- Rated Voltage: 12 V
- Rated Speed: 13325 RPM
- Output Power: 144.2 W
- Output Torque: 1055.50 g·cm
Typical application:
- Cordless power tools／ Office Automation Equipment ／ Cordless garden tools
RS 755 12V/ 24V Ball Bearing Brush Electric Motor Data Sheet
The TSL-RS-755 is a permanent magnet DC motor. It boasts a no-load speed of 15,000 RPM. This brush electric motor delivers over 100W of output power. It’s ideal for common drilling and cutting tasks.
Quiet Operation and Extended Lifespan
The TSL-RS-755 operates quietly, at less than 75dB. It features built-in cooling fans. These fans extend service life and maintain stable operation.
Customizable for Your Needs
TSL Motor offers customization for the brush electric motor TSL-RS-755. This includes voltage, speed, and torque. We tailor the brush electric motor to meet professional needs across various applications. This improves overall machine adaptability and user experience.
We can optimize and customize the small electric motors. This ensures strong, reliable power for different products. It meets many customer needs.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Output | Current | Torque | ||
| v | rpm | A | rpm | A | g.cm | W | A | g.cm | |
| TSL-RS-755PH-6237 | 12 | 13500 | 1.6 | 11300 | 8.1 | 730 | 63 | 41.5 | 4500 |
| TSL-RS-755PH-6521 | 18 | 16500 | 1.8 | 14000 | 10.9 | 1100 | 158 | 61.8 | 7260 |
| TSL-RS-755PH-2985 | 24 | 5700 | 0.28 | 4700 | 1.52 | 560 | 26.9 | 7.35 | 3190 |
| TSL-RS-755PH-5149 | 24 | 10630 | 0.7 | 9080 | 3.2 | 600 | 55.87 | 17.9 | 4115 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m

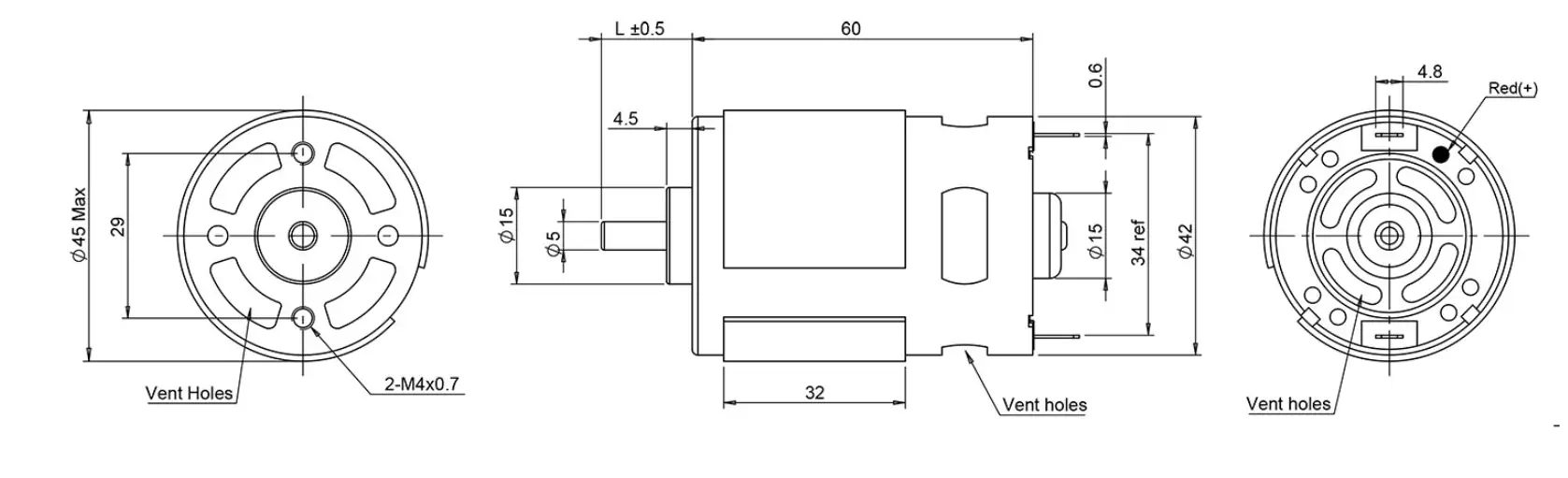

12V Brush Electric Motor 755 Brushed Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

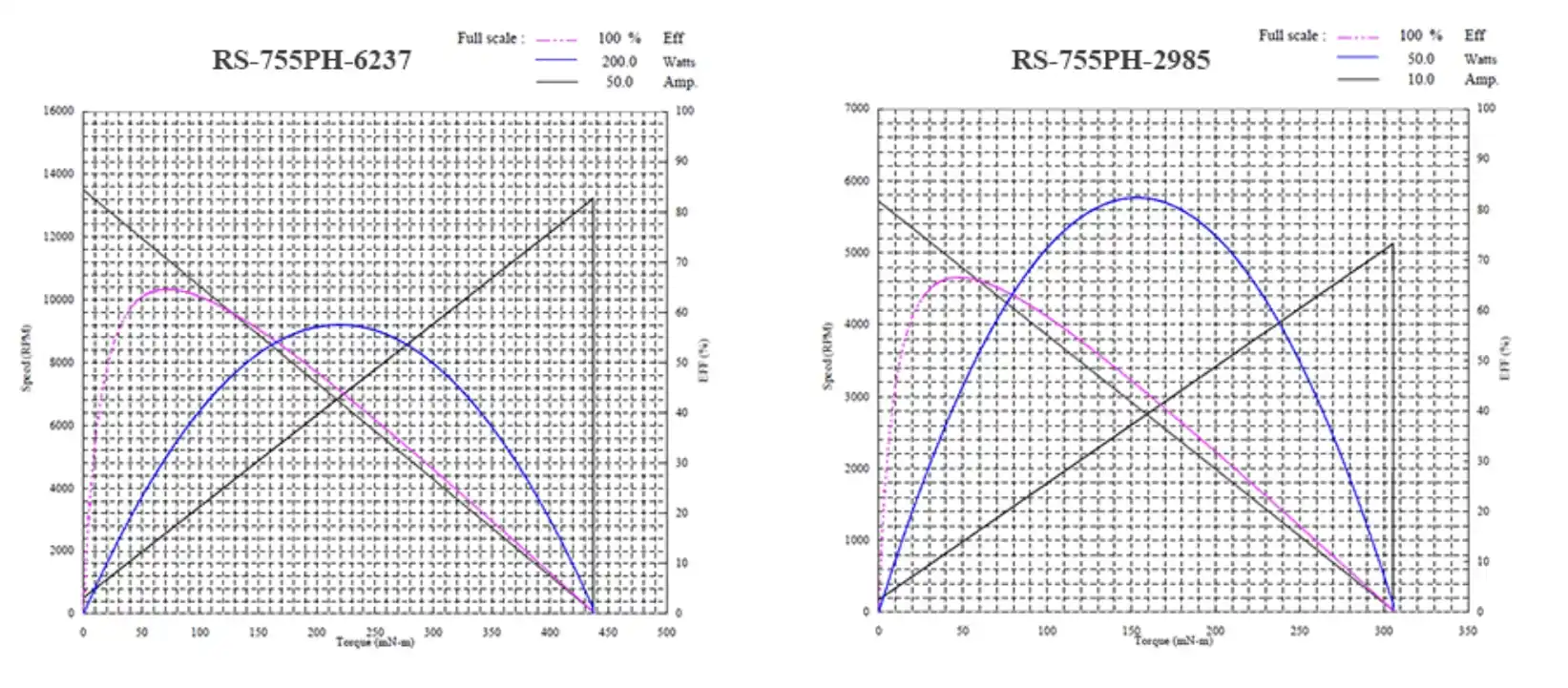

755 DC Brush Electric Motor Performance Curve
