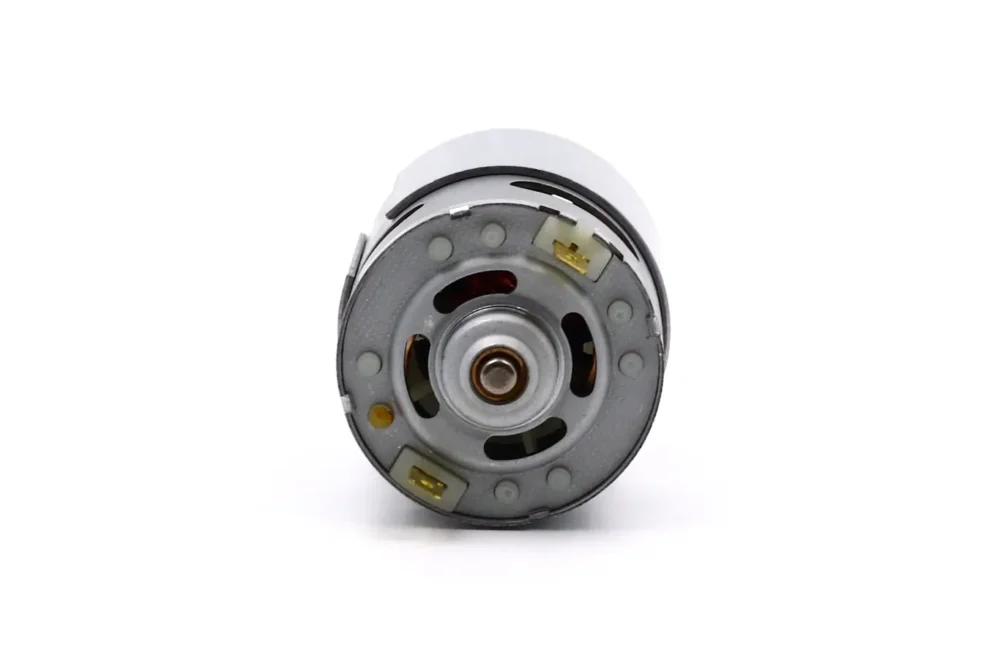

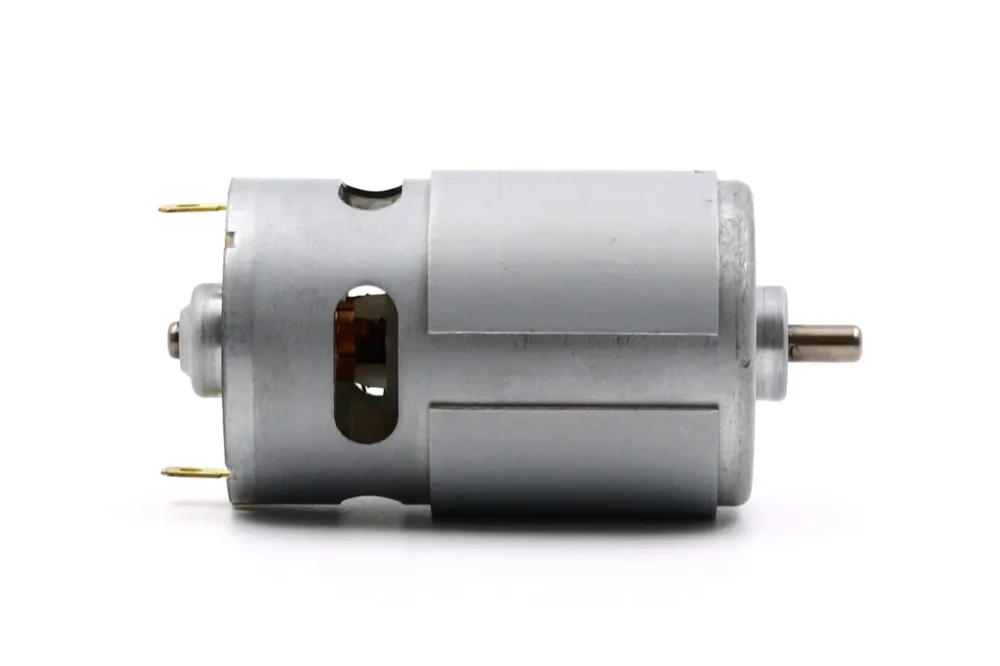

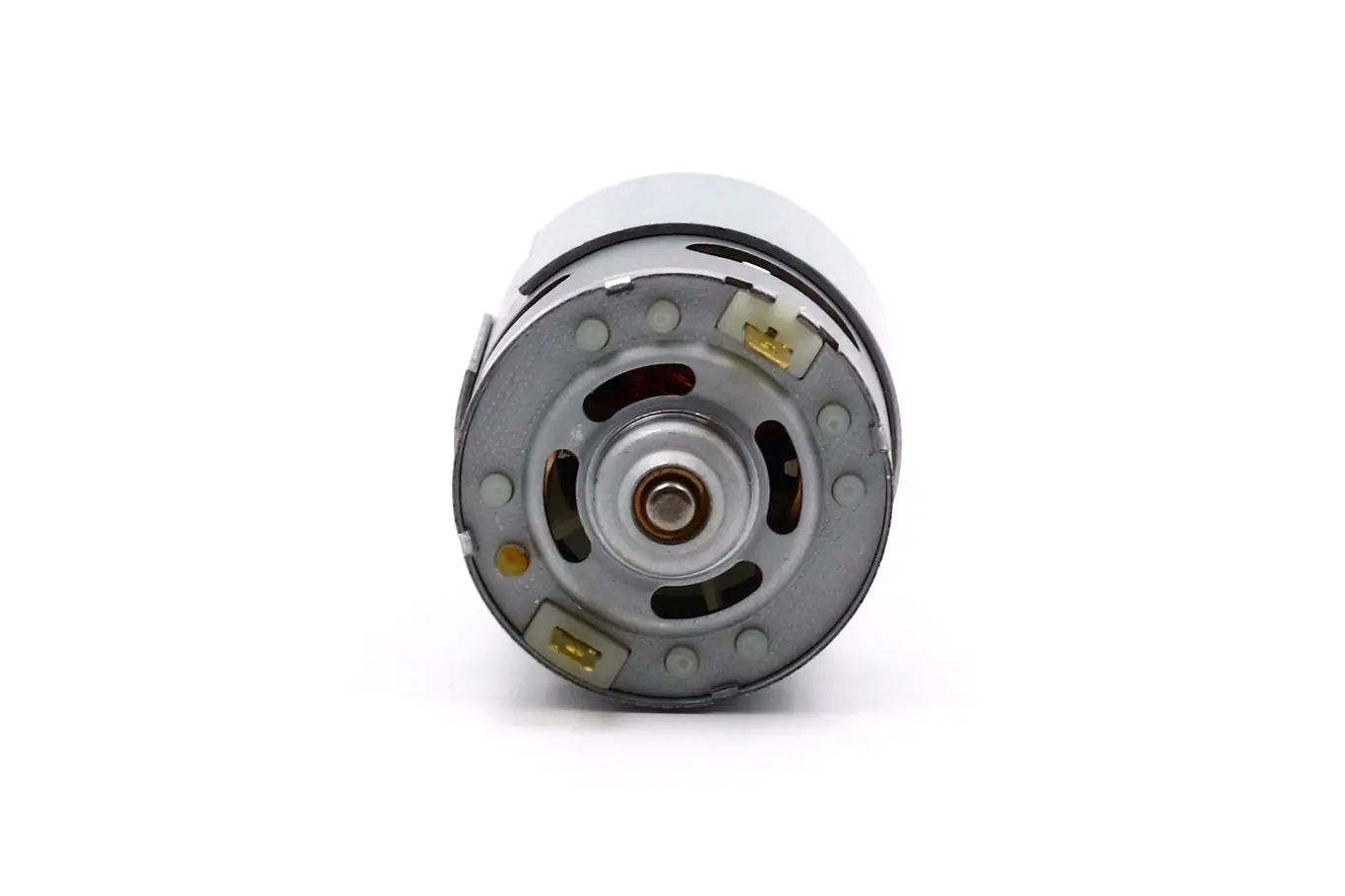

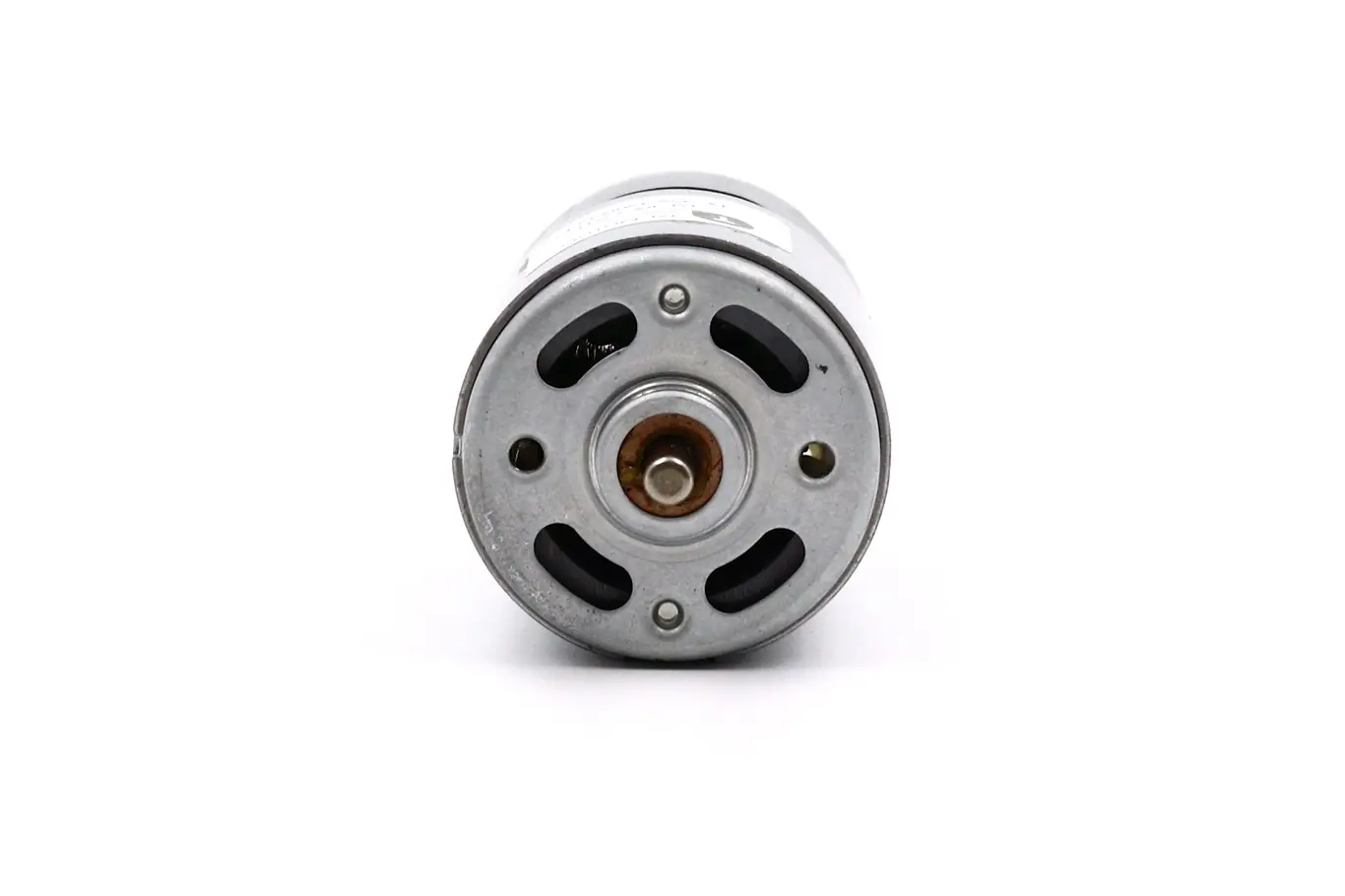

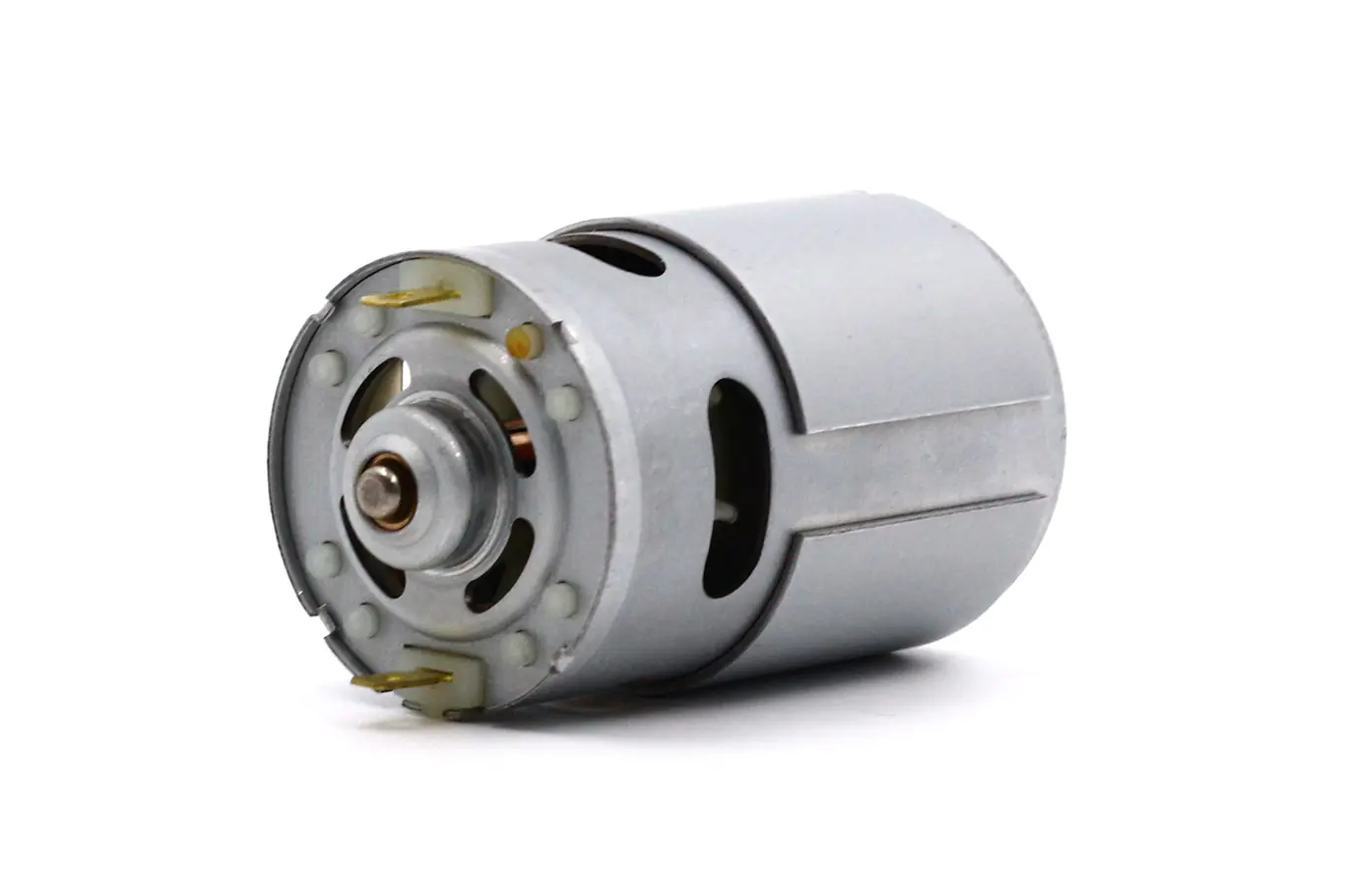

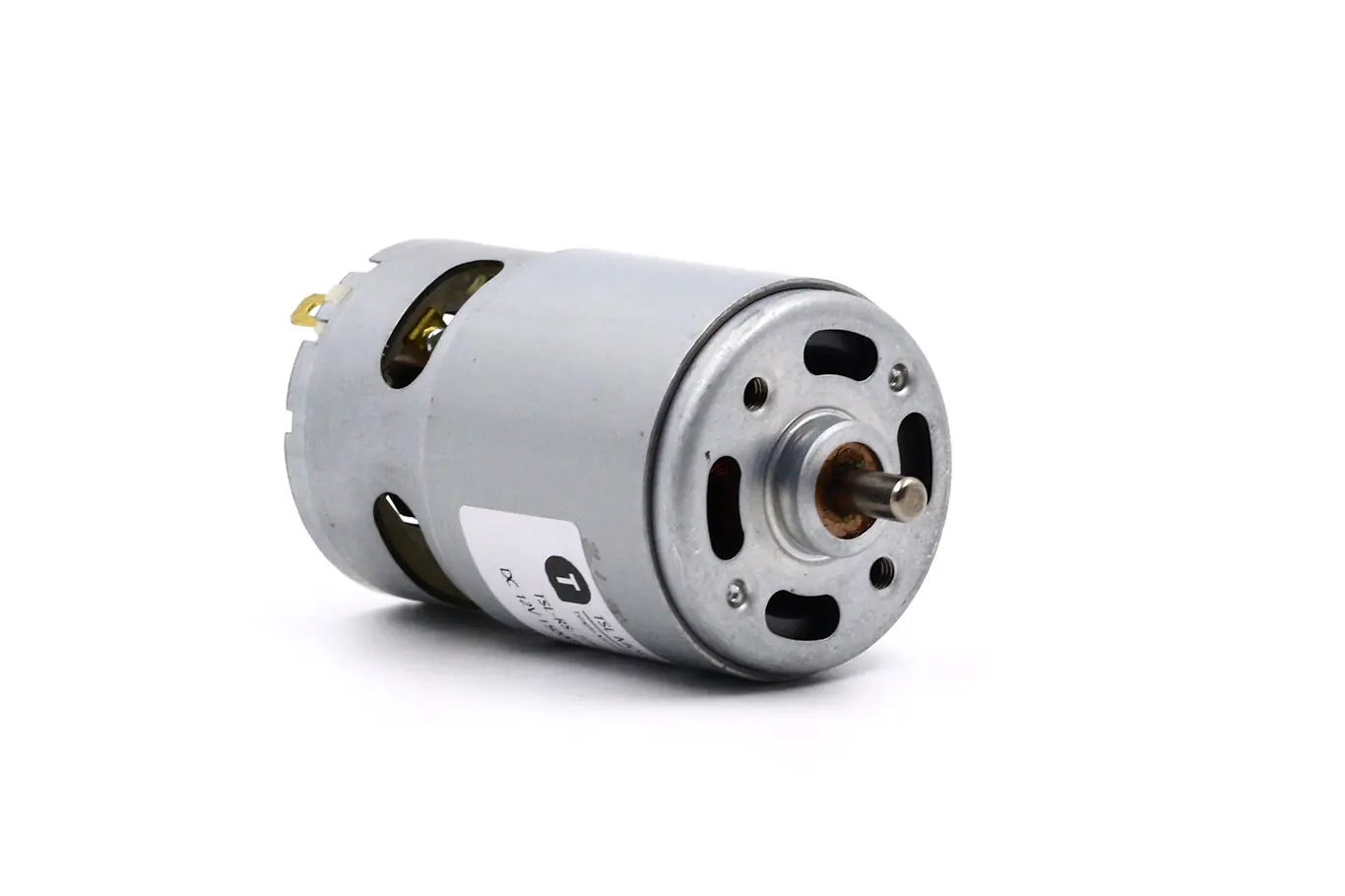

44mm Brushed DC Motor – 66mm Type Model TSL-RS-770/775
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-RS-770/775
- Motor Type: Brushed DC Motor
- Motor Diameter: 41.8 mm
- Motor Length: 67 mm
- Shaft Diameter: φ 5.0 mm
- Rated Voltage: 12 V
- Rated Speed: 13325 RPM
- Output Power: 144.2 W
- Output Torque: 1055.50 g·cm
- #More Specifications
♦ Typical Applications:
Automotive Parts/Valves and Meters/blender machine/coffee machine/Vehicle seat/washing machine
755 DC Motor Ball Bearings Performance Motor Datasheet
Discover the TSL 775 DC motor. It measures ∅ 41.9 mm. This is a brushed DC motor type. The 775 DC motor diameter is 41.8 mm. Its length is 67 mm. The 775 DC motor shaft diameter is φ 5.0 mm. It runs on 12 V. Expect a rated speed of 13325 RPM. The output power is 144.2 W. It provides an output torque of 1055.50 g·cm. The 775 DC motor serves automotive needs. It’s ideal for blenders. It enhances coffee machines. Use it in various home appliances. It’s suitable for valves. It can be used in meters. Power vehicle seats with it. Integrate it into washing machines. It’s even applicable for water jet pumps.
| Model | Voltage | No Load | At Maximum Efficiency | Stall Torque | ||||||
| Operation Range | Nomianl(CONSTANT) | Speed | Current | Speed | Current | Torque | Output | EFF | ||
| RPM | A | RPM | A | g.cm | W | % | g.cm | |||
| RS-770-7038 | 3.0-24.0 | 12.0V | 10600 | 1.50 | 9074 | 7.47 | 783 | 72.9 | 81.3 | 5500 |
| RS-770-7529 | 3.0-24.0 | 20.0V | 24500 | 2.50 | 21520 | 17.90 | 1400 | 309.0 | 84.6 | 111500 |
| RS-770-8022 | 3.0-18.0 | 12.0V | 18500 | 3.00 | 16180 | 20.50 | 1250 | 207.5 | 84.3 | 10000 |
| RS770-8025 | 3.0-24.0 | 20.0V | 28500 | 3.50 | 24580 | 21.65 | 1650 | 416.0 | 94.2 | 12000 |
| RS775-29655 | 9.0-36.0 | 24.0V | 6280 | 0.37 | 5010 | 1.87 | 600 | 30.83 | 68.7 | 3640 |
| RS775-4045 | 9.0-36.0 | 12.0V | 4600 | 0.60 | 3500 | 4.30 | 860 | 36.6 | 70.9 | 3600 |
| RS775-4548 | 6.0-36.0 | 12.0V | 4250 | 0.45 | 3664 | 2.35 | 599 | 22.39 | 79.5 | 4200 |
| RS775-6522 | 3.0-30.0 | 18.0V | 15000 | 1.50 | 13125 | 13.75 | 1250 | 168.0 | 68.0 | 10000 |

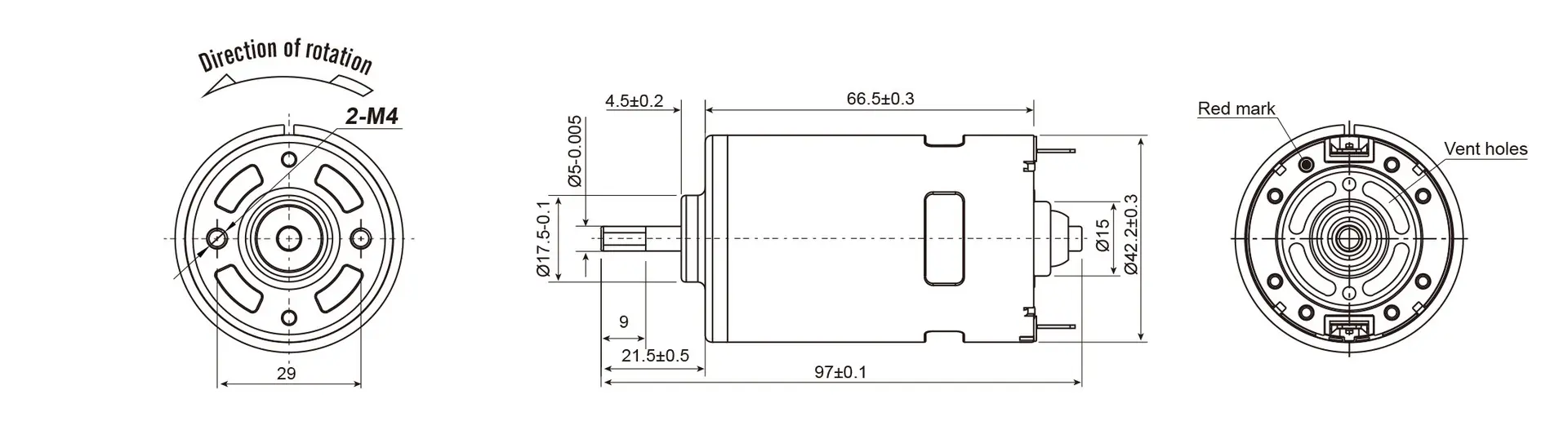

755 DC Motor Outline Drawing
Special specifications can be customized according to customer requirements.

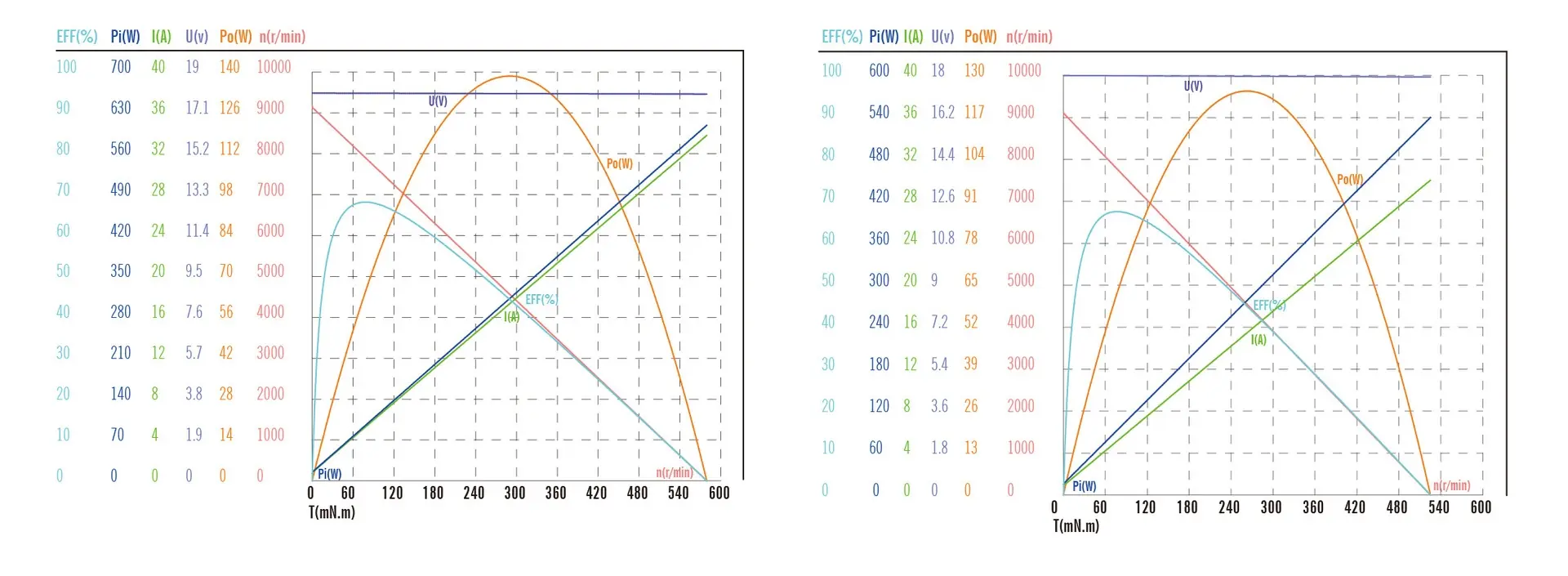

755 DC Motor Performance Curve
