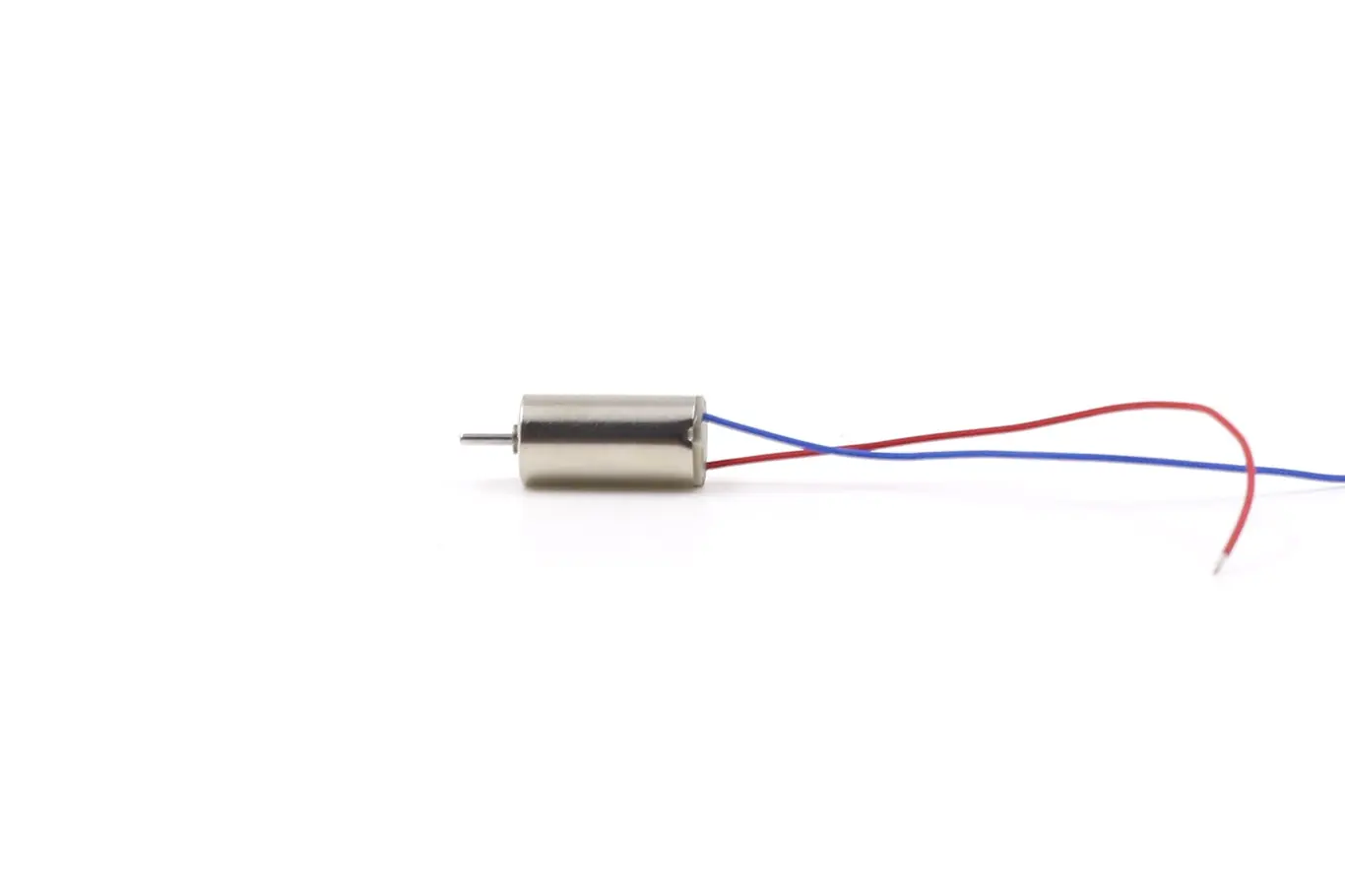

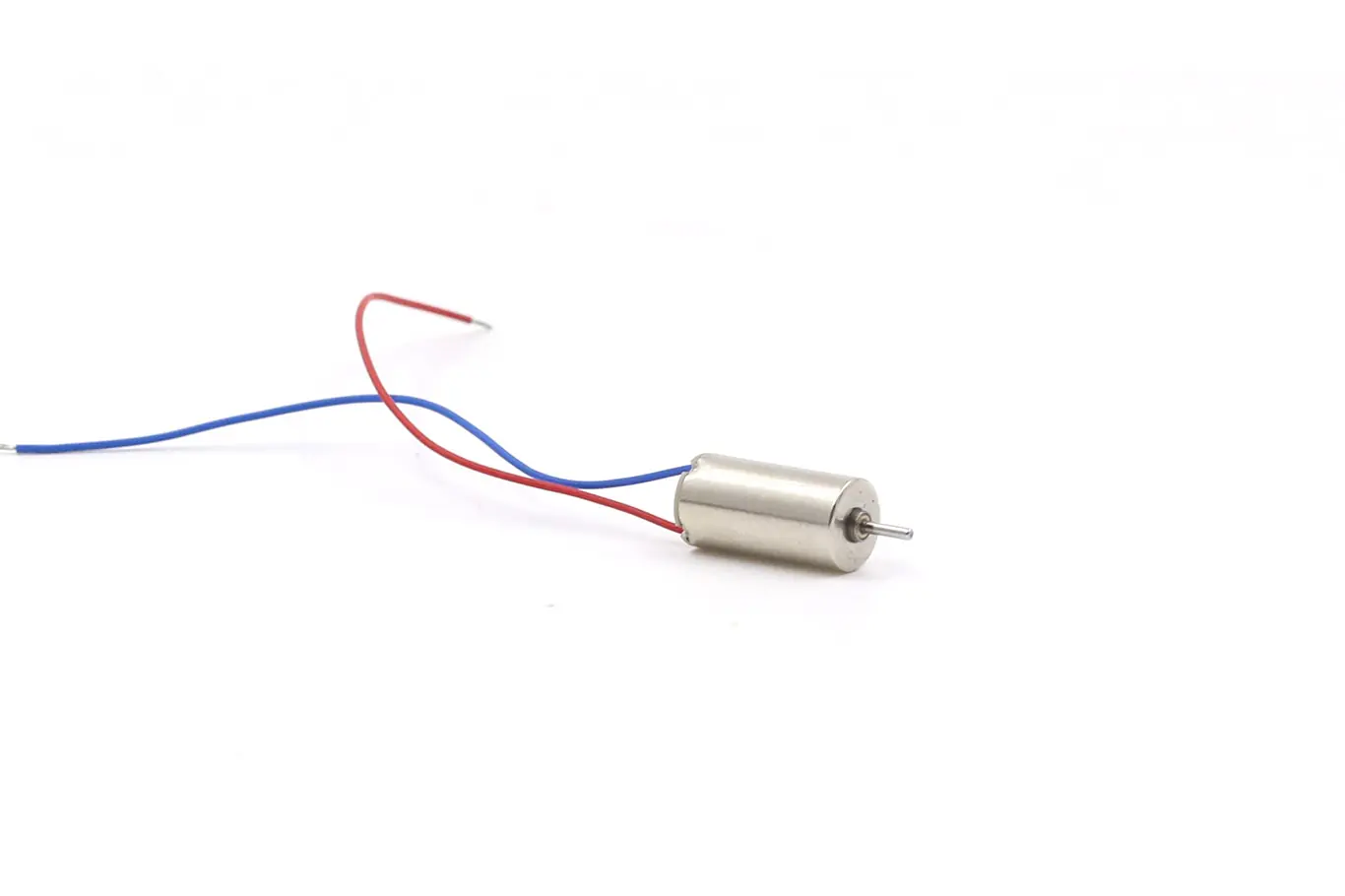

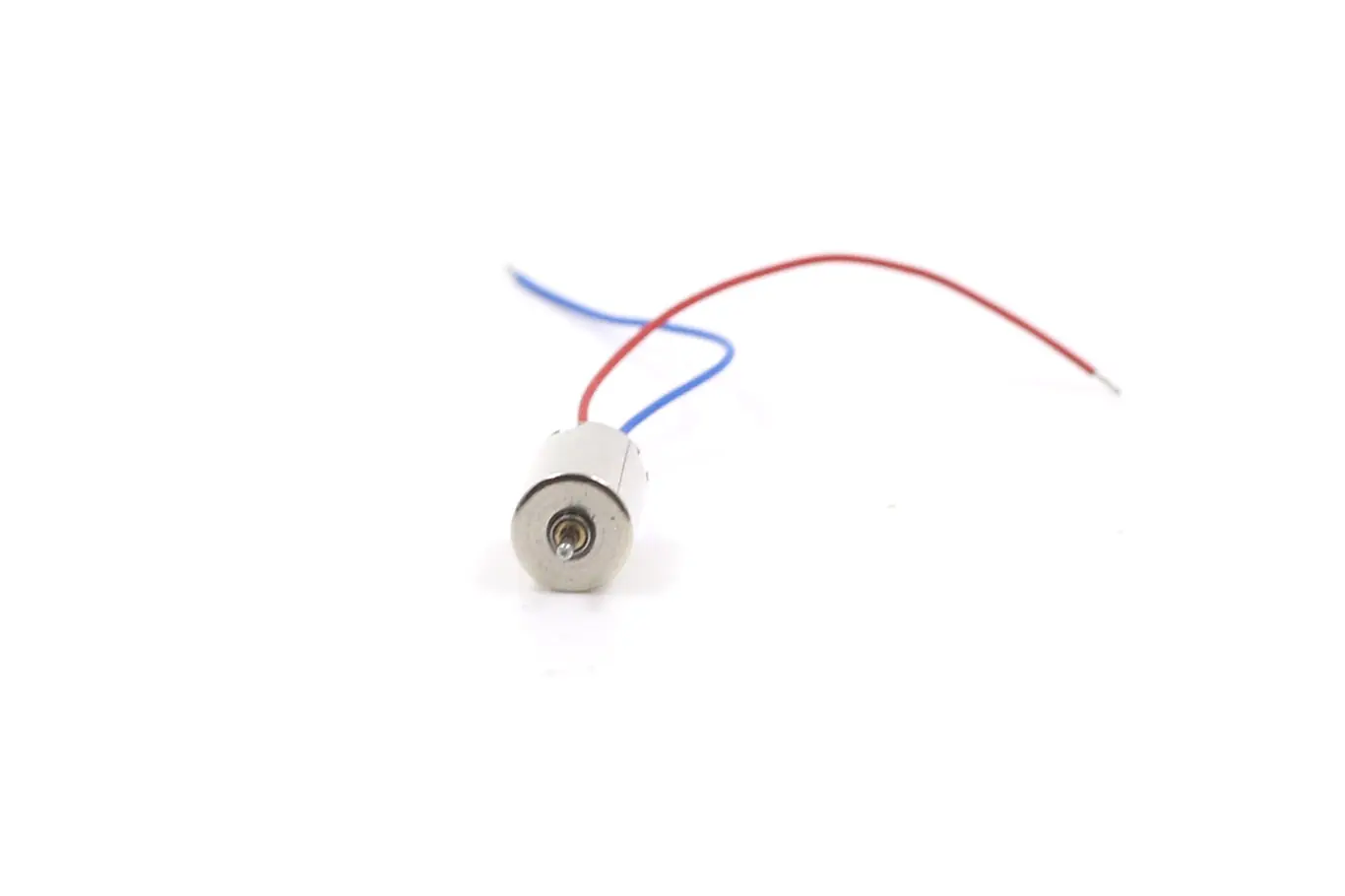

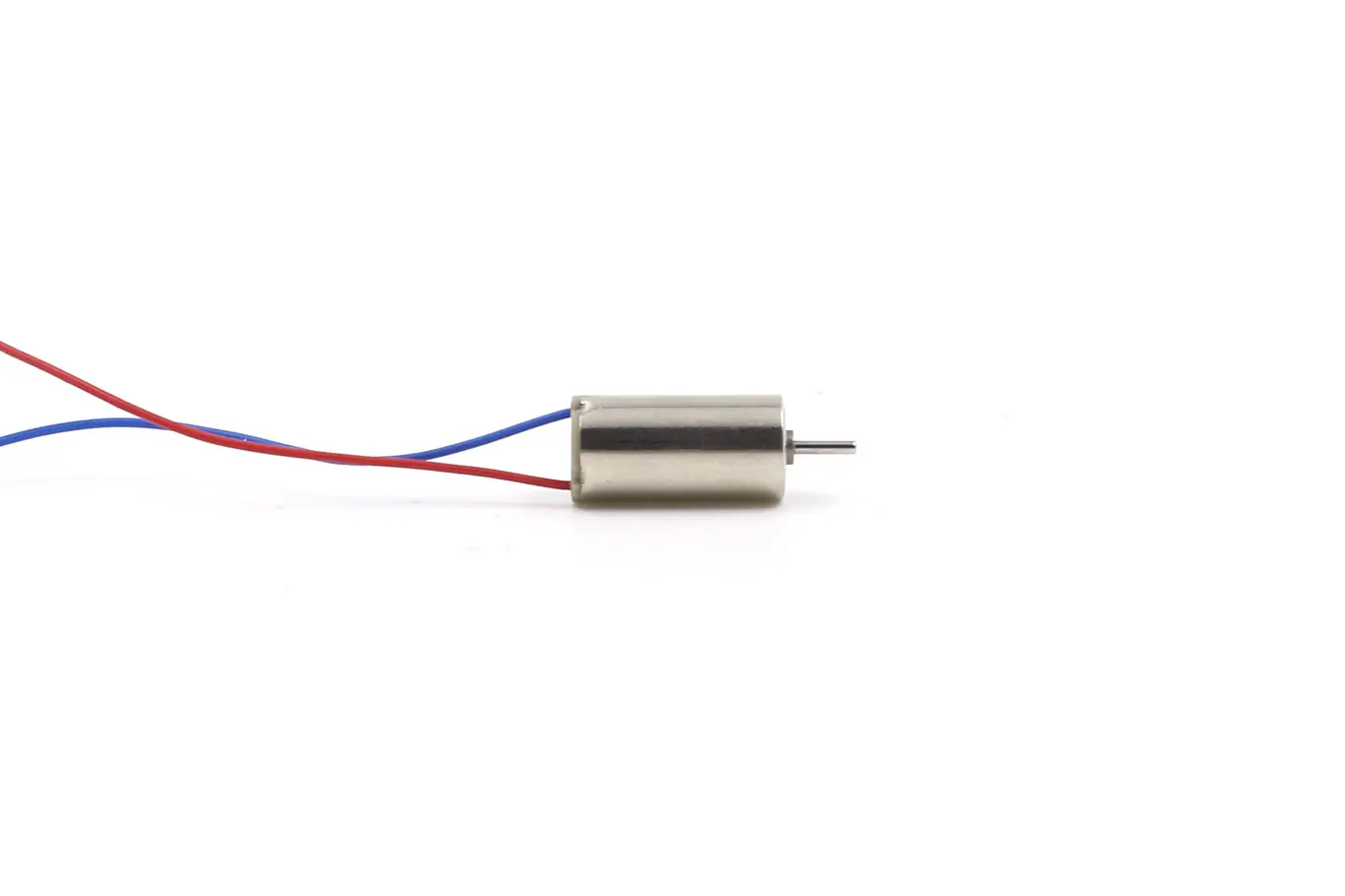

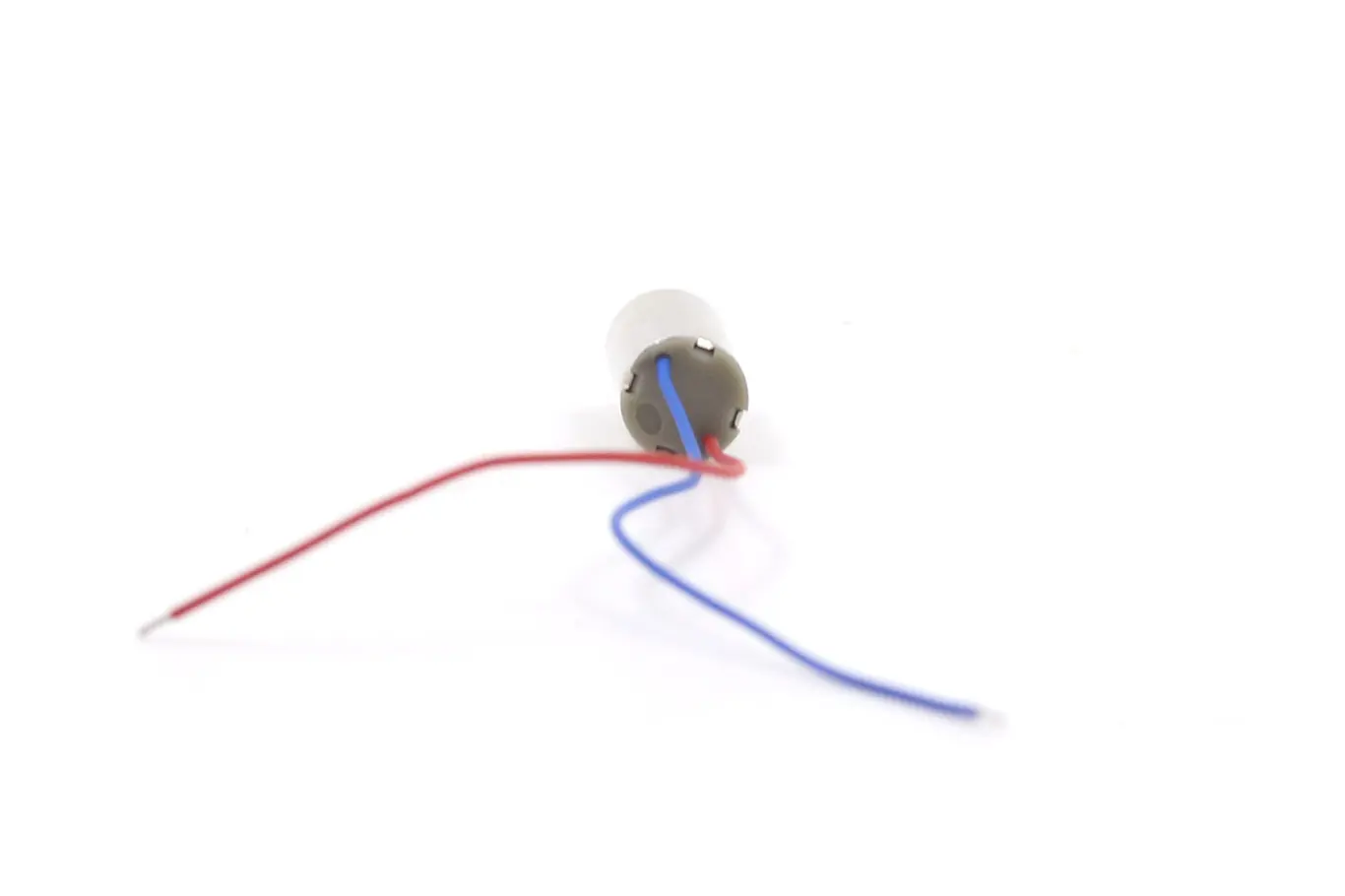

6mm Coreless DC Motor – 12mm Type Model TSL-CL0612
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-CL0612
- Motor Type:Coreless DC Motor
- Motor Diameter: 6mm
- Motor Length:12mm
- Max.permissible No-load speed:41000rpm
- Voltage:1.2V/1.5V/3.7V/4.5V DC/customizable
- #More Specifications
- #Outline Drawing
Coreless Motor Direct Current Motor Datasheet
Our coreless motors are engineered for superior performance in a miniature form factor, seamlessly integrating into drones, micro-robots, and portable devices.
These coreless motors deliver incredible speed and rapid response. With a no-load speed of up to 48100RPM (at 3–4 V DC), they offer swift acceleration, making them perfect for high-speed toys, quadcopters, and precision instruments where quick and precise movements are essential.
| Motor Parameter---values at nominal voltage | Motor Model | |||||||||
| TSL-CL0612-05012 | TSL-CL0612-050115 | TSL-CL0612-06037 | TSL-CL0612-08037 | TSL-CL0612-10037 | TSL-CL0612-16537 | TSL-CL0612-21037 | TSL-CL0612-21045 | |||
| Rated voltage | V | 2 | 1.5 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 4.5 | |
| Free Load | No load speed | rpm | 22300 | 28900 | 48100 | 41000 | 33000 | 20000 | 16000 | 19500 |
| No load current | mA | 35 | 47 | 45 | 39 | 16 | 12 | 7 | 12 | |
| At Max Efficiency | Max.efficiency | % | 38% | 45% | 55% | 49% | 55% | 42% | 43% | 35% |
| Speed | rpm | 16900 | 22600 | 38700 | 32000 | 26600 | 15000 | 12100 | 14000 | |
| Current | mA | 109 | 170 | 187 | 140 | 66 | 35 | 21 | 30 | |
| Torque | g.cm | 0.29 | 0.49 | 0.94 | 0.77 | 0.49 | 0.36 | 0.26 | 0.33 | |
| At Stall | Current | A | 0.34 | 0.61 | 0.77 | 0.5 | 0.27 | 0.11 | 0.06 | 0.08 |
| Torque | g.cm | 1.19 | 2.25 | 4.83 | 3.53 | 2.5 | 1.43 | 1.08 | 1.18 | |
| Motor Constants | ||||||||||
| Teminal resistance | Ω | 3.5 | 2.5 | 4.8 | 7.4 | 13.5 | 14.7 | 58.2 | 58.2 | |
| Torque constant | g.cm/A | 3.8 | 4 | 6.7 | 7.6 | 9.7 | 15.1 | 18.9 | 18 | |
| Speed constant | rpm/V | 20600 | 20900 | 13800 | 12000 | 9500 | 6100 | 4800 | 5100 | |
| Speed constant | rpm/g.cm | 18720 | 12870 | 9940 | 11630 | 13190 | 13940 | 14890 | 16590 | |
Remarks:
➡️Motor can be designed upon customer’s requirements on performance, installation, power connection method and motor dimension.
➡️Motor can be mounted with various shape and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.
⭐1g=0.035oz 1inch=25.4mm 1g.cm=0.098mN.m 1oz=28.35g 1mm=0.0394inch 1mN.m=10.2g.cm

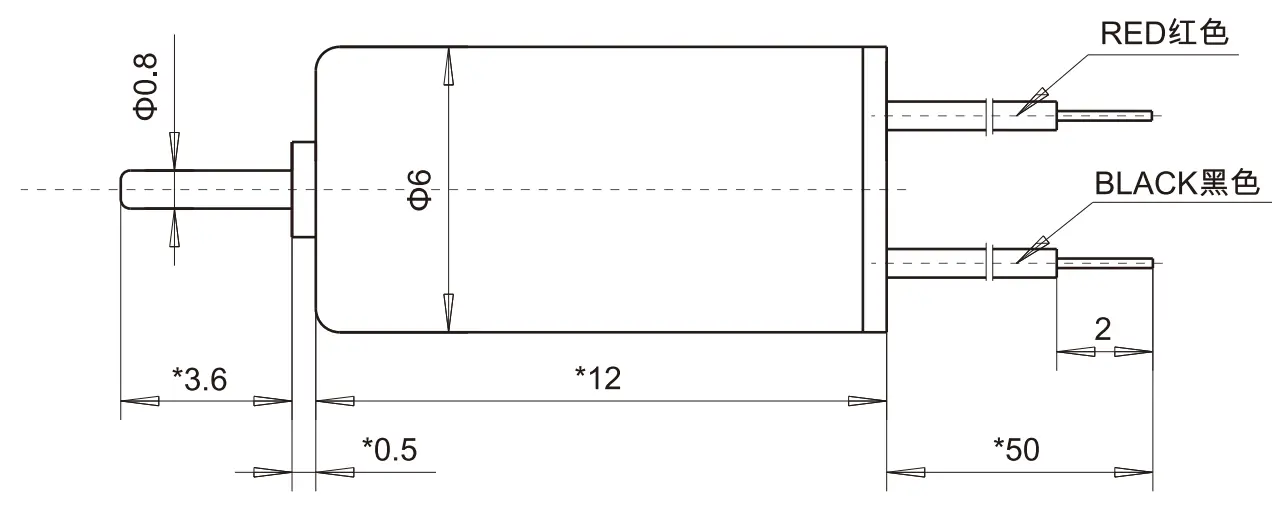

Coreless Motor 6mm DC Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

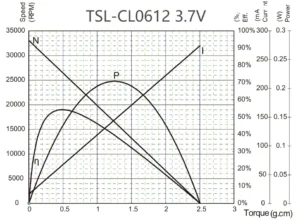

6mm Micro Coreless Motor Typical Performance
