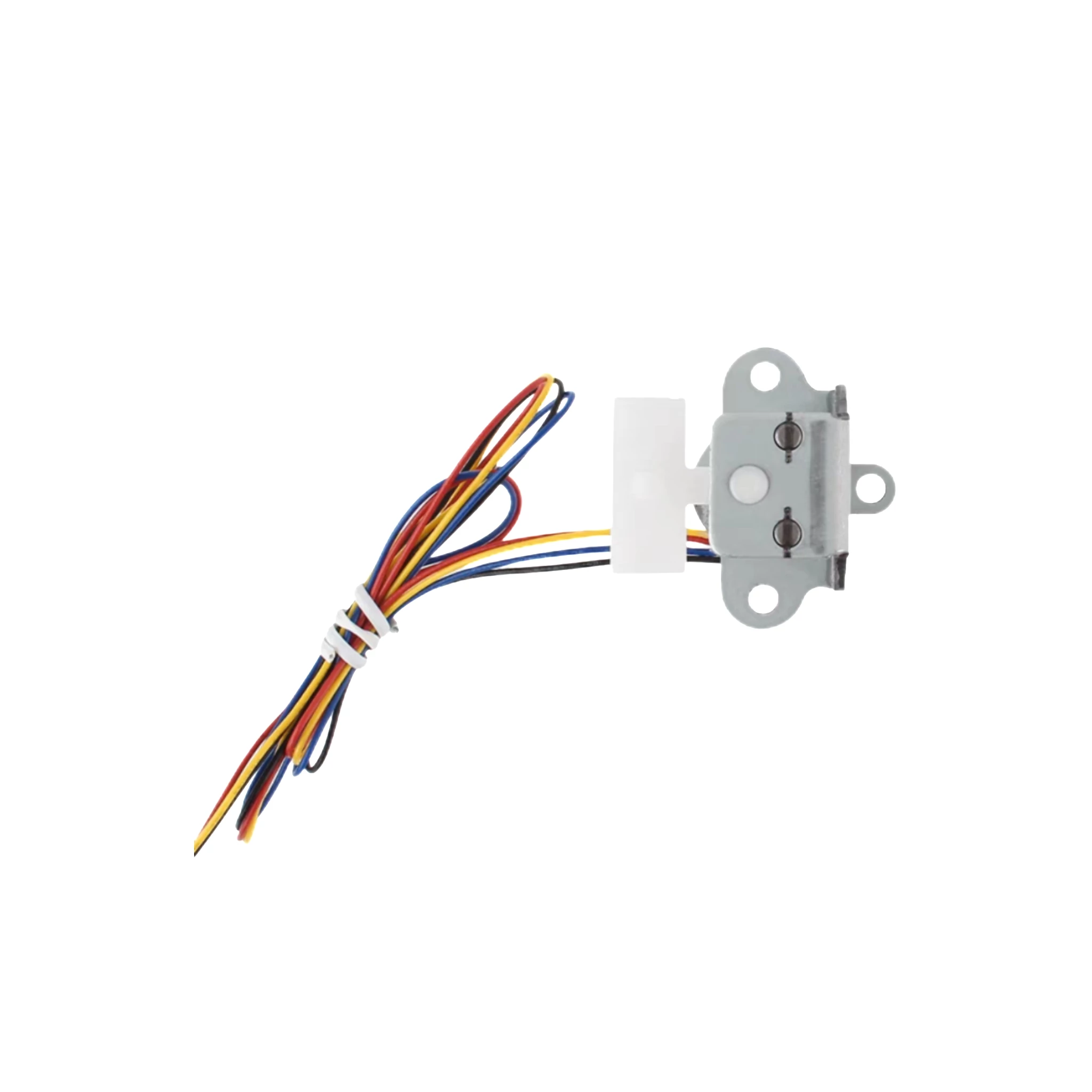

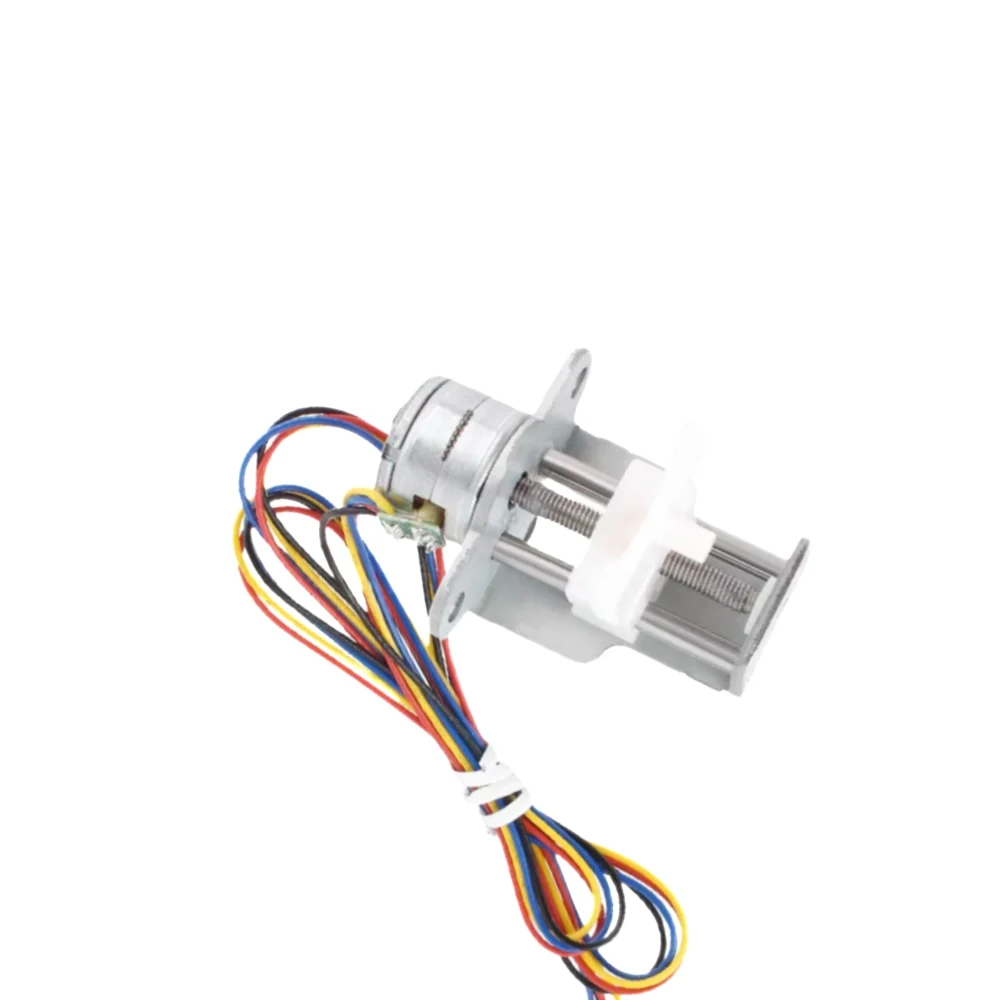

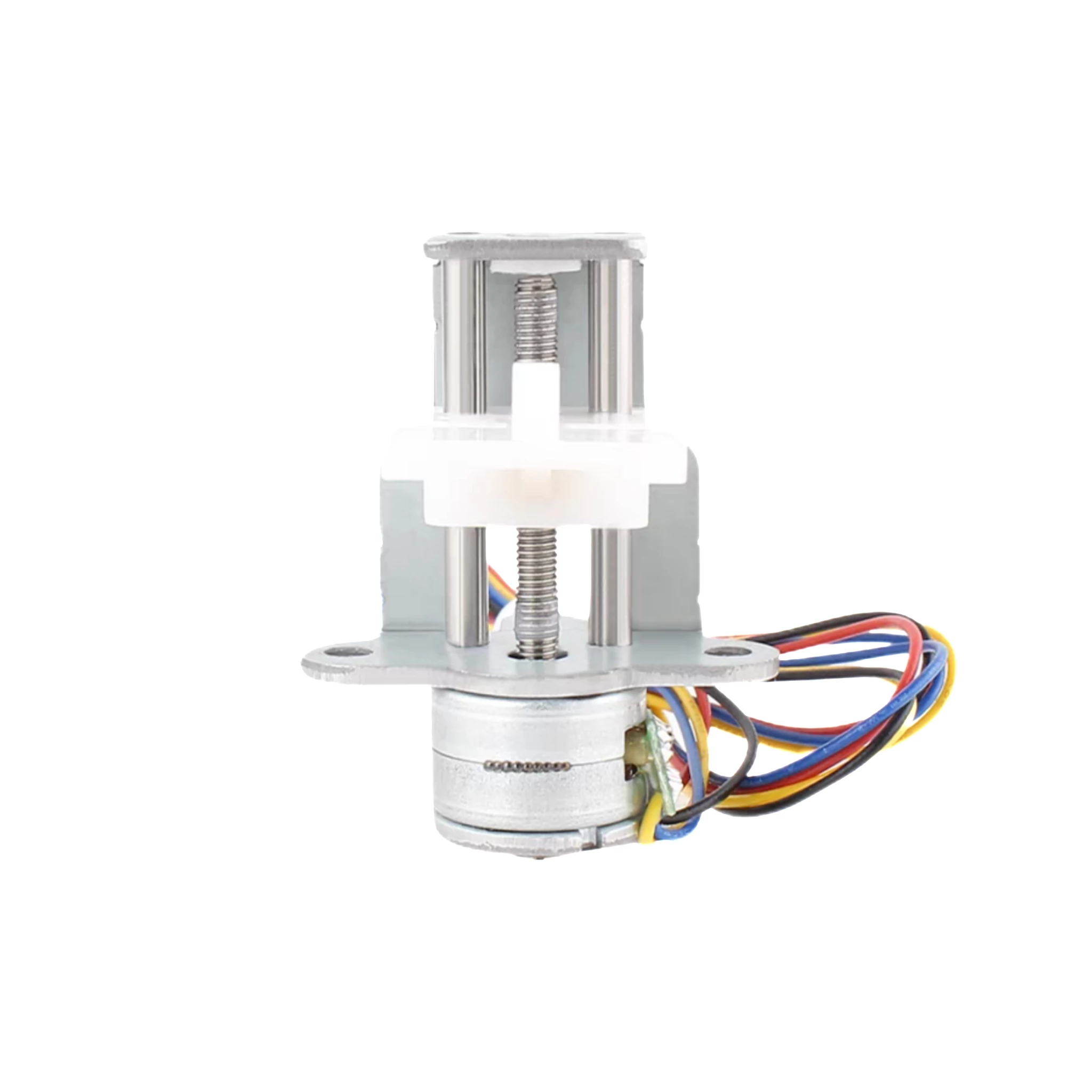

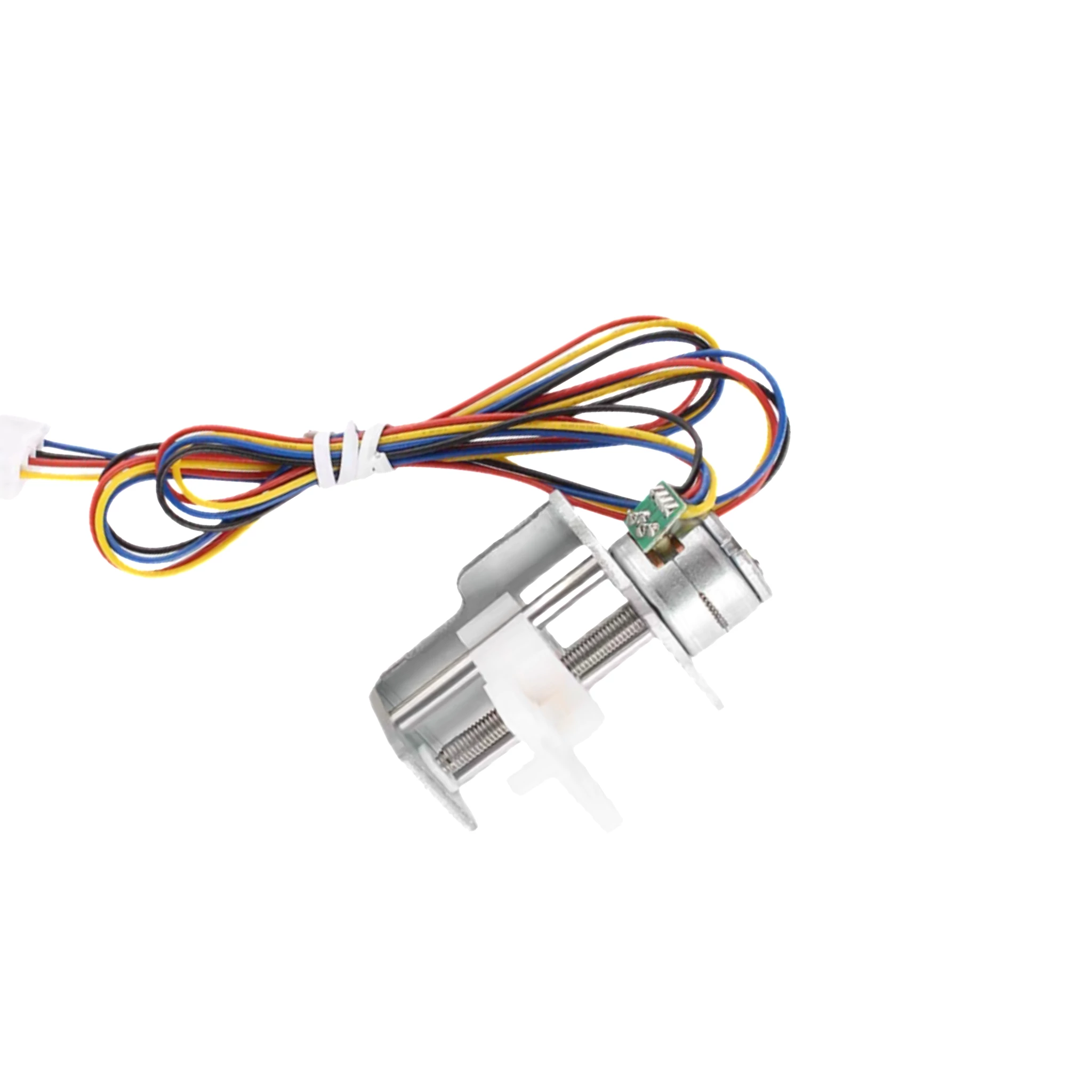

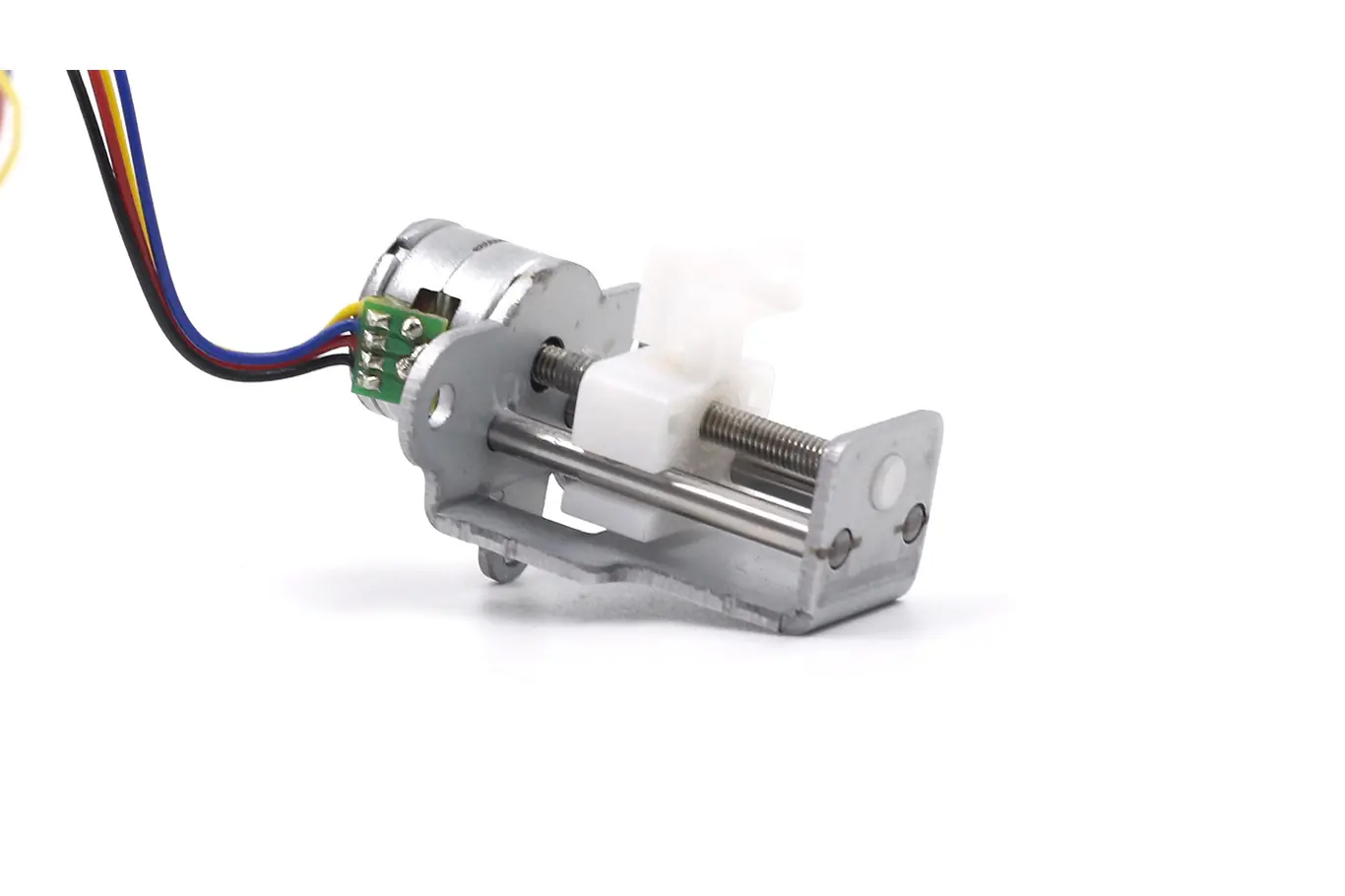

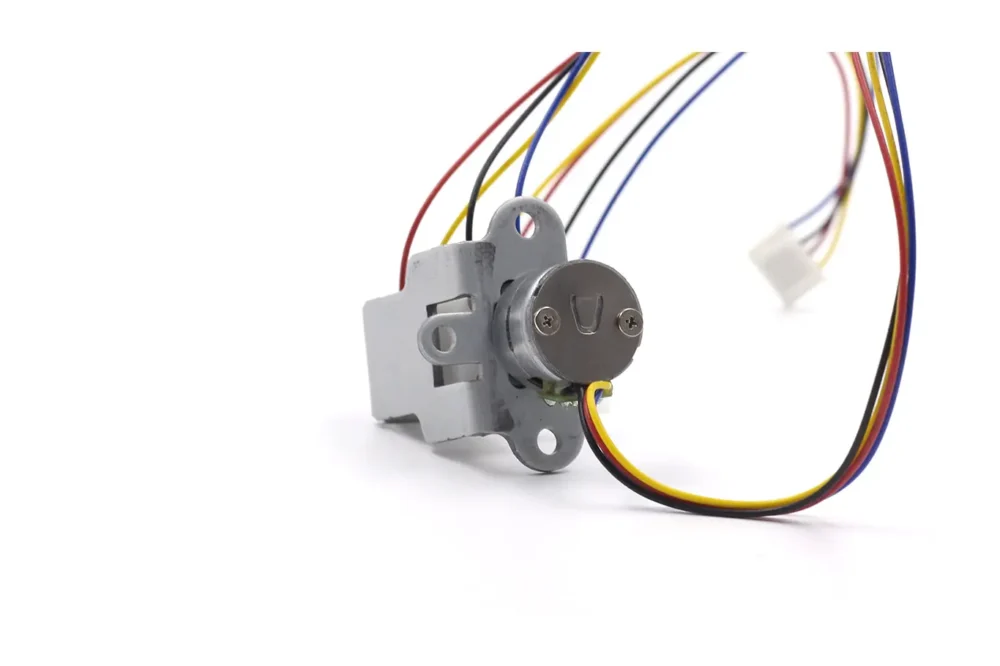

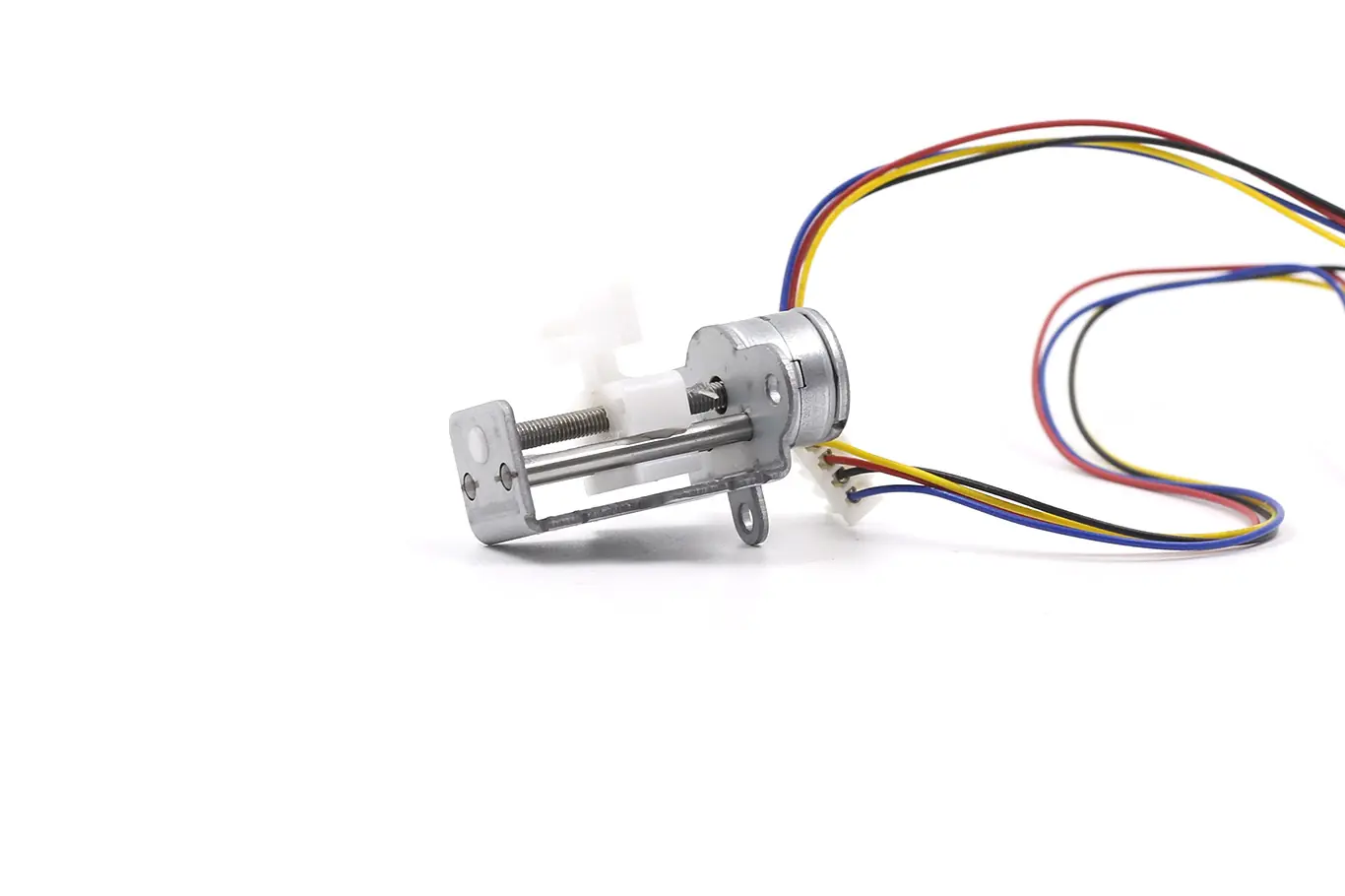

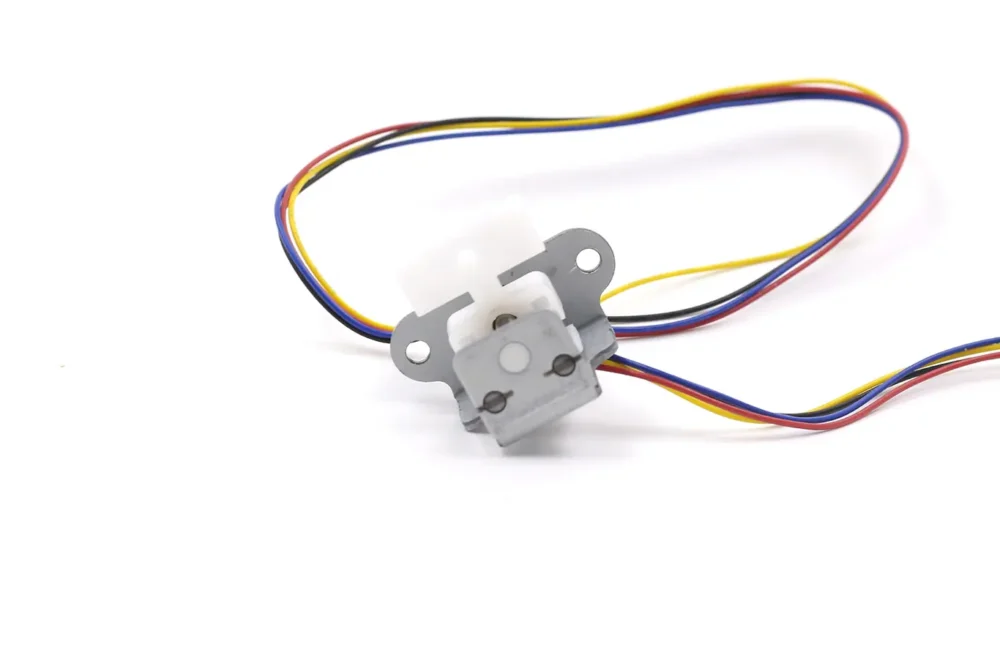

6V Linear Stepper Motor Permanent Magnet Actuator Model TSL-SM1519
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-SM1519
If you request a quotation for mass production quantities, contact us for customizations and integration.
Small Stepper Motor Linear Actuators Data Sheet
| Motor Model | TSL-SM1519 |
| Shaft Diameter | M3 x P0.5 right hand transmission threaded shaft |
| Drive Mode | Bipolar Drive |
| Rated Voltage | 6V DC |
| Driver IC | L6219 |
| Phase Current | 400mA/phase (1,000PPS) |
| Phase Resistance | 15Ω/phase ± 10% (20°C) |
| Phase Number | 2 phases |
| Step Angle | 18°/step |
| Excitation Method | 2-2 phases excitation |
| Pull-out Torque | ≥200g at 500PPS |
| Max Response Frequency | ≥1,200PPS |
| Max Self-starting Frequency | ≥900PPS |
| Insulation Grade | Class E for Coils |
| Insulation Strength | 100V AC for One Second |
| Insulation Resistance | 50MΩ DC 500V |
| Temperature Range | 0°C ~ +55°C |
| Rotation | CW / CCW |
| Wire Gauge | XH2.54-4PIN |
| Weight | appr. 30g |
| Test Voltage | 12V DC | 6V DC | 5V DC | 3.7V DC |
| Max Drive Efficiency | 1,200Hz | 750Hz | 600Hz | 400Hz |
| Speed at Max Drive Efficiency | 3,600rpm | 2,250rpm | 1,800rpm | 1,200rpm |
| Current at Max Drive Efficiency | ≤0.15A | ≤0.12A | ≤0.12A | ≤0.12A |
| Min Drive Efficiency | 600Hz | 500Hz | 300Hz | 250Hz |
| Speed at Min Drive Efficiency | 1,800rpm | 1,500rpm | 900rpm | 750rpm |
| Current at Min Drive Efficiency | ≤0.5A | ≤0.17A | ≤0.25A | ≤0.18A |
| Phase-locked Self-locking Current | ≤1.2A | ≤0.65A | ≤0.55A | ≤0.4A |

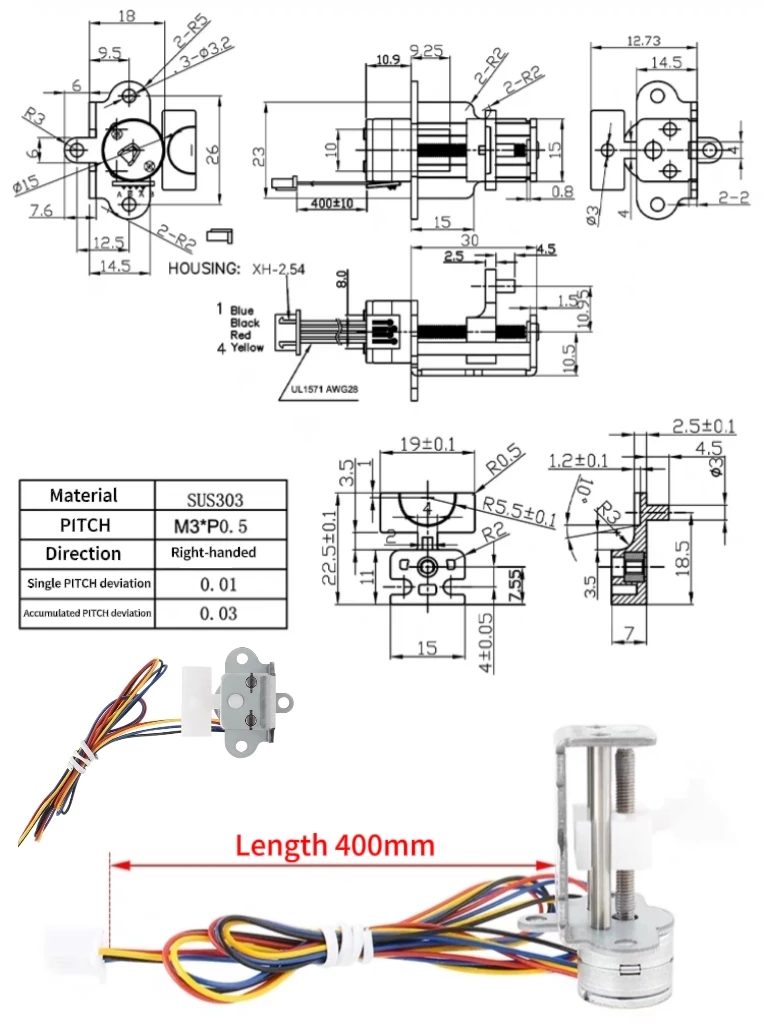

6V 2 Phase 4 Wire Stepper Motor Linear Actuator Size

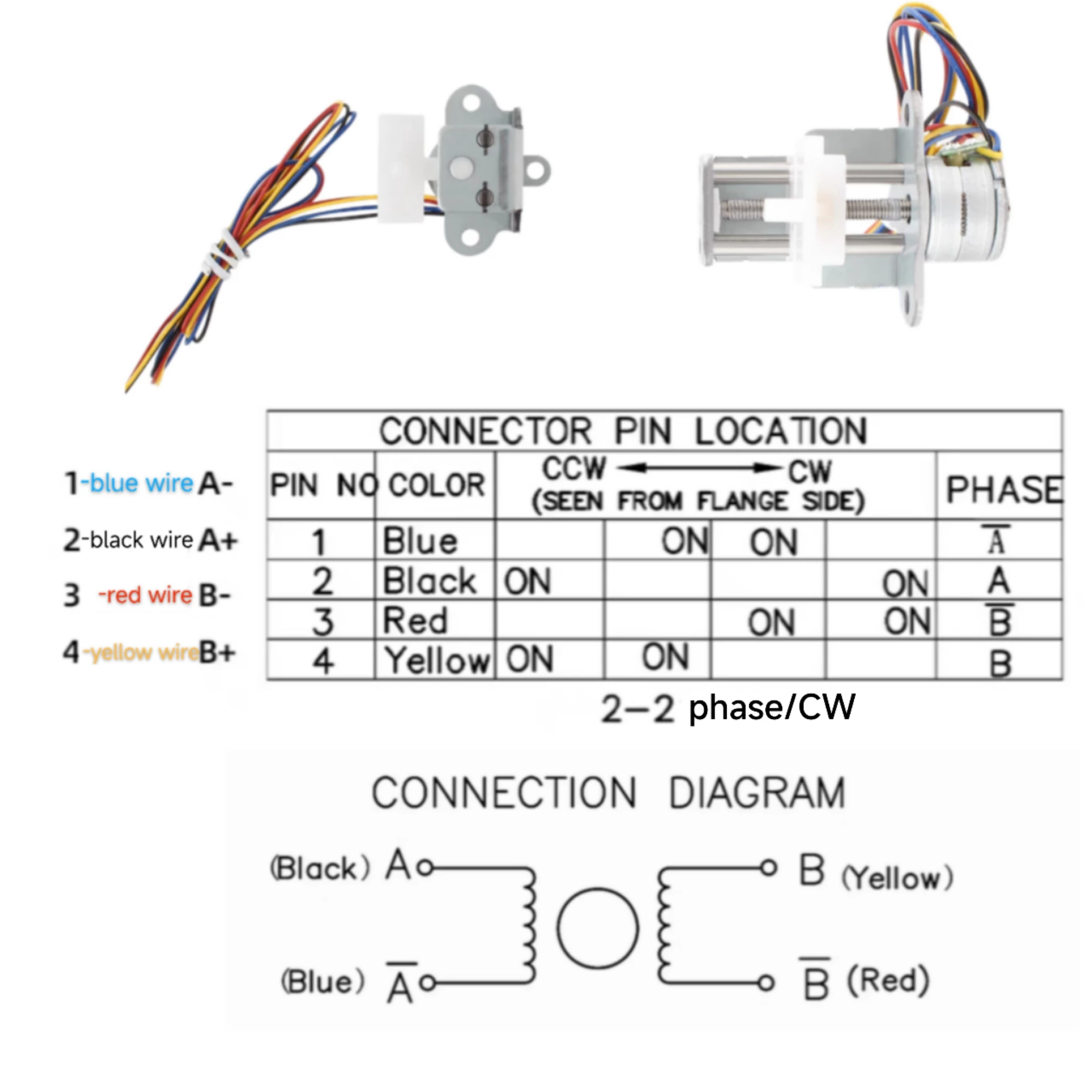

Micro Stepper Motor Linear Actuator Connection Diagram
