unleash the power of the 7mm DC Coreless Motor (TSL-D0720)

Explore the TSL-D0720, a powerful, compact and high-speed motor specifically designed for applications that require accuracy and reliability. The 7mm diameter, 20mm length DC motor incorporates cutting-edge technology with outstanding performance.

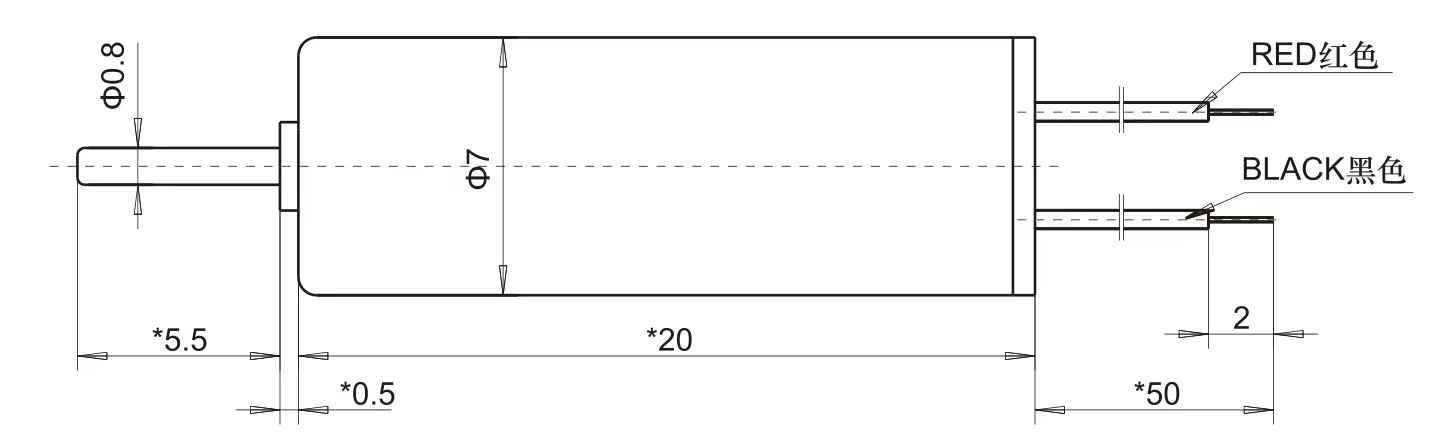

7mm DC Coreless Motor Outline Drawing

Unmatched Speed and Efficiency:
With a stunning 51,600 RPM, no-load speed the TSL D0720 provides rapid performance in a small package. The design is completely coreless, which assures smooth operation, minimal noise, and a high level of performance, making it perfect for use where speed and accuracy are essential.

Remarks:

1) Dimension with “*” in the drawing can be adjusted according to customer’s requirement.
2) Motor can be designed upon customer’s requirements on performance, installation, power connection method and motor dimension.
3) Motor can be mounted with various shape and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.
⭐1g=0.035oz     1inch=25.4mm    1g.cm=0.098mN.m   1oz=28.35g    1mm=0.0394inch    1mN.m=10.2g.cm

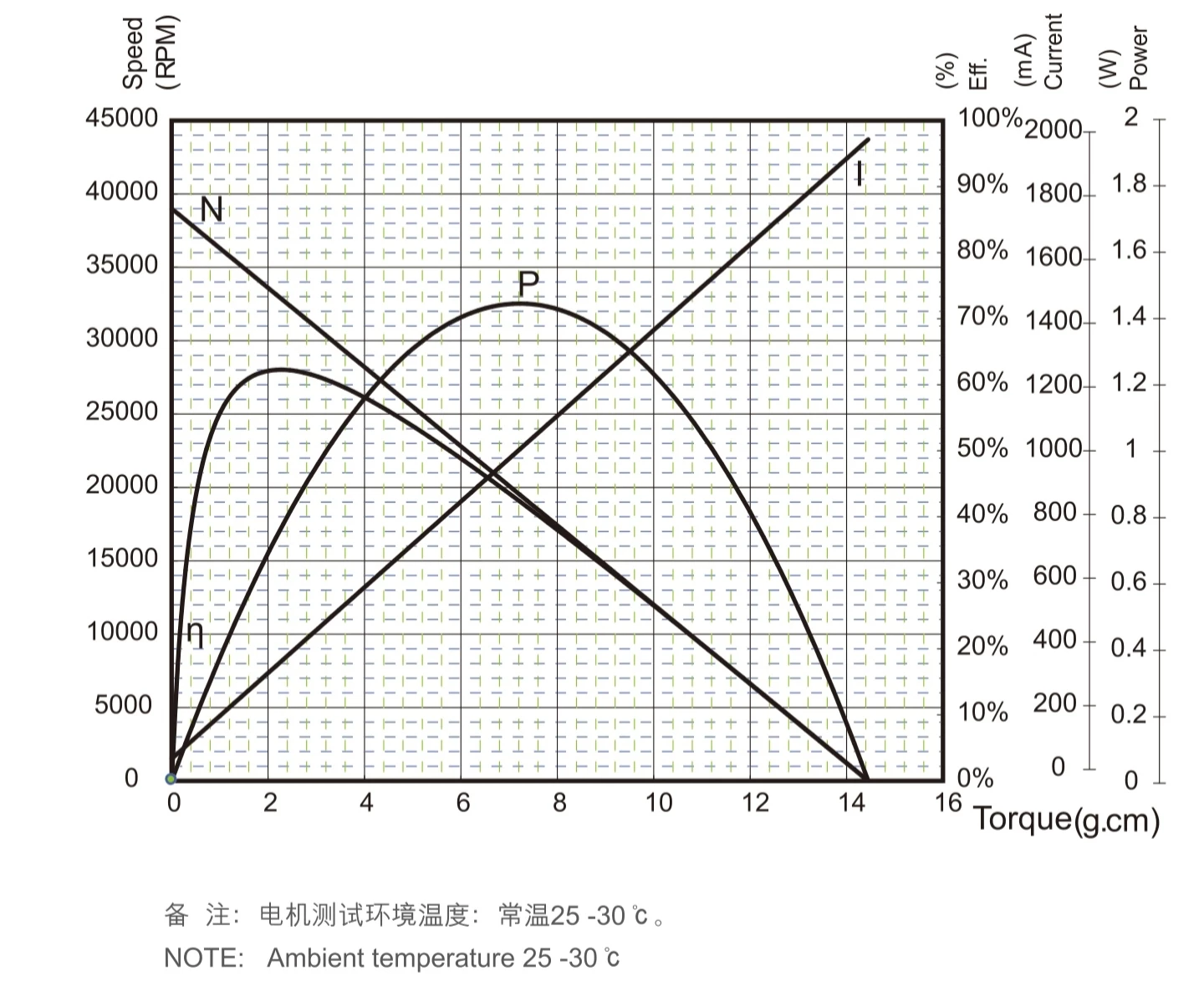

20mm Length 7mm DC Coreless Motor TSL-D0720-018182 Typical Performance

Compact Yet Powerful:

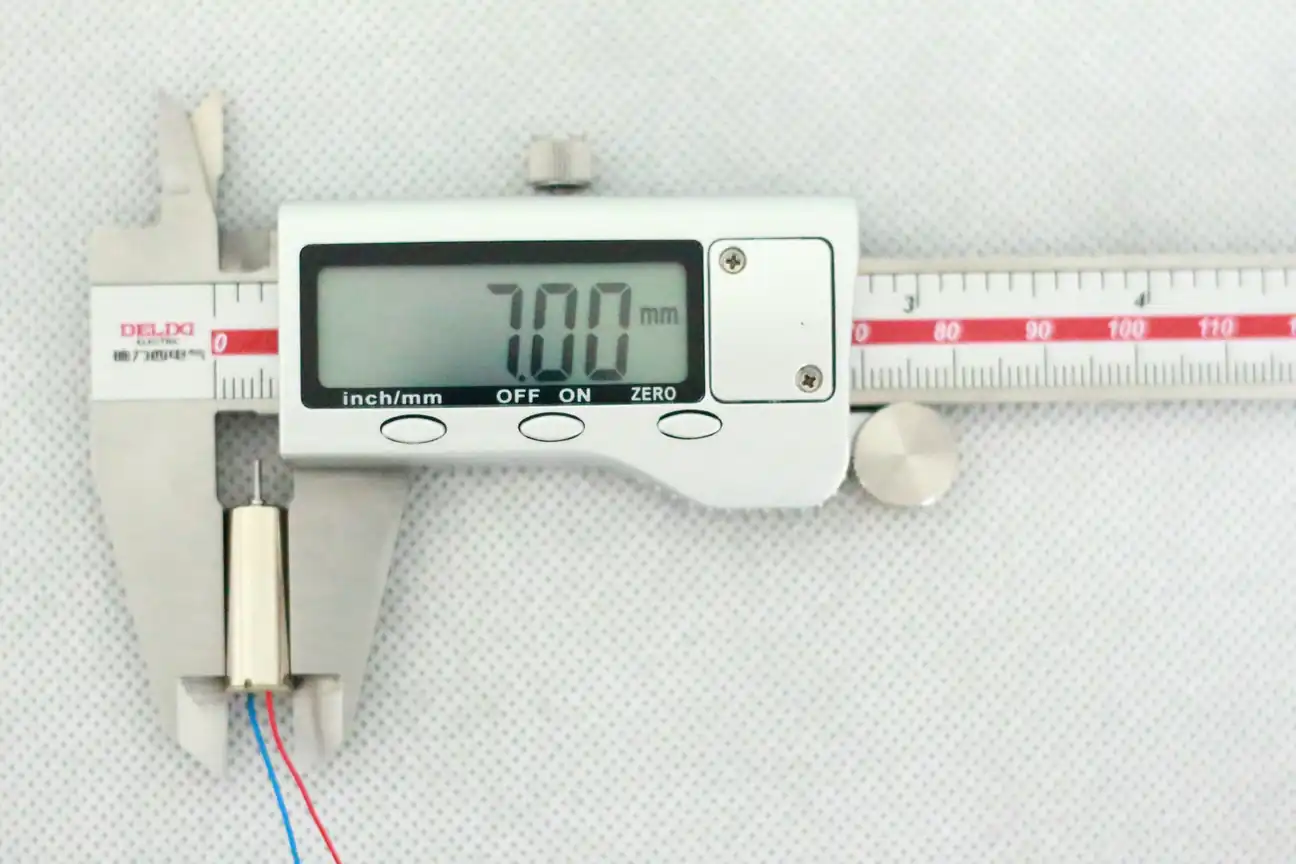

At 7mm in diameter and a length of 20mm, this motor is a beast without sacrificing space. The small size makes it the preferred option for engineers and designers working on miniature devices and applications that are space-constrained.

Energy-Efficient Performance:
With a minimal load current of just 160mA The TSL-D0720 has been designed for energy efficiency, which makes it the ideal battery-operated portable devices in which the power consumption is crucial.

Keywords:
micro coreless motor, high-speed DC motor, compact motor ,7mm DC motor, TSL-D0720 Amazon coreless motor clockwise and counterclockwise miniature motor, precise motor,7mm dc coreless motor

Payment:
1.Payment methods : PayPal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you’ve not received the item within the Delivery Time Please contact us via email with any concerns. We usually give you a response within 24 hours. If you don’t, please look through your email account. We will try to help you resolve the issues.
4.Please ensure that your address is in line with the address of your final shipment before you make payment.

FAQ for 7mm dc coreless motor

Q：What is coreless dc motor?

A:DC coreless motors, as the name implies, do not contain an iron core in the rotor. Instead, copper wire windings are arranged in a basket configuration, rotating around the outside of a cylindrical magnet.

If you want a video to explain the principle of micro stepper motor, you can click on this link:https://www.youtube.com/watch?v=YD8AS7dF3eQ

Q:Can 7mm dc coreless motor Be Customized?

A: Yes,7mm dc coreless motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.

Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
