Data Sheet for TSL-D0816 8mm coreless DC Motor Model

Coreless DC motors are often employed for two specific applications. First, when working on frames with diameters smaller than 10mm where coreless construction is the only viable way of attaining acceptable performance. Second, larger motors requiring high performance are often better off operated using DC voltage instead of complex signals required by brushless motors.

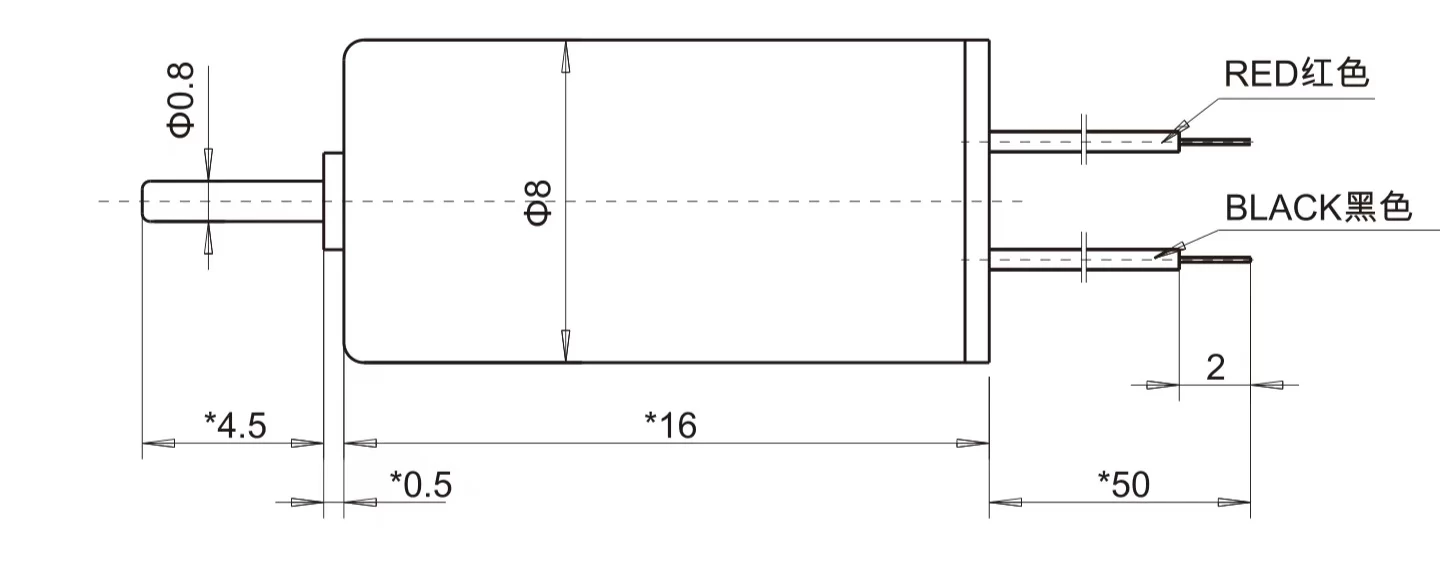

8mm Coreless DC Motor Model TSL-D0816 Outline Drawing

To connect terminals, you must send us an email with additional instructions and pay an additional fee(MOQ 100pcs); otherwise only wiring costs will be covered without terminals.

Remarks:

1) Dimension with “*” in the drawing can be adjusted according to customer’s requirement.
2) Motor can be designed upon customer’s requirements on performance, installation, power connection method and motor dimension.
3) Motor can be mounted with various shape and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.
⭐1g=0.035oz     1inch=25.4mm    1g.cm=0.098mN.m   1oz=28.35g    1mm=0.0394inch    1mN.m=10.2g.cm

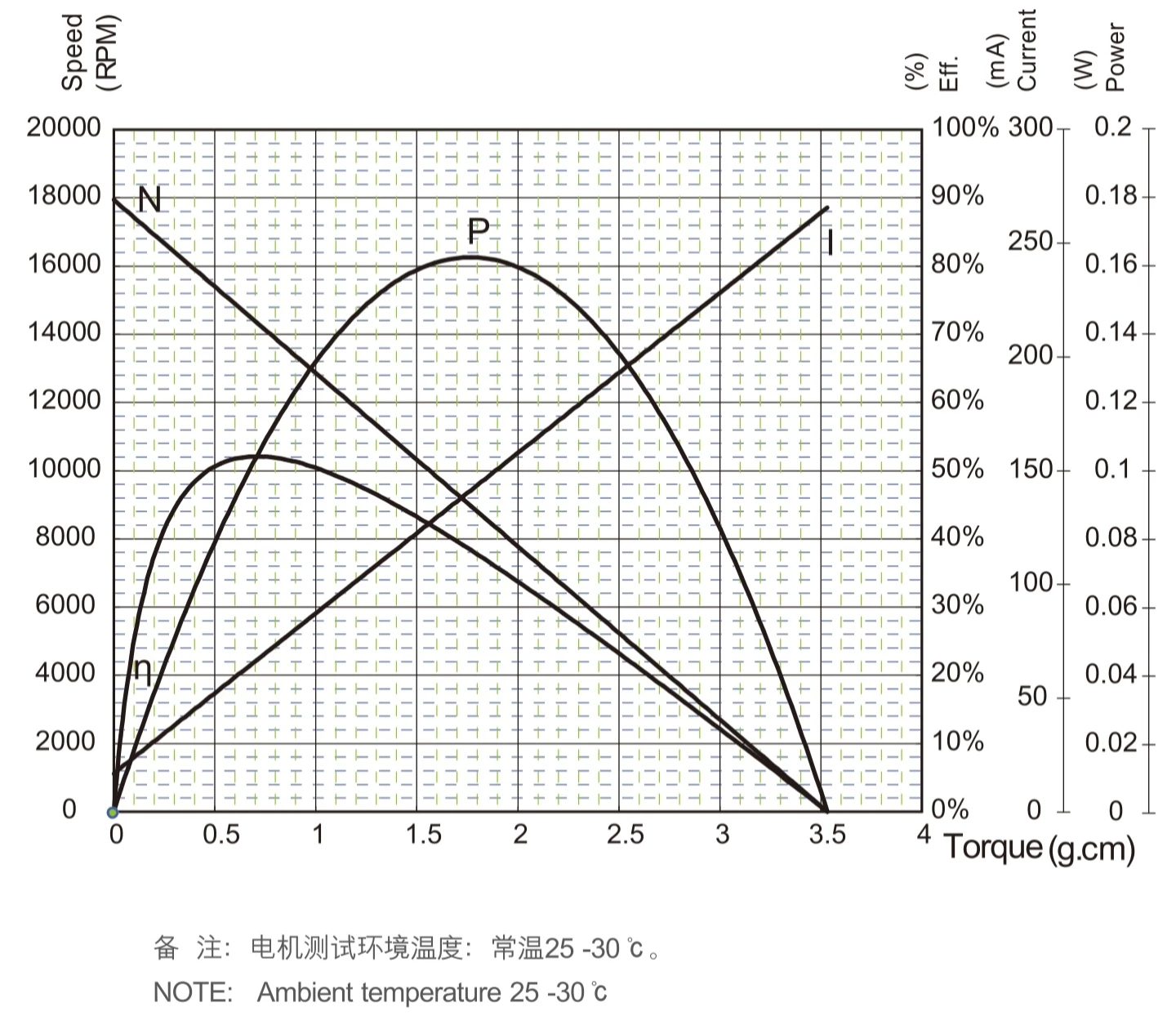

8mm Coreless DC Motor TSL-D0816-087121 Typical Performance

Keywords:
coreless motor amazon, clockwise motor, counter clockwise motor,8mm coreless dc motor

Payment:
1.Payment methods : PayPal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you’ve not received the item within the Delivery Time Please contact us via email with any concerns. We usually give you a response within 24 hours. If you don’t, please look through your email account. We will try to help you resolve the issues.
4.Please ensure that your address is in line with the address of your final shipment before you make payment.

FAQ for 8mm coreless dc motor

Q：What is coreless dc motor?

A:DC coreless motors, as the name implies, do not contain an iron core in the rotor. Instead, copper wire windings are arranged in a basket configuration, rotating around the outside of a cylindrical magnet.

If you want a video to explain the principle of micro stepper motor, you can click on this link:https://www.youtube.com/watch?v=YD8AS7dF3eQ

Q:Can 8mm coreless dc motor Be Customized?

A: Yes,8mm coreless dc motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.

Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
