8mm Stepper DC Motor 5V DC Type Model TSL-SM08284
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-SM08284
- Voltage: 5V DC
- Step Angle:18°
- No. of phases:2 phases
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- medical equipment, 3D printer
- industrial precise control
- automation equipment, etc.

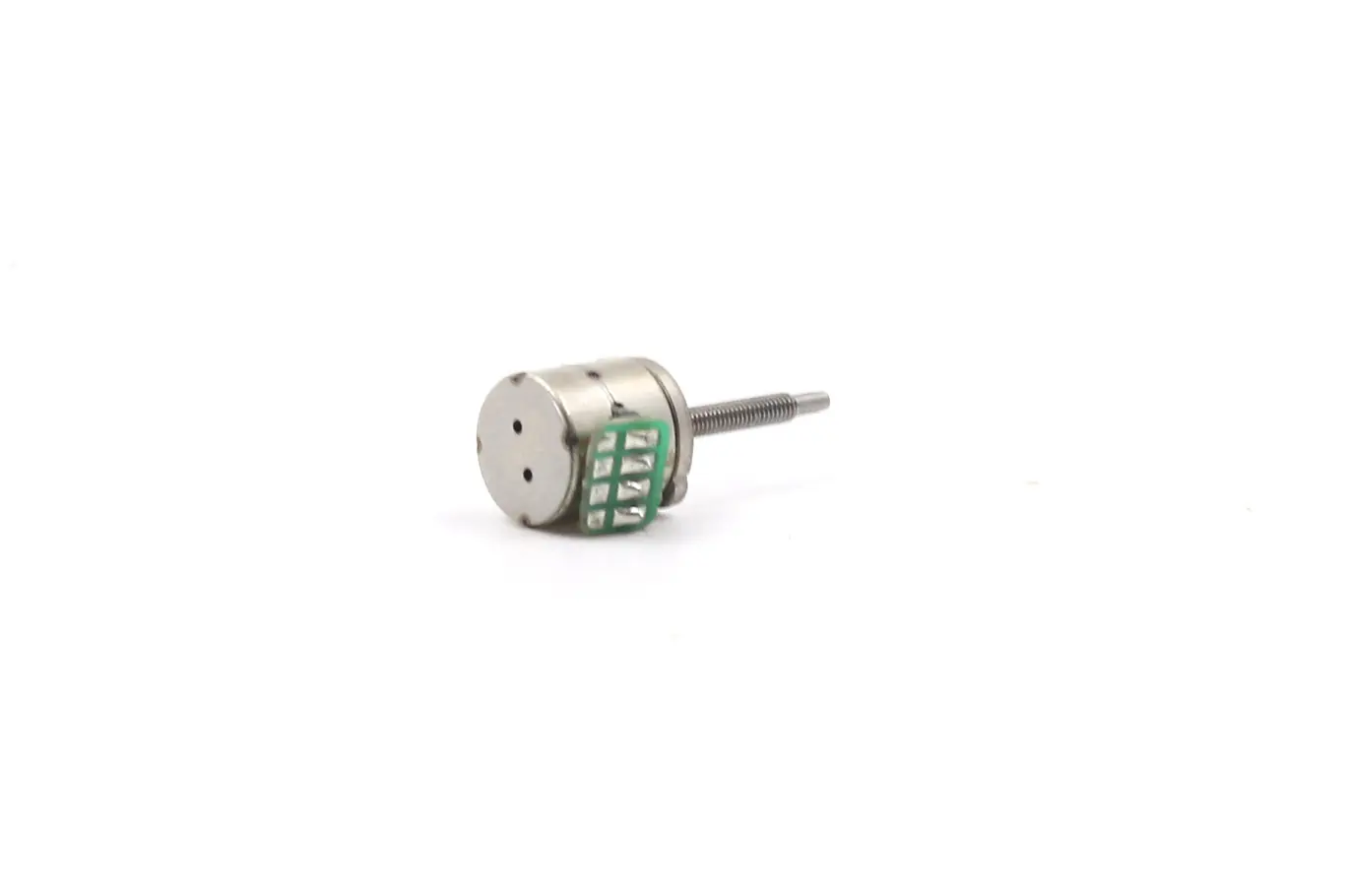

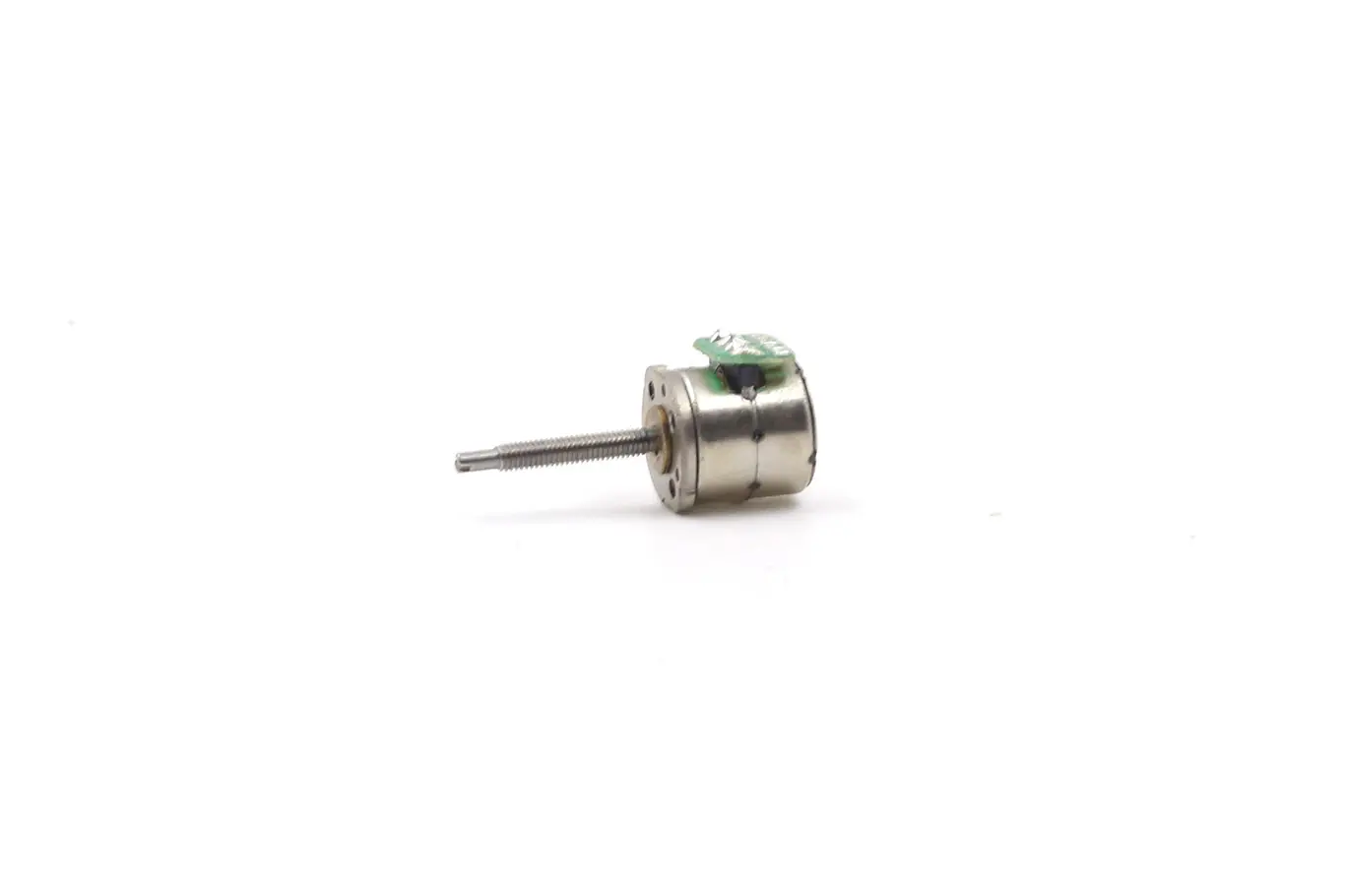

18° Step Angle M1.7 Lead Screw Stepper Motor
This SM08284 8mm permanent magnet lead screw stepper motor uses a specialized M1.7*P0.3 lead screw. We can customize this to a standard M2*P0.4 lead screw upon request. This lead screw stepper motor is highly customizable beyond the screw type; we can adjust the coil resistance, lead screw length, cable length, and connector type to fit your specific design needs.
This type of lead screw stepper motor provides extremely precise control. These motors are essential in applications demanding accurate rotational or linear movement. They are critical components in a wide range of fields requiring high precision.
Stepper motors are widely adopted in industries such as medical equipment and 3D printing. They are also indispensable for industrial precise control and automation equipment. If your mechanism requires exact movement control, this customizable motor is an ideal solution.
| Motor Model:TSL-SM08284 | |
| Lead screw | M1.7*P0.3(adjustable) |
| Rated voltage | 5V DC |
| Coil resistance | 16Ω±10% |
| Step angle | 18 degrees |
| Max starting frequency | 800 PPS min. (at 5V DC) |
| Max response frequency | 2000 PPS min (at 5V DC) |
| PULL IN TORQUE | 2.8 gf-cm min. (AT 480 PPS,5.0V DC) |
| PULL OUT TORQUE | 3.8 gf-cm min. (AT 480 PPS, 5.0V DC ) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION RESISTENCE | 100 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -30~+70℃ |

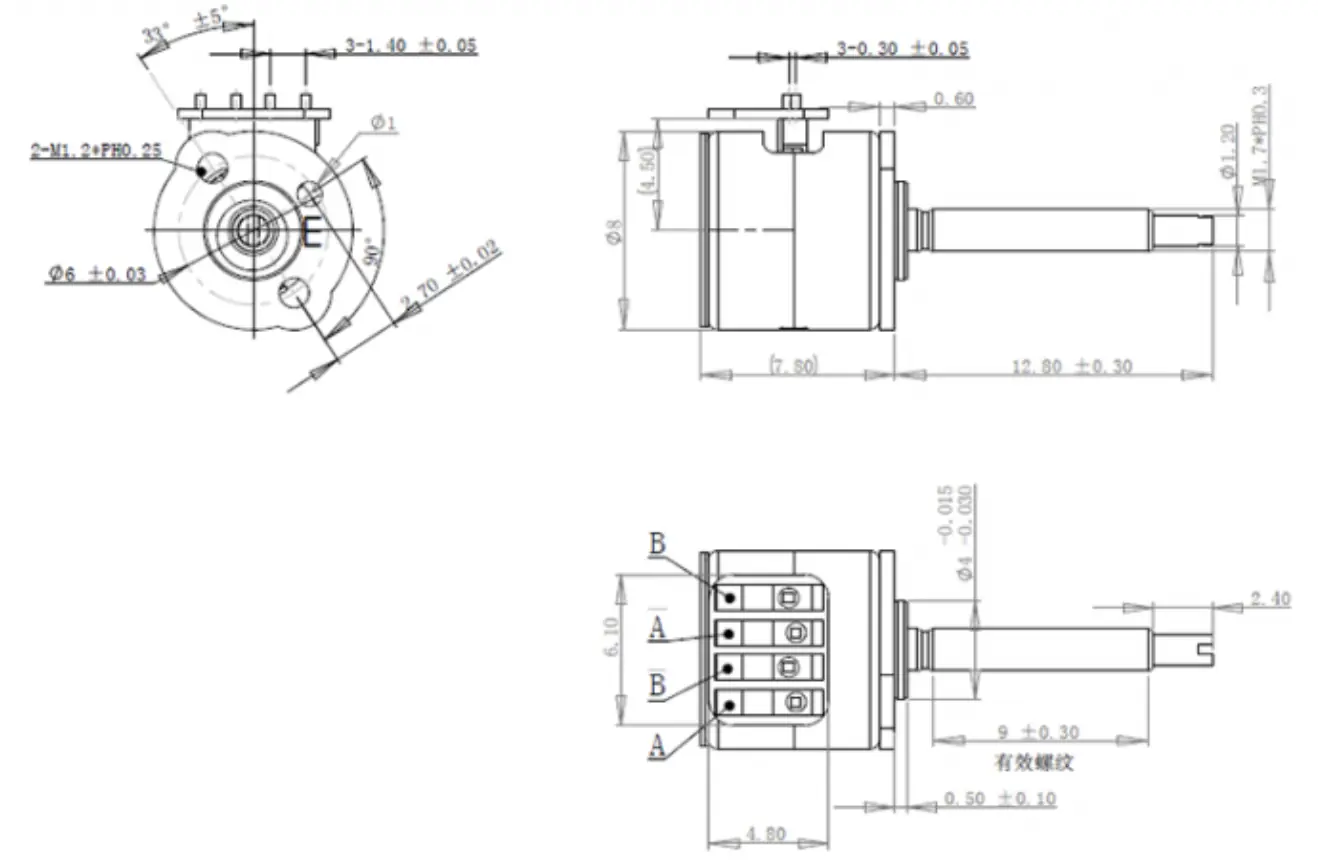

8mm Lead Screw Stepper Motor Outline Drawing
Lead Screw Stepper Motor Wiring input options
Wiring input options include FPC, connecting wires, and contact pins. These can be customized to suit customer needs.
Keywords:
stepper motor with lead screw,integrated lead screw stepper motor,lead screw with stepper motor,micro stepper motor lead screw,micro stepper motor with lead screw
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for miniature stepper motor
Q：What is stepper motor?
A:A stepper motor is a brushless DC motor that moves in discrete steps. This allows for precise positioning without the need for a feedback sensor, making it an open-loop system. The motor consists of a rotor, usually a permanent magnet, surrounded by stator windings. When the windings are activated in a specific order and current flows through them, they create magnetic fields that generate rotational force.
If you want a video to explain the principle of micro stepper motor, you can click on this link：https://www.youtube.com/watch?v=0qwrnUeSpYQ
Q:Can micro stepper motor Be Customized?
A: Yes,micro stepper motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
