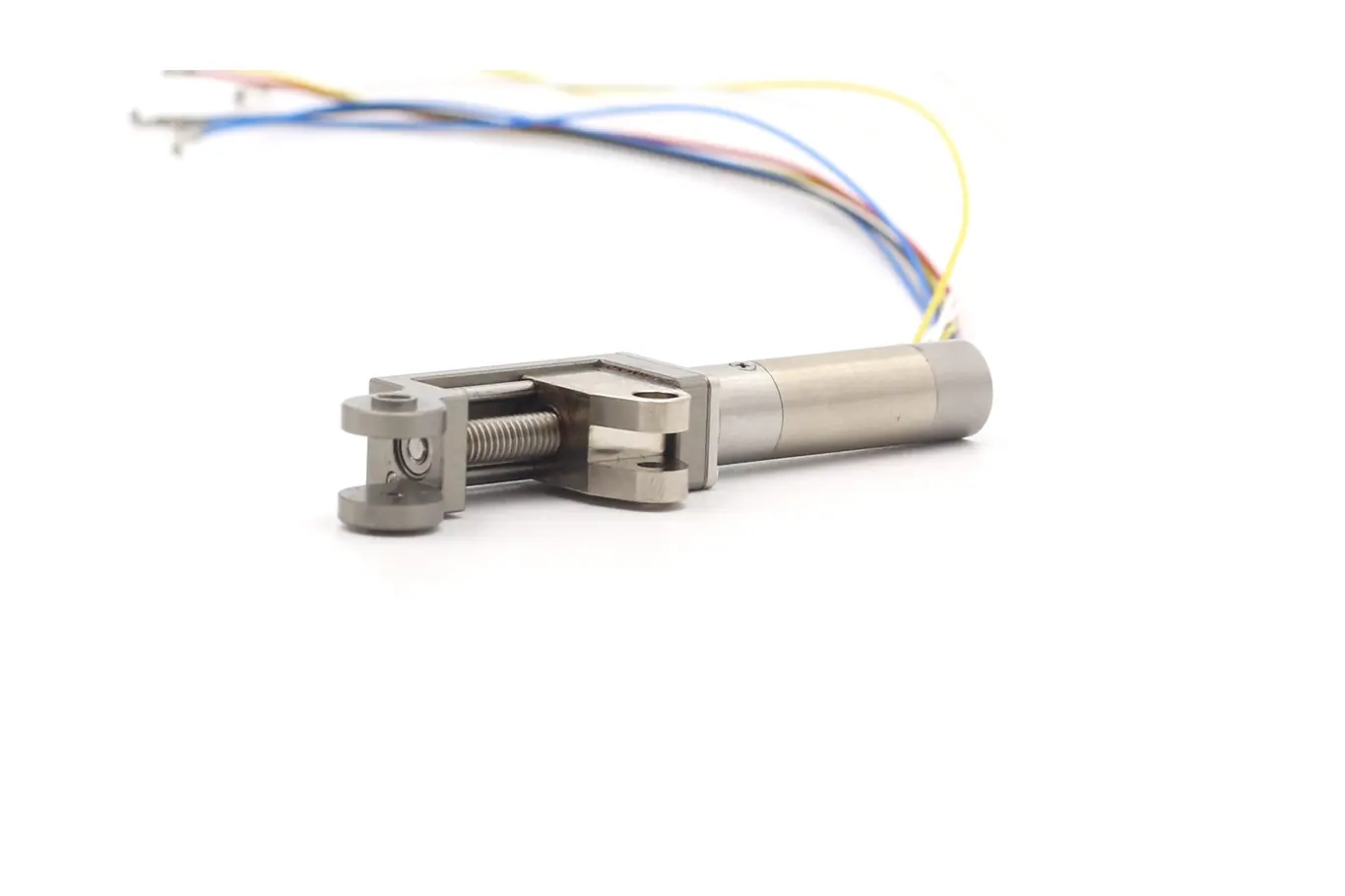

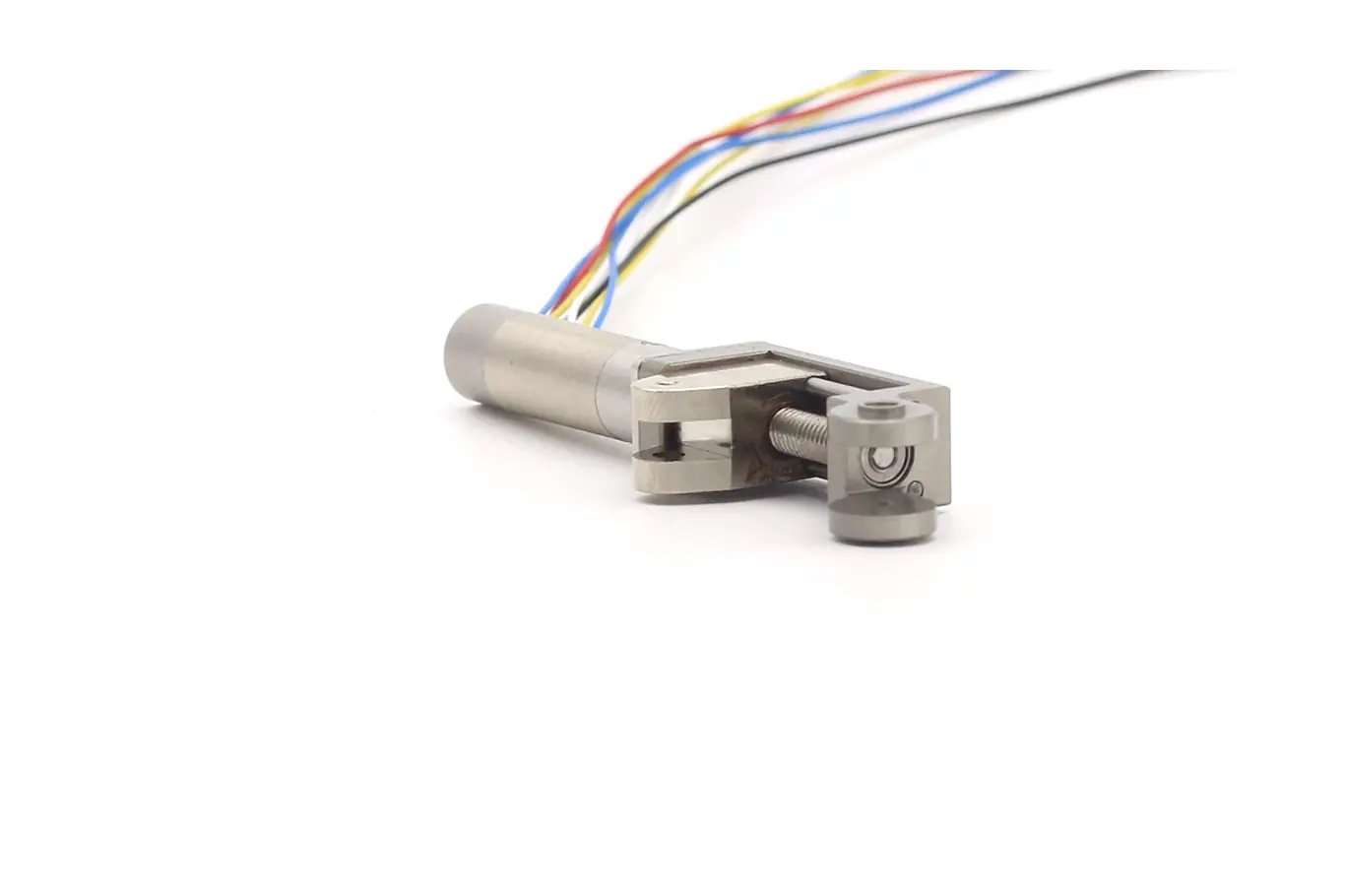

8mm Micro Linear Servo Actuator Technical Highlights

✅Ultra-Miniature Design: 8mm outer diameter, perfect for advanced medical devices and humanoid robotic integration.

✅High Power Density: Brushless coreless motor paired with a multi-stage stainless steel planetary gearbox for maximum torque and operational lifespan.

✅Closed-Loop Precision: Integrated high-resolution encoder ensures exceptional position feedback, velocity control, and stable PID tuning.

✅Ready-to-Integrate Stage: Built-in 10mm effective travel slide eliminates complex mechanical alignment for faster customer R&D cycles.

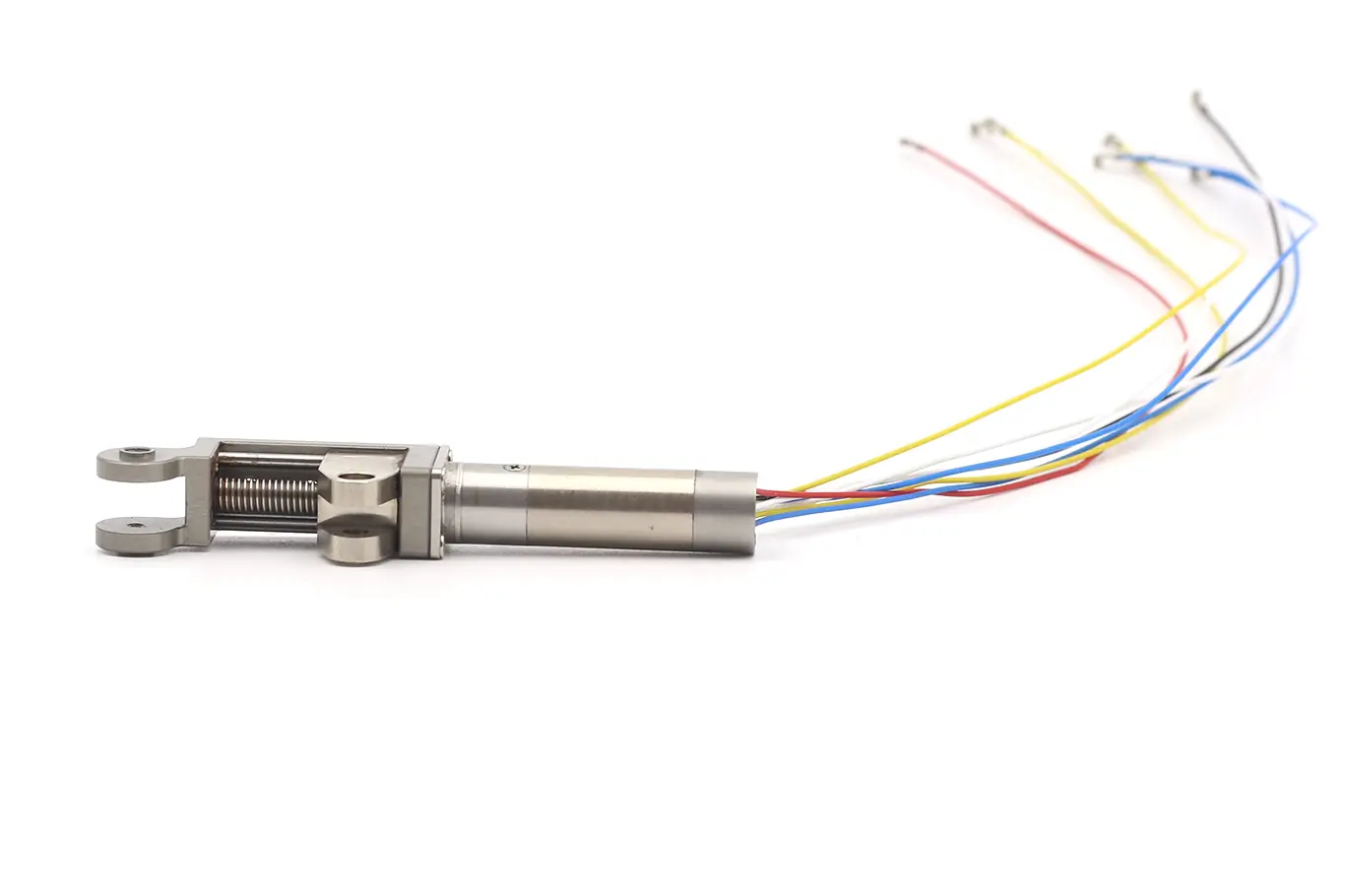

Micro Linear Servo Actuator Integrated Linear Slide Mechanism

⭕High Positioning Accuracy: The built-in precision lead screw translates the rotary motion of the coreless motor into high-resolution linear travel, reducing backlash to a absolute minimum.

⭕10mm Effective Stroke: Optimized for micro-positioning tasks. Custom stroke lengths are fully available upon request.

⭕Compact & Rigid Guidance: The micro linear servo actuator features integrated guide rails to ensure straightness and motion stability, absorbing minor axial and radial loads without shaking.

⭕Eliminate Assembly Hassles: Shipped as a fully calibrated, single-axis linear stage. Engineers can mount it directly to their application without worrying about motor-to-screw alignment errors.

Micro Linear Servo Actuator Custom Performance Range

Micro Linear Servo Actuator Custom Slide & Interfacing Options

We know that how the slide connects to your mechanism is critical. While our standard micro linear servo actuator comes with a 10mm stroke and a standard carriage, we can customize the slider’s mounting holes, thread sizes, and even the carriage shape to perfectly match your end-effector (such as a surgical gripper, micro valve, or robotic finger tip). Just share your space layout with us.

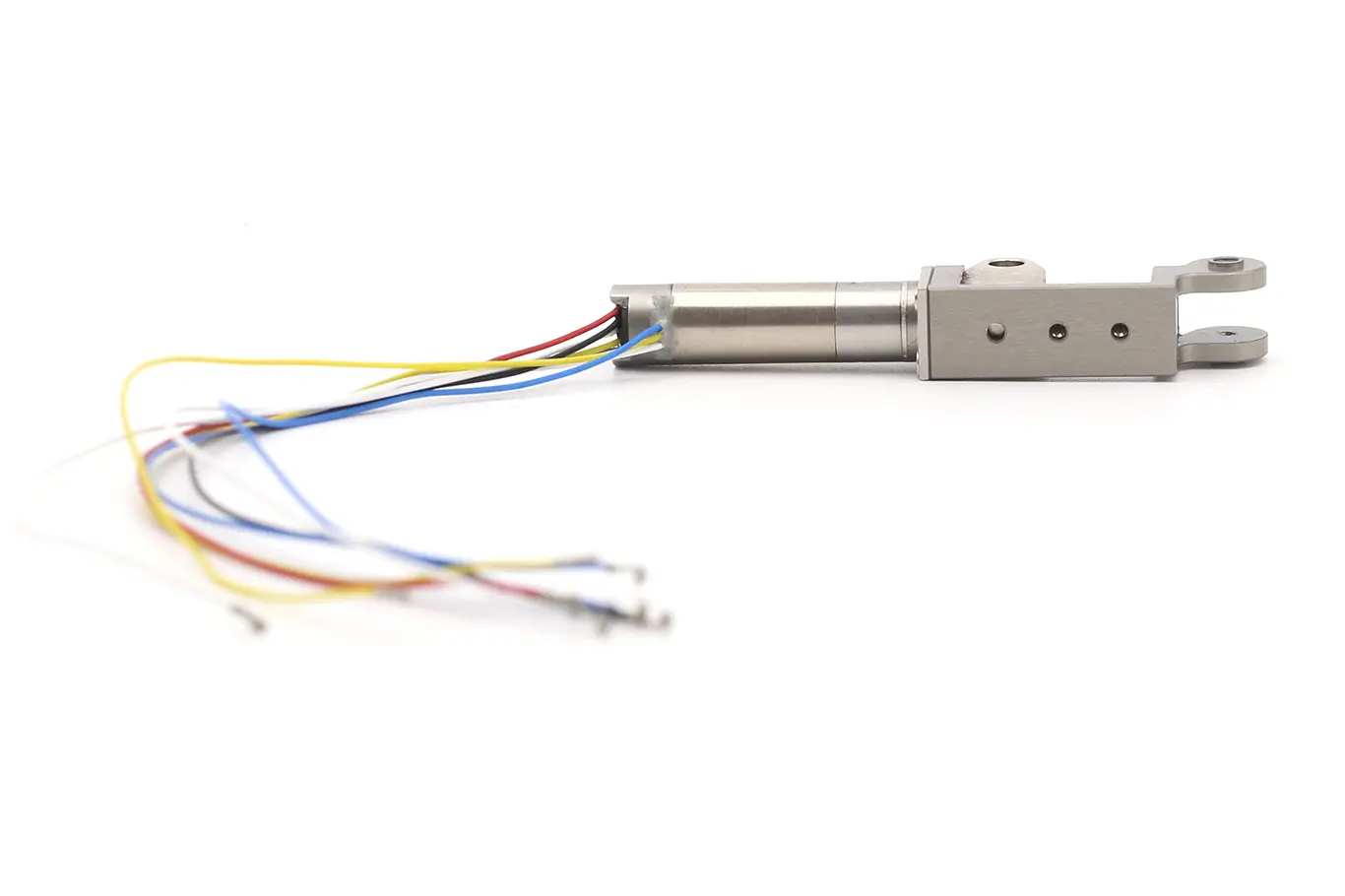

Micro Linear Servo Actuator Target Applications

🏥Medical Devices: Micro surgical robotic instruments, end effectors, micro-pumps, and automated laboratory pipettes.

🤖Humanoid Robotics: High-density actuators for robotic dexterous hands, finger joints, micro grippers, and biomimetic mechanisms.

📹Optoelectronics: Precision camera lens focusing, laser alignment modules, and micro-camera positioning platforms.

✈️Aerospace & Defense: Miniature valve actuation, UAV micro control surfaces, and optronic pod stabilizing systems.

From Concept to Drawing in 48 Hours

We understand that bleeding-edge projects require non-standard solutions. You do not need to match a rigid datasheet. Simply share your space constraints, force requirements, and target voltage. Our engineering team specializes in translating your functional needs into a fully optimized 2D/3D STEP drawing and performance simulation report within 48 hours.

Development Samples:

If you need samples, please contact us.

Engineering & Manufacturing:

Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.

2.Item will be shipped within 1-3 business days after the payment.

3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.

4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ for 8mm linear servo actuator

Q1: Can the gear material be customized for this 8mm actuator?

A1: Yes. We utilize high-durability stainless steel gears for applications requiring maximum torque and shock resistance. For cost-sensitive or lower-load projects, hybrid gear materials (like steel/brass hybrid) can be configured.

Q2: Is it possible to get 3D CAD files before placing a sample order?

A2: Absolutely. Once our engineers align on your specific custom parameters (voltage, gear ratio, and wiring), we provide 3D STEP/IGS files for your mechanical evaluation and fitting simulation.

Q3: Does this micro linear servo support standard PID tuning?

A3: Yes. The integrated encoder provides the closed-loop feedback necessary for standard BLDC servo controllers to implement precise position, speed, and torque PID loops.

Q4:What is a planetary gear motor?

If you want a video to explain the principle of planetary gear motor, you can click on this link：https://www.youtube.com/watch?v=Ho4AniHtgxM
