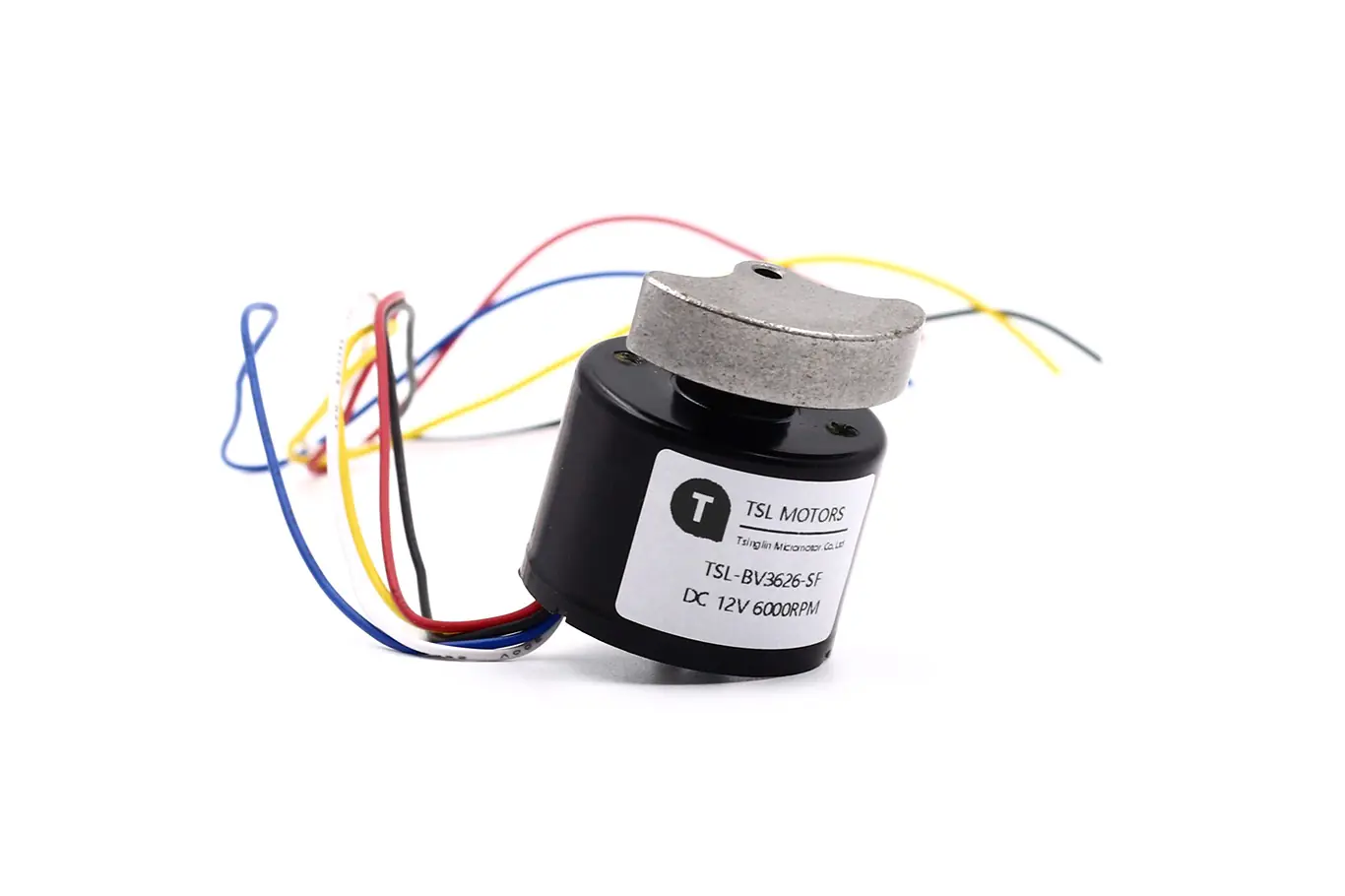

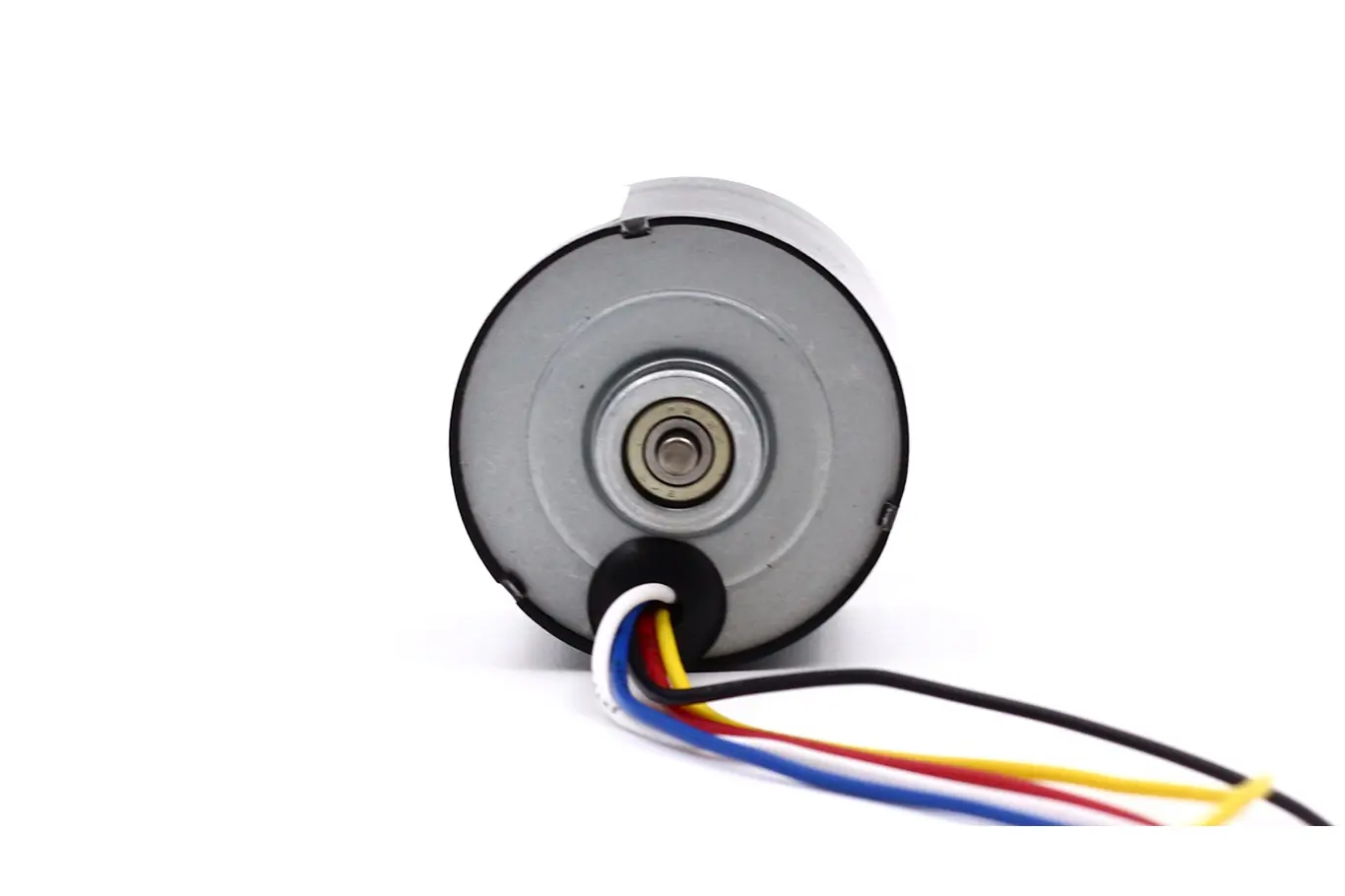

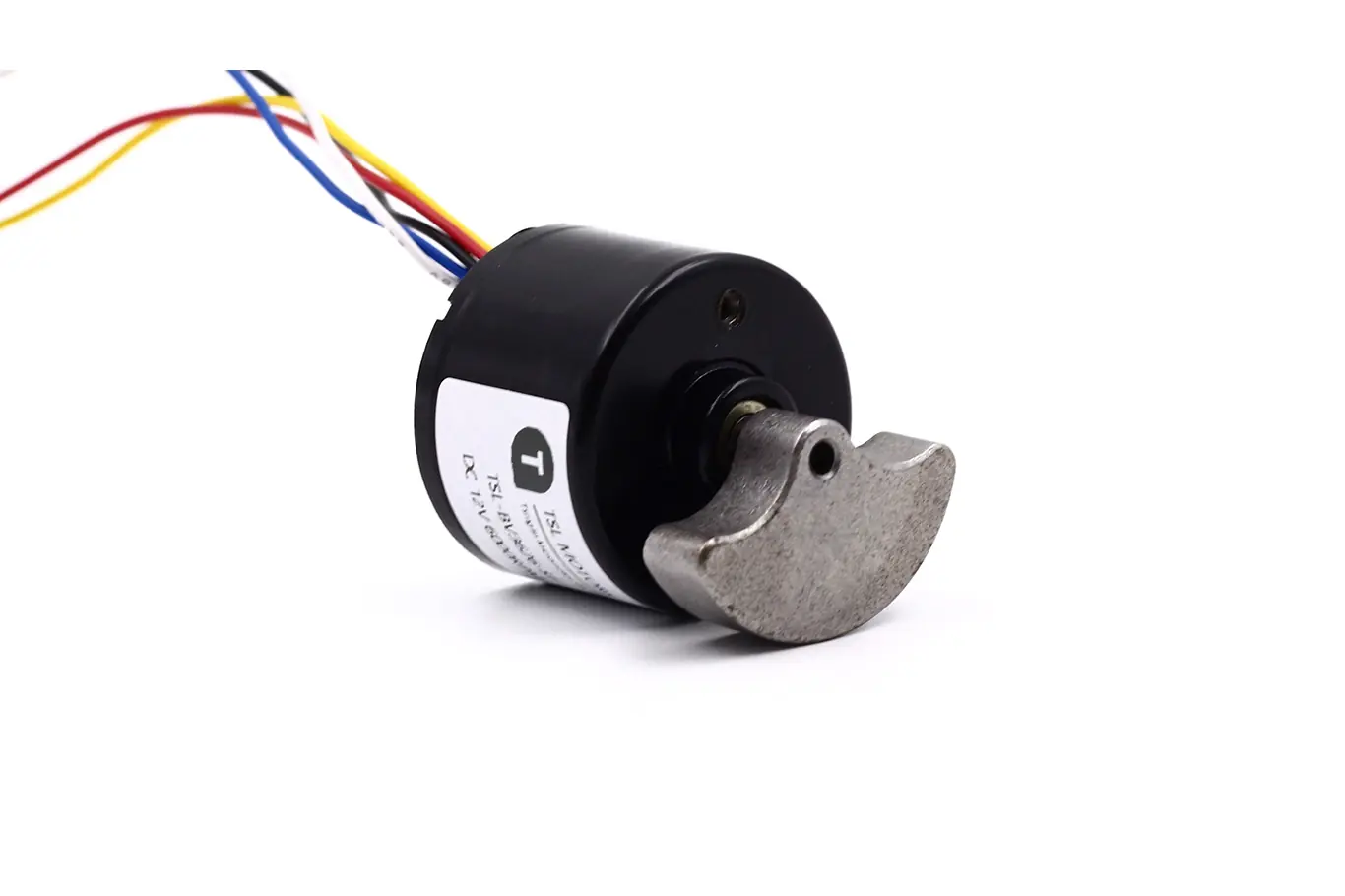

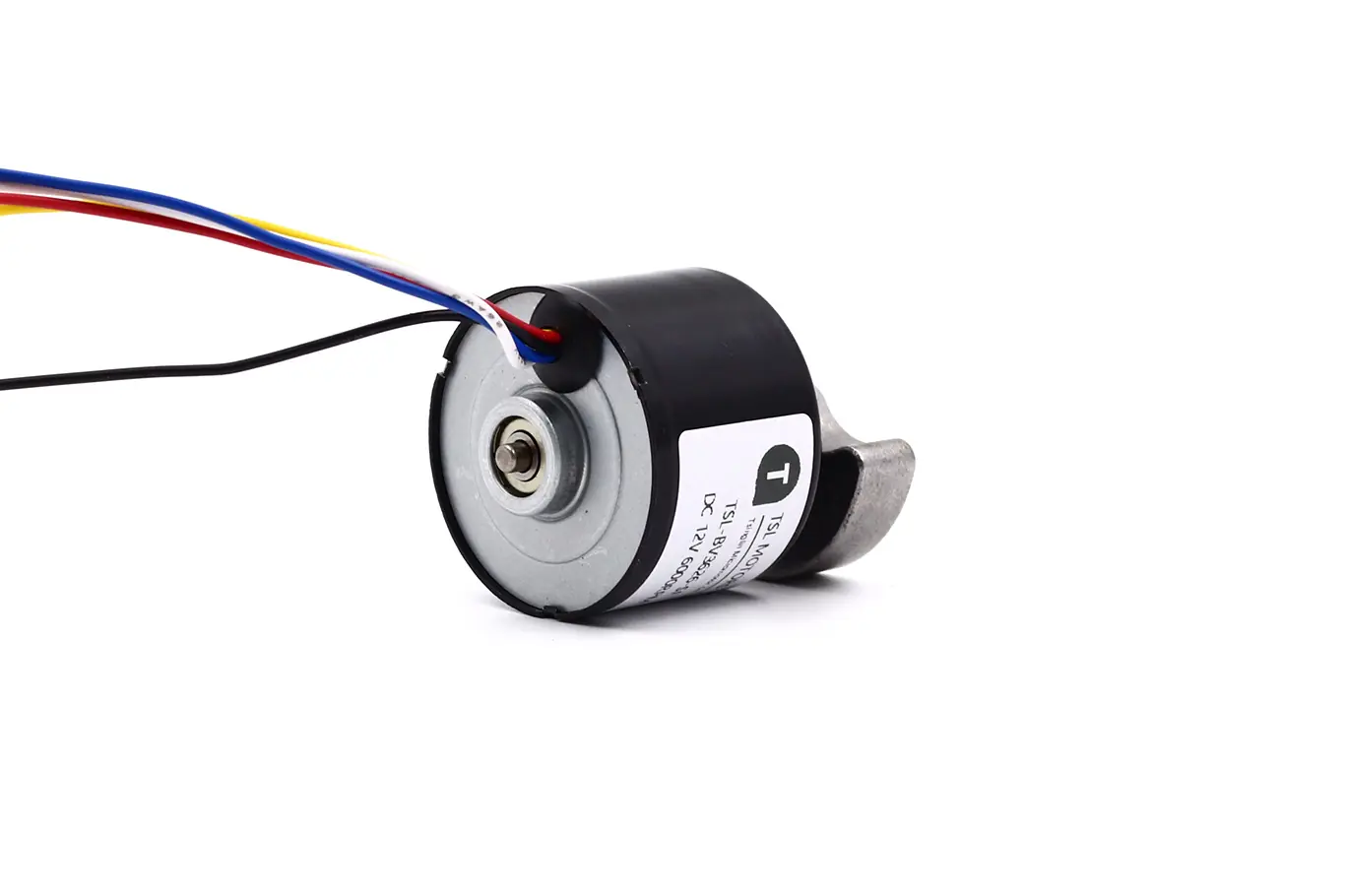

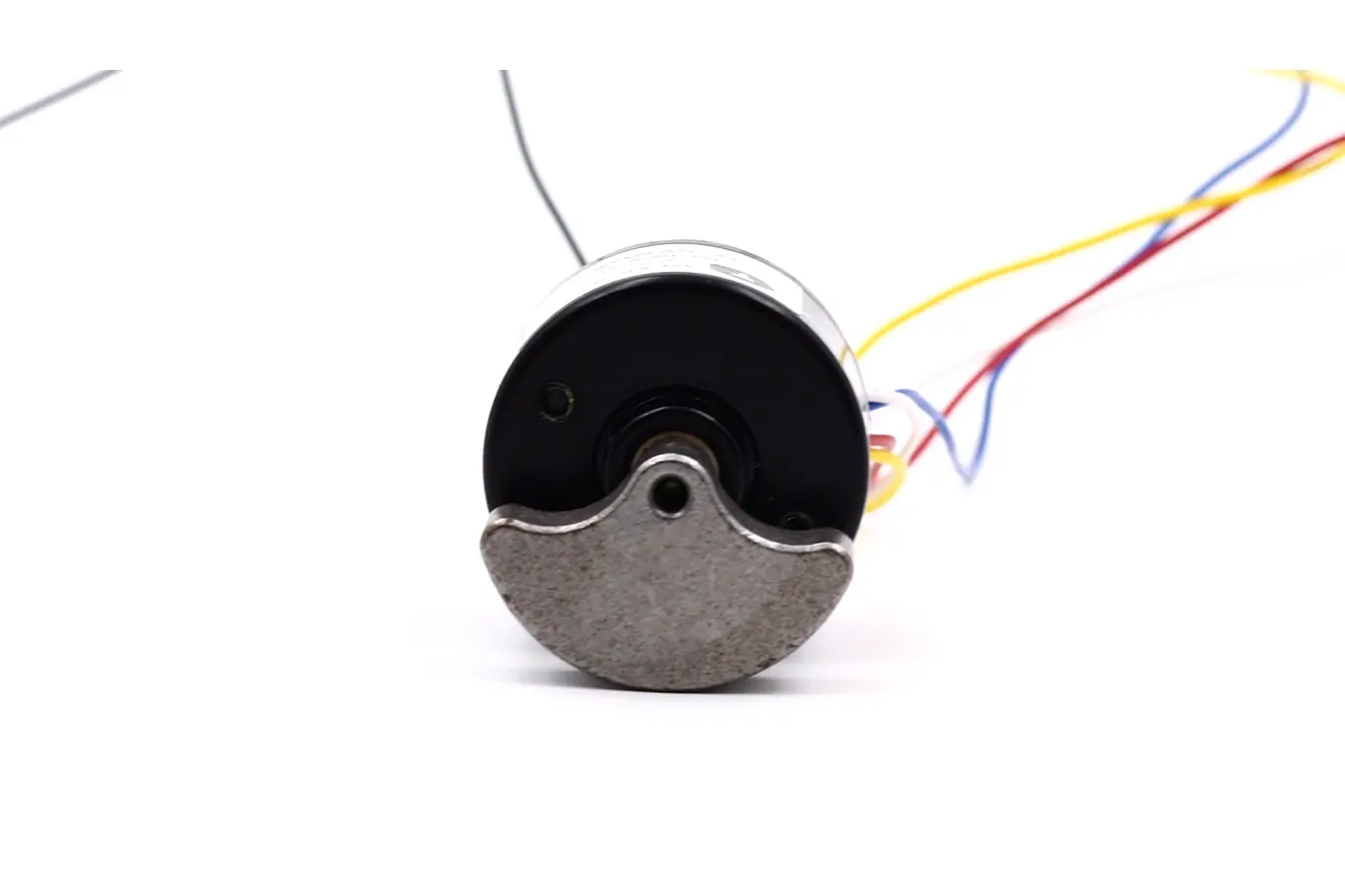

36mm BLDC Brushless Vibration Motor – 26mm Type Model TSL-BL3626-SF

Adjustable Speed Brushless Vibrator Performance

The brushless DC adjustable speed brushless vibrator has the highest speed of 6000 RPM, which allows shake-shake adjustment and is able to operate both CW and CCW. It is equipped with an unusual fan-shaped device and brake functions.

Long-lasting Adjustable Speed Brushless Vibrator with low maintenance Dimension

36mm vibration motor comes with ball bearings, which means it is smooth as butter and will last at the very least, for thirty-nine hours that’s six times more than the normal motor’s life span. It is a beast of a vibration however, it is quiet like a ninja. It’s perfect for those who require high efficiency, but without disturbing your neighbors.

12V 24V DC 36mm Adjustable Speed Brushless Vibrator Wiring Diagram

The negative and positivepoles cannot be linked in reverse.

Red wire Positive motor power (+) + “Select the DC power supply according to motor specifications”

Black wire: Motor power negative (-)

Yellow wire is a signal output from FG (used by devices external to measure motor speed) and emits 9 square wave pulses per motor turn).

White wire White wire: Motor rotation direction control When the port isn’t attached, the motor is rotated CCW. If it is connected at a lower voltage (<=0.6V) then the motor is rotated CW.

Blue wire: Speed control: VSP/PWM speed control.

Customized Solutions

keywords:

Medical-grade silent vibration motors ,consumer electronics quiet brushless motors, 12v robotics’s high-precision vibration motors, variable speeds for vibration motors, handheld portable devices with vibration motors ,high-torque brushless motors that are compact, precise instrument vibration motors, custom applications-specific vibration motors ,Wearables electric motors that are high-efficiency and handheld massager compact motors, custom haptic feedback vibration motors

Development Samples:

The quantities of sampling for models that are stocked are available to order directly online from us.

Engineering & Manufacturing:

Contact us via one or the Sales Engineers for a quotation for production as well as a consultation regarding the integration and customization of your product.

Payment Method:

Payment methods : PayPal or T/T

Shipping Method:

1.Delivery: DHL door to door within 5-7 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you’ve not received the item by the delivery Time Please send us an email with any queries. We usually give you a response within 24 hours If not, please examine the spam in your email inbox. We will try the best we can to assist you resolve the issue.
4.Please ensure that your address is in line with the final shipping address prior to you make payment.
5.In order to make sure you receive your purchase tax-free at the time of import, we’ll declare it as an amount lower than the value you paid for it, please note this in your order, thank you!

FAQ – Frequently Asked Questions

Q:If you are requesting a custom-made version What information do you need to include?

A: You must give the fundamental specifications of the motor, for example Dimensions Sizes, Applications, Voltage the speed, and torque. It is better to provide sketches of the application when you can.

Q: What’s one of your main motor?

A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What’s the principal use of the microdc motor?

A Mini DC motors are used extensively in home Applications, Office Equipment, Health-Care Application, Sanitation Industry The High-End Toy Banking System Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.

Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.We also offer DC motors and Gear motors.
