TSL Custom Micro Motors Type for Ice Makers
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:Custom Micro Motors
- Rated Speed:12±10%rpm
- Rated Voltage：6V/12V
- Stall Torque:≥170Kg.cm
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Ice Maker / Ice Extrusion / Ice Stirring Machine

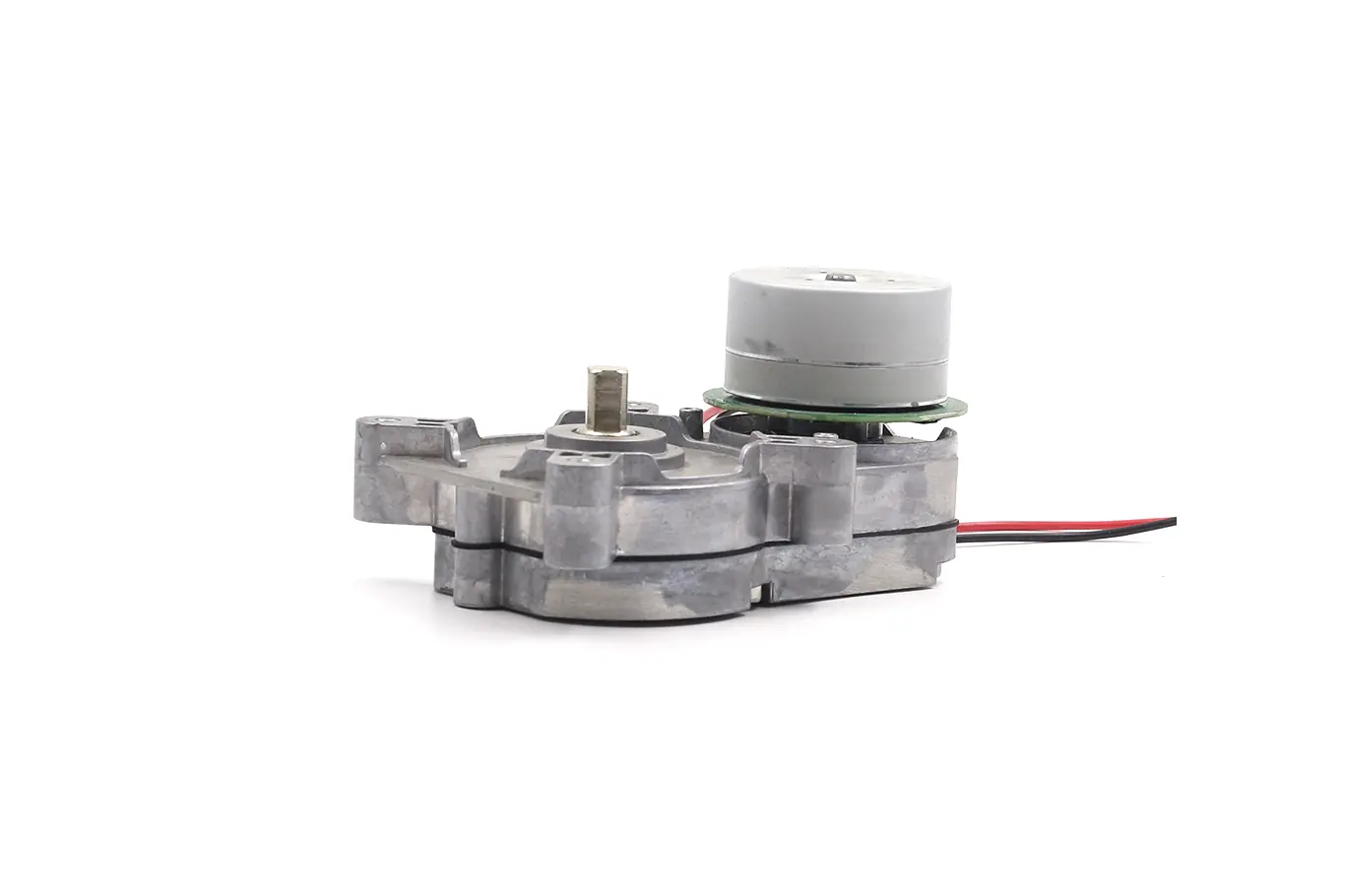

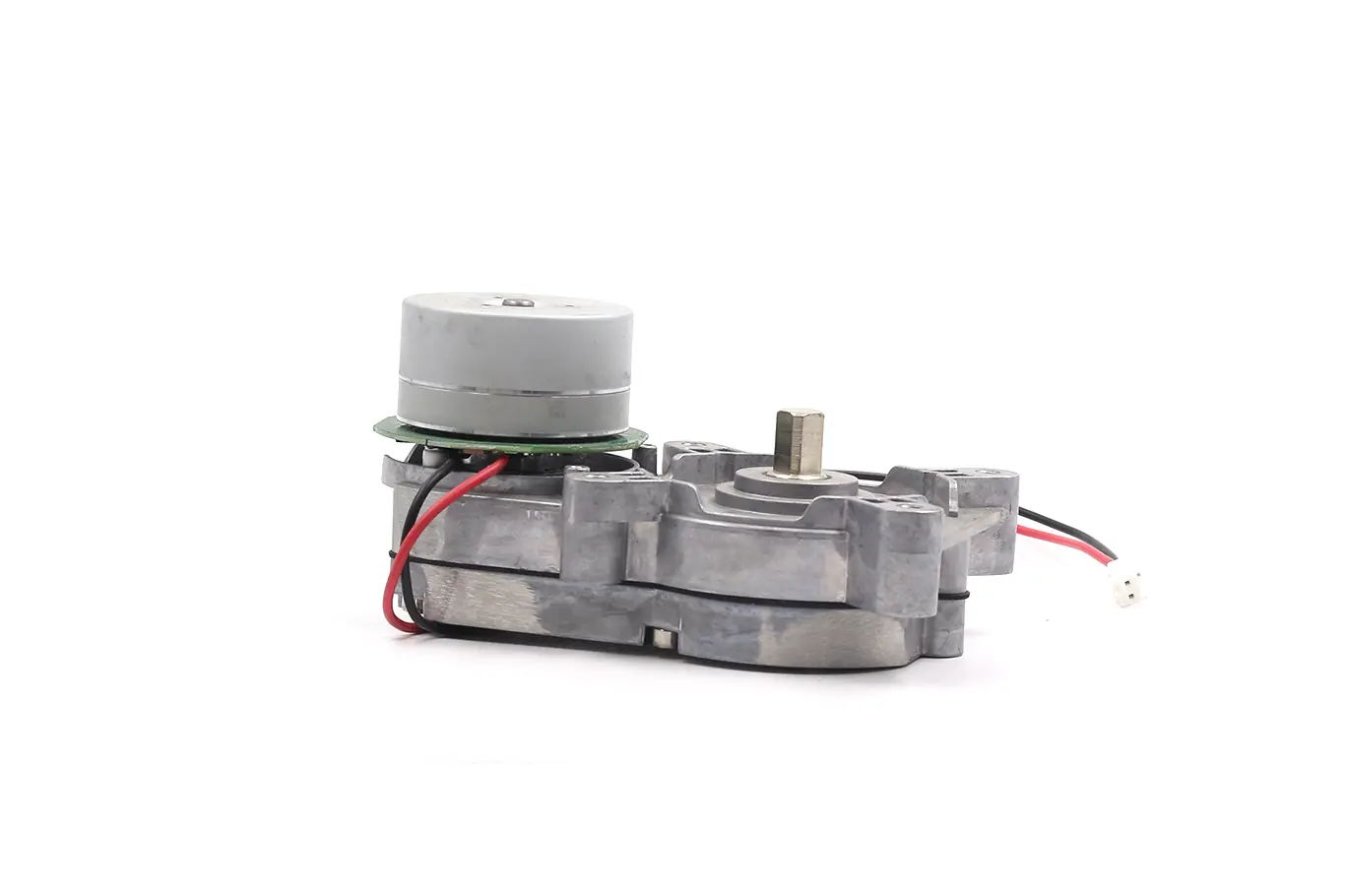

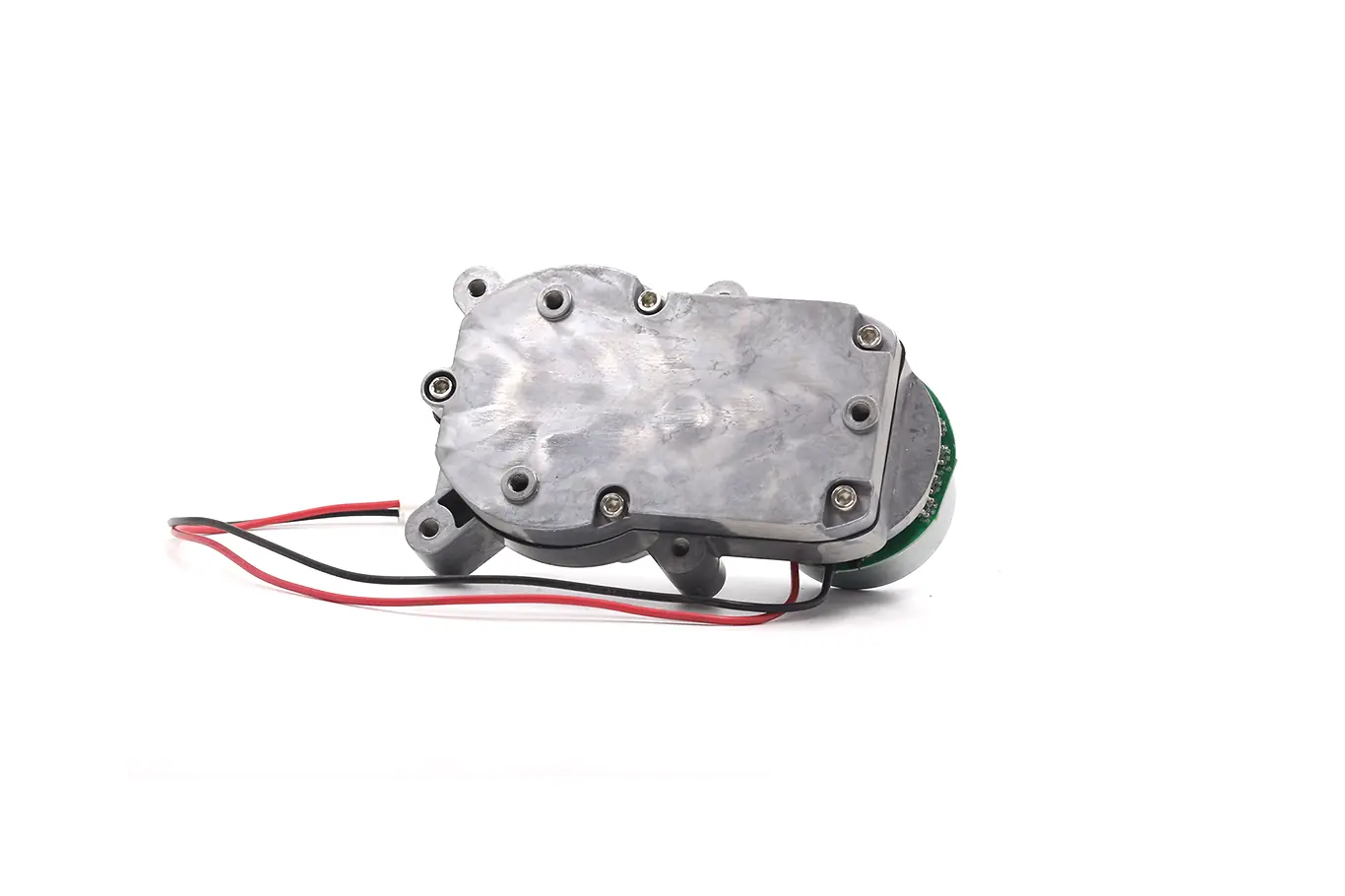

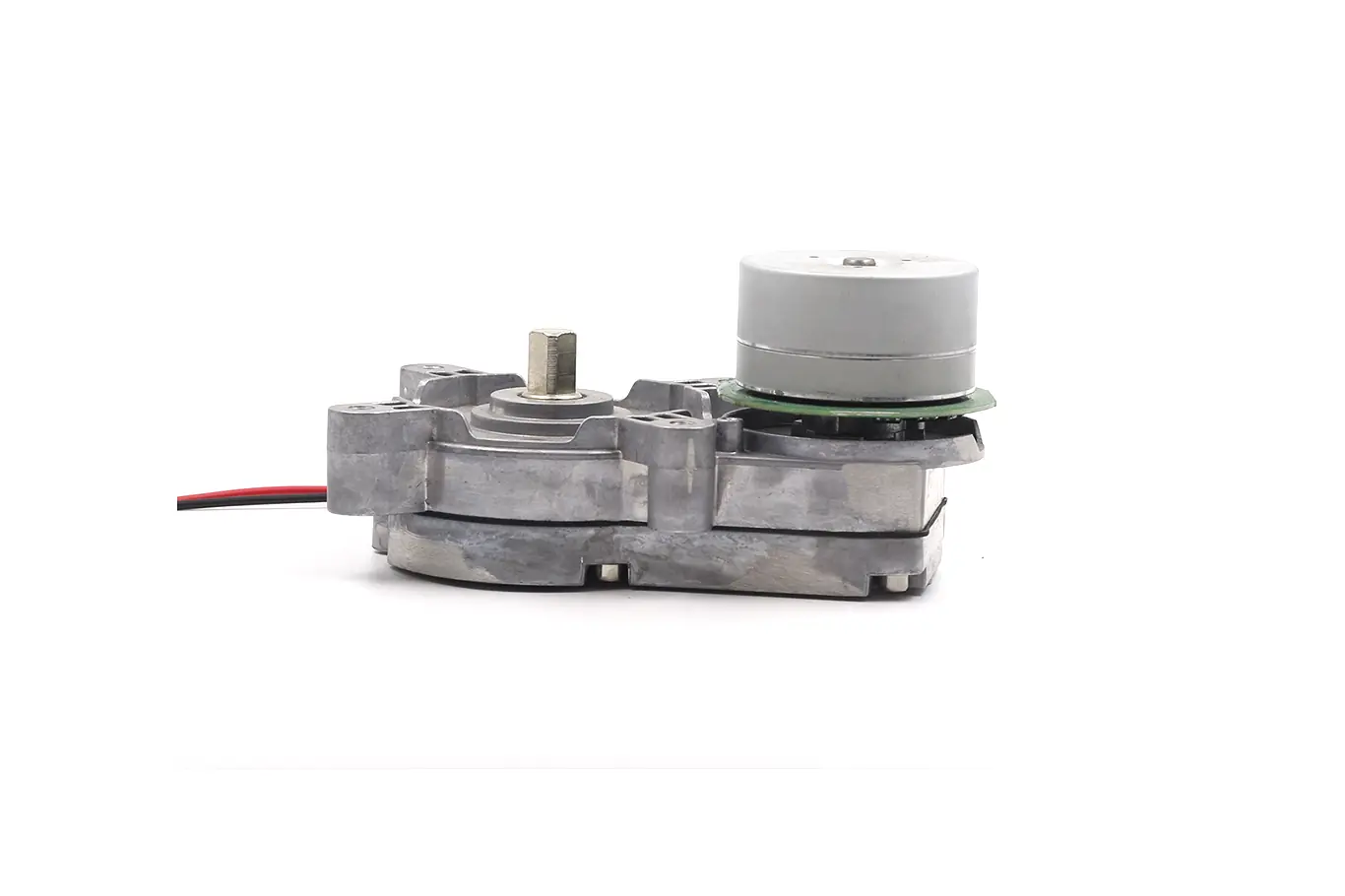

Outrunner Brushless DC Gear Ice Maker Motor
Designed for modern household ice makers, this brushless outrunner gear ice maker motor delivers strong, stable, and quiet performance. With a 157:1 gear ratio, 12V rating, and 14 RPM no‑load speed, the ice maker motor ensures precise torque control for ice extrusion, stirring, and dispensing. Its compact, efficient design makes it ideal for long‑lasting premium appliances.
Built for heavy‑load operation, the ice maker motor provides 70 kgf·cm rated torque and up to 170 kgf·cm stall torque for smooth performance under demanding ice conditions. As part of the TSL custom ice maker motors series, it offers durability, customization flexibility, and consistent quality—perfect for brands upgrading to a high‑performance brushless gear motor.
| Reduction | No Load | Rated | Stall | ||||||
| Speed | Current | Voltage | Speed | Current | Torque | Current | Torque | Allowed or no | |
| 157:1 | 14±10%RPM | ≤740mA | 12V | 12±10%RPM | ≤3000mA | 70Kgf.cm | ≤5500mA | ≥170Kgf.cm | No |
💕The ic maker motor’s technical specifications are for guidance,we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

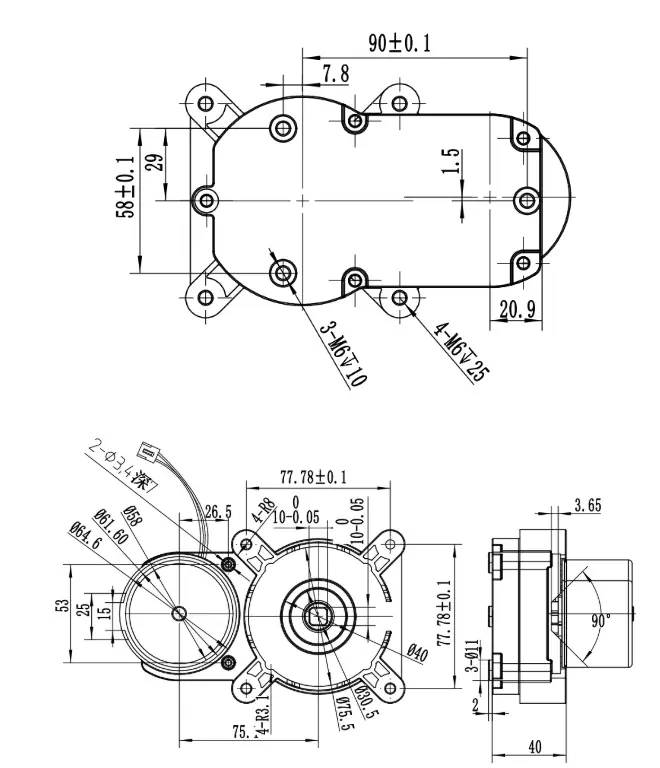

Brushless Outrunner Gear Ice Maker Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for Geared Brushless Motor
Q：What is a geared brushless motor?
A:A geared brushless motor combines a brushless DC motor with a gear system. This gear system can either be a spur or planetary gearbox. The gears work together to lower the motor’s speed while boosting its output torque.
Q:Can Geared Brushless Motors Be Customized?
A: Yes, geared brushless motors can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
