18mm Outrunner Rotor BLDC Motor TSL-BLDC-1811
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-BLDC-1413
- Voltage:DC 7.6V/Customizable
- No-Load Speed : 5800RPM
- Load Speed: 2016RPM
- Locked-Rotor Current: 0.21A
- #More Specifications
- #Outline Drawing
♦ Typical Applications:stabilizer gimbals
BLDC Electric Gimbal Motor Datasheet

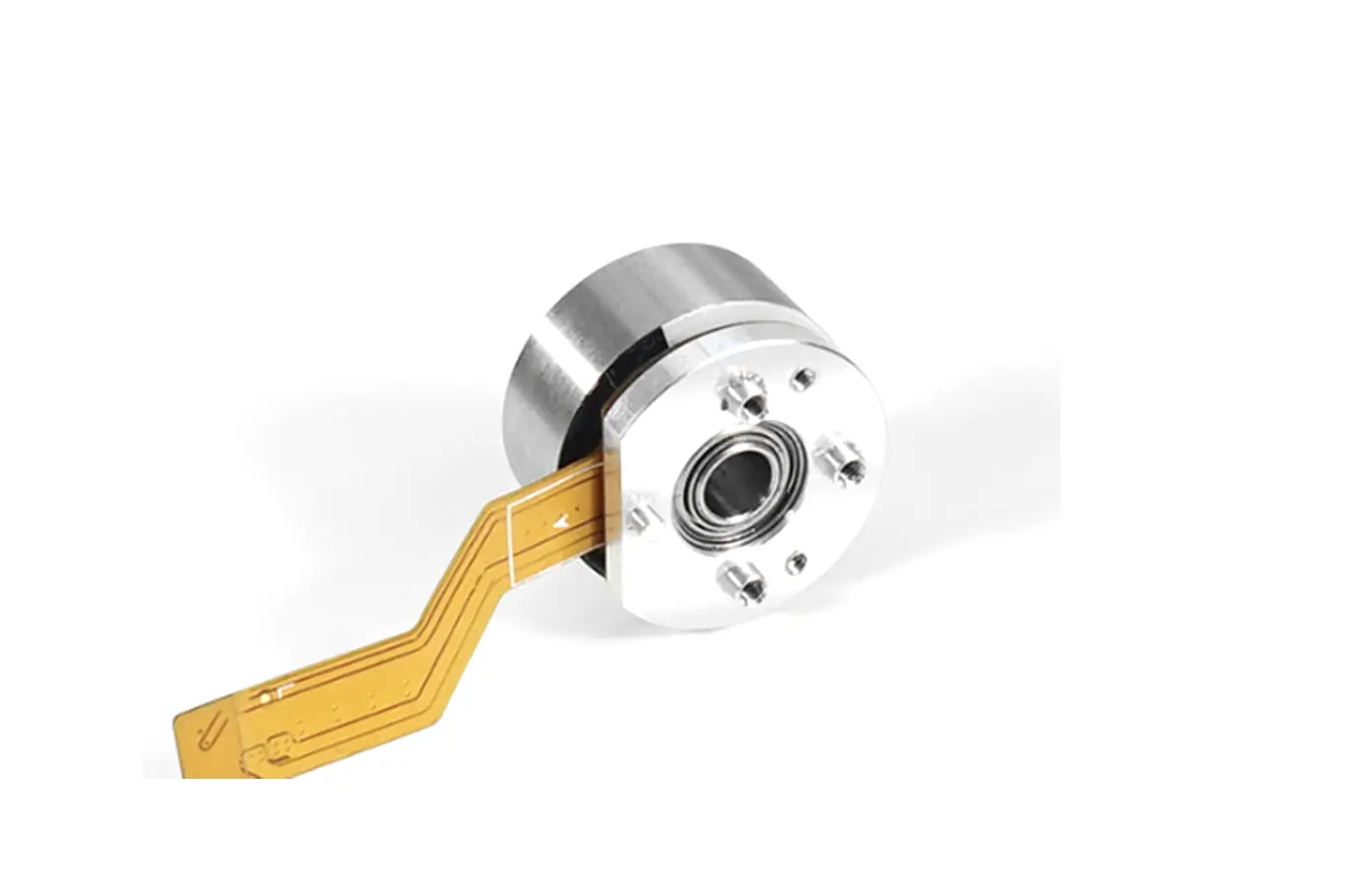

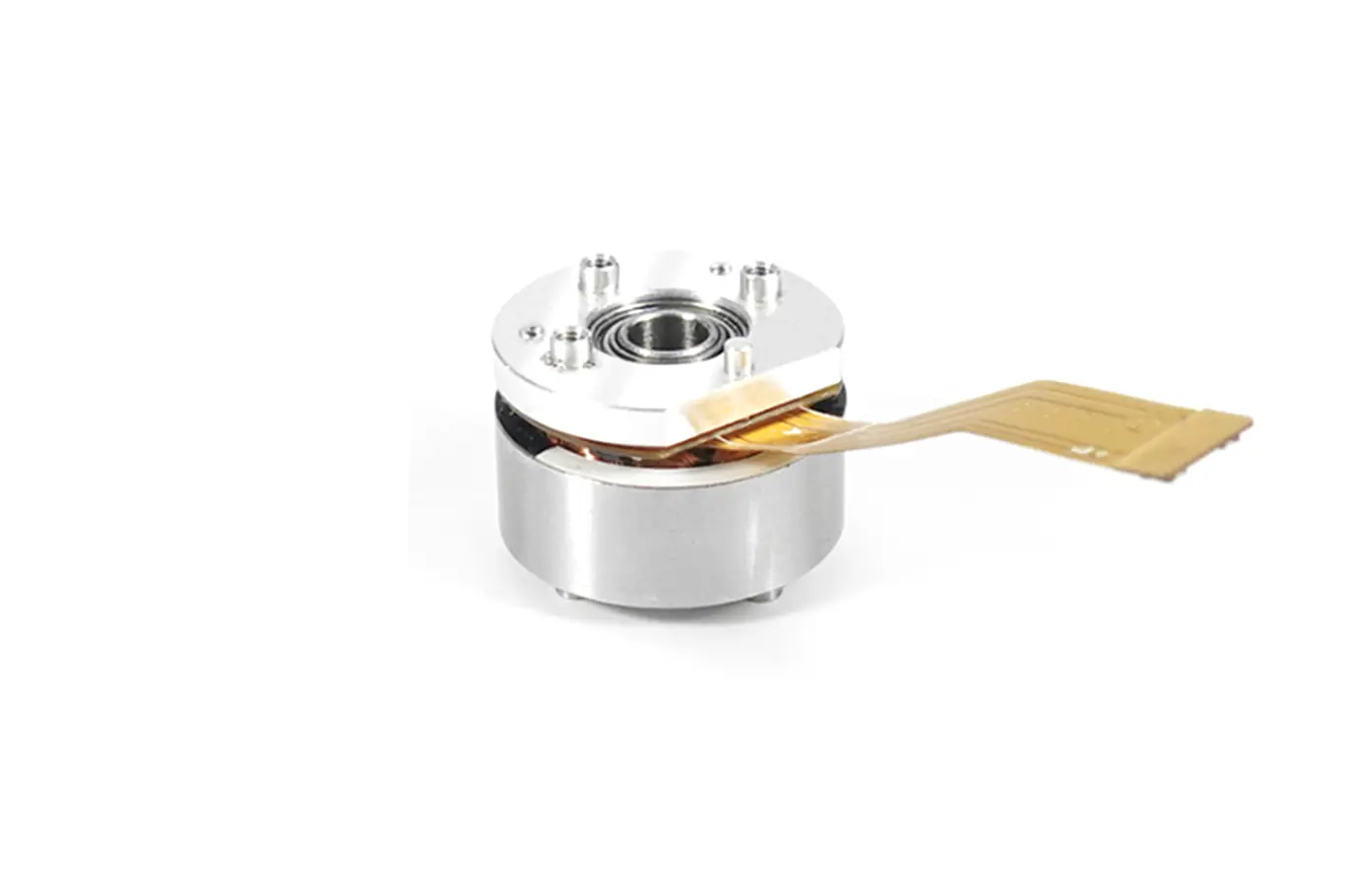

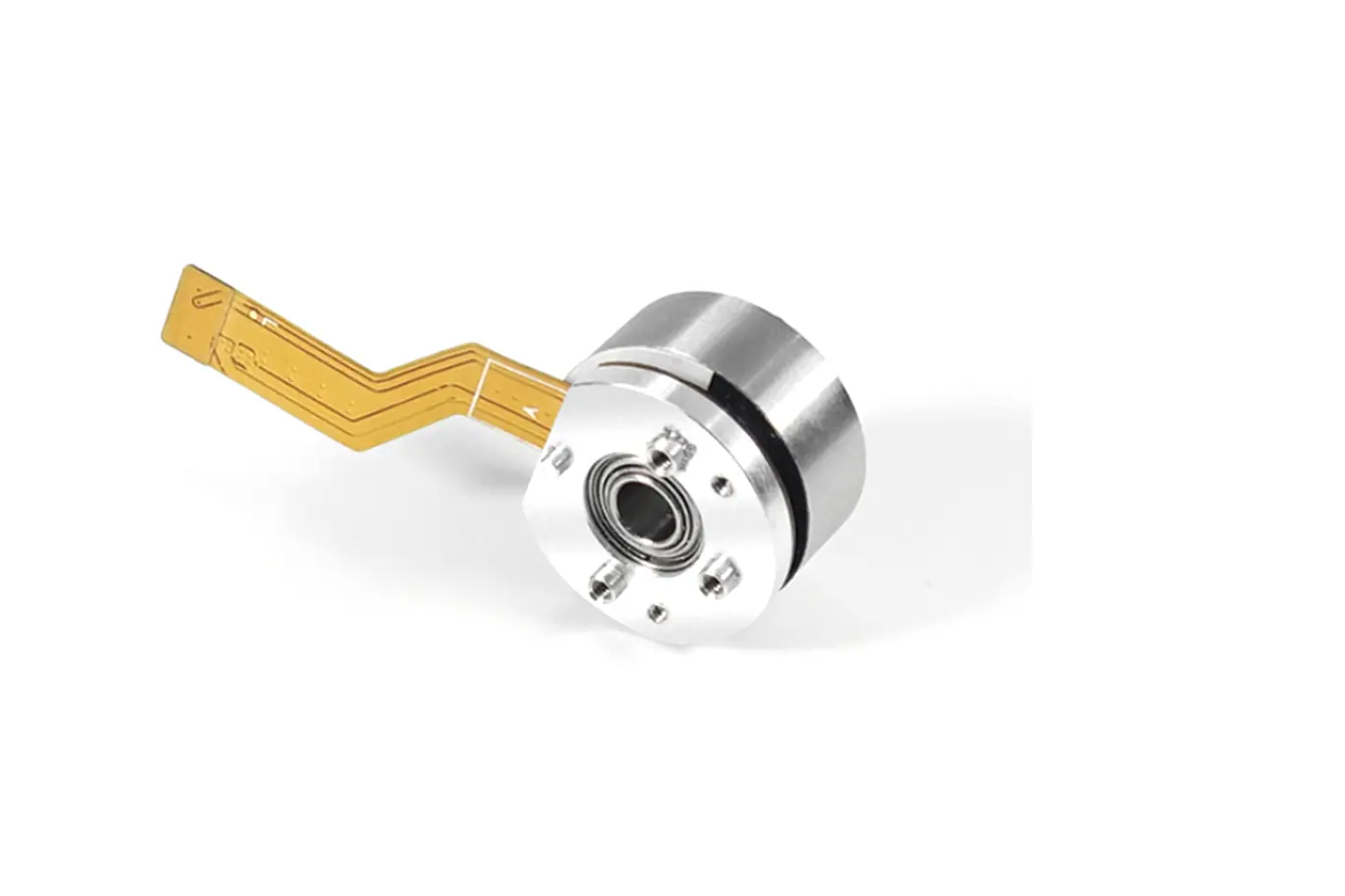

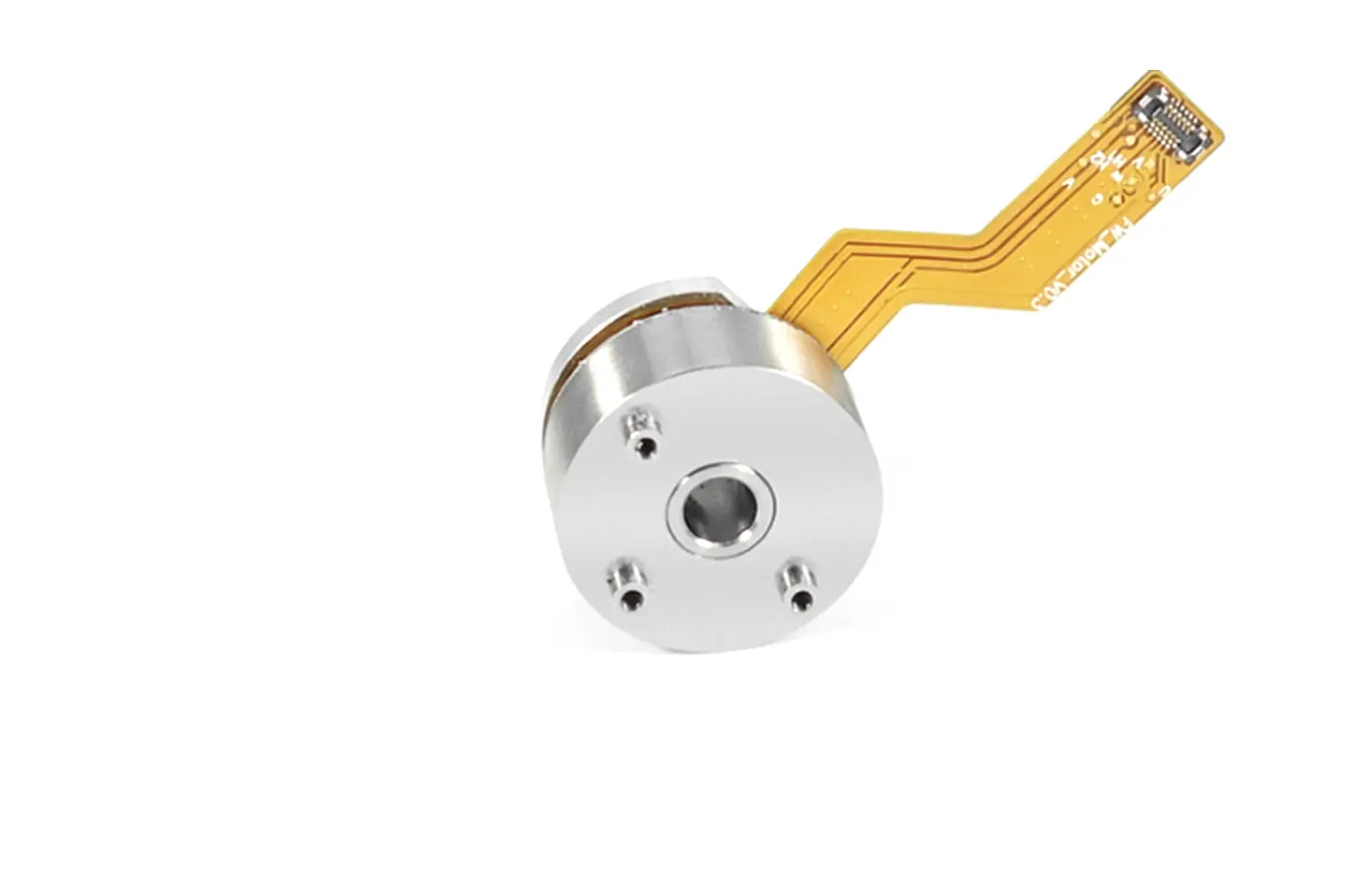

In the pursuit of ultimate stability and intelligent filming experience, the bldc gimbal motor TSL-BLDC-1811 is the ideal core driving force for your gimbal stabilizer design.
This brushless gimbal motor is engineered for strict demands: automatic tracking, precise angle adjustment, rapid response. Its superior specs and compact design help your gimbal products stand out in a competitive market.
Our gimbal motor perfectly addresses the performance requirements of complex movements, such as the 181° character movement tracking and directional/angle adjustment on your stabilizer platform:
- ⚡ Sensitive Response, Dynamic Precision: With a high No-Load Speed of 5800rpm and a stable load speed of 2016 rpm, the gimbal motor can respond to control commands quickly and smoothly. This guarantees that every pan and tilt during the auto-tracking mode is seamless, natural, and offers millisecond-level responsiveness.
- 💪 High Power, Exceptional Efficiency: Within its miniature frame(17.5mm Diameter ×11.0mm Height), it delivers an impressive Stall Torque of 2.05 mNm. Crucially, this is achieved with a low stall current of only 0.21 A, which significantly optimizes battery life and system thermal management while ensuring powerful drive capability.
- 📐 Ultra-Compact, Seamless Integration: Its micro-size is tailored for integration into thin, high-performance gimbal stabilizers, helping you achieve a slimmer, lighter product form that enhances user experience and portability.
Choosing the gimbal motor TSL-BLDC-1811 means choosing reliability, high efficiency, and unparalleled control precision for your professional imaging equipment.
| Motor Model | TSL-BLDC-1811 |
| Rated Voltage | 7.6V |
| Rated Current | 0.21A ±10% |
| Rated Torque | 2.05 mNm ±10% |
| Rated Speed | 2016 rpm ±10% |
| Operating Voltage Range | 6–9V |
| Insulation Class | Class B |
| No-load Speed | 5750 rpm ±10% |
| No-load Current | 0.15A |
| Phase Resistance | 26.4Ω ±10% |
| Phase Inductance (D-axis) | 1.78 mH ±10% |
| Phase Inductance (Q-axis) | 1.98 mH ±10% |
| Hall Sensor Output (Max) | 2400–3220 mV |
| Hall Sensor Output (Min) | 80–800 mV |
| Mechanical Angle (CW) | 25° ±1° |
| Mechanical Angle (CCW) | 90° ±1° |
| Optoelectronic Angle Deviation | ±2.5° |
| Noise Level | ≤50 dB |
💕The bldc gimbal motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

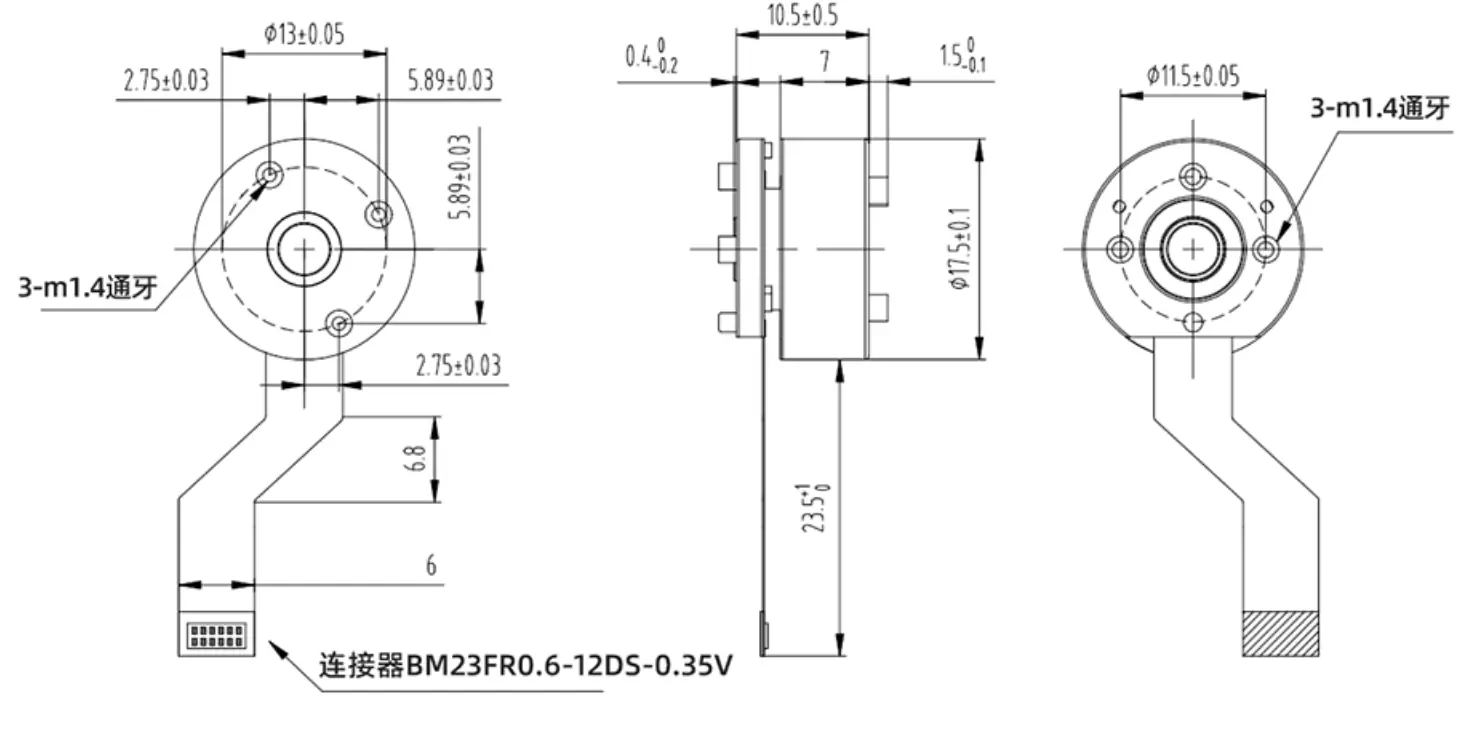

18MM BLDC Gimbal Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
