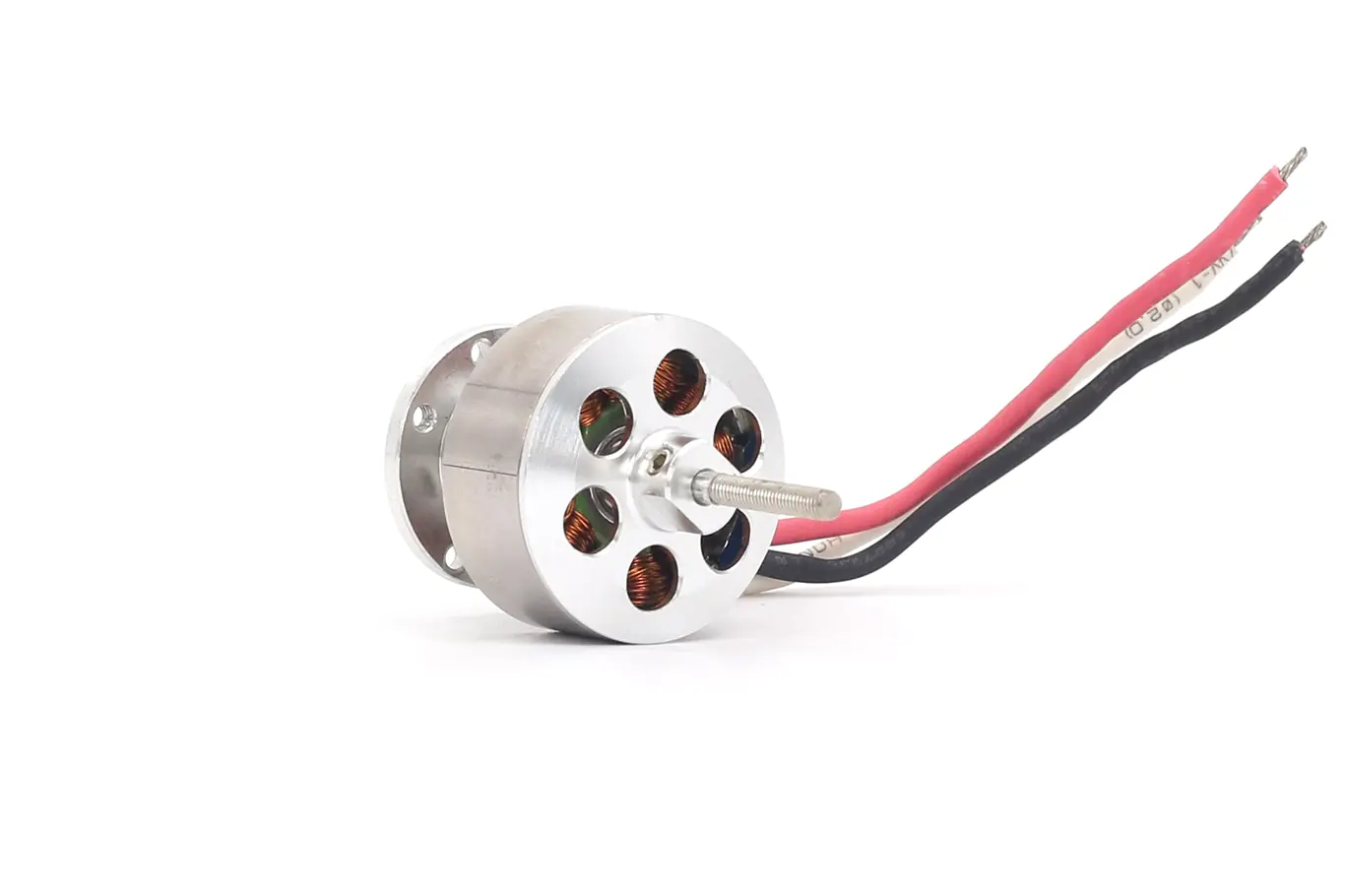

30mm Brushless DC Motor – 30mm 1100KV Type Model TSL-BLDC-DST2408-1100KV
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-BLDC-DST2408-1100KV
- Motor Type:Outrunner Rotor BLDC Motor
- Stator Arms:12
- Magnet Poles:14
- Motor KV:1100 rpm /V
- #More Specifications
- #Outline Drawing
- Download Datasheet
♦ Typical Applications:
- FPV Racing Drones
- Fixed-Wing Model Aircraft
- Small Reconnaissance UAVs
- Aerial Photography Platforms
Brushless Small Drone Motor TSL-BLDC-DST2408-1100KV Datasheet
This small drone motor features a $24 \times 8$ mm stator. The unit weighs 56 grams. It provides a motor constant of 1100KV. The internal structure includes 12 stator arms and 14 magnet poles. The motor utilizes a 3.0 mm shaft diameter.
The small drone motor delivers a maximum continuous power of 170 Watts. It operates effectively at a voltage of 11.1V. The system generates 750g of tension with an 8*5 propeller. The maximum continuous current reaches 18 Amps. This motor achieves an efficiency rating of 4.4 g/w.
| Motor Model | TSL-BLDC-DST2408-1100KV |
| Stator Diameter | 24mm |
| Stator Thickness | 8mm |
| Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor KV | 1100 RPM/V |
| No-Load Current(Io/10V) | 0.8 Amps |
| Max Continuous Current | 18 Amps |
| Max Continuous Power | 170 Watts |
| Weight | 58 Grams |
| Outside Diameter | 30 mm |
| Shaft Diameter | 3mm |
| Body Length | 22 mm |
The brushless small drone motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1
Brushless Small Drone Motor TSL-BLDC-DST2408-1100KV Electric Regulator
The TSL-BLDC-D2830-1450KV small drone motor excels in power efficiency with a tested 5.2g/W performance. This brushless drone electric motor provides a reliable 260g of tension to ensure stable and responsive flight control.
Each electric regulator setup undergoes rigorous testing to guarantee seamless propulsion synergy. The high-speed 1450KV configuration enables your UAV to achieve rapid acceleration while maintaining low thermal output.
| Motor Model | Paddle Blade | Voltage | Throttle | Current | Tension | Power | Efficiency |
| V | A | g | W | g/w | |||
| TSL-BLDC-DST2408-1100KV | 8*5 | 11.1 | 100% | 11.0 | 750 | 170.0 | 4.4 |
💕The brushless small drone motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

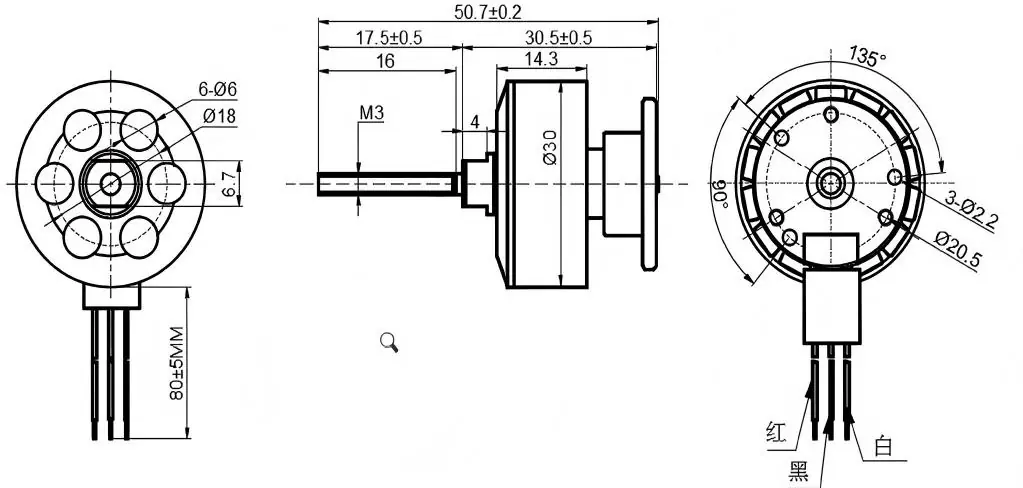

DST2408 Brushless Small Drone Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for Brushless Motor
Q：What is Brushless DC motor?
A:A brushless DC motor eliminates the need for a commutator and brushes by placing permanent magnets on the rotor. The rotor’s rotation is controlled by detecting its magnetic poles and adjusting the current flow through the coils accordingly.
If you want a video to explain the principle of Brushless DC motor, you can click on this link：https://www.youtube.com/watch?v=1AaUK6pT_cE
Q:Can Brushless DC Electric motor Be Customized?
A: Yes,Brushless DC Electric motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
