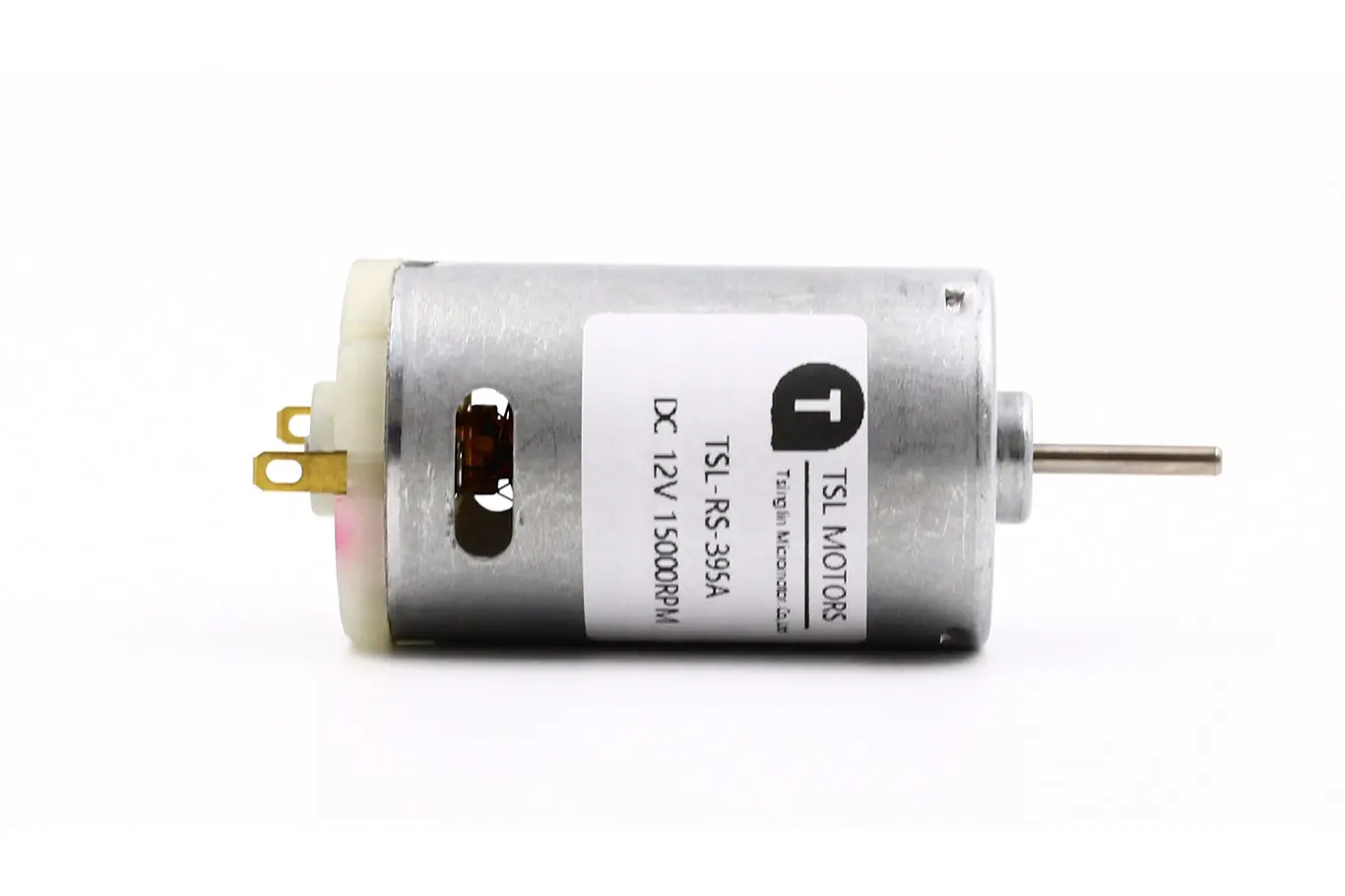

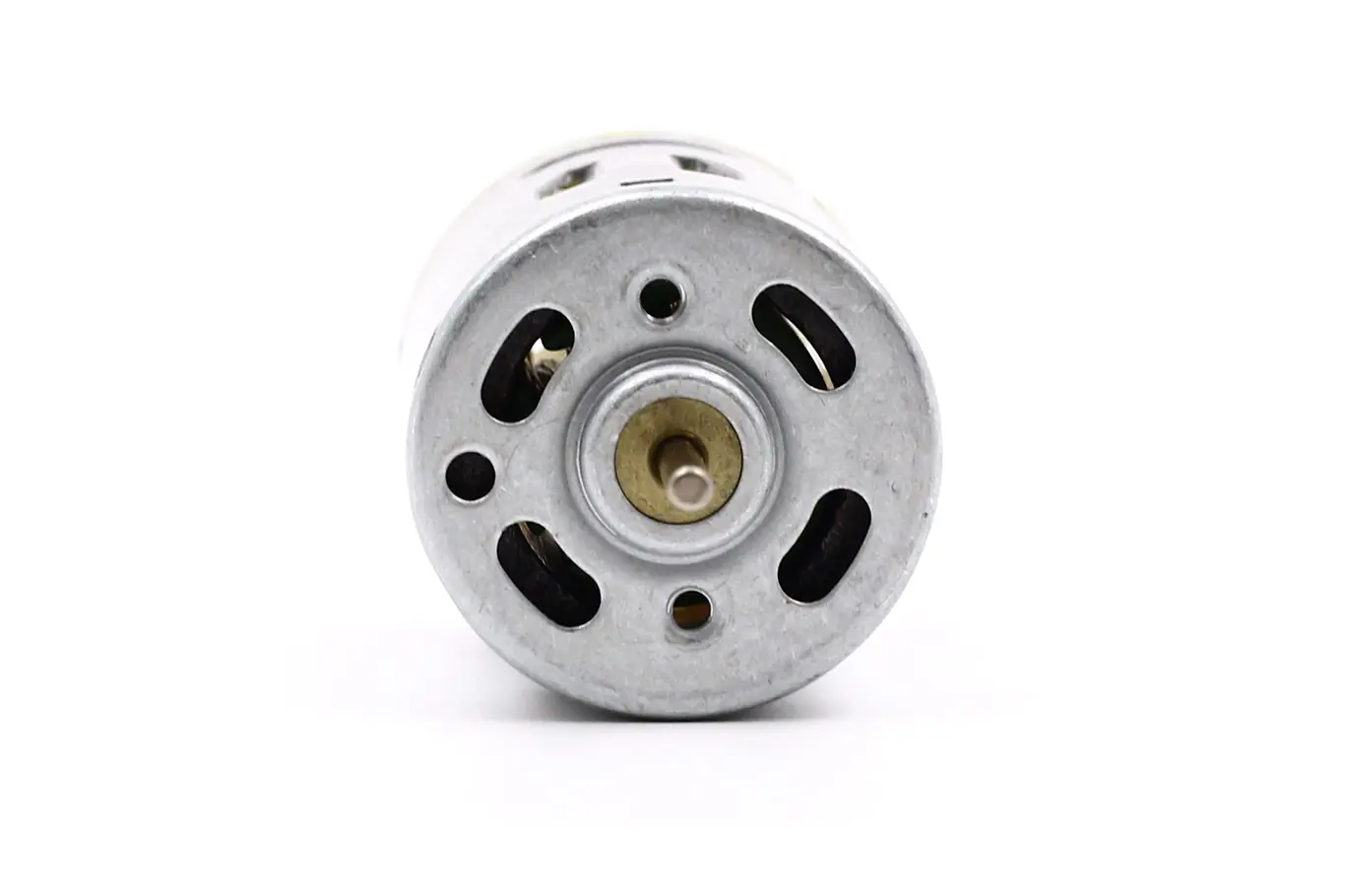

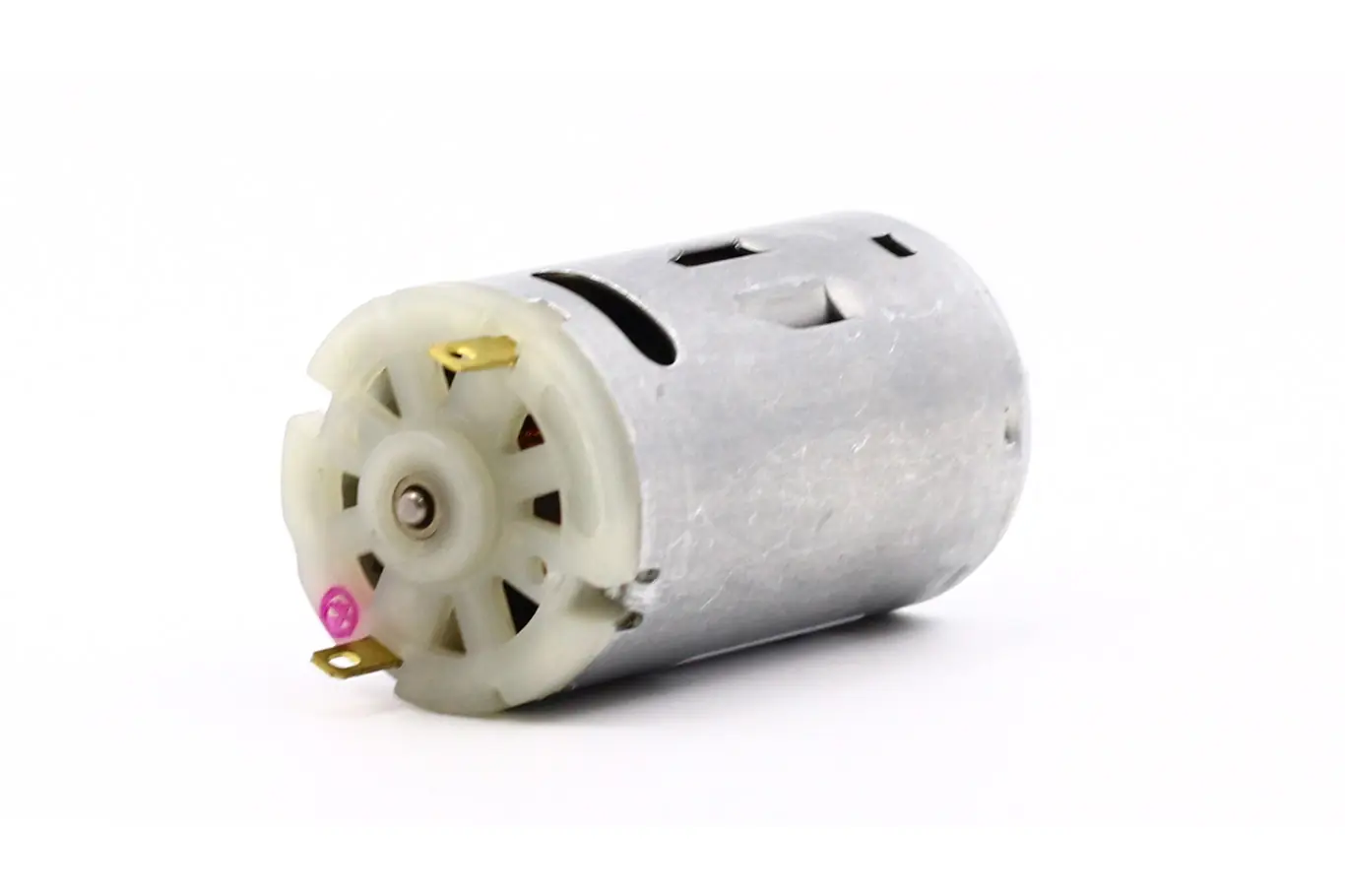

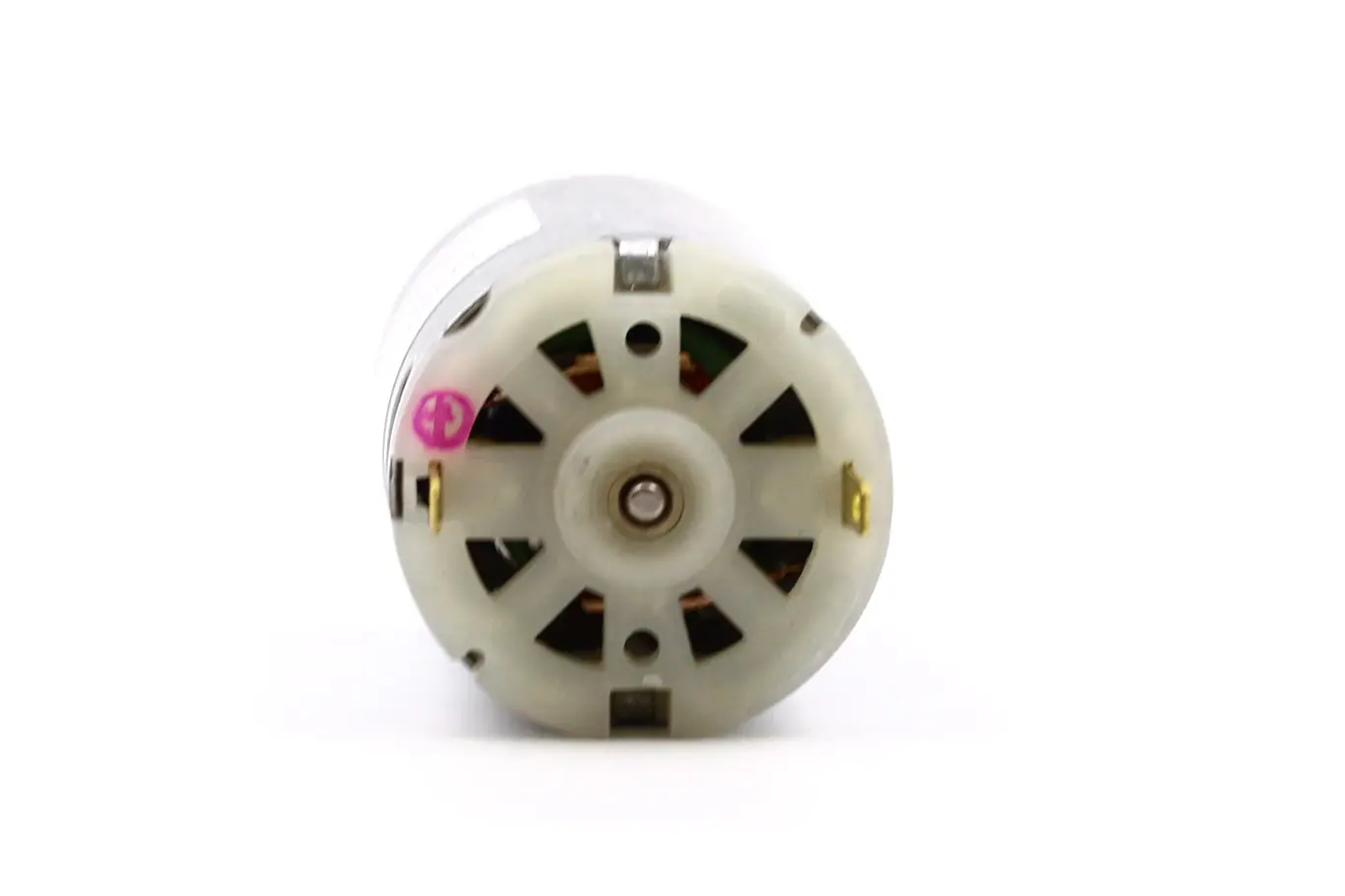

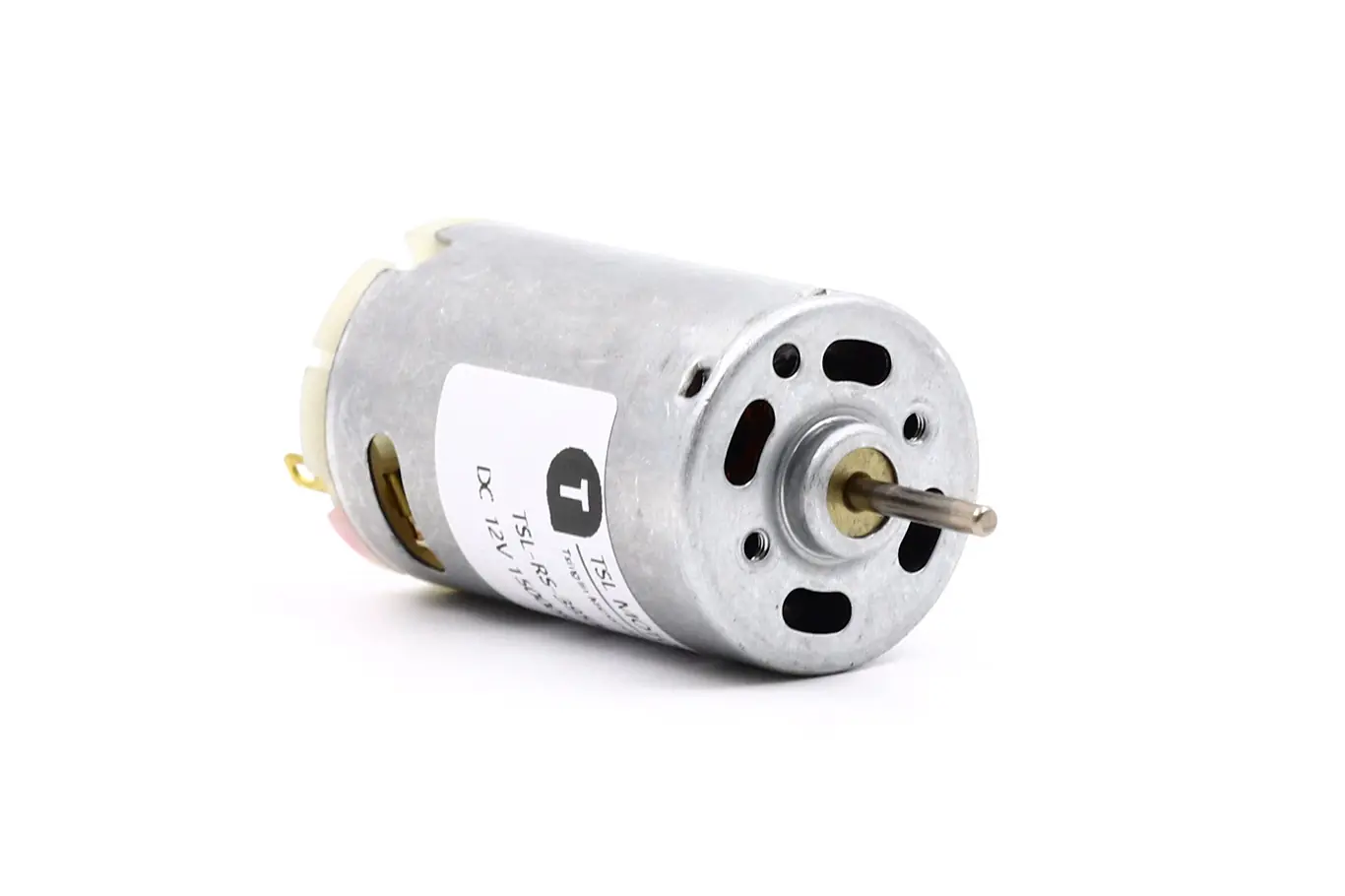

28mm Brushed DC Motor – 46mm Type Model TSL-RS-390A/395A
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-RS-390A/395A
- Motor Type: Brushed DC Motor
- Motor Diameter: 27.7 mm
- Motor Length: 46.7 mm
- Shaft Diameter: φ 2.3 mm
- Rated Voltage: 24 V
- Rated Speed: 8465 RPM
- Output Power: 11.74 W
- Output Torque: 134.95 g·cm
- #More Specifications
♦ Typical Applications:
Automotive Parts/Massage apparatus/Beer pump/coffee machine/Home Appliances/Personal Care/Window actuator
RS 395 Motor – 6V 24V DC Motor Spec Sheet
TSL presents a compact brushed 24 V DC motor. Its diameter is 27.7 mm. The 24v dc motor length is 46.7 mm. It features a φ 2.3 mm shaft.. The rated speed is 8465 RPM. It delivers 11.74 W of output power. The 24v dc motor output torque is 134.95 g·cm. It suits various applications. Consider smaller mechanisms. Think about portable devices. The 24v dc motor can be used in robotics. It’s useful for precision instruments.
| Model | Voltage | No Load | At Maximum Efficiency | Stall Torque | ||||||
| Operation Range | Nominal(CONSTANT) | Speed | Current | Speed | Current | Torque | output | EFF | ||
| RPM | A | RPM | A | g.cm | W | % | g.cm | |||
| RS390A-12300 | 6.0-24.0 | 9.6V | 3100 | 0.06 | 2300 | 0.17 | 31.0 | 0.74 | 49.0 | 136 |
| RS390A-26100 | 6.0-18.0 | 12.0V | 15000 | 0.22 | 12800 | 1.6 | 149 | 6.74 | 61.0 | 1050 |
| RS395A-2370 | 6.0-24.0 | 12.0V | 100000 | 0.2 | 8170 | 0.89 | 80.5 | 6.7 | 62.0 | 440 |
| RS395A-5015 | 4.8-18.0 | 18.0V | 24000 | 2.1 | 19000 | 10.5 | 135 | 27.0 | 61.0 | 620 |
Attachment:The motor parameters are for reference only,if you want to know more specific paraments,please contact usEmail: inquiry@micromotorpro.com

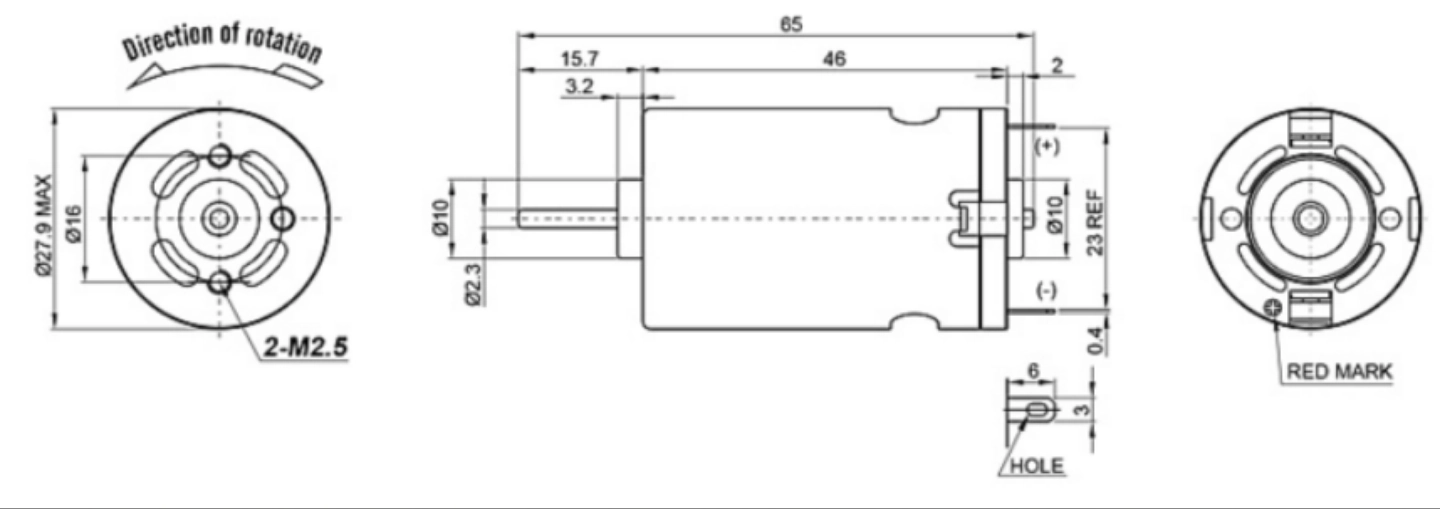

Drive Brush 24V DC Motors Outline Drawing
Special specifications can be customized according to customer requirements.

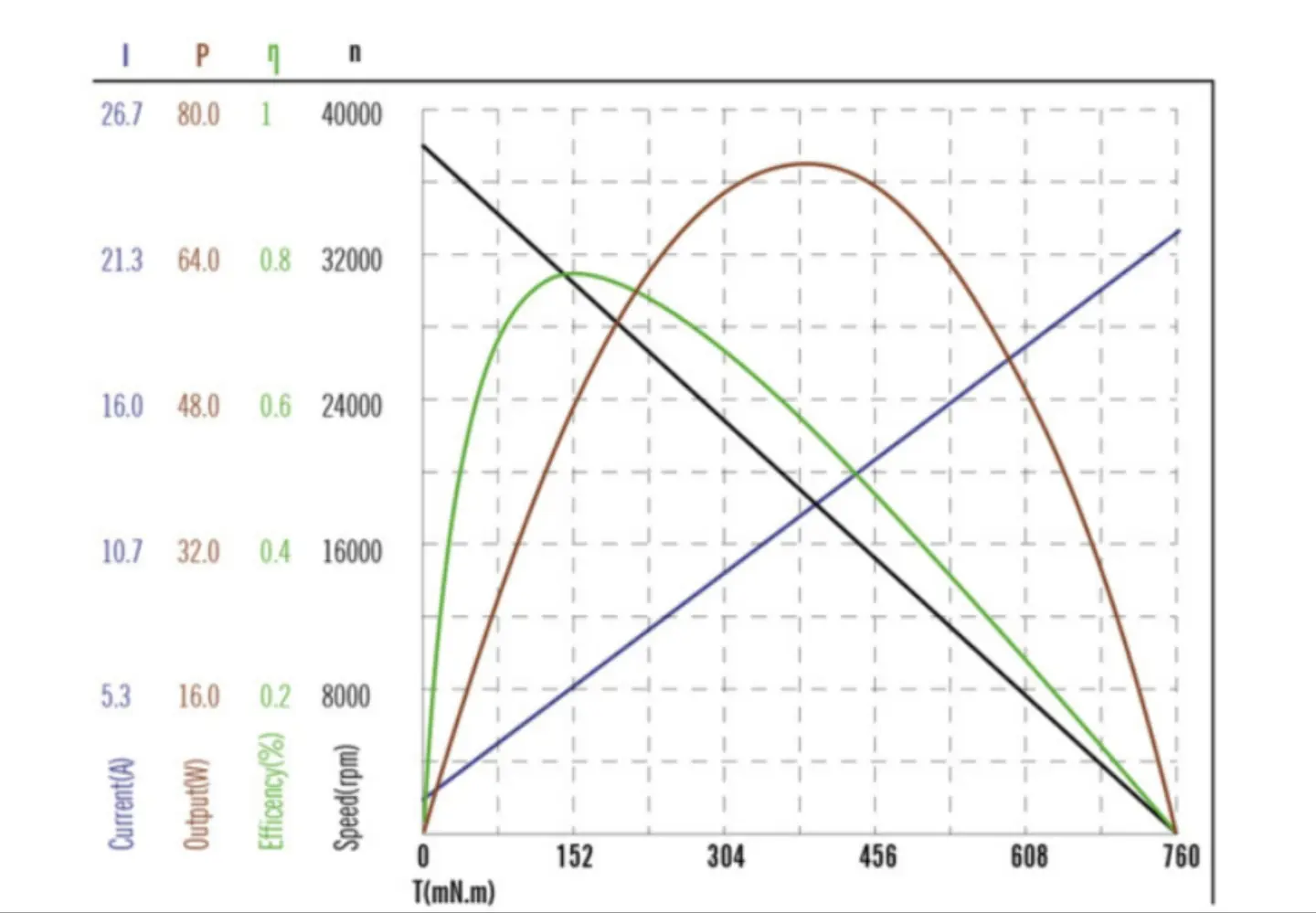

395 24V DC Motor Performance Curve
Applications:
Household Hair Dryer, Beauty Salon, Smart Robot, Smart Sweeper, Smart Home, Vibrating Massager, Power Tools, Etc.
Keywords:
dc brushed motor, electric brush motor for sale, high torque dc motor, 24v dc motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q:Could you send me a quote/price list?
A:All of our motors are customized according to the specific needs of the customer, including life, noise level, voltage, shaft specifications, etc., and the price will vary according to the number of years, so it is difficult for us to provide a price list.
If you can tell us your detailed requirements and annual quantity, we will offer you a reasonable price for both parties.
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
If you want a video to explain the principle of 775 dc motor, you can click on this link:https://www.youtube.com/watch?v=CWulQ1ZSE3c
