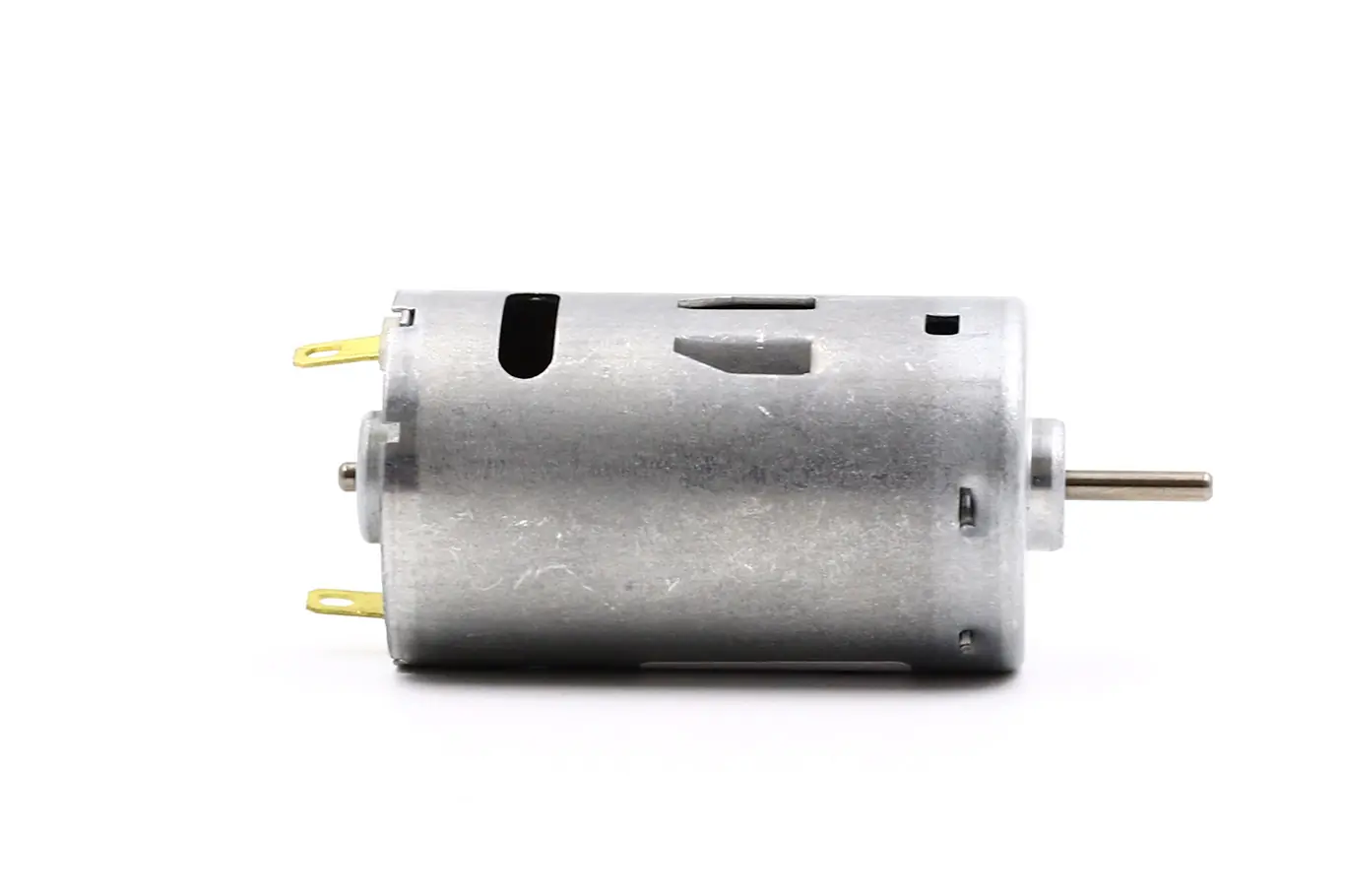

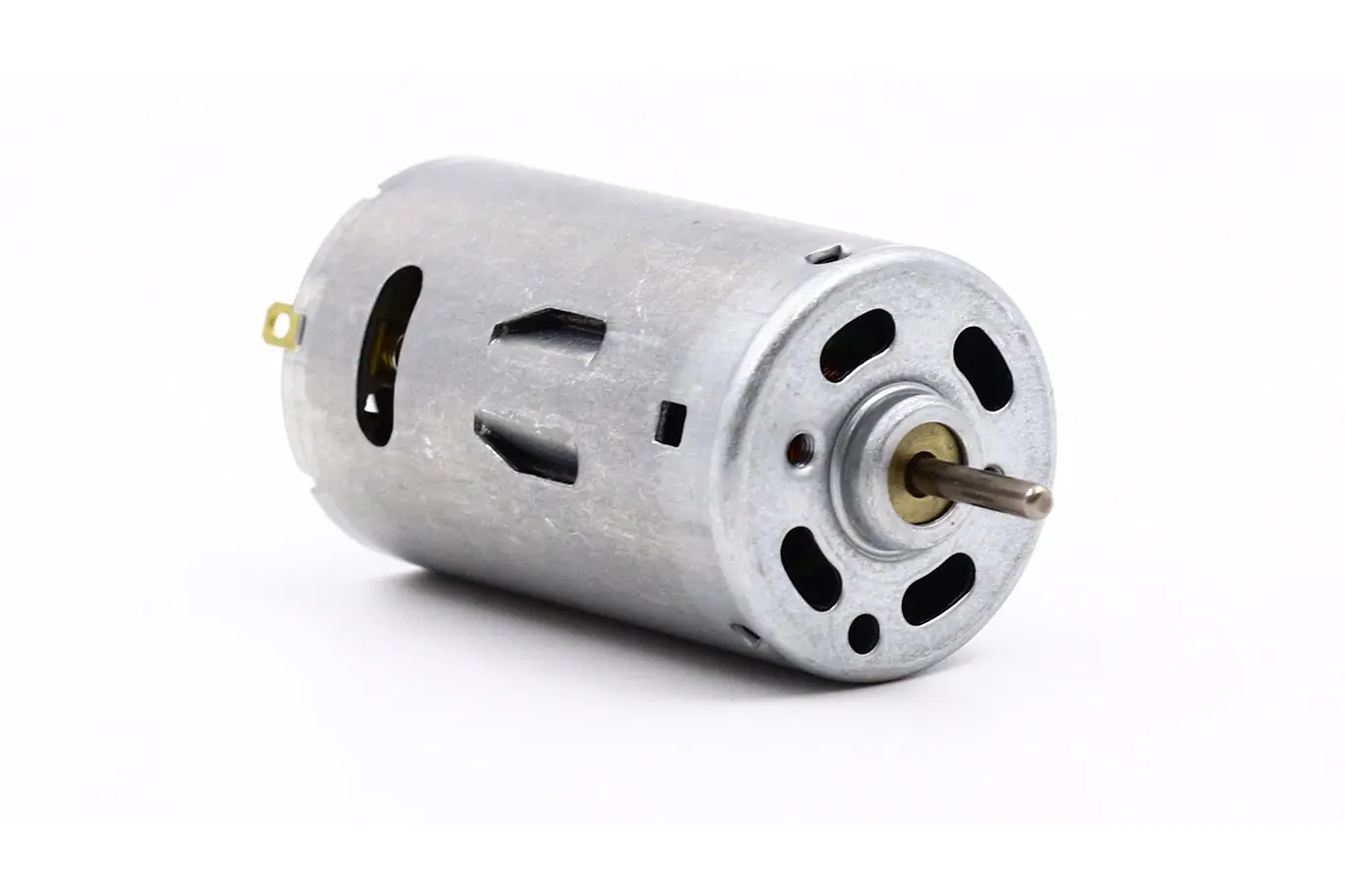

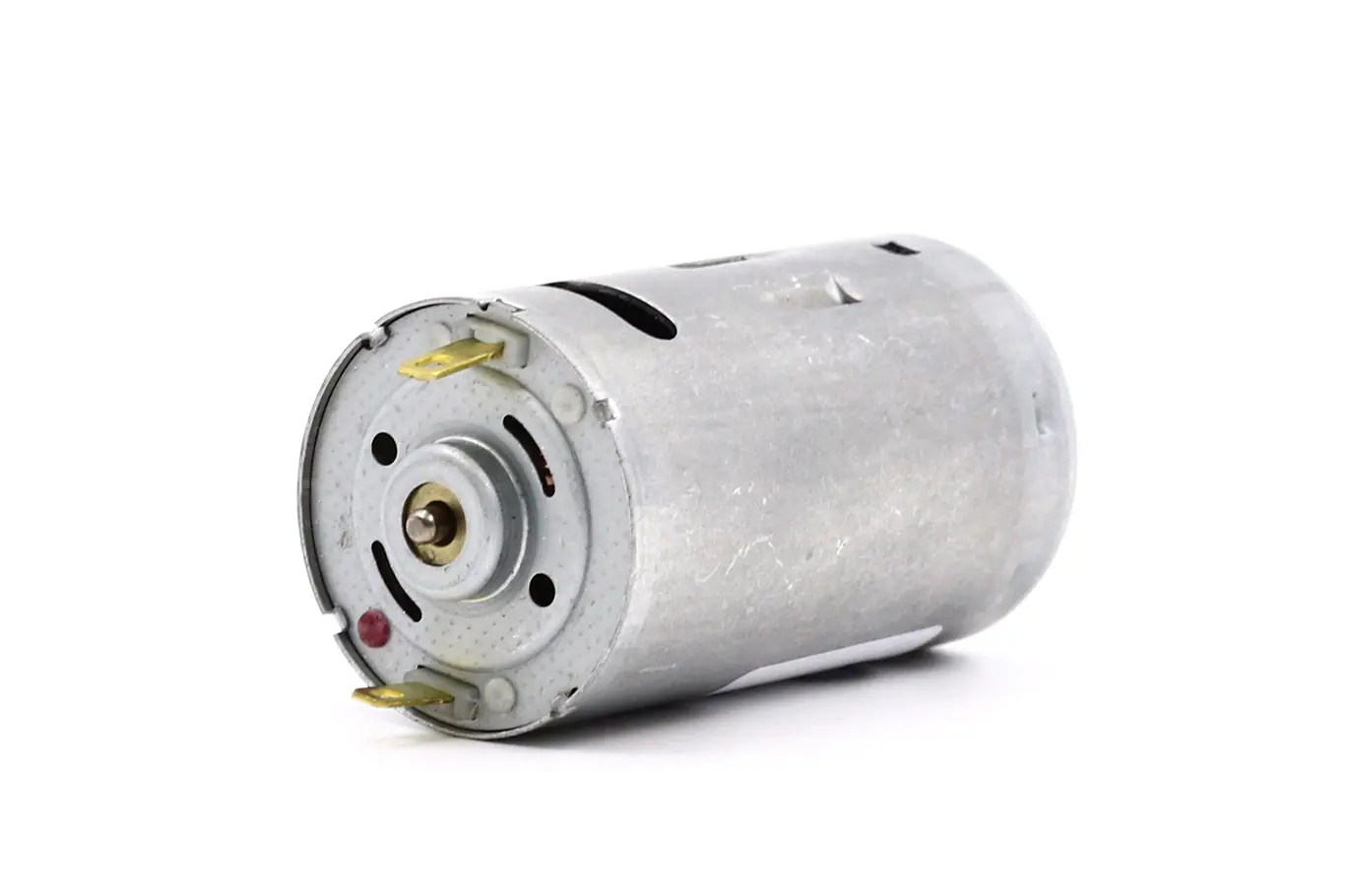

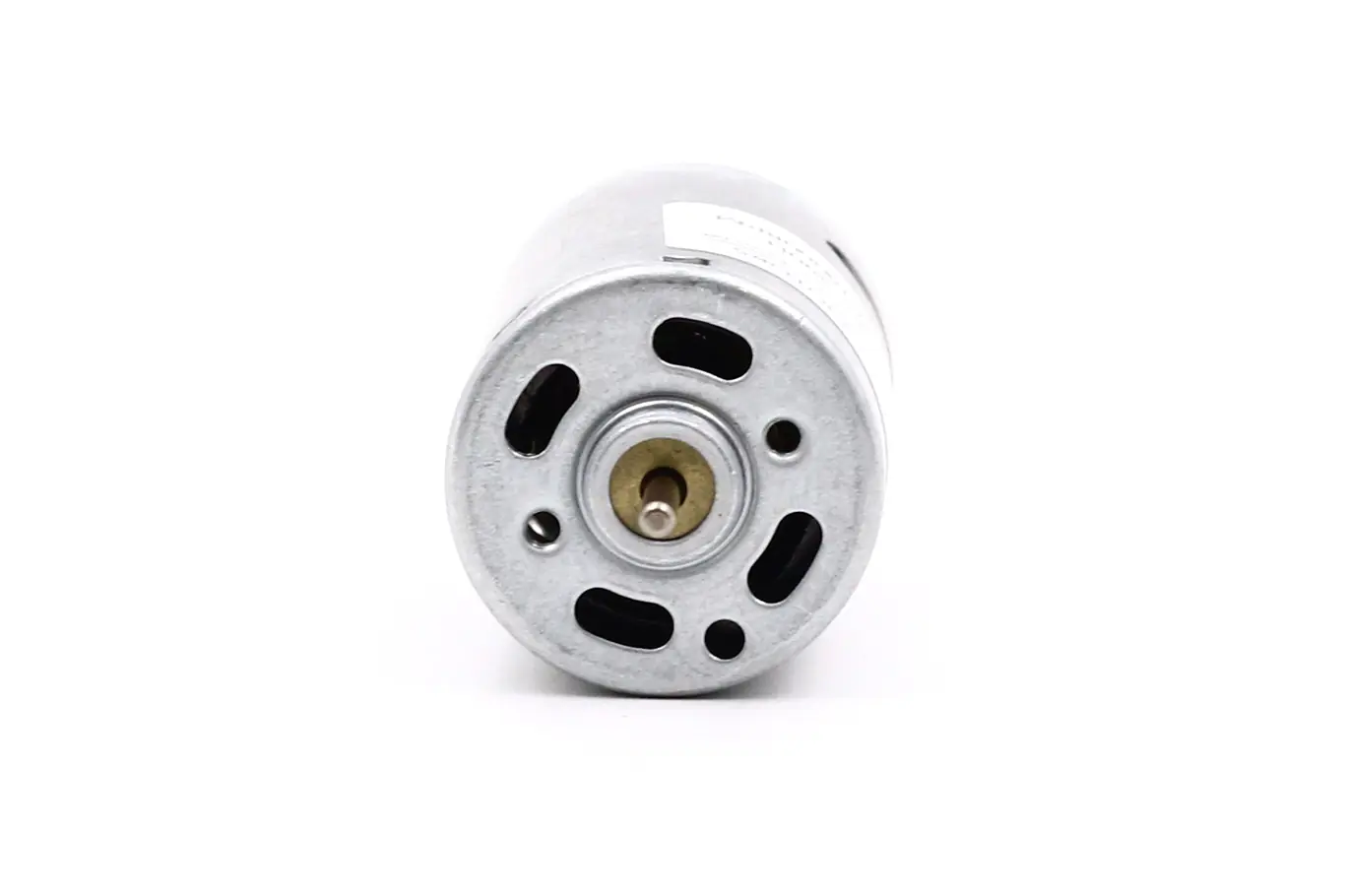

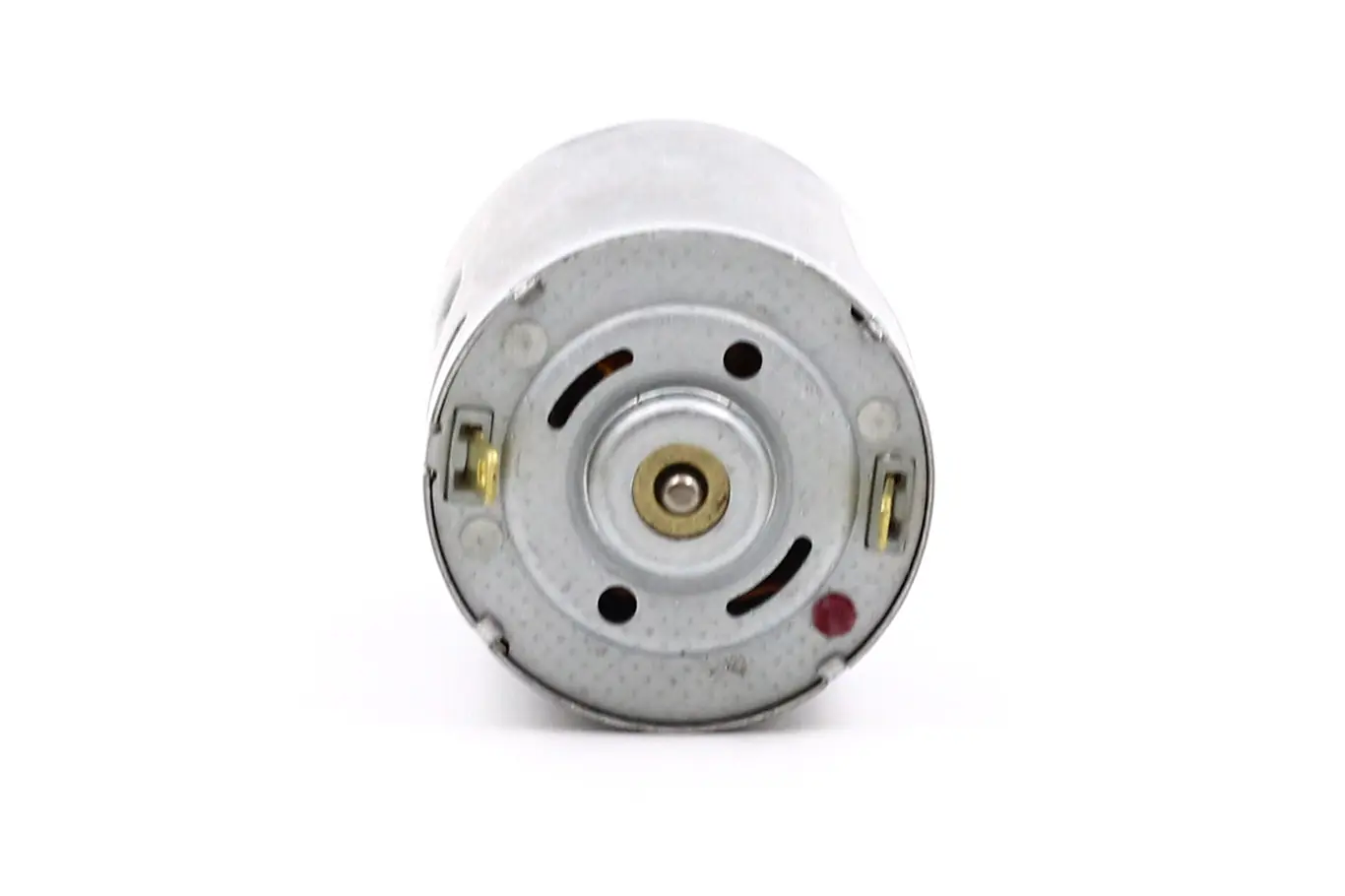

28mm Brushed DC Motor – 46mm Type Model TSL-RS-390H/395H
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-RS-390H/395H
- Motor Type: Brushed DC Motor
- Motor Diameter: 29.4 mm
- Motor Length: 46.7 mm
- Shaft Diameter: φ 2.3 mm
- Rated Voltage: 12 V
- Rated Speed: 13897 RPM
- Output Power: 25.38 W
- Output Torque: 177.68 g·cm
- #More Specifications
♦ Typical Applications:
Automotive Parts/Vacuum cleaner/Hair dryer/Home Appliances/Window actuator/Throttle control
RS-395 Brushed DC Electric Motor Data Sheets
Discover the TSL-RS-390H/395H brushed dc electric motor. It has a ∅ 27.7 mm frame size. It is a brushed DC motor type. The brushed dc electric motor diameter is 29.4 mm. Its length is 46.7 mm. The shaft diameter is φ 2.3 mm. It operates at 12 V. Expect a rated speed of 13897 RPM. The brushed dc electric motor output power is 25.38 W.The brushed dc electric motor delivers an output torque of 177.68 g·cm. It suits automotive applications. It’s great for hair dryers. It’s used in various home appliances. It’s effective for throttle control. It powers vacuum cleaners. It can operate window actuators.
| Model | Voltage | No Load | At Maximum Efficiency | Stall | ||||||
| Operation Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | ||
| RPM | A | r/min | A | mN.m | g.cm | W | g.cm | |||
| RS-390H-5128 | 4.0-7.0 | 6.0V | 17200 | 0.60 | 14460 | 3.15 | 9.51 | 14.39 | 59.7 | 609.0 |
| RS-390H-5030 | 4.0-9.0 | 7.2V | 18000 | 72.0 | 15300 | 4.09 | 13.7 | 21.98 | 91.6 | 934.0 |
| RS-395H-15130 | 9.0-13.0 | 12.0V | 3600 | 0.05 | 2940 | 0.25 | 6.18 | 1.90 | 31.6 | 322.0 |
| RS-395PH-2168 | 9.0-13.0 | 12.0V | 7500 | 0.15 | 6126 | 0.68 | 8.33 | 85 | 45.5 | 464.0 |

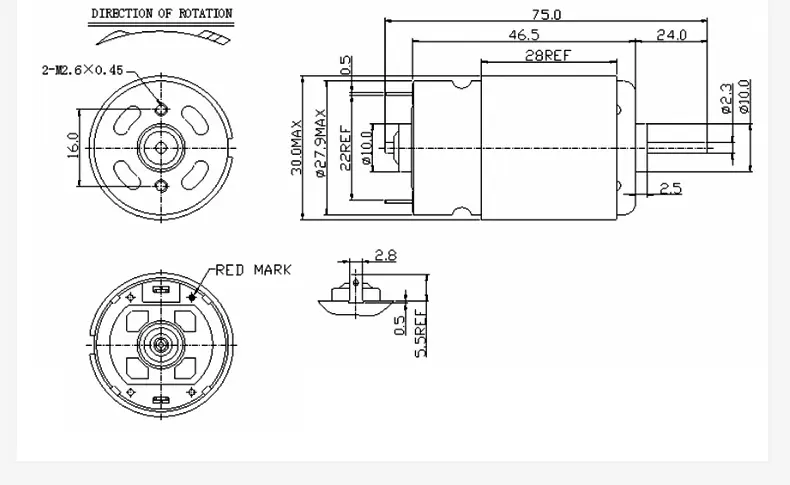

RS-395 Brushed DC Electric Motor with Iron Cover Outline Drawing
