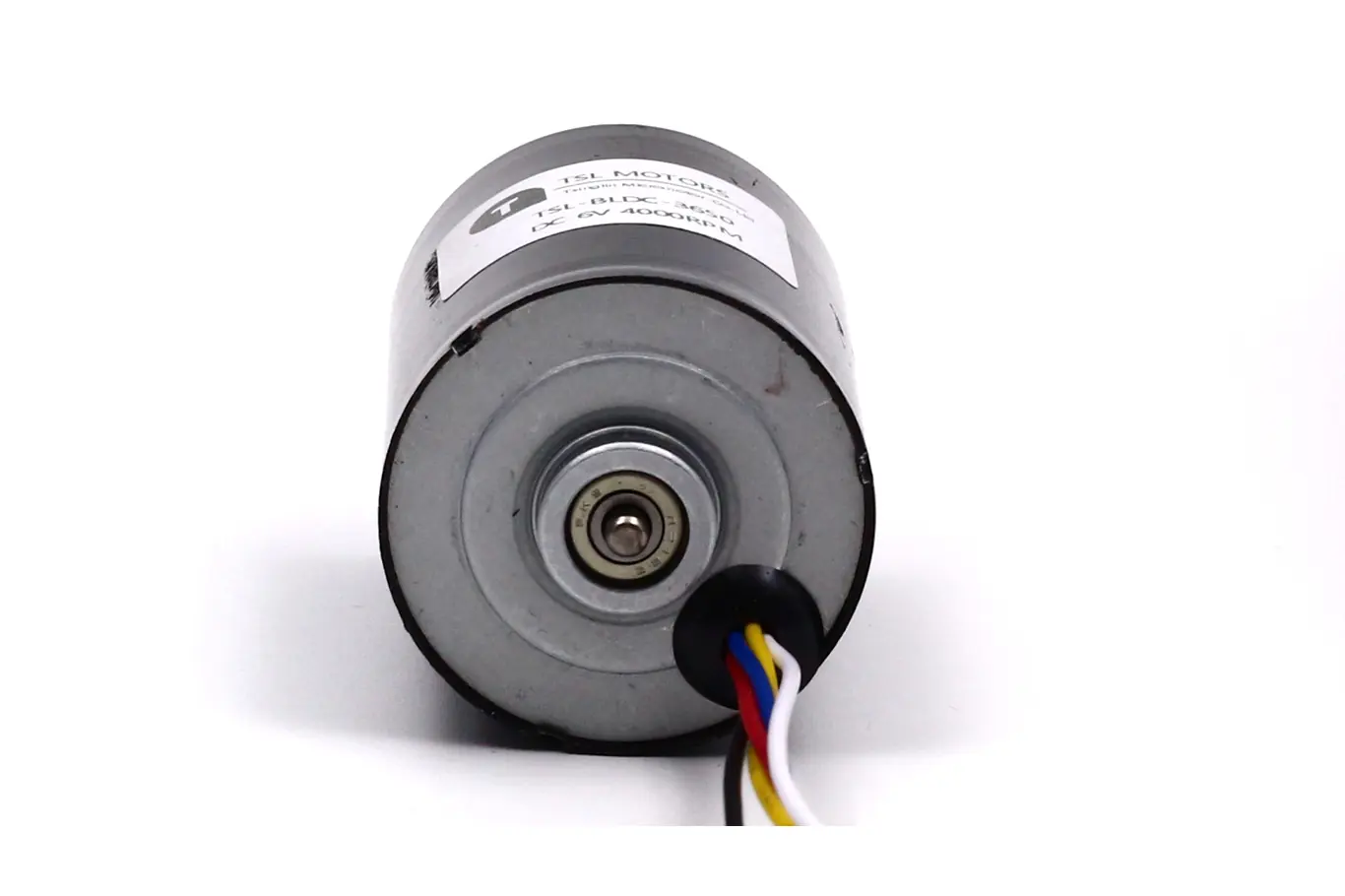

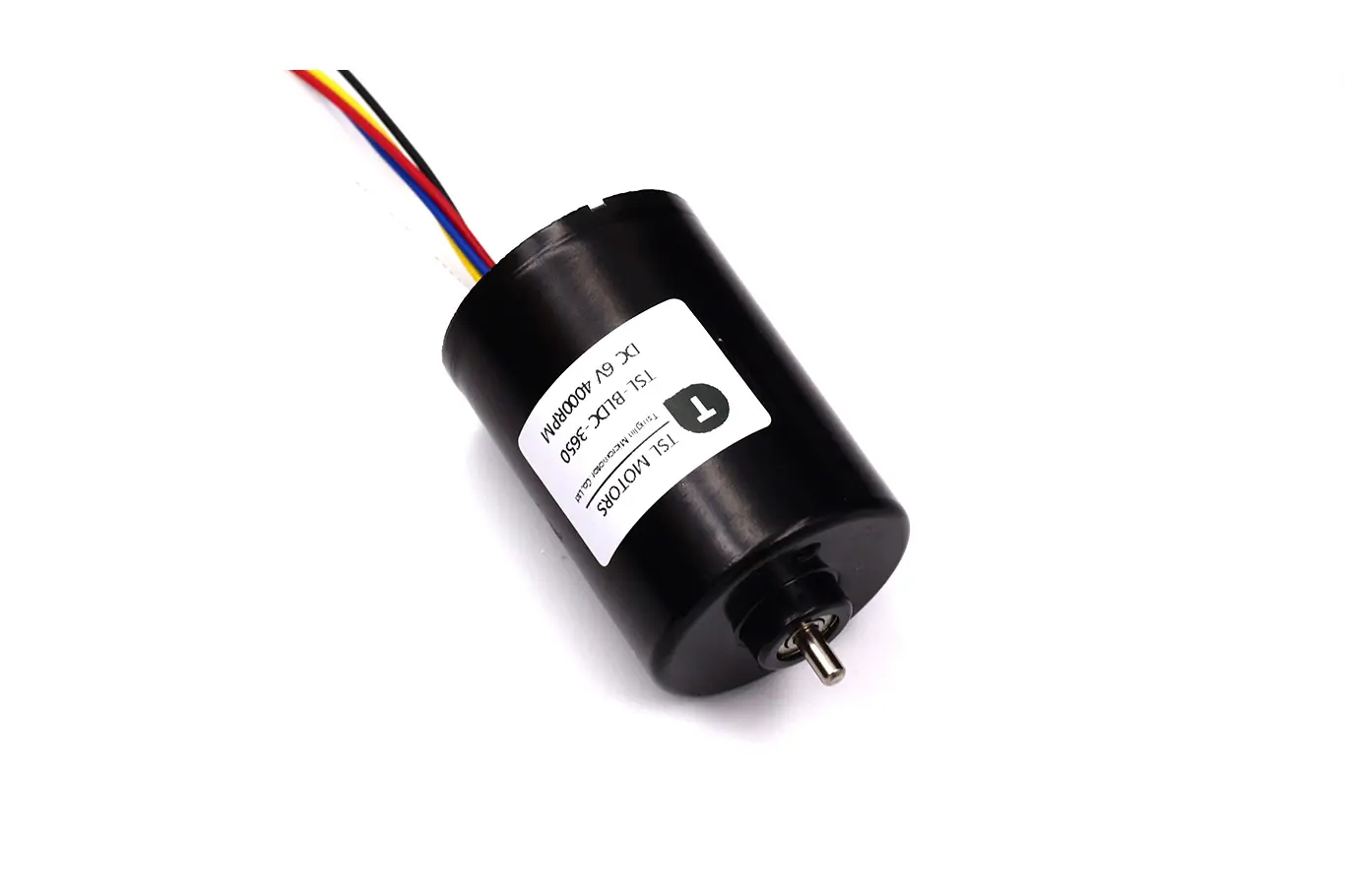

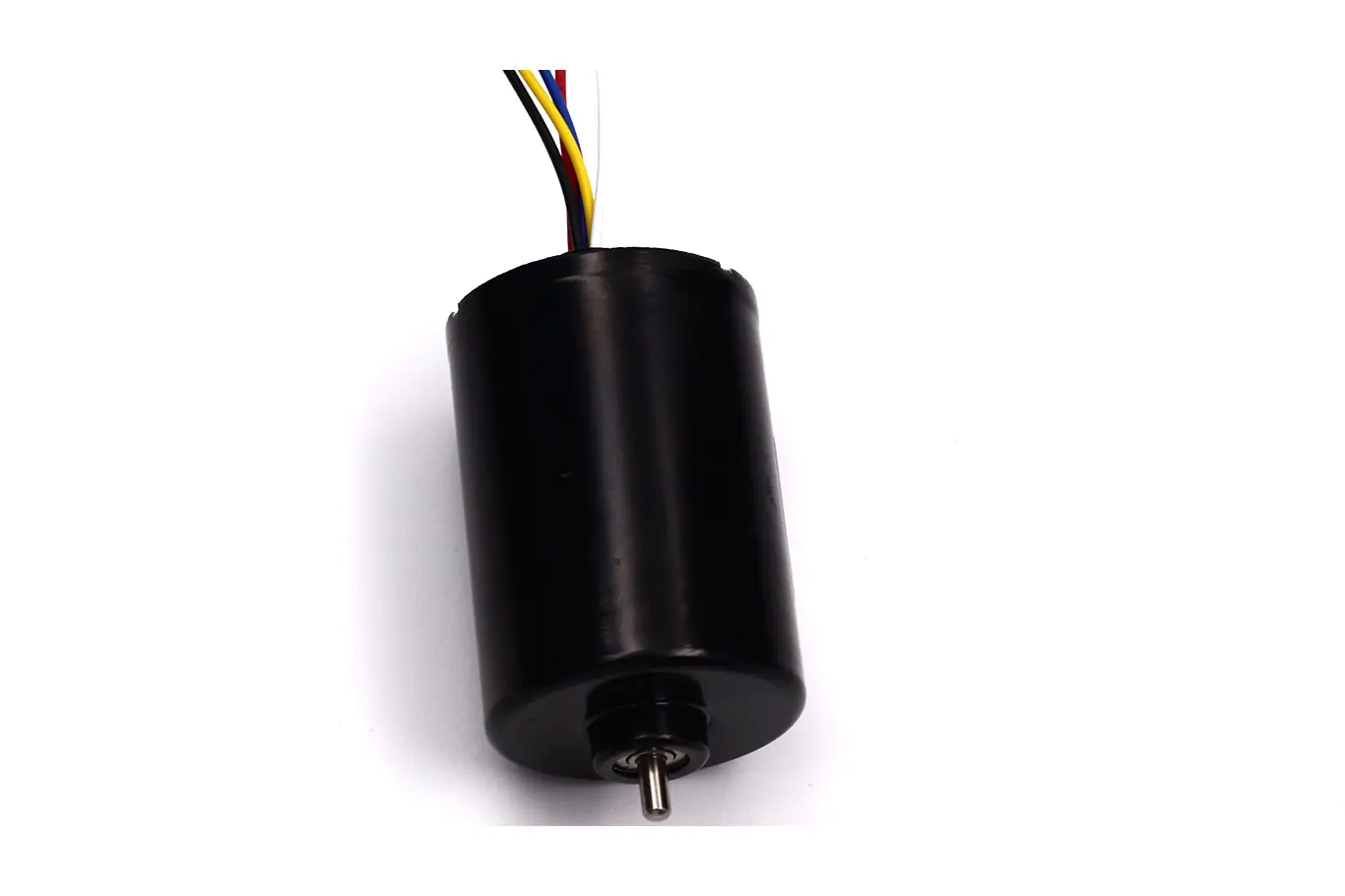

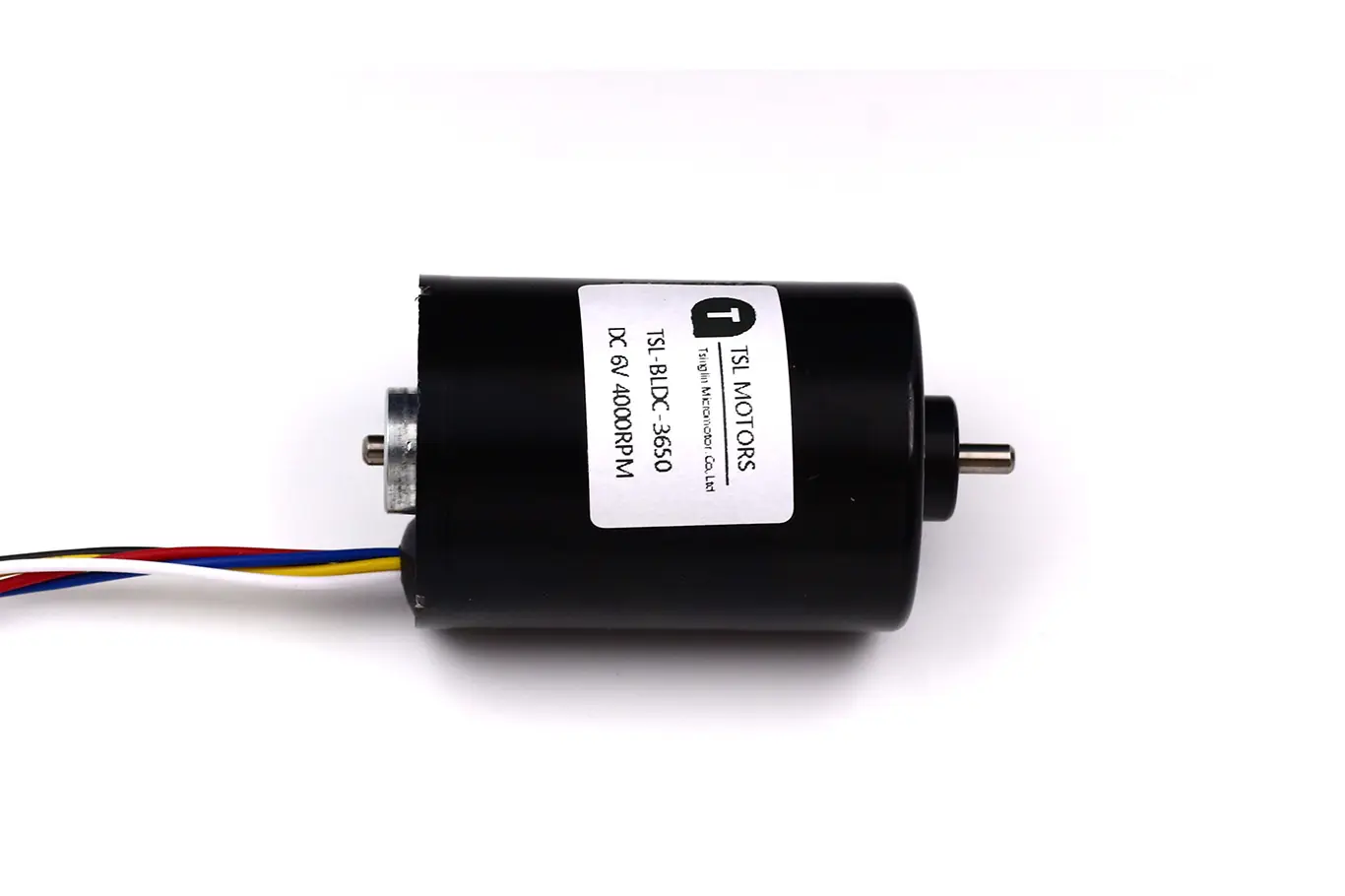

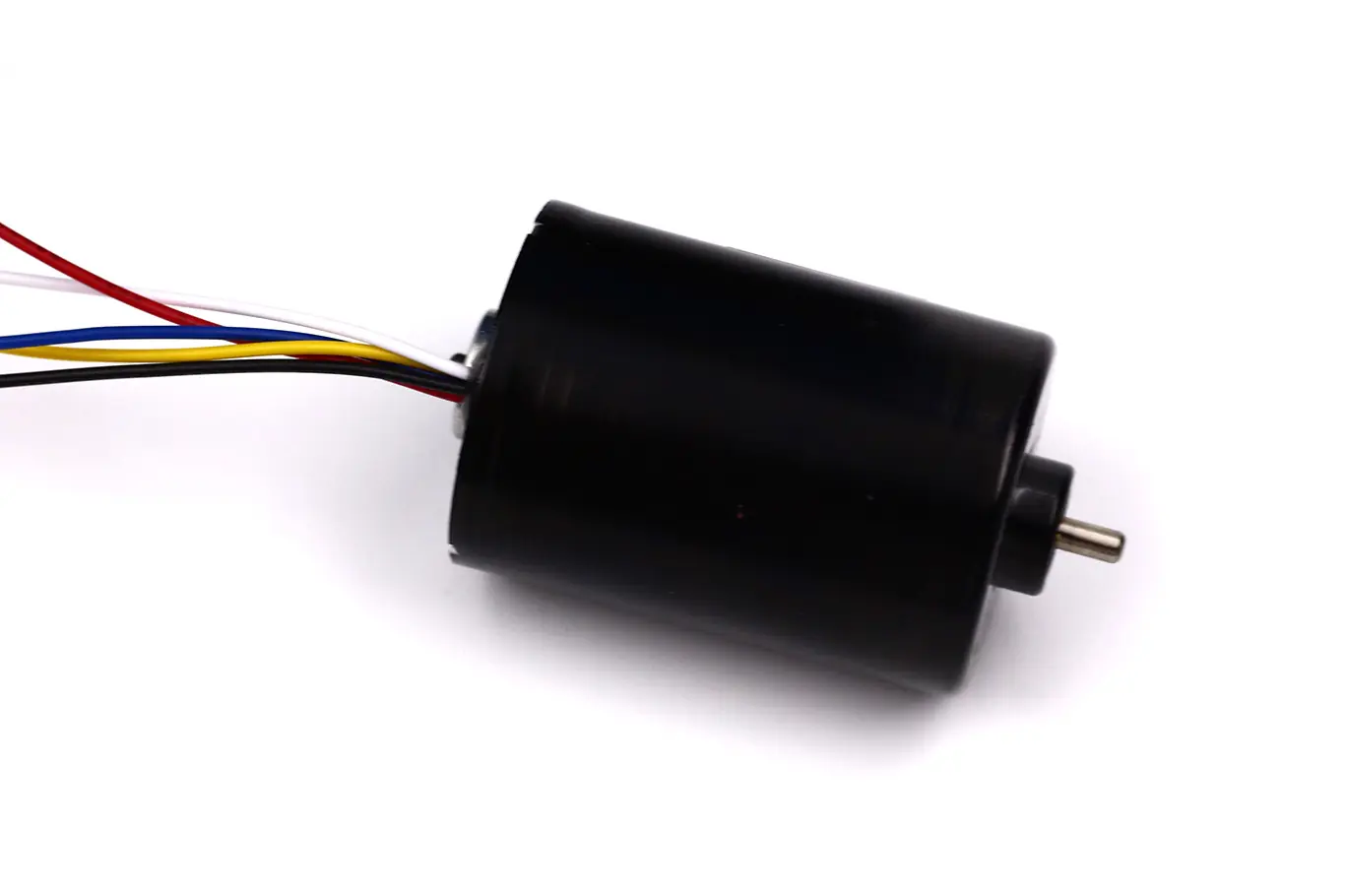

36mm Brushless DC Motor – 50mm Type Model TSL-BLDC-3650
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-BLDC-3650
- Motor Type: Brushless DC Motor
- Motor Diameter: 36 mm
- Motor Length: 50 mm
- Shaft Diameter: φ 3.175 mm
- #More Specifications
♦ Typical Applications:
- Home Appliances/Industrial Equipment
- Fan/Car/Power tool
- Industrial Tools/Intelligent Equipment
- Power tools /security Products /actuator /medical device /automation equipment
Stable Brushless DC Electric Motor Datasheet
The TSL-BLDC-3650 is a 36mm Brushless DC Motor with a 50mm length. It operates at a rated voltage of 24V and reaches speeds of 7219 RPM. This motor delivers an output power of 1.25W and a torque of 354 g·cm, making it ideal for industrial and power tool applications.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g·cm | W | A | g·cm | |
| TSL-BLDC-3650-1 | 24 | 0.26 | 7219 | 1.25 | 5975 | 354 | 1.25 | 6.0 | 2053 |
| TSL-BLDC-3650-2 | 24 | 0.26 | 9700 | 1.36 | 8144 | 297 | 1.36 | 7.12 | 1854 |
| TSL-BLDC-3650-3 | 12 | 0.135 | 3720 | 0.57 | 3004 | 164 | 5.07 | 2.38 | 853 |
👉Other parameters: according to customer demand for design

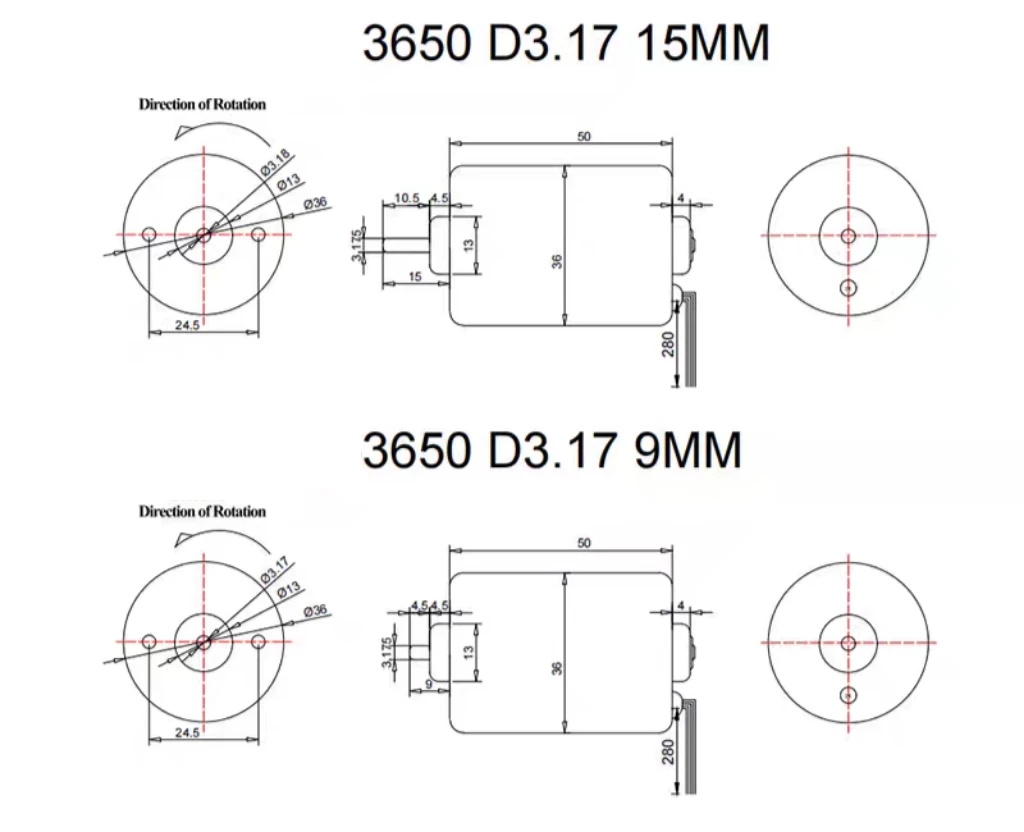

High Wear Resistance Brushless DC Electric Motor Outline Drawing

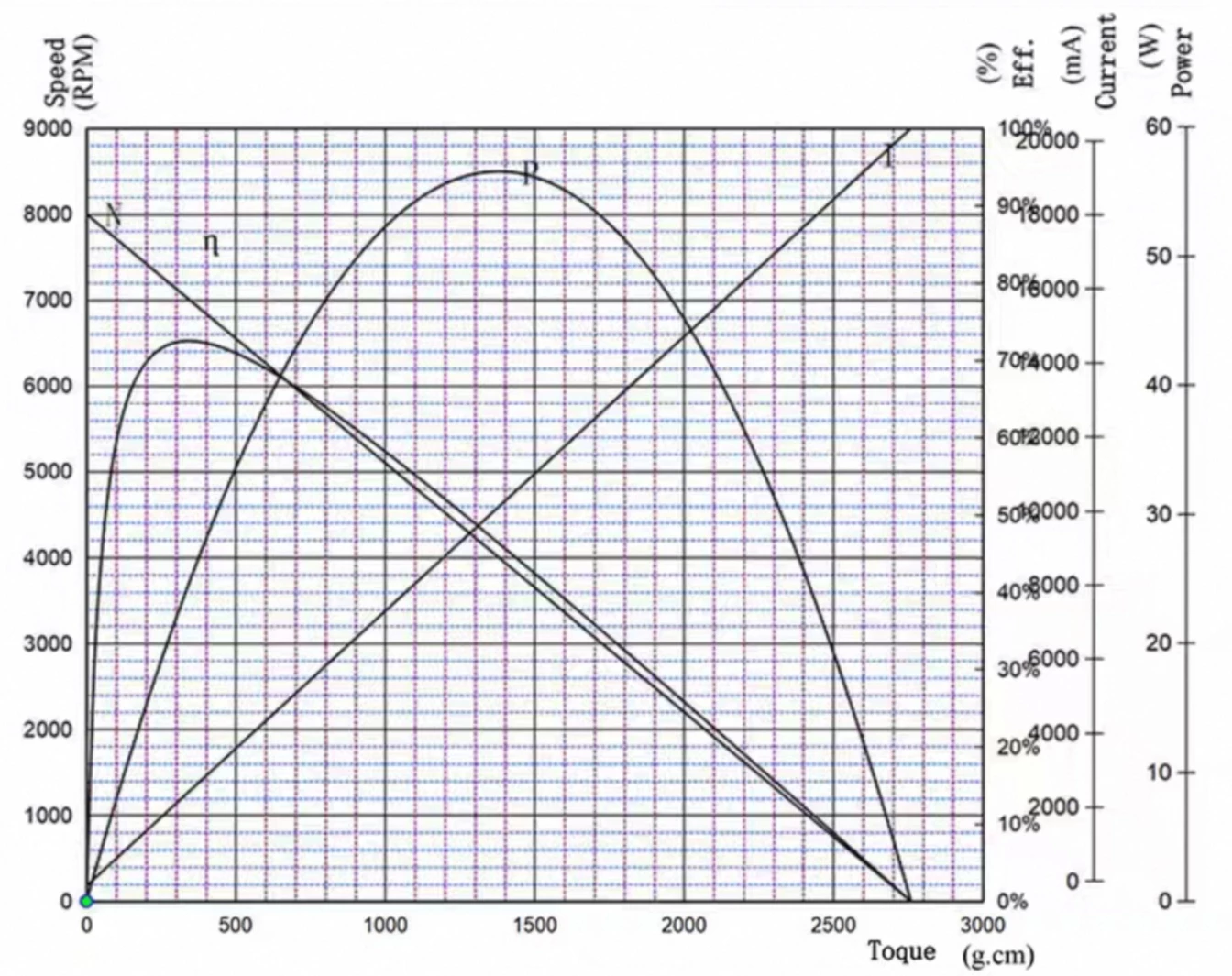

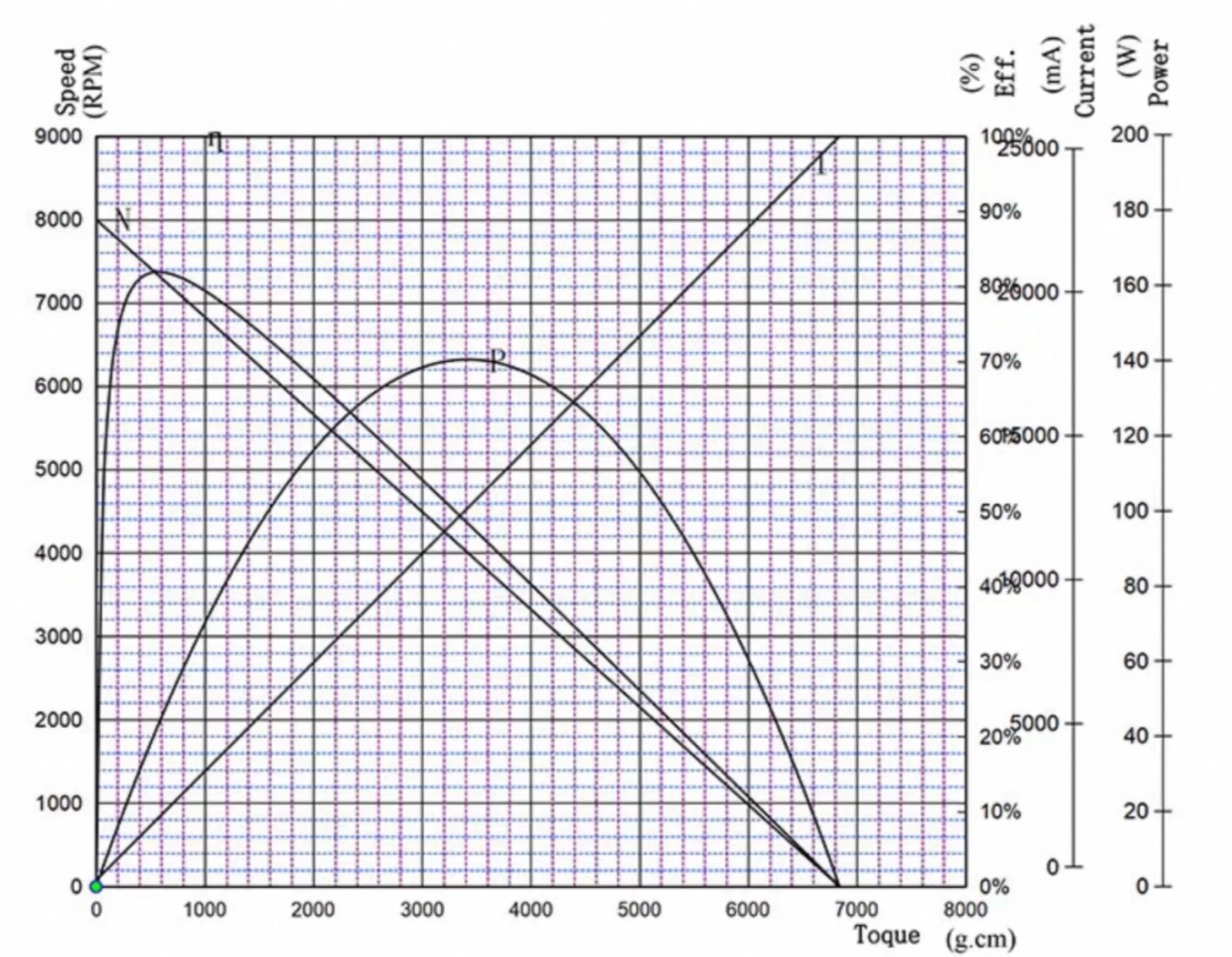

12V,24V High Speed Brushless DC Electric Motor Performance Curve
How To Connect Mini Brushless DC Electric Motors
Keywords:
high speed dc brushless motor, metal brushless motor, micro dc brushless motor，3650 brushless dc motor,brushless dc electric motor
Payment:
Payment options : Paypal T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you don’t have the item by the delivery Time Please send us an email with questions. In most cases, we will send you a response within 24 hours. If not, examine the spam in your email inbox. We will try the best we can to assist you with the issues.
4.Please ensure that your address is in line with the final shipping address prior to you make payment.
FAQ for Brushless DC Electric motor
Q：What is Brushless DC motor?
A:A brushless DC motor eliminates the need for a commutator and brushes by placing permanent magnets on the rotor. The rotor’s rotation is controlled by detecting its magnetic poles and adjusting the current flow through the coils accordingly.
If you want a video to explain the principle of Brushless DC motor, you can click on this link：https://www.youtube.com/watch?v=1AaUK6pT_cE
Q:Can Brushless DC Electric motor Be Customized?
A: Yes,Brushless DC Electric motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
