24mm Brushless Direct Current Motor- 18mm Type Model TSL-BV2418-SF

High Performance 15,000 Hours Brushless Direct Current Motor Datasheet

☑️High power brushless direct current motor TSL-BV2418-SF has variable speed and reversible rotation.

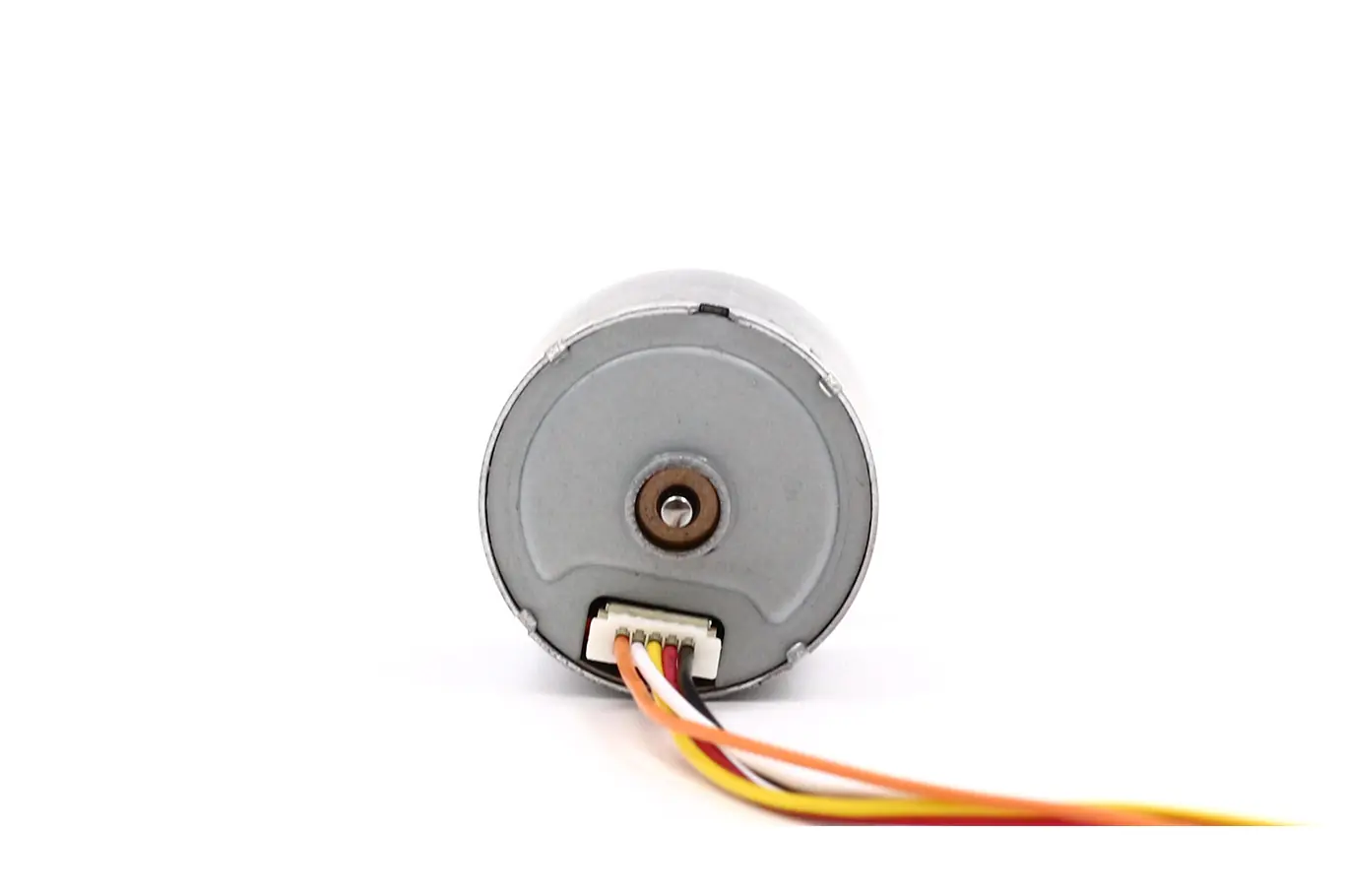

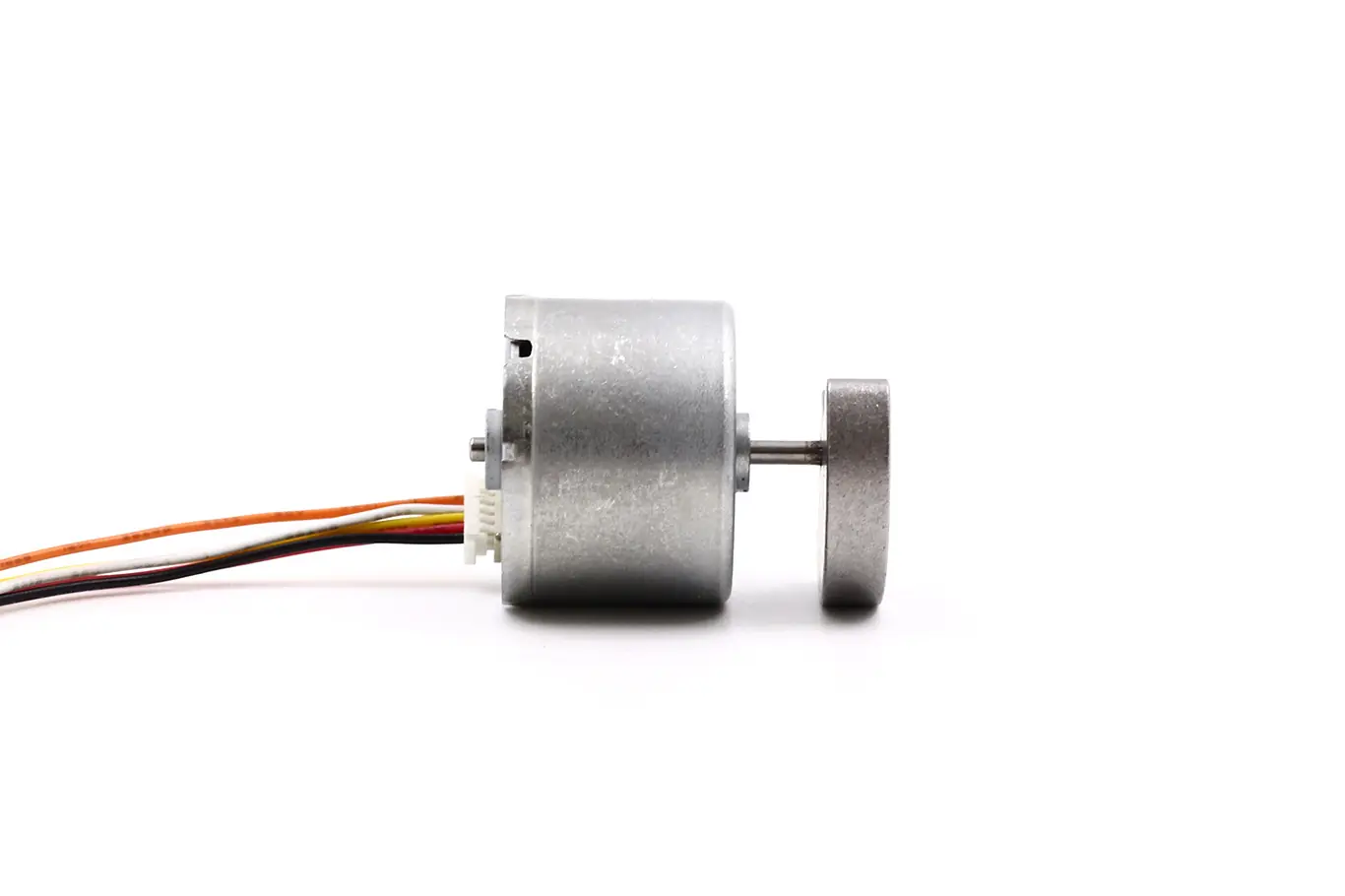

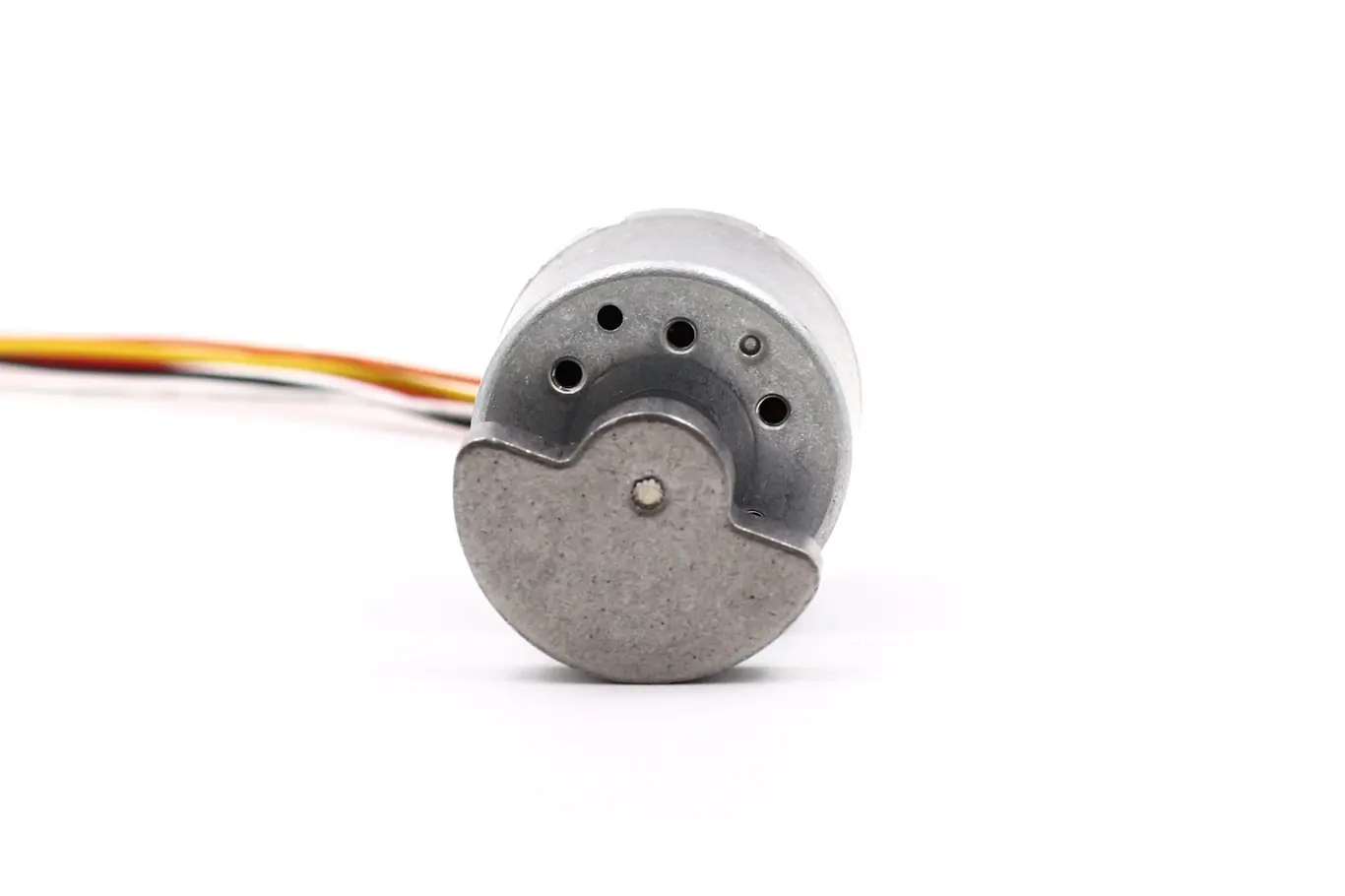

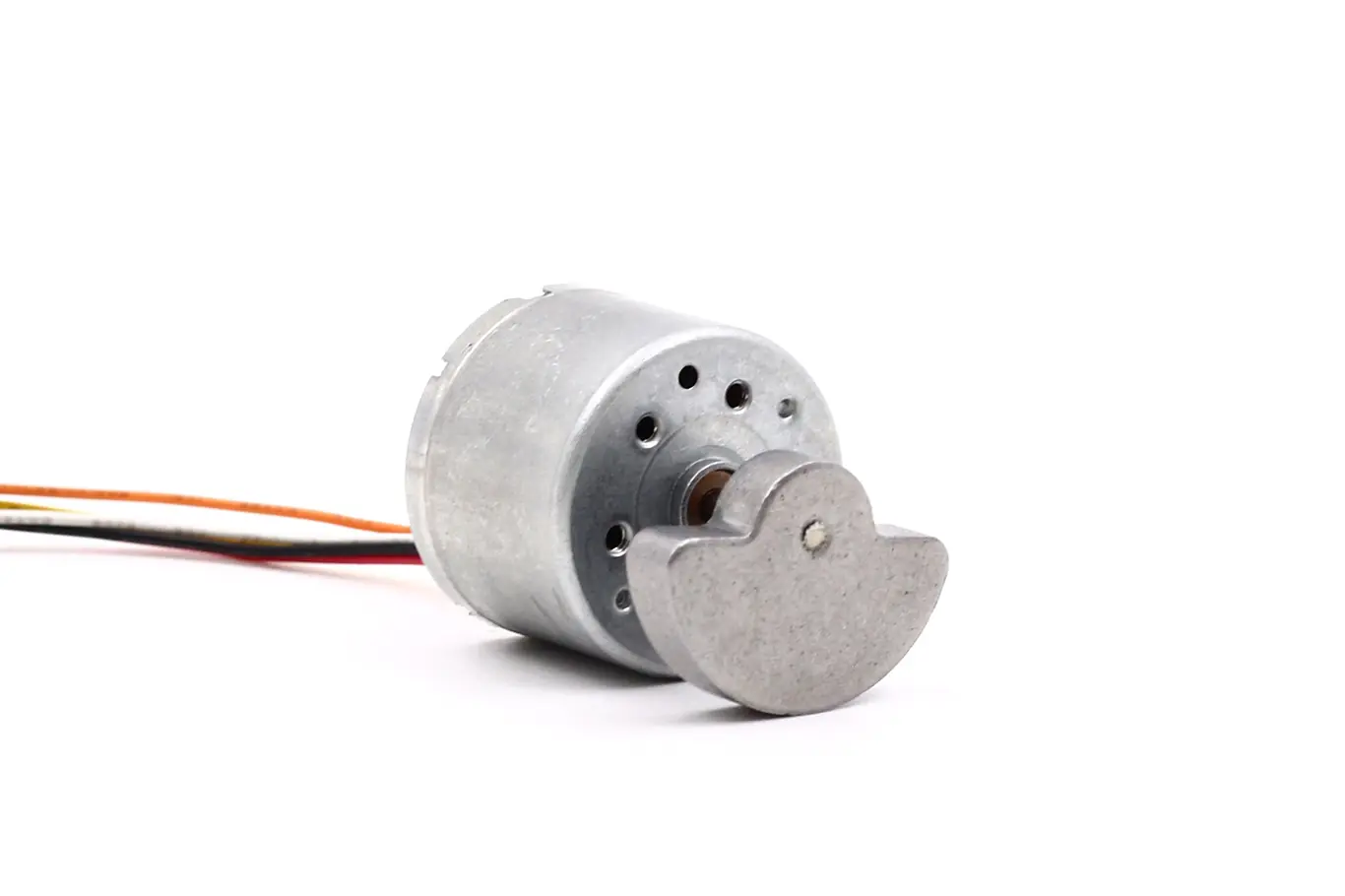

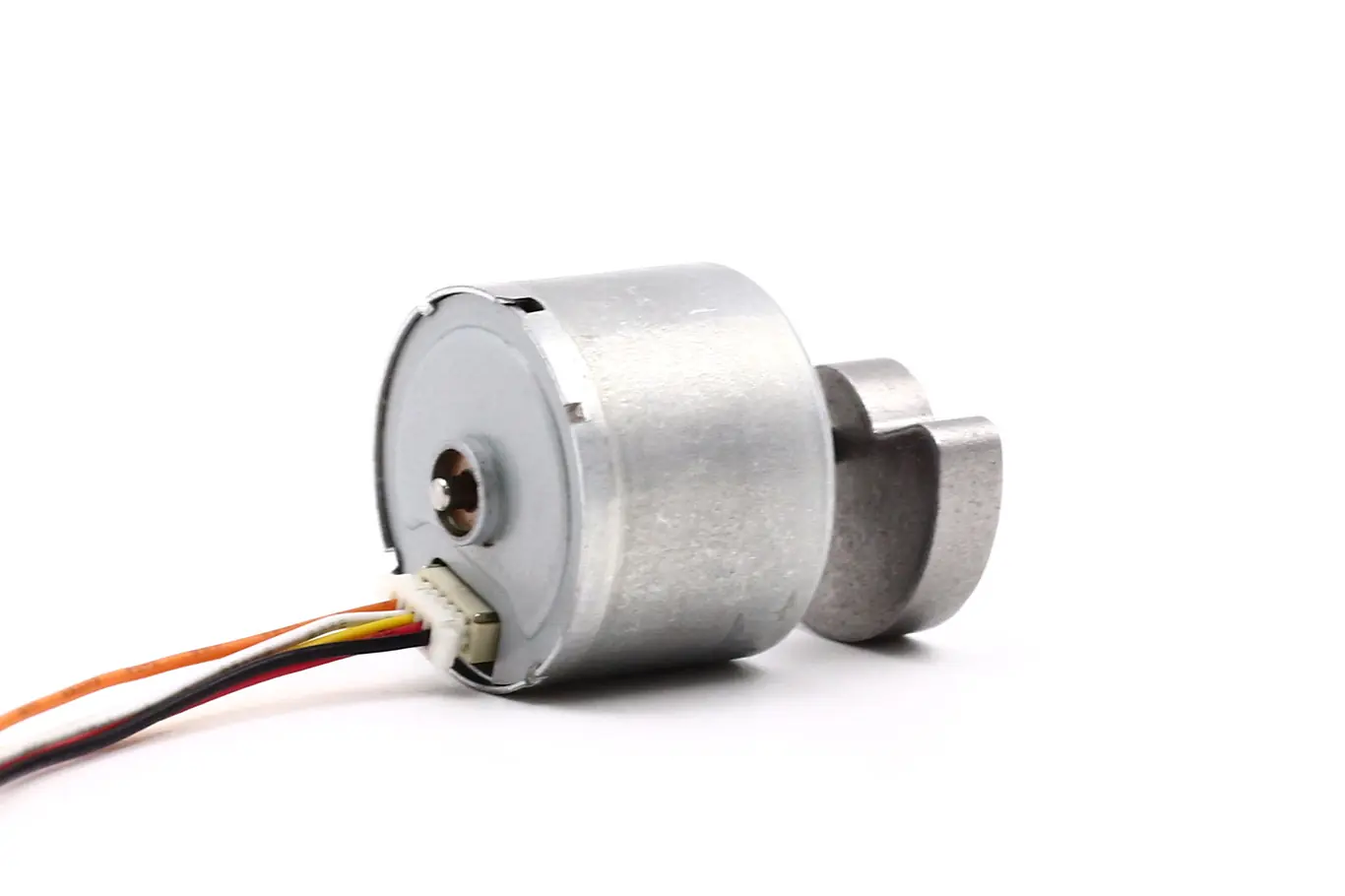

☑️Single-axis fan-shaped brushless direct current motor Ultra-light design, weighing around 37 grams. It is the ideal brushless vibration motor with light performance.

Precision Brushless Direct Current Motor Outline Drawing

☑️The low-voltage brushless direct current motor’s compact dimensions, including an overall length of just 30mm and a head diameter of 13mm, makes it ideal for integrating into many different products like cosmetics, toys massagers, etc.

Vibrator Brushless Direct Current Motor Wiring Diagram

The Red Wire connects to the positive (+) terminal of the motor’s power source; choose the DC energy source which can meet the specifications of the motor.

Black Wire Connects to the the negative (+) terminal of the motor’s power source.

Yellow Wire is a signal from the FG output that is used by other devices to measure the speed of the motor by generating 18 square-wave pulses per motor turn.

White Wire adjusts the duty cycle and pulse width with an interval of 15-25 KHz. If it is not being used for adjustment you can connect it directly with the black wire in order to operate the motor at its maximum speed.

The orange wire controls motor’s direction of rotation (reverse when connected to the black wire) and also features overcurrent protection that has an upper limit of 0.8A. If the current is temporarily higher than 0.8A then the motor will be automatically put into protection mode and will lock. In order to resume the operation, the power source must be shut off and back on.

⚠️Be aware that positive and negative poles on a brushless motors should not be reversed.
