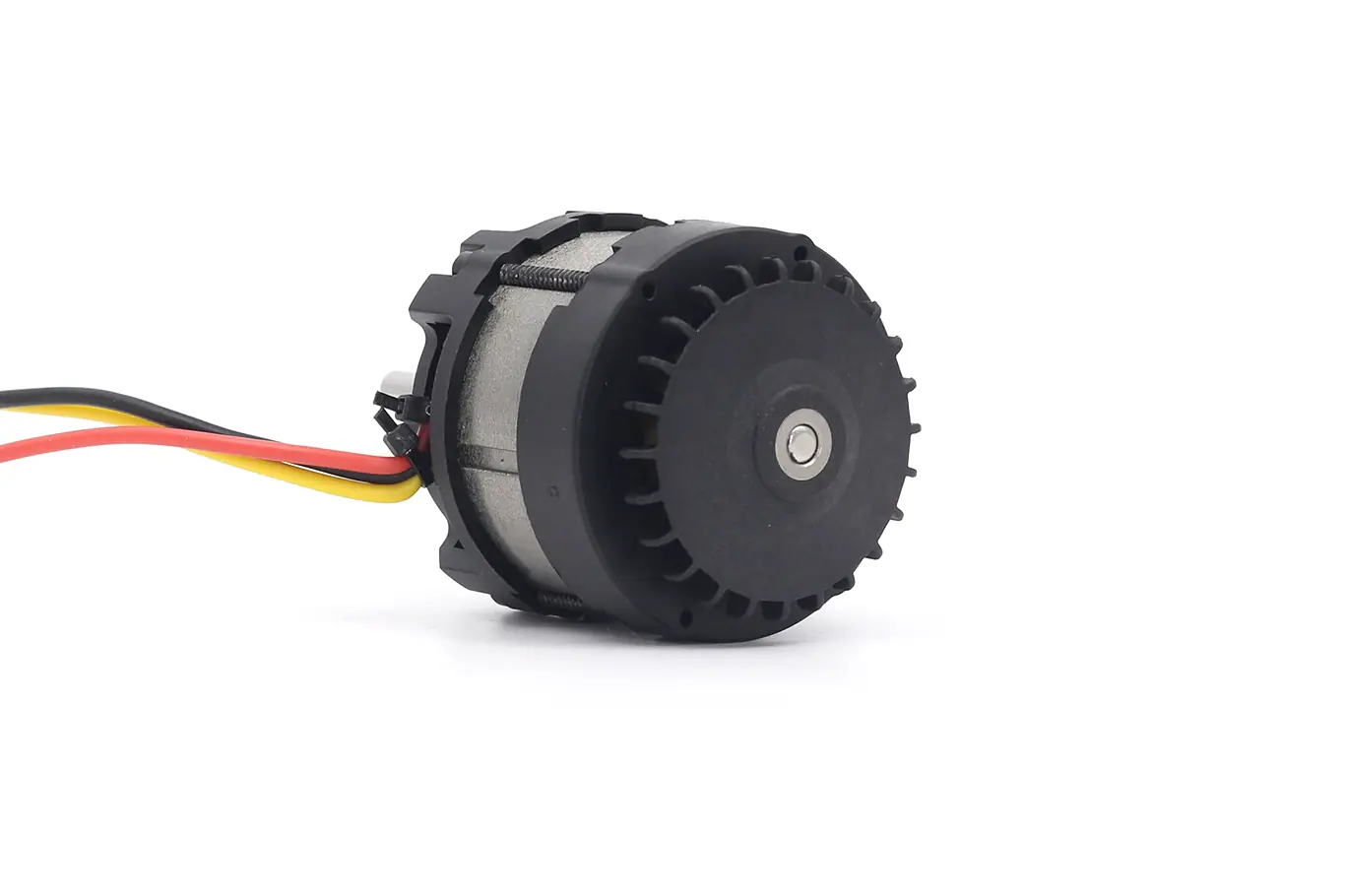

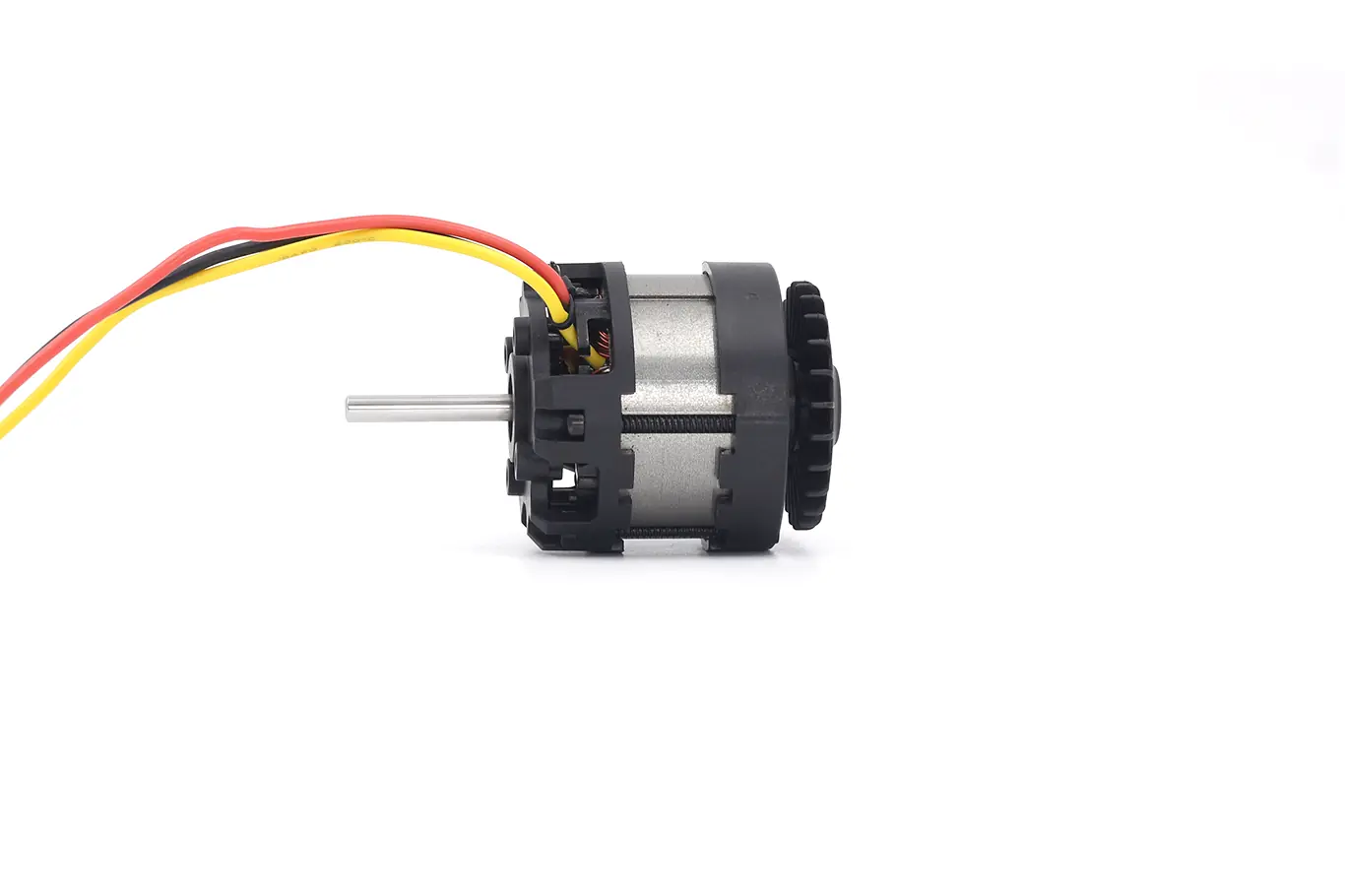

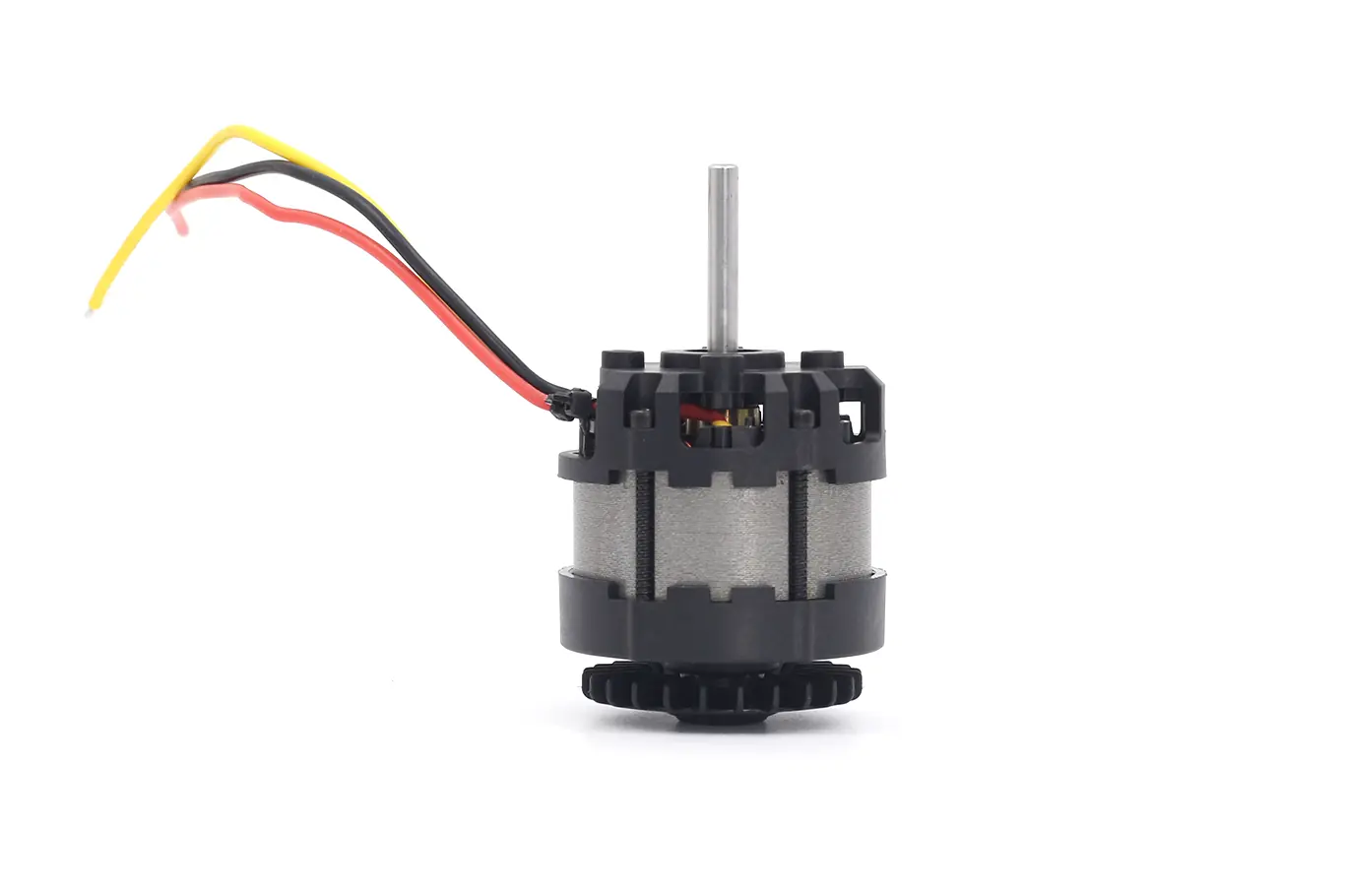

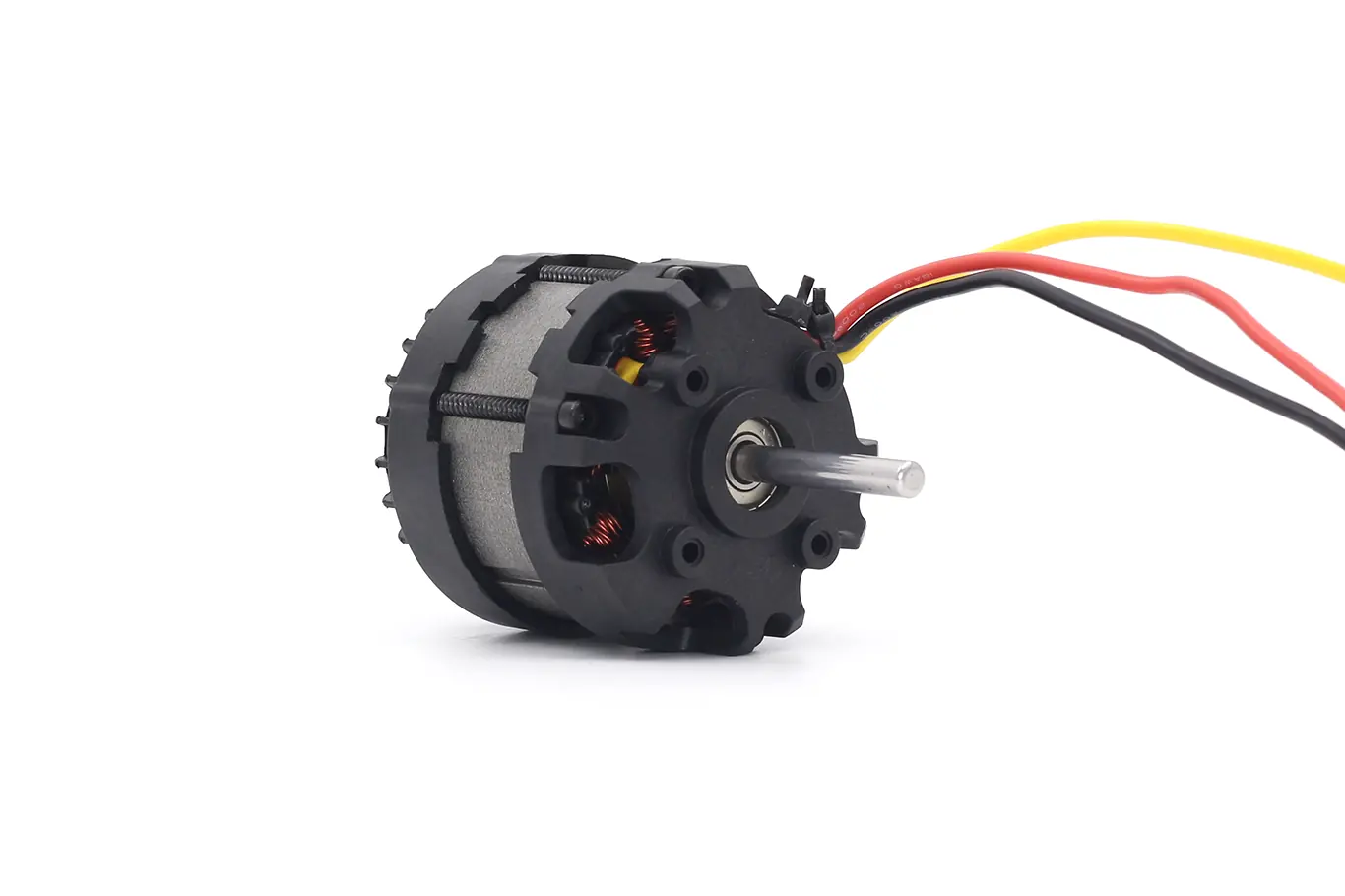

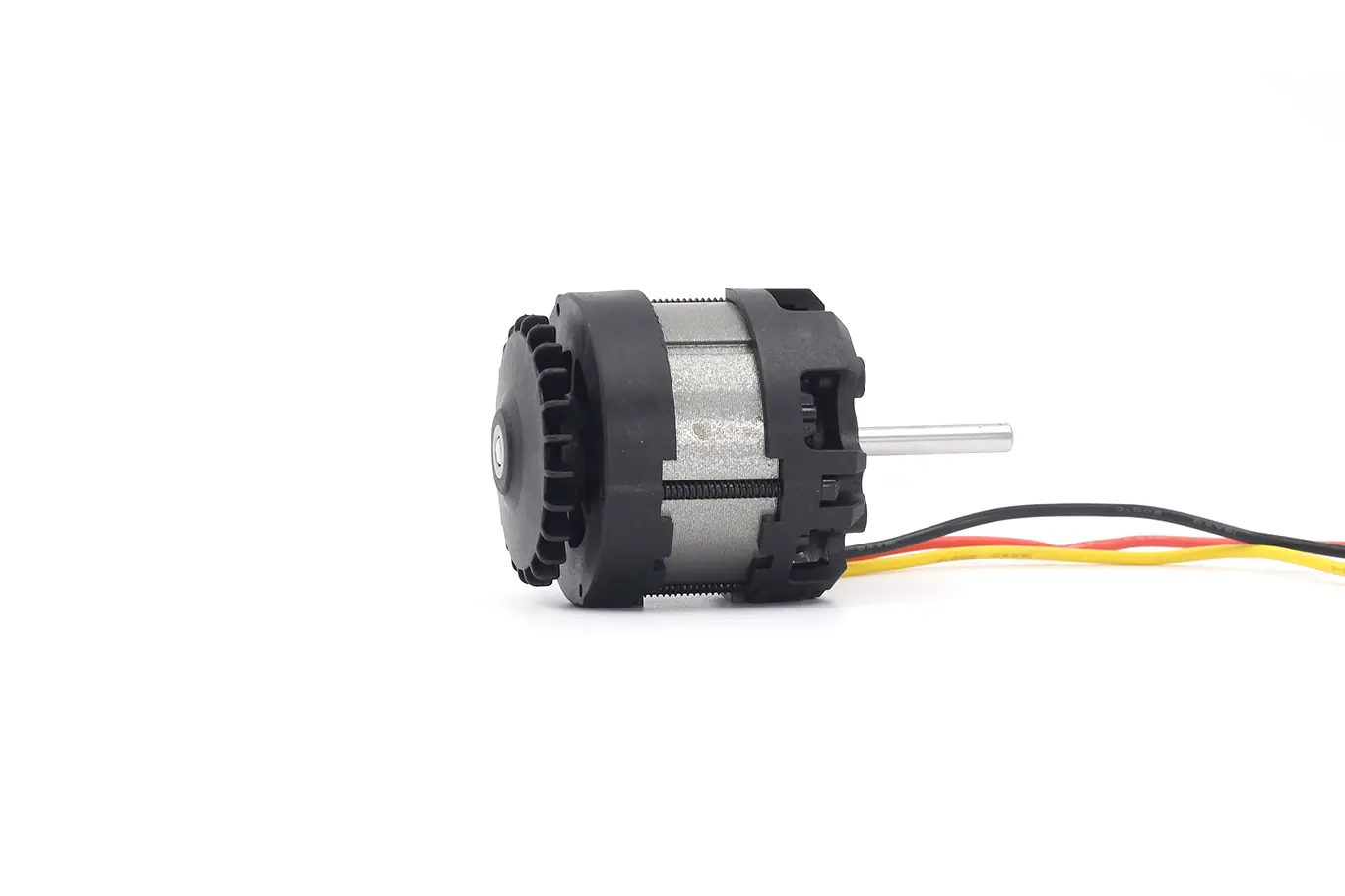

48mm Brushless DC Motor – 58mm Type Model TSL-BLDC-4820
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-BLDC-4820
- Motor Type:Inrunner Rotor BLDC Motor
- Rated Voltage:18V DC
- No Load Current:≤2.0A
- No Load Speed:18000±5%rpm
- Rated Current:20A
- Rated Speed:15000±5%
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Chain Saw,Electric Chain Saw,Logging Saw,Guide Bar.Electric Saw,Firefighting Equipment
- Hedge,Hedge Trimmer Blade / Hedge Shear,Hedge Trimmer,Cordless Hedge Trimmer.Electric Hedge Trimmer
- Tea Picking,Electric Tea Picker,Tea Picker,Pruning,Pruning Machine
Brushless Power Tool Motor TSL-BLDC-4820 Datasheet
Experience unmatched efficiency with our brushless power tool motor, engineered for 18V systems requiring high rated speed precision up to 15,000 RPM. From 6-inch chainsaws to hedge trimmers, this motor delivers the rugged durability and consistent torque your professional tools demand.
The brushless power tool motor TSL-BLDC-4820 sets the standard with an impressive 90.8% peak efficiency and integrated smart protection. Designed for compact power tools, it maximizes battery life and output power, ensuring your products stay cool under pressure and ahead of the competition.
| Motor Model | Rated Voltage | At No Load | At Stall(Extrapolated) | At Maximum Efficiency | ||||||
| Speed | Current | Torque | Current | Efficiency | Torque | Speed | Current | Output | ||
| V | RPM | A | mNm | A | % | mNm | RPM | A | W | |
| TSL-BLDC-4820 | 18 | 18100 | 1.400 | 1041.601 | 96.171 | 90.81 | 112.143mNm | 16151 | 11.603 | 189.674 |
💕The inrunner bldc motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

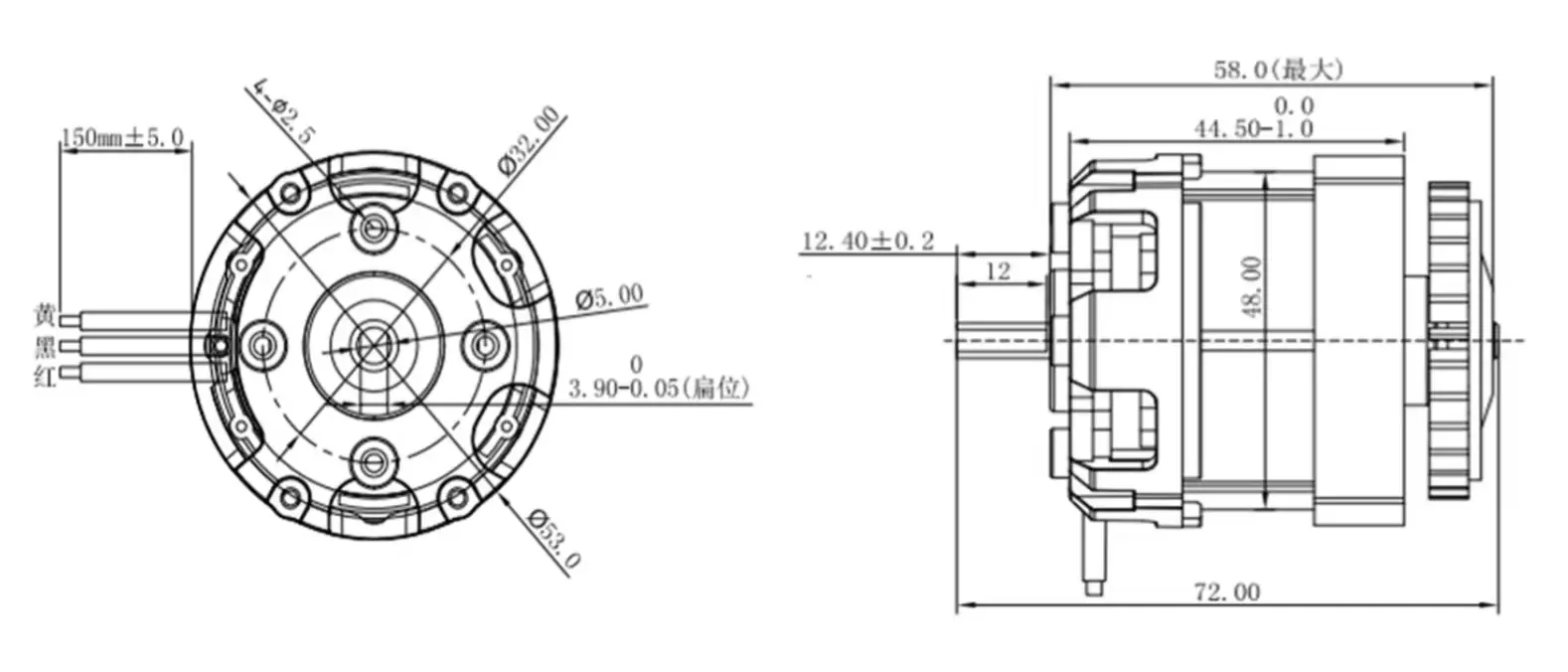

Brushless Power Tool Motor TSL-BLDC-4820 Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.

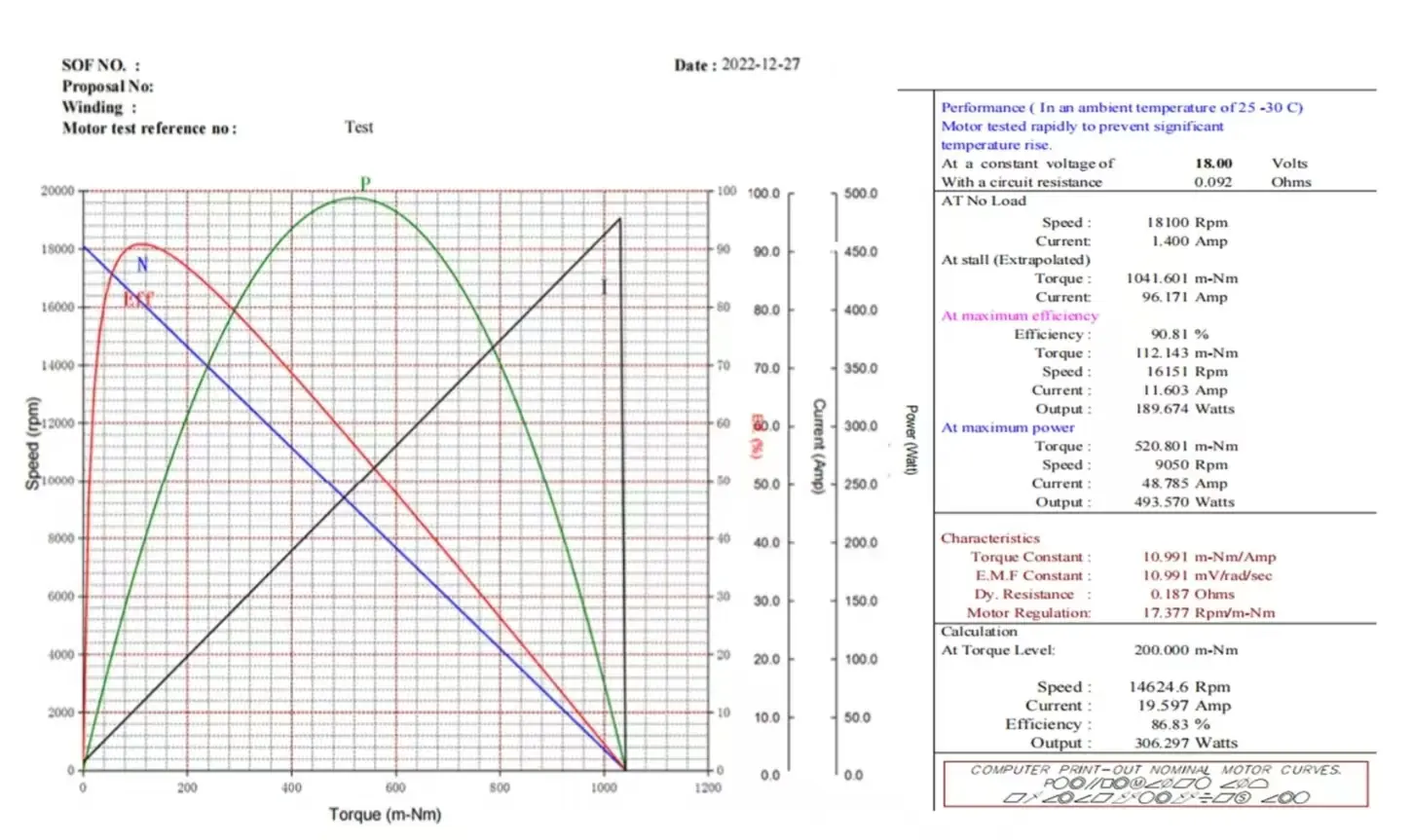

Brushless Power Tool Motor TSL-BLDC-4820 Performance Curve

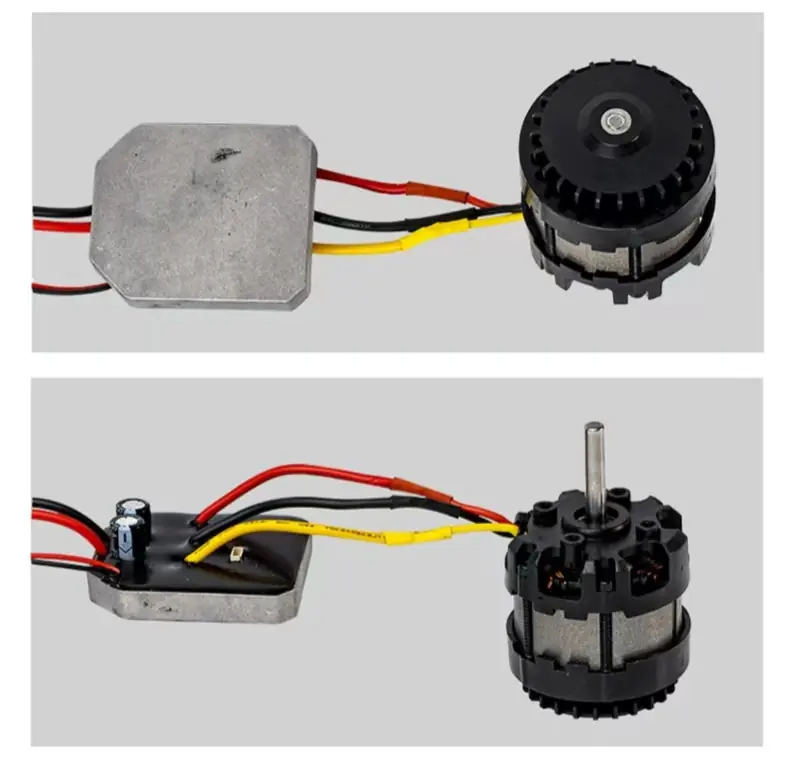

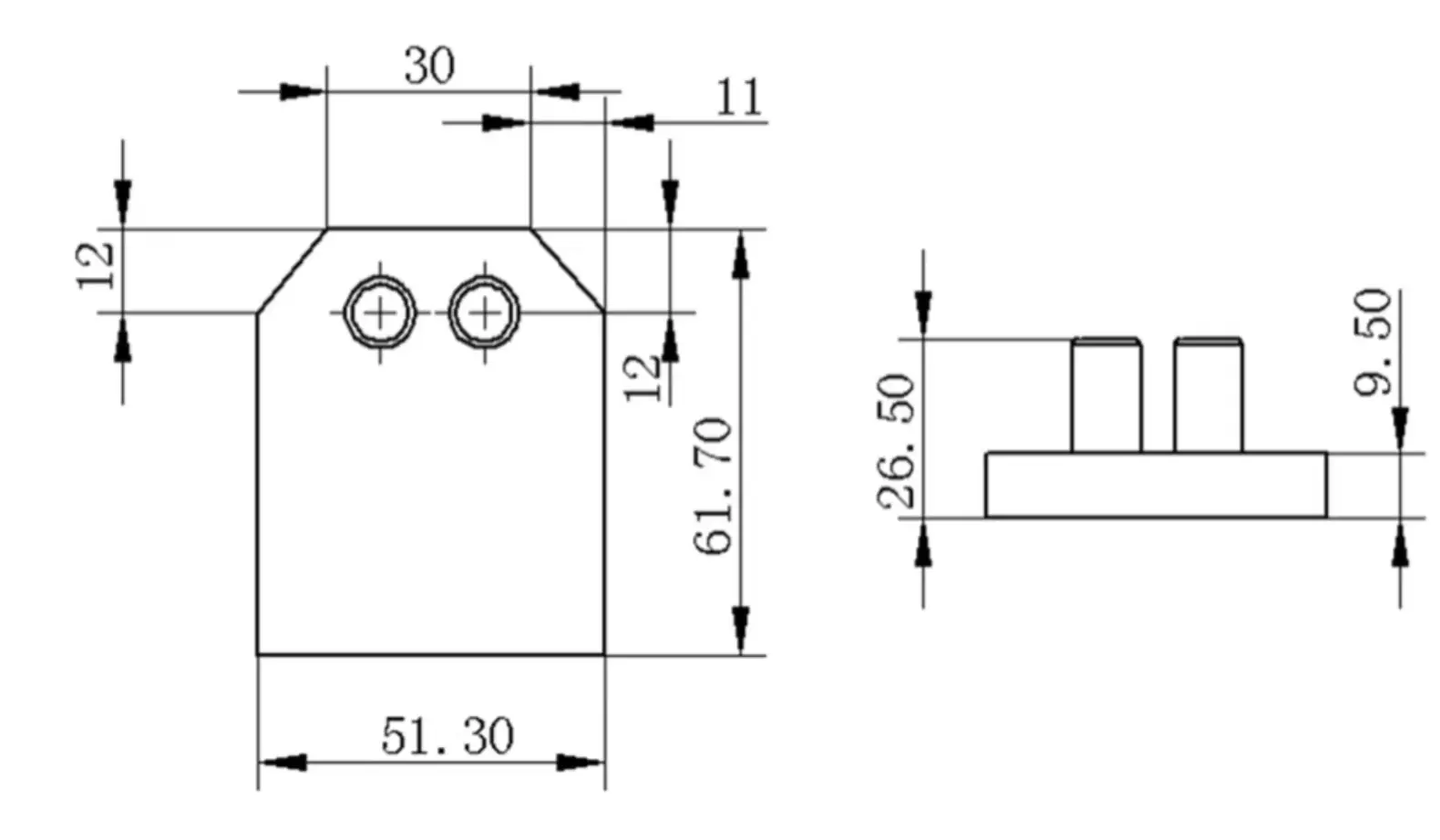

Brushless Power Tool Motor TSL-BLDC-4820 Controller Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.
Brushless Power Tool Motor TSL-BLDC-4820 Controller Technical Parameters
| Item | Technical Parameter | Item | Technical Parameter | ||
| Rated Voltage | 18 | V | Voltage Protection Parameters | ||
| Rated Current | 20 | A | Overvoltage Protection Threshold | 31±1 | V |
| Stepless Speed Regulation | None | - | Overvoltage Protection Delay | 50±10 | MS |
| Gear Speed Regulation | No x-gear | - | Standby Undervoltage Protection Threshold | 14±0.5 | V |
| Speed Loop | 15000±5% | RPM | Standby Undervoltage Protection Delay | 50±10 | MS |
| Forward/Reverse Control | None | Output Shaft Counterclockwise | Operating Undervoltage Protection Threshold | 28.0±0.5 | V |
| Soft Start Time | ＜500 | MS | Operating Undervoltage Protection Delay | 1000±150 | MS |
| Brake Time | ＜180 | MS | Undervoltage Recovery Voltage Threshold | 31.0±0.5 | V |
| Communication Function | None | - | Undervoltage Recovery Delay | 50±10 | MS |
| Overload Protection Parameters | |||||
| Overload Protection Current | 45 | A | Overload Protection Delay | 50±10 | MS |
| Current Limiting Protection Threshold | 45±3 | A | Locked-rotor Protection Delay | 50±10 | MS |
| Short Circuit Protection Threshold | ＞150 | A | |||
| Motor Low-Speed Operation Protection Parameters (All 3 conditions must be met simultaneously) | |||||
| Speed Threshold | ＜3000 | RPM | |||
| Current Threshold | ＞15±3 | A | |||
| Delay Time | 500±50 | MS | |||
| MOSFET Temperature Parameters (B3435) | |||||
| Overtemperature Protection Threshold | 90±5 | °C | Overtemperature Protection Delay | 500±50 | MS |
| Overtemperature Protection Recovery Threshold | 80±5 | °C | Overtemperature Protection Recovery Delay | 500±50 | MS |
| Battery Pack Temperature Parameters (B3950) | |||||
| Overtemperature Protection Threshold | Not Specified) | ℃ | Overtemperature Protection Delay | 500±50 | MS |
| Overtemperature Protection Threshold | Not Specified) | ℃ | Overtemperature Protection Delay | 500±50 | MS |
