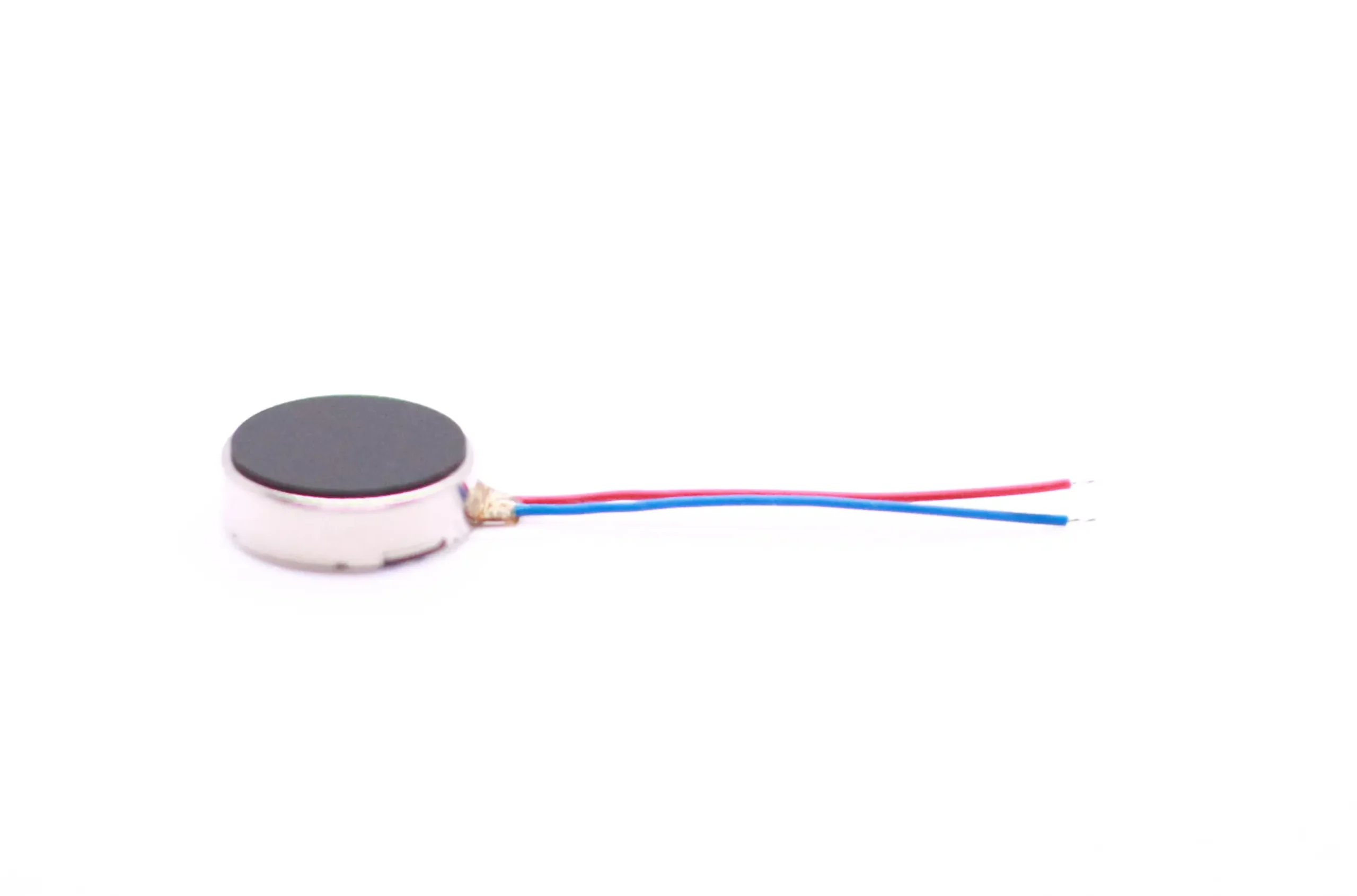

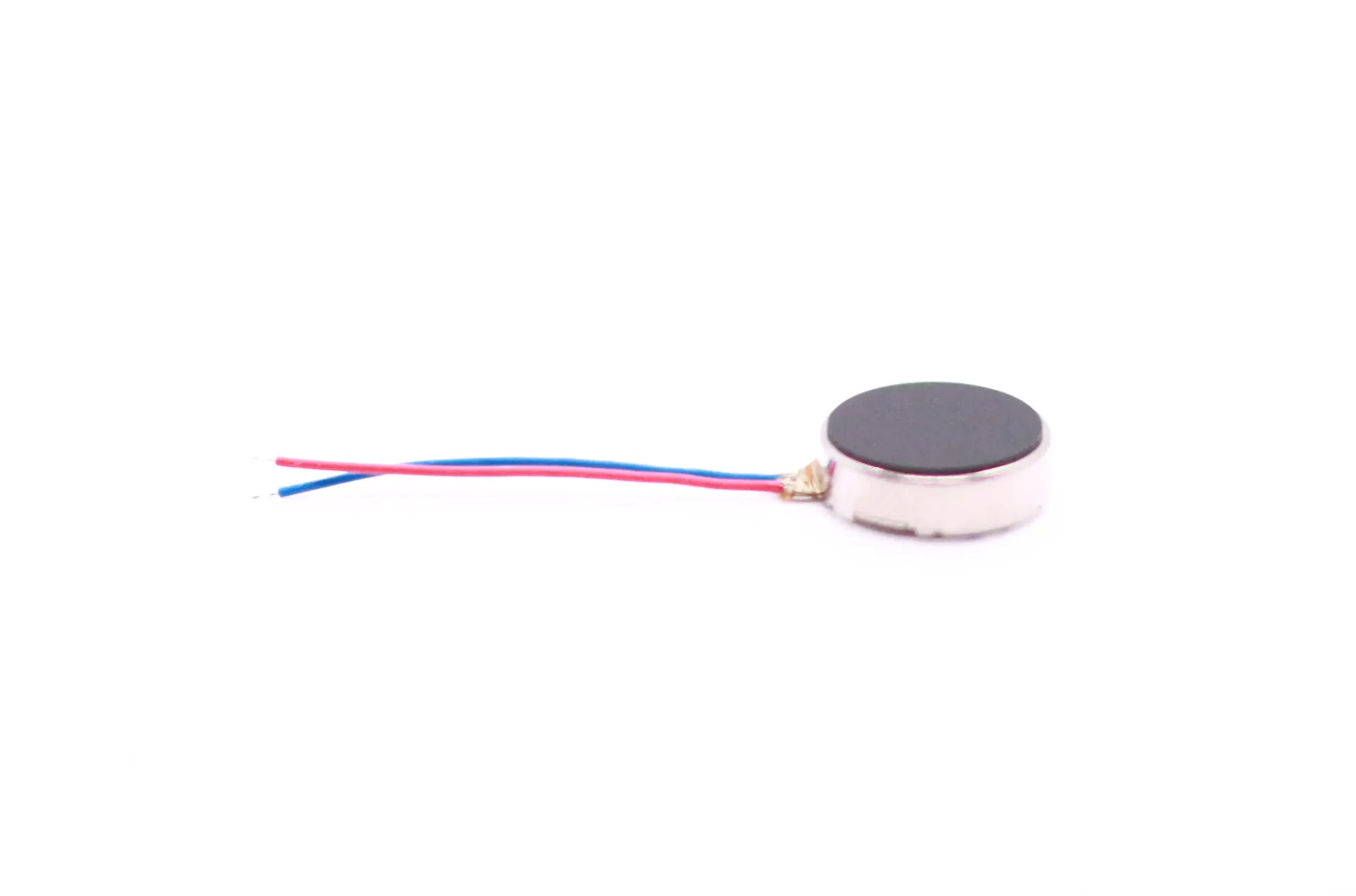

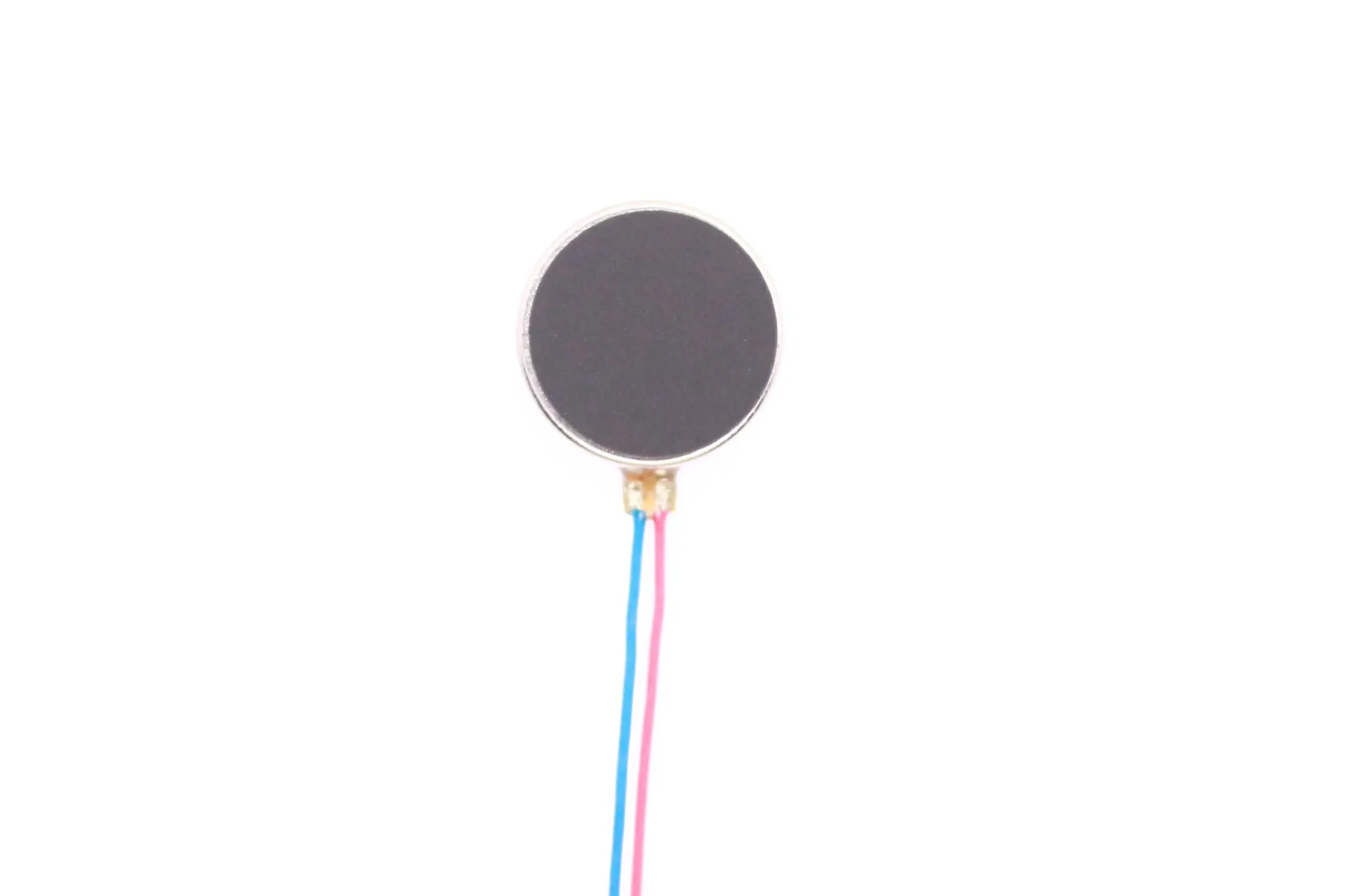

12mm Coin Vibration Motor – 3mm Type Model TSL-C1234-KLB016F
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-C1234-KLB016F
Certification: ISO9001,ISO14001,IS045001
Green product: ROHS/REACH compliant
Motor Diameter:12.0mm
Motor Thickness:3.4mm
Coin Vibrator Miniature Button Vibration Motor Key Features
| Motor Model | TSL-C1234-KLB016F |
| Motor Diameter | 12.0mm ± 0.1mm |
| Motor Thickness | 3.4mm ± 0.1mm |
| Rated Voltage | 3V DC |
| Operating Voltage | 2.7V – 3.3V DC |
| Rated Current | ≤80mA |
| Typical Current | 48mA |
| Rise Time | ≤90ms |
| Fall Time | ≤50ms |
| Rated Speed | 9,000rpm |
| Rated Current | 150mA max |
| Rotation Direction | CW (clockwise) or CCW (Contrary clockwise) |
| Operating Environment | -20°C ~ +60°C, Ordinary Humidity |
| Storage Environment | -30°C ~ +70°C, Ordinary Humidity |
| Nominal Amplitude Vibe Force | 2.0G |
3V Micro Button Vibration Motor DC Vibration Motor Outline Drawing
Compact Size 12mm Button Vibration Motor Bulk Production
Keywords:
3v vibration motor, button vibration motor, micro vibrator motor, 12mm coin vibration motor, coin flat vibrating micro motor, coin mobile phone vibration motor, coin type brushed vibration motor, coin type vibration motor datasheet,coin button vibrationb motor,button vibration motor
Development Samples:
The quantities of sampling for models that are stocked can be ordered directly online from us.
Engineering & Manufacturing:
Contact us via one or the Sales Engineers for a quotation for production as well as a consultation regarding customizing and integration services.
Payment Method:
Payment methods : PayPal or T/T
Shipping Method:
1.Delivery: DHL door to door 7 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you’ve not received the item by the delivery Time Please send us an email If you have any concerns. We usually give you a reply within 24 hours If not, please look through your email account. We will try the best we can to help resolve the issue.
4.Please ensure that your address is in line with the address of your final shipment before you make payment.
5.In order to make sure you get your order tax-free at the time of import, we’ll declare it as an amount lower than the value you paid for it, please note this in your order, thank you!
FAQ For coin button vibration motor
Q:What is the minimum order quantity (MOQ)?
A: There are no minimum order quantity (MOQ) requirements from our side. However, please note that customized components must comply with our material supplier’s established MOQ specifications. For detailed requirements and pricing specifics, kindly refer to the attached quotation document.
Q:What are the different types of coin vibration motors you can provide?
A: We offer three types of coin vibration motors: the ERM (Eccentric Rotating Mass) type, coin brushless types, and the LRA (Linear Resonant Actuator) type. All of these motors feature a flat, coin button-shaped casing.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.If you need a Vibration Measurement Calculator,click there:https://hansfordsensors.com/tools-resources/vibration-calculator/
