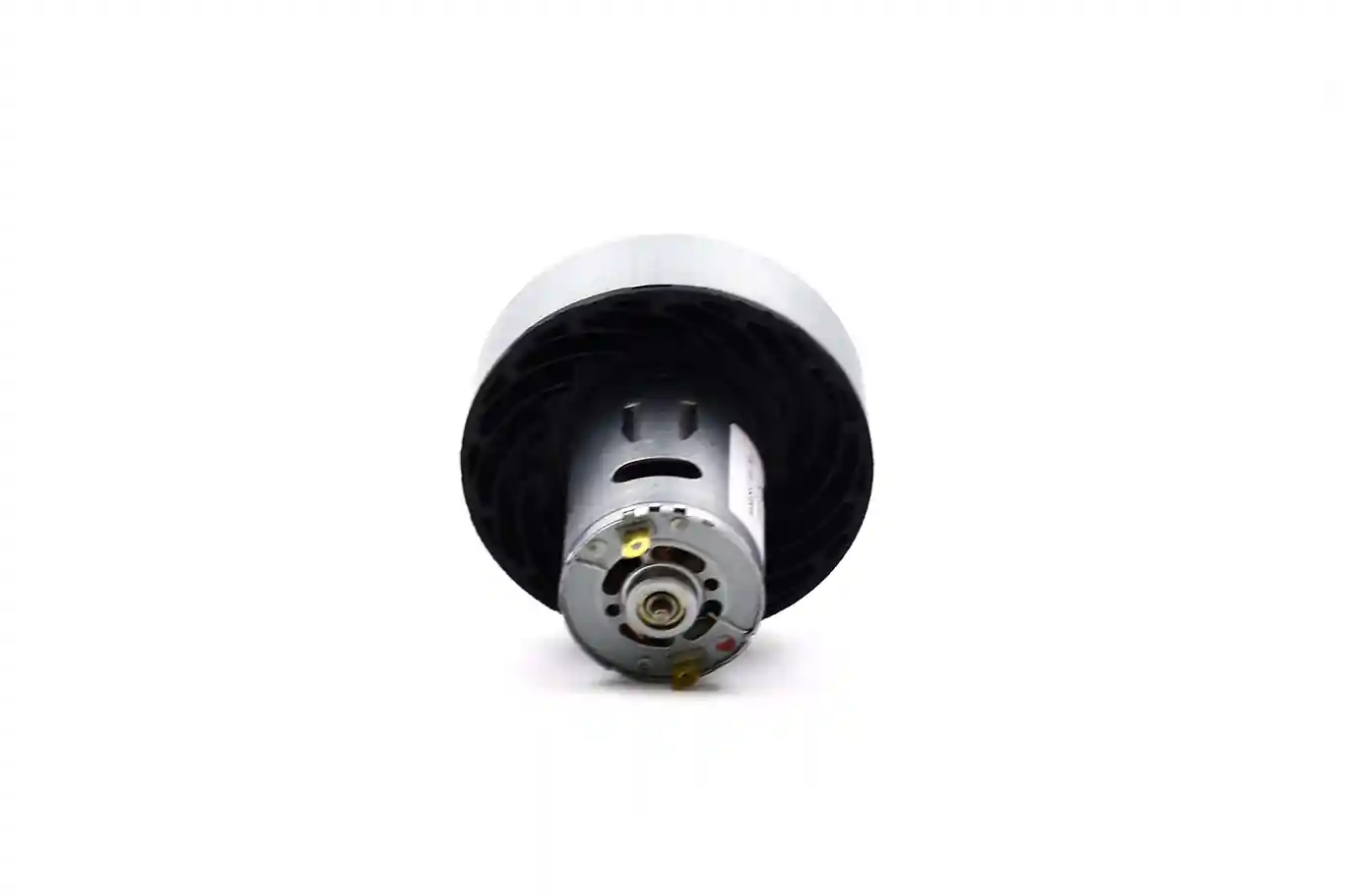

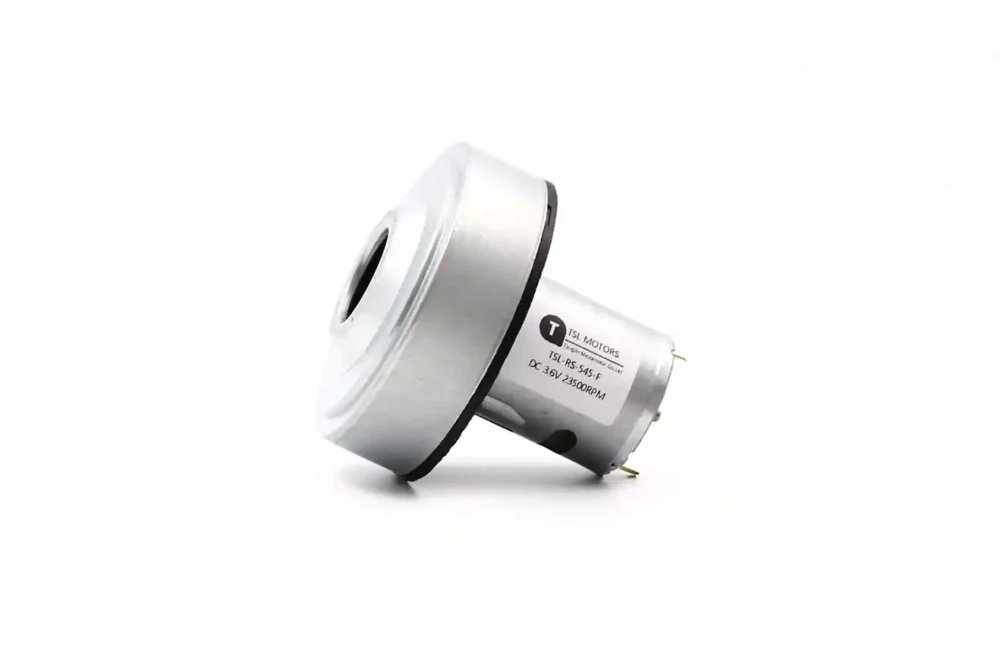

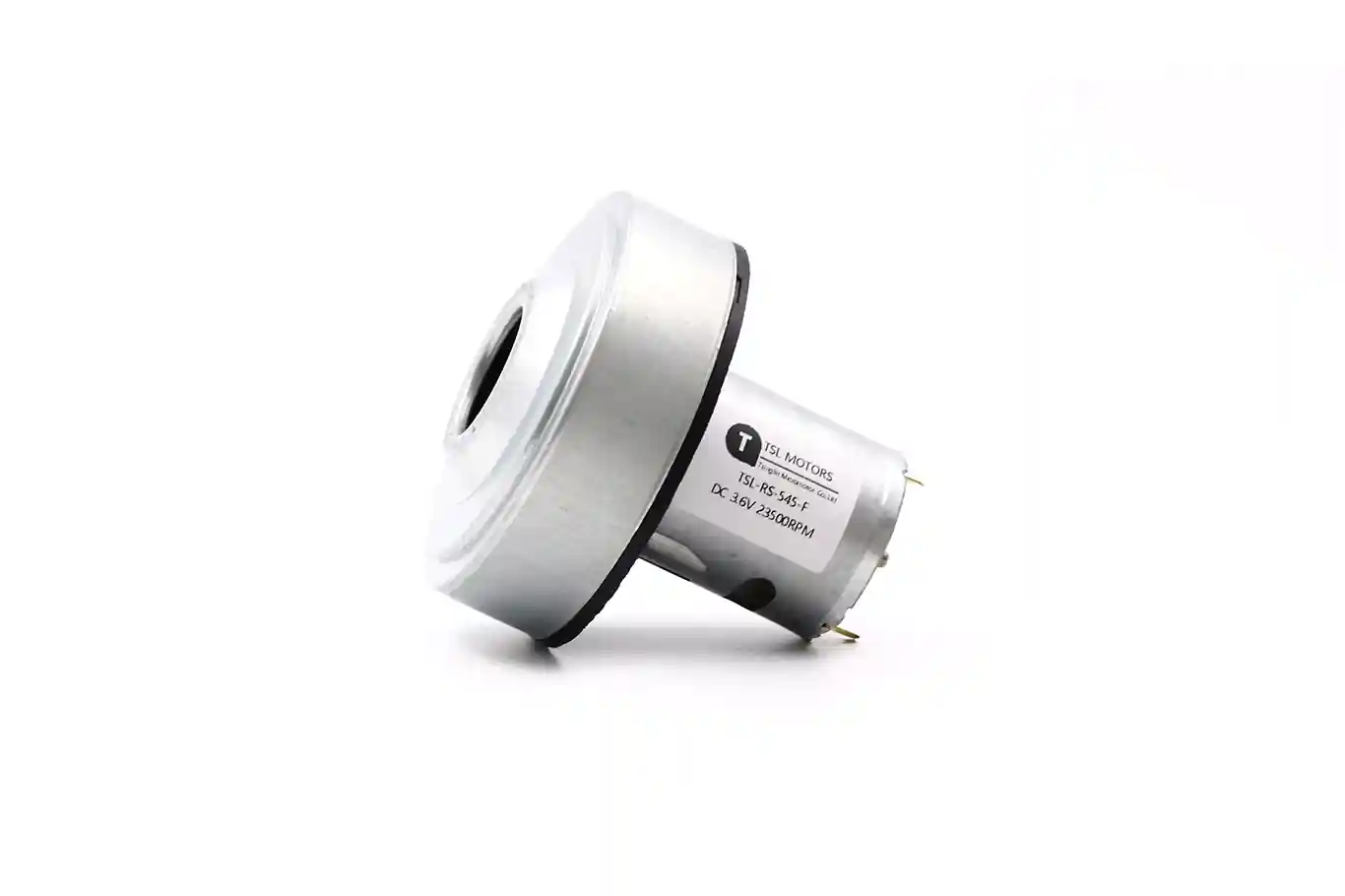

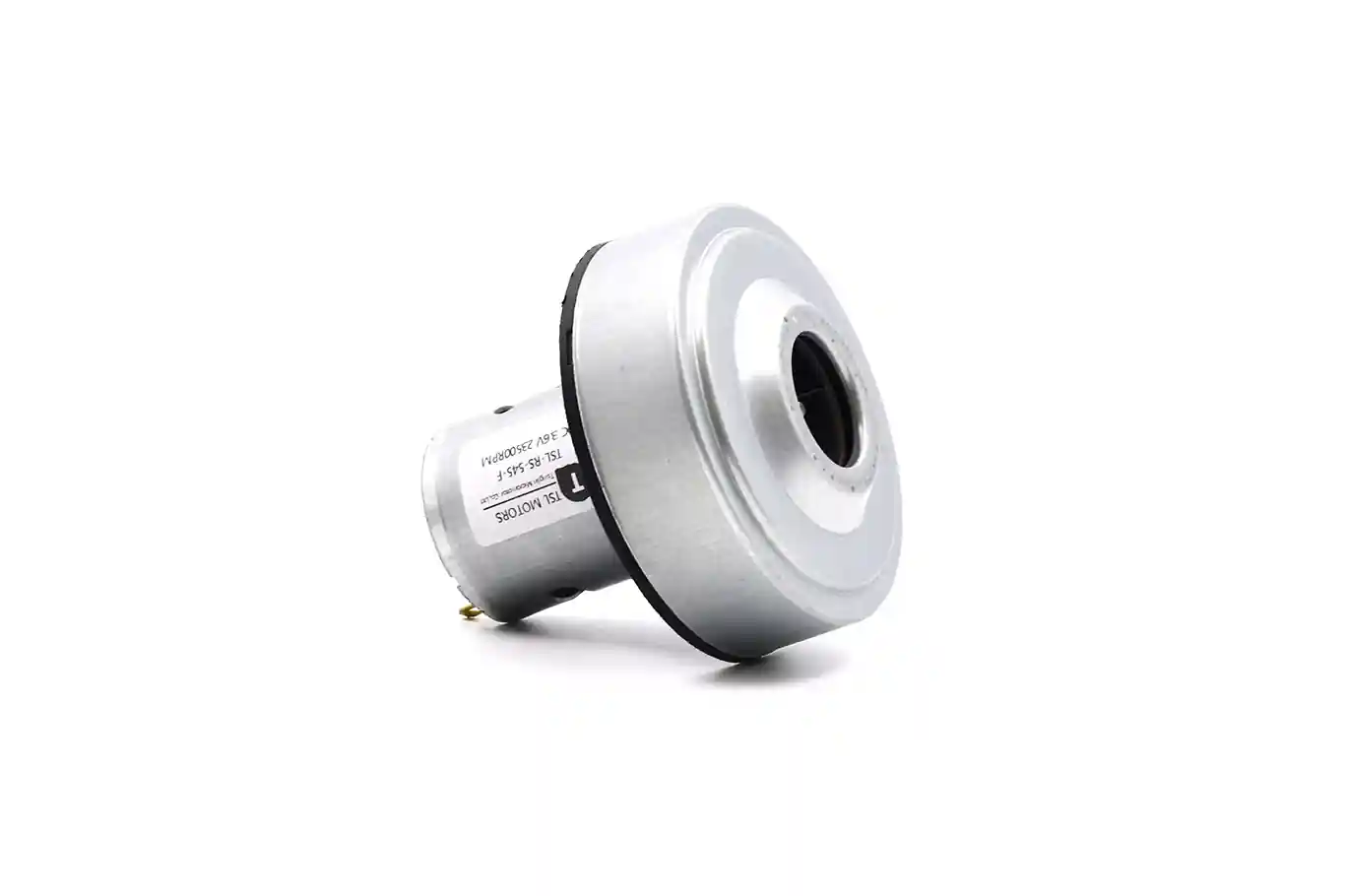

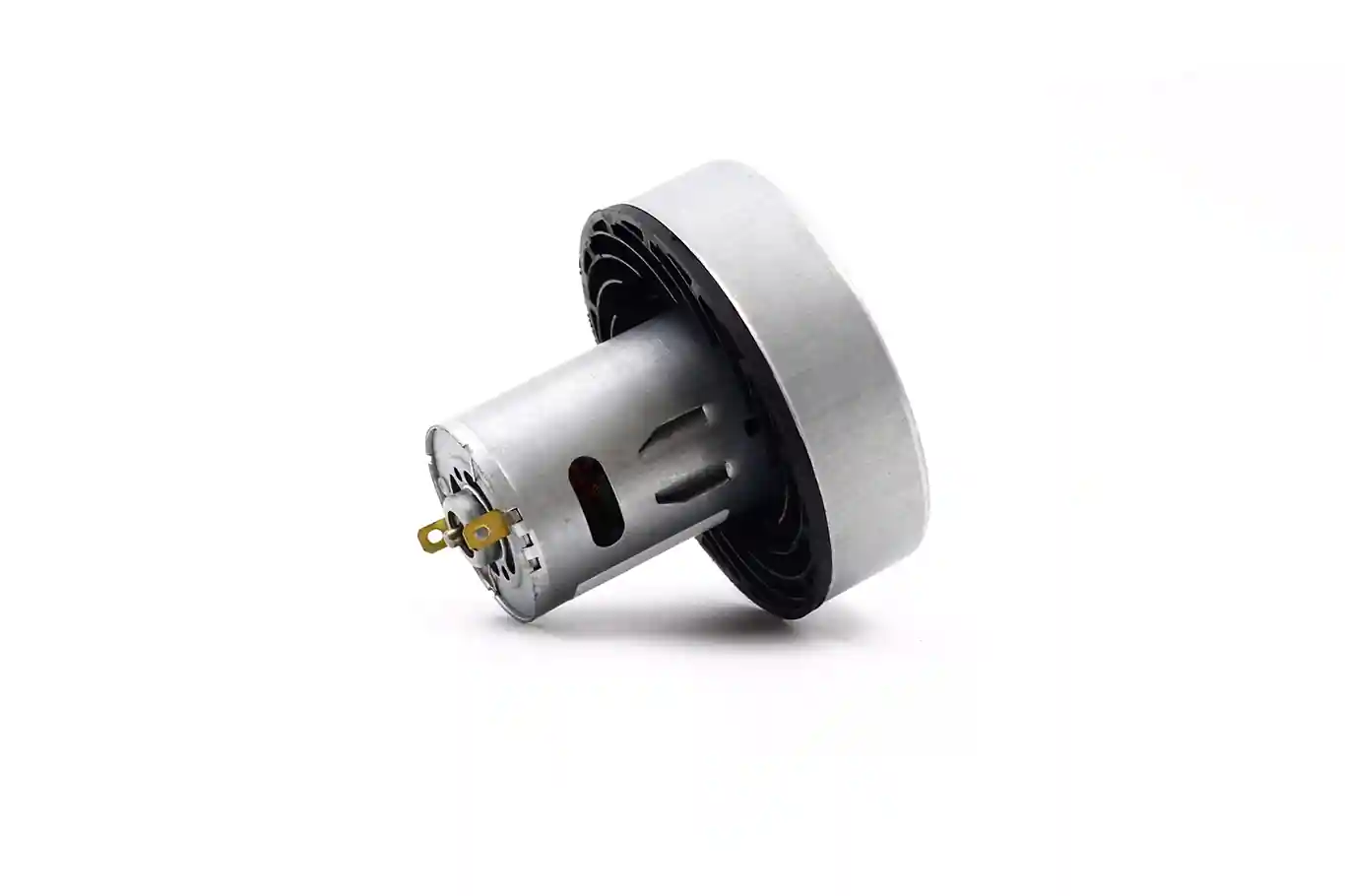

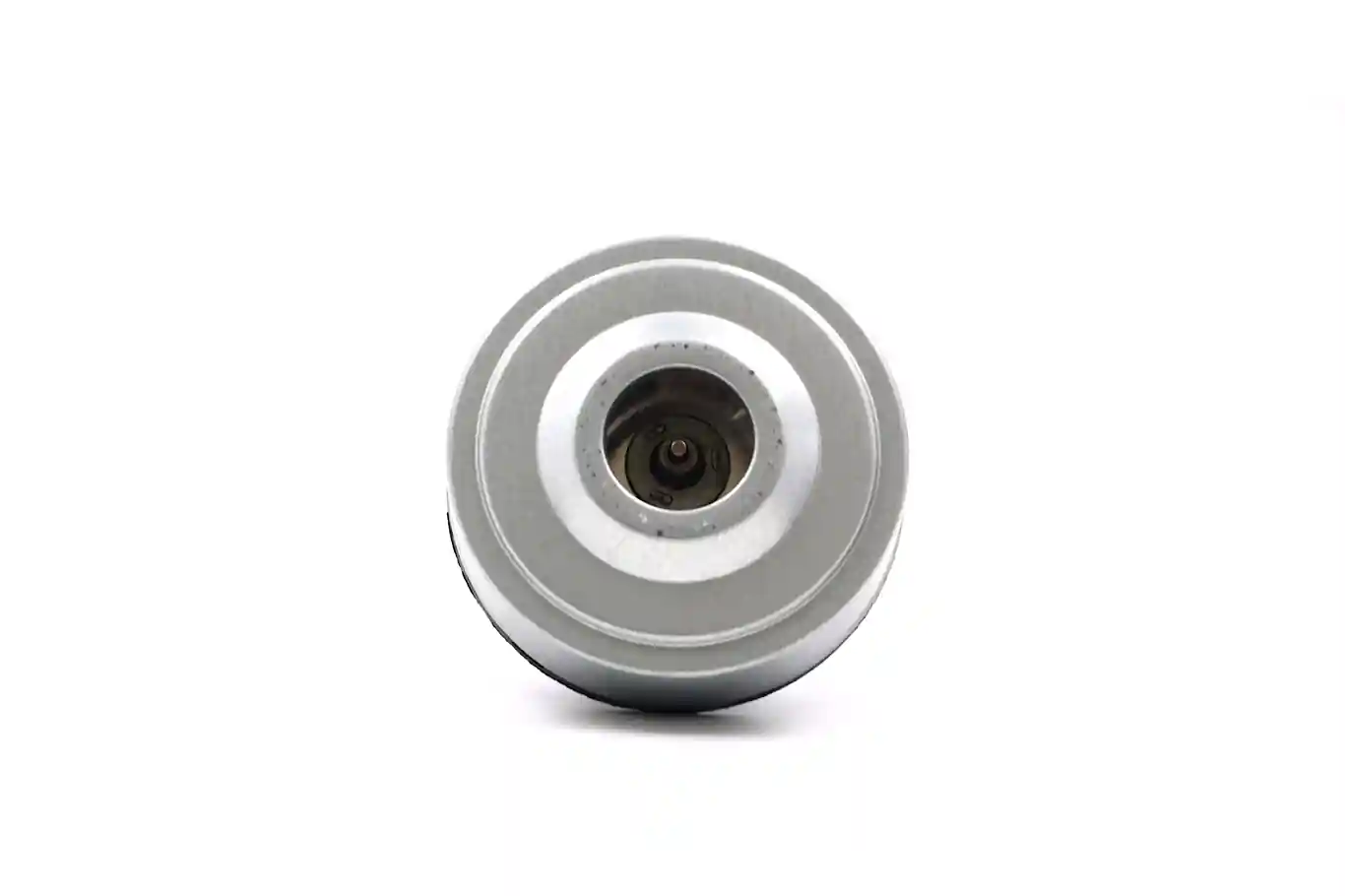

35mm Micro DC Motor – 50mm Type Model TSL-RS-545-F
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-RS-545-F
- Motor Type: Brushed DC Motor
- Motor Diameter: 35.8 mm
- Motor Length: 50 mm
- Shaft Diameter: φ 3.175 mm
- Rated Voltage:25.2 V
- #More Specifications
♦ Typical Applications:
- handheld, cordless and upright vacuum cleaners
Micro DC Clean Vacuum Cleaner Motor Datasheets
The RS-545-F clean vacuum cleaner motor measures 35.8 mm in diameter and 50 mm in length. Its fan size is customizable, adapting to specific application requirements. This clean vacuum cleaner motor can hit speeds of up to 40,000 RPM, and when paired with a high-efficiency fan, it generates up to 9 kPa of vacuum pressure.
To minimize resonance during high-power operation, these clean vacuum cleaner motors typically incorporate either ball bearings or oil-impregnated bearings. These choices ensure both superior wear resistance and a balance of stability and long service life.
We can optimize and customize the clean vacuum cleaner motor. This ensures strong, reliable power for different products. It meets many customer needs.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g.cm | W | A | g.cm | |
| TSL-RS-545F-5321 | 25.2 | 1.54 | 38364 | 10.3 | 33374 | 550.54 | 188.76 | 68.9 | 4233 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m

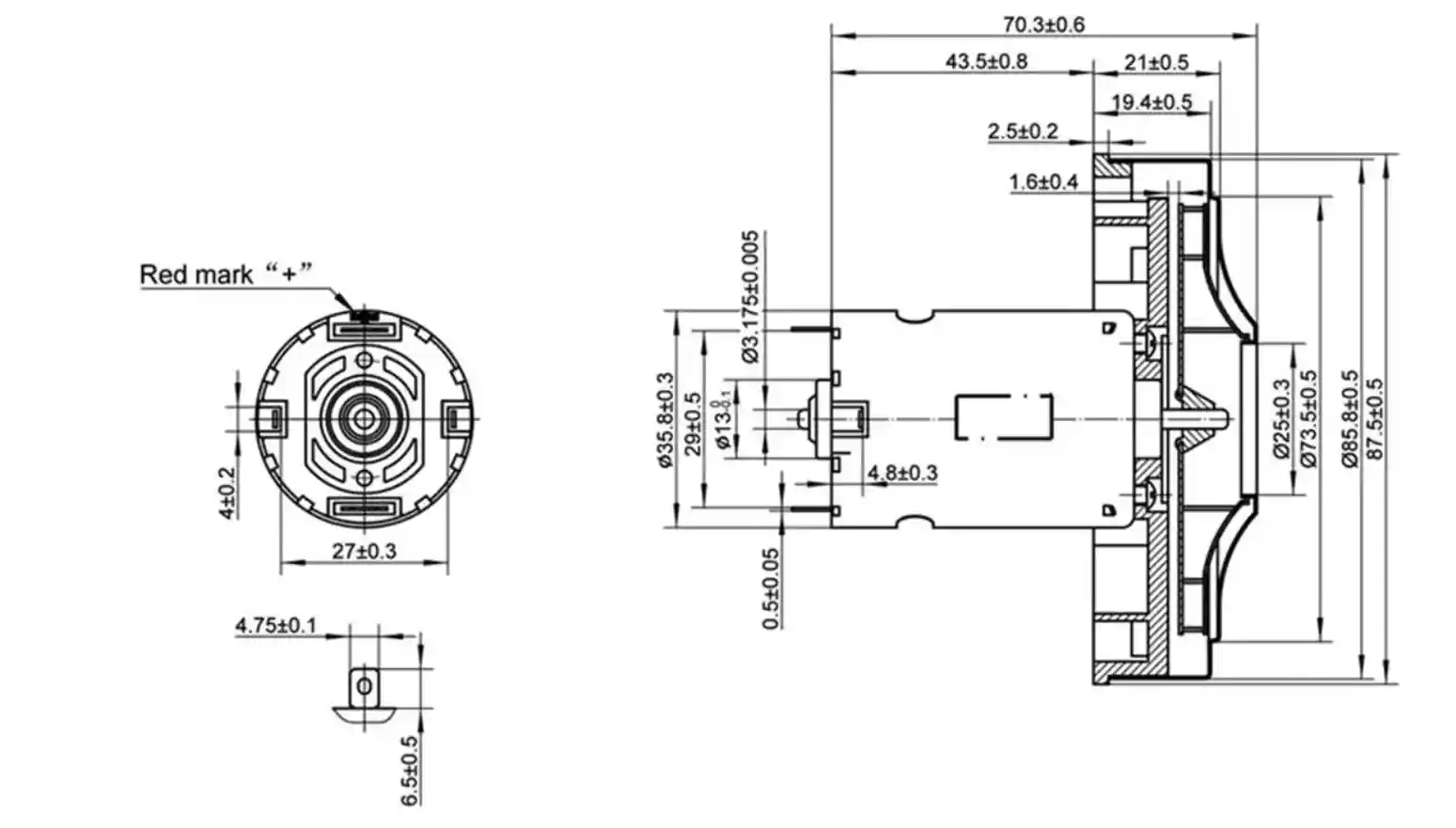

DC Brushed Clean Vacuum Cleaner Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
