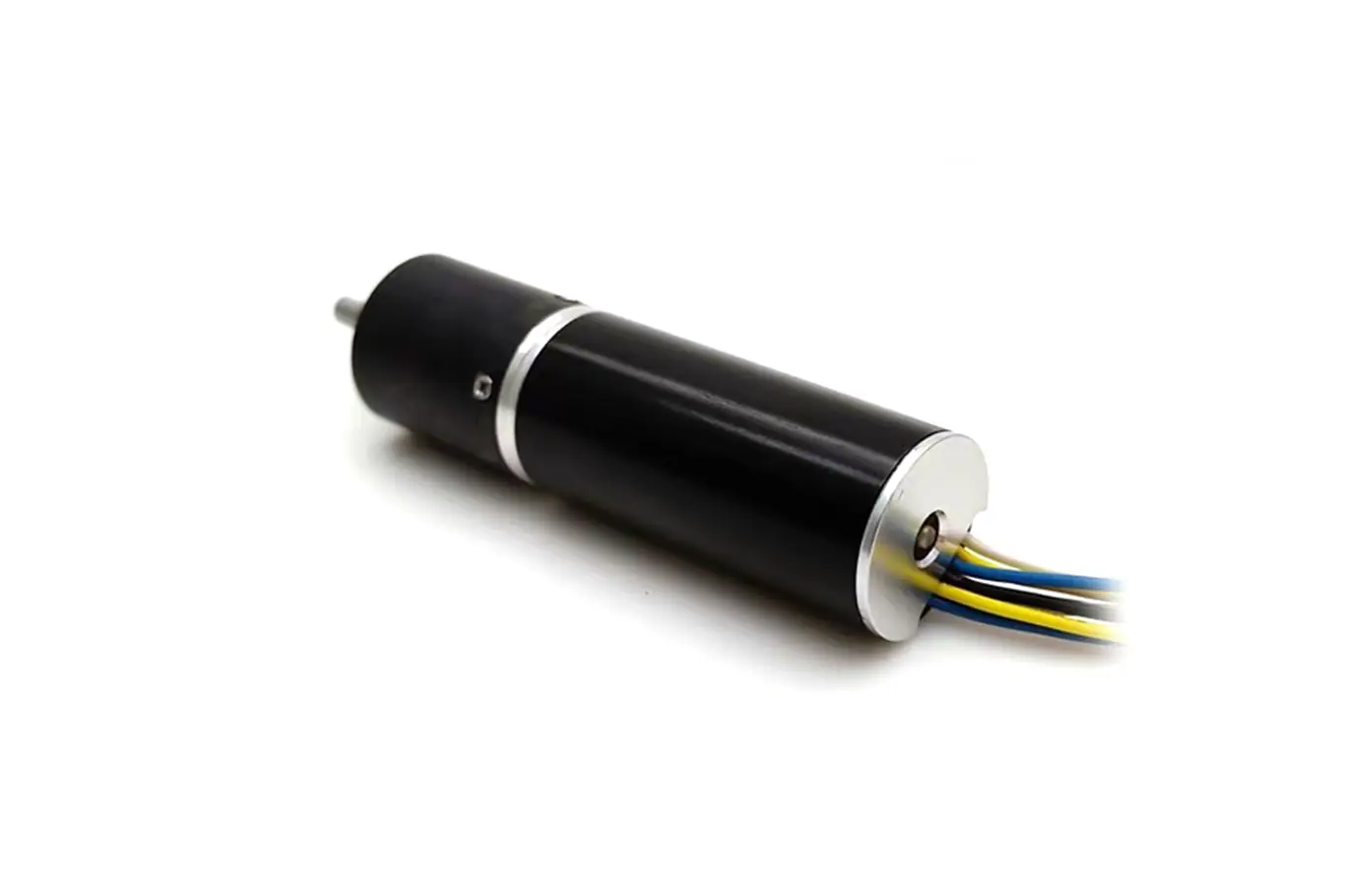

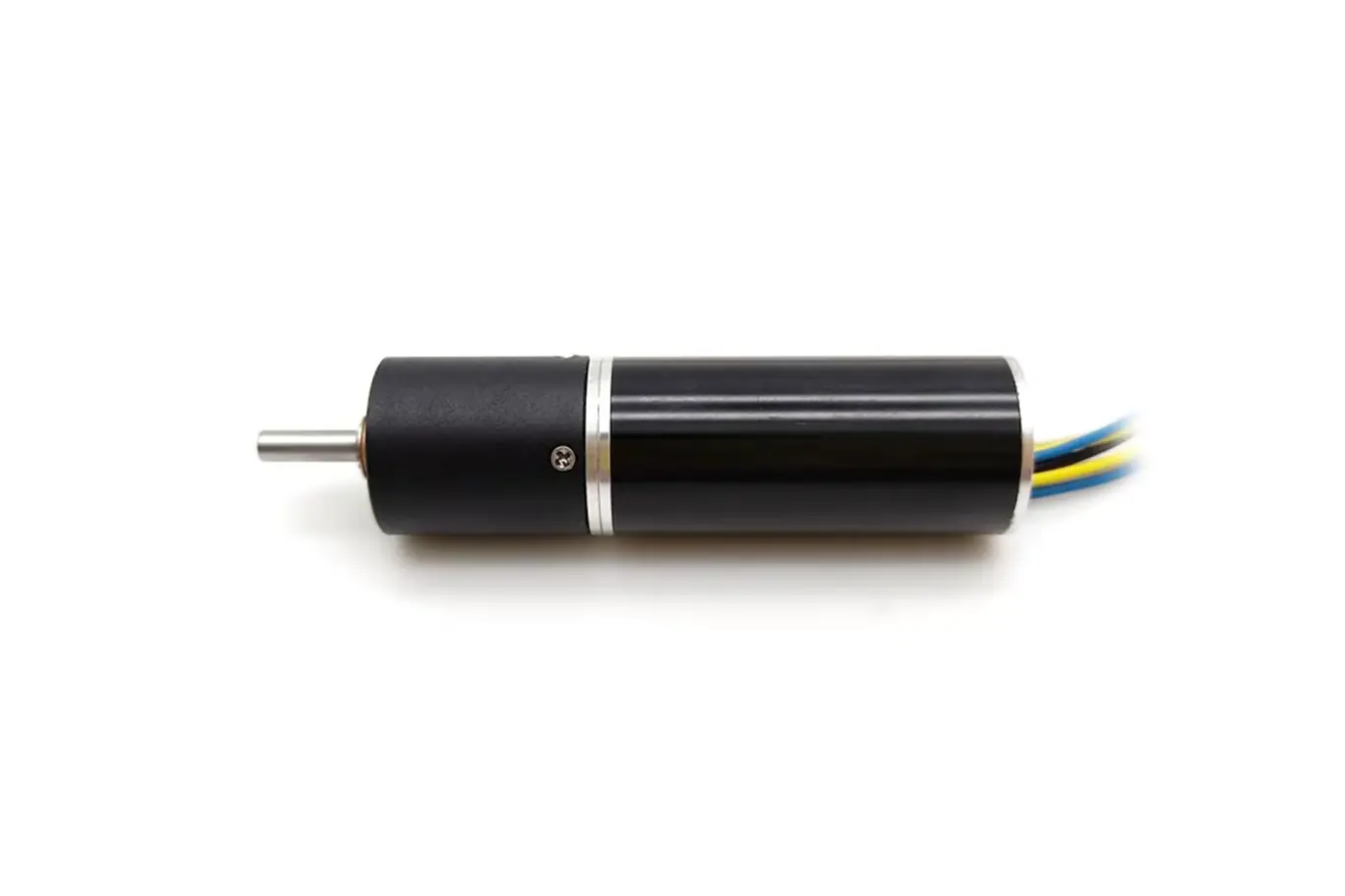

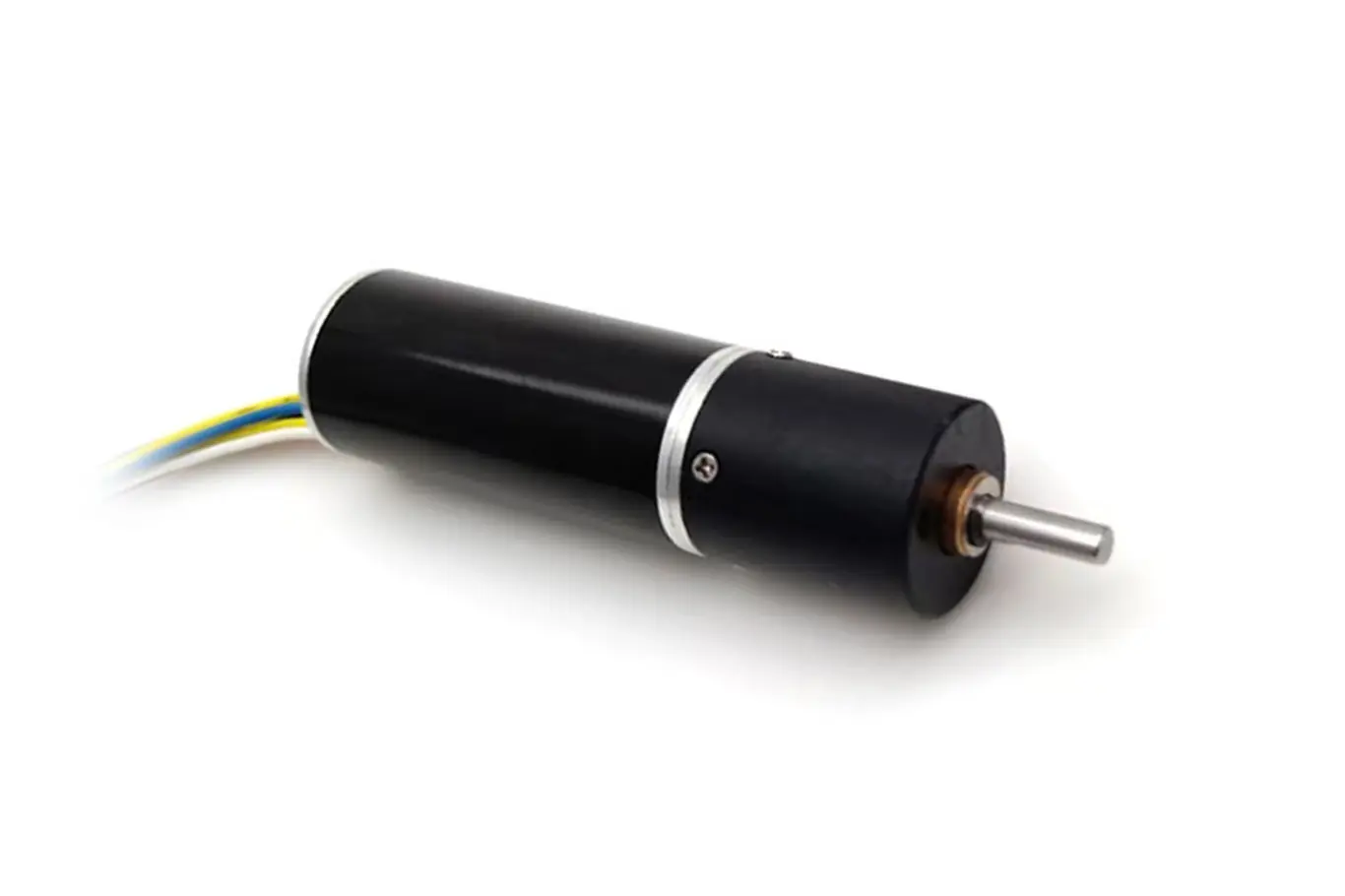

16mm Coreless Gear Motor Model TSL-16GP-TEC1636
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-16GP-TEC1636
- Rated Speed:5rpm-2700rpm
- Load Capacity:30N
- Input Voltage：6-24V
- Power：6W Max (Can Customize)
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- ATM, Copiers and Scanners
- Currency Handling, Point of Sale
- Printers, Vending Machines.
Coreless BLDC Motor With Planetary Gearbox Datasheet
🔴High Performance and Compact Design:The motor utilizes a permanent magnet rotor, which leads to high power density within a modest volume. It also has low inertia and improved dynamic properties, making it highly responsive.
🔴Flexible Operation and Simple Start-up:The motor’s characteristic curve is flat, allowing it to operate normally at all speeds under load. Furthermore, it requires no special starting circuit and has no rating (or no specified/limited starting current rating, implying ease of starting). The frequency of the stator and rotor magnetic fields is equivalent, which is characteristic of synchronous operation.
🔴Controller-Dependent Operation and Control:A controller is always required to keep the motor operating. This essential component also provides the capability to control the speed of the motor.
TSL-16GP-TEC1636, DC 12 V
| Ratio | No Load | Rated | |
| Speed | Speed | Torque | |
| i:1 | RPM | RPM | Kg.cm |
| 4:1 | 2700 | 2200 | 0.1 |
| 16:1 | 700 | 600 | 0.4 |
| 22.6:1 | 520 | 430 | 0.5 |
| 64:1 | 180 | 150 | 1.5 |
| 107:1 | 110 | 90 | 2.8 |
| 256:1 | 45 | 38 | 5 |
| 361:1 | 31 | 26 | 5 |
| 1024:1 | 10 | 9 | 5 |
💕The coreless bldc motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-16GP-TEC1636, DC 24 V
| Ratio | No Load | Rated | |
| Speed | Speed | Torque | |
| i:1 | RPM | RPM | Kg.cm |
| 4:1 | 2700 | 2200 | 0.1 |
| 16:1 | 700 | 600 | 0.4 |
| 22.6:1 | 520 | 430 | 0.5 |
| 64:1 | 180 | 150 | 1.5 |
| 107:1 | 110 | 90 | 2.8 |
| 256:1 | 45 | 38 | 5 |
| 361:1 | 31 | 26 | 5 |
| 1024:1 | 10 | 9 | 5 |
💕The coreless bldc motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
16mm Coreless BLDC Motor Technical Data
| Motor Model | Rated Voltage | No-load | Rated | Stall | ||||
| Speed | Current | Speed | Torque | Current | Torque | Current | ||
| V DC | RPM | mA | RPM | g.cm | mA | g.cm | A | |
| TSL-16GP-CBL1636-12 | 12 | 12000 | 70 | 10082 | 32.6 | 390 | 204 | 2.1 |
| TSL-16GP-CBL1636-24 | 24 | 12000 | 40 | 10189 | 32.6 | 180 | 216 | 1.0 |
💕The coreless bldc motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

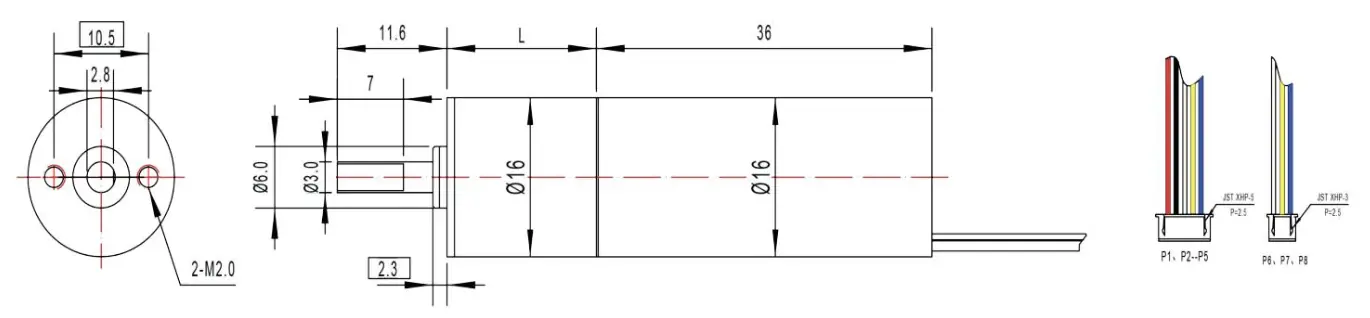

DC Coreless Brushless Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
| Module | 0.3 | |||
| Rated Torque(Kg.cm) | 3Kg.cm MAX | |||
| Max momentary tolerance torque(Kg.cm) | 5Kg.cm MAX | |||
| Ratio | 4:1 | 16:1,22.6:1 | 64:1,107:1,256:1,361:1 | 1024:1 |
| Gear Stages | 1 | 2 | 3 | 4 |
| Gearbox Length L(mm) | 12.5±0.5 | 16±0.5 | 23±0.5 | 26.5±0.5 |
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 7-10 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for Coreless Gear motor
Q：What is a Coreless Gear Motor?
A:A Coreless Gear Motor uses a rotor without an iron core (an “ironless” design), which results in low inertia and high efficiency. This configuration allows for fast, smooth, and precise movement in compact applications.
If you want to know more about how coreless motor work, you can click on this link：Electric motor – Wikipedia
Q:Can Coreless Gear Motor Be Customized?
A: Yes,coreless gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
