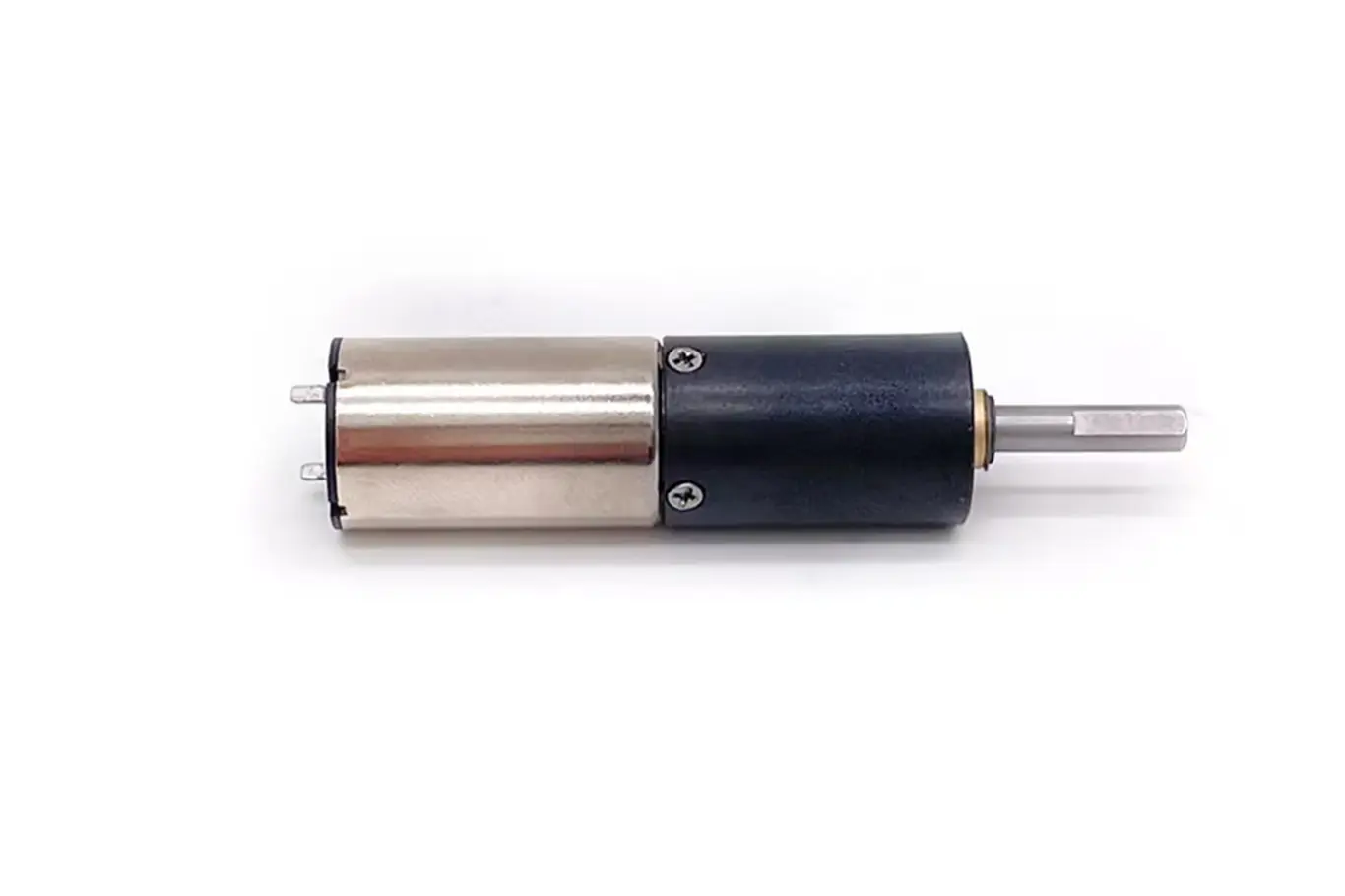

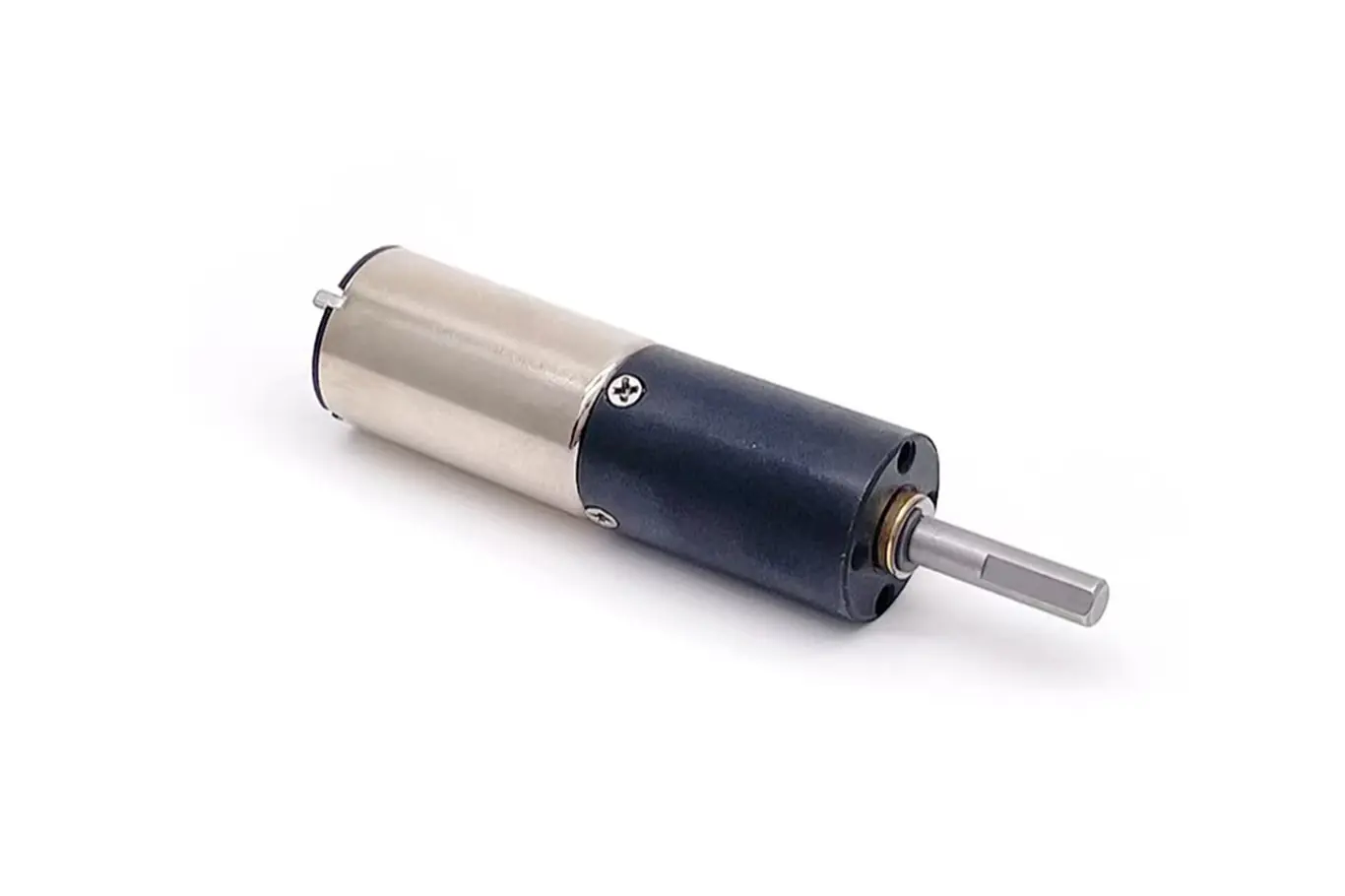

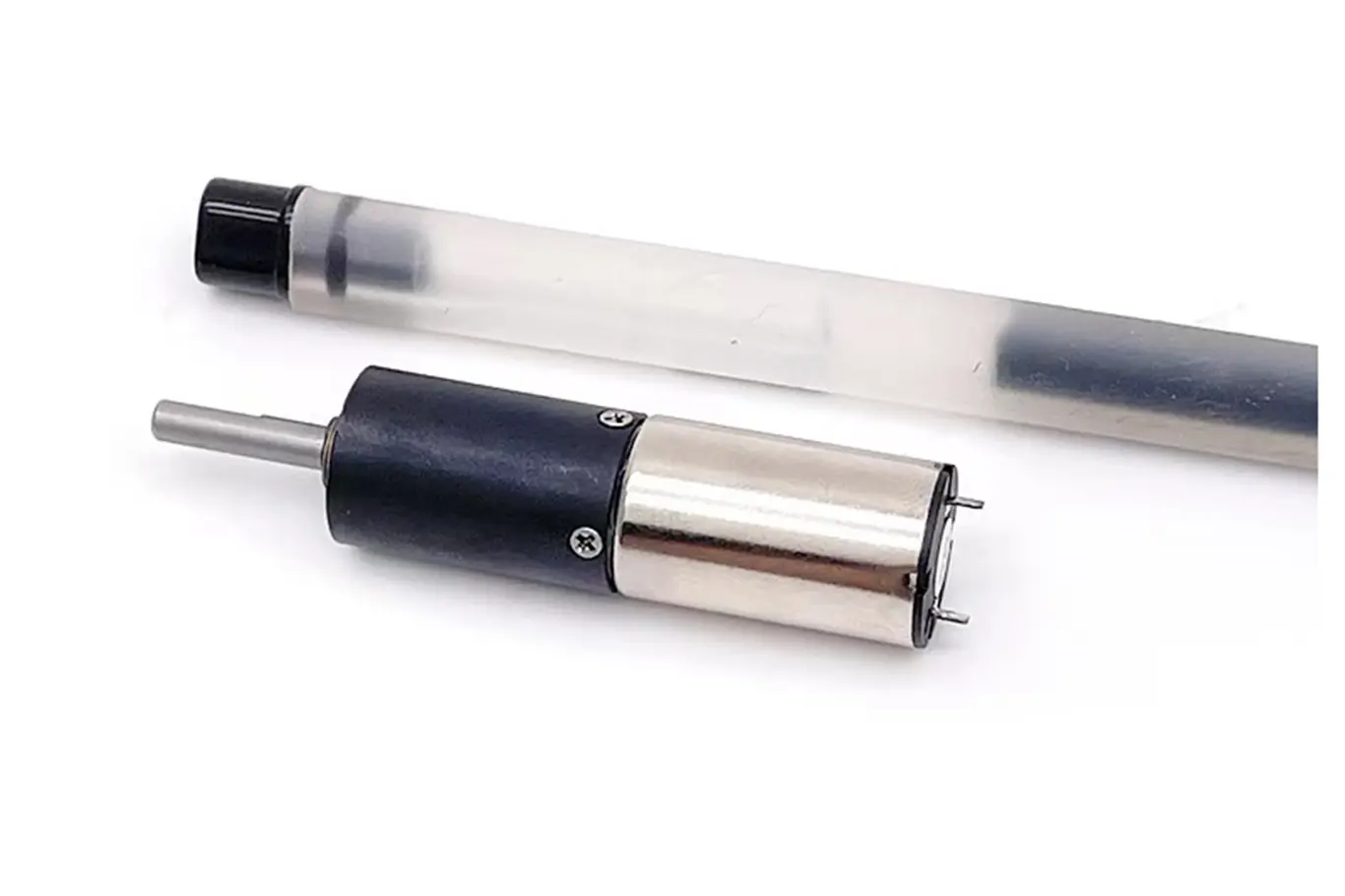

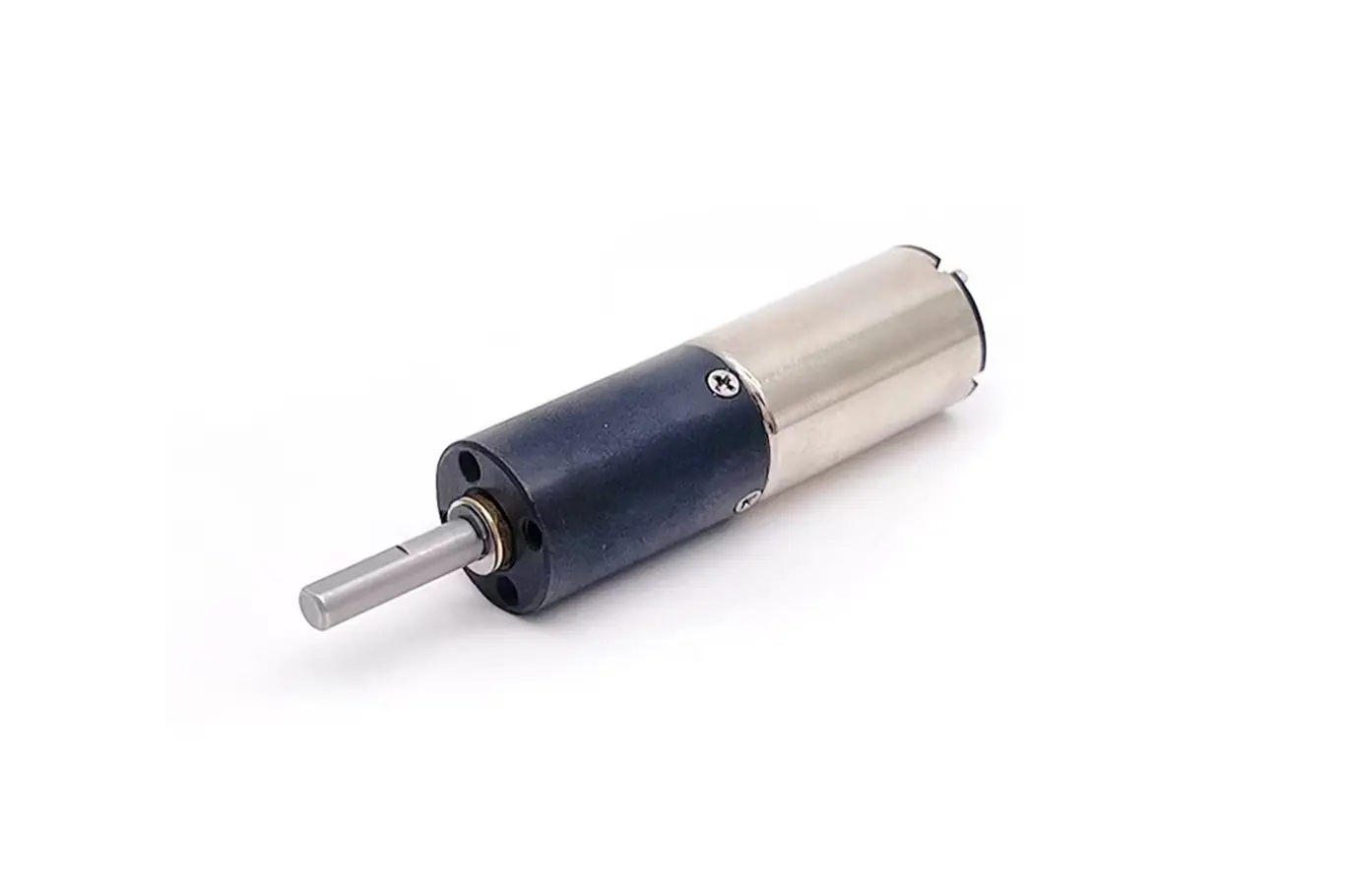

12mm Coreless Gear Motor Model TSL-12GP-CL1215
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-12GP-CL1215
- Voltage:DC 4.5V/12VCustomizable
- No Load Speed:9-4900RPM
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Medical equipment field:biochemical analyzer sample transmission, endoscope joint drive
- Household appliances: sweeper wheel drive, smart door lock drive, curtain motor
- Industrial automation: micro robot joints, AGV guide wheel drive

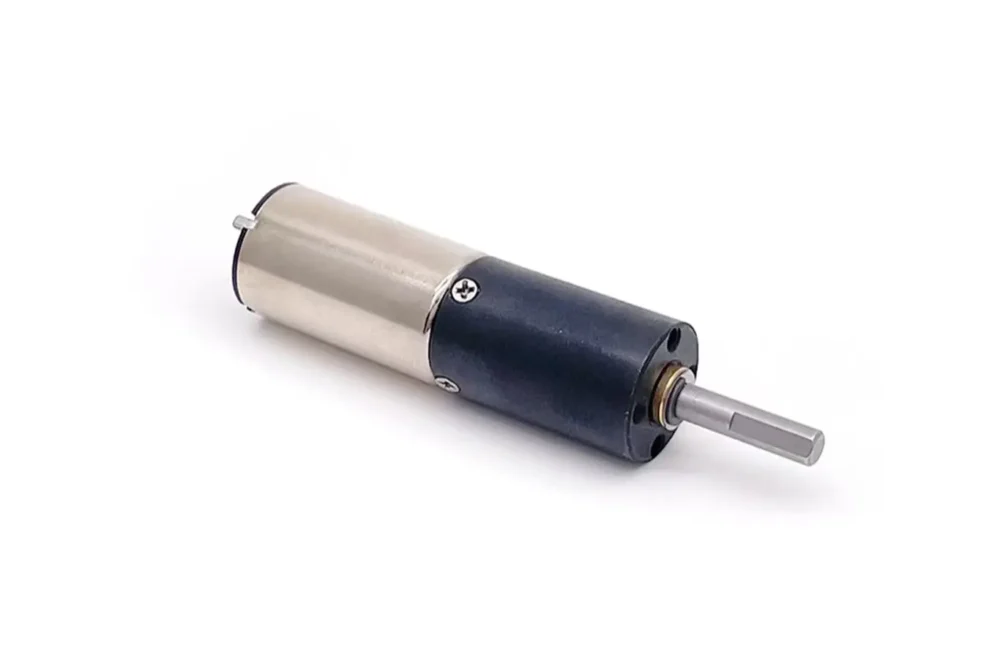

DC Coreless Brushed Motor With Reduction Gear Box Datasheet
This dc coreless brushed motor, featuring powerful neodymium magnets and advanced winding technology, achieves maximum performance in a minimal volume. Our design is cost-optimized and built around an extremely compact and lightweight structure, providing an unparalleled price-performance ratio through an efficient production process.
The coreless brushed motor ensures high dynamics and precise speed control with no cogging torque, providing smooth operation. It offers a wide operating temperature range and is protected by an all-steel housing with an anti-corrosion coating. It is also highly efficient, marked by low power consumption and a low starting voltage.
For flexible integration, the dc coreless brushed motor’s electrical connections can be configured with terminals, cables, or plugs. Furthermore, customers can choose between options like graphite carbon brushes or rare metal brushes and select from sintered bearings or ball bearings based on their application needs.
TSL-12GP-CL1215 , 4.5V DC
| Ratio | No Load | Rated | |
| Speed | Speed | Torque | |
| i:1 | RPM | RPM | Kg.cm |
| 4:1 | 4900 | 3900 | 0.02 |
| 16:1 | 1200 | 980 | 0.08 |
| 36：1 | 540 | 420 | 0.18 |
| 64：1 | 300 | 240 | 0.25 |
| 144：1 | 135 | 105 | 0.6 |
| 216：1 | 90 | 70 | 0.9 |
| 256：1 | 75 | 62 | 1.0 |
| 576：1 | 33 | 30 | 1.5 |
| 1296：1 | 15 | 14 | 1.5 |
💕The dc coreless brushed motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-12GP-CL1215 , 12V DC
| Ratio | No Load | Rated | |
| Speed | Speed | Torque | |
| i:1 | RPM | RPM | Kg.cm |
| 4:1 | 3000 | 2450 | 0.015 |
| 16:1 | 750 | 600 | 0.05 |
| 36：1 | 340 | 270 | 0.1 |
| 64：1 | 190 | 150 | 0.2 |
| 144：1 | 85 | 65 | 0.5 |
| 216：1 | 55 | 45 | 0.57 |
| 256：1 | 47 | 38 | 0.65 |
| 576：1 | 21 | 17 | 1.2 |
| 1296：1 | 9 | 8 | 1.5 |
💕The dc coreless brushed motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
DC Coreless Brushed Motor Without Gearbox Technical Data
| Motor Model | Rated Voltage | No-load | Rated | Stall | ||||
| Speed | Current | Speed | Torque | Current | Torque | Current | ||
| V DC | RPM | mA | RPM | g.cm | mA | g.cm | A | |
| TSL-CL1215-45 | 4.5 | 19860 | 50 | 15888 | 8 | 414 | 40 | 1.9 |
| TSL-CL1215-12 | 12 | 12400 | 10 | 9920 | 5 | 64 | 25 | 0.3 |

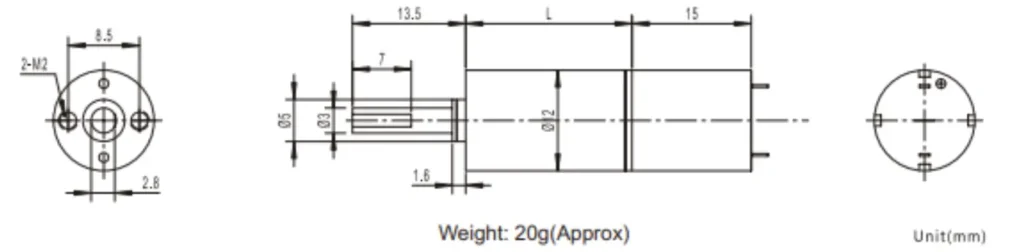

Small Planetary Coreless Brushed Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
| Module | 0.21 | ||||
| Rated Torque(Kg.cm) | 1.5 Max | ||||
| Max momentary tolerance torque(Kg.cm) | 3.0Max | ||||
| Ratio | 4:1,6:1 | 16:1,24:1,36:1 | 64:1,96:1,144:1,216:1 | 256:1,384:1,576:1 | 864:1.1296:1 |
| Gear Stages | 1 | 2 | 3 | 4 | |
| Gearbox Length L(mm) | 12.5 | 16.2 | 19.8 | 23.4 | |
