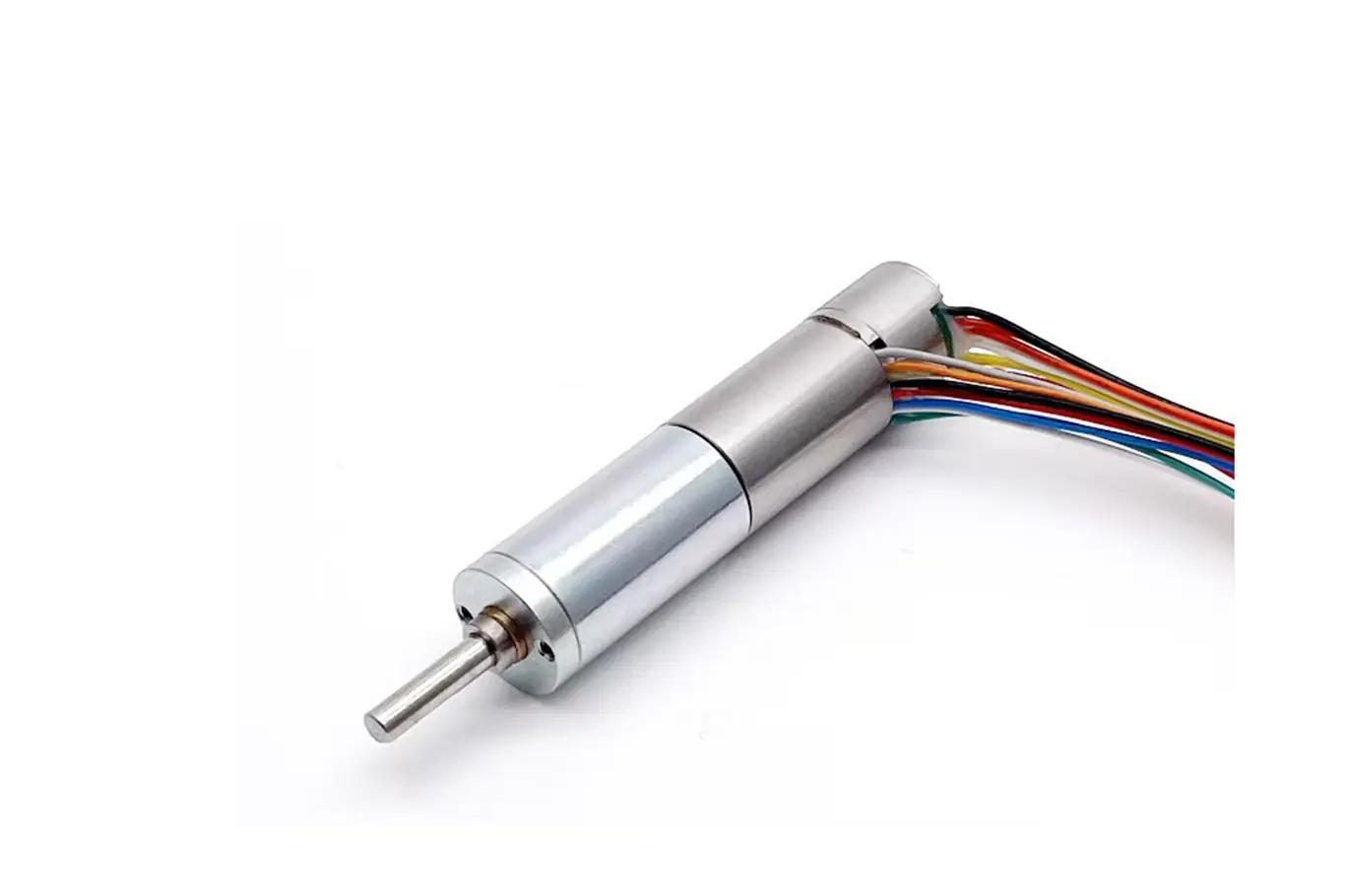

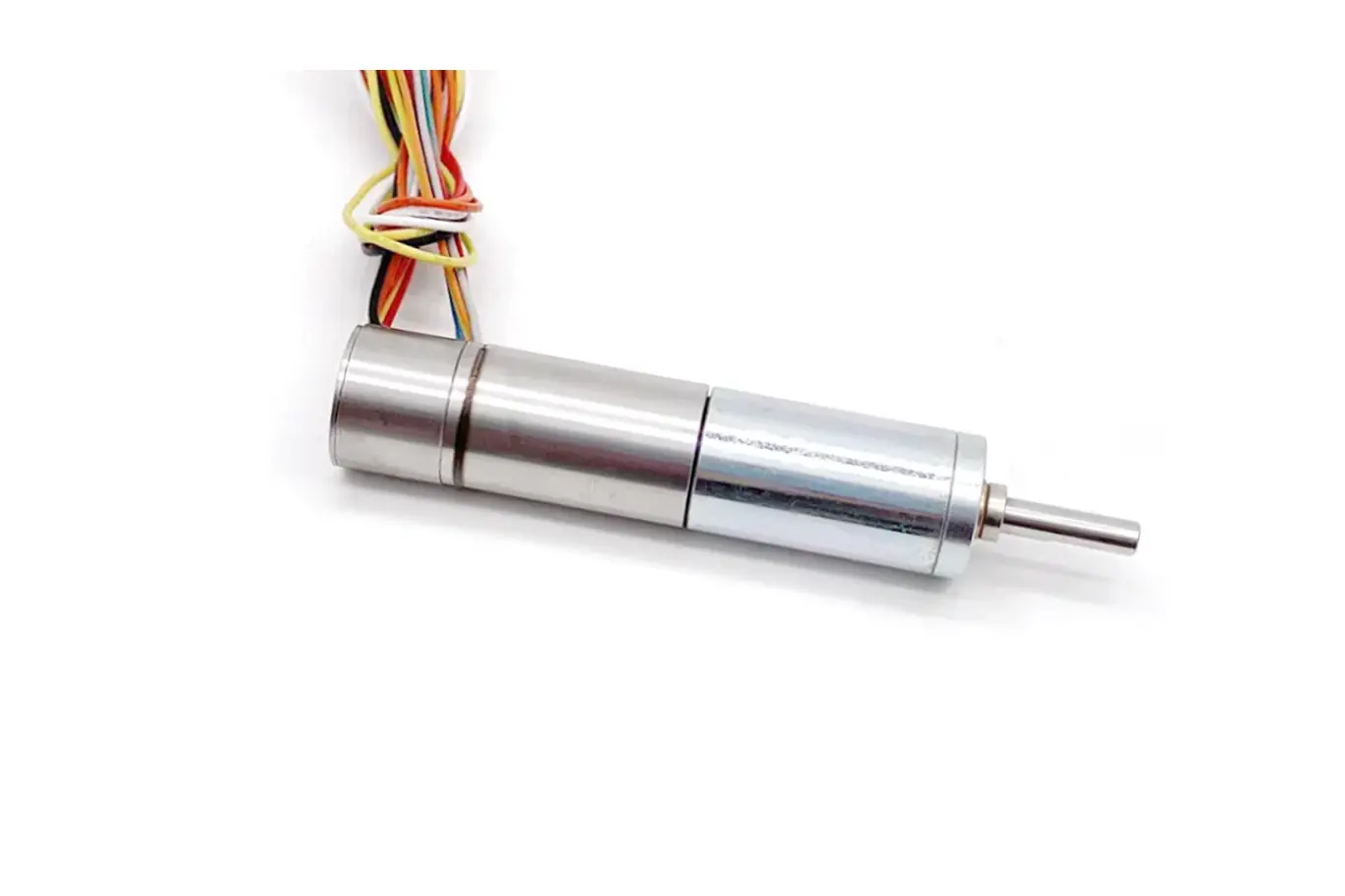

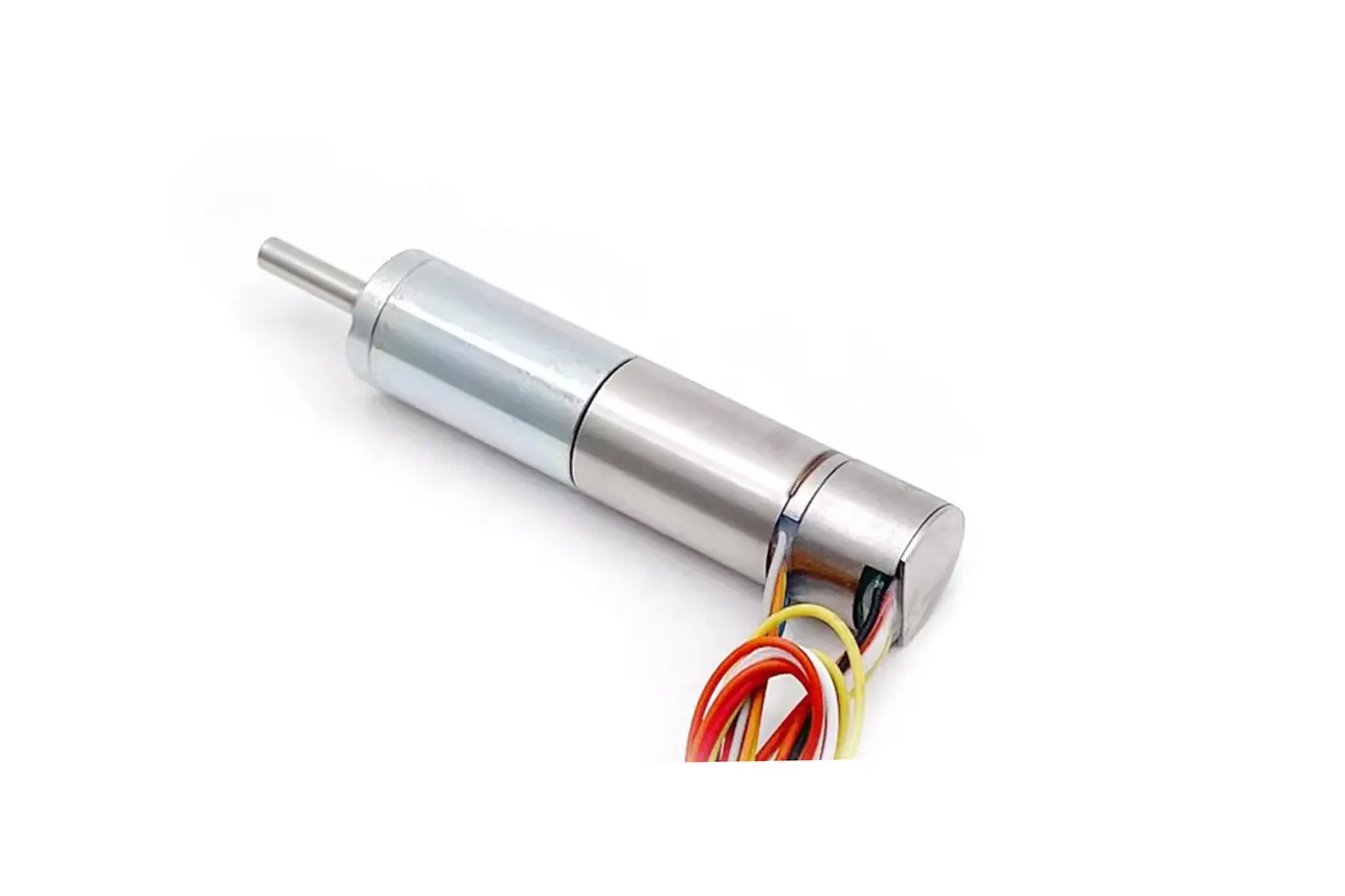

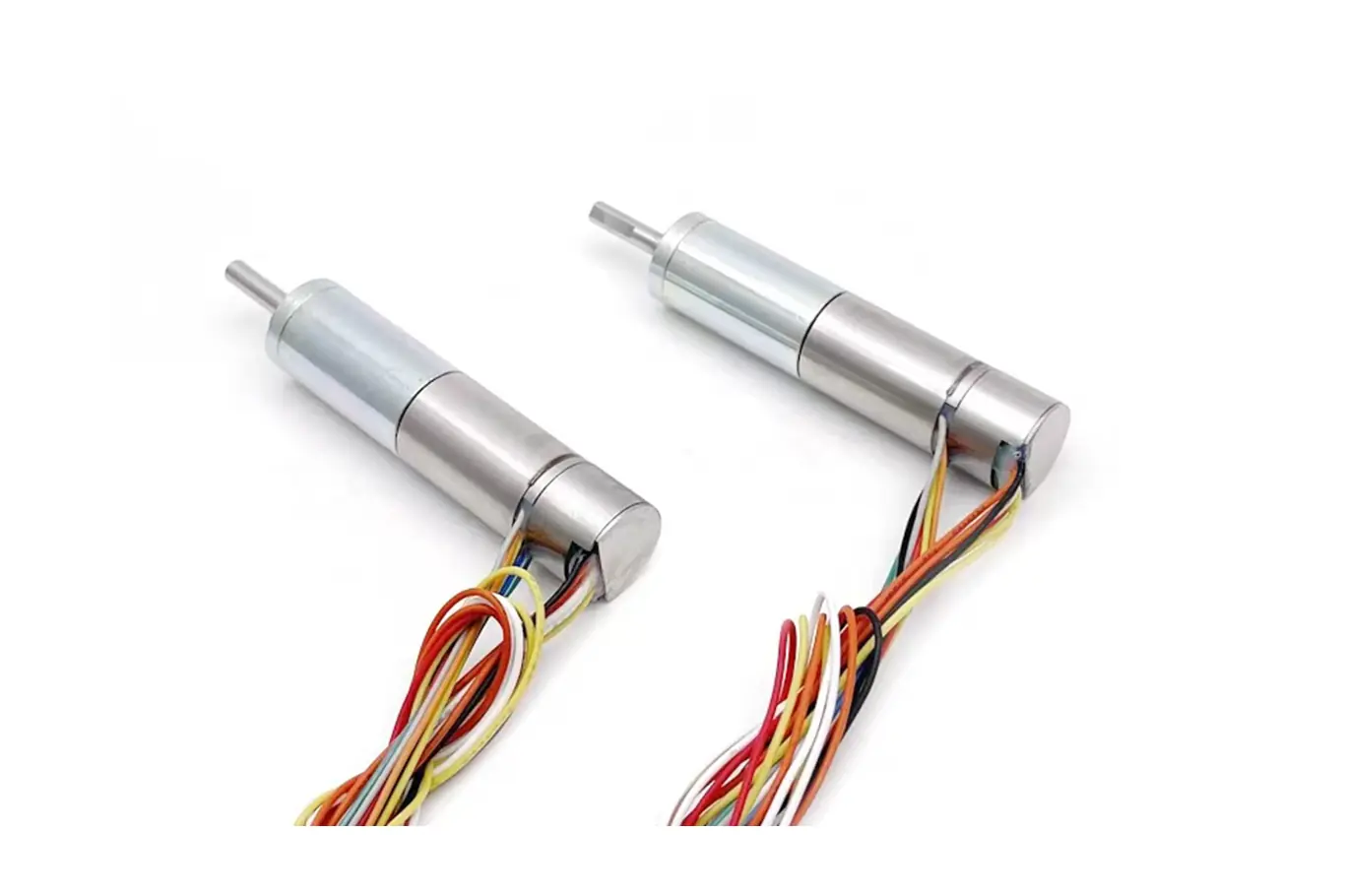

12mm Coreless Gear Motor Model TSL-12GP-CBL1220
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-12GP-CBL1220
- Rated Speed:5-2000rpm
- Load Capacity:30N
- Input Voltage：6V/12V
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Video, Cameras, Projectors.
- insulin pump,Urine Analyzer
Coreless Brushless DC Motor With Planetary Gearbox Datasheet
🔥Introducing the 12mm Coreless Brushless DC Motor. Achieve IE4 ultra-high efficiency and dynamic speeds from 5-2000rpm on a minimal 100mA current. Get maximum power from a 50g micro-drive.
🤫Experience true precision. Our planetary gearbox with Spur Metal Gears ensures reliable 0.5N load capacity and exceptionally smooth motion. Operational noise is barely a whisper at 40-50dB, perfect for noise-sensitive applications.
✅Built for durability, this coreless brushless dc motor features Drip-proof protection and a maintenance-free BLDC structure. With a customizable 12mm-D Shaft, it is the compact, robust, and long-lasting solution for your advanced industrial equipment.
TSL-12GP-CBL1220，DC 6V
| Ratio | No Load | Rated | |
| Speed | Speed | Torque | |
| i:1 | RPM | RPM | Kg.cm |
| 4:1 | 4500 | 3825 | 0.03 |
| 16:1 | 1125 | 956 | 0.12 |
| 64：1 | 281 | 239 | 0.45 |
| 256：1 | 70 | 60 | 1.68 |
| 1024:1 | 18 | 15 | 2.00 |
| 4096：1 | 4 | 4 | 2.00 |
💕The coreless brushless dc motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-12GP-CBL1220，DC 12V
| Ratio | No Load | Rated | |
| Speed | Speed | Torque | |
| i:1 | RPM | RPM | Kg.cm |
| 4:1 | 6519 | 5541 | 0.04 |
| 16:1 | 1630 | 1385 | 0.15 |
| 64：1 | 407 | 346 | 0.56 |
| 256：1 | 102 | 87 | 1.98 |
| 1024:1 | 25 | 22 | 2.00 |
| 4096：1 | 6 | 5 | 2.00 |
💕The coreless brushless dc motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
12mm Coreless Brushless DC Motor Technical Data
| Motor Model | Rated Voltage | No-load | Rated | Stall | ||||
| Speed | Current | Speed | Torque | Current | Torque | Current | ||
| V DC | RPM | mA | RPM | g.cm | mA | g.cm | A | |
| TSL-16GP-CBL1636-12 | 6 | 18000 | 102 | 15300 | 8.8 | 0.4 | 58.5 | 2 |
| TSL-16GP-CBL1636-24 | 12 | 26075 | 84 | 22164 | 10.3 | 0.3 | 68.8 | 1.7 |
💕The coreless brushless dc motor’s technical specifications are for guidance,we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

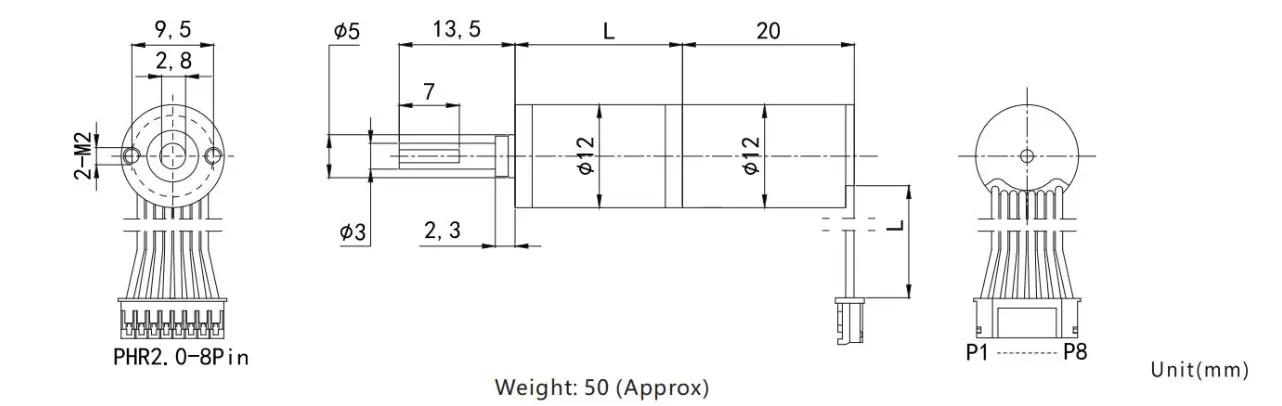

Planetary Coreless Brushless DC Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
| Module | 0.25 | |||||
| Rated Torque(Kg.cm) | 2Kg.cm MAX | |||||
| Max momentary tolerance torque(Kg.cm) | 4Kg.cm MAX | |||||
| Ratio | 4:1 | 16:1 | 64:1 | 256:1 | 1024:1 | 4096:1 |
| Gear Stages | 1 | 2 | 3 | 4 | 5 | 6 |
| Gearbox Length L(mm) | 16 | 19 | 22 | 25 | 28 | 31 |
