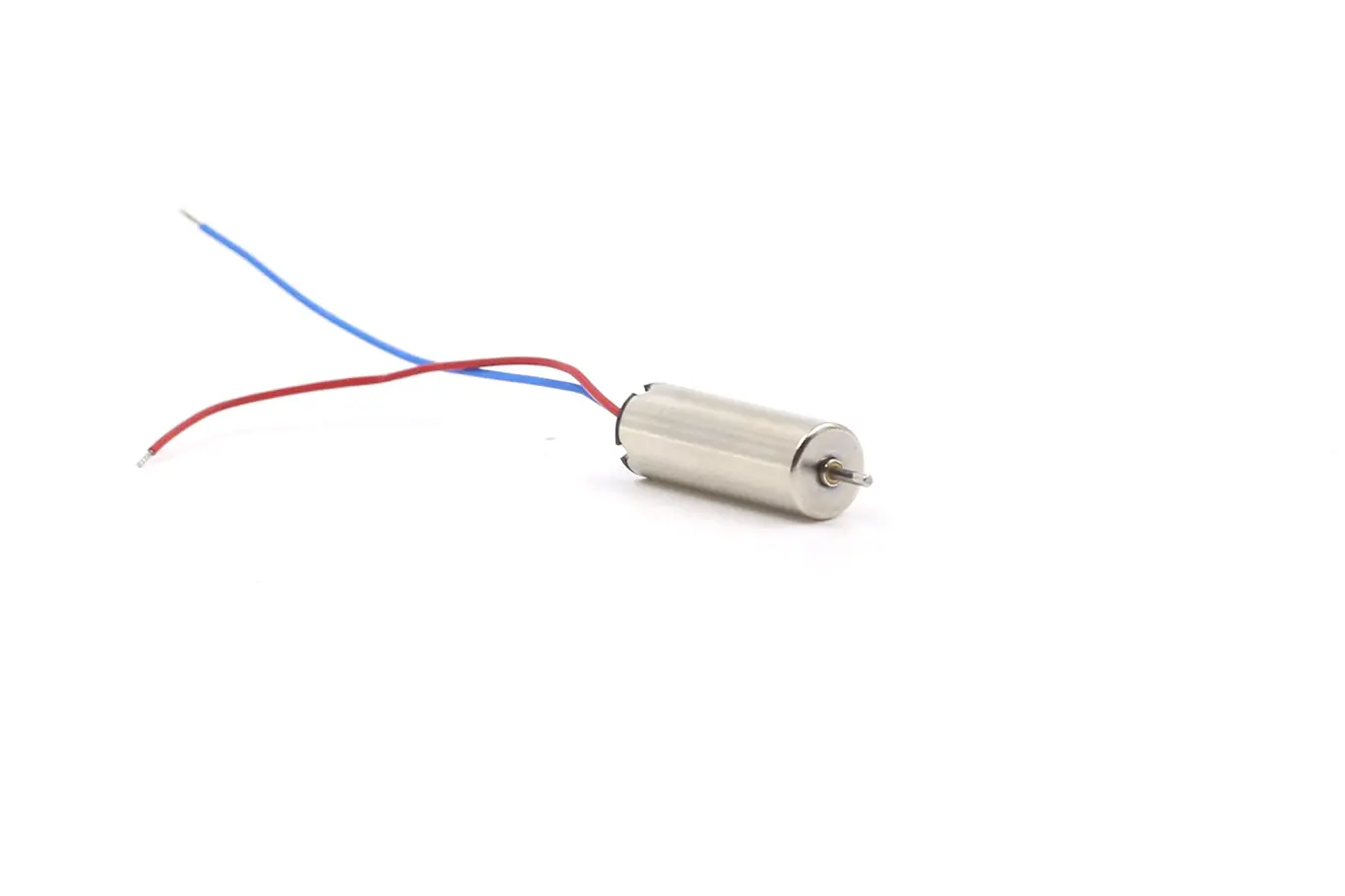

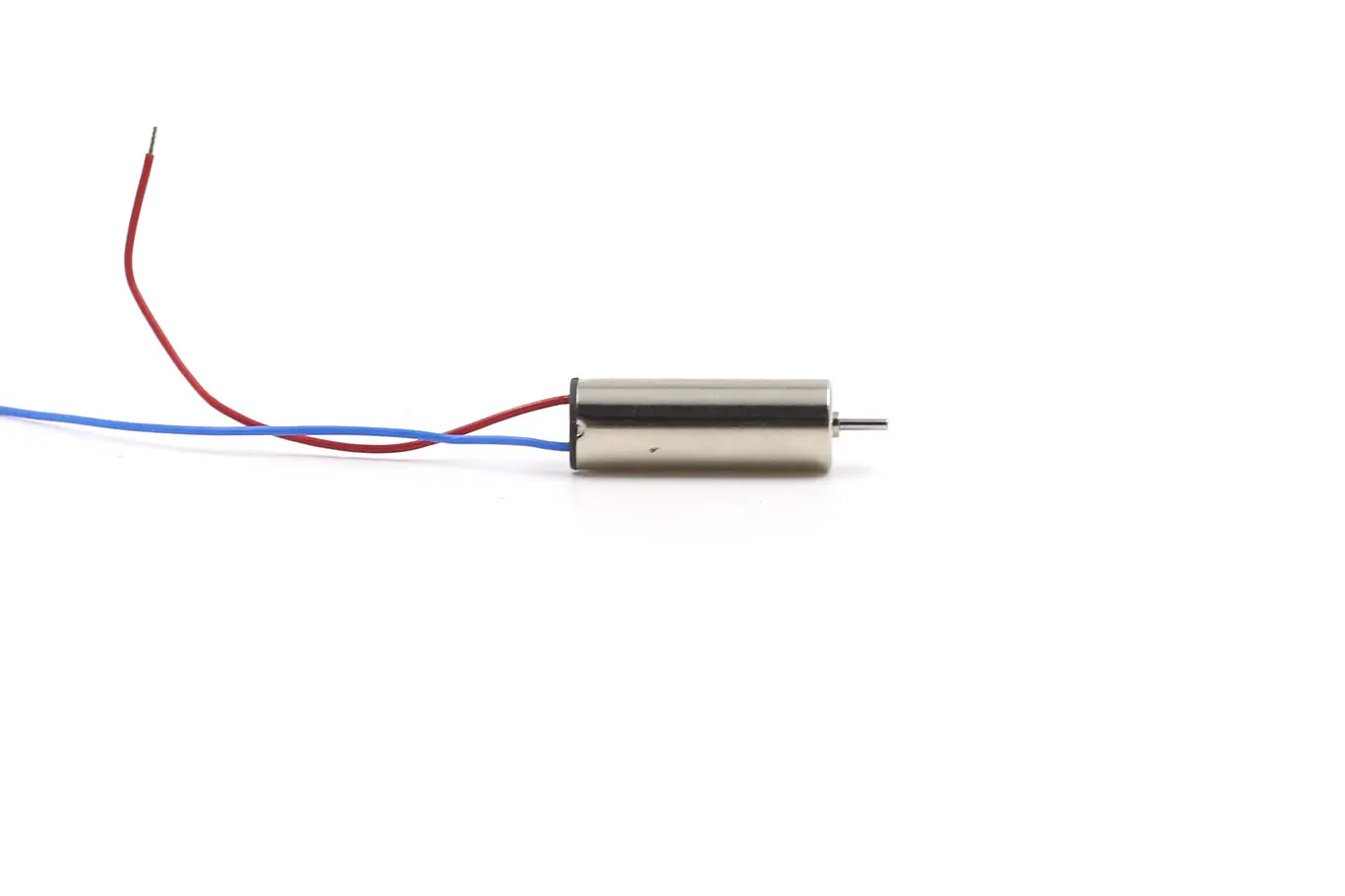

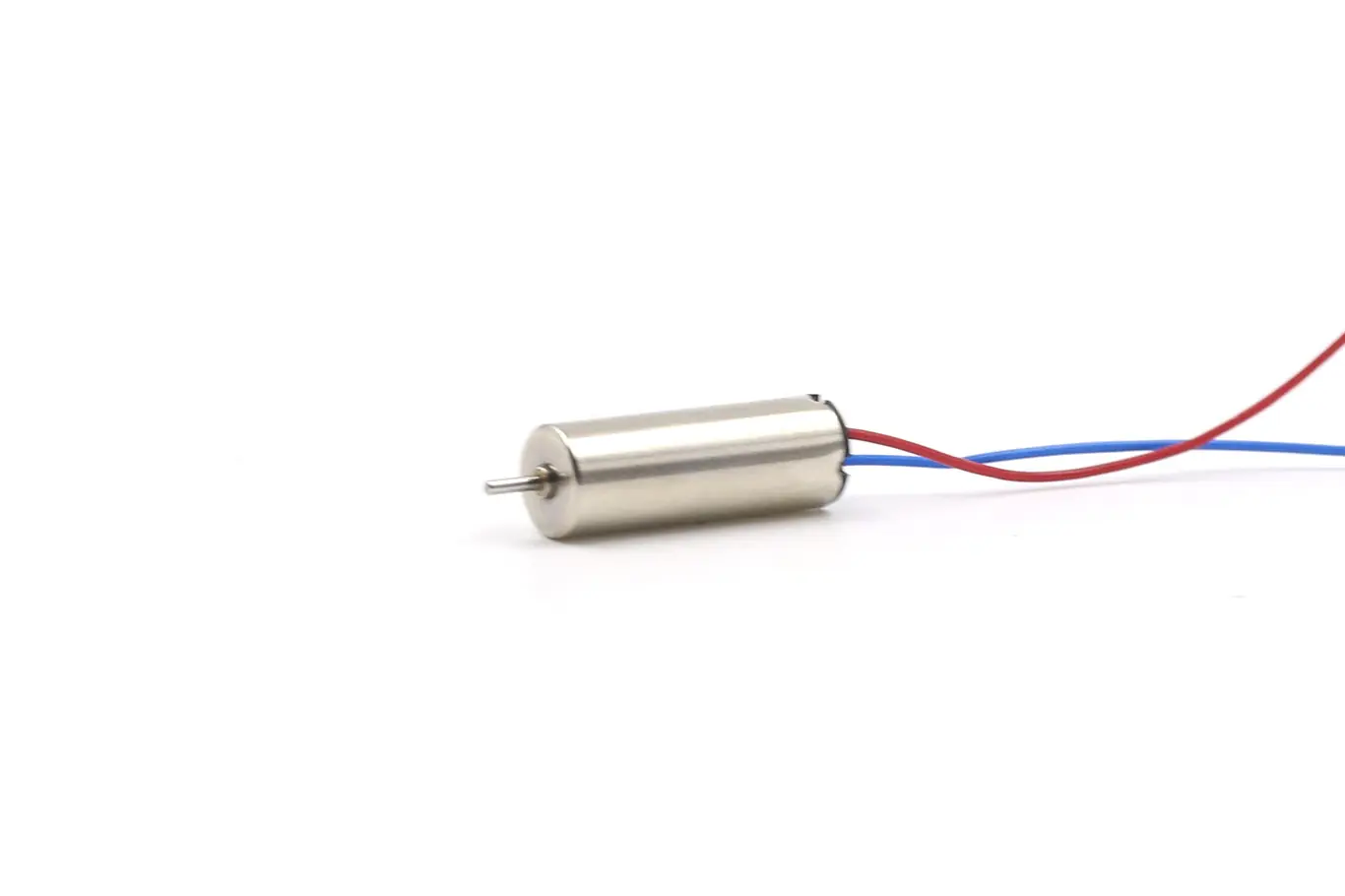

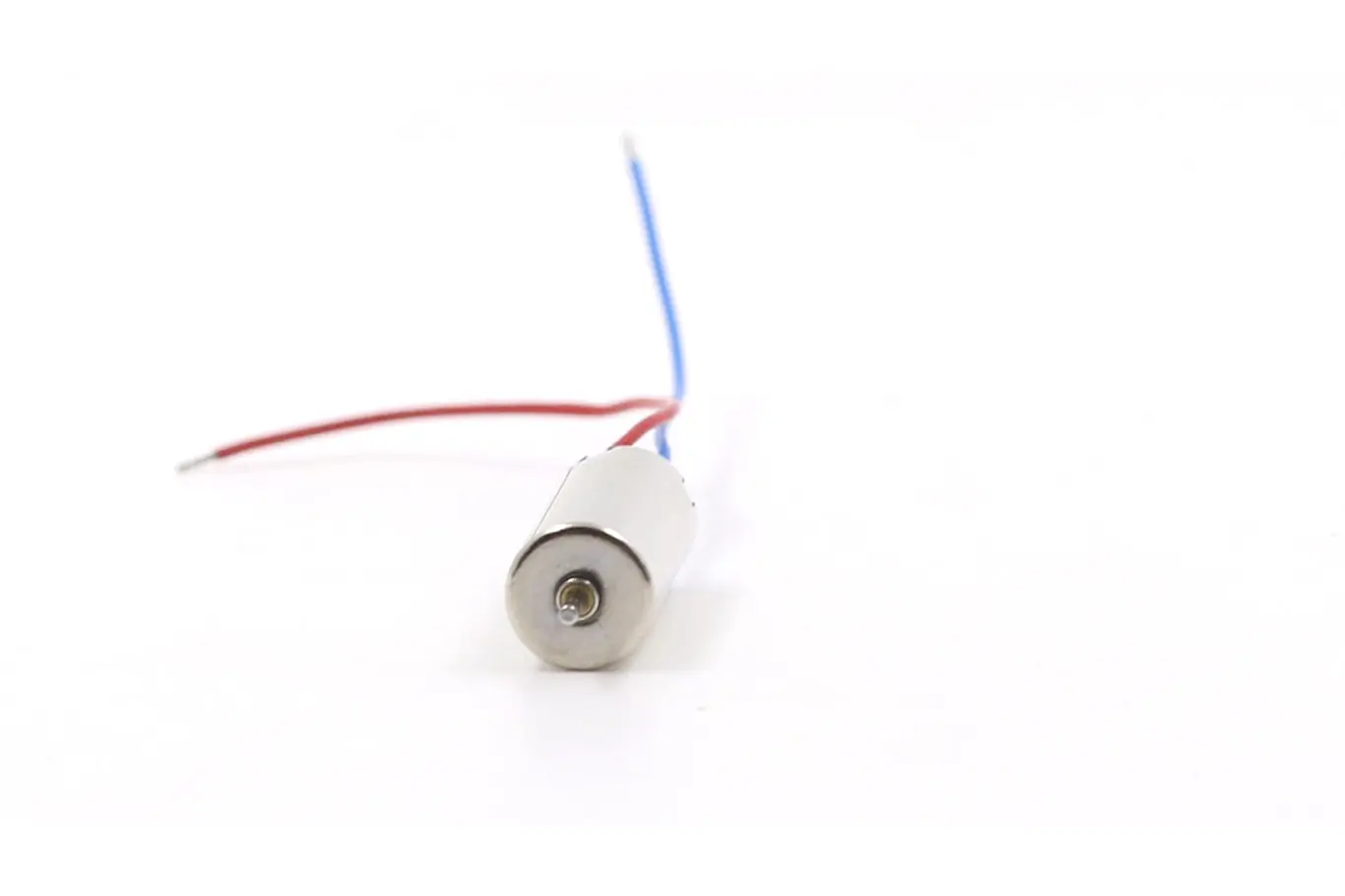

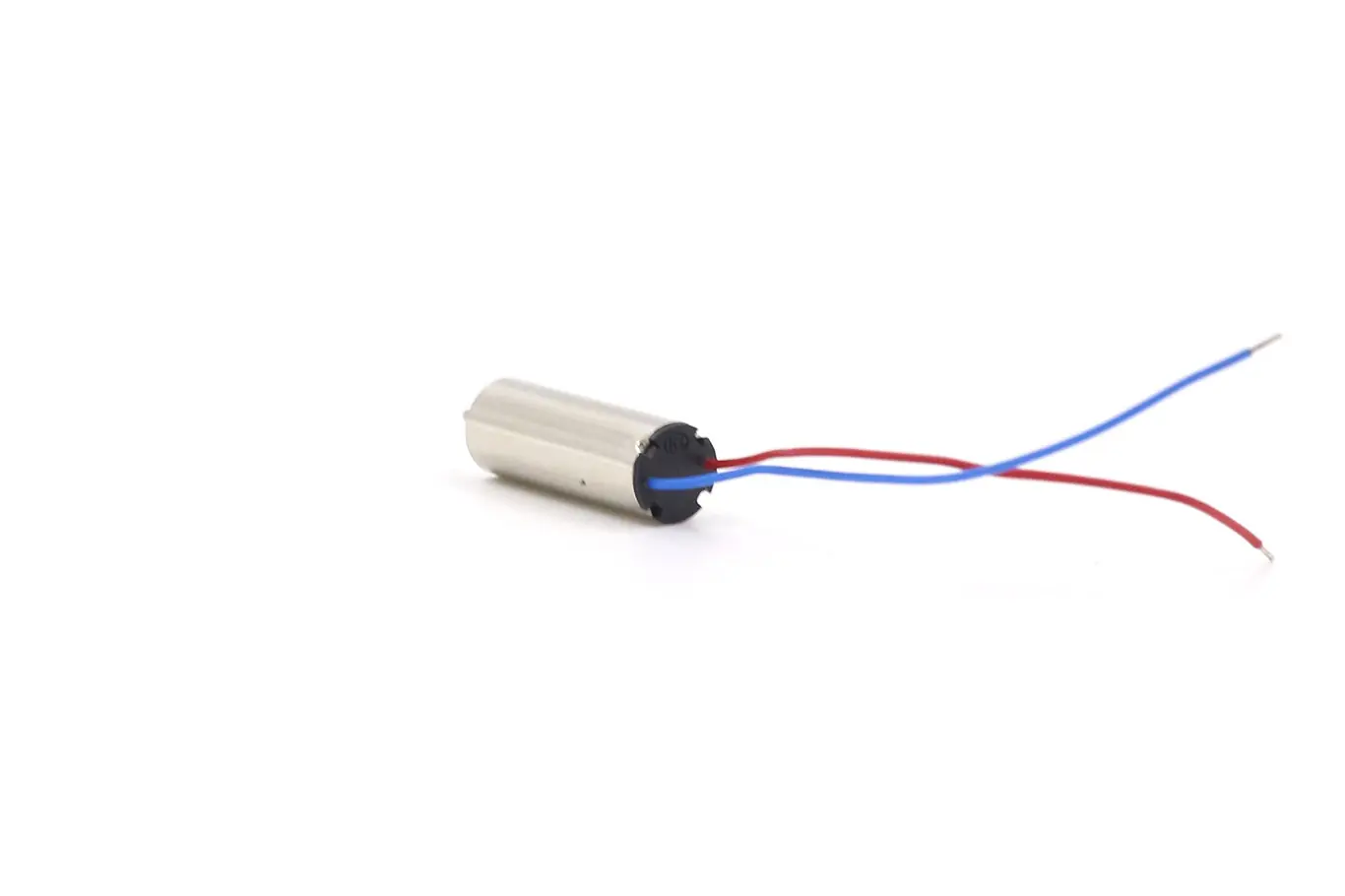

6mm Coreless DC Motor – 17mm Type Model TSL-CL0617
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-CL0617
- Motor Type:Coreless DC Motor
- Motor Diameter: 6.0mm
- Motor Length:17.0mm
- Max.permissible No-load speed:54000rpm
- Voltage:2.5V/3V DC/customizable
- #More Specifications
- #Outline Drawing
Electric Airplane Motor Coreless DC Motor Datasheet
This 6mm micro coreless motor is an ideal choice for electric airplane applications. The electric airplane motor operates at 3-4V DC, reaching speeds up to 53,000 RPM. Its lightweight design provides powerful thrust for micro aircraft.
The electric airplane motor’s key advantage is its coreless construction. This results in extremely low inertia for rapid acceleration and deceleration. This is critical for electric airplanes requiring instant response and precise control.
Beyond model aircraft, this high-performance electric airplane motor motor is suited for medical devices and precision robotics. Its rapid response characteristics meet the demands of various high-tech applications, representing excellence in micro-drive technology.
| Model | TSL-CL0617-10259 | TSL-CL0617-10930 |
| Voltage | 2.5V | 3V |
| Terminal resistance | 0.5Ω | 0.9Ω |
| No-load-speed | 54,000rpm | 48,000rpm |
| No-load-current | ≤120mA | ≤75mA |
| Stall torque | CW19.68g.cm | CW17.87g.cm |
| Stall current | 4,990mA | 3,300mA |
| Max output power | 2.727W | 2.2W |
| Max efficiency | 66% | 67% |
| Torque constant | 4g.cm/A | 5.5g.cm/A |
| Rotor inertia | <0.03g.cm² | <0.03g.cm² |
| Weight | 2g | 2g |
Remarks:
➡️The mini coreless electric airplane motor can be designed upon customer’s requirements on performance, installation, power connection method and motor dimension.
➡️The mini coreless electric airplane motor can be mounted with various shape and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.
⭐1g=0.035oz 1inch=25.4mm 1g.cm=0.098mN.m 1oz=28.35g 1mm=0.0394inch 1mN.m=10.2g.cm

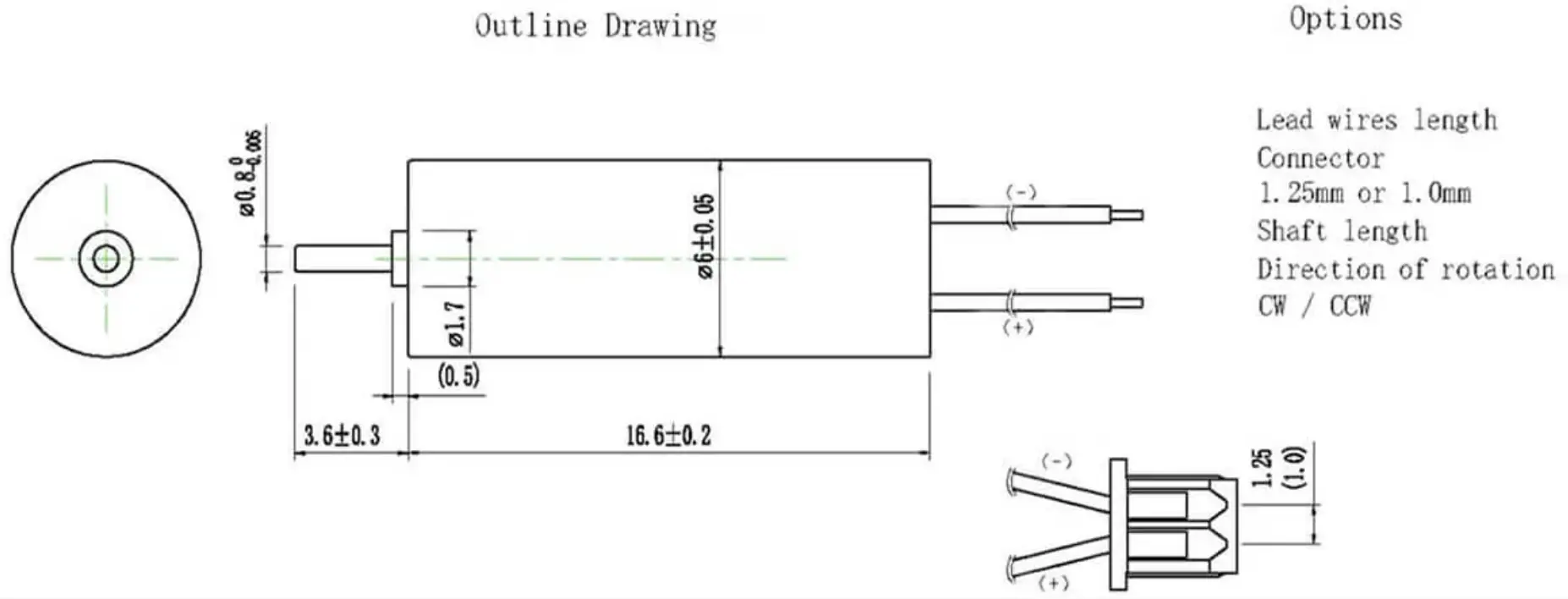

High Speed Electric Airplane Motor 3.7V DC Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Keywords
airplane motor,rc airplane motors,hobby dc motor,toy dc motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : PayPal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you’ve not received the item within the Delivery Time Please contact us via email with any concerns. We usually give you a response within 24 hours. If you don’t, please look through your email account. We will try to help you resolve the issues.
4.Please ensure that your address is in line with the address of your final shipment before you make payment.
FAQ for coreless dc motor
Q：What is coreless dc motor?
A:DC coreless motors, as the name implies, do not contain an iron core in the rotor. Instead, copper wire windings are arranged in a basket configuration, rotating around the outside of a cylindrical magnet.
