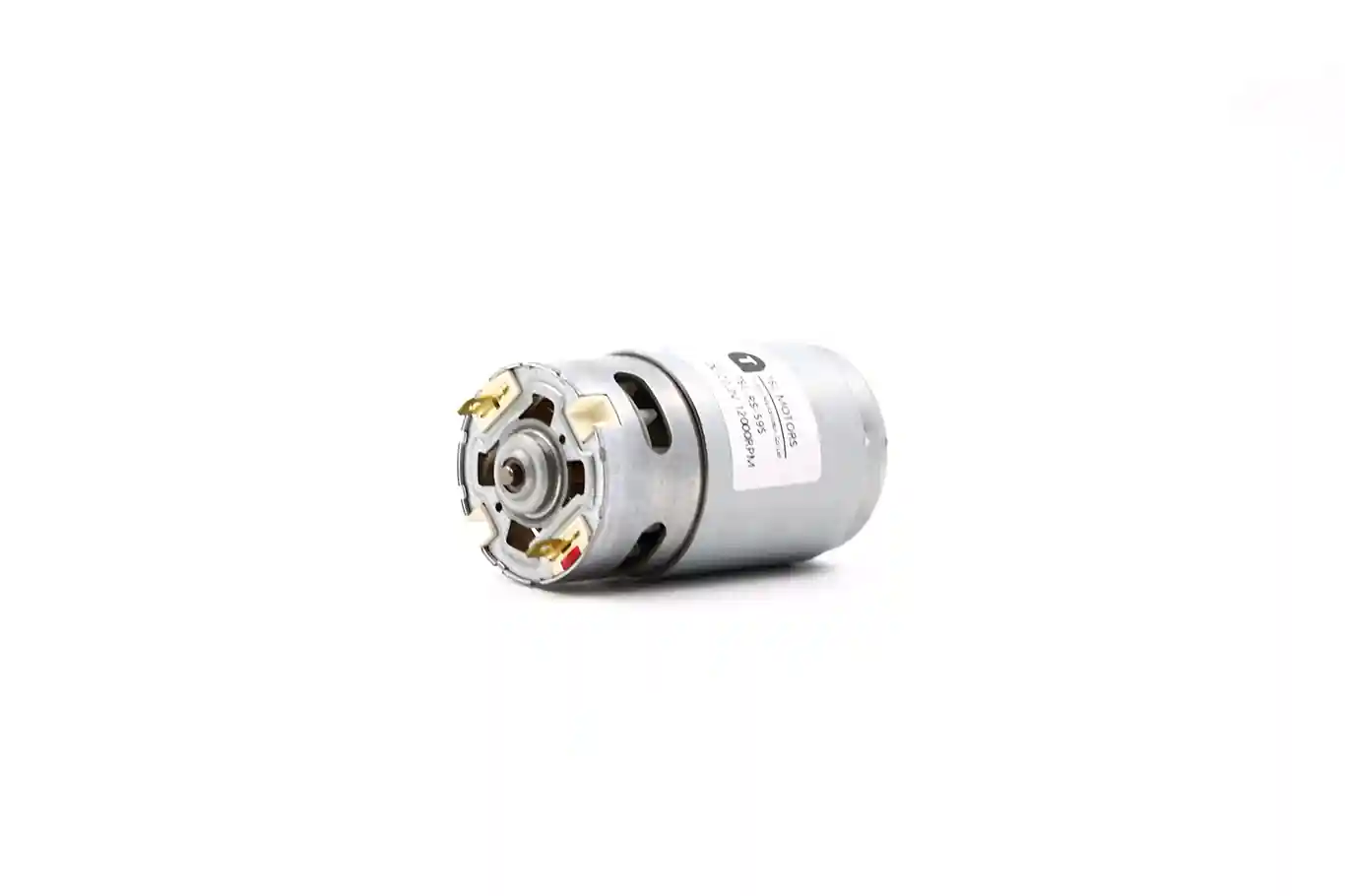

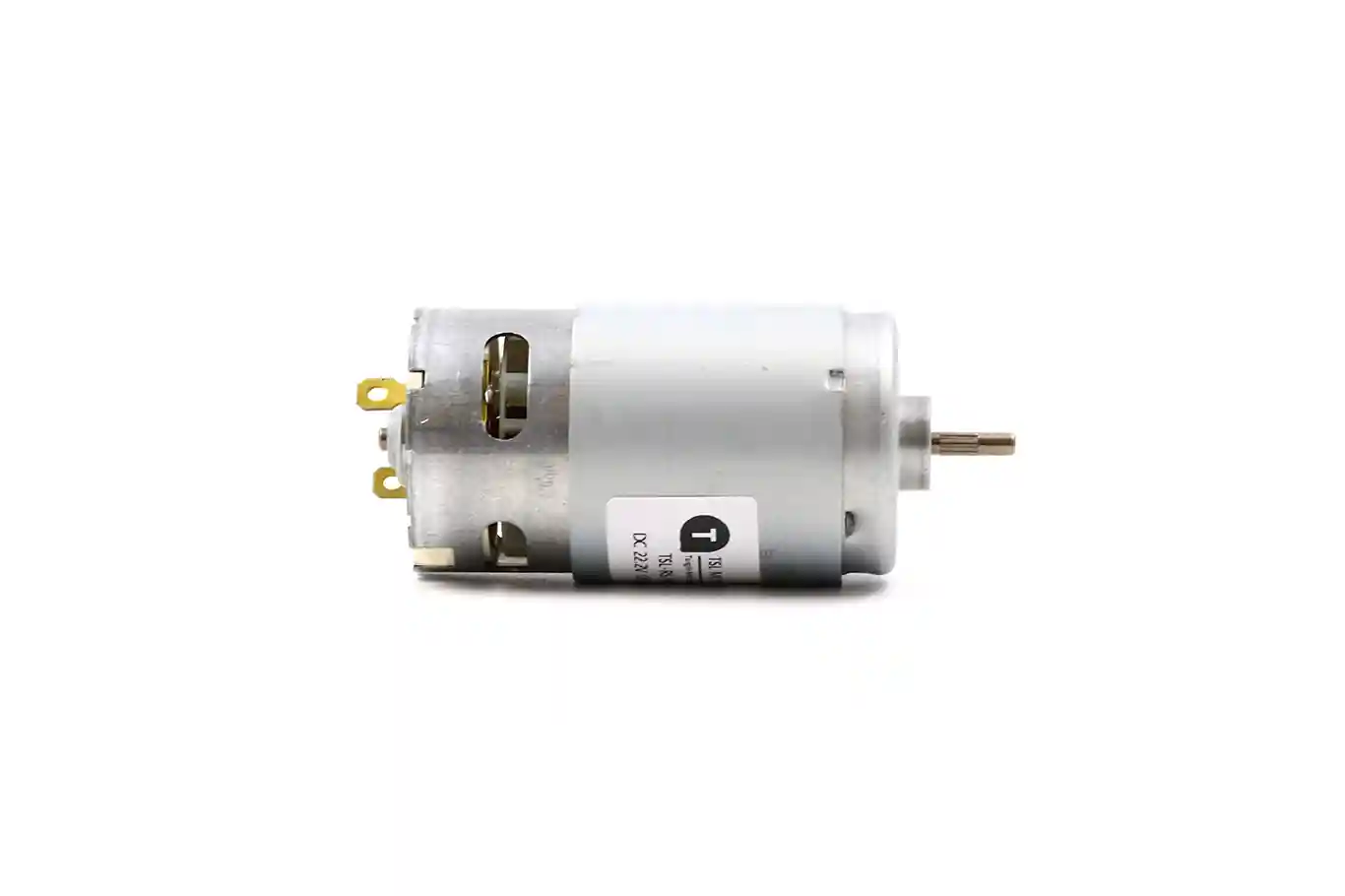

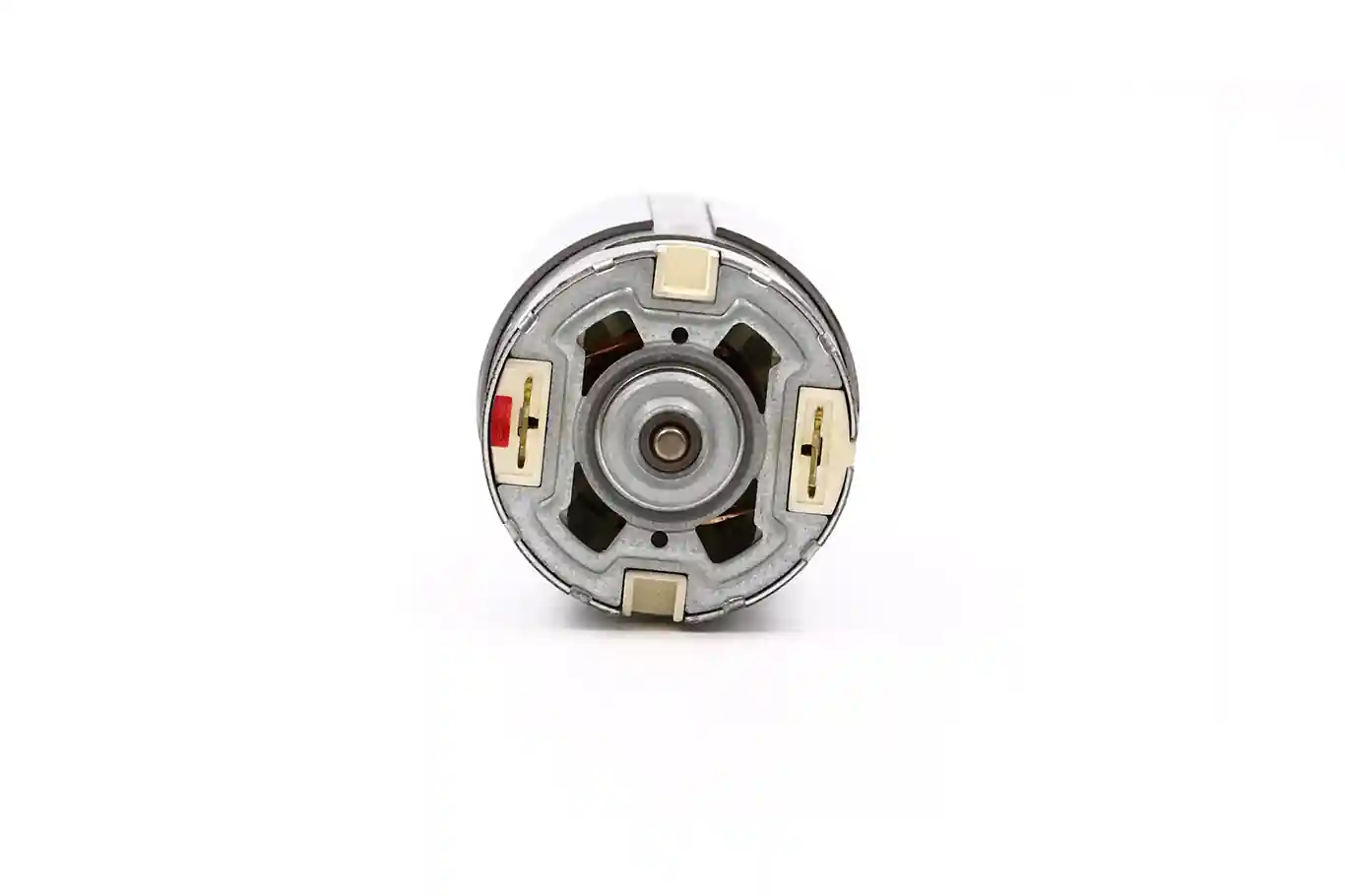

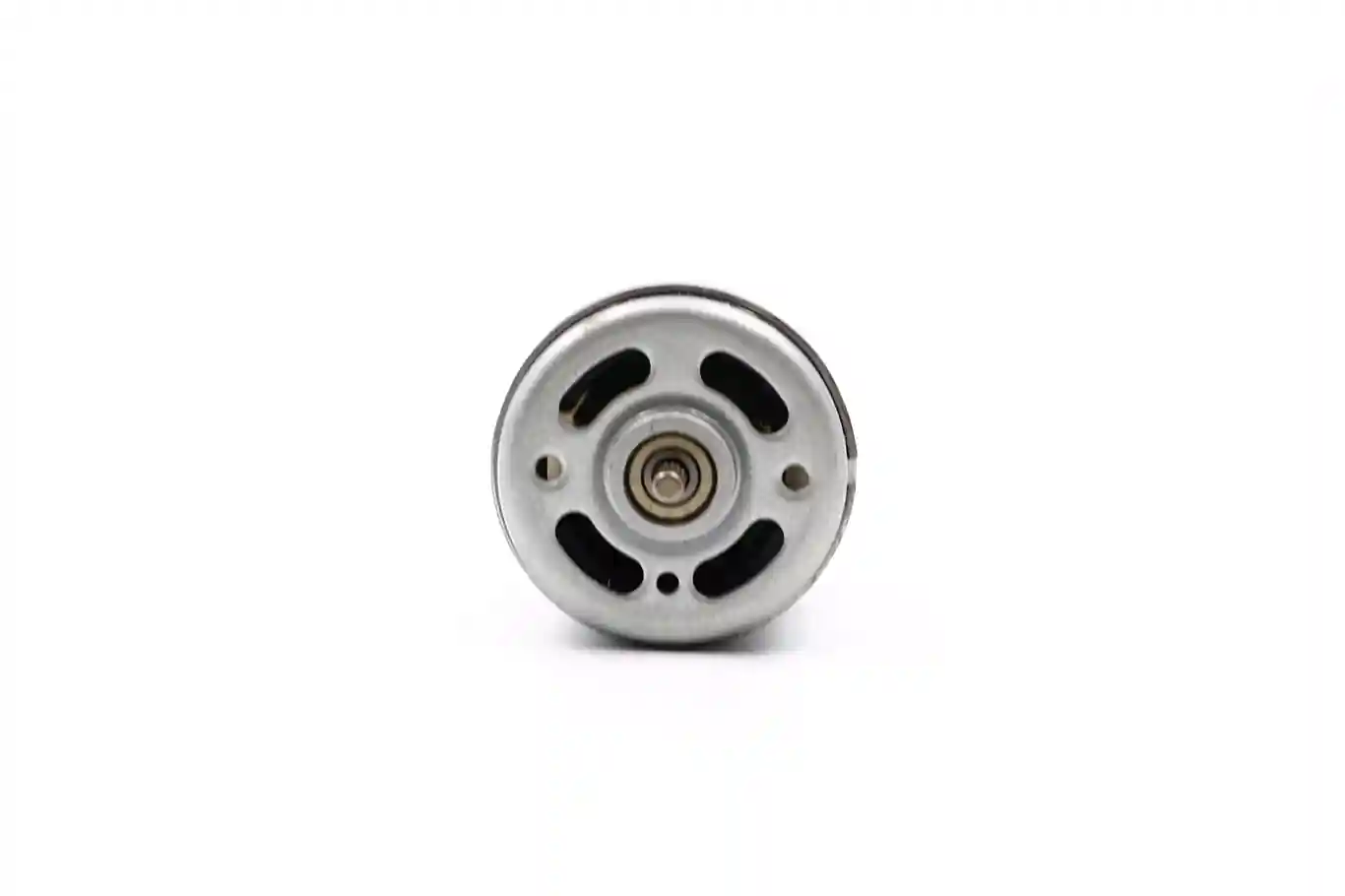

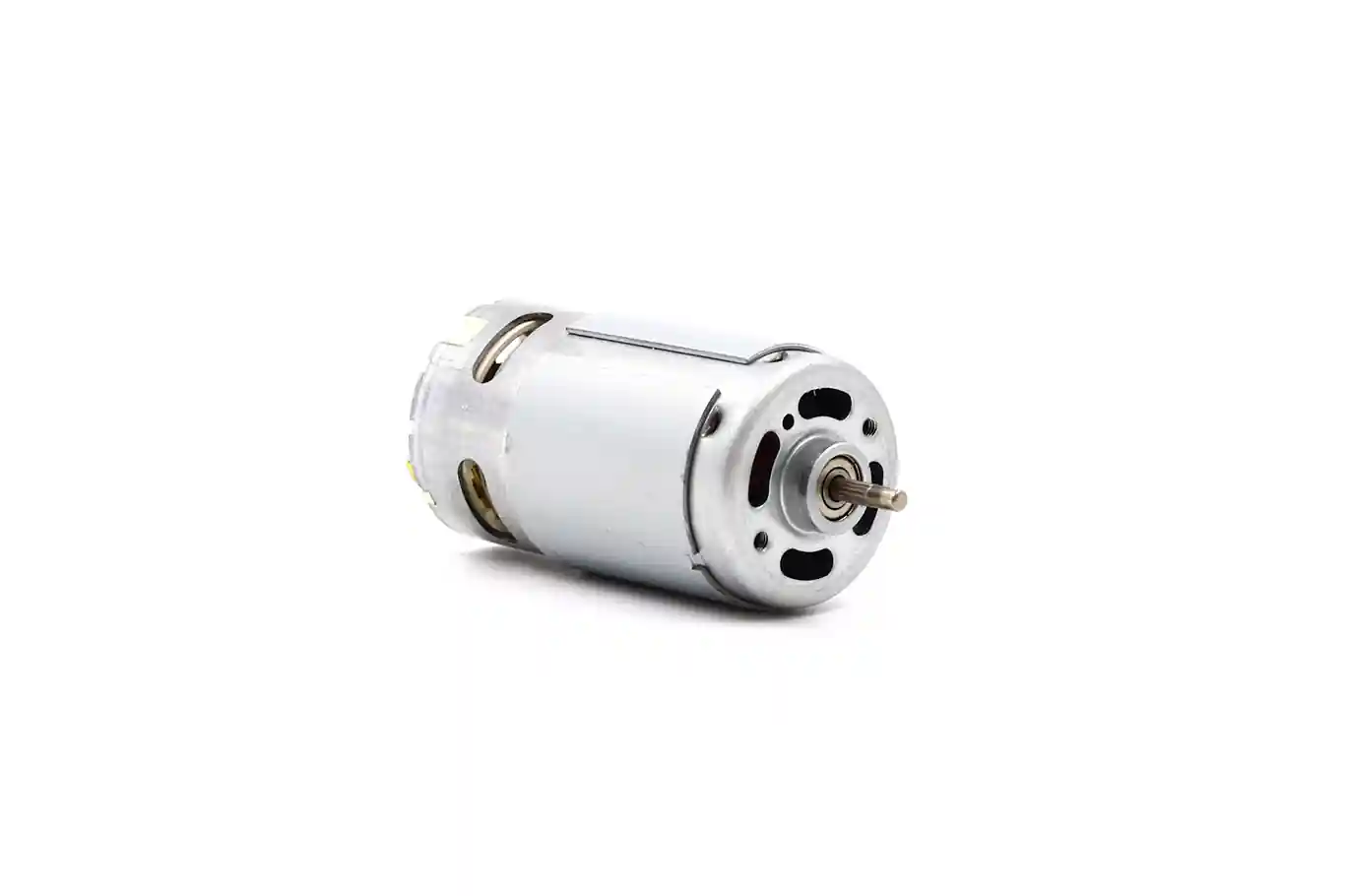

36mm Brushed DC Motor –67mm Type Model TSL-RS-595
♦ Basic Info:
- Motor Type: Brushed DC Motor
- Motor Diameter: 35.8 mm
- Motor Length: 67 mm
- Shaft Diameter: φ 3.175 mm
- Rated Voltage: 12 V
- Rated Speed: 16185 RPM
- Output Power: 77.38 W
- Output Torque: 465.39 g·cm
Typical application:
- automatic window systems
- vehicle-mounted drive actuators
- medical massage equipment
12V DC Electric Brush Motor High RPM Data Sheet
The TSL-RS-595 is a powerful dc electric brush motor. It offers high-speed output and stable performance. This motor can reach a maximum speed of 16,300 ±10% RPM. It provides continuous, strong power.
Versatile Applications and Compact Design
Thedc electric brush motor TSL-RS-595 is perfect for automatic window systems, vehicle-mounted drive actuators, and medical massage equipment. It features a compact structure, making it ideal for systems with limited space. This ensures good integration adaptability.
Advanced Efficiency and Electromagnetic Compatibility
During operation, the dc electric brush motor TSL-RS-595 demonstrates excellent efficiency and thermal management. It has an internally integrated varistor and capacitor components. These effectively suppress electromagnetic interference, improving overall electromagnetic compatibility.
We can optimize and customize the dc electric brush motor. This ensures strong, reliable power for different products. It meets many customer needs.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | PRM | A | PRM | g·cm | W | A | g·cm | |
| TSL-RS-590PHVC2-7521R | 12 | 1.33 | 18672 | 8.66 | 16185 | 465.39 | 77.38 | 56.36 | 3492.05 |
| TSL-RS-590PH-4558 | 24 | 0.398 | 16010 | 4.46 | 14699 | 491.47 | 74.21 | 50.00 | 6001.86 |
| TSL-RS-595SHFC2J2-4535R | 22 | 0.3 | 11436 | 2.85 | 10346 | 470.21 | 49.97 | 27.01 | 4931.80 |
| TSL-RS-595PH-3533RD | 36 | 0.34 | 17800 | 3.06 | 16019 | 527.54 | 86.85 | 27.52 | 5272.44 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m

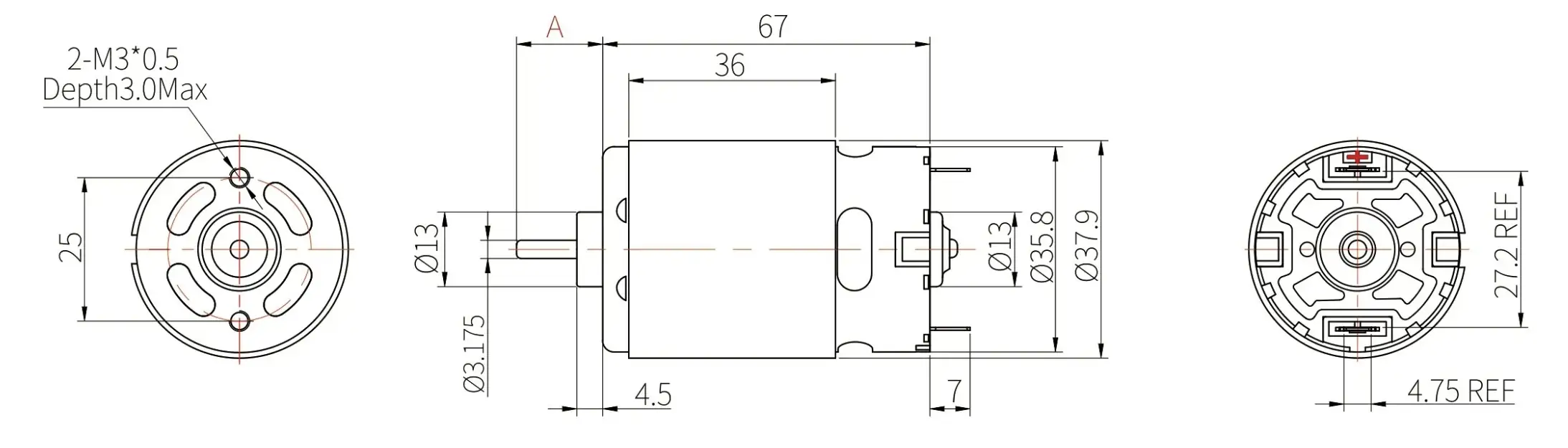

12V DC Electric Brush Motor 595 Brushed Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
