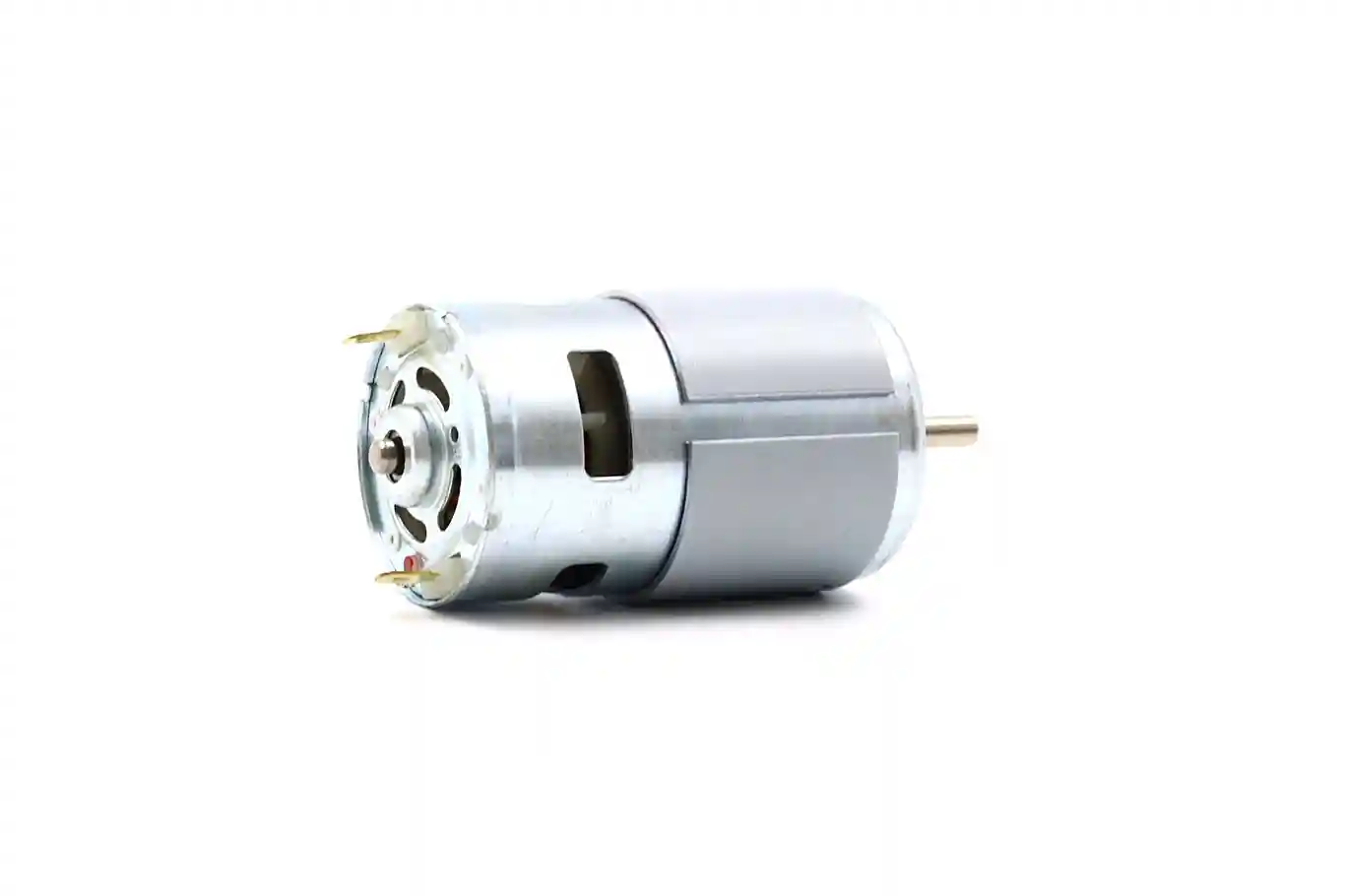

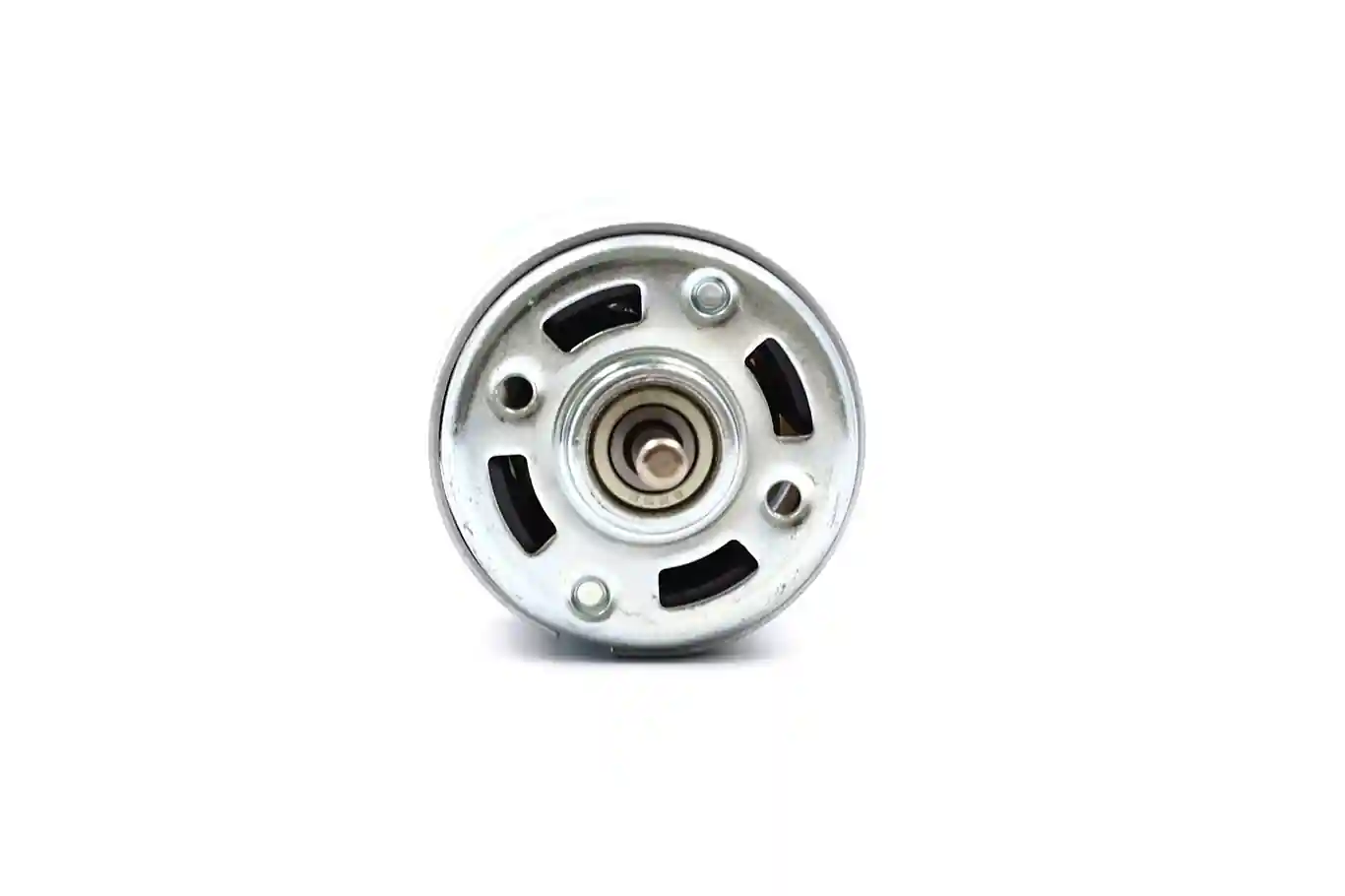

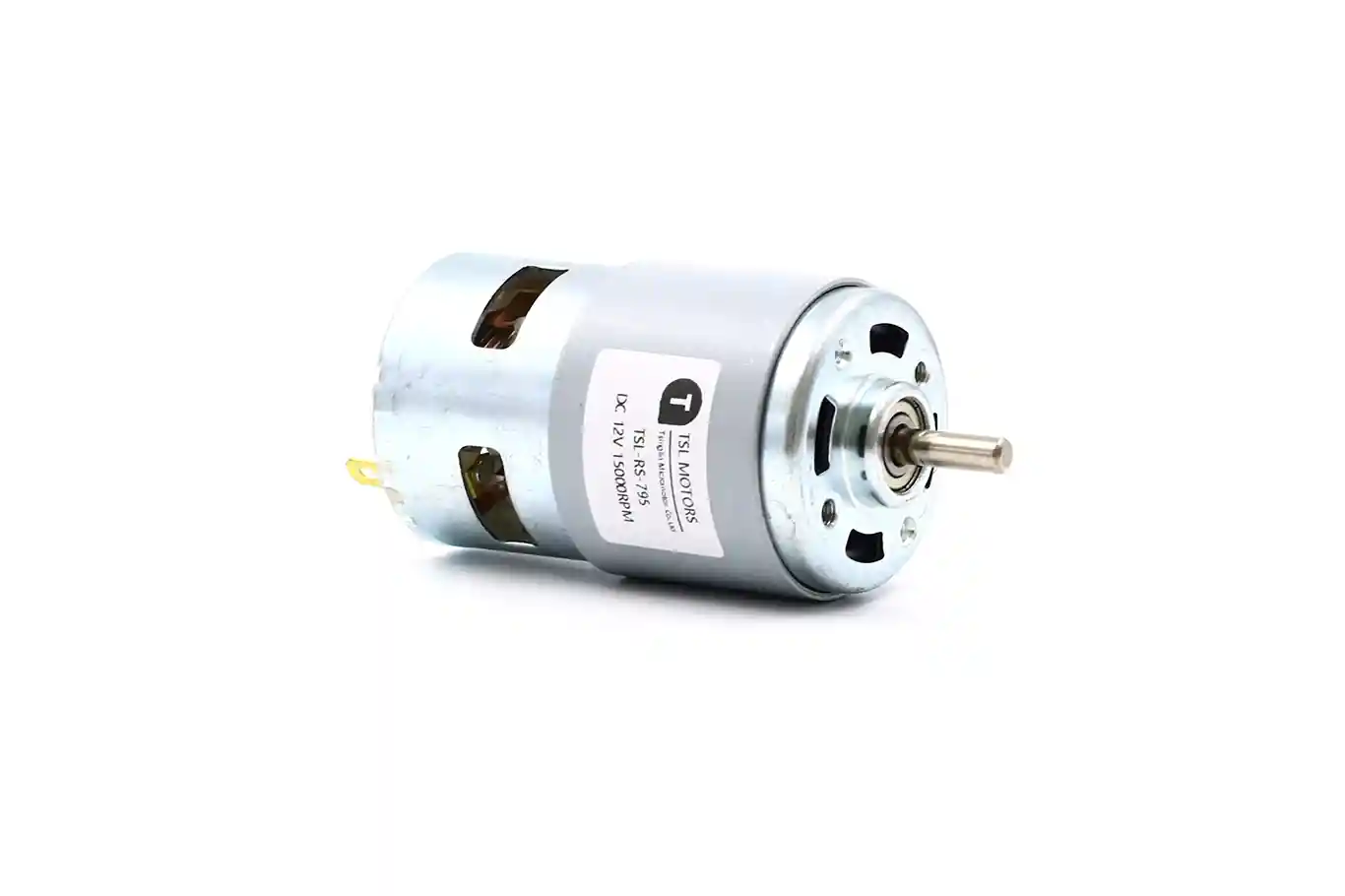

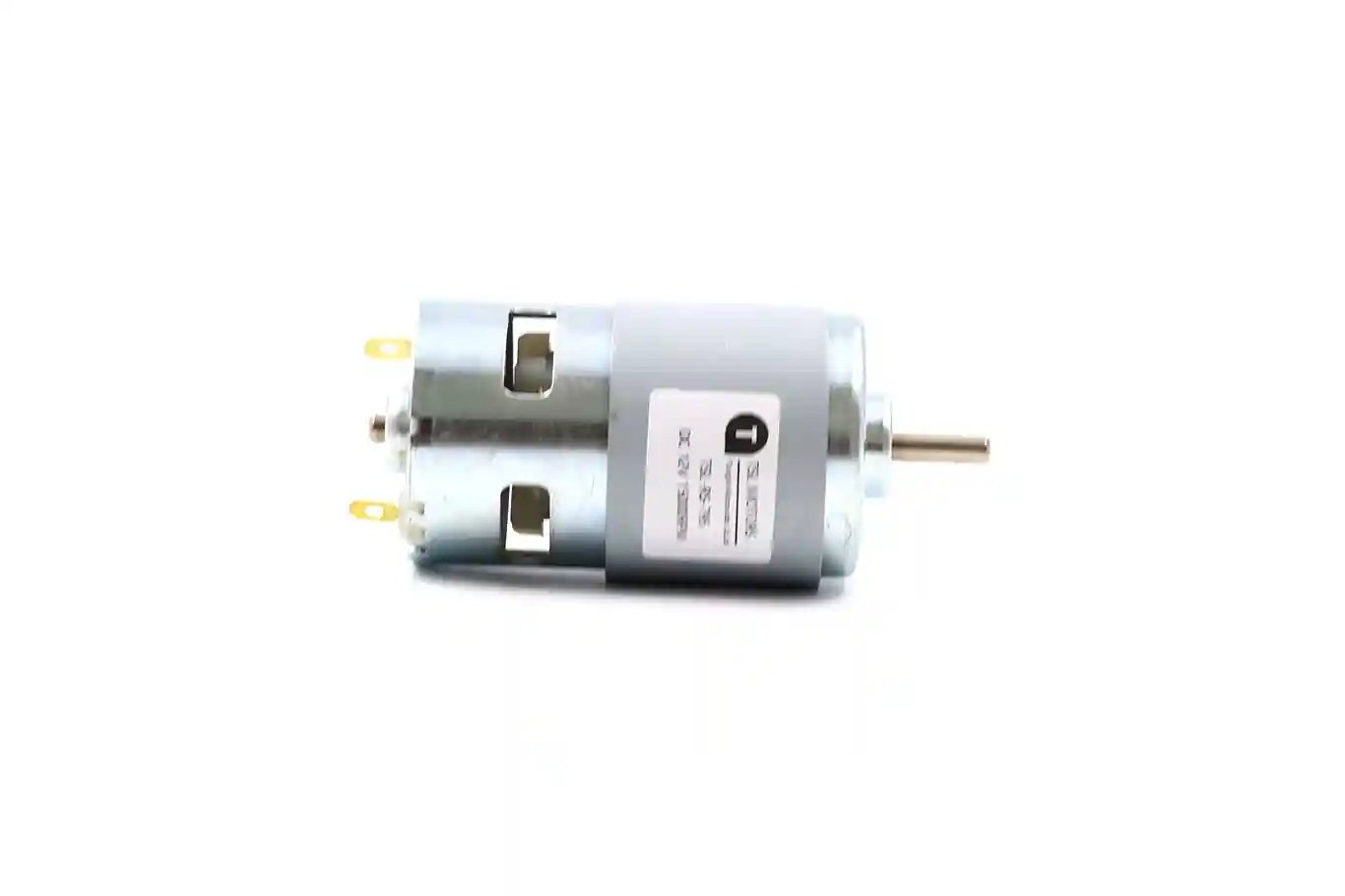

42mm Brushed DC Motor –75mm Type Model TSL-RS-795
♦ Basic Info:
- Motor Type: Brushed DC Motor
- Motor Diameter: 42.3 mm
- Motor Length: 75 mm
- Shaft Diameter: φ 5.0 mm
- Rated Voltage: 24 V
- Rated Speed: 7755 RPM
- Output Power: 63.86 W
- Output Torque: 801.53 g·cm
Typical application:
- coffee machines, hair dryers, and smart induction hand washing machines.
Brushed DC Electric Motor High Torque Technical Datasheet
The TSL-RS-795 is a brushed DC electric motor offering long life, high efficiency, and low power consumption. It’s perfect for applications needing stable performance and efficient space usage. This DC electric motor high torque operates quietly, with noise levels under 65dB. This makes it ideal for products requiring quiet operation, like coffee machines, hair dryers, and smart induction hand washing machines.
Durable Design for Reliable Performance
The dc electric motor high torque housing of the TSL-RS-795 is built from high-strength galvanized steel. It features a metal back cover and carbon brushes. This design enhances structural integrity and resists corrosion. It ensures stable, long-term operation, even in complex environments.
We can optimize and customize the DC electric motor high torque. This ensures strong, reliable power for different products. It meets many customer needs.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g·cm | W | A | g·cm | |
| TSL-RS-795SHFC2J2-8509RD | 12 | 3.1 | 19436 | 19.38 | 16755 | 952.83 | 164.01 | 121.12 | 6907.57 |
| TSL-RS-795PHC2J2-4737RD | 24 | 0.42 | 8700 | 3.45 | 7755 | 801.53 | 63.86 | 28.32 | 7379.17 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m

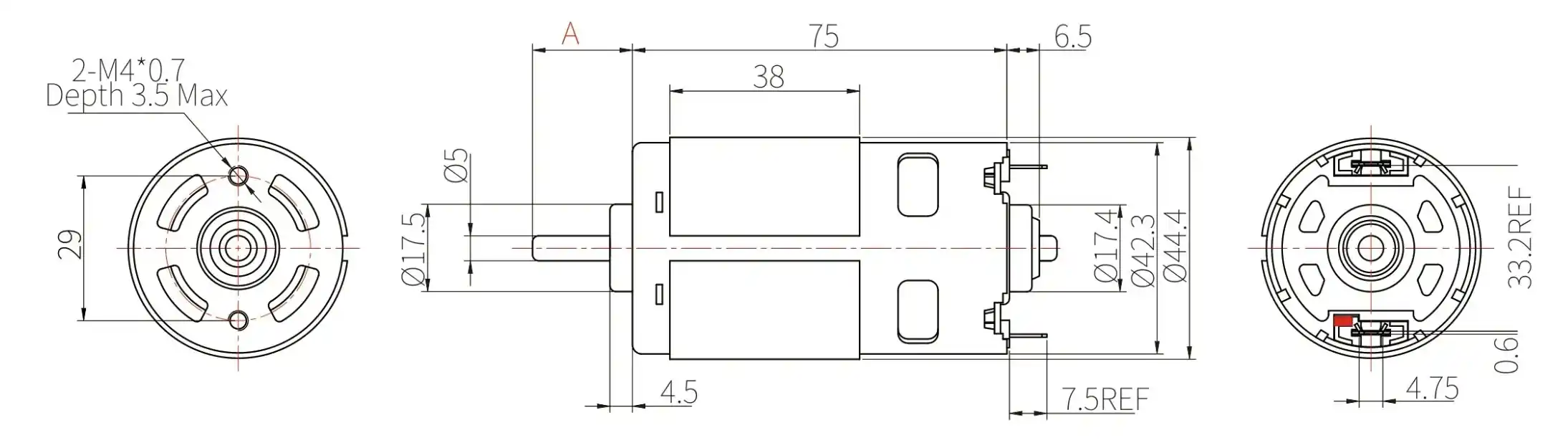

RS-795 Small DC Electric Motor High Torque Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
