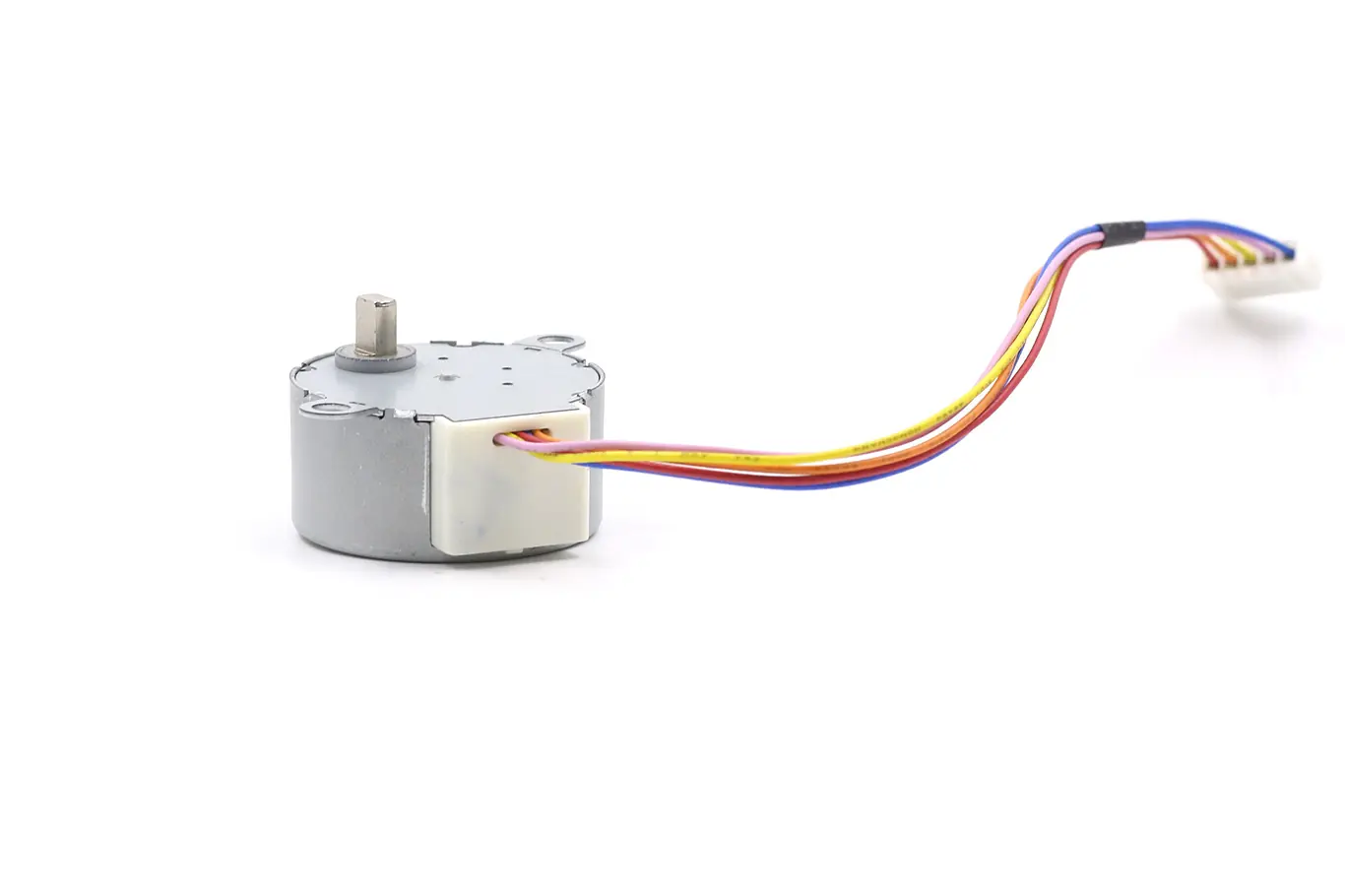

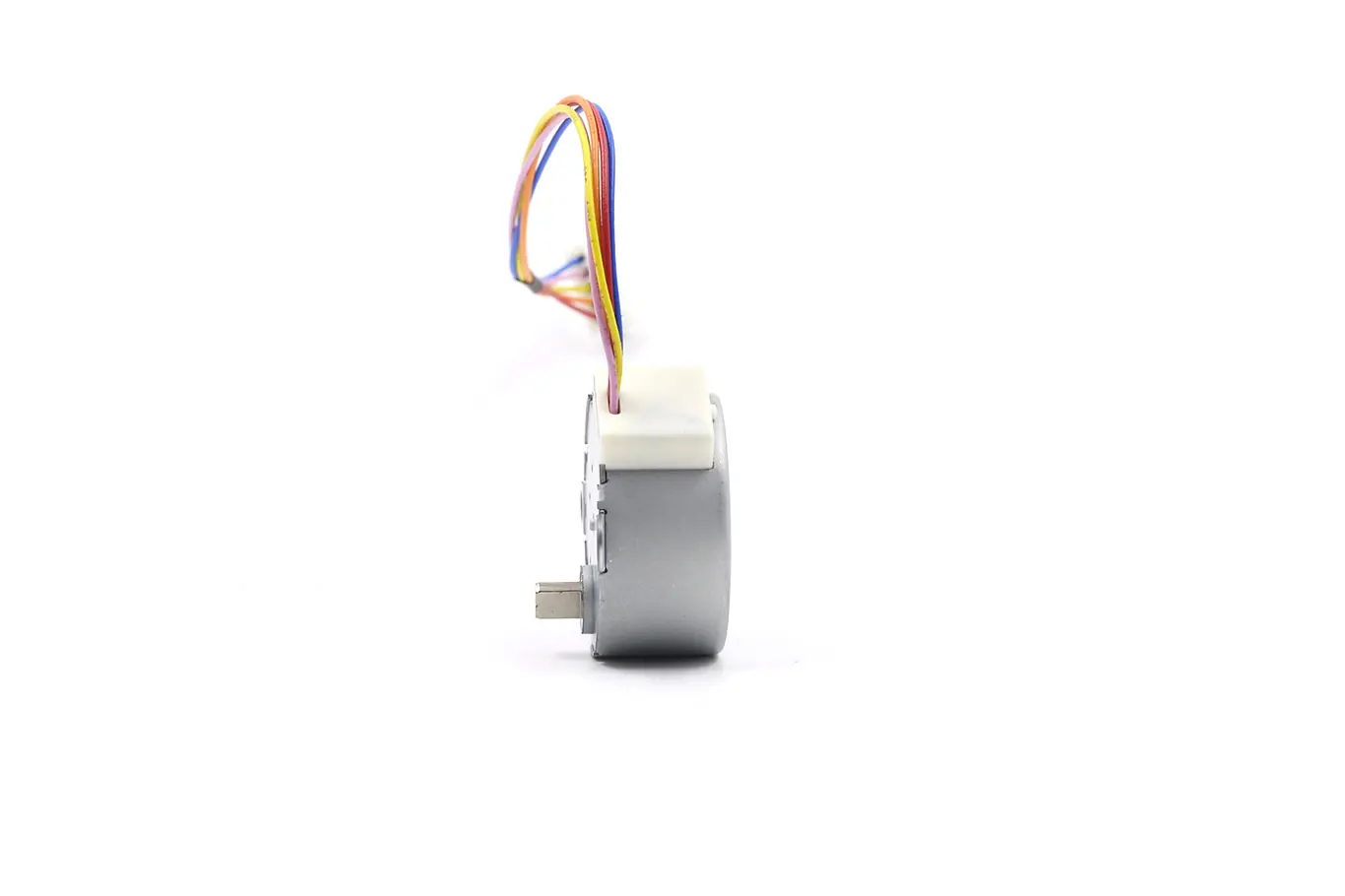

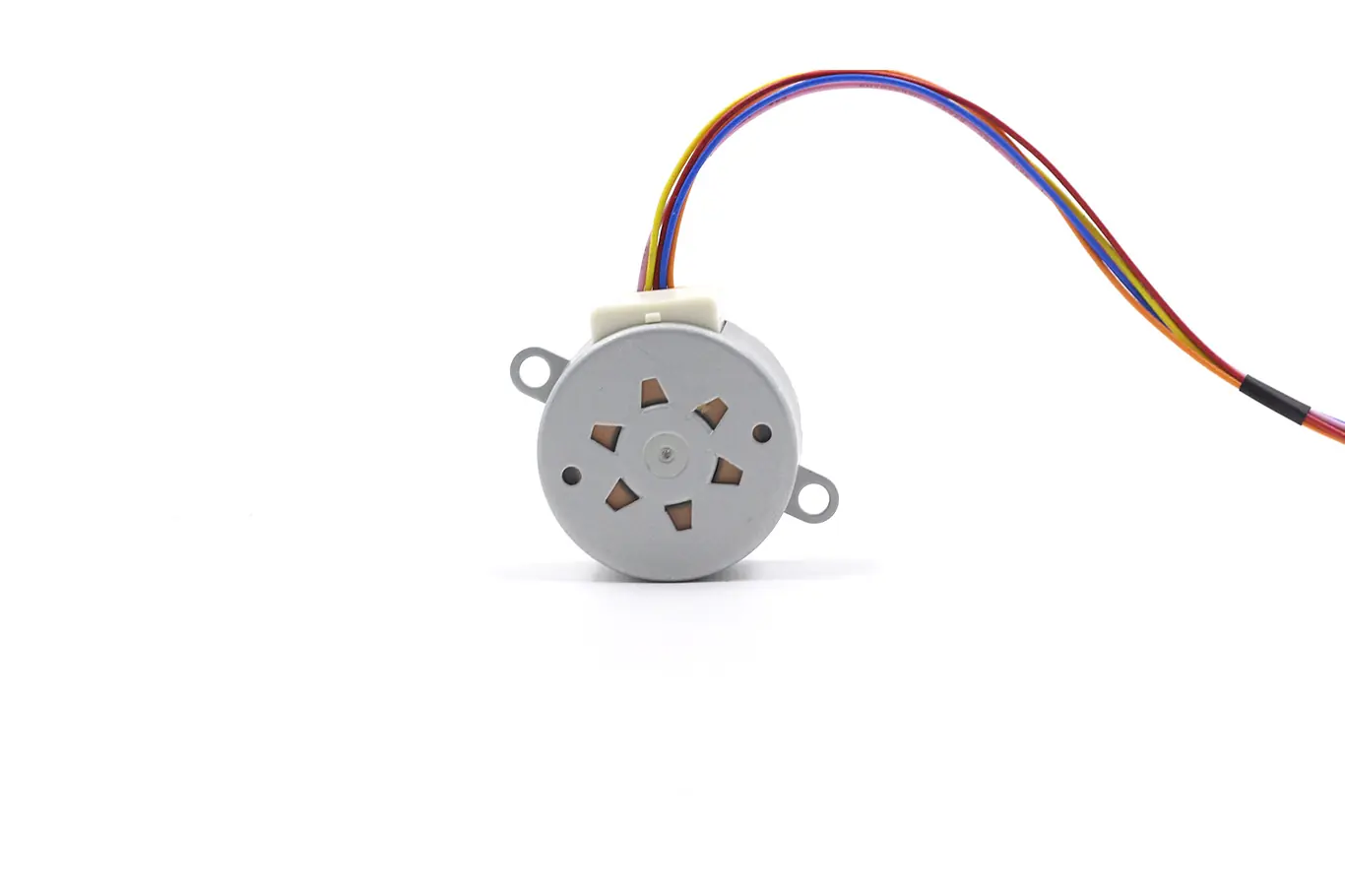

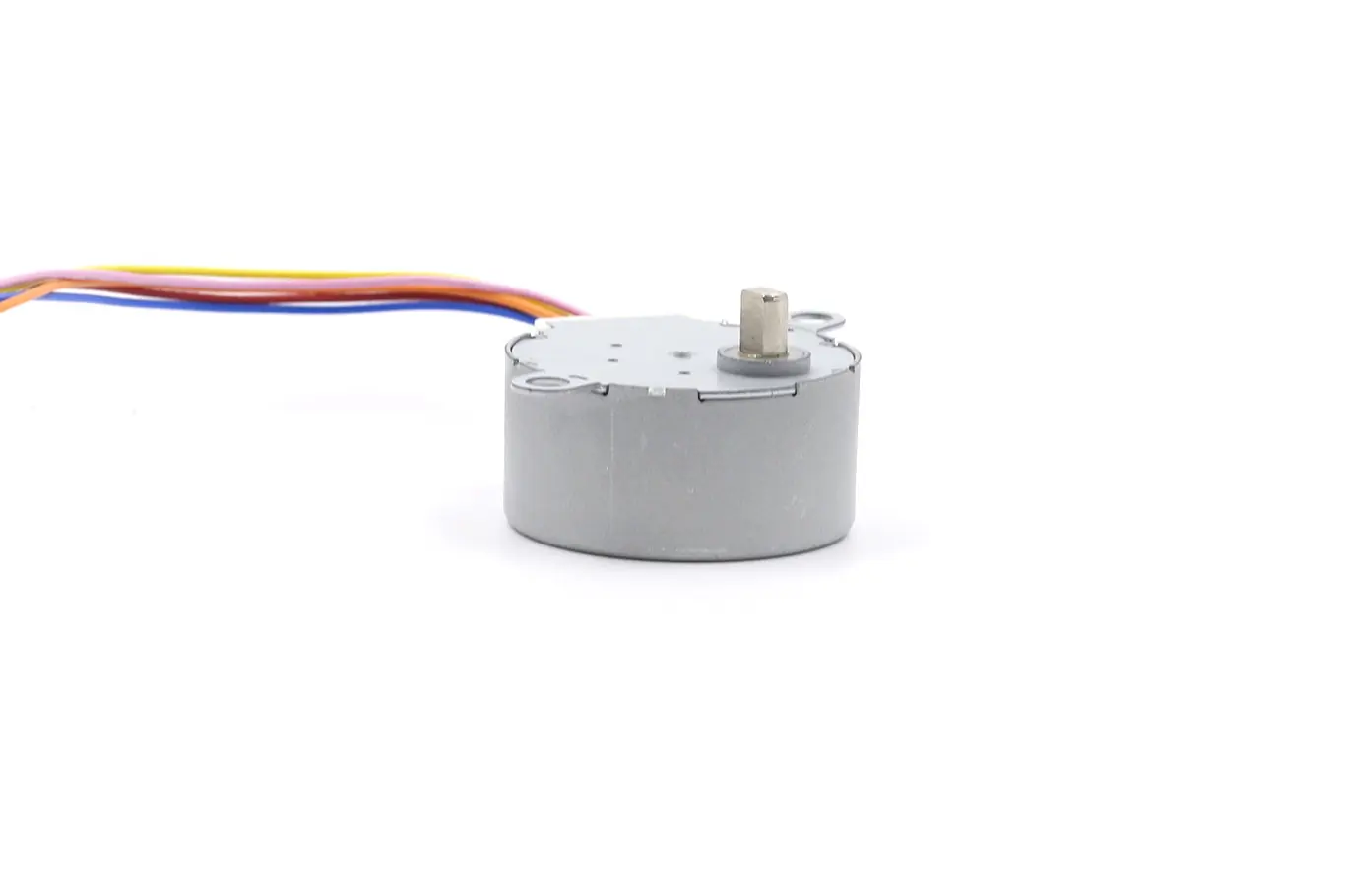

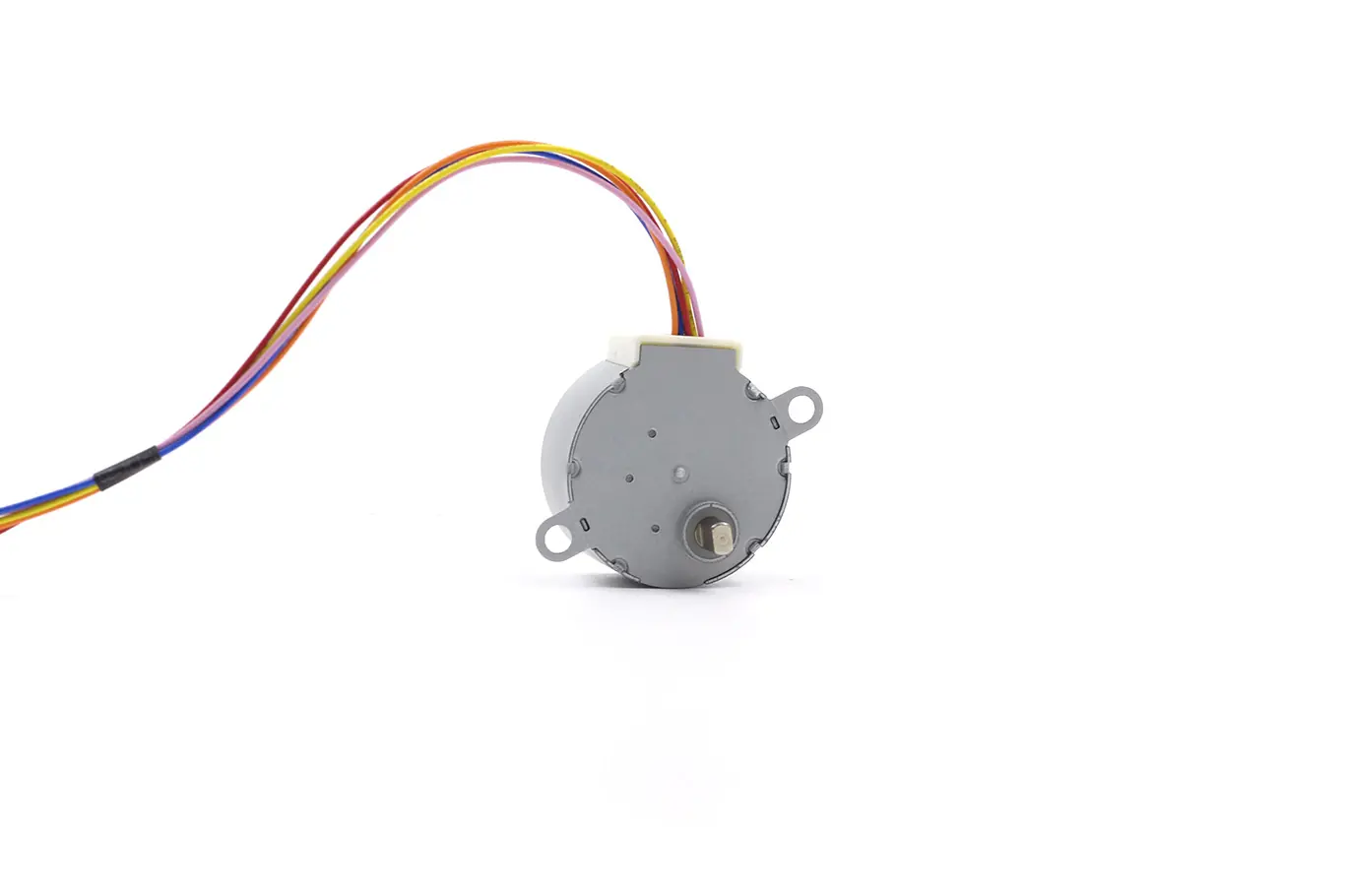

35mm DC Geared Stepper Motor Model TSL-35BYJ46
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-35BYJ46
- Voltage: DC 12V
- Step Angle:7.5°/85
- No. of phases:4 phases
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- CNC machines, 3D printers, robotic arms, digital cameras, printers
- scanners, washing machines, air conditioners, electric fans, automotive mirrors
- sunroofs, power windows, HVAC systems, and fuel injection systems
Geared Stepper Motor Unipolar Driving Motor Datasheet
This 35BYJ46 is a permanent magnet stepper motor with an integrated gearbox, featuring a diameter. The motor’s single step angle is . With a high gear ratio of , the resulting actual step angle is .
This geared stepper motor is suited for DC operation. It can be efficiently driven by a conventional PM unipolar stepper motor driver. It’s highly popular across industries due to its high precision, low noise, and low power consumption.
While widely used in standard applications, the geared stepper motor 35BYJ46 also supports customization. We can tailor its performance, size, and features to meet specific customer requirements beyond its base specifications.
| Motor Model:TSL-35BYJ46 | |
| Voltage | 12V DC |
| Resistance | 130Ω |
| Gearbox ratio | 85:1 |
| Step angle | 7.5°/85 |
| Pull-in torque | ≥98mNm |
| Cable number | 5 cables (unipolar) |
| Phase number | 4 phases |
| Voltage | 12V DC |
| Pull-in Torque at 100pps | ≥98 |
| No-Load Pull-in Frequency | ≥420 PPS |
| No-Load Pull-out Frequency | ≥900 PPS |

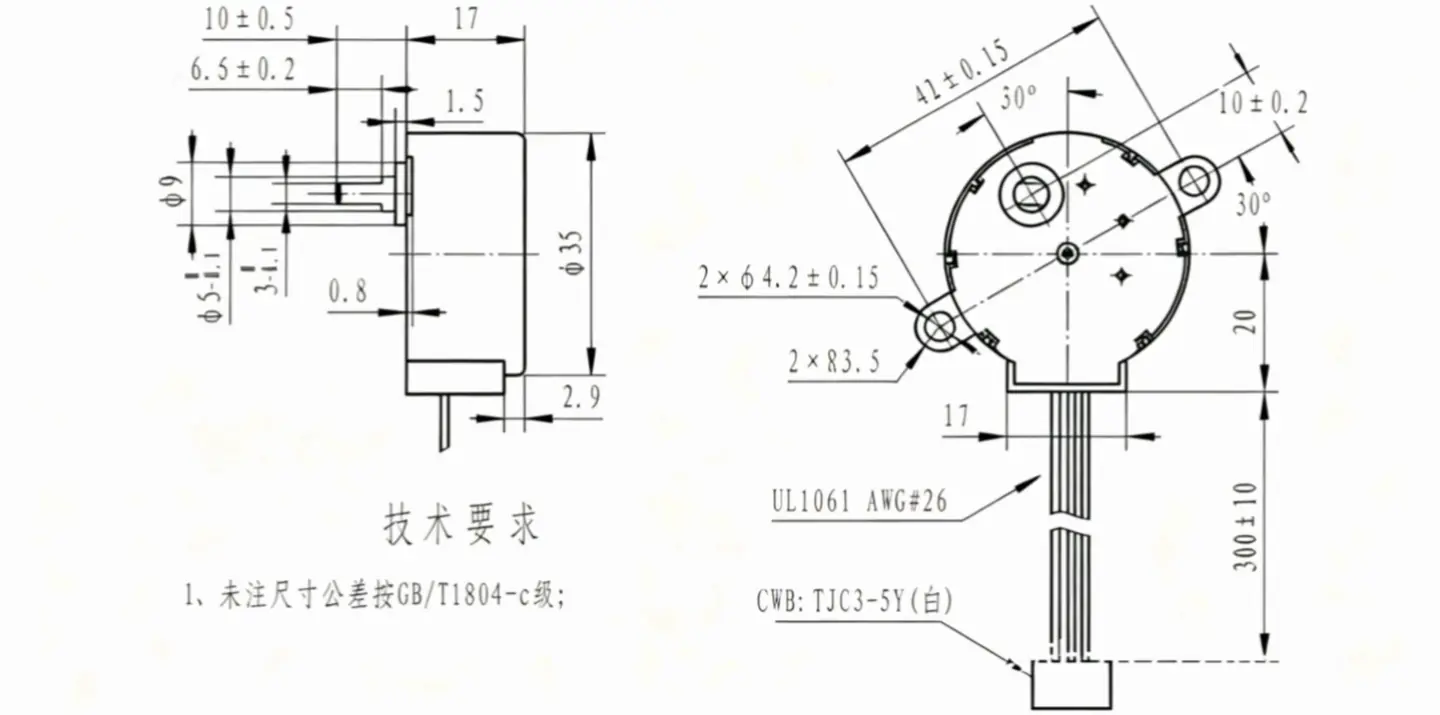

DC Geared Stepper Motor Outline Drawing
Keywords:
Geared stepper motor,unipolar stepper motor,stepper gear motor,small geared stepper motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for geared stepper motor
Q：What is stepper motor?
A:A stepper motor is a brushless DC motor that moves in discrete steps. This allows for precise positioning without the need for a feedback sensor, making it an open-loop system. The motor consists of a rotor, usually a permanent magnet, surrounded by stator windings. When the windings are activated in a specific order and current flows through them, they create magnetic fields that generate rotational force.
If you want a video to explain the principle of micro stepper motor, you can click on this link：https://www.youtube.com/watch?v=0qwrnUeSpYQ
Q:Can micro stepper motor Be Customized?
A: Yes,micro stepper motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
