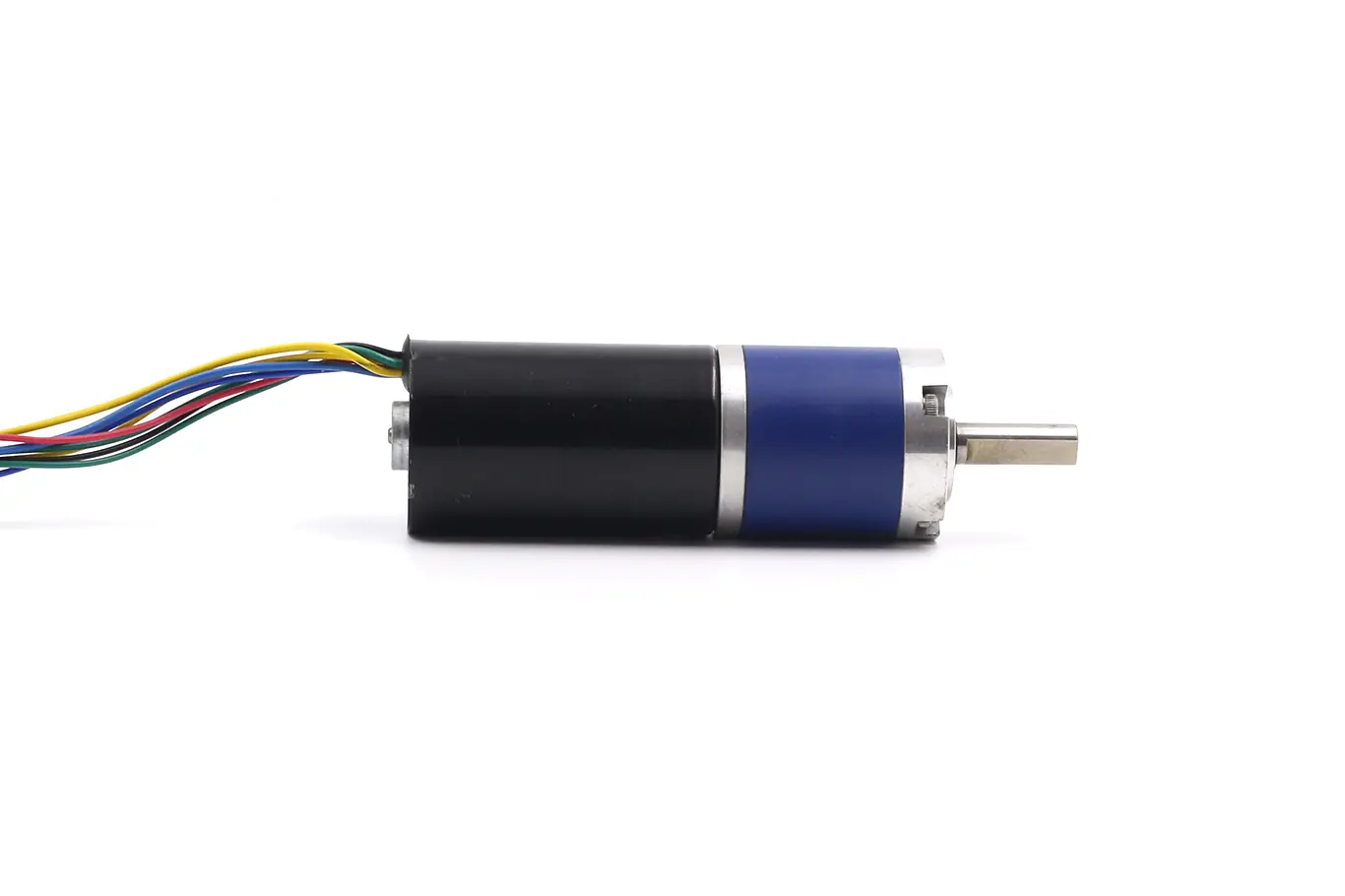

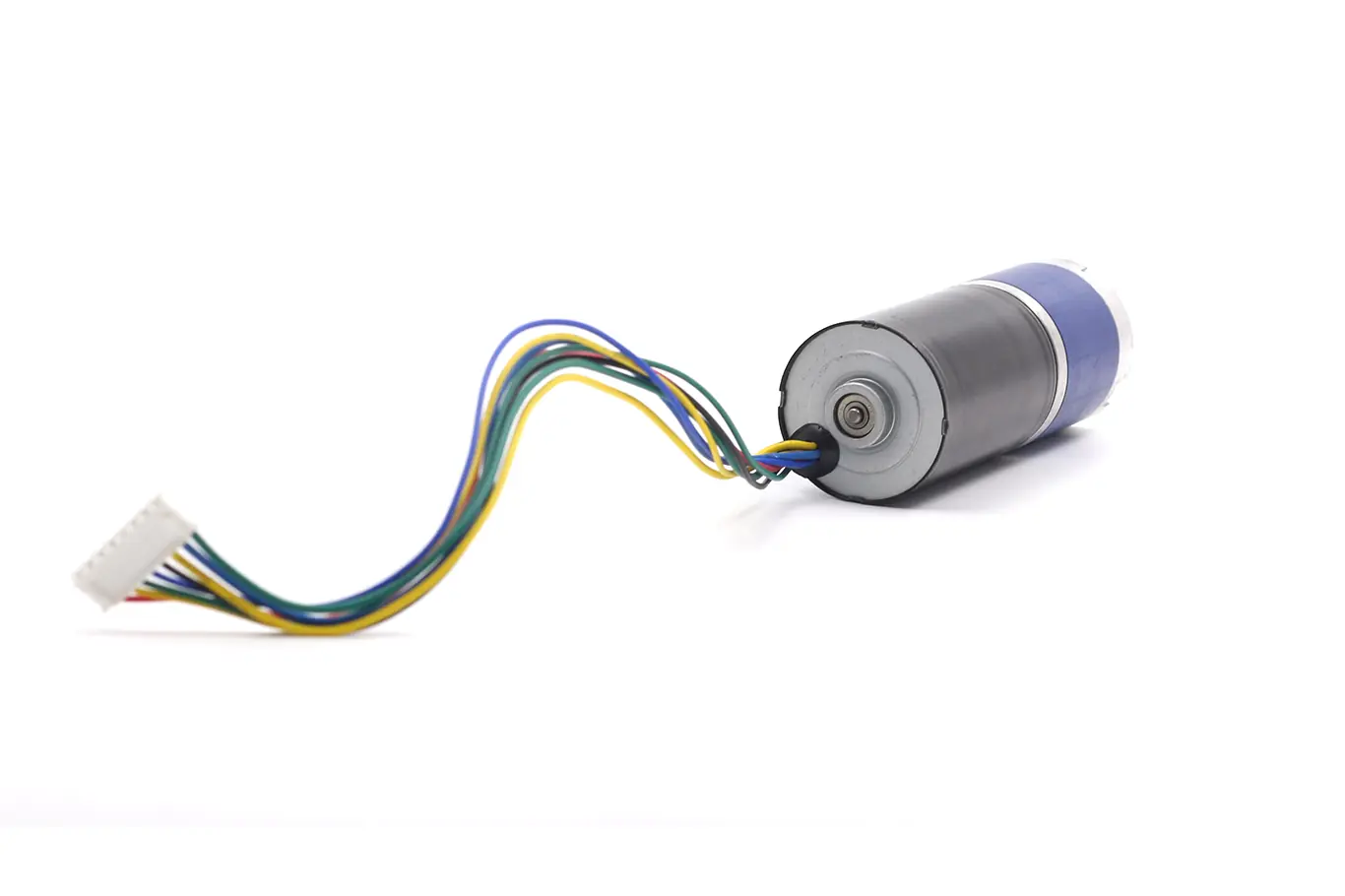

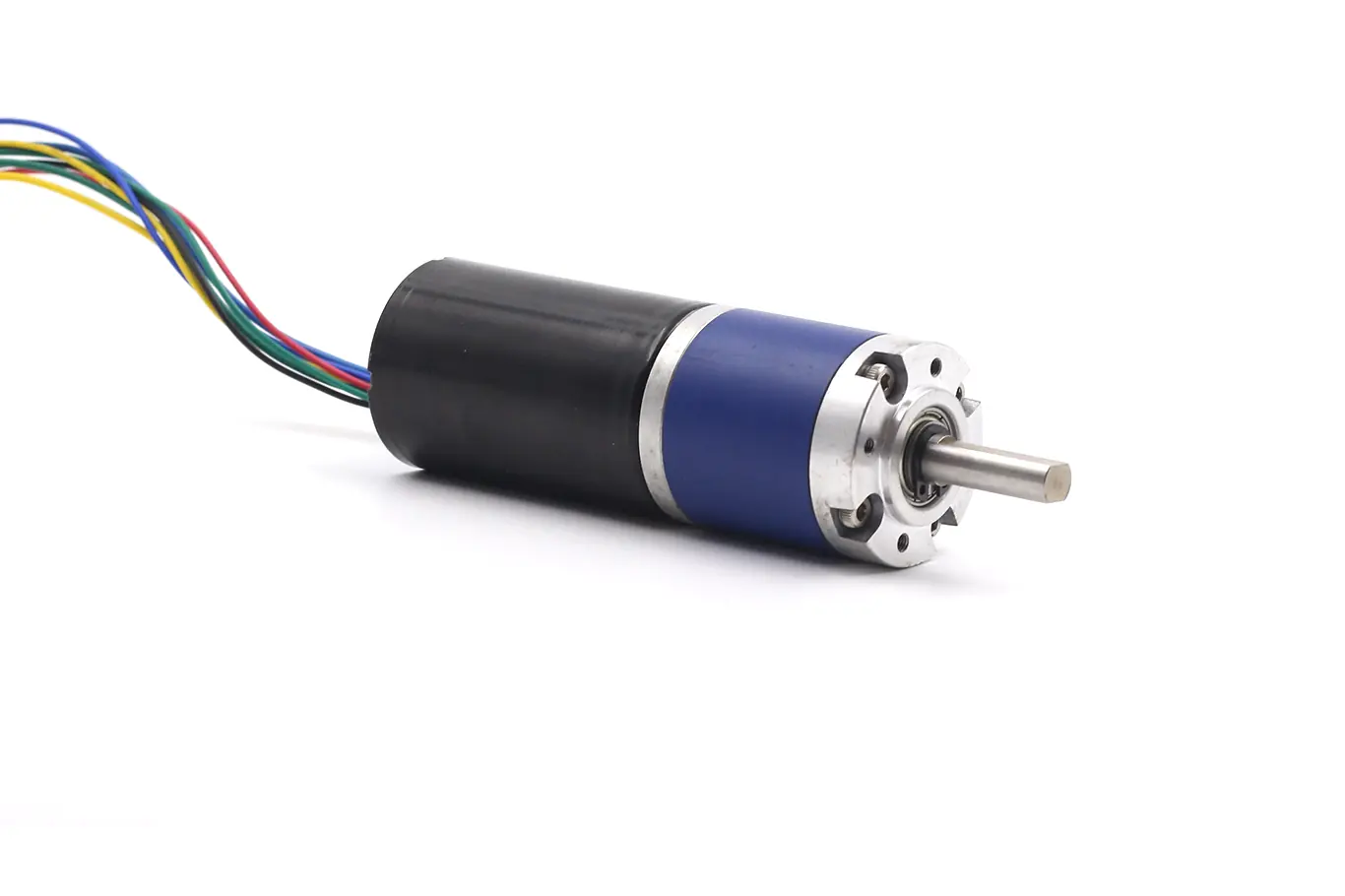

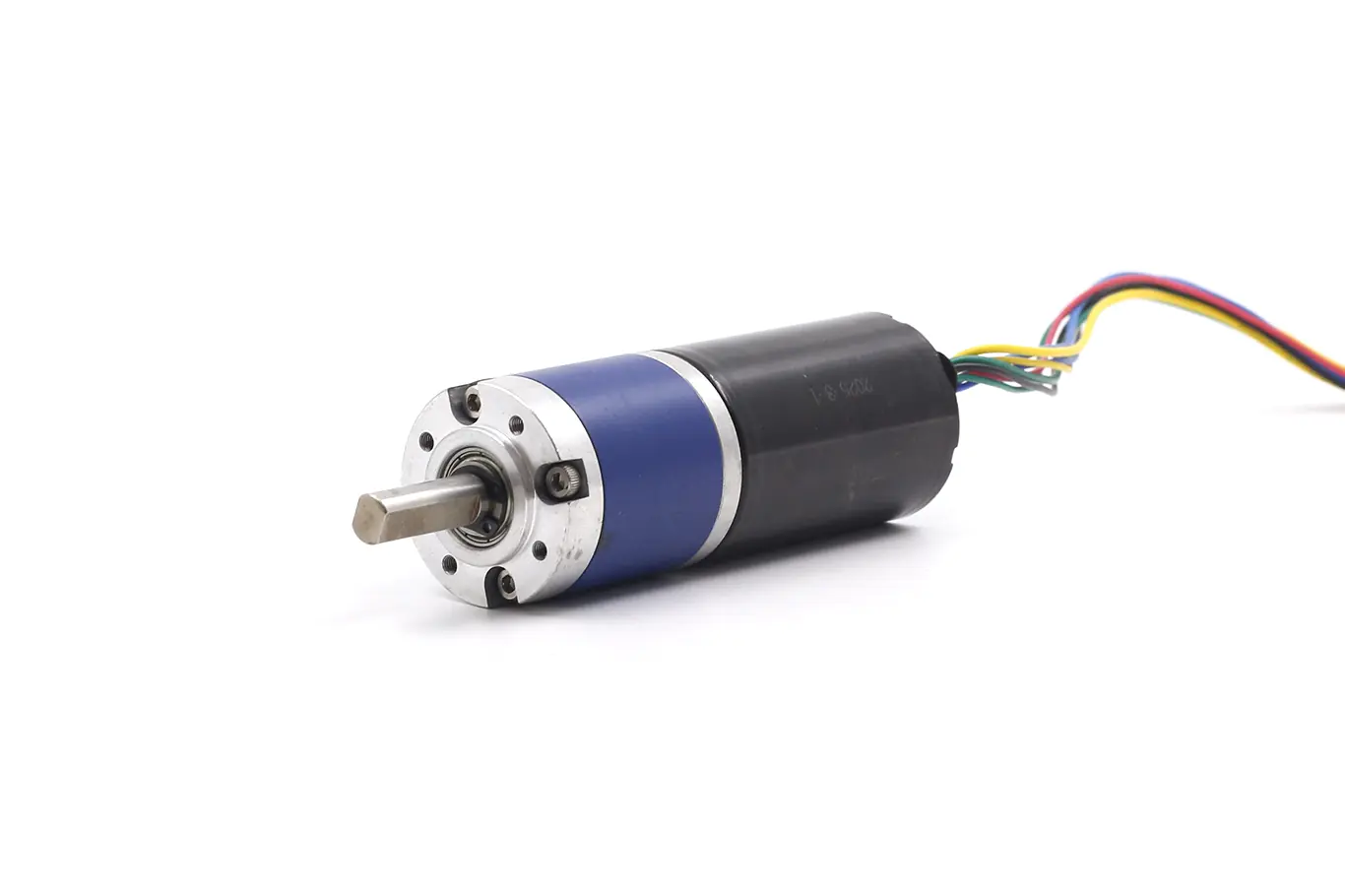

36mm Planetary Gear Motor Model TSL-36GP-BL3650
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-36GP-BL3650
- Voltage:DC 12V/24V/Customized
- Speed:2.1rpm-2160rpm
- Motor Diameter:φ36mm
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Smart locks and automatic door mechanisms
- Camera gimbals and home service robots
- Motorized curtains and lifting systems
Brushless DC Motor With Planetary Gearbox Datasheets
The TSL‑36GP‑BL3650 combines a brushless dc motor with planetary gearbox for smooth, low‑noise performance. Premium imported bearings and high‑grade materials deliver higher speed, better heat resistance, strong load capacity, and long‑lasting durability.
Its one‑piece rotor and 100% pure copper windings ensure efficient, stable output across 2.1–2160 RPM. Available in 12V/24V or fully customized configurations, this brushless dc motor with planetary gearbox is engineered for precision and reliability in demanding applications.
TSL-36GP-BL3650-1280 , 12V
| Ratio | Length | No-load | Rated Load | Stall | |||||
| Speed | Current | Voltage | Torque | Speed | Current | Torque | Current | ||
| i:1 | mm | RPM±10% | A | V | Kg.cm | RPM±10% | A | Kg.cm | A |
| 3.7 | 27 | 2160 | 0.4 | 12 | 0.6 | 1783 | 2 | 2.7 | 4 |
| 5.18 | 27 | 1544 | 0.4 | 12 | 0.9 | 1274 | 2 | 3.15 | 4 |
| 19 | 33 | 421 | 0.4 | 12 | 3 | 347 | 2 | 8.3 | 4 |
| 27 | 33 | 296 | 0.4 | 12 | 4.3 | 244 | 2 | 10 | 4 |
| 50 | 39 | 160 | 0.4 | 12 | 7.3 | 132 | 2 | 18 | 4 |
| 71 | 39 | 112 | 0.4 | 12 | 10.3 | 92 | 2 | 25.2 | 4 |
| 100 | 39 | 80 | 0.4 | 12 | 14.6 | 65 | 2 | 32.5 | 4 |
| 139 | 39 | 57 | 0.4 | 12 | 20.2 | 47 | 2 | 42.9 | 4 |
| 189 | 45 | 42 | 0.4 | 12 | 24.5 | 35 | 2 | 53.4 | 4 |
| 262 | 45 | 30 | 0.4 | 12 | 34 | 25 | 2 | 83.3 | 4 |
| 369 | 45 | 21 | 0.4 | 12 | 47.9 | 18 | 2 | 121 | 4 |
| 427 | 45 | 18 | 0.4 | 12 | 55.5 | 15 | 2 | 150 | 4 |
| 516 | 45 | 15 | 0.4 | 12 | 67 | 12 | 2 | 160 | 4 |
| 596 | 45 | 13 | 0.4 | 12 | 77 | 10 | 2 | 160 | 4 |
| 721 | 45 | 11 | 0.4 | 12 | 93 | 9 | 2 | 160 | 4 |
| 806 | 51.2 | 10 | 0.4 | 12 | 95 | 8 | 2 | 160 | 4 |
| 969 | 51.2 | 8 | 0.4 | 12 | 114 | 6.7 | 2 | 160 | 4 |
| 1574 | 51.2 | 5 | 0.4 | 12 | 150 | 4.1 | 2 | 160 | 4 |
| 1902 | 51.2 | 4.2 | 0.4 | 12 | 150 | 3.4 | 2 | 160 | 4 |
| 2200 | 51.2 | 3.6 | 0.4 | 12 | 150 | 3 | 2 | 160 | 4 |
| 2664 | 51.2 | 3 | 0.4 | 12 | 150 | 2.4 | 2 | 160 | 4 |
| 3080 | 51.2 | 2.6 | 0.4 | 12 | 150 | 2.1 | 2 | 160 | 4 |
| 3730 | 51.2 | 2.1 | 0.4 | 12 | 150 | 1.7 | 2 | 160 | 4 |
💕The brushless dc motor with planetary gearbox’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-36GP-BL3650-2480 , 24V
| Ratio | Length | No-load | Rated Load | Stall | |||||
| Speed | Current | Voltage | Torque | Speed | Current | Torque | Current | ||
| i:1 | mm | RPM±10% | A | V | Kg.cm | RPM±10% | A | Kg.cm | A |
| 3.7 | 27 | 2160 | 0.3 | 12 | 0.6 | 1783 | 1 | 2.9 | 3.5 |
| 5.18 | 27 | 1544 | 0.3 | 12 | 0.9 | 1274 | 1 | 3.25 | 3.5 |
| 19 | 33 | 421 | 0.3 | 12 | 3 | 347 | 1 | 8.9 | 3.5 |
| 27 | 33 | 296 | 0.3 | 12 | 4.3 | 244 | 1 | 14.4 | 3.5 |
| 50 | 39 | 160 | 0.3 | 12 | 7.3 | 132 | 1 | 21.5 | 3.5 |
| 71 | 39 | 112 | 0.3 | 12 | 10.3 | 92 | 1 | 33 | 3.5 |
| 100 | 39 | 80 | 0.3 | 12 | 14.6 | 65 | 1 | 53 | 3.5 |
| 139 | 39 | 57 | 0.3 | 12 | 20.2 | 47 | 1 | 72.5 | 3.5 |
| 189 | 45 | 42 | 0.3 | 12 | 24.5 | 35 | 1 | 86 | 3.5 |
| 262 | 45 | 30 | 0.3 | 12 | 34 | 25 | 1 | 115 | 3.5 |
| 369 | 45 | 21 | 0.3 | 12 | 47.9 | 18 | 1 | 160 | 3.5 |
| 427 | 45 | 18 | 0.3 | 12 | 55.5 | 15 | 1 | 160 | 3.5 |
| 516 | 45 | 15 | 0.3 | 12 | 67 | 12 | 1 | 160 | 3.5 |
| 596 | 45 | 13 | 0.3 | 12 | 77 | 10 | 1 | 160 | 3.5 |
| 721 | 45 | 11 | 0.3 | 12 | 93 | 9 | 1 | 160 | 3.5 |
| 806 | 51.2 | 10 | 0.3 | 12 | 95 | 8 | 1 | 160 | 3.5 |
| 969 | 51.2 | 8 | 0.3 | 12 | 114 | 6.7 | 1 | 160 | 3.5 |
| 1574 | 51.2 | 5 | 0.3 | 12 | 150 | 4.1 | 1 | 160 | 3.5 |
| 1902 | 51.2 | 4.2 | 0.3 | 12 | 150 | 3.4 | 1 | 160 | 3.5 |
| 2200 | 51.2 | 3.6 | 0.3 | 12 | 150 | 3 | 1 | 160 | 3.5 |
| 2664 | 51.2 | 3 | 0.3 | 12 | 150 | 2.4 | 1 | 160 | 3.5 |
| 3080 | 51.2 | 2.6 | 0.3 | 12 | 150 | 2.1 | 1 | 160 | 3.5 |
| 3730 | 51.2 | 2.1 | 0.3 | 12 | 150 | 1.7 | 1 | 160 | 3.5 |
💕The brushless dc motor with planetary gearbox’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

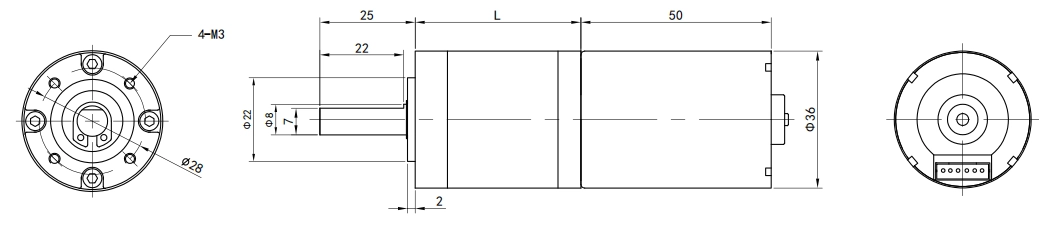

36mm Brushless DC Motor With Planetary Gearbox Mechanical Drawing
Unless otherwise stated, all dimensions of the brushless DC motor with planetary gearbox are in millimeters.
